A.D.O. Zerspanungstechnik GmbH

Germany, 97424 Schweinfurt

Competencies

Technologies

Measuring & Testing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Measuring / testing	1–100 k	1–3,000 mm	1–1,500 mm	1–1,500 mm	1–750 mm	0–1,500 kg	from 0 mm

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Turning	1–1 M	1–3,000 mm	—	—	1–500 mm	—
Automatic turning (bar)	1–1 M	1–3,000 mm	—	—	1–110 mm	—
Swiss turning	1–1 M	1–3,000 mm	—	—	1–110 mm	—
Full-range turning (including milling)	1–1 M	1–1,000 mm	—	—	1–500 mm	—
Hard turning	1–1 M	1–3,000 mm	—	—	1–500 mm	—
Broaching	1–1 M	1–150 mm	—	—	1–500 mm	—
Deep-hole drilling	1–100 k	4–400 mm	4–250 mm	4–250 mm	4–250 mm	0–15 kg
Centering / end facing	1–10,000	1–1,000 mm	—	—	1–500 mm	—
Shaft machining	1–1 M	1–3,000 mm	—	—	1–500 mm	0–50 kg

Gear Making

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Cylindrical gear / spur gear	1–100 k	1–400 mm	—	—	1–300 mm	0–20 kg
Internal teeth	1–1 M	1–400 mm	—	—	20–300 mm	0–20 kg
Bevel gear wheel	1–1 M	1–400 mm	—	—	1–300 mm	0–20 kg
Sprocket (wheel)	1–100 k	1–400 mm	—	—	1–300 mm	0–20 kg
Cogged belt pulley	1–100 k	1–400 mm	—	—	1–300 mm	0–20 kg
Rack (toothed)	1–100 k	1–1,200 mm	1–600 mm	1–600 mm	1–110 mm	0–50 kg
Worm gear	1–100 k	1–400 mm	—	—	1–300 mm	0–20 kg

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

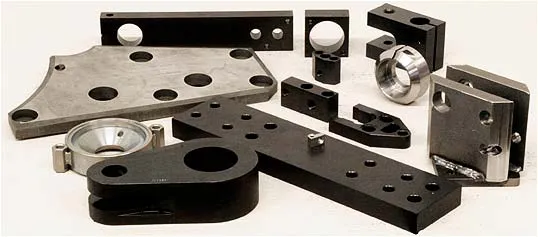

Milling	1–1 M	1–1,200 mm	1–600 mm	1–600 mm	—	0–1,000 kg	—
5-axis milling machines	1–100 k	1–500 mm	1–500 mm	1–500 mm	—	0–1,000 kg	—
Form milling (3 D)	1–1 M	1–1,200 mm	1–600 mm	1–600 mm	—	0–1,000 kg	—
Full-range milling (including turning)	1–100 k	1–300 mm	1–300 mm	1–300 mm	1–300 mm	—	—
HSC milling	1–10,000	1–650 mm	1–410 mm	1–400 mm	from 0 mm	0–500 kg	from 0 mm
Engraver milling	1–100 k	1–1,200 mm	1–600 mm	1–600 mm	1–600 mm	0–1,000 kg	—

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

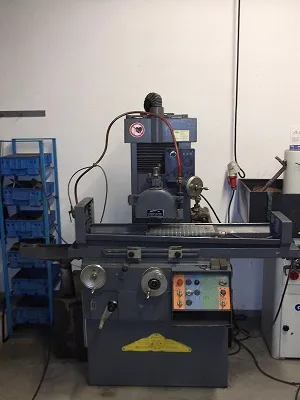

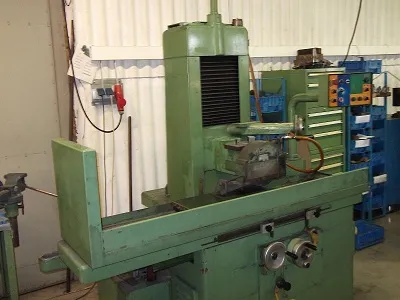

Surface grinding machine	1–10,000	1–700 mm	1–350 mm	1–250 mm	from 0 mm	0–200 kg	from 0 mm

Mould construction

Technologies	Length	Width	Height	Weight
Extrusion dies	4–250 mm	4–250 mm	4–250 mm	0–15 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

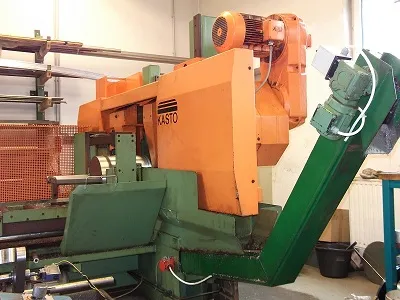

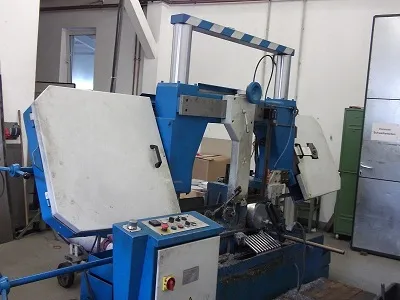

Sawing	1–100 k	1–3,000 mm	1–500 mm	1–500 mm	1–2,000 mm	—
Drilling / threading / tapping	1–100 k	1–1,200 mm	1–600 mm	1–600 mm	—	0–1,000 kg

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Plastics/synthetic materials

ThermoplasticsThermosetsElastomers

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Cast metals

Cast steelCast iron

Industries

Plant engineering and constructionChemical industryInformation technology (hardware)Household appliance industryMedical technologyShipbuilding industryBoiler, container and tank construction Automotive and vehicle constructionPackaging industryClean room technologyMeasurement and control technique, laboratory equipmentTelecommunication industrySpecial purpose machinery manufacturingAerospace and aviation industryPrecision engineering, mechatronics and opticsHydraulic and pneumatic industryAutomation and control engineeringElectrical industryMechanical engineeringPaper and printing machinery industryBuilding, agricultural and forestry machinery manufacturingOffice machinery and suppliesRailway and rail vehicles industryFittings engineeringDrive and gear engineeringPower generation and transmission industryMachine tool manufacturingLighting industryMining and tunnel engineeringFurniture industryMilitary engineeringAir conditioning, refrigeration and ventilation industryConstruction and architectural suppliesApparatus engineering

+26 moreShow less
