Böhl-Kunststofftechnik GmbH & Co. KG

Germany, 57319 Bad Berleburg-Aue

Competencies

Technologies

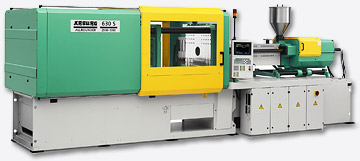

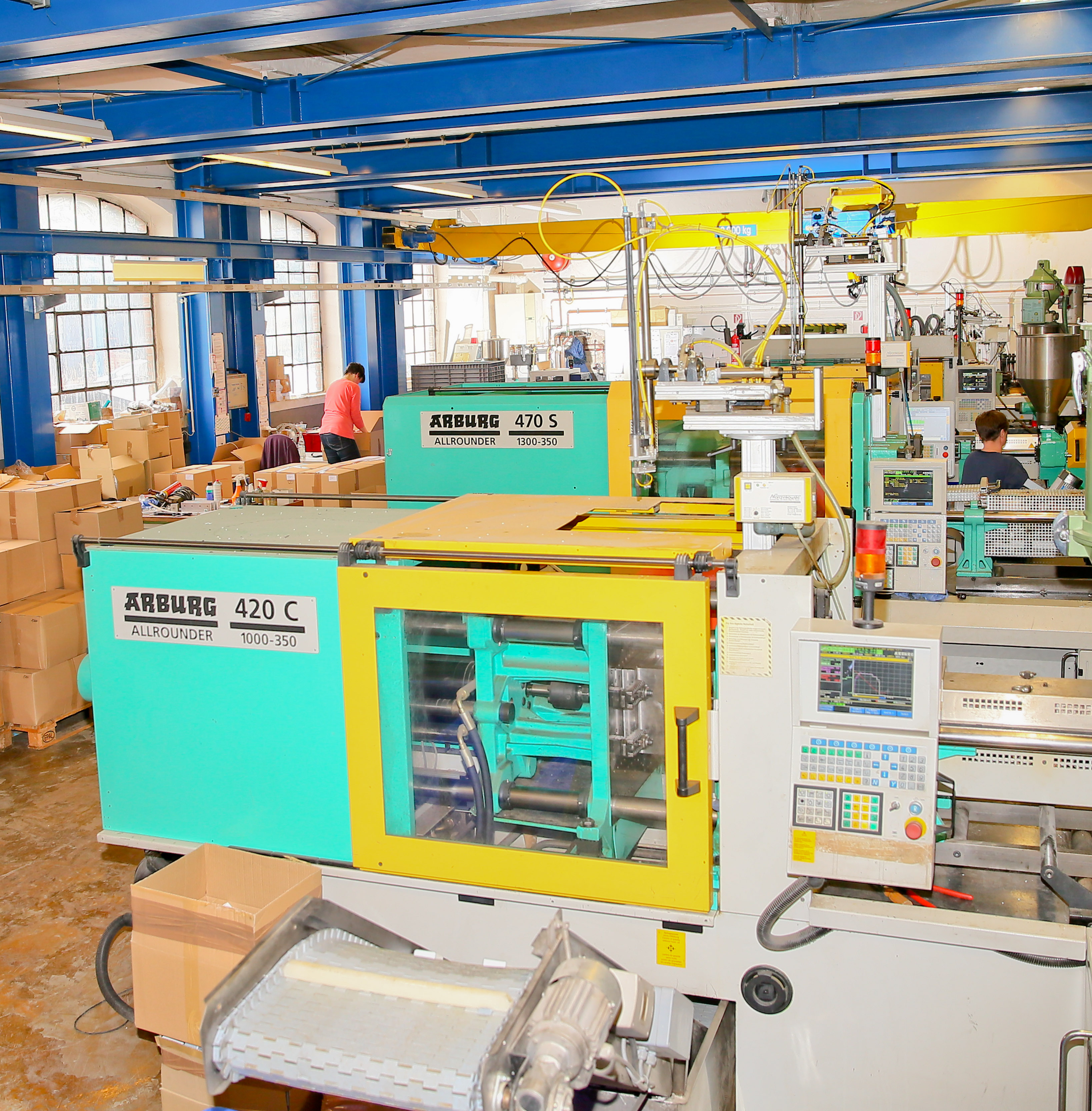

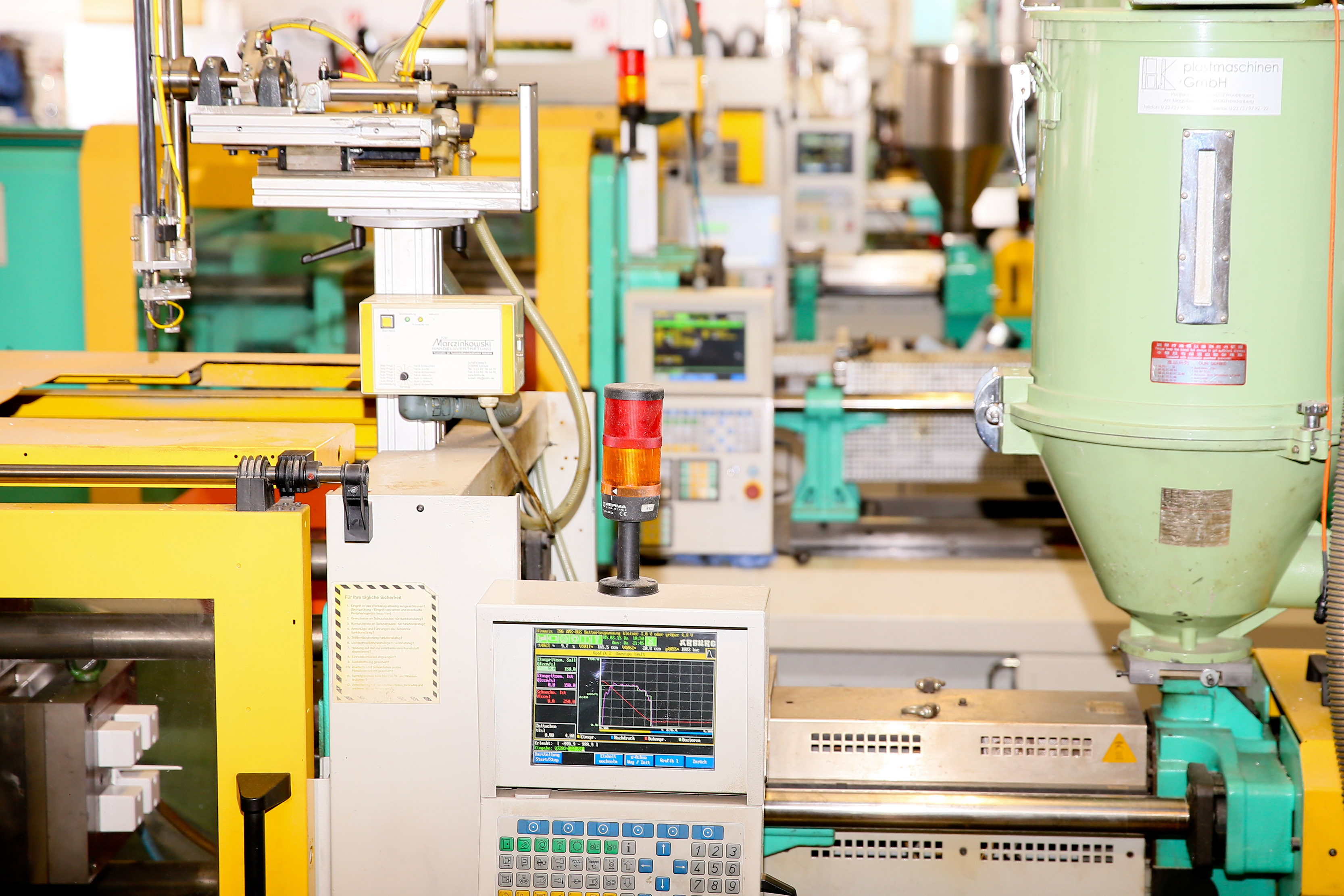

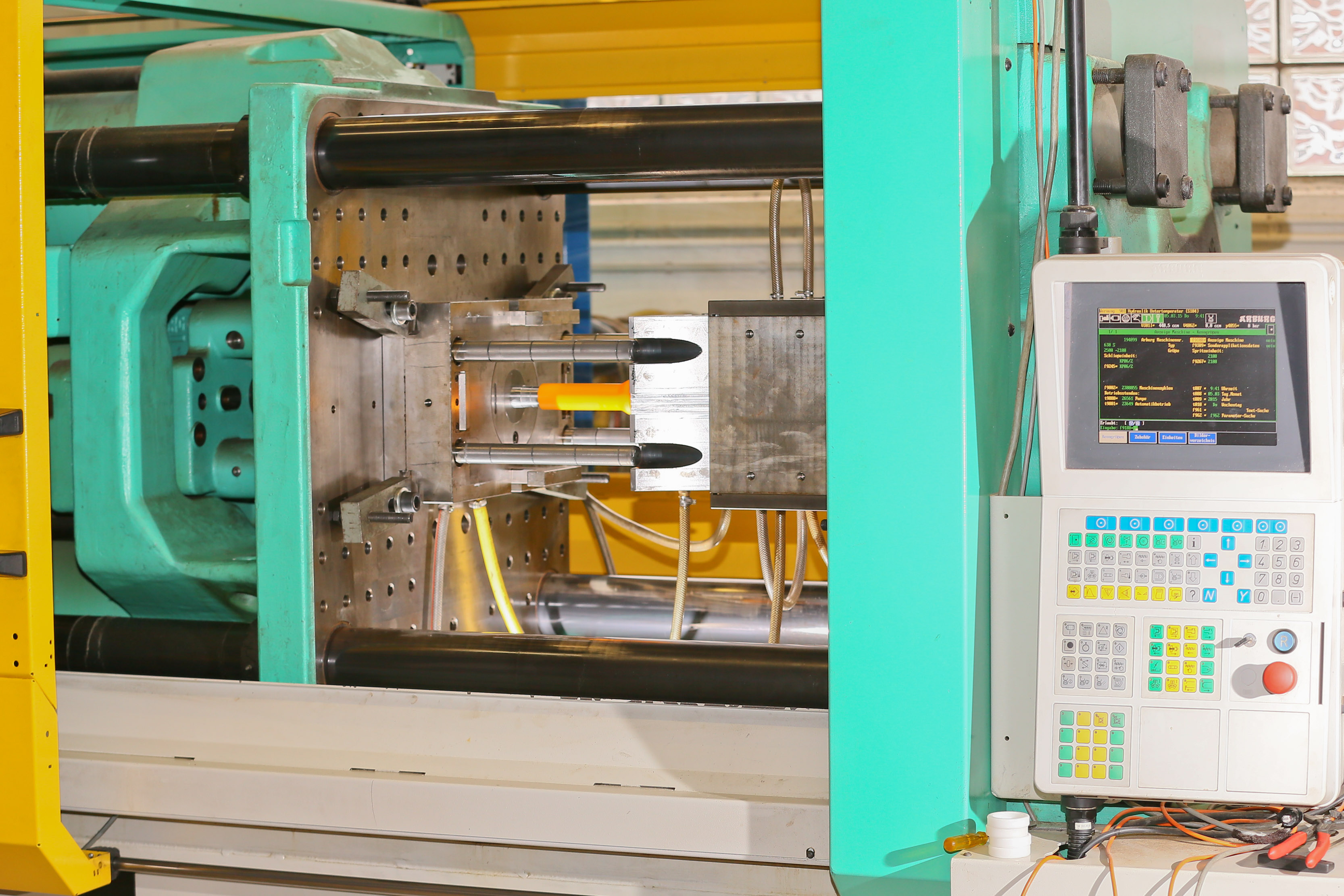

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Injection moulding	from 100	0.2–10,000 mm	0.2–600 mm	0.2–800 mm	—	0–1.2 kg	—
Injection-mould around inserts	1–100,000	1–400 mm	1–400 mm	1–400 mm	—	0–1.2 kg	—

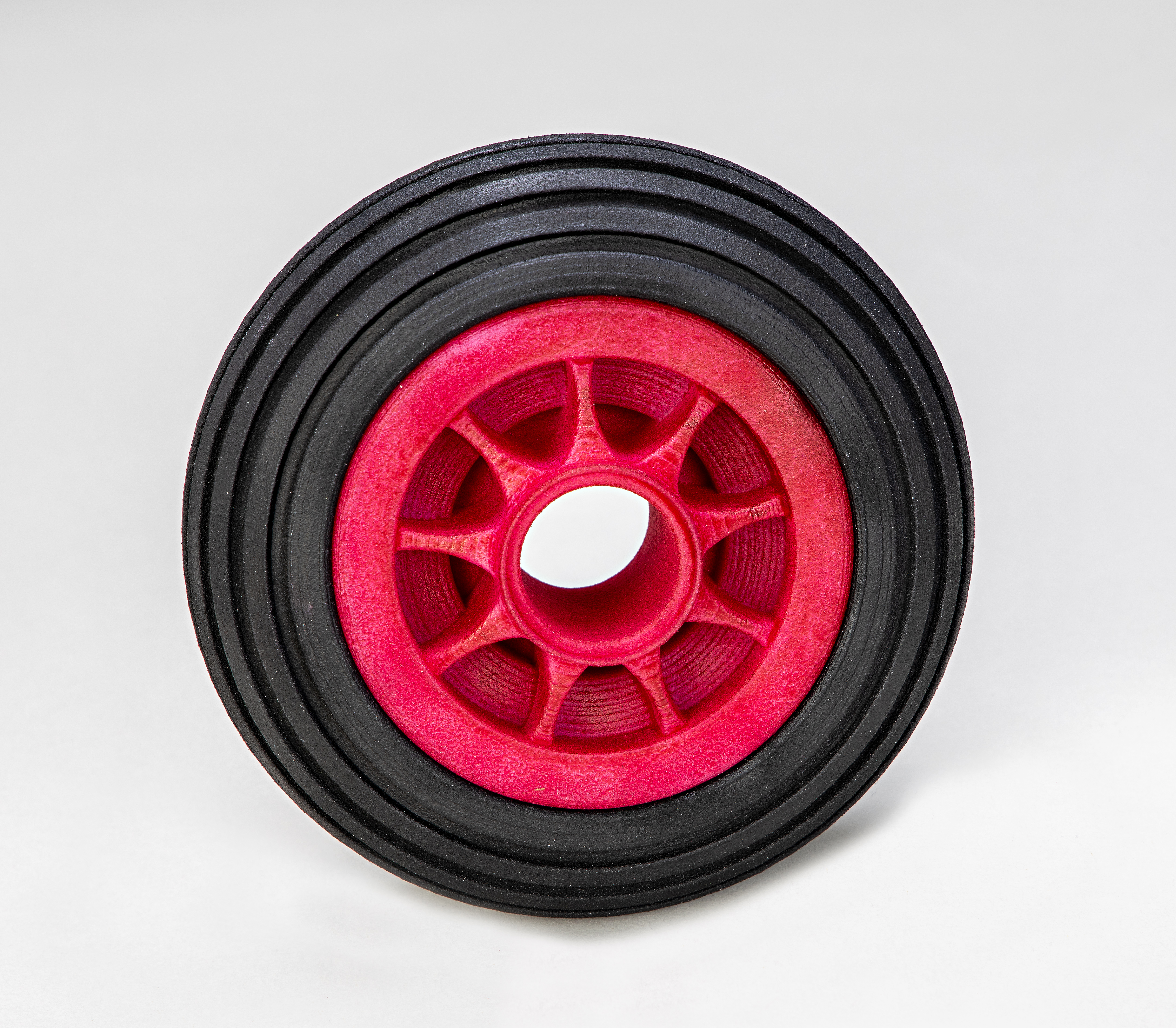

Multi component injection moulding	1–900,000	1–600 mm	1–600 mm	1–600 mm	—	0–1.3 kg	—

Mould construction

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

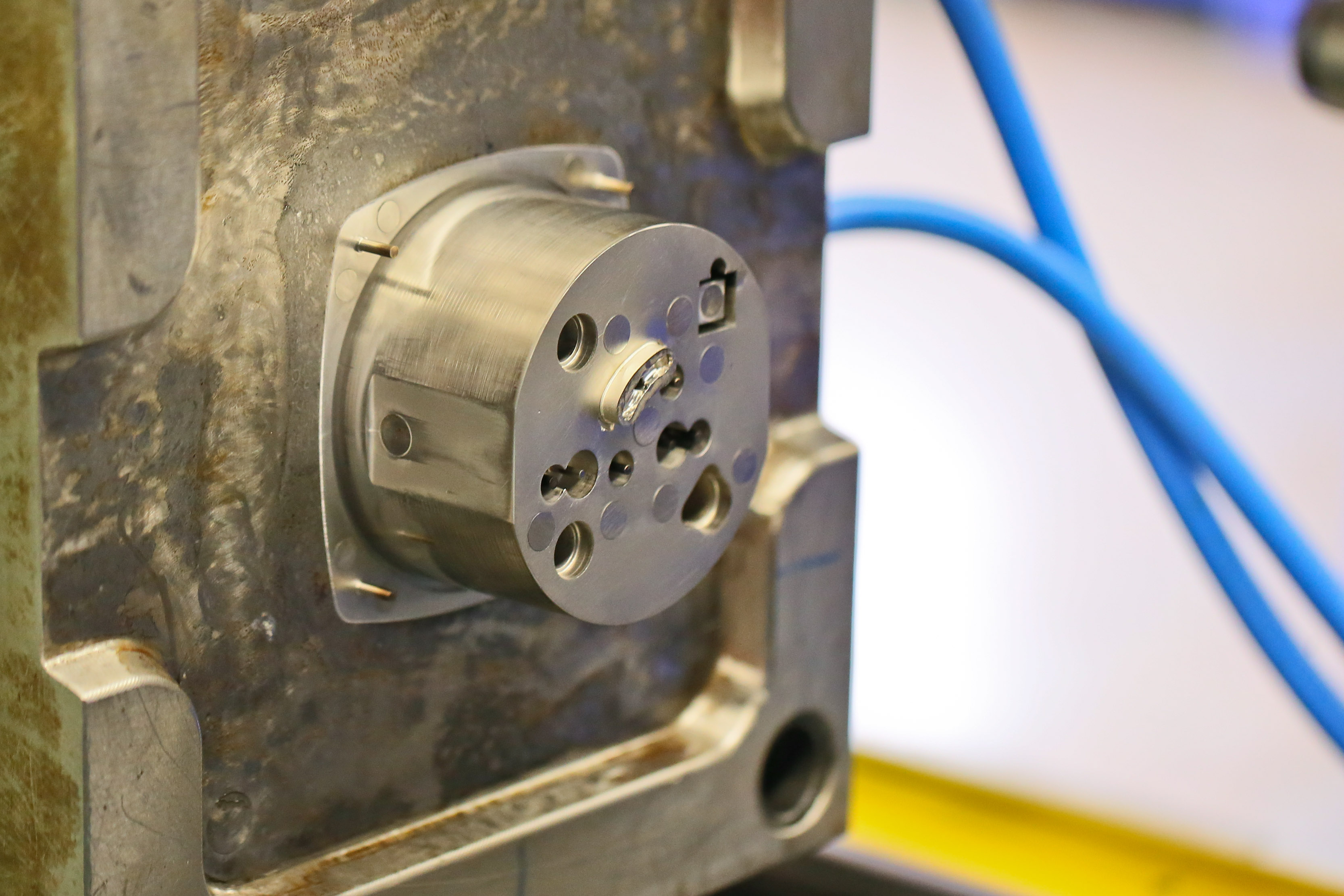

Injection moulds	—	126–1,000 mm	126–800 mm	126–1,000 mm	—	0–3,200 kg	—
Modelmaking	—	1–900 mm	1–900 mm	1–900 mm	—	0–1,000 kg	—

Assembly

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Mechanical assembly	—	—	—	—	—	0–50 kg	—
Electromechanical assembly	—	—	—	—	—	0–50 kg	—

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Fused deposition modelling (FDM)	1–300	1–400 mm	1–400 mm	1–400 mm	—	—	—

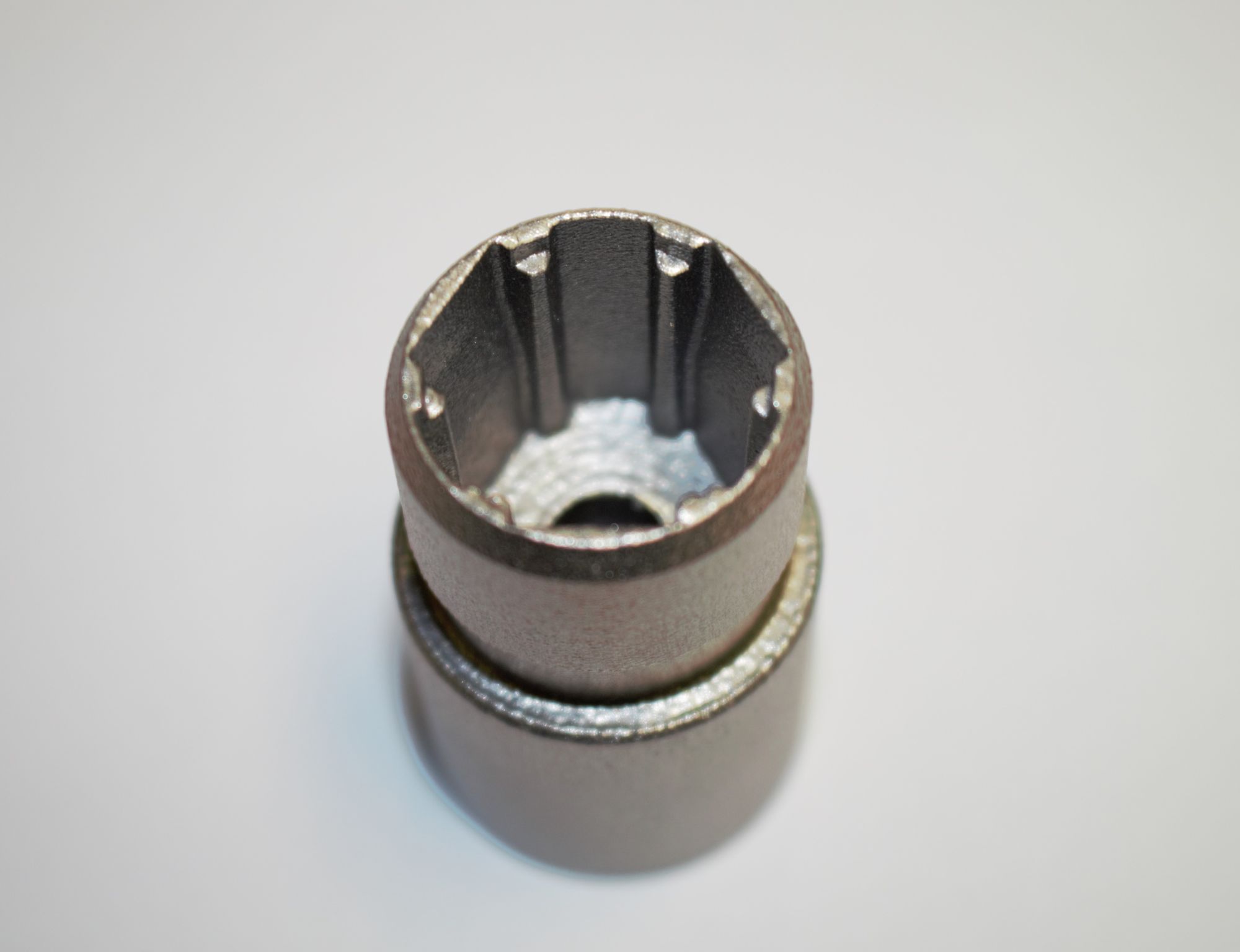

Metal laser sintering	1–250	1–800 mm	1–600 mm	1–600 mm	—	—	—
Multi-jet modelling (MJM)	1–1,000	1–300 mm	3–300 mm	1–300 mm	—	—	—
3D printing (general)	1–500	1–500 mm	1–500 mm	1–500 mm	—	—	—
Selective Laser Melting (SLM)	1–100	1–600 mm	1–600 mm	1–600 mm	2–400 mm	0–60 kg	0.3–150 mm

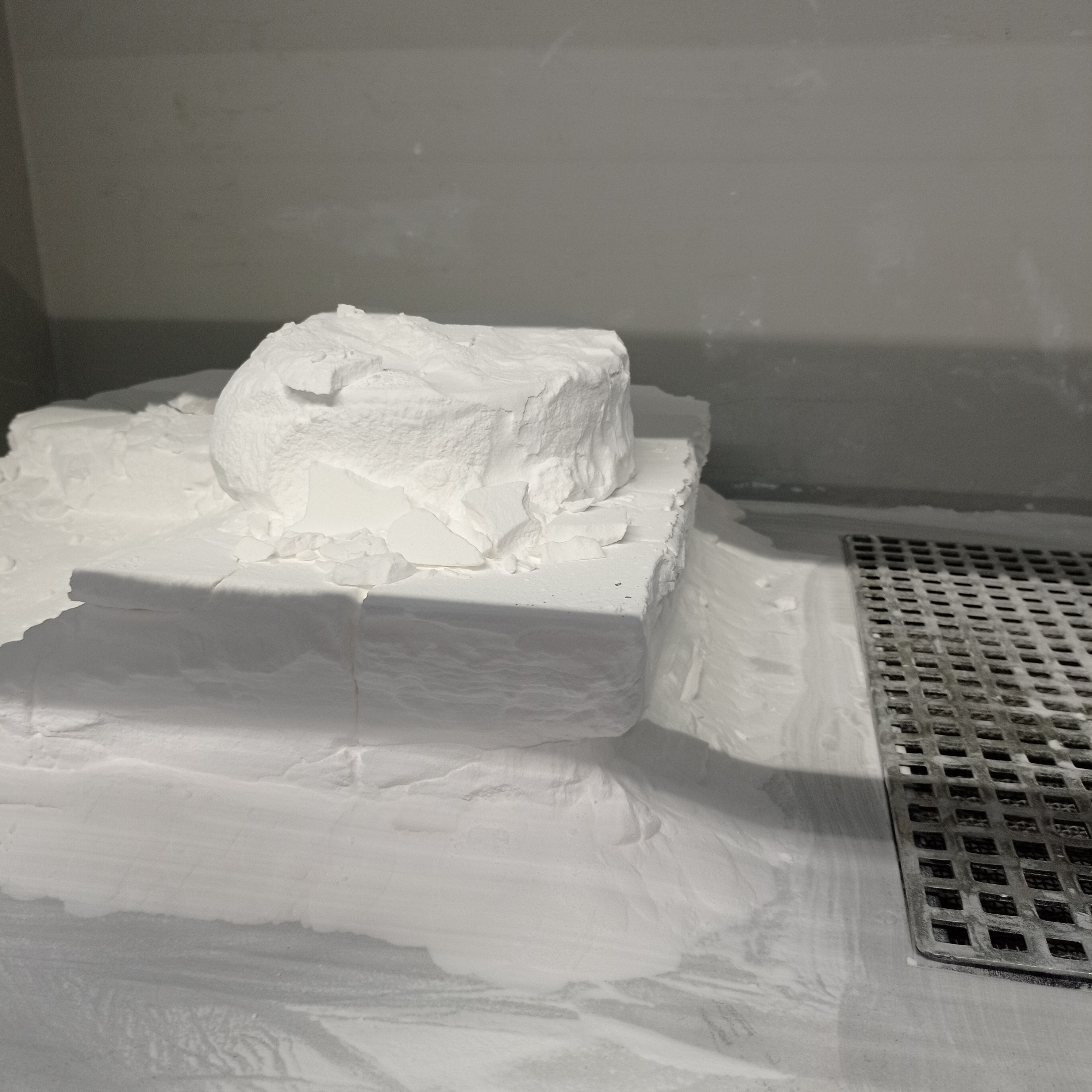

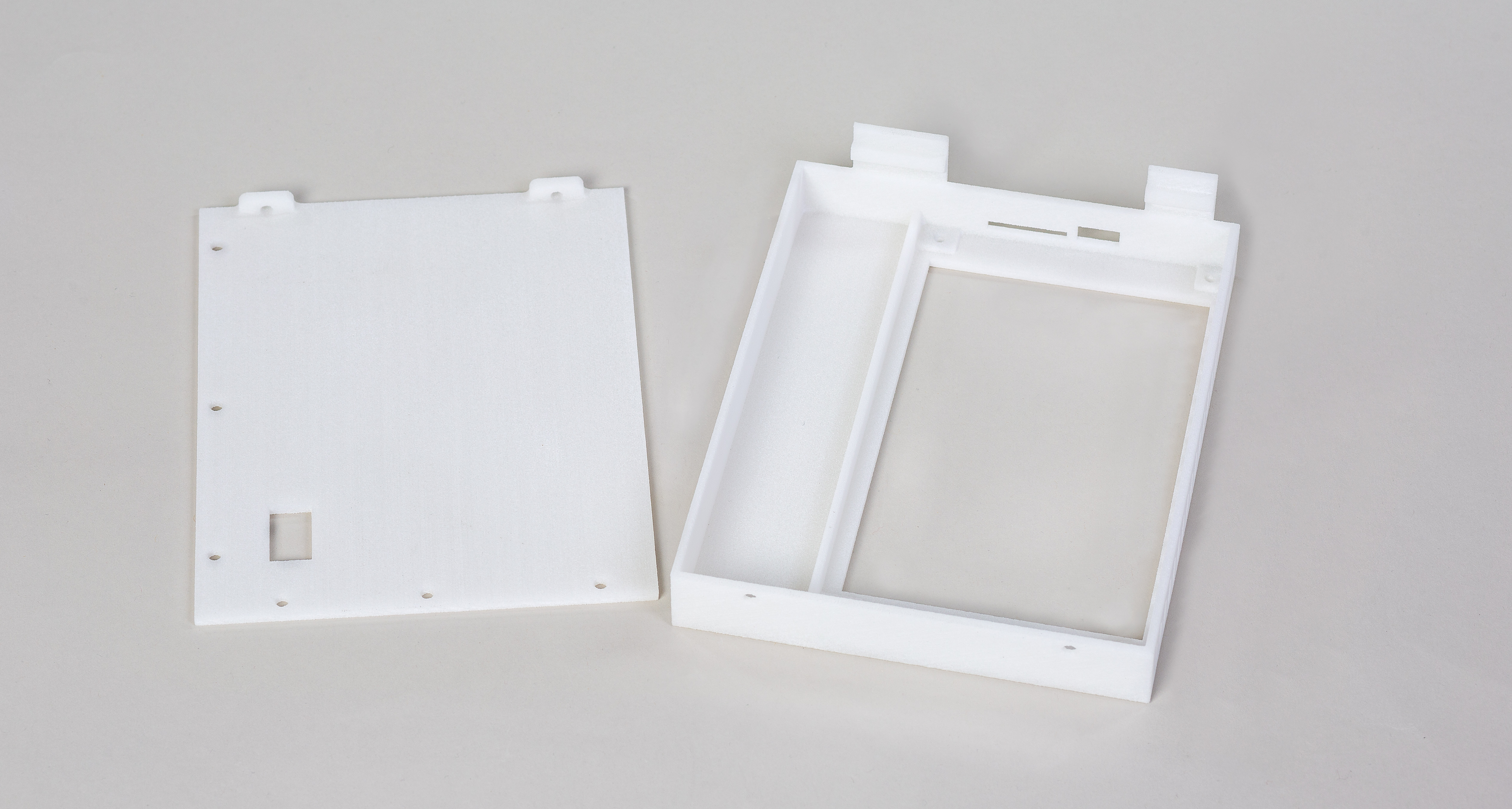

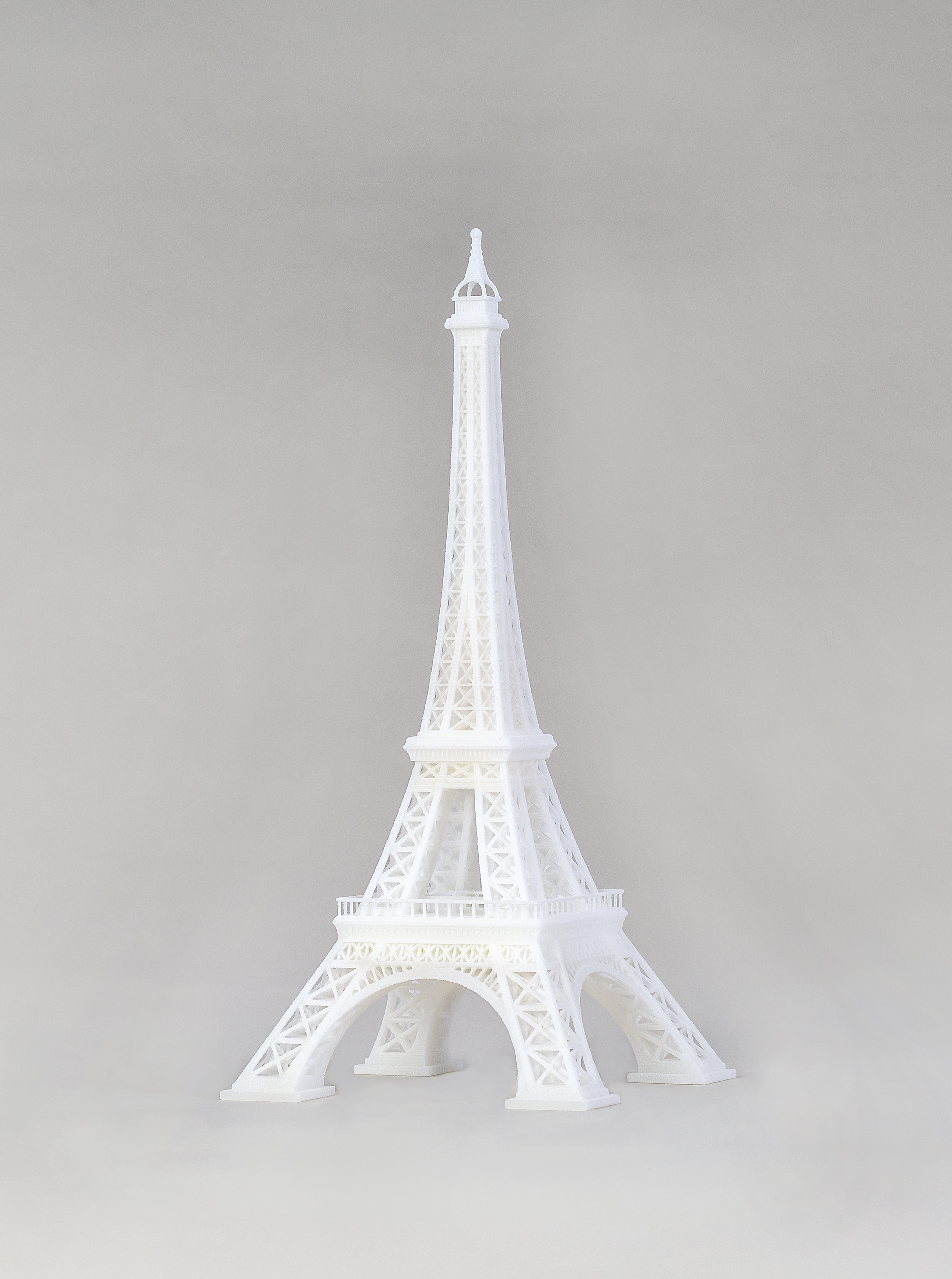

Selective laser sintering	1–200	0.1–500 mm	0.1–500 mm	0.1–500 mm	—	—	—
Stereolithography (SLA)	1–100	1–800 mm	1–450 mm	1–600 mm	—	—	—
Vacuum casting	2–300	1–500 mm	1–450 mm	1–450 mm	—	0–120 kg	—

Jigmaking

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Measuring / testing jigs	—	1–1,000 mm	1–1,000 mm	1–1,000 mm	—	0–1,000 kg	—

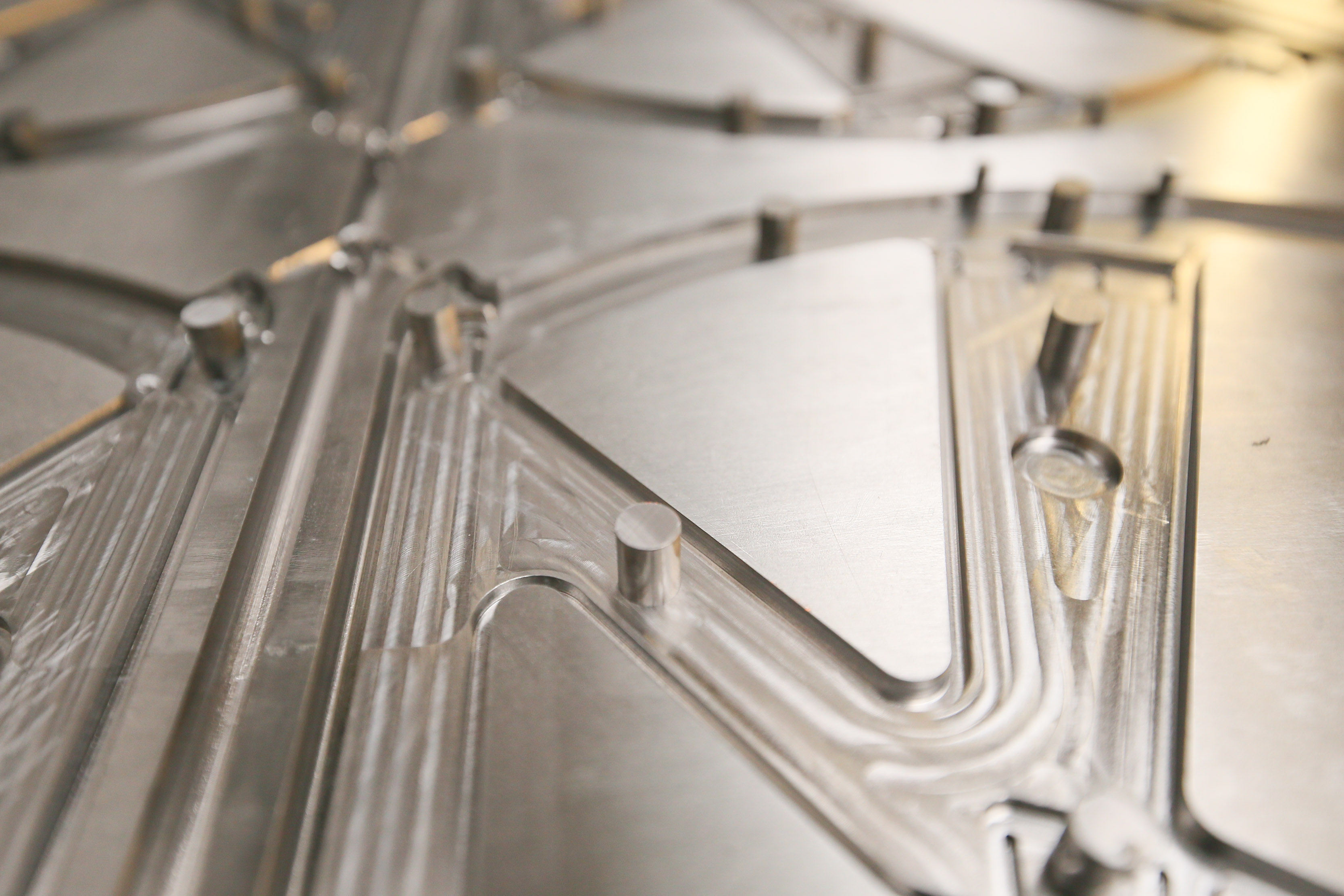

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Milling	1–10,000	1–800 mm	1–1,000 mm	1–800 mm	—	0–3,000 kg	—
Form milling (3 D)	1–1,000	1–1,000 mm	1–1,000 mm	1–1,000 mm	—	0–500 kg	—

Joining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Ultrasonic welding	1–1,000,000	1–800 mm	1–800 mm	—	—	—	0.5–10 mm

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Electroplating	1–100,000	1–6,000 mm	1–6,000 mm	1–6,000 mm	—	0–10 kg	—
PVD-coating	1–1,000,000	1–400 mm	1–400 mm	1–400 mm	1–390 mm	0–6 kg	0.8–6 mm

Materials

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)

Cast metals

Cast steel

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Light metals

Aluminium and aluminium alloys

Sintered materials

Metal powder for formed parts

Steel

Case hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel

Non-metal inorganic materials

Graphite

Industries

Chemical industryMedical technologyLighting industryElectrical industryFittings engineeringAutomotive and vehicle constructionFurniture industryPackaging industry
