Brinkmann Formenbau GmbH

Germany, 49439 Mühlen

Competencies

Technologies

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Weight
Injection moulding	1–10 M	1–1,200 mm	1–1,200 mm	1–1,200 mm	0–7 kg
Injection-mould around inserts	1–10 M	1–1,200 mm	1–1,200 mm	1–1,200 mm	0–7 kg
Multi component injection moulding	1–10 M	1–505 mm	1–505 mm	1–505 mm	0–3.1 kg

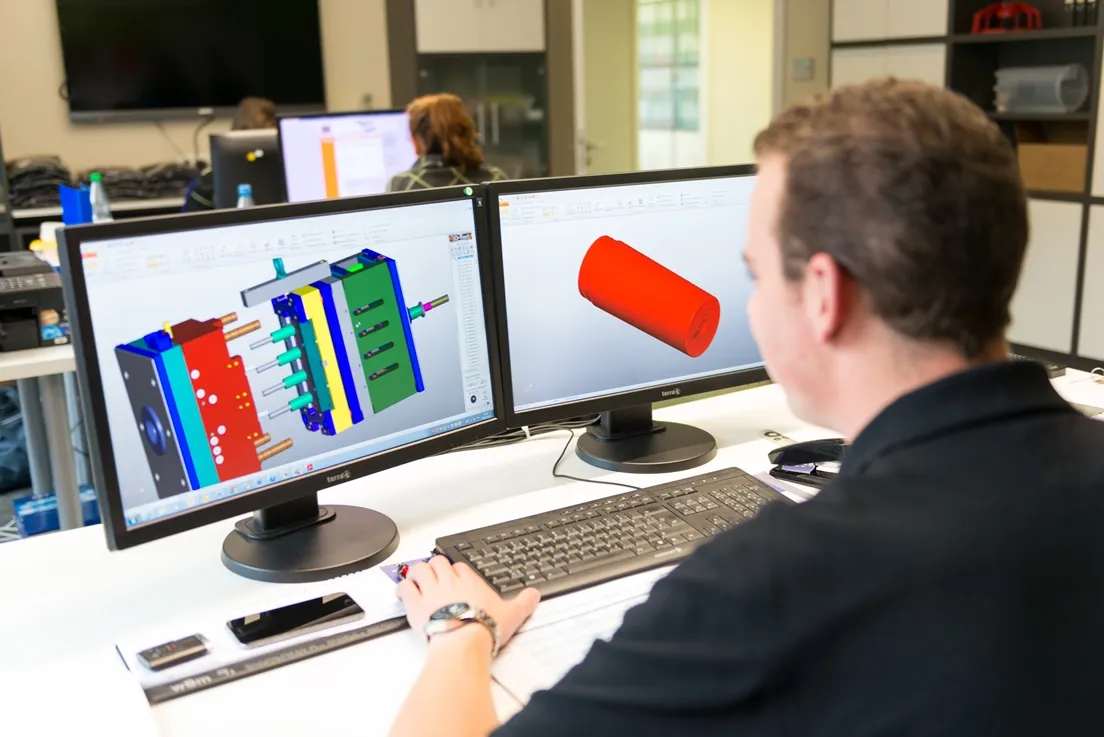

Mould construction

Technologies	Length	Width	Height	Weight

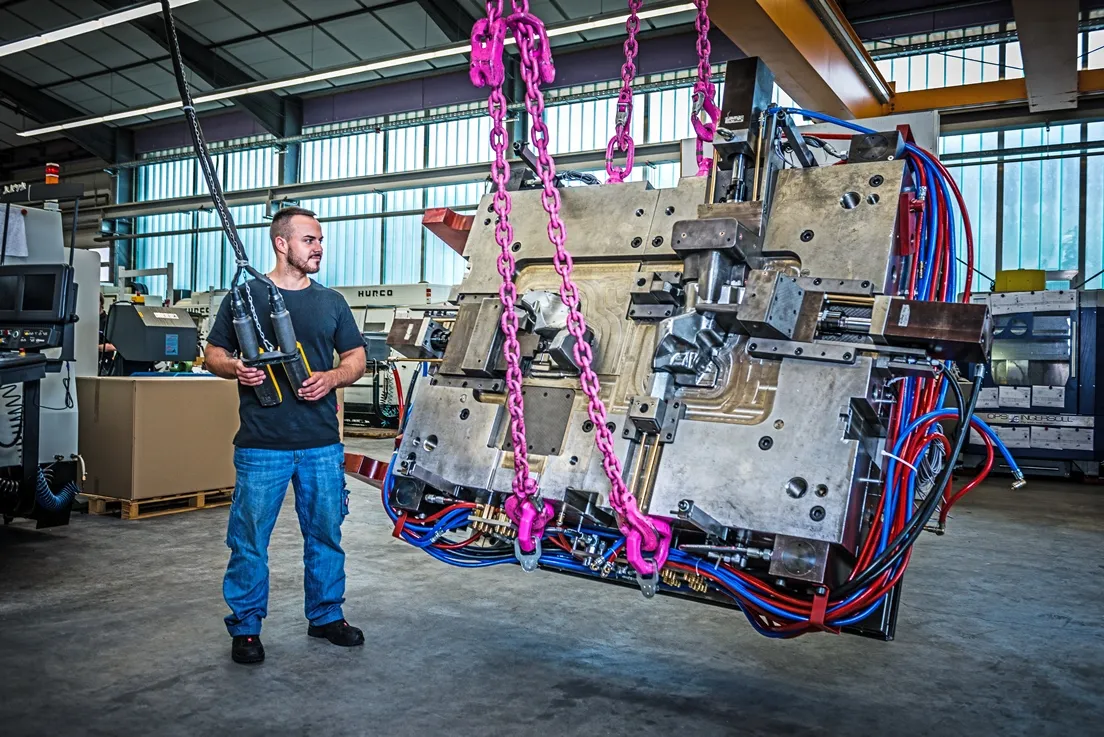

Injection moulds	1–1,200 mm	1–1,200 mm	1–1,200 mm	0–20,000 kg
Pressure die cast molds	1–1,200 mm	1–1,200 mm	1–1,200 mm	0–10,000 kg
Foam molds	1–1,200 mm	1–1,200 mm	1–1,200 mm	0–20,000 kg

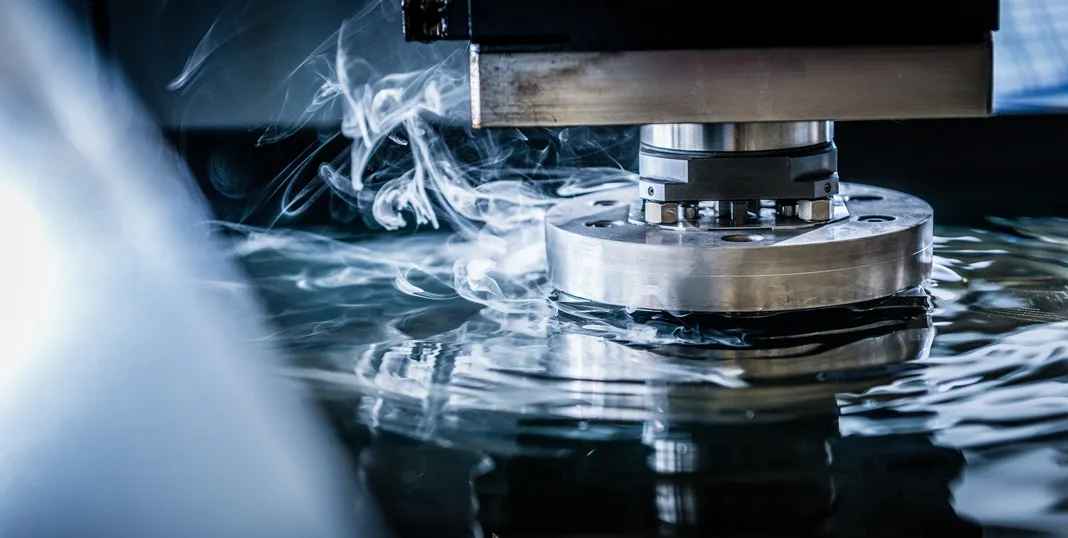

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight

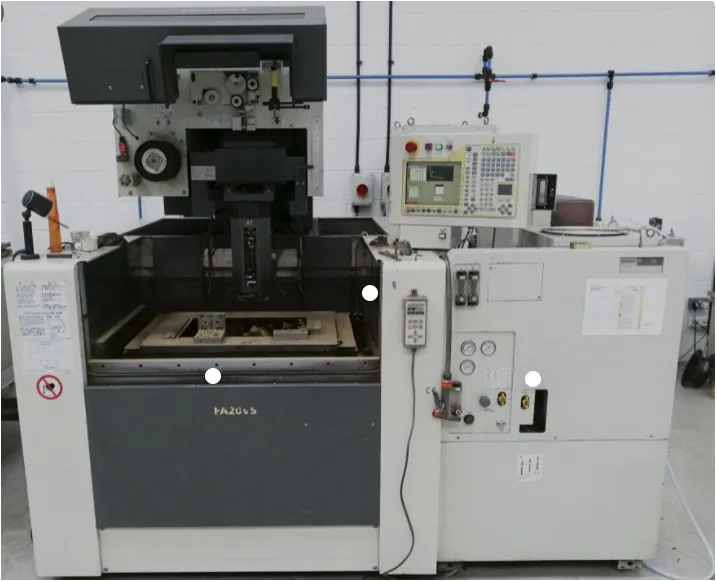

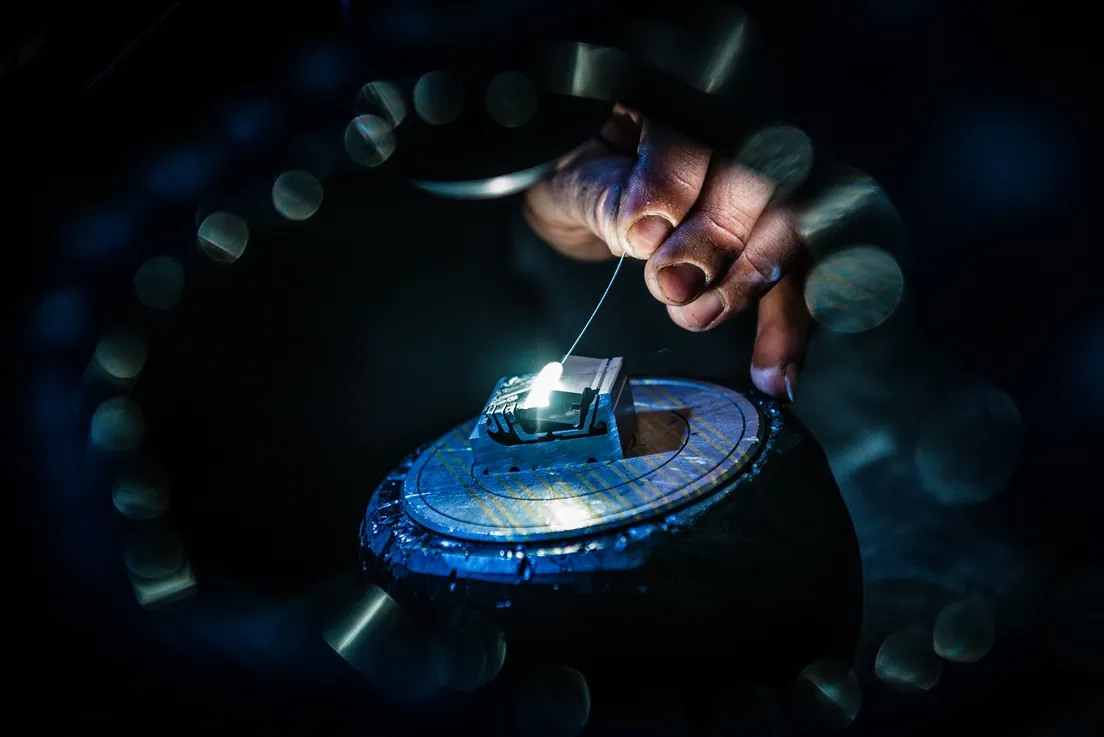

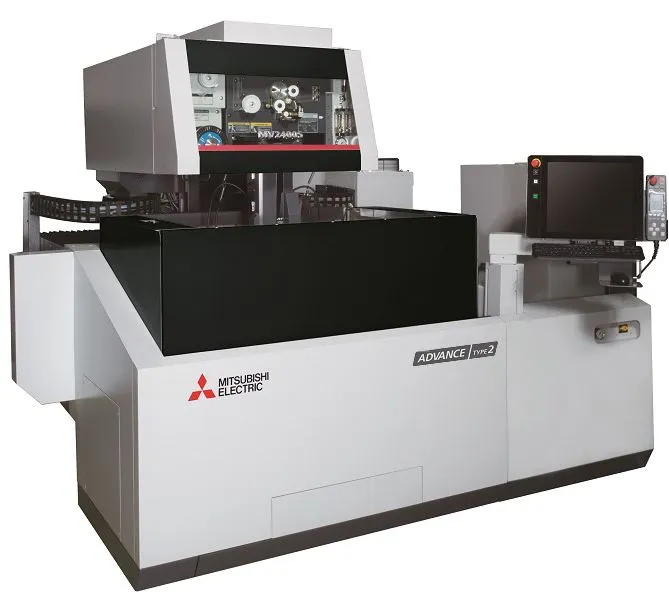

Spark erosion wire cutting	1–100 k	1–495 mm	1–390 mm	1–300 mm	0–1,000 kg

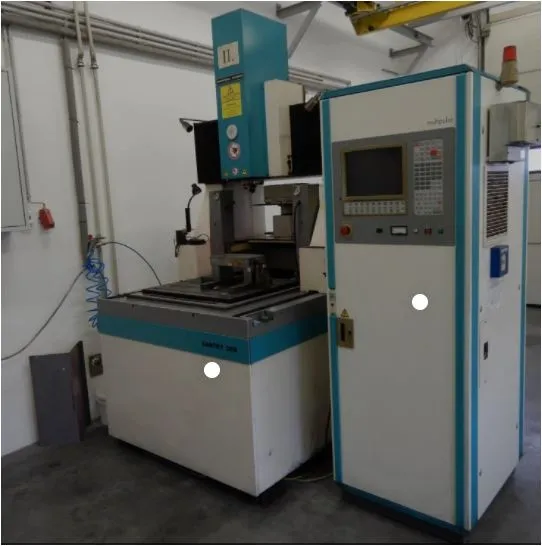

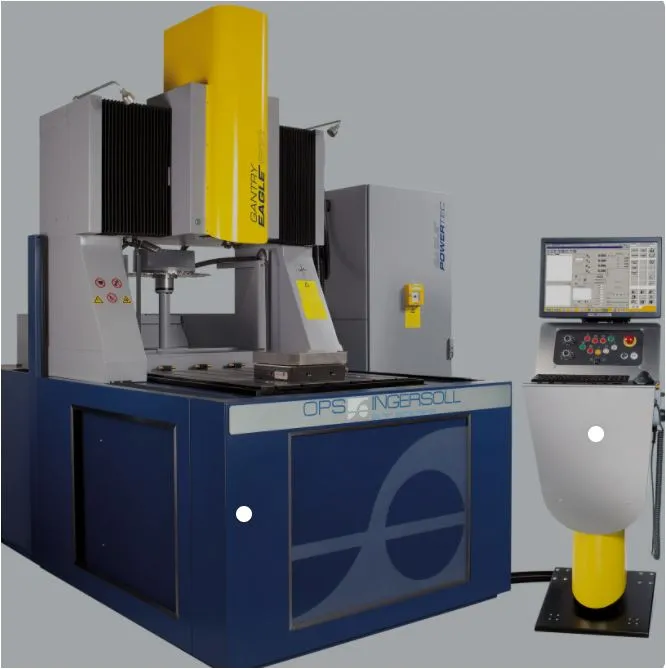

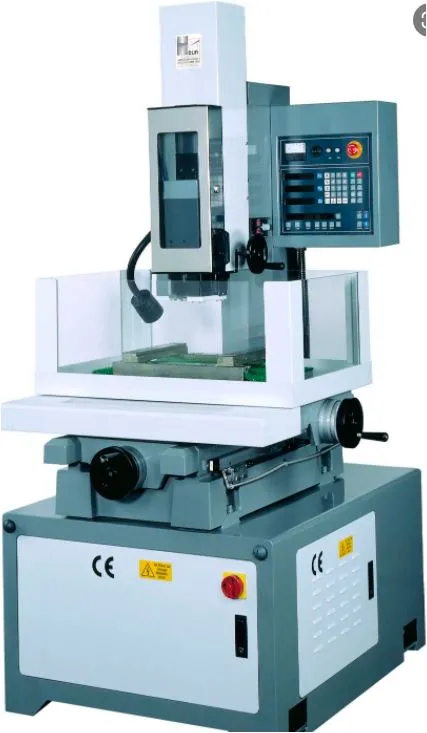

Spark erosion countersinking	1–10,000	1–1,750 mm	1–1,250 mm	1–625 mm	0–7,000 kg

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	1–500 mm	1–500 mm	1–500 mm	0–10,000 kg
Die replacement / wearing part manufacturing	—	—	—	—

Assembly

Technologies	Weight
Mechanical assembly	0–10,000 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

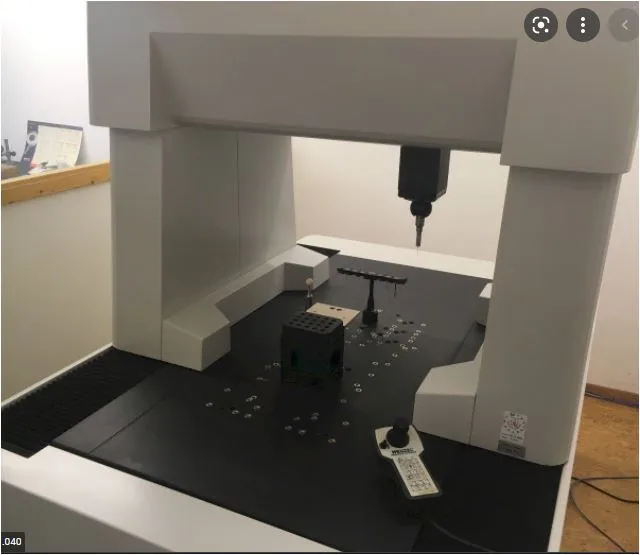

Measuring / testing	1–500 mm	1–500 mm	1–500 mm	1–500 mm	0–350 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–25	1–300 mm	—	—	1–250 mm	—

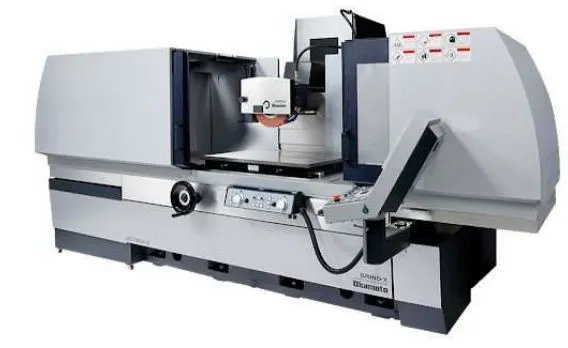

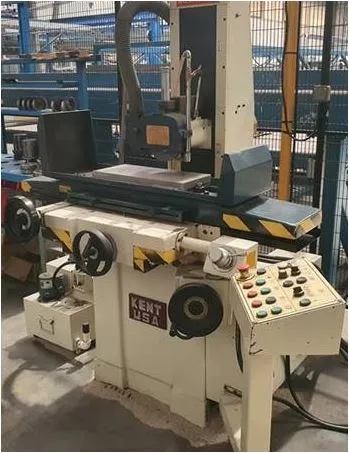

Surface grinding machine	1–105	1–705 mm	1–405 mm	1–305 mm	—	0–750 kg

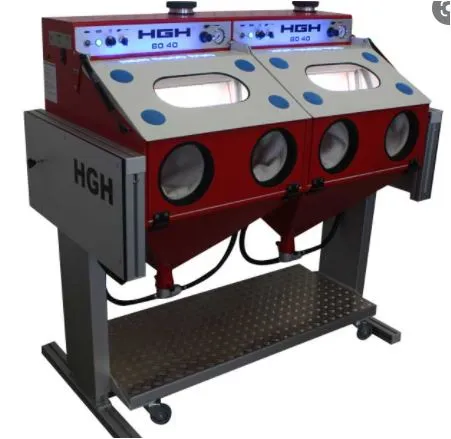

Shot blasting	1–250	1–350 mm	1–350 mm	1–200 mm	—	0–200 kg

Machining (Plastics & Rubber)

Technologies	Lotsize	Length	Diameter

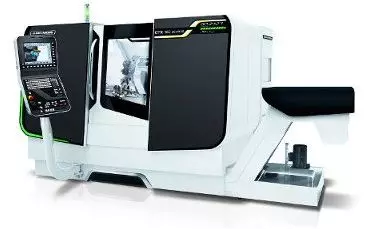

Automatic turning (bar)	100–10,000	10–350 mm	1–60 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Inert gas shielded arc welding (TIG)	1–99	1–2,100 mm	1–1,520 mm	1–1,520 mm	—	0–5,000 kg
Laser-beam welding	0–99	0–2,100 mm	0–2,100 mm	0–1,700 mm	0–1,750 mm	0–1,500 kg

Milling

Technologies	Lotsize	Length	Width	Height	Weight

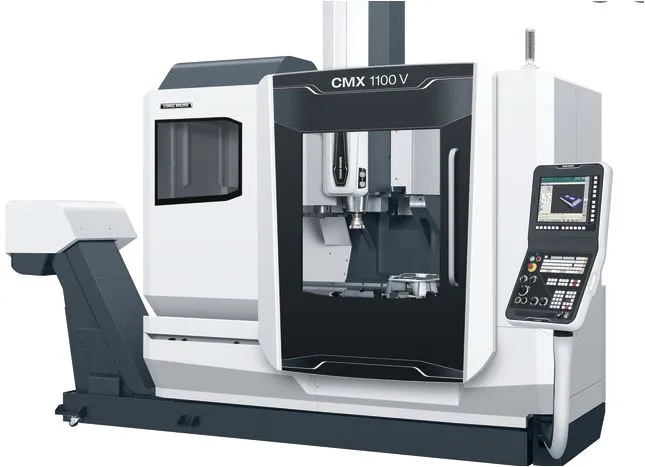

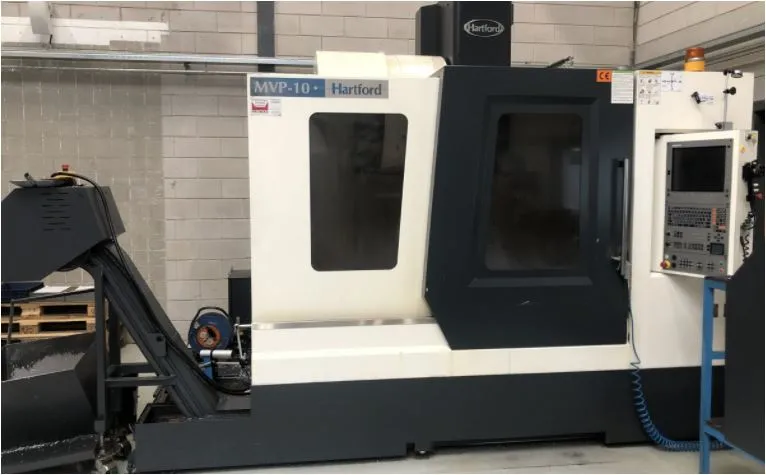

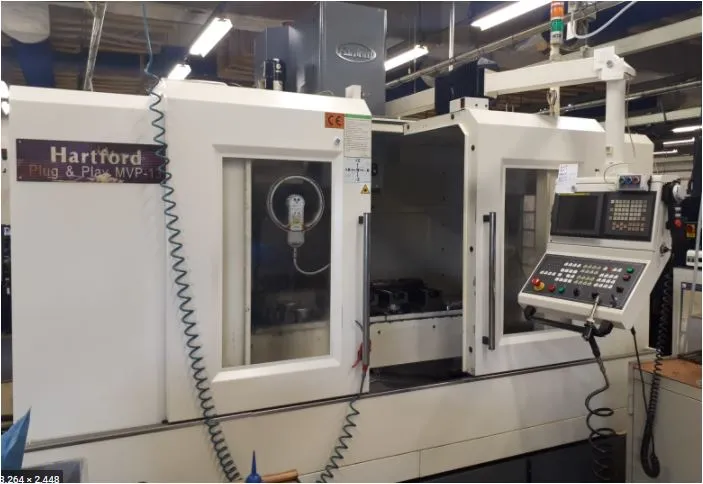

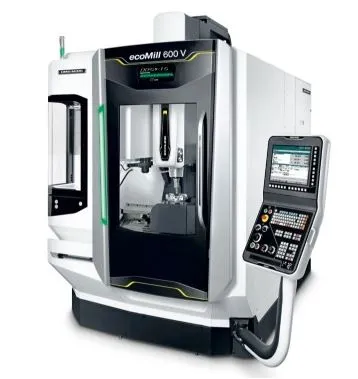

Milling	0–99	0–1,600 mm	0–1,300 mm	0–700 mm	—

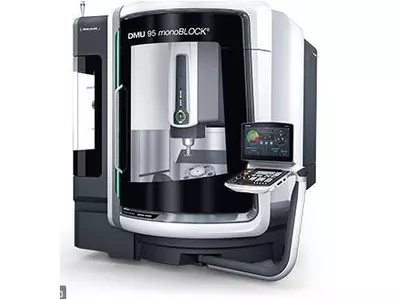

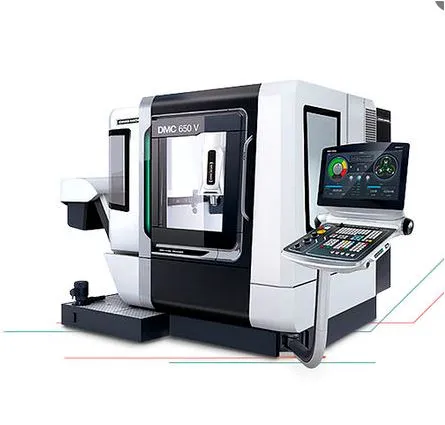

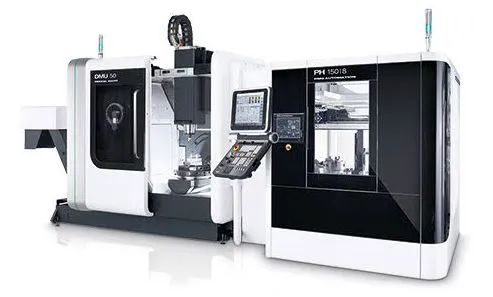

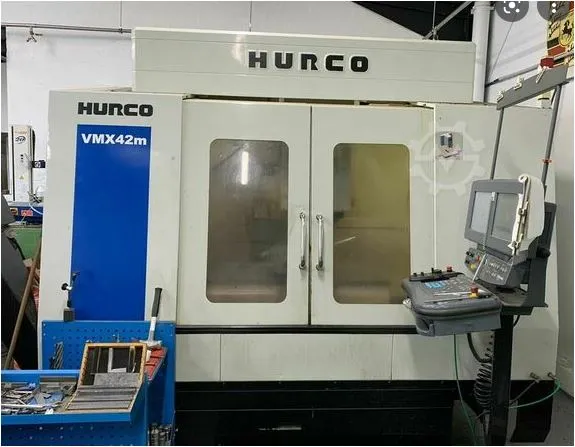

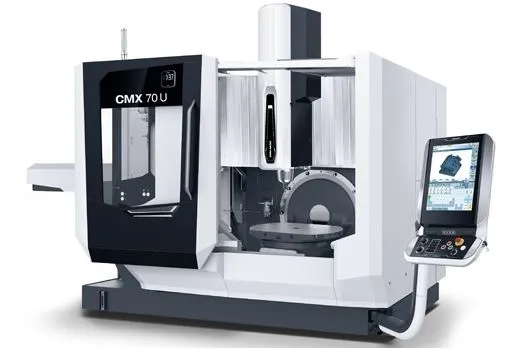

5-axis milling machines	1–99	1–950 mm	1–850 mm	1–650 mm	—
Form milling (3 D)	1–10,000	1–620 mm	1–1,200 mm	1–450 mm	0–1,500 kg

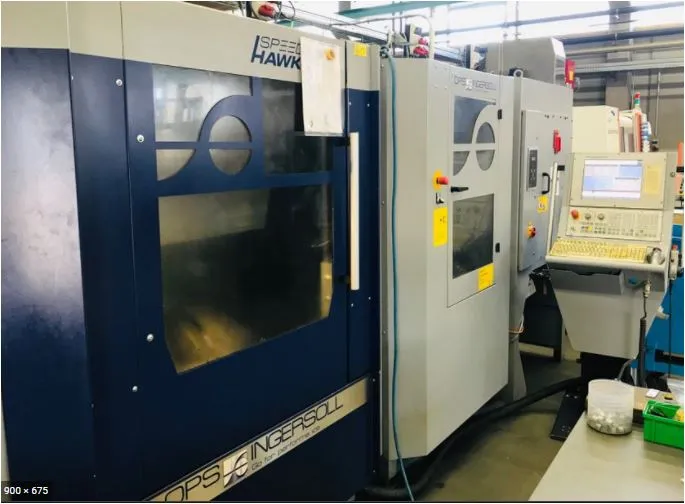

HSC milling	1–10,000	1–700 mm	1–700 mm	1–450 mm	0–1,000 kg

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height	Weight
3D printing (general)	1–150	1–1,250 mm	1–1,250 mm	1–750 mm	—
Vacuum casting	1–52	1–350 mm	1–250 mm	1–125 mm	0–2 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight

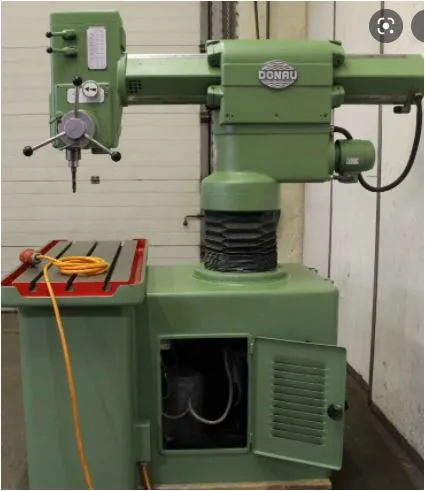

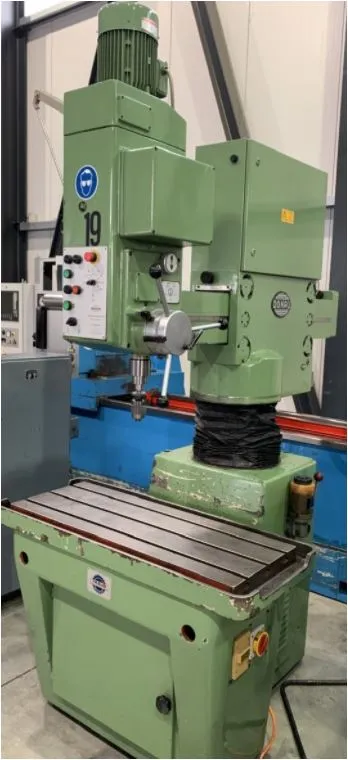

Drilling / threading / tapping	1–1,100	1–2,005 mm	1–505 mm	1–305 mm	0–1,005 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height
Screen printing	250–25,000	1–205 mm	1–205 mm	1–255 mm
Pad printing	250–25,000	1–200 mm	1–200 mm	—

Materials

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)Carbide

Light metals

Aluminium and aluminium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Steel

Case hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel

Non-metal inorganic materials

Graphite

Industries

Aerospace and aviation industryMechanical engineeringAir conditioning, refrigeration and ventilation industryPower generation and transmission industryChemical industryApparatus engineeringAutomotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingDrive and gear engineeringMilitary engineeringConstruction and architectural suppliesMedical technologyPackaging industryFurniture industryHousehold appliance industryMachine tool manufacturingBoiler, container and tank construction Paper and printing machinery industryElectrical industryAutomation and control engineeringSpecial purpose machinery manufacturingPlant engineering and construction

+14 moreShow less

Contact

Location

Main locationKötterhof 2, 49439 Mühlen, Germany

This map is hosted on Google Maps. See
privacy policy.

Further locations49439 Mühlen, Oldenburger Münsterland
Partner Werkzeugbau in China, Taiwan und Indien
Partner Spritzguss: Burwinkel Kunststoffwerk GmbH

Company contact

Contact persons

Gregor Börgerding

Alexander Ortmann
