About BroachTec AG
Who we are
BroachTec AG is a classic supply business in mechanical engineering with a very special interpretation: the clearing technology. We offer: Spaces between inside and outside profiles -Poking -Keyseating Milling Turning -Polygonal milling -Hobbing We specialize in complete machining with inner and outer profiles of the following types: DIN 5480 involute DIN 5481 serrations DIN 5482 involute DIN 5463-splines DIN 9611 PTO profiles for agricultural machinery ISO 14 splines ANSI B92.1b American involute NF E22-131 standard spline shafts France NF E22-141 standard involute France -JIS Japanese toothing -4-Kt / Kt-6 and the inside profile of all kinds Founded in 1947, the small company specializing in metal cutting for today's dynamic, much enlarged operation, equipped with the most modern electronically controlled machining systems using the latest technology developed. The innovative spirit in the company's strategy and the profound expertise in the field of clearing technology have made us in many demanding customers a valuable suppliers. Aircraft, Vehicle and even the auto industry, large areas of the machinery and equipment industry appreciate the serious work of Samstagern on Lake Zurich.
1 / 6
2 / 6
3 / 6
.jpg)
4 / 6
5 / 6
6 / 6
Samstagern ZH, Switzerland
Member since 2010
Employees5 - 10
Certificates1
Year of foundation1947
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 1–50,000 | 5–1,500 mm | 10–300 mm | — |
Automatic turning (bar) | 1–100 k | 1–320 mm | 10–50 mm | — |
Swiss turning | 1,000–1 M | 1–320 mm | 5–42 mm | — |
Hard turning | 1–500 k | 5–50 mm | 6–50 mm | — |
Broaching | 1–1 M | 1–180 mm | 4–300 mm | — |
Shaft machining | 1–20,000 | 5–1,500 mm | 10–200 mm | 0–150 kg |
Gear Making
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Cylindrical gear / spur gear | 1–10,000 | 1–1,000 mm | 8–250 mm | 0–200 kg |
Internal teeth | 1–1 M | 4–300 mm | 4–300 mm | 0–500 kg |
Threading
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Thread whirling | 10,000–500,000 | 5–200 mm | 3–10 mm | 0–1 kg |
Machining (Plastics & Rubber)
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Full-range turning (including milling) | 1–100 k | 5–350 mm | 5–65 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Cast metals
Cast steelCast iron
Industries
Electrical industryBuilding, agricultural and forestry machinery manufacturingSpecial purpose machinery manufacturingMachine tool manufacturingAutomotive and vehicle constructionChemical industryPower generation and transmission industryPaper and printing machinery industryMilitary engineeringShipbuilding industryMechanical engineeringMining and tunnel engineeringPrecision engineering, mechatronics and opticsDrive and gear engineeringRailway and rail vehicles industryMedical technologyAerospace and aviation industryPackaging industryPlant engineering and construction
Certificates
ISO 9001:2015
Parts & Machines
Parts (8)
1 / 8

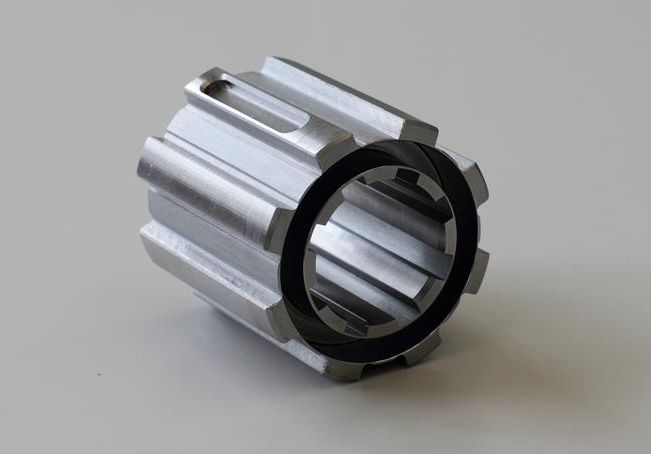

Keilwellenadapter
DescriptionAussenverzahnung DIN 5463 8x52x60
Innenverzahnung DIN 5463 8x32x38
Komplett gedreht inkl. Keilbahn auf Mantelfläche
Material: 42CrMoS4
2 / 8

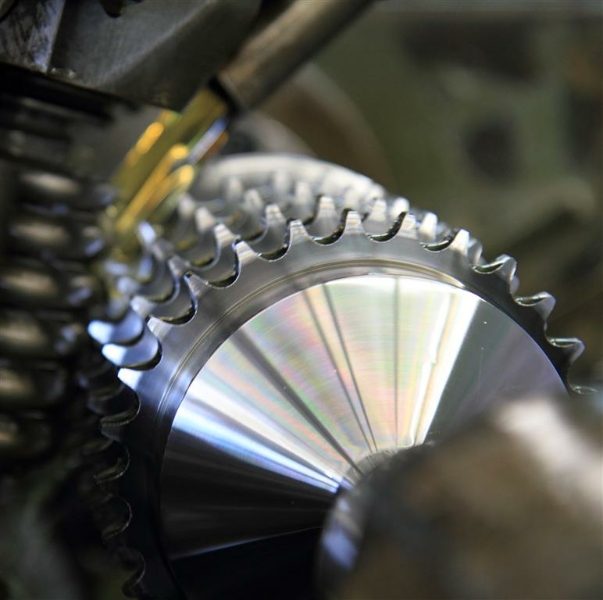

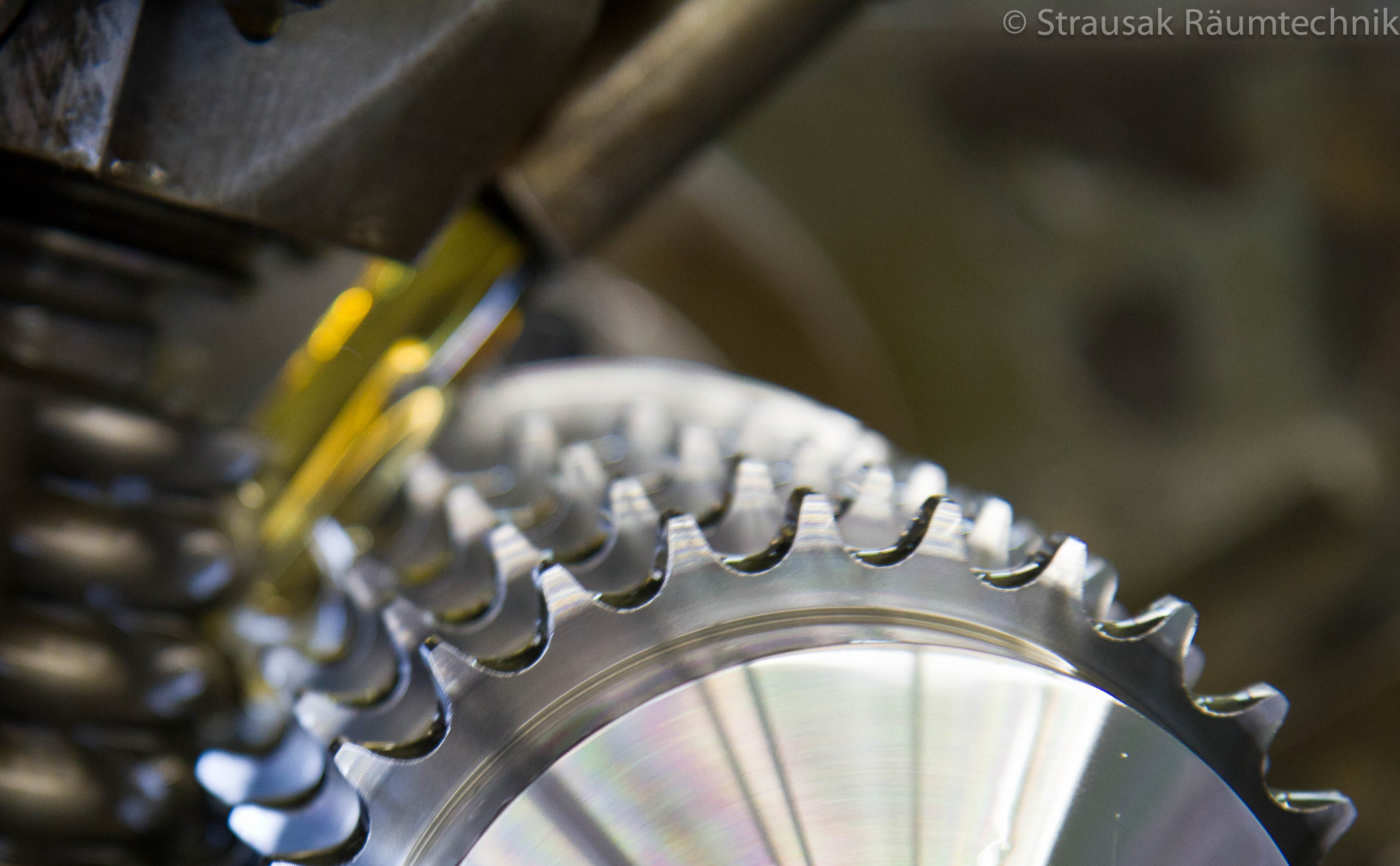

Kettenrad
DescriptionKettenrad spezial komplett hergestellt.
3 / 8

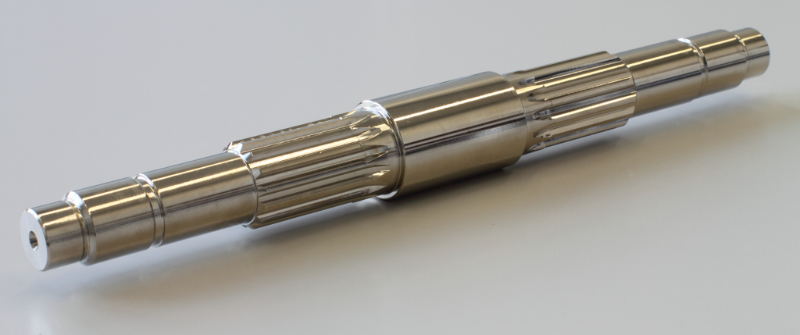

Welle
DescriptionWelle mit 2x Verzahnung DIN 5480 W30x2.0x13x8f
Länge: 300mm
Material: 1.4305
4 / 8

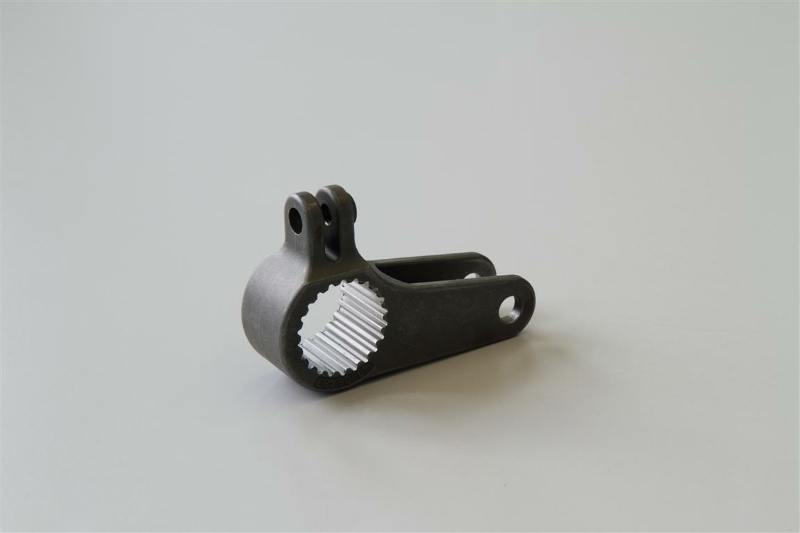

Hebel
DescriptionHebel geräumt Innenverzahnung DIN5480
5 / 8

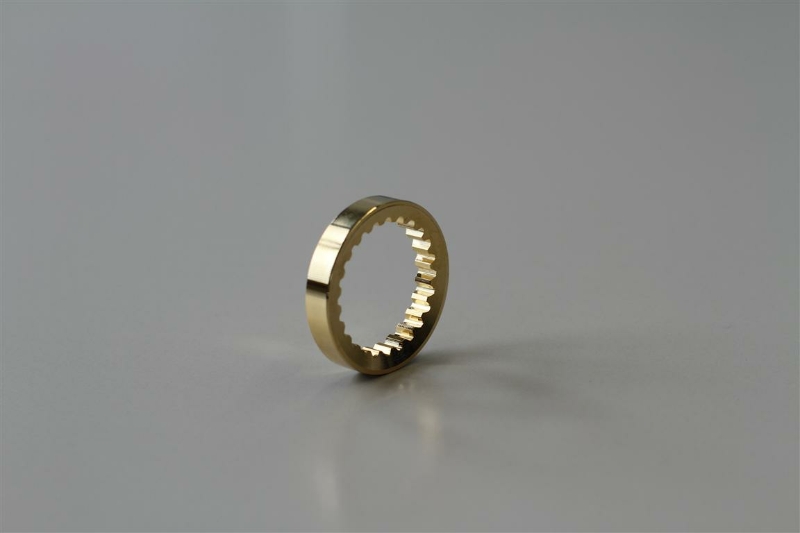

Ring
DescriptionRing aus Messing Innenverzahnung geräumt DIN5480
6 / 8

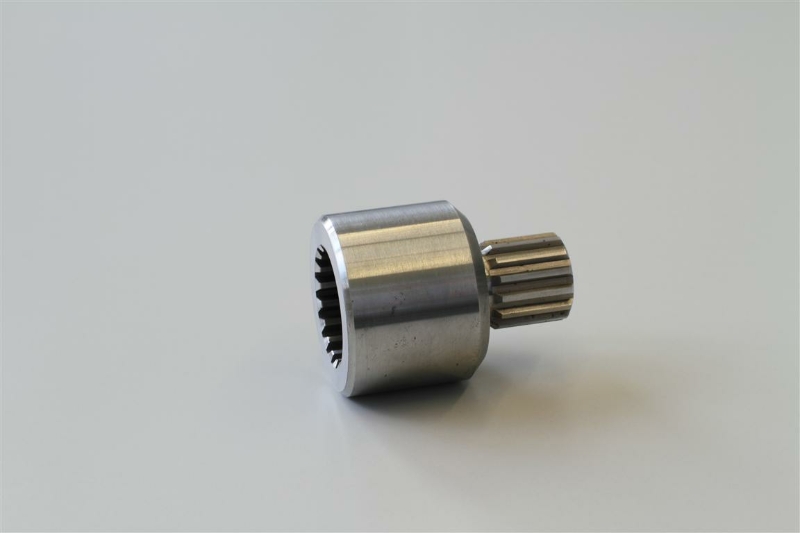

Adapter
DescriptionSackloch Verzahnung und Aussverzahnung gestossen. Verzahnung nach ANSI B92.1b
7 / 8

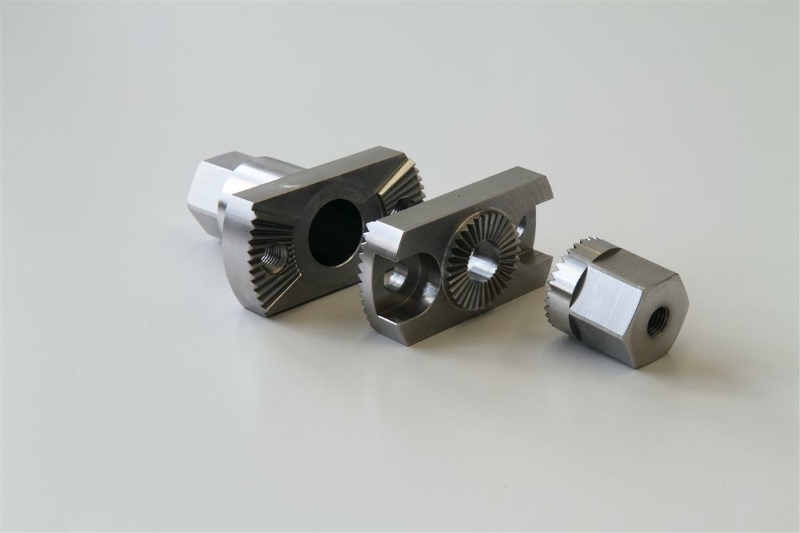

Baugruppe
DescriptionKomplette Baugruppe mit Hirthverzahnung
8 / 8

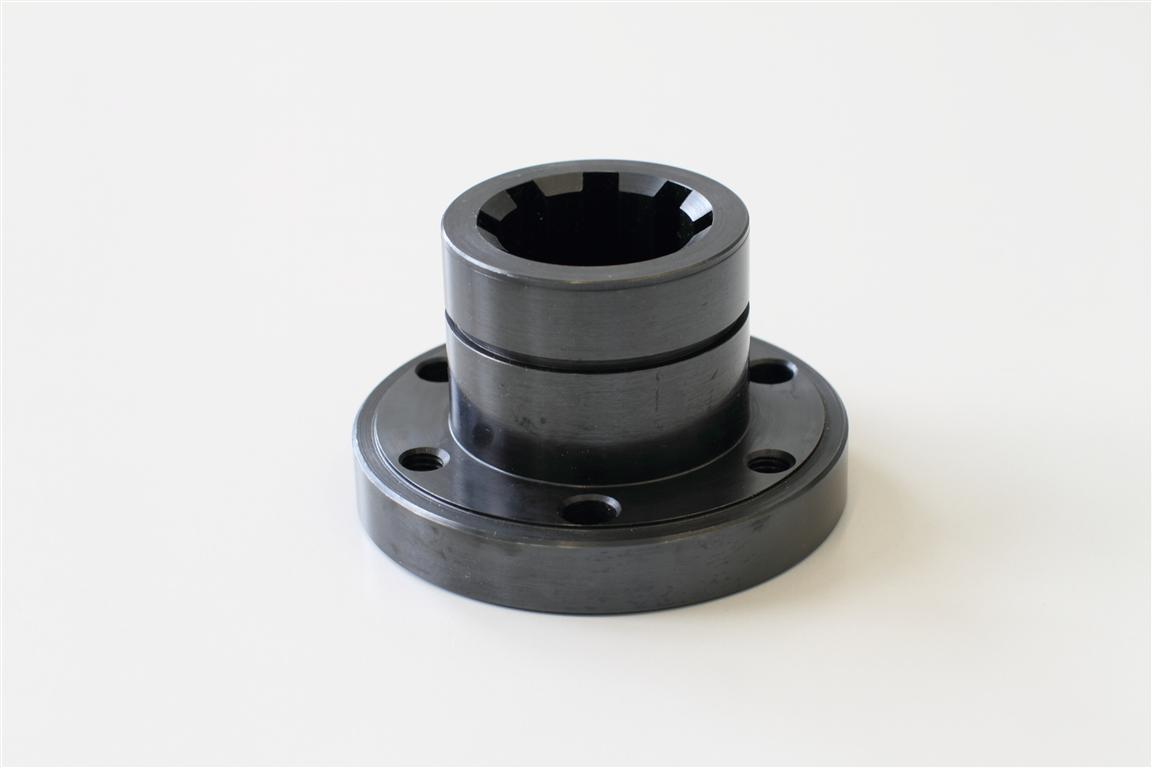

Flansch-Kupplung
TechnologyTurning
MaterialStructural steel
Lotsize200
IndustriesMechanical engineering
DescriptionFlansch mit Innen-Keilwellenprofil nach DIN 5463
Machinery (20)
1 / 20
TMC-15
ManufacturerNakamura Tome
ControlFanuc
Technology
Automatic turning (bar)Turning
2 / 20
DMG CTX 310 Eco
ManufacturerDECKEL MAHO GILDEMEISTER
ControlSiemens
Year of Construction2007
Technology
Turning
3 / 20
V2-SS
ManufacturerHaas
ControlHaas
Year of Construction2013
Technology
Milling
4 / 20
Horizontal Räummaschine
Manufacturer2000mm Hub
Control32t
Technology
Broaching
5 / 20
Horizontal Räummaschine
ManufacturerKlink, 1600mm Hub
Control12t
Technology
Broaching
6 / 20
Vertikal Räummaschine
Manufacturer1200mm Hub
Control10t
7 / 20
Vertikale Räummaschine
Manufacturer1400mm Hub
Control12t
8 / 20
Räumautomat
Manufacturer1000mm Hub
Control10t
Technology
Broaching
9 / 20
Räumautomat
Manufacturer1250mm Hub
Control12t
Technology
Broaching
10 / 20
Vertikal Räummaschine
Manufacturer1200mm hub
Control12t
Technology
Broaching
11 / 20
Aussenräummaschine
Manufacturer1100mm Hub
Control8t
Technology
Broaching
12 / 20
Stossmaschine
ManufacturerD500, 450mm Hub
ControlCNC
Technology
Internal teeth
13 / 20
Stossmaschine
Manufacturer300mm, 150mm Hub
ControlCNC
Technology
Internal teeth
14 / 20
Stossmaschine
Manufacturer450mm, Hub 300mm
ControlCNC
Technology
Internal teeth
15 / 20
Stossmaschine
ManufacturerD300, Hub 150mm
ControlNC
Technology
Internal teeth
16 / 20
Swiss Type
ManufacturerDiverse
ControlFanuc
Technology
Automatic turning (bar)
17 / 20
Swiss Type
ManufacturerDiverse
ControlFanuc
Year of Construction2021
Technology
Automatic turning (bar)
18 / 20
Swiss-Type
ManufacturerDiverse
ControlFanuc
Year of Construction2019
19 / 20
Technology
Automatic turning (bar)
20 / 20
Präzesionsdrehmaschine
ManufacturerDiv.
ControlFanuc
Year of Construction2021
Technology
Automatic turning (bar)Turning
8 Parts
Turning1
20 Machinery
Automatic turning (bar)5
Turning3
Milling1
Broaching6
Internal teeth4
