CANTIN GROUP

Switzerland, 1564 Domdidier

Competencies

Technologies

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–500	5–500 mm	6–200 mm
Full-range turning (including milling)	1–1,000	5–2,000 mm	10–700 mm

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Laser cutting 2D	1–10,000	5–3,000 mm	5–1,500 mm	0–280 kg	1–25 mm
Bending / folding	1–10,000	1–3,000 mm	—	—	0.5–20 mm
Punching / nibbling	1–10,000	70–3,000 mm	70–1,600 mm	0–2,200 kg	0.5–1 mm
Combined forming laser cutting / punching	1–10,000	1–3,000 mm	1–1,500 mm	0–280 kg	1–8 mm
Plate rolling / bending	1–1,000	—	10–2,000 mm	—	1–4 mm
Plate straightening	1–10,000	—	10–1,650 mm	—	0.5–12 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	1–1,000	1–5,000 mm	1–3,000 mm	1–3,000 mm	2–2,500 mm	0–12,000 kg	1–25 mm
Inert gas shielded arc welding (TIG)	1–1,000	1–5,000 mm	1–3,000 mm	1–3,000 mm	2–3,000 mm	0–12,000 kg	1–12 mm
Spot welding	1–10,000	—	—	—	—	—	0.5–4 mm
Stud welding	1–10,000	—	—	—	—	—	—

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	100–5,000 mm	100–3,000 mm	100–3,000 mm	0–12,000 kg
Machine frames / bases / racks	100–5,000 mm	100–3,000 mm	100–3,000 mm	0–12,000 kg

Assembly

Technologies	Weight
Mechanical assembly	0–20,000 kg
Electromechanical assembly	0–250 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	5–2,000 mm	5–2,000 mm	5–1,500 mm	5–1,500 mm	0–500 kg

Pipe & Tube Manufacturing

Technologies	Lotsize	Length	Diameter
Pipe bending	1–1,000	200–4,000 mm	20–200 mm

Water jet cutting

Technologies	Lotsize	Length	Width	Weight	Material thickness
Water jet cutting 2D	1–1,000	100–3,000 mm	100–1,500 mm	0–20 kg	0.5–200 mm

Machining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Automatic turning (bar)	1–500	5–500 mm	—	—	2–100 mm	—
Milling	1–1,000	10–2,900 mm	10–1,050 mm	10–750 mm	—	0–400 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Weight
Pickling	1–1,000	10–3,000 mm	10–1,000 mm	10–900 mm	0–8,000 kg
Phosphatizing	1–1,000	10–3,000 mm	10–1,000 mm	10–1,800 mm	0–250 kg
Powder coating	1–1,000	10–3,000 mm	10–1,000 mm	10–1,800 mm	0–250 kg
Rotofinishing, barrel finishing	1–10,000	5–100 mm	5–100 mm	5–100 mm	—
Parts cleaning/degreasing	—	10–3,000 mm	10–900 mm	10–1,000 mm	0–500 kg
Spray-painting	1–100	10–3,500 mm	10–2,000 mm	10–2,500 mm	0–10,000 kg

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Adhesive bonding	1–100	10–2,000 mm	10–2,000 mm	10–2,000 mm	5–500 mm	0–100 kg	1–3 mm
Riveting	1–1,000	20–1,000 mm	20–1,000 mm	—	—	—	1–4 mm

Jigmaking

Technologies	Length	Width	Height	Weight
Assembly jigs	100–3,000 mm	100–3,000 mm	100–3,000 mm	0–8,000 kg
Welding jigs	100–3,000 mm	100–3,000 mm	100–3,000 mm	0–8,000 kg

Milling

Technologies	Lotsize	Length	Width	Height	Weight
5-axis milling machines	1–10,000	10–2,600 mm	10–700 mm	10–700 mm	0–2,150 kg
Form milling (3 D)	1–1,000	10–2,900 mm	10–1,050 mm	10–750 mm	0–2,150 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter

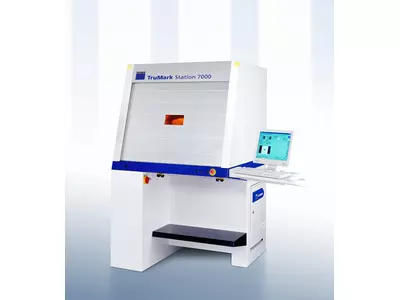

Laser marking / Laser inscription	1–1,000	1–1,000 mm	1–400 mm	1–377 mm	1–125 mm

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steel

Cast metals

Cast steel

Light metals

Aluminium and aluminium alloys

Plastics/synthetic materials

Acrylic (PMMA)ThermosetsGlass fibre-reinforced plastic

Industries

Plant engineering and constructionPower generation and transmission industryHousehold appliance industryPaper and printing machinery industryMechanical engineeringApparatus engineeringAutomation and control engineeringElectrical industryAir conditioning, refrigeration and ventilation industryConstruction and architectural suppliesOffice machinery and suppliesChemical industryPackaging industryMachine tool manufacturingMedical technologyLighting industryFurniture industrySpecial purpose machinery manufacturing

+10 moreShow less
