collectingsystems GmbH

Germany, 85134 Stammham

Competencies

Technologies

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Material thickness

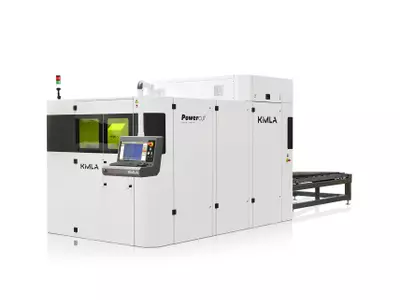

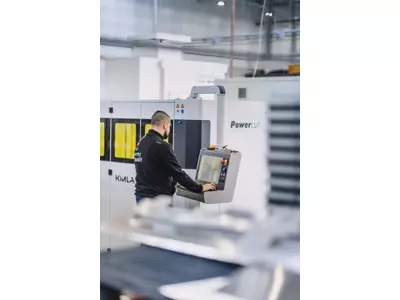

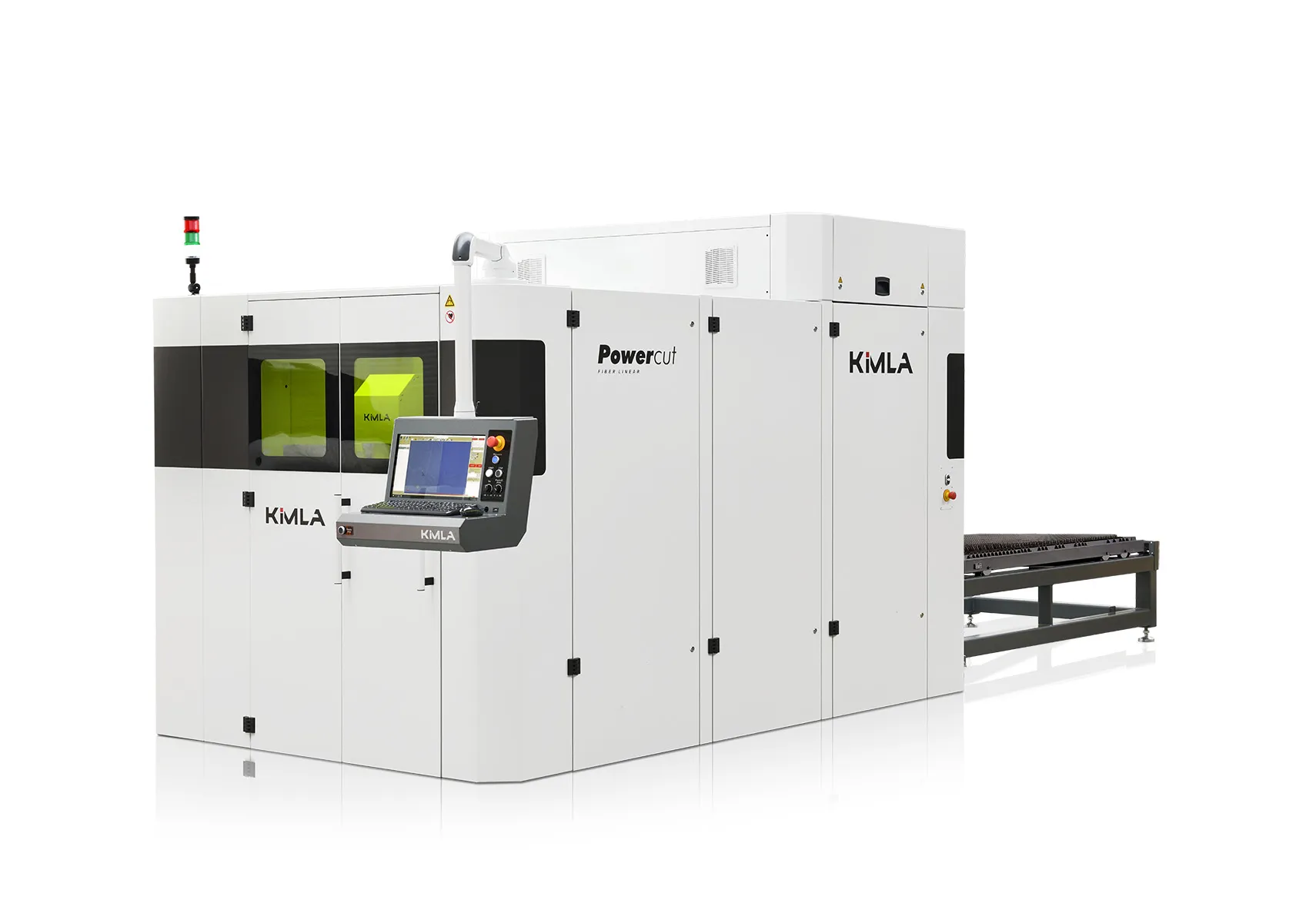

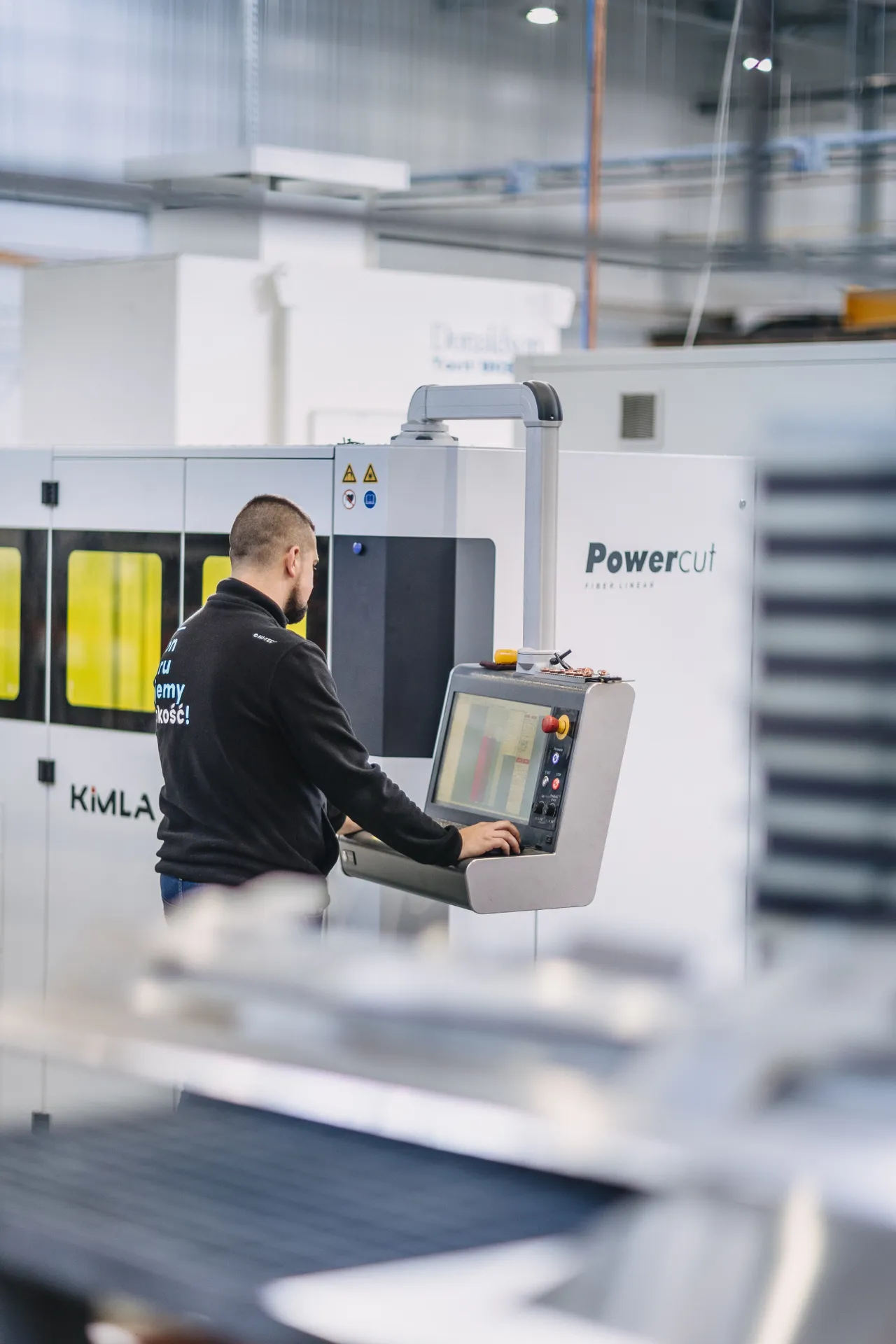

Laser cutting 2D	1–100 k	1–3,000 mm	1–1,500 mm	0.5–25 mm

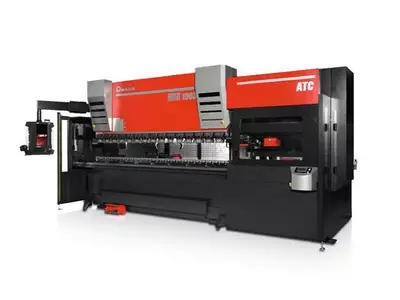

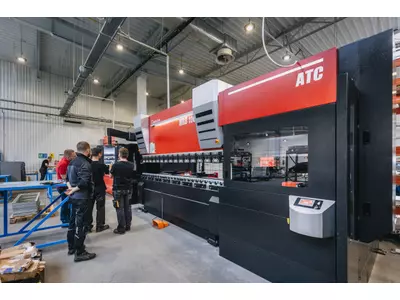

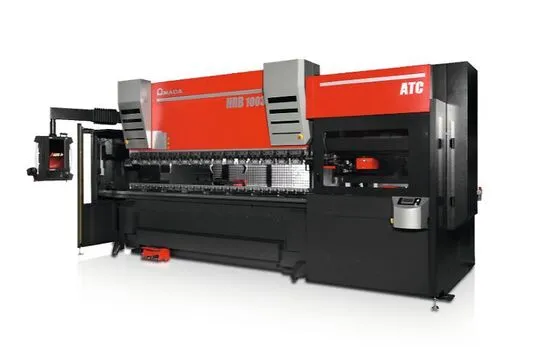

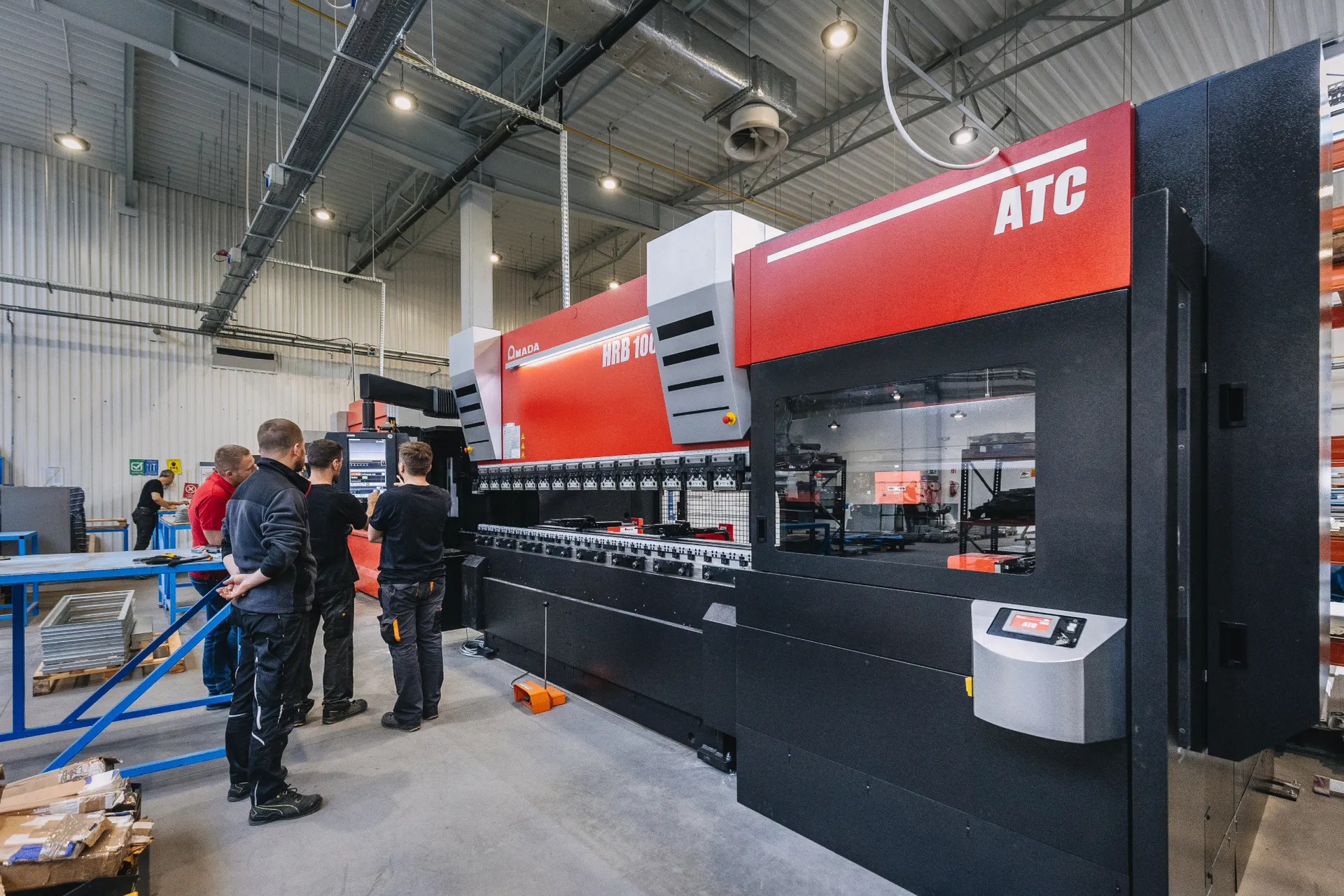

Bending / folding	1–100 k	1–3,110 mm	—	0.5–12 mm

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	1–2,500 mm	1–2,500 mm	1–2,500 mm	0–1,000 kg

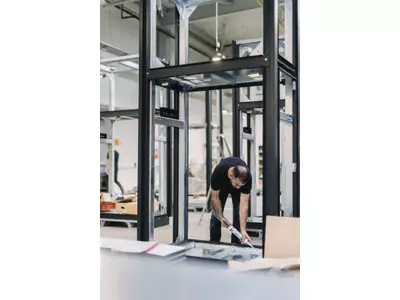

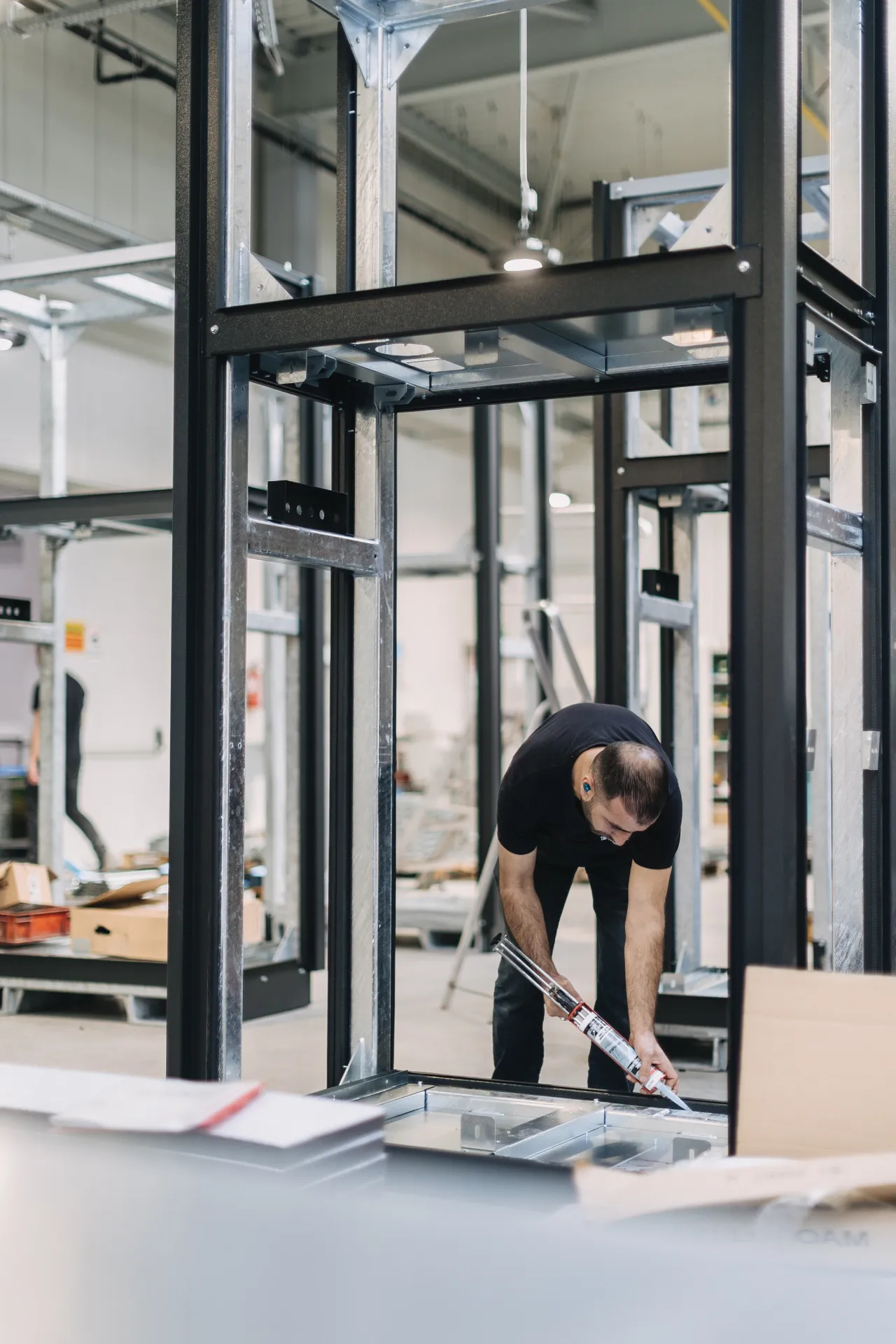

Assembly

Technologies	Weight
Mechanical assembly	0–2,000 kg
Industrial / On-site-assembly	0–10,000 kg

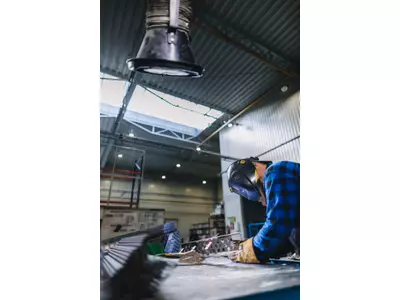

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	1–10,000	1–5,000 mm	1–3,000 mm	1–3,000 mm	—	0–1,000 kg	—

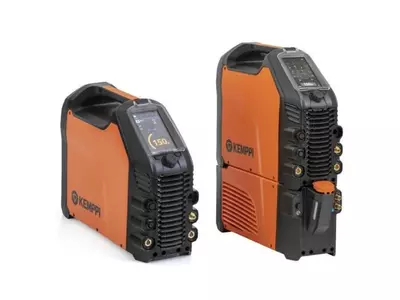

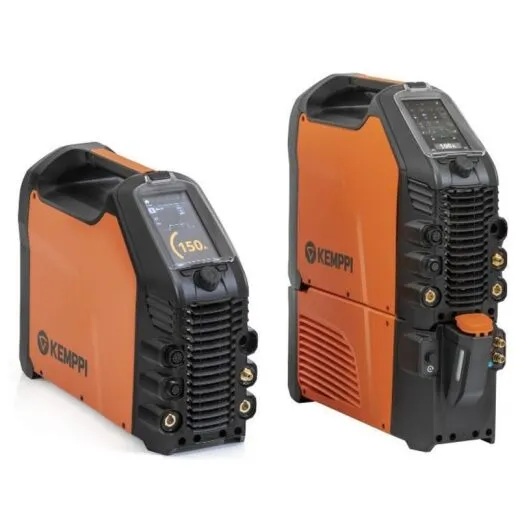

Inert gas shielded arc welding (TIG)	1–10,000	1–5,000 mm	1–3,000 mm	1–3,000 mm	—	0–1,000 kg	—

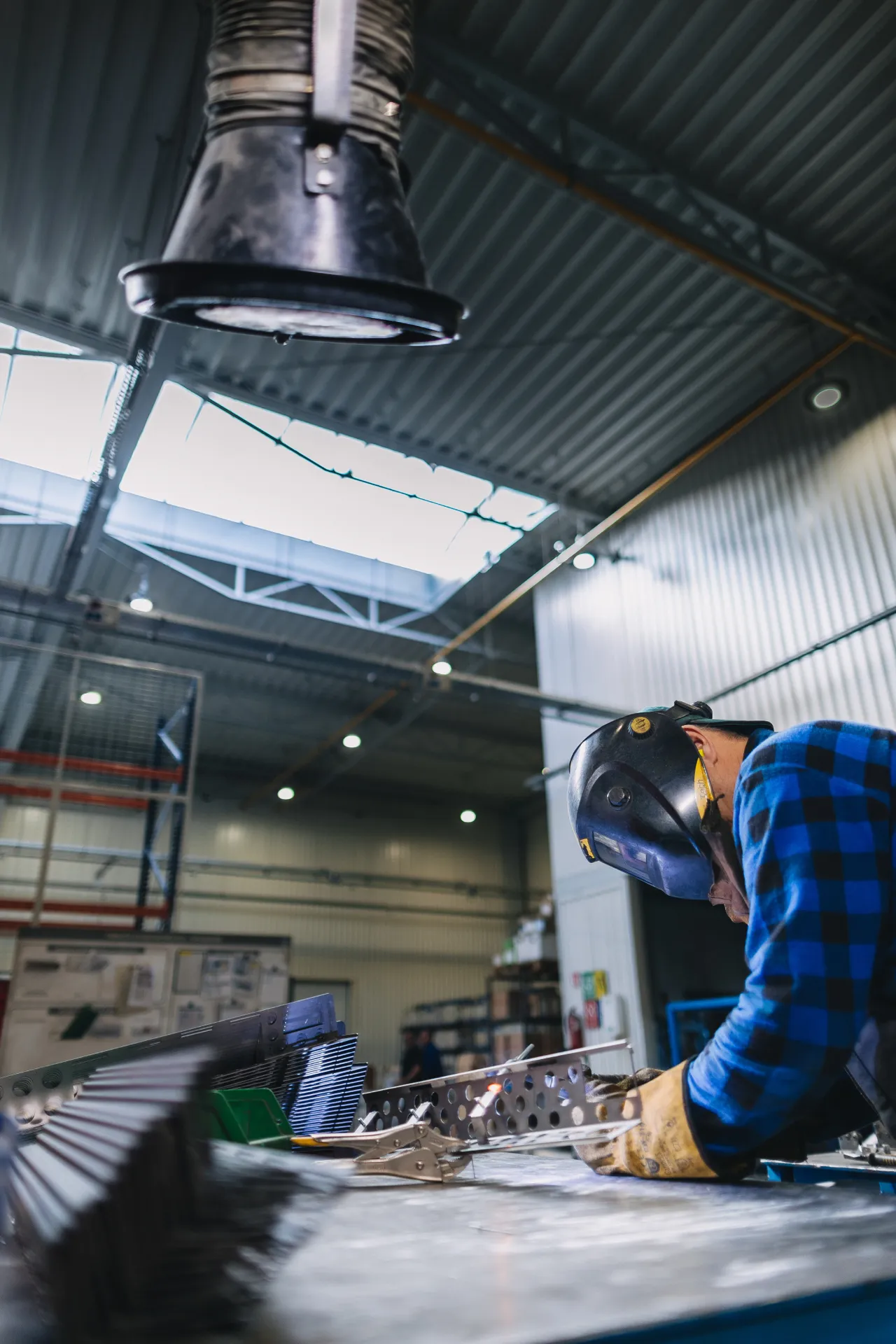

Laser-beam welding	1–100 k	1–2,500 mm	1–2,500 mm	1–2,500 mm	1–2,500 mm	0–1,000 kg	—

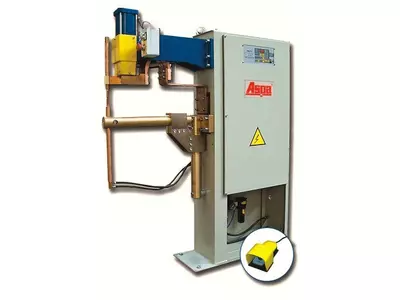

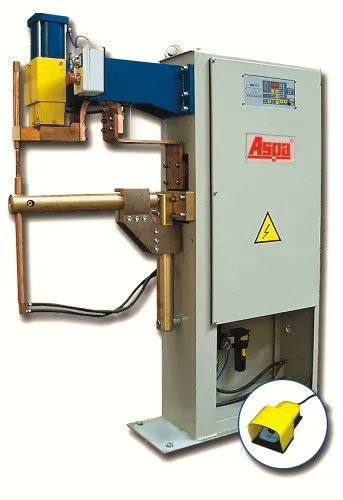

Spot welding	1–100 k	—	—	—	—	—	0.3–8 mm
Flash-butt welding	1–100 k	—	—	—	—	—	—
Stud welding	1–100 k	—	—	—	—	—	—

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Adhesive bonding	1–10,000	1–2,500 mm	1–2,500 mm	1–2,500 mm	1–3,000 mm	0–2,000 kg	0.3–8 mm

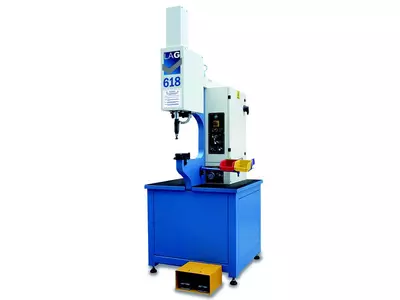

Riveting	1–100 k	10–5,000 mm	1–5,000 mm	—	—	—	0.3–8 mm

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Electroplating	1–100 k	0.1–1,500 mm	0.1–3,000 mm	0.3–12 mm	—	0–10,000 kg	—
Laminating	1–10,000	1–5,000 mm	1–2,000 mm	1–2,000 mm	—	0–1,000 kg	1–12 mm

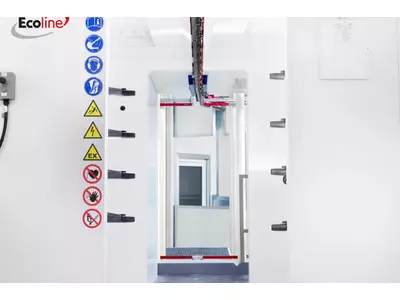

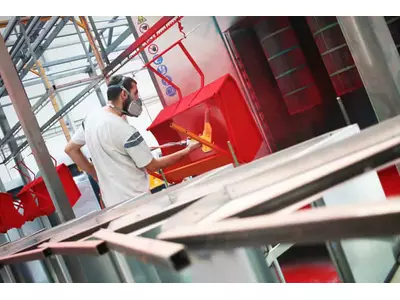

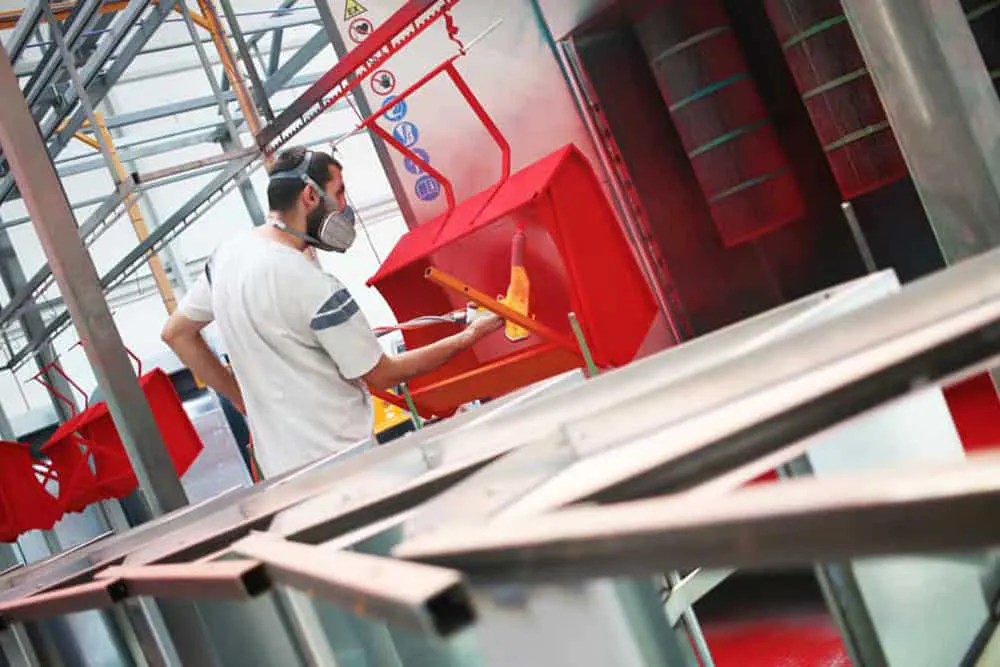

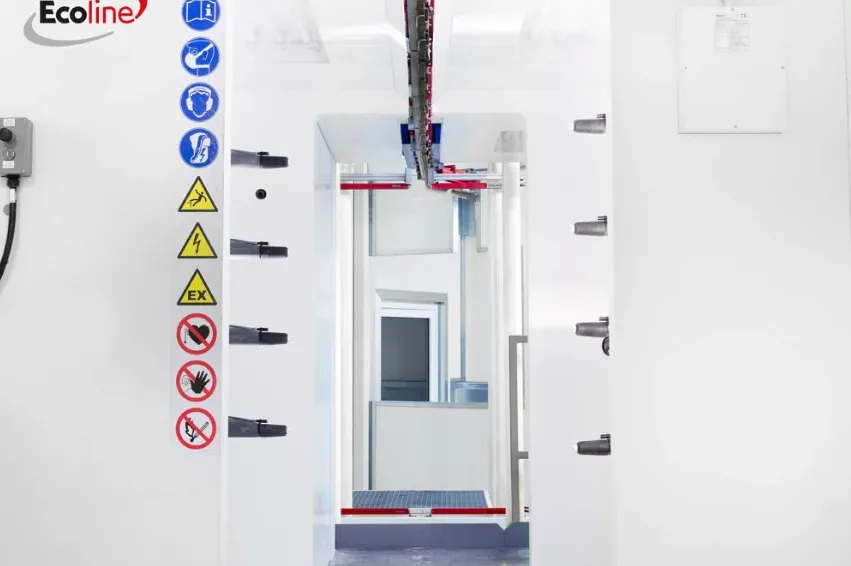

Powder coating	1–100 k	1–4,500 mm	1–1,400 mm	1–2,200 mm	—	0–500 kg	—
Galvanizing	1–10,000	1–5,000 mm	1–2,500 mm	1–2,500 mm	1–1,000 mm	0–1,000 kg	1–12 mm

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	1–10,000	1–3,000 mm	1–1,500 mm	1–110 mm	1–100 mm
Laser depth engraving	1–10,000	1–150 mm	1–150 mm	1–150 mm	1–150 mm

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Spring steel

Light metals

Aluminium and aluminium alloys

Heavy metals

Zinc and zinc alloys

Industries

Automation and control engineeringTelecommunication industryMachine tool manufacturingSpecial purpose machinery manufacturingClean room technologyPower generation and transmission industryBoiler, container and tank construction Furniture industryPaper and printing machinery industryLighting industryOffice machinery and suppliesMechanical engineeringInformation technology (hardware)Automotive and vehicle constructionConstruction and architectural suppliesElectrical industryAir conditioning, refrigeration and ventilation industryPackaging industryApparatus engineeringPlant engineering and constructionPrecision engineering, mechatronics and opticsHousehold appliance industry

+14 moreShow less
