Overview
About distec AG
Who we are

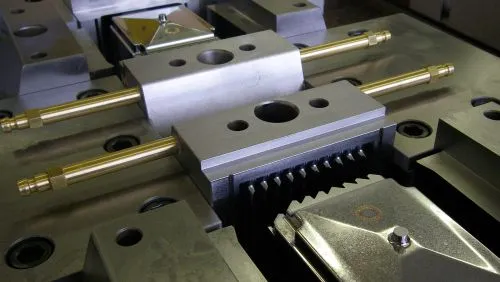

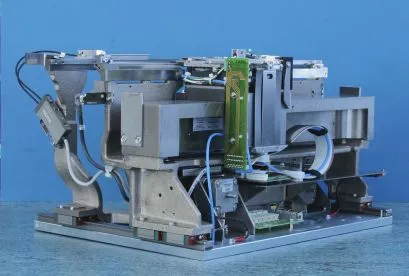

Disentis in Graubünden mountain world: Where other people go on holiday, arise in our modern, efficient work "ideas in metal" from design to manufacture high quality product. Our experienced team of specialized and motivated staff is proud to vouch for versatility with the highest precision. " Toolmaking: High-performance hot runner molds for the processing of technical thermoplastics and thermosets | injection molds for the processing of technical thermoplastics and thermosets with all gate systems | Pressure die casting molds for the processing of aluminum, zinc and magnesium | punching & bending tools for the processing of steel, aluminum, copper, etc | Our mold & mold sizes include: injection, punching bending & die casting tools from 96x96 to 596x596 mm | Sampling: We sampled at the customer's injection molds up to a closing force of 950 KN. Machining Highest accuracy in the production of small and large series is self-evident for us. Thanks to modern machinery and high quality tools we achieve a highly favorable cost - benefit ratio. We process: series of 5 to 50,000 pieces of steel, aluminum and non-ferrous metals up to 1000 x 650 x 500 mm. Component technology Co-development, prototype manufacture, fabrication of parts, procurement of commercial goods and electronics, as well as the installation, the wiring, final inspection and shipping worldwide. Punching and bending technology With our unfassenden know how we can make even the most demanding customers satisfied eg in the electronics industry. Thanks sophisticated tool technology, we are able to punch in one step, turn and rivets. With machines up to 70 tons we process all materials between 0,01 and 4,0 mm. Thermal and surface treatments are carried out in our responsibility. Coil fabrication Through our manufacturing experience and meeting deadlines, we can meet the high demands of a large number of customers worldwide meet. In our manufacturing centers, we process: round wire 3-5 mm, imTakt of approximately 10 pieces per minute. Rectangular wires of 3.15 x 7.1 x 0.6 mm to 5 mm can be edited manually.
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Disentis, Switzerland
Member since 2003
Employees50 - 100
Certificates2
Year of foundation1988
Competencies
Technologies
Sheet Metal Forming (Stamping, Deep-drawing)
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Punching / pressing (Out-of-tool) | 1,000–5 M | 1–170 mm | 1–50 mm | from 0 mm | from 0 mm | from 0 kg | from 0 mm |
Cutting dies / deep drawing dies
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Punching / Cutting tools | 20–800 mm | 20–600 mm | 20–500 mm | from 0 mm | 0–120 kg | from 0 mm |
Follow-on composite tools | 20–800 mm | 20–600 mm | 20–500 mm | from 0 mm | 0–120 kg | from 0 mm |
Die replacement / wearing part manufacturing | from 0 mm | from 0 mm | from 0 mm | from 0 mm | from 0 kg | from 0 mm |
Assembly
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Mechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–80 kg | from 0 mm |
Electromechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–80 kg | from 0 mm |
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Turning | 50–50,000 | 20–170 mm | from 0 mm | from 0 mm | 2–60 mm | from 0 kg | from 0 mm |
Automatic turning (bar) | 50–50,000 | 20–170 mm | from 0 mm | from 0 mm | 2–60 mm | from 0 kg | from 0 mm |
Threading
| Technologies |
|---|
Thread rolling |
Thread whirling |
Etching and Spark Erosion
| Technologies |
|---|
Spark erosion wire cutting |
Spark erosion countersinking |
Measuring & Testing
| Technologies |
|---|
Measuring / testing |
Assembly Group Manufacturing
| Technologies |
|---|
Adhesive bonding |
Riveting |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Milling | 20–5,000 | 1–600 mm | 1–450 mm | 1–450 mm | from 0 mm | 0–100 kg | from 0 mm |
5-axis milling machines | 20–5,000 | 1–800 mm | 1–600 mm | 1–500 mm | — | 0–100 kg | — |
Form milling (3 D) | 20–5,000 | 1–600 mm | 1–450 mm | 1–450 mm | from 0 mm | 0–100 kg | from 0 mm |
Full-range milling (including turning) | 20–5,000 | 1–800 mm | 1–600 mm | 1–500 mm | 2–100 mm | — | — |
HSC milling | 20–5,000 | 1–600 mm | 1–450 mm | 1–450 mm | from 0 mm | 0–100 kg | from 0 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drilling / threading / tapping | 20–5,000 | 1–600 mm | 1–450 mm | 1–450 mm | from 0 mm | 0–100 kg | from 0 mm |
Materials
Cast metals
Cast steelCast iron
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsHigh performance plasticThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Industries
Furniture industryInformation technology (hardware)Mining and tunnel engineeringLighting industryPackaging industryElectrical industryOffice machinery and suppliesHydraulic and pneumatic industryShipbuilding industryBuilding, agricultural and forestry machinery manufacturingFittings engineeringPower generation and transmission industryMechanical engineeringSpecial purpose machinery manufacturingClean room technologyMilitary engineeringMeasurement and control technique, laboratory equipmentAir conditioning, refrigeration and ventilation industryChemical industryMedical technologyAerospace and aviation industryHousehold appliance industryConstruction and architectural suppliesPlant engineering and constructionDrive and gear engineeringAutomotive and vehicle constructionApparatus engineeringRailway and rail vehicles industryBoiler, container and tank construction Machine tool manufacturingPaper and printing machinery industryAutomation and control engineeringTelecommunication industryPrecision engineering, mechatronics and optics
Certificates
ISO 9001:2008
EN ISO 13485
Parts & Machines
Parts (5)
1 / 5
Frästeil
DescriptionKubische Präzisionsteile für die Maschinen- und Apparateindustrie gehören zu unseren Spezialitäten.
2 / 5
Stanz- und Biegeteile
DescriptionWir entwickeln Ihre komplexen Werkzeuge, fertigen diese im eigenen Haus und produzieren die entsprechenden Teile.<br>
<br>
Unsere Spezialisten vom Formen und Schnittbau warten Ihre Werkzeuge fachgerecht.<br>
3 / 5
4 / 5
5 / 5
Machinery (4)
1 / 4
2 Schlitten G 200 Y,B
ManufacturerINDEX
Control-
Technology
Automatic turning (bar)Turning
2 / 4

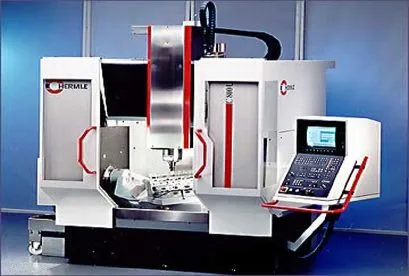

C600U
ManufacturerHermle
ControlHeidenhain
Technology
HSC millingForm milling (3 D)Drilling / threading / tappingMilling
3 / 4
C630
ManufacturerBeutler-Nova
Control-
Technology
Punching / pressing (Out-of-tool)
4 / 4
Kombimat
ManufacturerKoradi
Control-
Technology
Wire bending
5 Parts
Others5
4 Machines
Automatic turning (bar)1
Turning1
HSC milling1
Form milling (3 D)1
Drilling / threading / tapping1
Milling1
Punching / pressing (Out-of-tool)1
Wire bending1
Contact
Location
Main locationvia davos Mustér 9 + 10, 7180 Disentis, Switzerland
Further locationsCH-7180 Disentis
Staat: Schweiz
Kanton: Graubünden
Bezirk: Surselva
Staat: Schweiz
Kanton: Graubünden
Bezirk: Surselva
Company contact
Contact persons
HM
Hans-Peter Müller
AR
Ana Rageth
