EFG GmbH Röntgenmesstechnik / mechanische Fertigung
Germany, 14167 Berlin
Overview
About EFG GmbH Röntgenmesstechnik / mechanische Fertigung
Who we are
With our modern CNC machines that are supported by a strong CAD / CAM system of SolidWorks, we are capable of even complex parts on our 5-axis machining center to manufacture. The largest processing size in the milling: X = 1000mm, Y = 700mm, Z = 600mm / Turning range: D = 600mm x 1200mm. There are capacities for the production of · Item · Small and medium series · Devices, assemblies and assembly services available. We are also happy to development contracts and construction services that we perform in the short term and reliable through the use of our CAD-based design department. As a manufacturer of X-ray equipment and special machines EFG GmbH has a large know-how in machining. Quality and punctuality are with us more than just a promise. For questions regarding the production and price inquiries, please contact our workshop manager Mr Mayer. For quote requests, drawings, information on the material required quantities and may beother necessary data required. Drawings may be submitted in the CAD formats DXF, DWG, IGES, SAT, SLPRT, SLDRW, PRT, STEP, CGR, as a PDF file or an image file. Our machine: CNC milling machines: · 1x DMU 100 with the controller: TNC530 · 1x DMU 80T with the control: TNC 430 · 1x DMU 50 with the control: TNC 310 · 1x DMU 35 with the control: TNC 310 · 1x MAHO 600C with the control: Phillips 530 NC lathes: · 1x HARRISON ALPHA 400 Control: Fanuc 21i · 1x HARRISON ALPHA 330 Control: Fanuc 21i CNC Lathe: · DMU 600 with the control: CNC PILOT620
Berlin, Germany
Member since 2013
Employees20 - 50
Certificates1
Turnover1 - 5 Mil.
Year of foundation1961
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 1–1,000 | 3–1,000 mm | 3–450 mm | — |
Swiss turning | 1–1,000 | 3–1,000 mm | 3–450 mm | — |
Full-range turning (including milling) | 1–1,000 | 3–1,000 mm | 3–450 mm | — |
Shaft machining | 1–1,000 | 3–1,000 mm | 3–450 mm | 0–300 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–100 | 3–1,000 mm | 3–700 mm | 3–650 mm | — | 0–400 kg |
Form milling (3 D) | 1–100 | 3–1,000 mm | 3–700 mm | 3–650 mm | — | 0–400 kg |
Engraver milling | 1–100 | 20–1,000 mm | 20–700 mm | 1–650 mm | 3–7 mm | 0–400 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 1–100 | 5–1,000 mm | 5–700 mm | 5–650 mm | 0–400 kg |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Free-cutting/mild steelTool steel
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsNatural Fibre Composites (NFC)
Light metals
Aluminium and aluminium alloys
Industries
Plant engineering and construction
Certificates
No certificates
Parts & Machines
Parts (3)
1 / 3

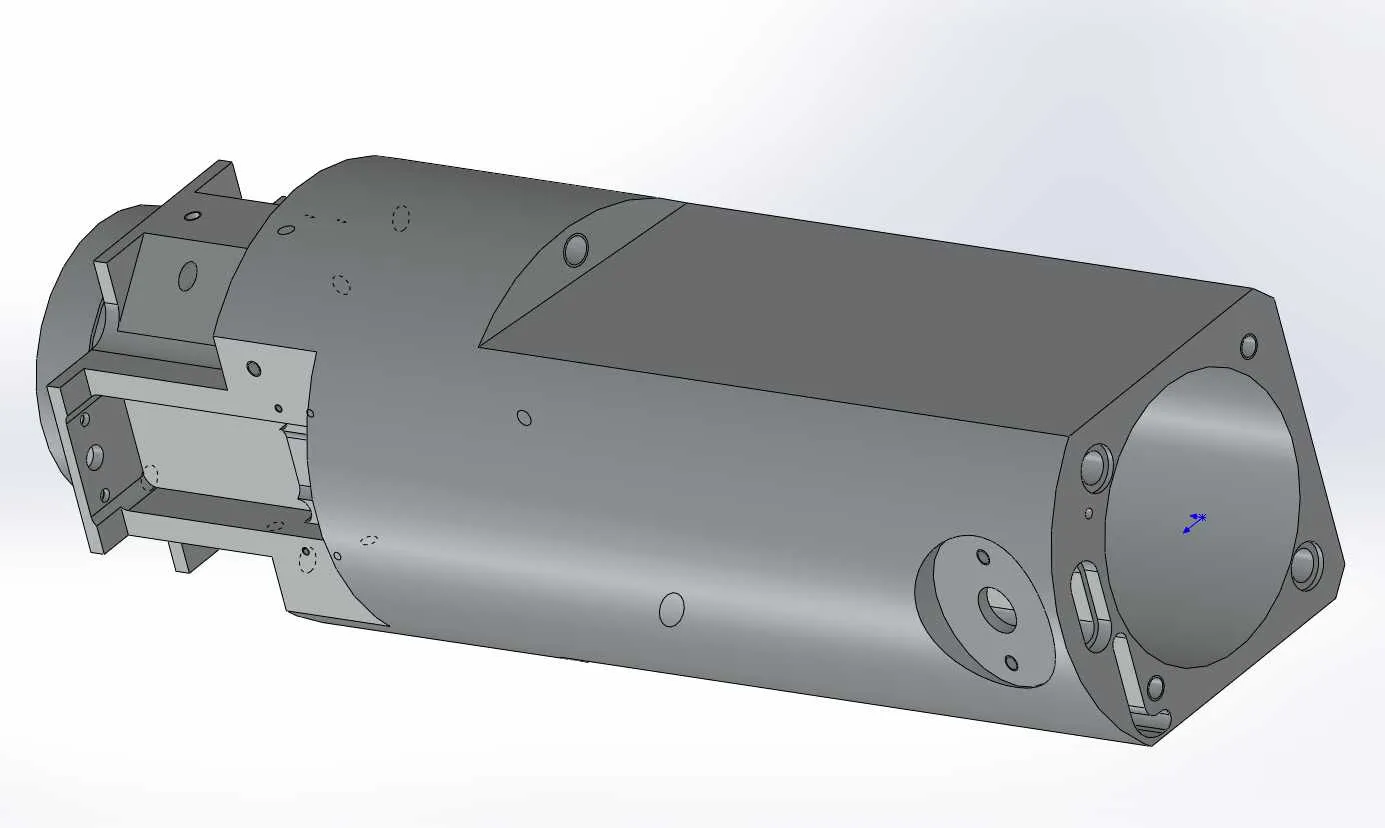

Röhrenhaube
DescriptionStrahlensichere Röhrenhaube für Standartröntgenröhren mit Strich- und Punktfokus. Mit Wassergekühlung und diversen Sicherheitfunktionen.
2 / 3

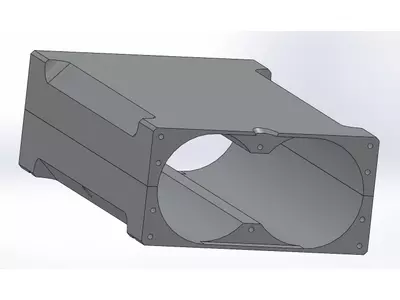

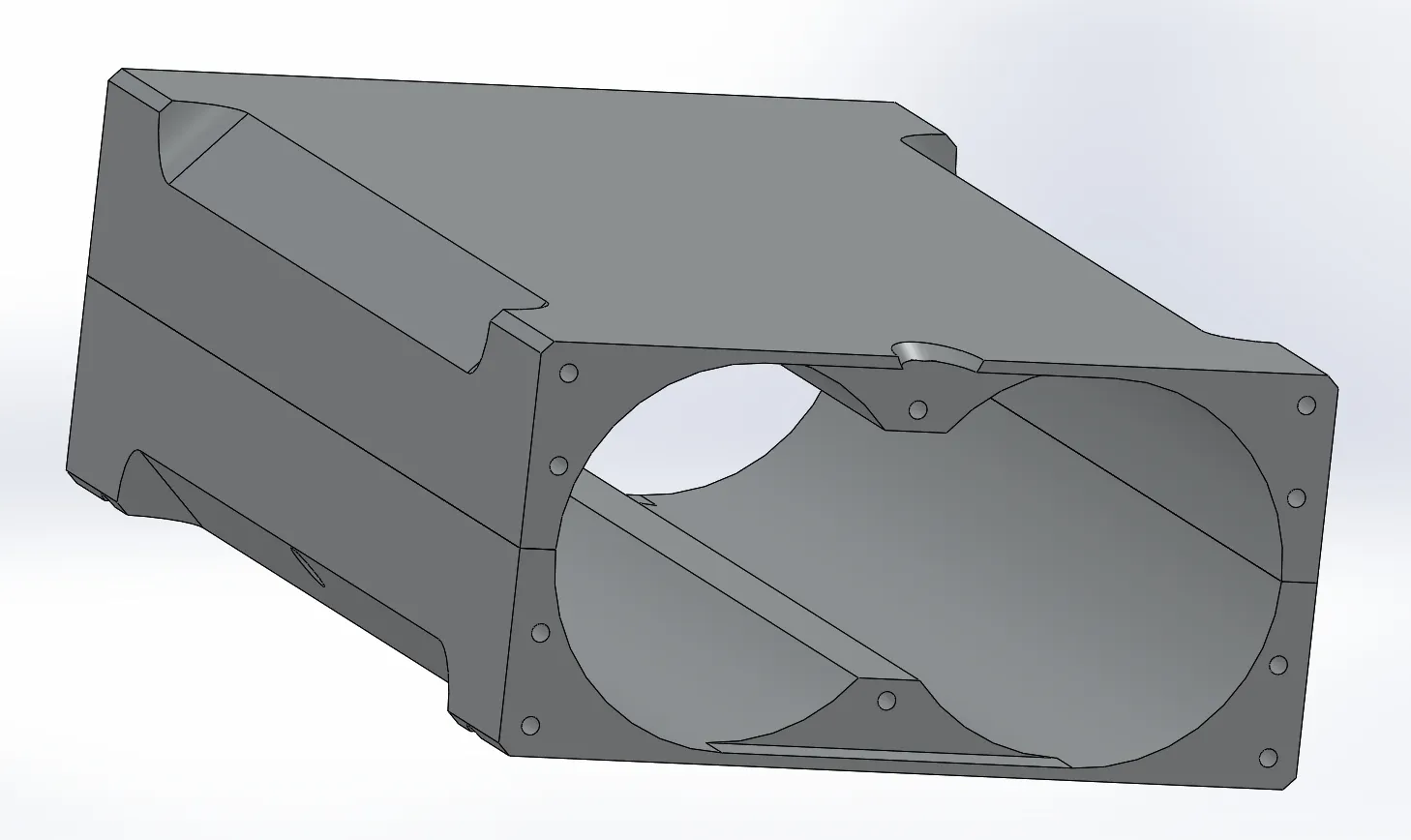

Doppeldetektor-Gehäuse
DescriptionDoppeldetektor-Gehäuse: dient der definierten Aufnahme von Röntgendetektoren.
3 / 3

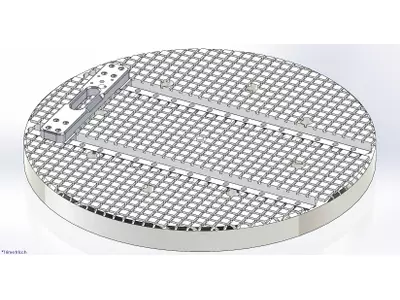

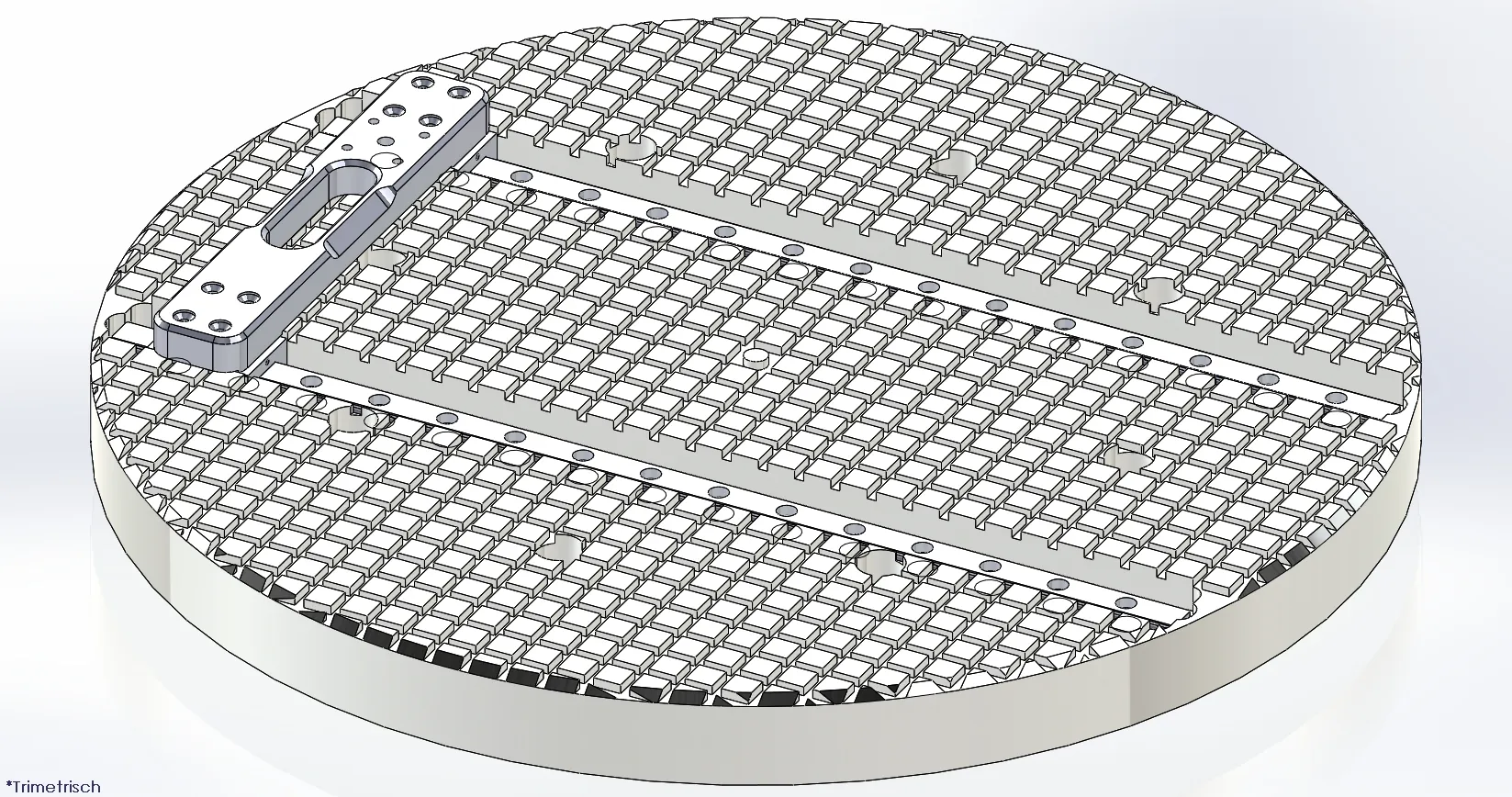

8inch-Wafertisch
Description8inch-Wafertisch: zur Röntgen-Messung der Kistallorientierung von Wafern mit Fläche "flat".
Machinery (6)
1 / 6

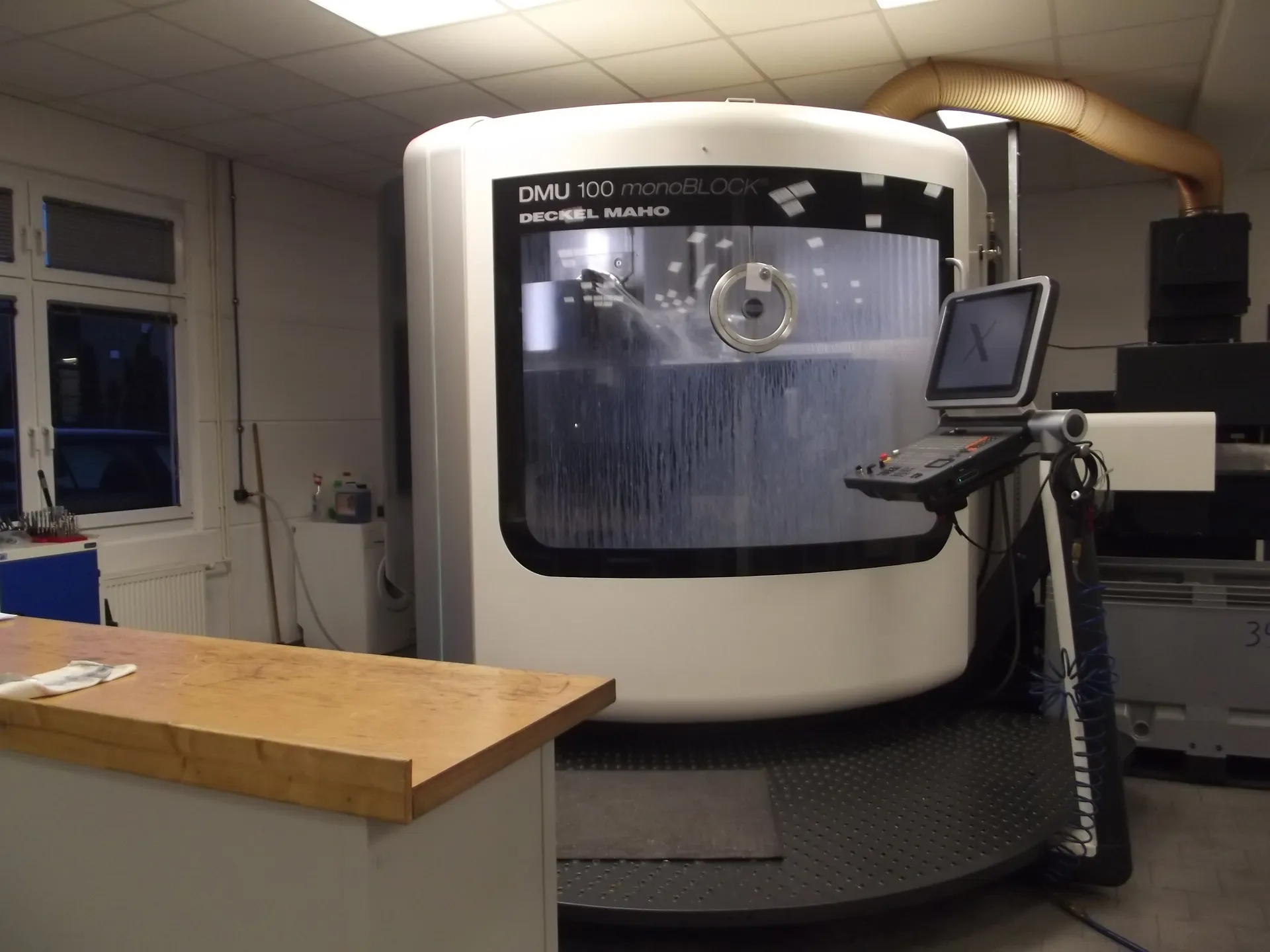

DMU mono Block 100
ManufacturerDMU
ControlTNC 530
Year of Construction2011
Technology
Drilling / threading / tappingMillingForm milling (3 D)Engraver milling
2 / 6

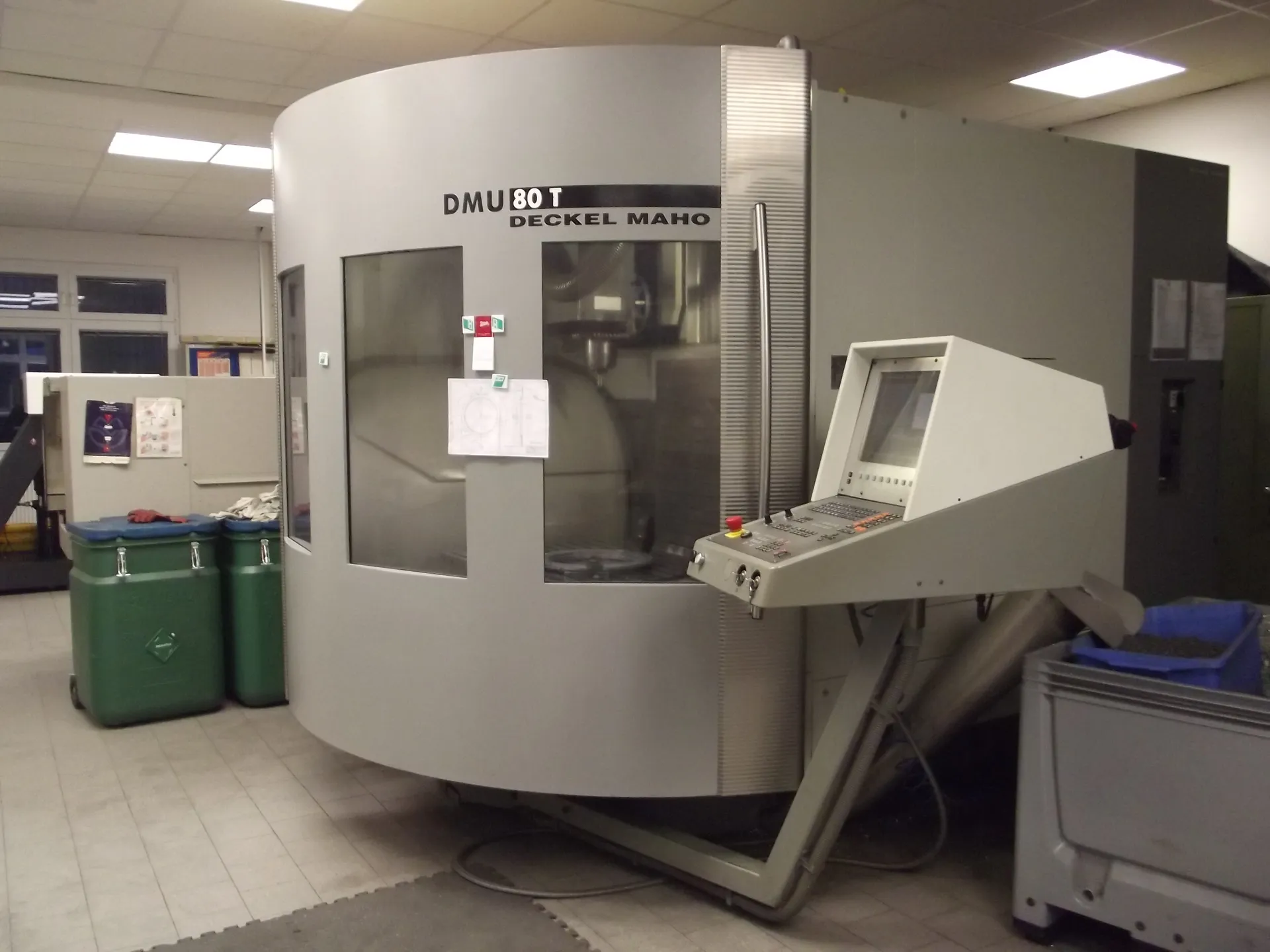

DMU 80 T
ManufacturerDMU
ControlTNC 430
Year of Construction2001
Technology
Drilling / threading / tappingForm milling (3 D)Engraver millingMilling
3 / 6

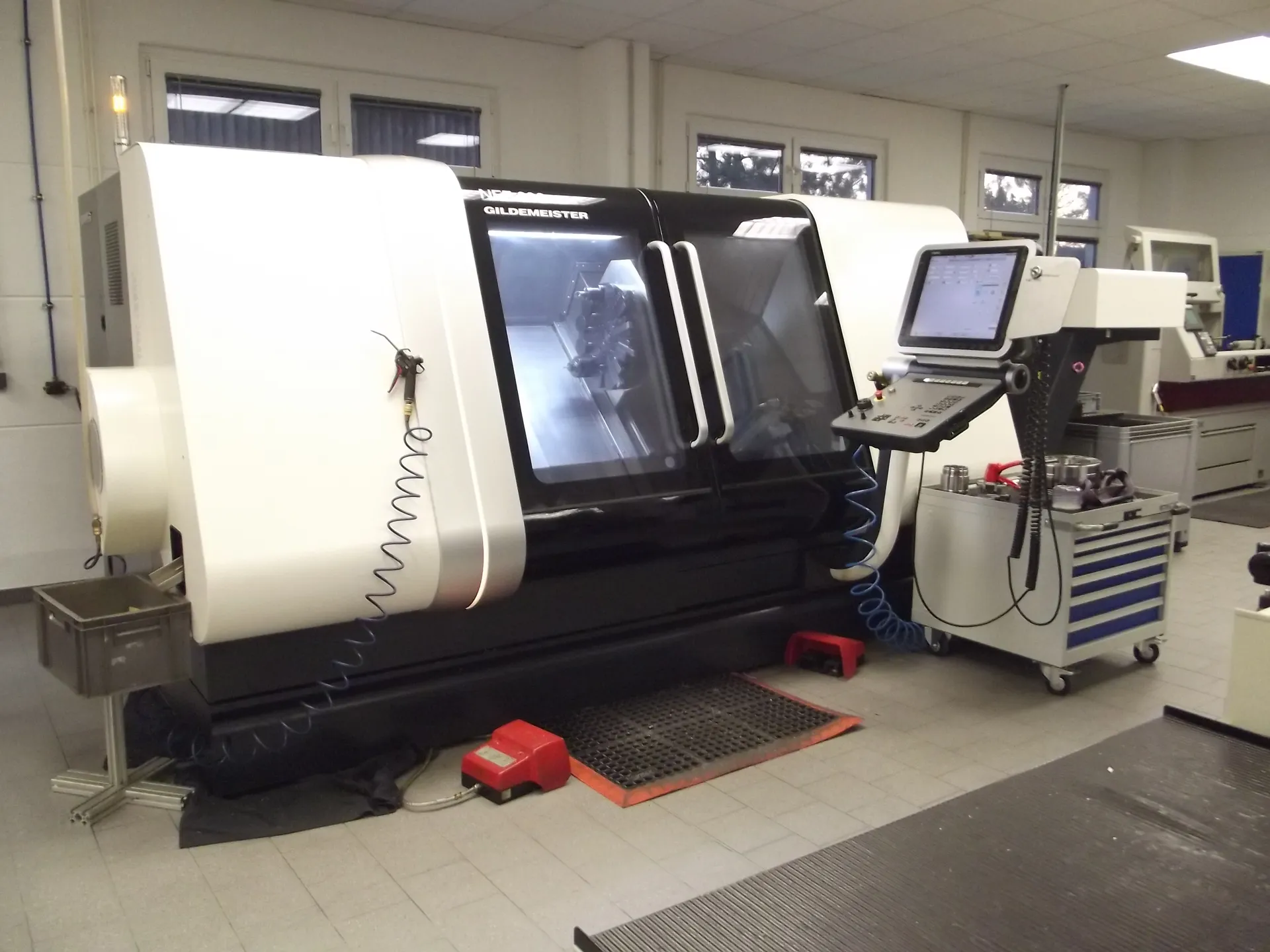

NEF 600
ManufacturerDMU
ControlCNC PILOT 620
Year of Construction2011
Technology
Full-range turning (including milling)TurningDrilling / threading / tappingMillingSwiss turningEngraver millingForm milling (3 D)Shaft machining
4 / 6

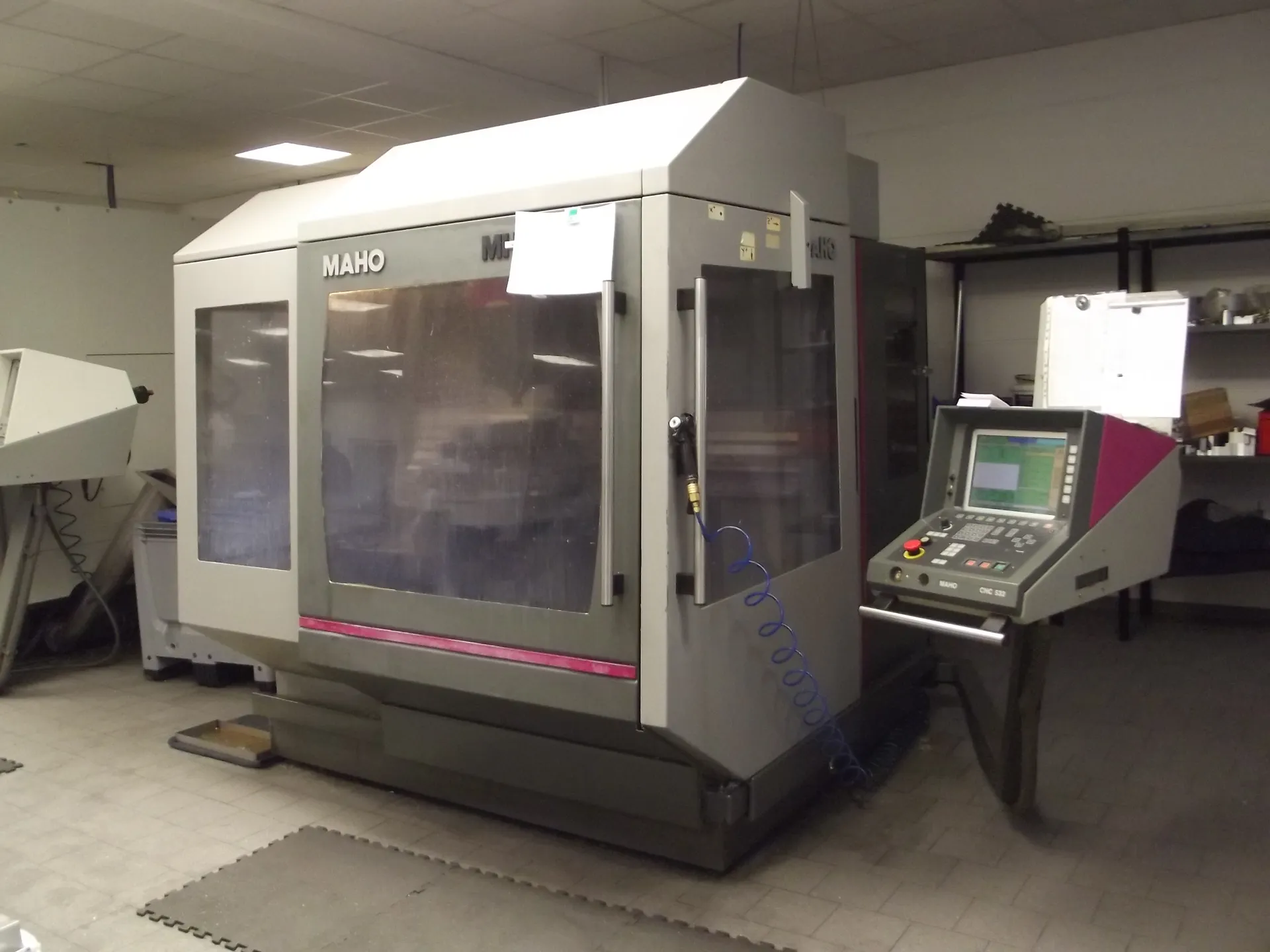

MAHO 600C
ManufacturerMAHO
ControlPHILIPS 532
Year of Construction1993
Technology
Engraver millingDrilling / threading / tappingForm milling (3 D)Milling
5 / 6

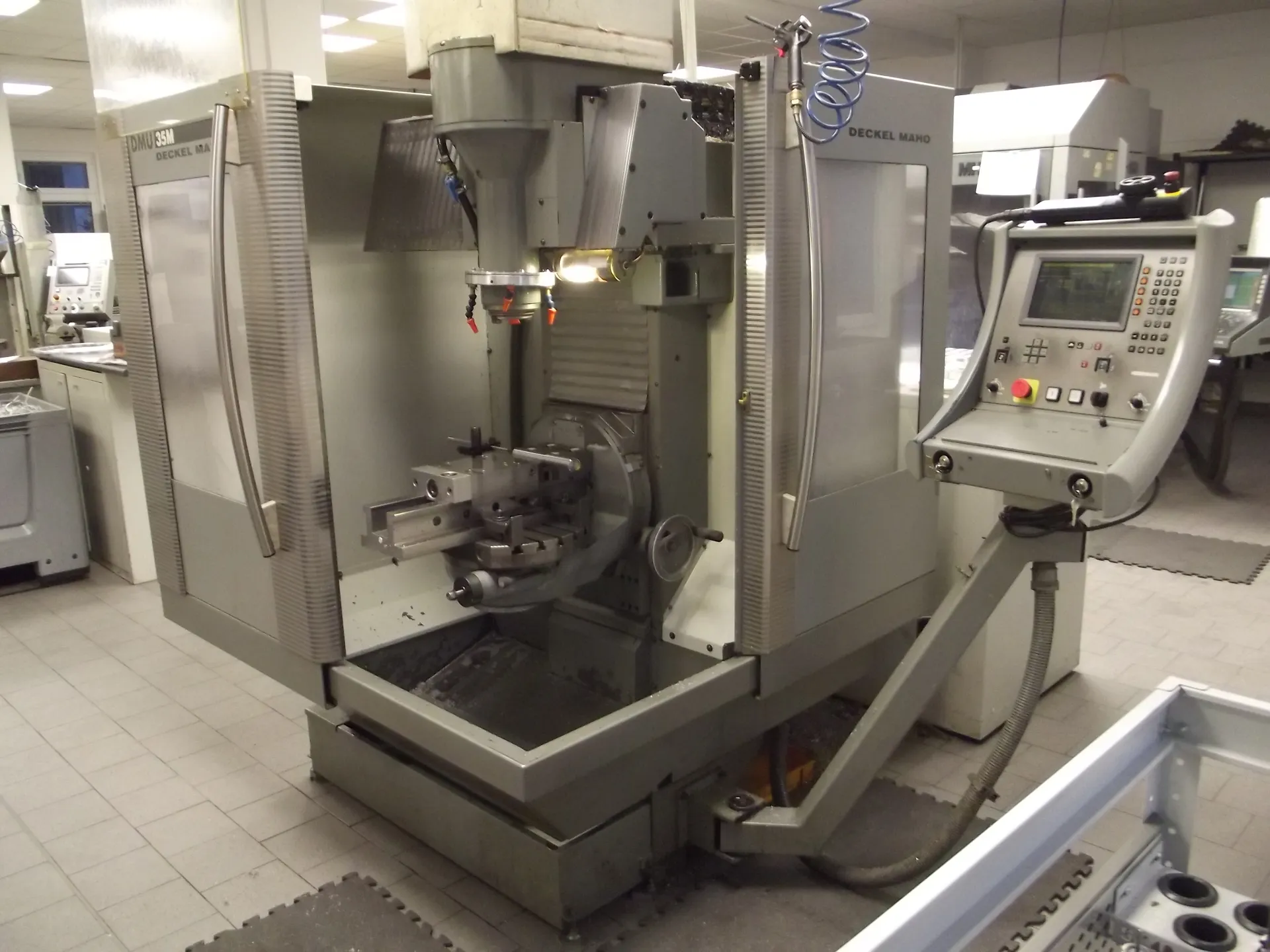

DMU 35M
ManufacturerDMU
ControlTNC 310
Year of Construction2000
Technology
Form milling (3 D)Drilling / threading / tappingMillingEngraver milling
6 / 6

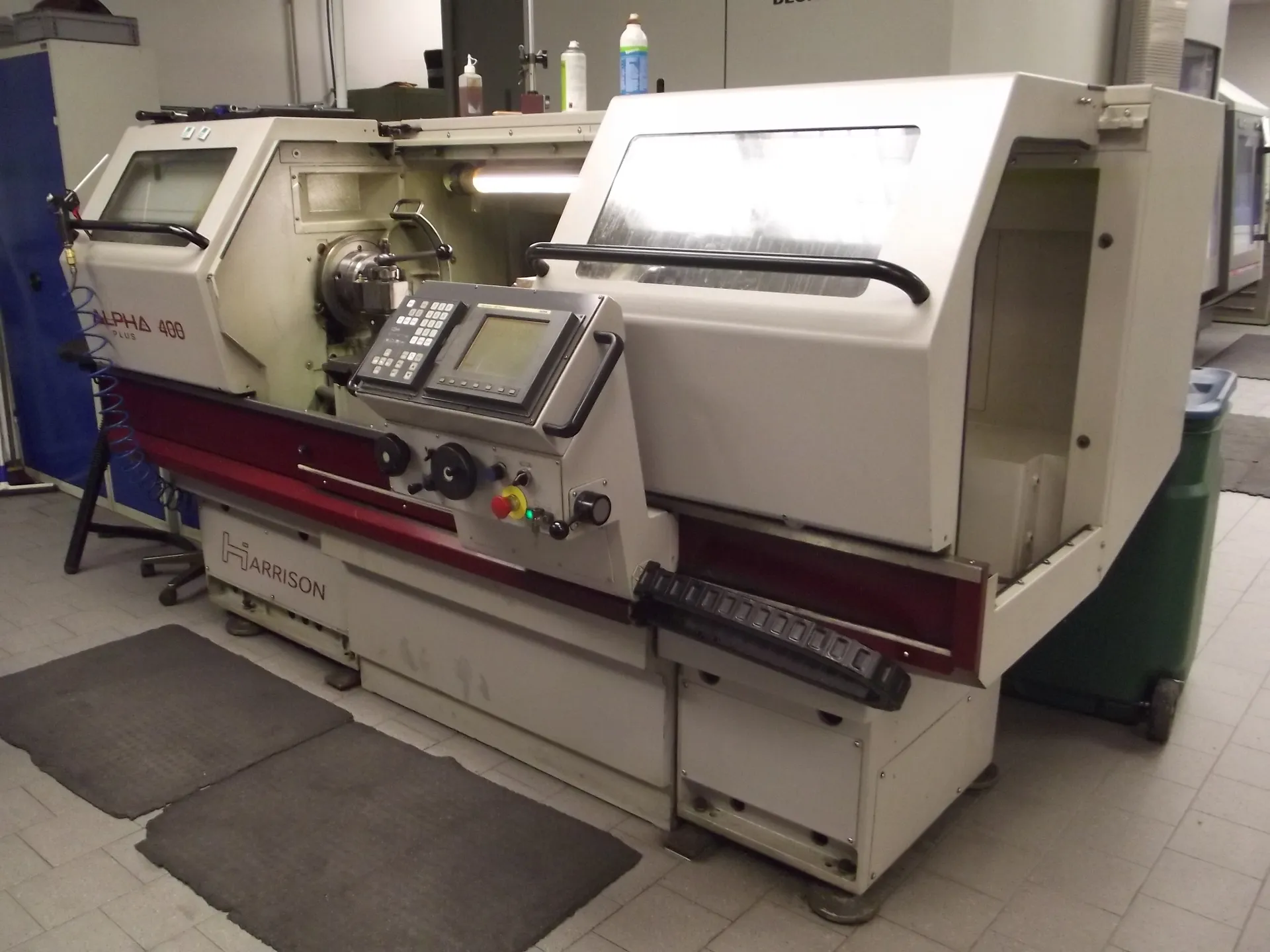

ALPHA 400
ManufacturerHarrison
ControlFANUC 21i
Year of Construction2001
Technology
Drilling / threading / tappingShaft machiningSwiss turningTurning
3 Parts
6 Machinery
Drilling / threading / tapping6
Milling5
Form milling (3 D)5
Engraver milling5
Full-range turning (including milling)1
Turning2
Swiss turning2
Shaft machining2
Contact
Location
Main locationBeeskowdamm 6, 14167 Berlin, Germany
Company contact
Contact persons
TM
Thomas Mayer
