About Ellermann GmbH Metallverarbeitung&Formenbau

Who we are

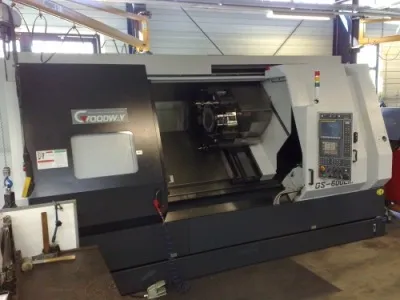

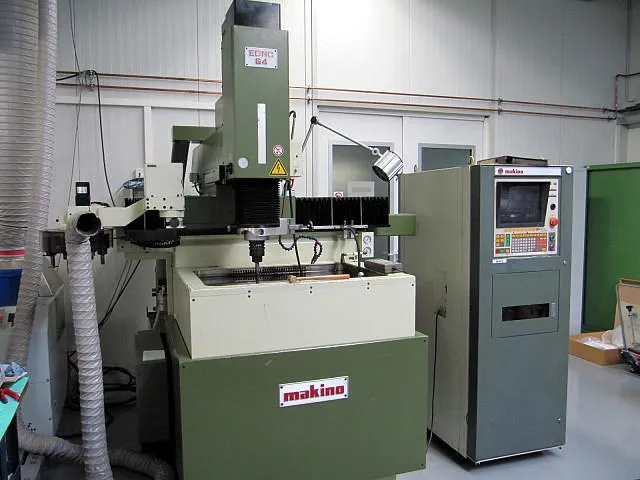

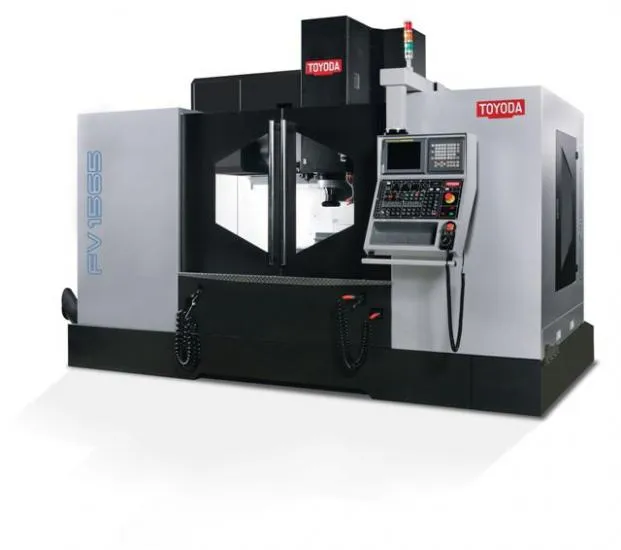

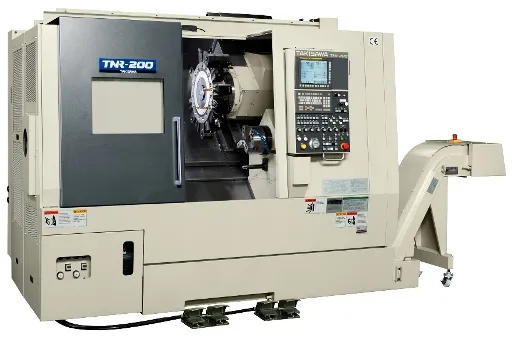

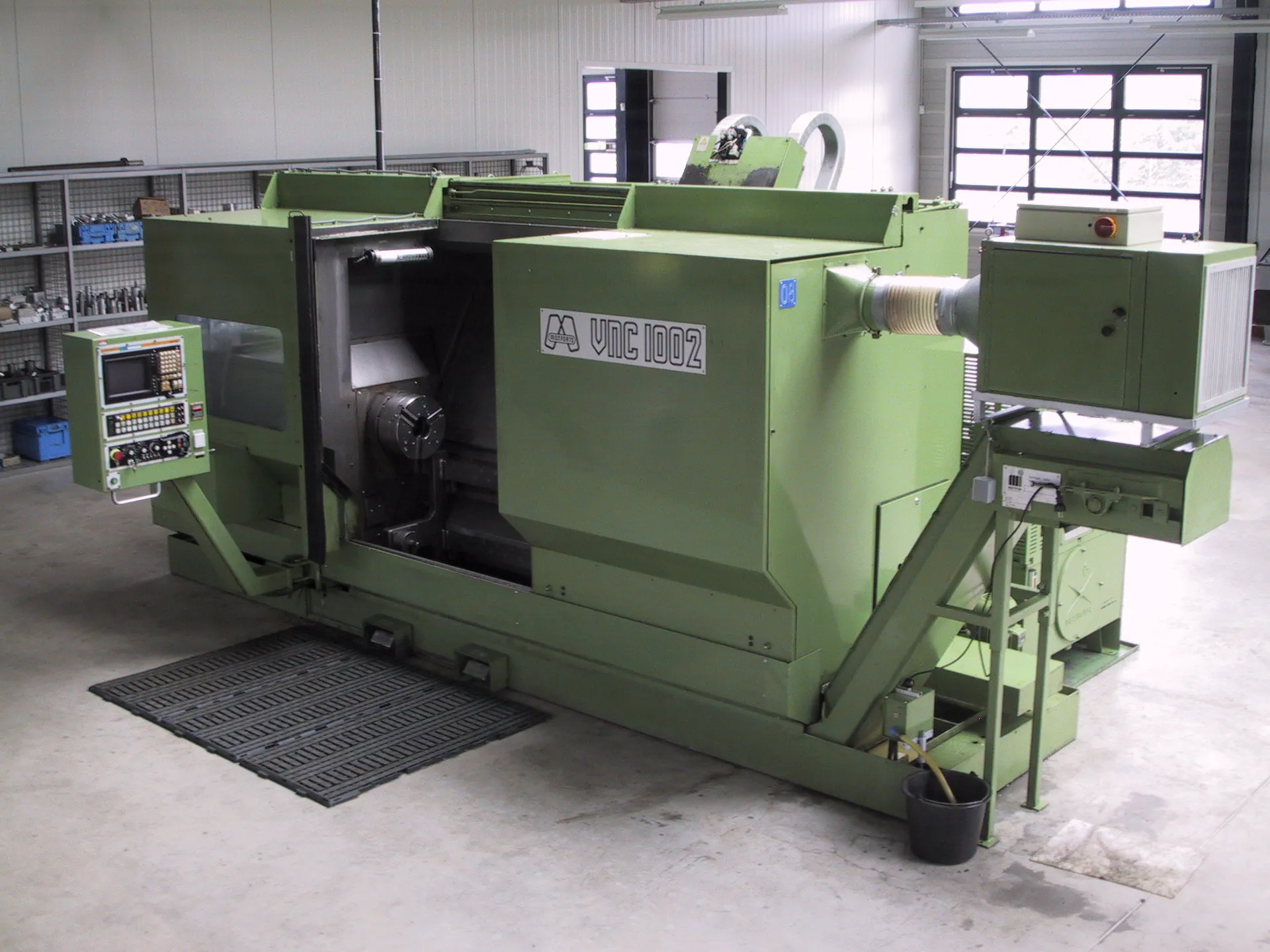

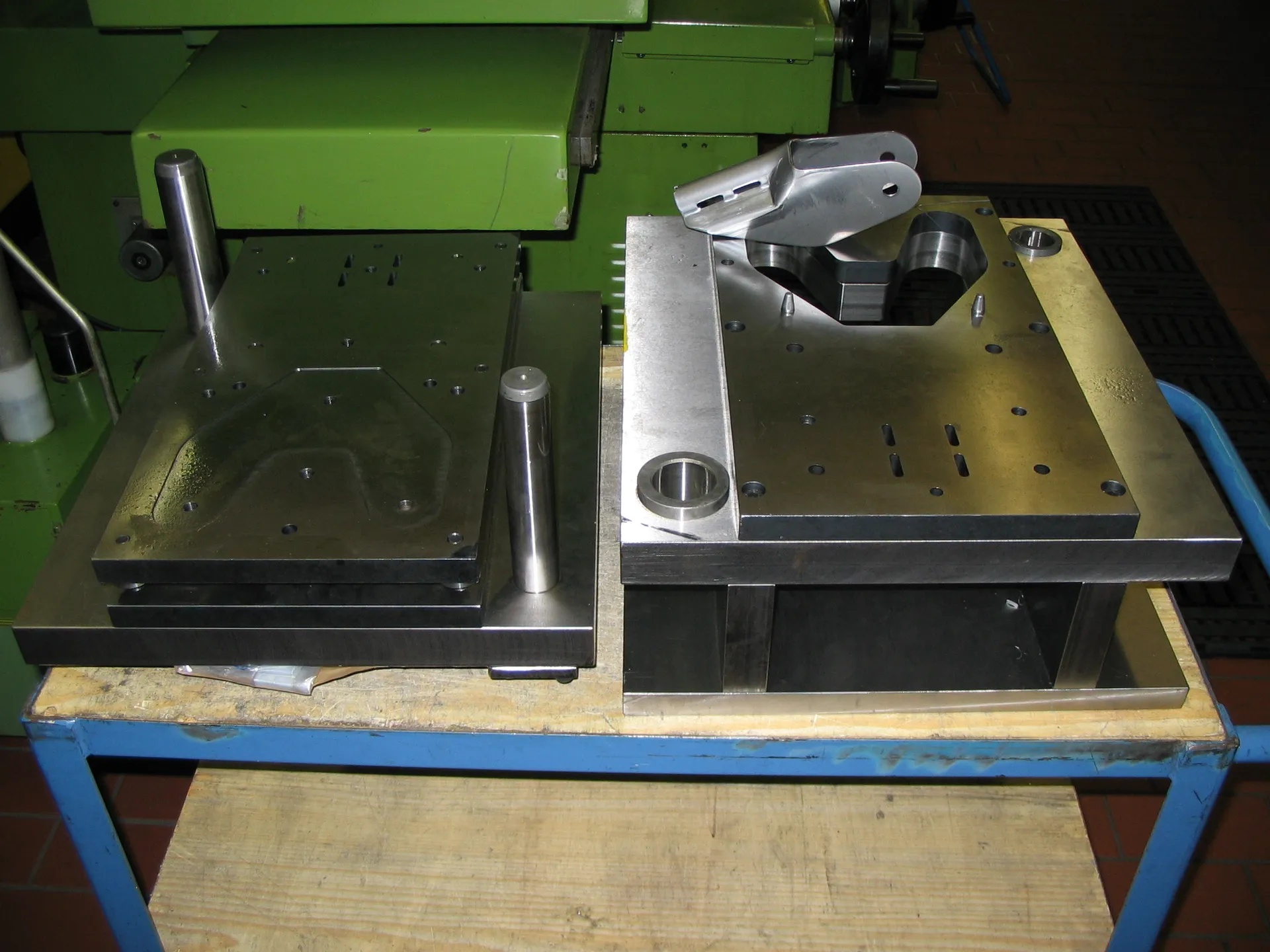

For more than 45 years we have worked successfully as a tool, fixture and contract manufacturer for renowned national clients. Our qualified staff of 16, modern machinery and certified management systems guarantee for efficiency, quality and delivery reliability. We mill to max. 1350x400x400mm and 1 to 8 weight on CNC machining centers and 2 conventional milling machines, turning to 8 CNC lathes up to 1 Ø880x1600mm and weight. Using the latest CNC technology and CAD CAM systems the greatest possible cost with the highest quality and short delivery times will be agreed. With the 5 and 4 axis machining centers with up to 18000 U / min milling of complex contours is possible. The 4-axis mill-turn produce turned parts including milling in one setup with maximum productivity. For the tool and our CNC EDM machine is optimal with 8-fold electrode changer. We also have 2 round and 1 flat grinding machine, three conventional lathes, 2 conventional milling tool, one conventional EDM machines, measuring machines, Zett measuring 6-articulated arm and many other drills, hand tools, etc.

123

Stemwede, Germany

Member since 2009

Employees10 - 20

Certificates2

Turnover1 - 5 Mil.

Year of foundation1967/96

Marketing documents

Flyer ISO 9001 ISO 14001

Competencies

Technologies

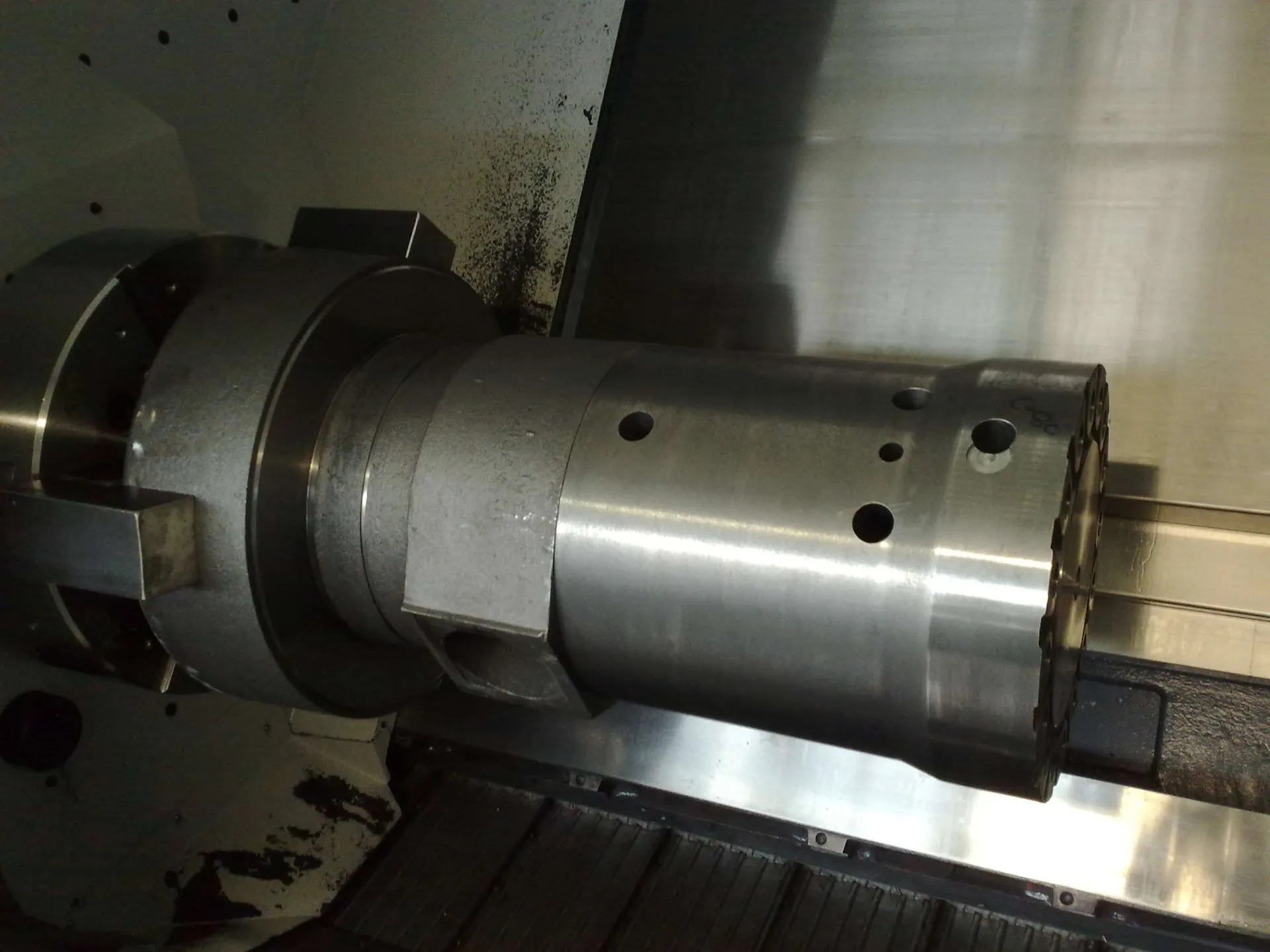

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	1–500 k	10–1,500 mm	10–850 mm	—
Full-range turning (including milling)	1–50,000	30–1,500 mm	30–850 mm	—
Shaft machining	1–50,000	100–2,000 mm	30–115 mm	0–100 kg

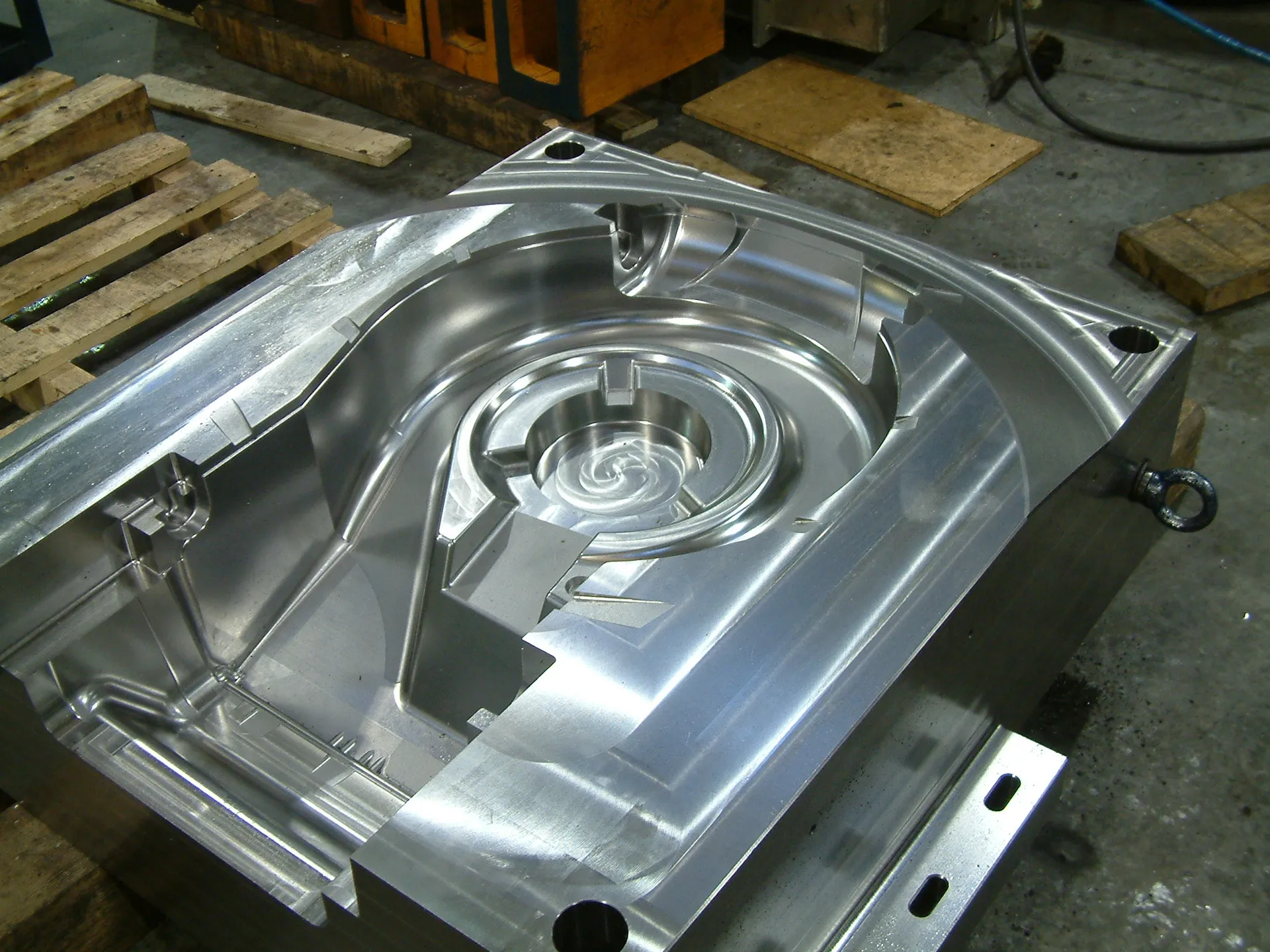

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	100–600 mm	100–600 mm	20–300 mm	0–500 kg

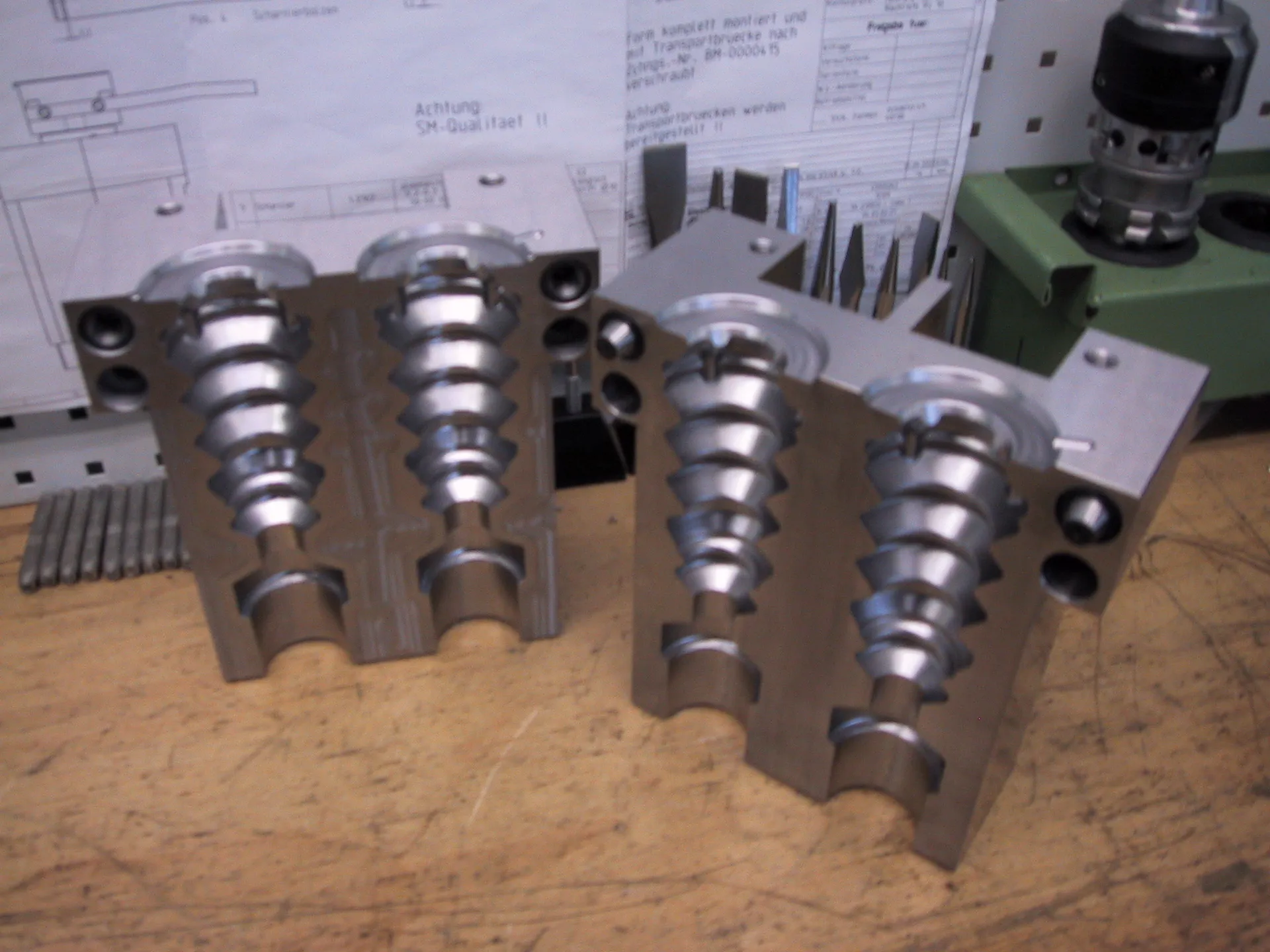

Foam molds	100–600 mm	100–600 mm	20–300 mm	0–500 kg

Assembly

Technologies	Weight
Mechanical assembly	0–2,500 kg

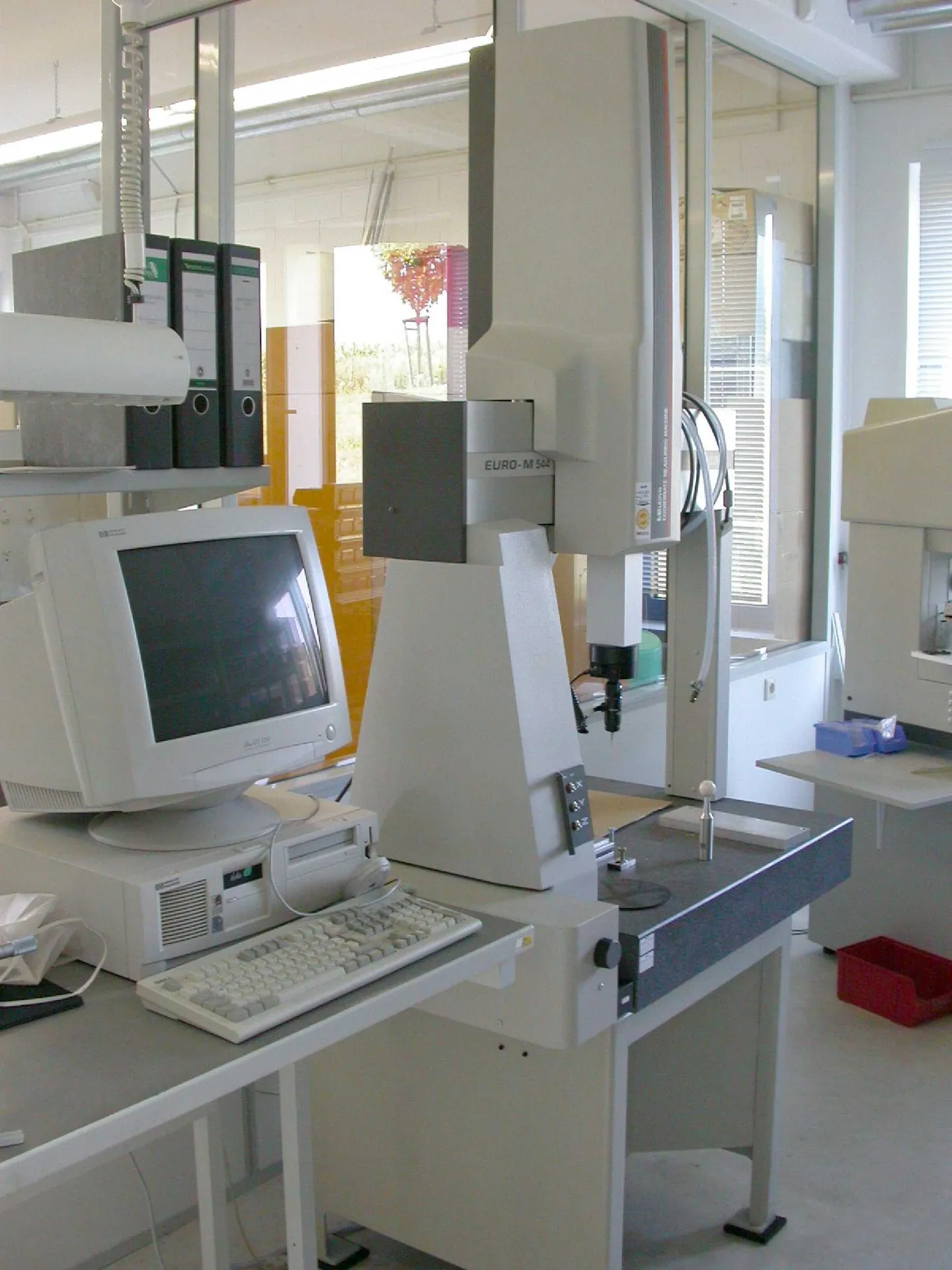

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	20–1,000 mm	20–1,000 mm	10–1,000 mm	10–1,000 mm	0–1,000 kg

Heat Treatment

Technologies
Carbonitriding
Case hardening/surface hardening
Hardening
Induction hardening
Nitriding processes
Vacuum annealing
Hardening and tempering

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

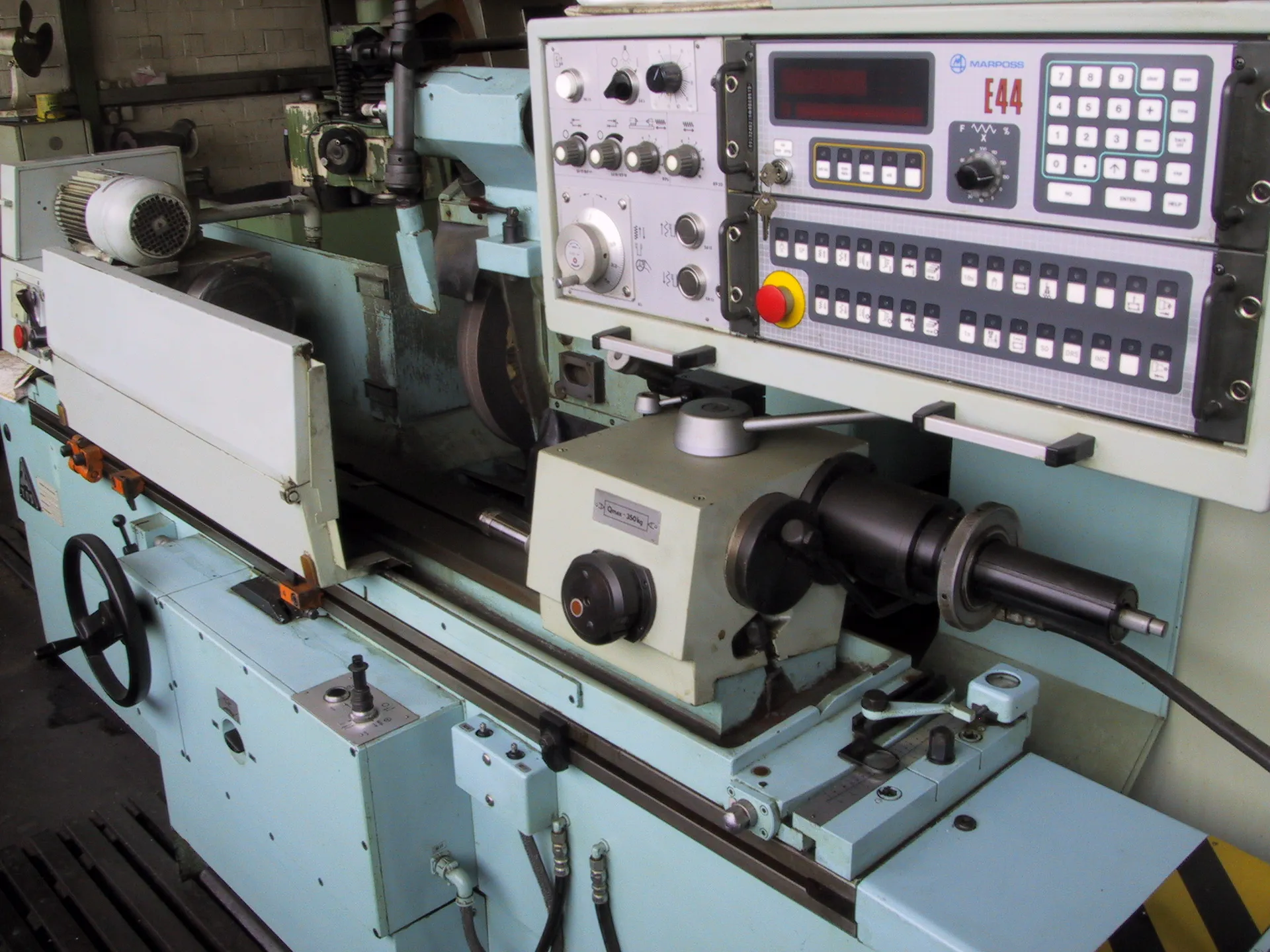

External cylindrical grinding	1–50,000	50–1,000 mm	—	—	30–320 mm	0–400 kg
Surface grinding machine	1–5,000	10–750 mm	10–400 mm	10–200 mm	—	0–500 kg

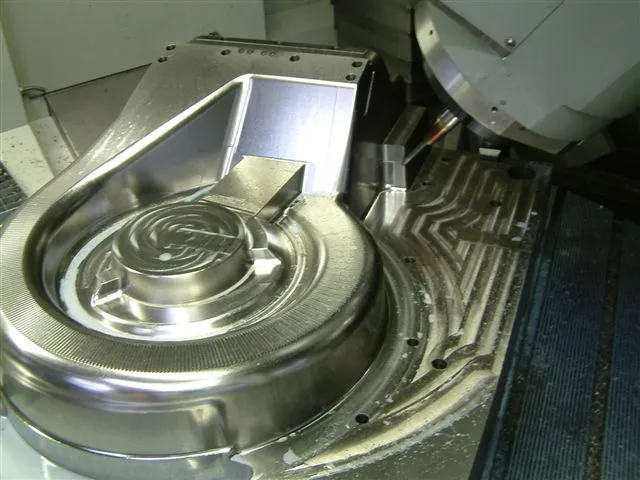

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	1–5,000	20–1,300 mm	20–400 mm	10–400 mm	0–1,000 kg
Form milling (3 D)	1–5,000	20–1,300 mm	20–400 mm	10–400 mm	0–1,000 kg
HSC milling	1–5,000	20–1,300 mm	20–400 mm	10–400 mm	0–1,000 kg

Materials

Light metals

Aluminium and aluminium alloysTitanium and titanium alloys

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plastic

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel

Cast metals

Cast steelCast iron

Industries

Plant engineering and constructionAerospace and aviation industryRailway and rail vehicles industryApparatus engineeringMedical technologyMeasurement and control technique, laboratory equipmentMachine tool manufacturingMechanical engineeringPaper and printing machinery industryPrecision engineering, mechatronics and opticsDrive and gear engineeringFittings engineeringHydraulic and pneumatic industryChemical industrySpecial purpose machinery manufacturingPackaging industryAutomotive and vehicle construction

+9 moreShow less
