About EMIL WIRTH Maschinenbau GmbH
Who we are
Sheet Metal Manufacturing
1 / 7

2 / 7

3 / 7

4 / 7

5 / 7

6 / 7

7 / 7

Hartmannsdorf, Germany
Member since 2002
Employees50 - 100
Turnover1 - 5 Mil.
Year of foundation1990
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | 1–10,000 | 5–3,000 mm | 1–1,500 mm | 0.5–20 mm |
Bending / folding | 1–5,000 | 1–3,050 mm | — | 1–10 mm |
Punching / nibbling | 1–10,000 | 10–500 mm | 10–500 mm | 0.5–6.4 mm |
Combined forming laser cutting / punching | 1–10,000 | 1–1,300 mm | 1–2,850 mm | 1–4 mm |
Plate rolling / bending | 1–1,000 | — | 1–2,000 mm | 0.5–6 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Weight | Material thickness |
|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–1,000 | 1–3,000 mm | 1–3,000 mm | 1–2,000 mm | 0–500 kg | — |
Inert gas shielded arc welding (TIG) | 1–1,000 | 1–3,000 mm | 1–3,000 mm | 1–2,000 mm | 0–500 kg | — |
Spot welding | 1–1,000 | — | — | — | — | 0.2–4 mm |
Stud welding | 1–1,000 | — | — | — | — | — |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–500 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Clinching | 1–5,000 | 20–200 mm | 20–60 mm | 1–2 mm |
Riveting | 1–10,000 | 8–457 mm | 8–457 mm | 0.5–2 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 1–4,000 mm | 1–2,000 mm | 1–2,000 mm | 0–500 kg |
Machine frames / bases / racks | 1–4,000 mm | 1–2,000 mm | 1–2,000 mm | 0–500 kg |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Blacking | 1–1,000 | 1–2,000 mm | 1–1,000 mm | 1–1,000 mm | — | 0–50 kg | — |
Electroplating | 1–5,000 | 10–1,800 mm | 10–800 mm | 10–250 mm | — | 0–15 kg | — |
Powder coating | 1–5,000 | 50–2,500 mm | 50–1,800 mm | 30–1,200 mm | — | 0–100 kg | — |
Spray-painting | 1–5,000 | 50–8,000 mm | 50–2,000 mm | 50–2,000 mm | — | 0–5,000 kg | — |
Galvanizing | 1–5,000 | 10–15,500 mm | 10–3,000 mm | 10–1,850 mm | 5–3,000 mm | 0–8,000 kg | 3–40 mm |
Sheet Metal Forming (Stamping, Deep-drawing)
| Technologies | Lotsize | Diameter | Material thickness |
|---|---|---|---|
Spinning | 1–5,000 | 1–10 mm | 1–1.5 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–1,000 | 1–6,000 mm | 1–300 mm | 1–300 mm | 1–300 mm | — |
Drilling / threading / tapping | 1–500 | 1–1,300 mm | 1–1,000 mm | 1–1,000 mm | — | 0–1,000 kg |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Cast metals
Cast steelCast iron
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Paper and printing machinery industryBoiler, container and tank construction Measurement and control technique, laboratory equipmentMachine tool manufacturingBuilding, agricultural and forestry machinery manufacturingOffice machinery and suppliesDrive and gear engineeringElectrical industryMechanical engineeringTelecommunication industryAir conditioning, refrigeration and ventilation industryPlant engineering and constructionApparatus engineeringAutomation and control engineeringSpecial purpose machinery manufacturing
Parts & Machines
Parts (2)
1 / 2

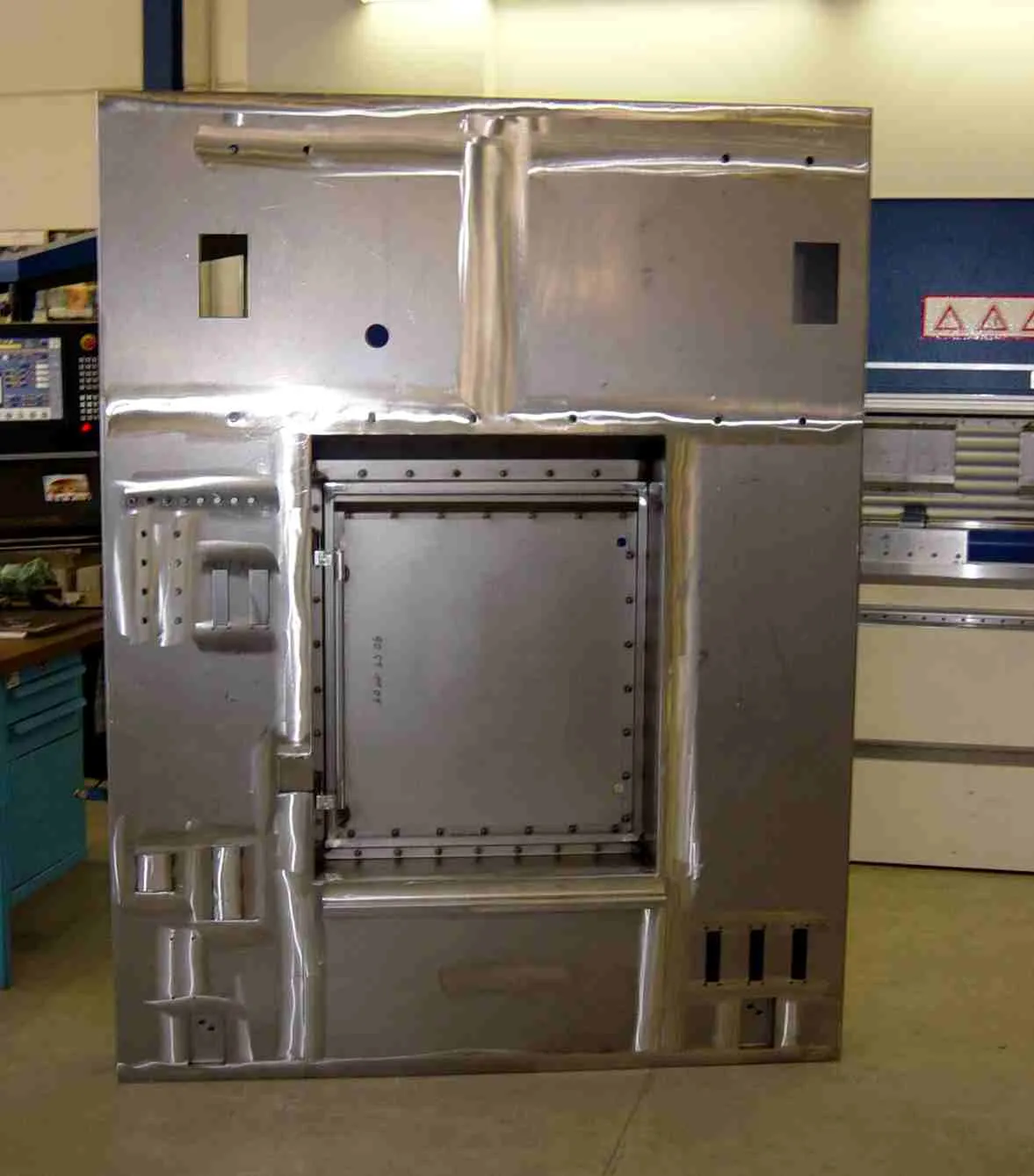

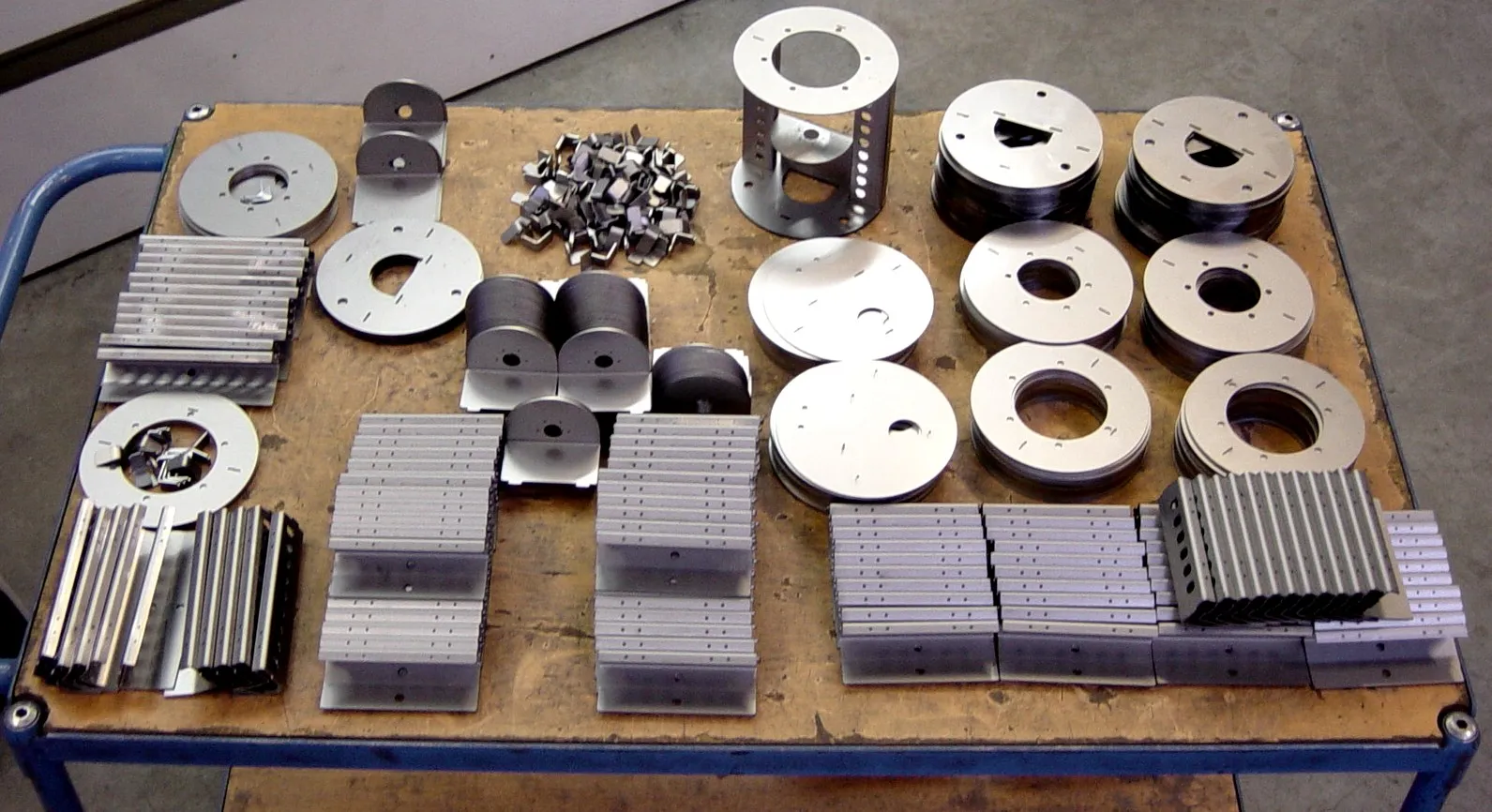

Blechbaugruppen
DescriptionBeschreibung:
2 / 2

Machinery (21)
1 / 21

-
ManufacturerKern
ControlHeidenhain-Manual plus 3110
Year of Construction2000
Technology
Turning
2 / 21

VC 1300
ManufacturerSPINNER
ControlSiemens 810D Shop Mill
Year of Construction2002
Technology
HSC millingMilling
3 / 21
PEM-Serter
ManufacturerKVT Koenig Verbindungstechnik GmbH
Control-
Year of Construction1997
4 / 21
BMS 660
ManufacturerSoyer
Control-
Year of Construction1997
5 / 21
BMS 8 H
ManufacturerSoyer
Control-
Year of Construction1996
6 / 21
LB 12 K4
ManufacturerBoschert
Control-
Year of Construction1996
7 / 21
CRH 03.45.50.15.40
ManufacturerTox Pressotechnik GmbH
ControlEinhandsteuerung
Year of Construction1997
8 / 21
unbekannt
ManufacturerEisenmann
Control-
Year of Construction2001
9 / 21
unbekannt
ManufacturerEisenmann
Control-
Year of Construction2001
10 / 21
P 32-PN-2
ManufacturerESM Aue
Control-
Year of Construction1988
11 / 21
POUTL III
ManufacturerESM Dresden
Control-
Year of Construction1987
12 / 21
unbekannt
Manufacturerunbekannt
Control-
Year of Construction1996
13 / 21

AK 206 P
ManufacturerHezinger MG
Control-
Year of Construction2005
14 / 21

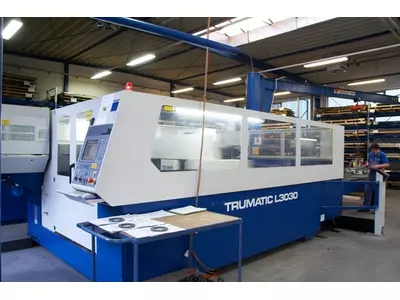

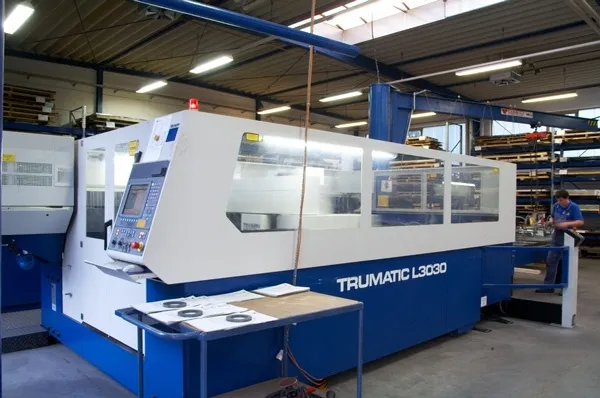

L3030
ManufacturerTrumpf Trumatic
ControlSinumerik 840D
Year of Construction2005
15 / 21
8003N
ManufacturerEST Dresden
Control-
Year of Construction2005
16 / 21
Smart N10 Comfort
ManufacturerELB
ControlElb
Year of Construction2008
Technology
Surface grinding machine
17 / 21
FSS400
ManufacturerUnitech
ControlSPS
Year of Construction2006
Technology
Milling
18 / 21
FW315
ManufacturerUnitech
ControlSPS
Year of Construction2004
Technology
Milling
19 / 21
Horizontalbohrwerk BFT 63
ManufacturerUnion
Control-
20 / 21

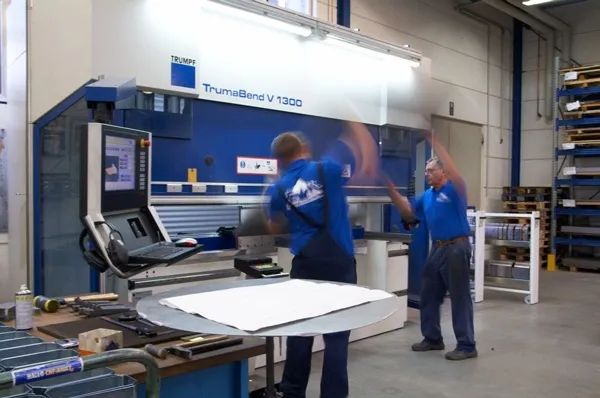

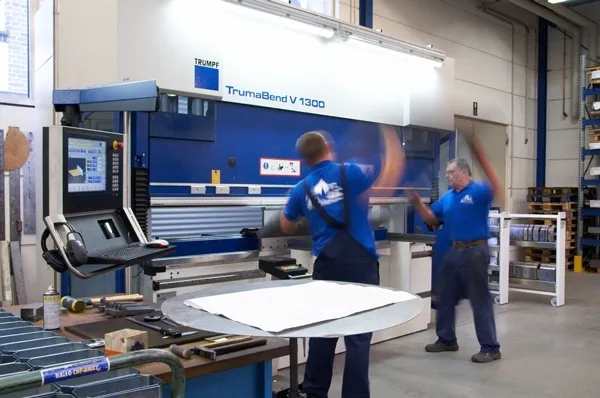

V1300
ManufacturerTrumpf Trumabend
ControlTrumpf TASC6000
Year of Construction2006
21 / 21

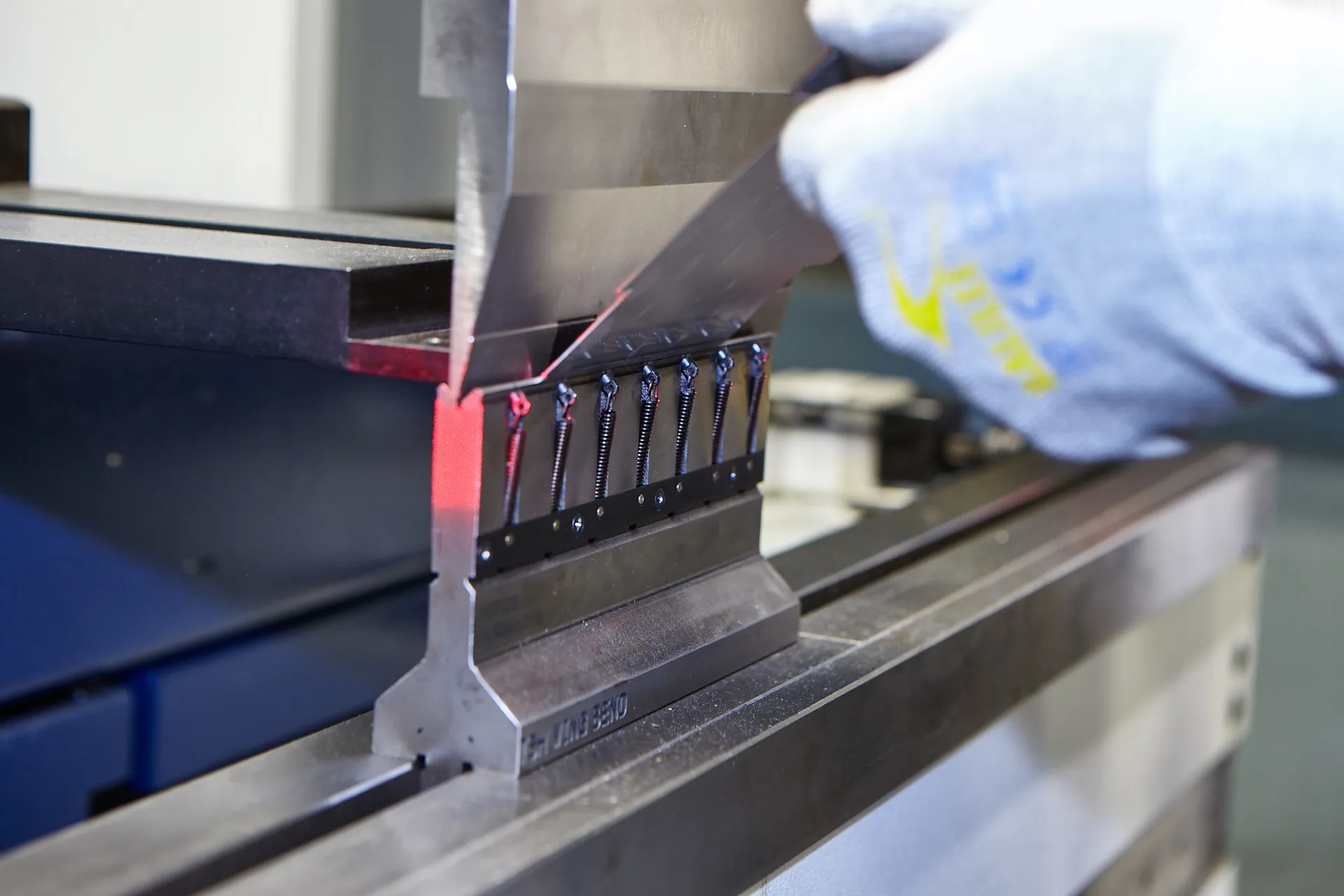

Trumabend
ManufacturerTrumpf
ControlTrumpf TASC6000
Year of Construction2015
2 Parts
Others2
21 Machines
Turning1
HSC milling1
Milling3
Surface grinding machine1
Others16
