About Engel GmbH - Leichtmetallguss
Who we are
We specialized in aluminum Kippgießteile their specialized piece weights in the range of approximately 10 g are up to 100 kg. The large volume Kippgießteile with dimensions up to 1.5 m in length are manufactured in Germany. The wage-intensive products are manufactured at competitive prices in our new plant in Hungary. A variety of products we supply finished in all common remelting and hut alloys. For years we have been supplying reputable clients in the areas of the vehicle, drive line, machine and plant construction. Likewise, we manufacture manufacturer of electric motors, awnings, exterior lighting and industrial scales. This is mostly to various gear housing or drive housing and motor flanges, cover and cylinder with high technical requirements. The unit weights of these products are in the range of about 1 to 100 empty kg, we have specialized in large-volume Kippgießteile. A variety of products we supply finished in all common remelting and metallurgical alloys.Cast parts are eg. Base frame, housing, brackets, base, magnetic enclosure, equipment rack. Our special services: 1 Construction services as early coordination with our partners to achieve a technically and economically favorable solution for the casting and the casting die. 2 Foundry Technical consulting for the development of new castings on initial samples to mass production. Advising on necessary technical changes to the article. 3 Electronic monitoring and control of casting machines to ensure that our clients want quality. 4 Delivery of castings and heat treated if necessary and machined Aluminum alloys The melt is continuously monitored with existing spectrum analyzer (Spectrometer). Molded be the most common alloys, both in remelting and in cabin quality. The following alloys are in use in our: Alloy designation to DIN EN 1706 numerically chemical symbols EN AC-21100 - EN AC-Al Cu4Ti EN AC-42100 - EN AC-Al Si7Mg0, 3 EN AC-43300 - EN AC-Al Si9Mg EN AC-44000 - EN AC-Al Si11 EN AC-44200 - EN AC-Al Si12 EN AC-46200 - EN AC-AlSi8Cu3 EN AC-47000 - EN AC-Al Si12 (Cu)
1 / 1
Neuenrade-Küntrop, Germany
Member since 2004
Premium Member since 2026
Employees20 - 50
Certificates2
Turnover5 - 10 Mil.
Year of foundation1963
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1,000–500,000 | 100–1,000 mm | 50–200 mm |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 1–1,000 mm | 1–1,000 mm | 1–500 mm | 1–5,000 kg |
Casting
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Gravity die casting | 1–10 M | 10–1,600 mm | 10–1,600 mm | 10–400 mm | 0–100 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 50–1,900 mm | 50–1,900 mm | 50–600 mm | 1–60,000,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Milling | 1,000–500,000 | from 3,000 mm | from 1,000 mm | from 500 mm |
5-axis milling machines | 1,000–500,000 | 500–3,000 mm | 250–1,000 mm | 100–500 mm |
Heat Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Hardening | 100–10,000 | 1–500 mm | 1–500 mm | 1–5,000 mm | 1–500 mm | 1–50 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Sawing | 50–10,000 | 1–1,000 mm | 1–1,000 mm | 1–1,000 mm | 1–500 mm |
Materials
Light metals
Aluminium and aluminium alloys
Industries
Medical technologyMeasurement and control technique, laboratory equipmentLighting industryRailway and rail vehicles industryDrive and gear engineeringAutomotive and vehicle constructionMechanical engineeringMachine tool manufacturingInformation technology (hardware)Special purpose machinery manufacturing
Certificates
ISO 9001:2015
VDA 6.1
Parts & Machines
Parts (3)
1 / 3

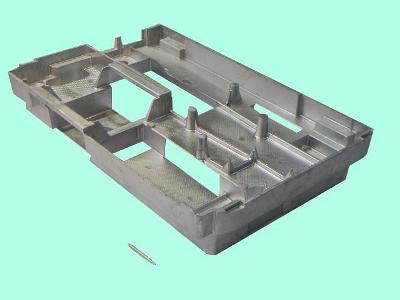

Geräteträger
DescriptionDer Geräteträger, welcher seinen Einsatz in einem vollautomatischen medizinischen Analysegerät findet, wurde vorher als Sandgußteil bezogen. Die Gewichtsersparnis bei der Umstellung von Sandguß auf Kokillenguß lag bei 6,3 kg, entspricht 17,6 %.
2 / 3

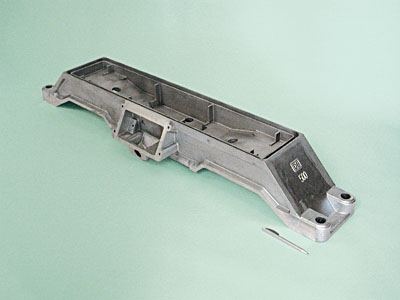

Magnetgehäuse
DescriptionDas abgebildete DB-Magnetgehäuse wird im Bahnbau eingesetzt und zählt mit seinen Abmaßen zweifelsfrei zu den großen Kokillengussteilen. Bei derartig langen Fließwegen kommt hierfür nur ein Kippgießverfahren in Frage. Ein konventionelles Verfahren (Schwerkraft) ist wegen des deutlich höheren Kreislaufanteils weniger wirtschaftlich. Trotz der langen Fließwege und der zahlreichen Massenanhäufungen (große Wandstärkenunterschiede) ist eine Dichtspeisung der noch zu bearbeitenden Bereiche gelungen.
3 / 3

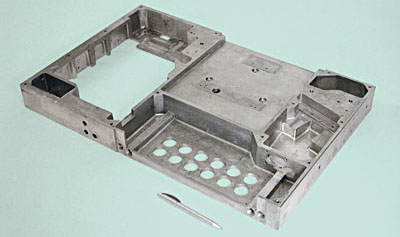

Konsole
DescriptionDie Konsole ist ein technisch anspruchsvolles Gussteil mit einer relativ dünnwandigen Gitterstruktur.
Machinery (1)
1 / 1

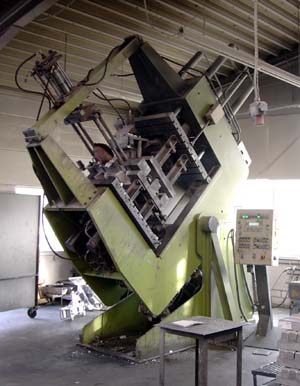

Kokillen-Kippgießmaschinen
ManufacturerGöllner
Control*/
Year of Construction1989
Technology
Gravity die casting
3 Parts
1 Machinery
Gravity die casting1
Contact
Location
Main locationHönnestr. 26, 58809 Neuenrade-Küntrop, Germany
Further locationsGießerei in Deutschland in Neuenrade
Tochter W Werk in Ungarn -Lebeny
Werkzeugbau in Deutschland - Werdohl
