About ERGIN MACHINE PATTERN&CASTING Corp.
Who we are
ERGIN MACHINE PATTERN&CASTING Corp. is founded in 1978. We are producing patterns for foundries, We have 2 foundry, Casting non-ferrous and ferrous alloys. We have a machining shop and a metal laboratory.
1 / 7

2 / 7

3 / 7

4 / 7

5 / 7

6 / 7

7 / 7

KAYSERI, Turkey
Member since 2011
Employees20 - 50
Certificates1
Year of foundation1978
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1–1,000 | 5–1,500 mm | 3–1,200 mm |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–2,500 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 6–200 mm | 6–200 mm | 0.1–100 mm | 6–150 mm | 0–10 kg |
Casting
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Gravity die casting | 1–10,000 | 5–1,000 mm | 5–1,000 mm | 5–500 mm | 0–300 kg |
Hand moulding (sand casting) | 1–10,000 | 1–6,000 mm | 1–3,000 mm | 1–2,000 mm | 0–2,000 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 1–1,000 mm | 1–700 mm | 1–500 mm | 0–1,000 kg |
Modelmaking | — | — | — | — |
Foam molds | 1–1,000 mm | 1–700 mm | 1–500 mm | 0–1,000 kg |
Vacuum deep-drawing moulds | 10–1,000 mm | 10–700 mm | 10–400 mm | 0–1,000 kg |
Heat Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Annealing | 100–10,000 | 10–5,000 mm | 10–1,500 mm | 10–1,000 mm | 10–1,500 mm | 0–5,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–1,000 | 5–1,000 mm | 5–700 mm | 5–450 mm | — | 0–1,500 kg |
Form milling (3 D) | 1–1,000 | 5–1,200 mm | 5–650 mm | 5–600 mm | — | 0–1,500 kg |
HSC milling | 1–1,000 | 5–1,000 mm | 5–700 mm | 5–450 mm | — | 0–1,500 kg |
Engraver milling | 1–10,000 | 5–1,000 mm | 5–700 mm | 2–500 mm | 5–700 mm | 0–1,000 kg |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Clamping devices | 10–1,000 mm | 10–700 mm | 10–400 mm | 0–1,000 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Manual electrode welding | 1–500 | 10–6,000 mm | 10–2,000 mm | 5–2,000 mm | 5–3,000 mm | 0–1,000 kg | 5–500 mm |
Finishing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Shot blasting | 1–10,000 | 5–1,200 mm | 5–1,200 mm | 5–1,500 mm | 0–1,000 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 1–10,000 | 5–1,000 mm | 5–700 mm | 5–200 mm | 0–1,000 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Marking | 1–10,000 | 5–1,000 mm | 5–700 mm | 5–500 mm | 5–700 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Sand blasting | 1–10,000 | 5–6,000 mm | 5–2,000 mm | 5–2,000 mm | 0–6,000 kg |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Natural materials
Wood/timber
Cast metals
Cast steelCast iron
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Industries
Medical technologySpecial purpose machinery manufacturingMechanical engineeringMachine tool manufacturingPower generation and transmission industryMilitary engineeringAutomotive and vehicle constructionMeasurement and control technique, laboratory equipmentAerospace and aviation industryPaper and printing machinery industryMining and tunnel engineeringApparatus engineering
Certificates
ISO 9001:2008
Parts & Machines
Parts (7)
1 / 7

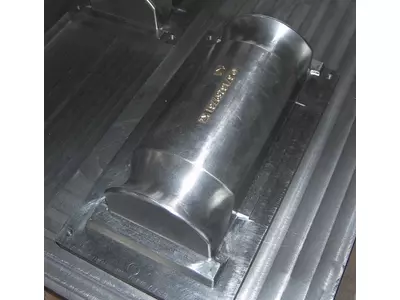

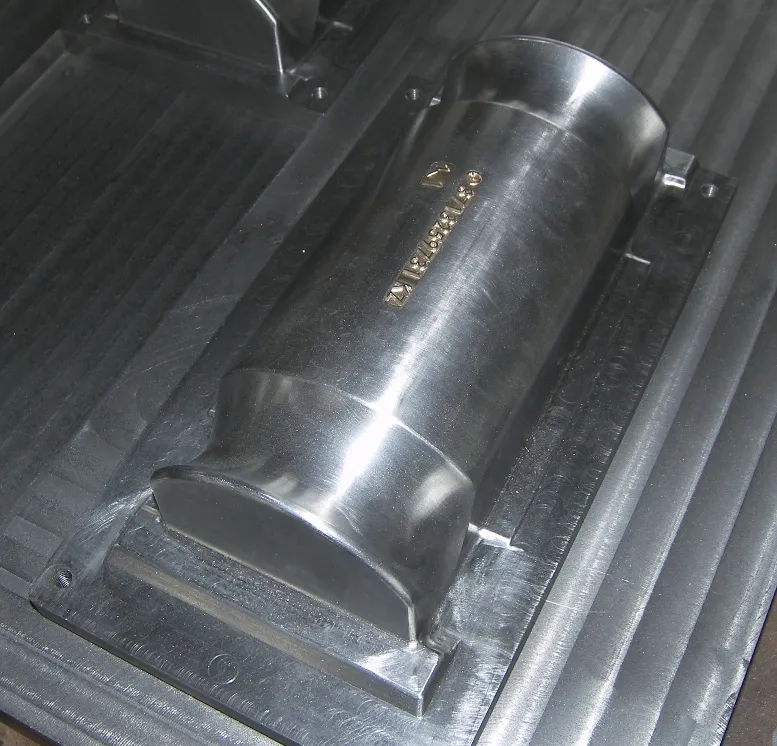

Pattern
DescriptionCast iron DISA pattern
2 / 7

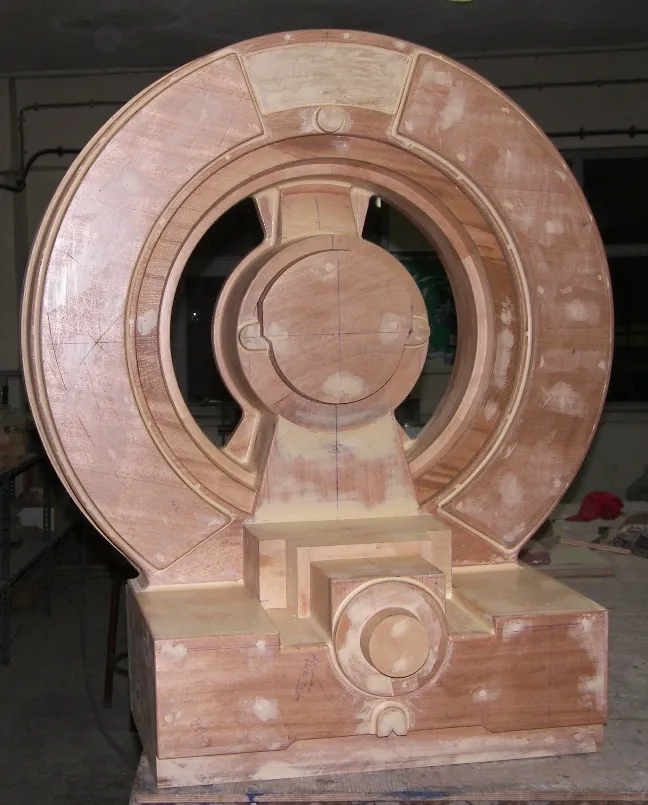

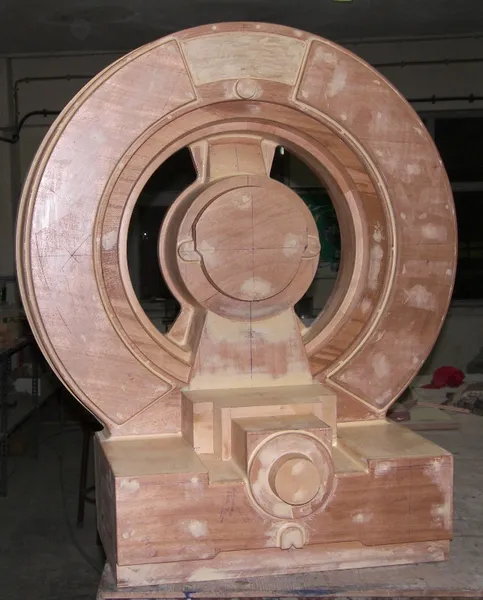

Wood Pattern
DescriptionWood pattern
3 / 7

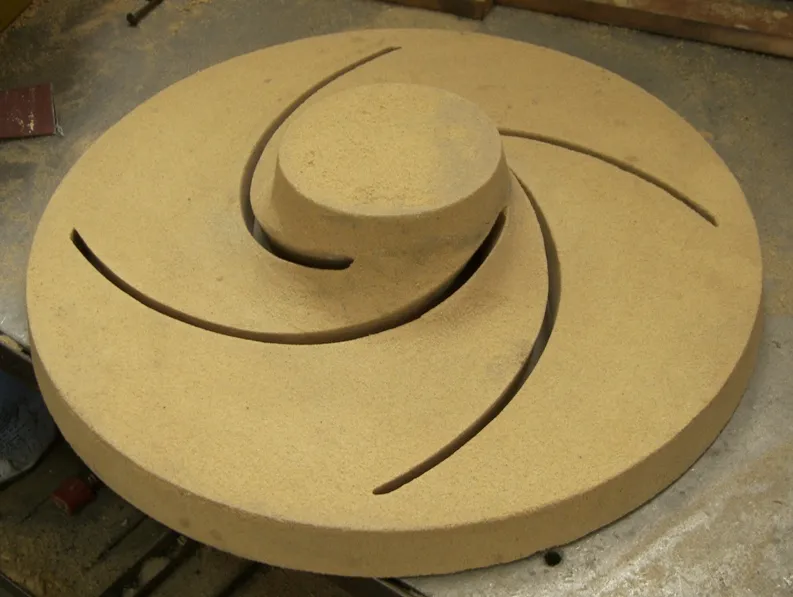

null
Descriptionnull
4 / 7

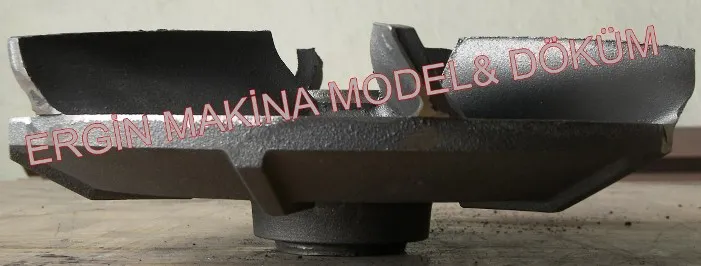

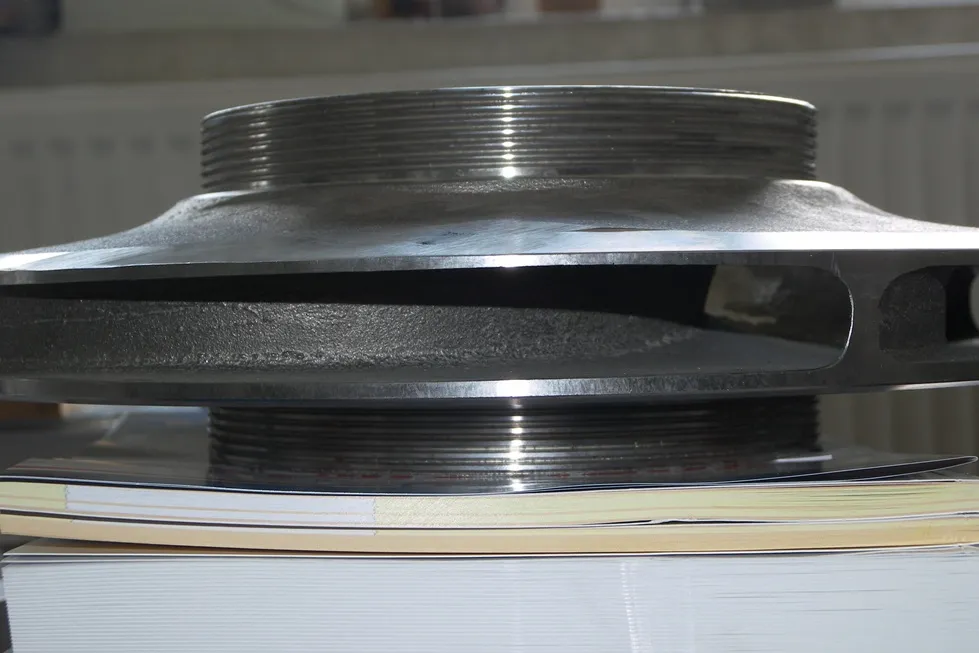

Cast impeller
DescriptionCast stainless steel
5 / 7

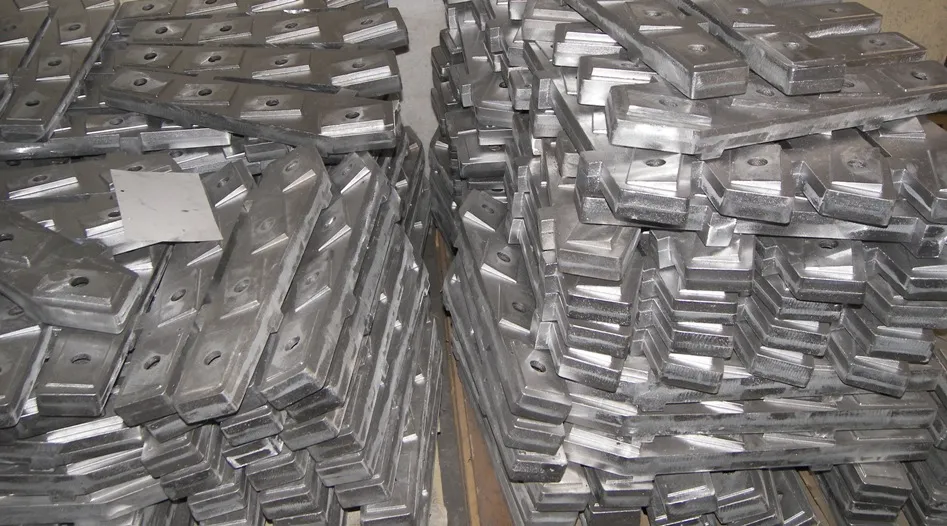

Cast Aluminum
DescriptionCast aluminum machine parts
6 / 7

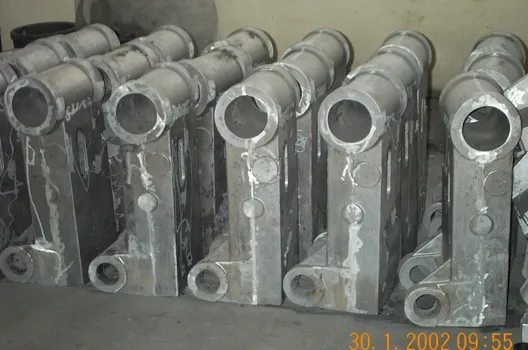

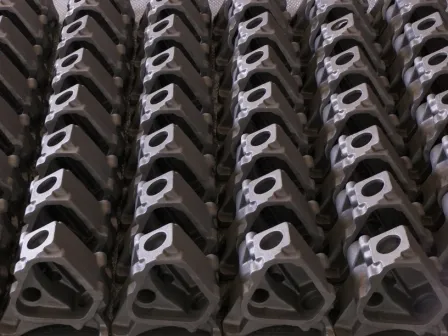

Iron casting
DescriptionCast iron motor part
7 / 7

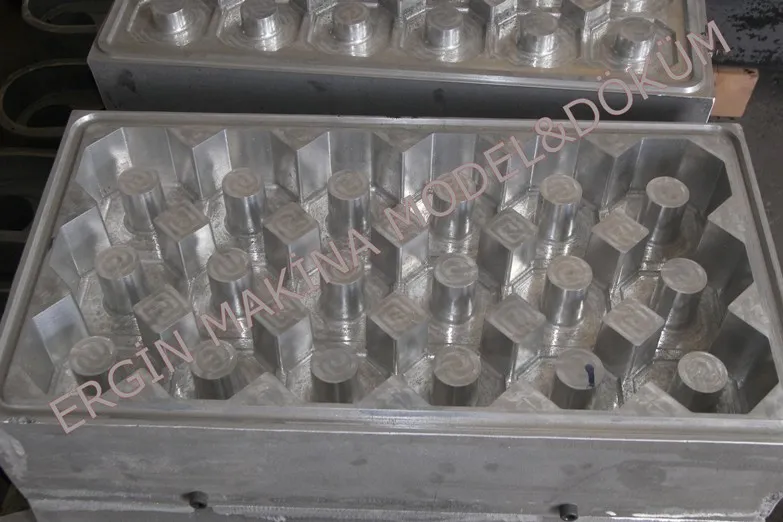

Foam mold
DescriptionCnc milled foam mold
Machinery (4)
1 / 4

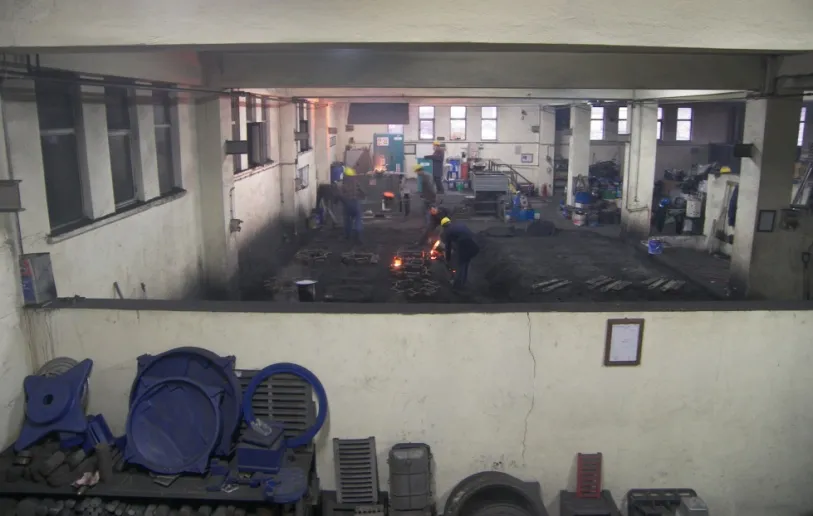

Foundry
Manufacturer5M
Control-
Year of Construction2004
Technology
Hand moulding (sand casting)Gravity die castingFoam moldsVacuum deep-drawing mouldsModelmakingGravity casting moulds
2 / 4

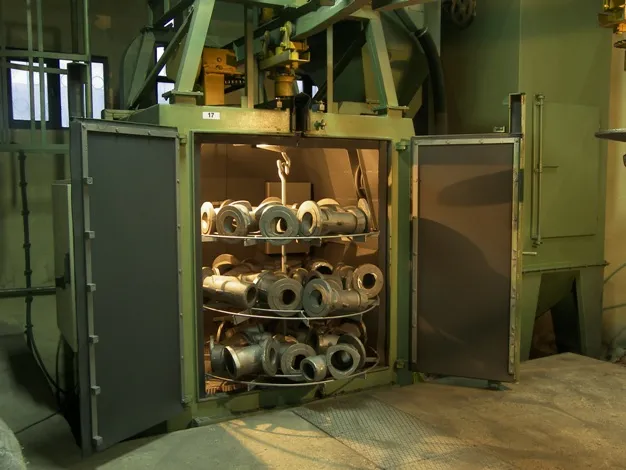

Shot blast
ManufacturerEndumak
Control-
Year of Construction2004
Technology
Sand blastingShot blasting
3 / 4

H10
ManufacturerTAKUMI
ControlFanuc 18i-mb risc64
Year of Construction2010
Technology
Engraver millingHSC millingForm milling (3 D)Milling
4 / 4

VM120
ManufacturerTAKUMI
ControlFanuc 18i-mb
Year of Construction2008
Technology
Engraver millingHSC millingForm milling (3 D)Milling
7 Parts
Others7
4 Machines
Hand moulding (sand casting)1
Gravity die casting1
Foam molds1
Vacuum deep-drawing moulds1
Modelmaking1
Gravity casting moulds1
Sand blasting1
Shot blasting1
Engraver milling2
HSC milling2
Form milling (3 D)2
Milling2
