About Erlanger Lasertechnik GmbH
Who we are

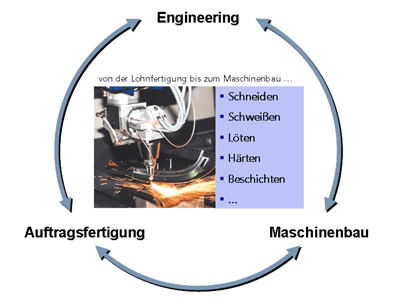

We have a broad technology knowledge for cutting, welding, brazing and hardening with the laser beam. This we use both in contract manufacturing and engineering projects as well as engineering for our customers. We offer Twelve-modern laser systems, equipped with self-developed technology and process monitoring systems Engineering, contract manufacturing and engineering from a single source Quality Management System according to DIN ISO 9001 -Extensive experience in process development and mass production

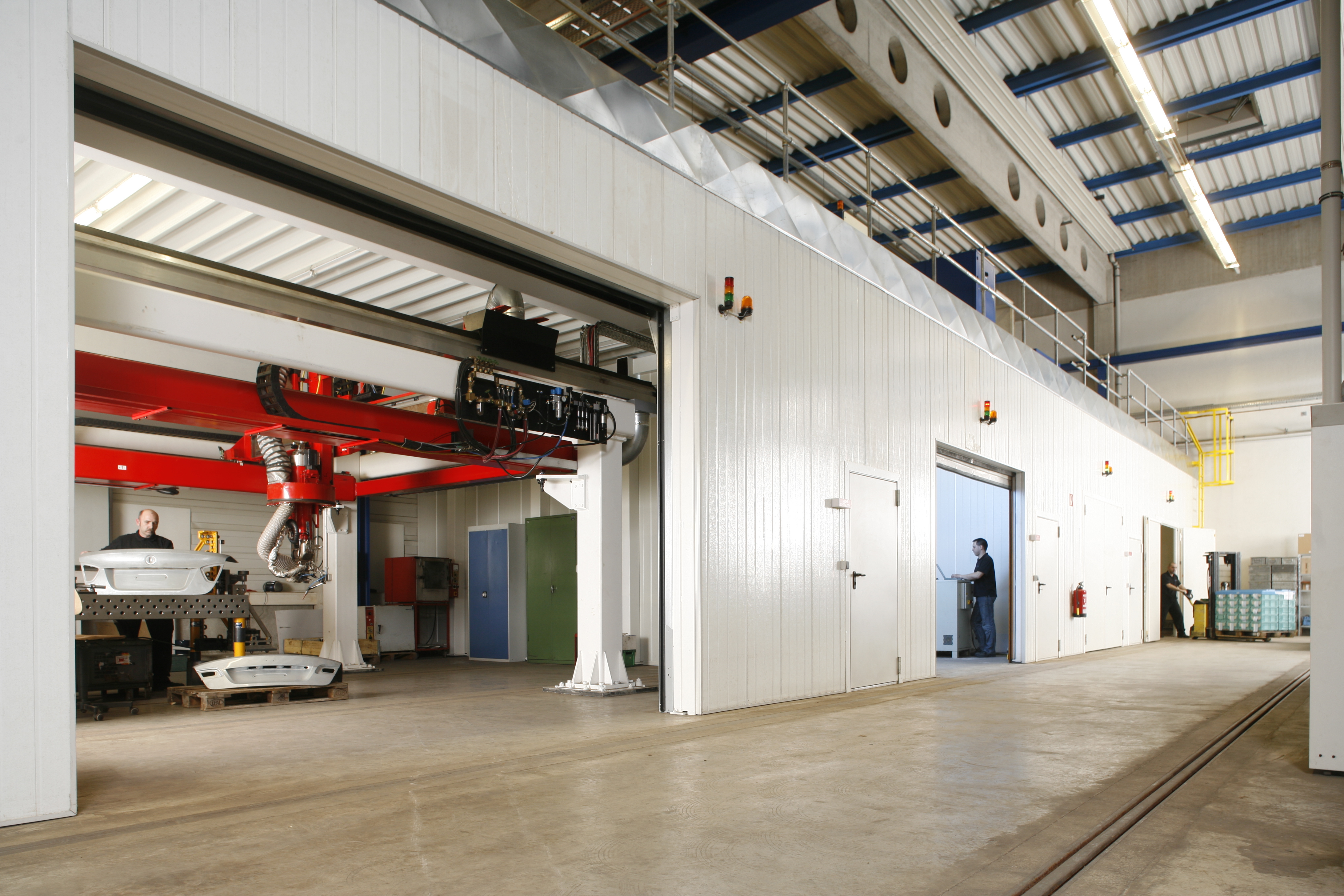

1 / 2
2 / 2
Erlangen, Germany
Member since 2014
Employees100 - 200
Certificates4
Turnover10 - 20 Mil.
Year of foundation1998
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Height | Weight | Material thickness |
|---|---|---|---|---|---|---|
Laser cutting 2D | 1–1 M | 1–3,980 mm | 1–1,980 mm | — | — | 0.2–25 mm |
Laser cutting 3D | 1–1 M | 1–1,000 mm | 1–2,500 mm | 1–500 mm | 0–2,000 kg | 1–10 mm |
Bending / folding | 1–10,000 | 25–3,000 mm | — | — | — | 1–6 mm |
Combined forming laser cutting / punching | from 1 | 0–1,500 mm | 0–1,500 mm | — | — | 2–5 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–100 | 1,000–2,500 mm | 1,000–2,500 mm | 0–1,000 mm | — | 25–500 kg |
Inert gas shielded arc welding (TIG) | 1–100 | 0–2,500 mm | 0–2,500 mm | 0–1,000 mm | — | 0–500 kg |
Laser-beam welding | 1–1 M | 1–3,000 mm | 1–1,500 mm | 1–500 mm | 1–500 mm | 0–2,000 kg |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Surfacing / build-up welding | 1–100 k | 1–5,000 mm | 1–2,500 mm | 1–500 mm | 1–2,200 mm | 0–20,000 kg | 1–150 mm |
Heat Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Laser hardening | 1–100 k | 1–5,000 mm | 1–2,500 mm | 1–500 mm | 1–2,200 mm | 0–20,000 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 1–10,000 | 1–1,000 mm | 1–500 mm | 1–300 mm | 10–50 mm |
Laser depth engraving | 1–10,000 | 1–1,000 mm | 1–500 mm | 1–300 mm | 10–50 mm |
Materials
Natural materials
Wood/timber
Cast metals
Cast steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Sintered materials
Metal powder for formed parts
Plastics/synthetic materials
Acrylic (PMMA)
Industries
Mechanical engineeringAutomotive and vehicle constructionSpecial purpose machinery manufacturingMedical technology
Certificates
ISO 9001:2015
DIN EN 1090
DIN EN ISO 3834
EN 15085
Parts & Machines
Parts (1)
1 / 1

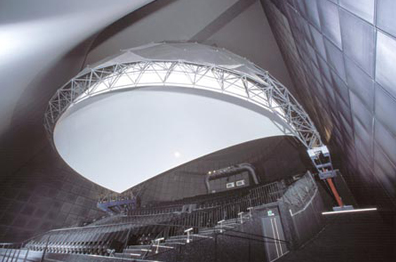

ERLAS ECODome
Descriptionfür anspruchsvolle Kuppeldecken in öffentlichen Gebäuden oder im Wohnbereich
Durchmesser: 5 m bis 9 m
1 Parts
Contact
Location
Main locationKraftwerkstrasse 26, 91056 Erlangen, Germany
Further locationsErlangen
