Exaktum GmbH

Germany, 75328 Schömberg

Competencies

Technologies

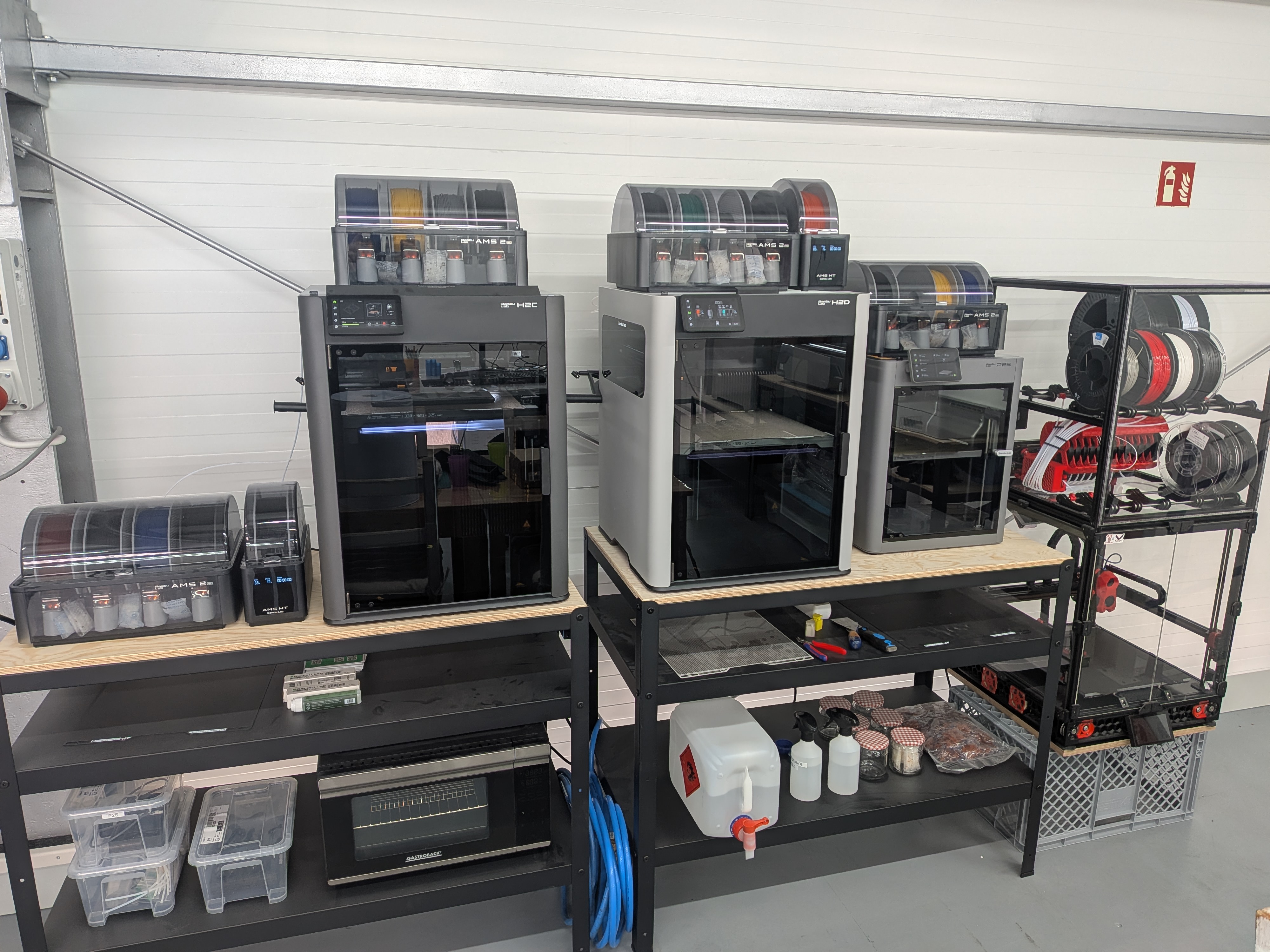

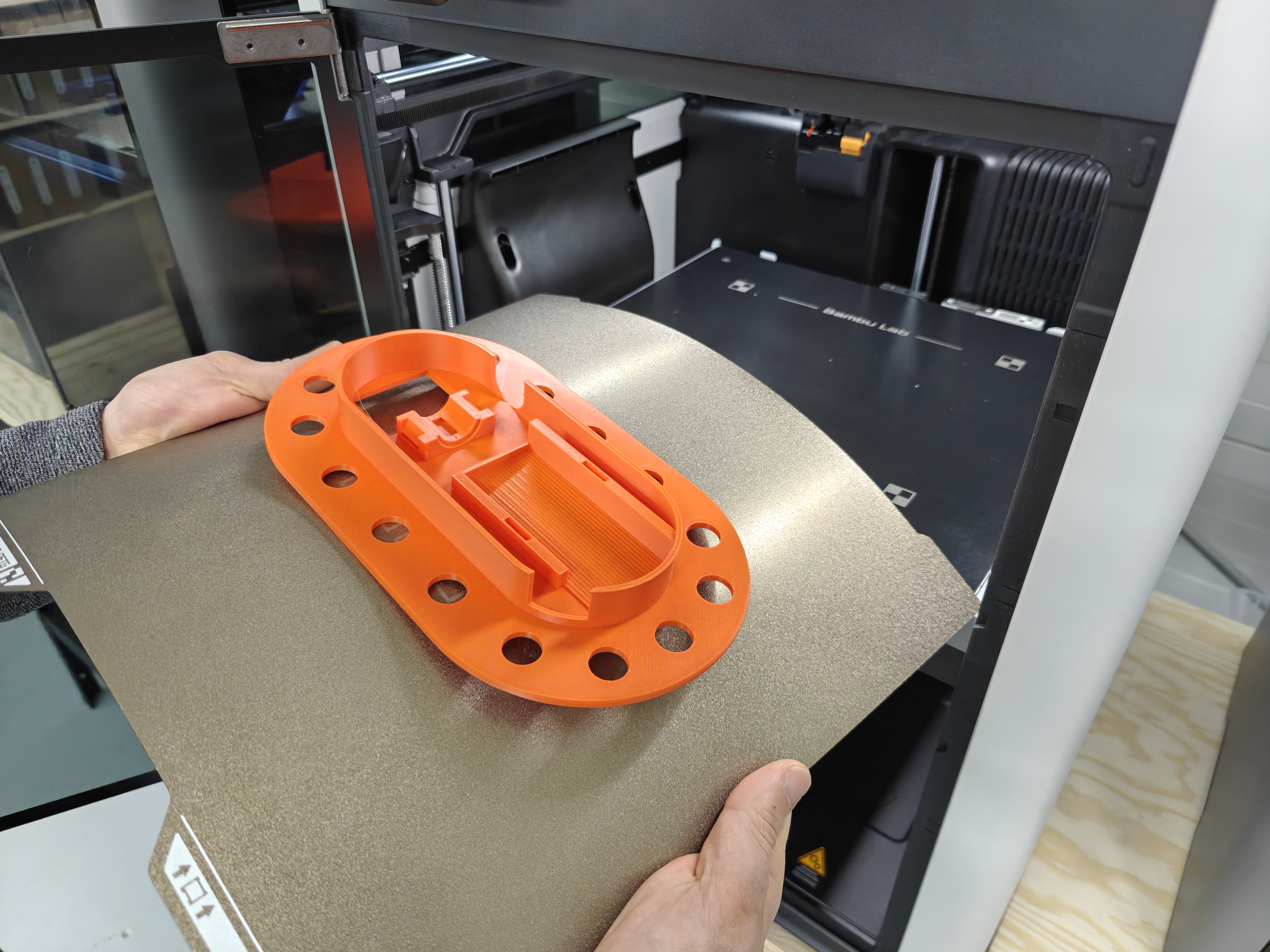

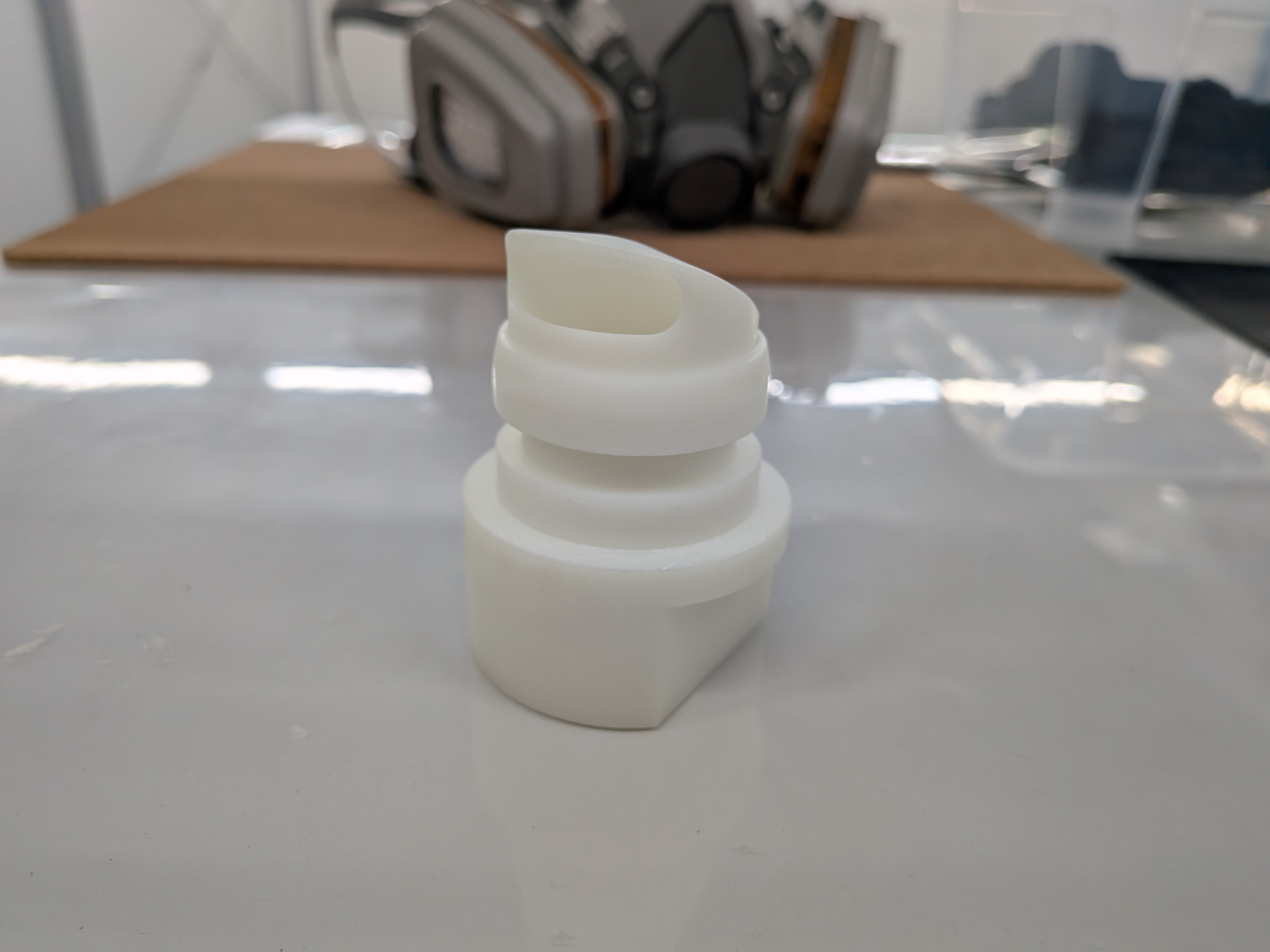

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height
Fused deposition modelling (FDM)	1–10,000	0–350 mm	0–350 mm	0–320 mm
3D printing (general)	1–10,000	0–350 mm	0–350 mm	0–320 mm

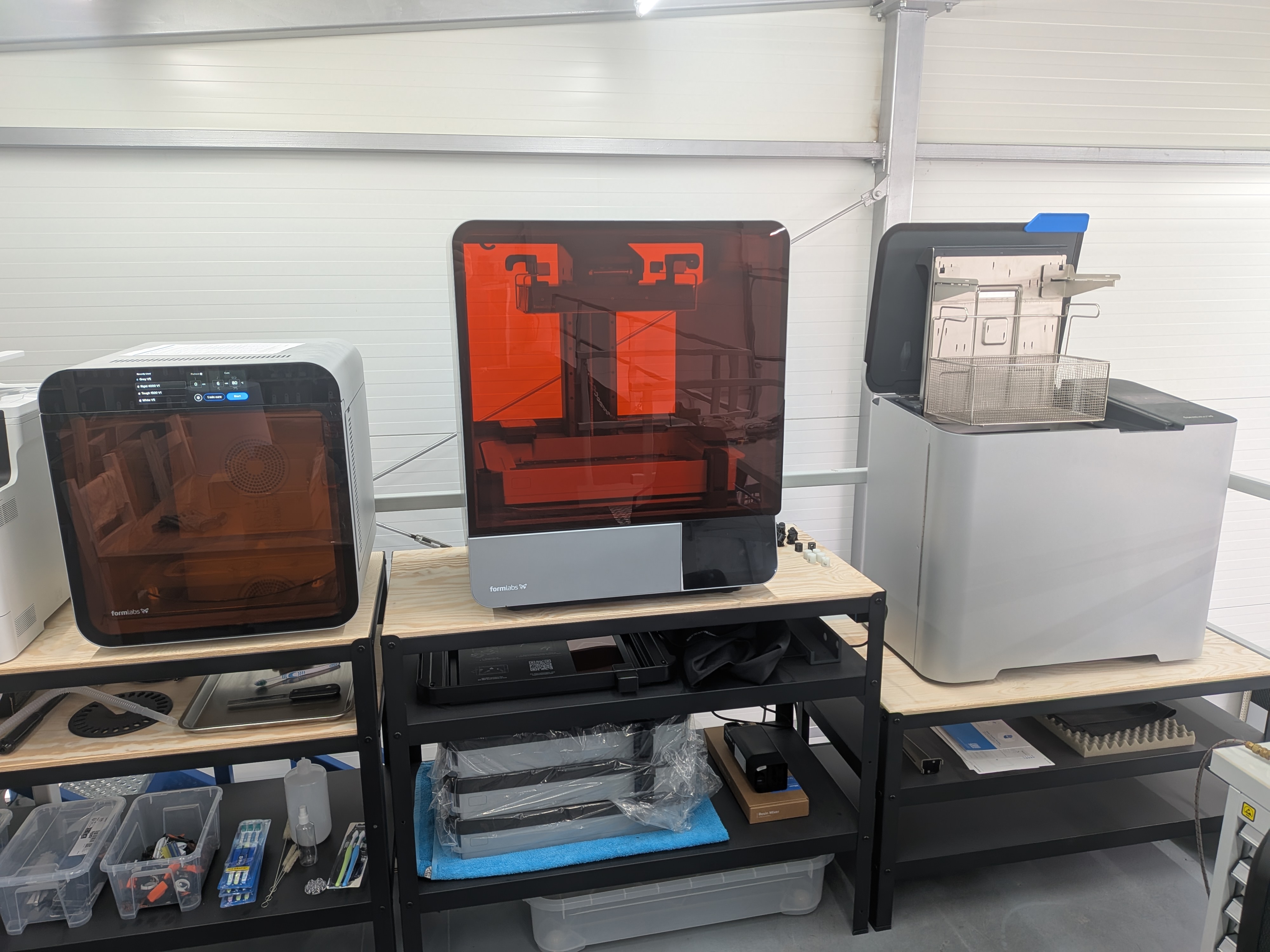

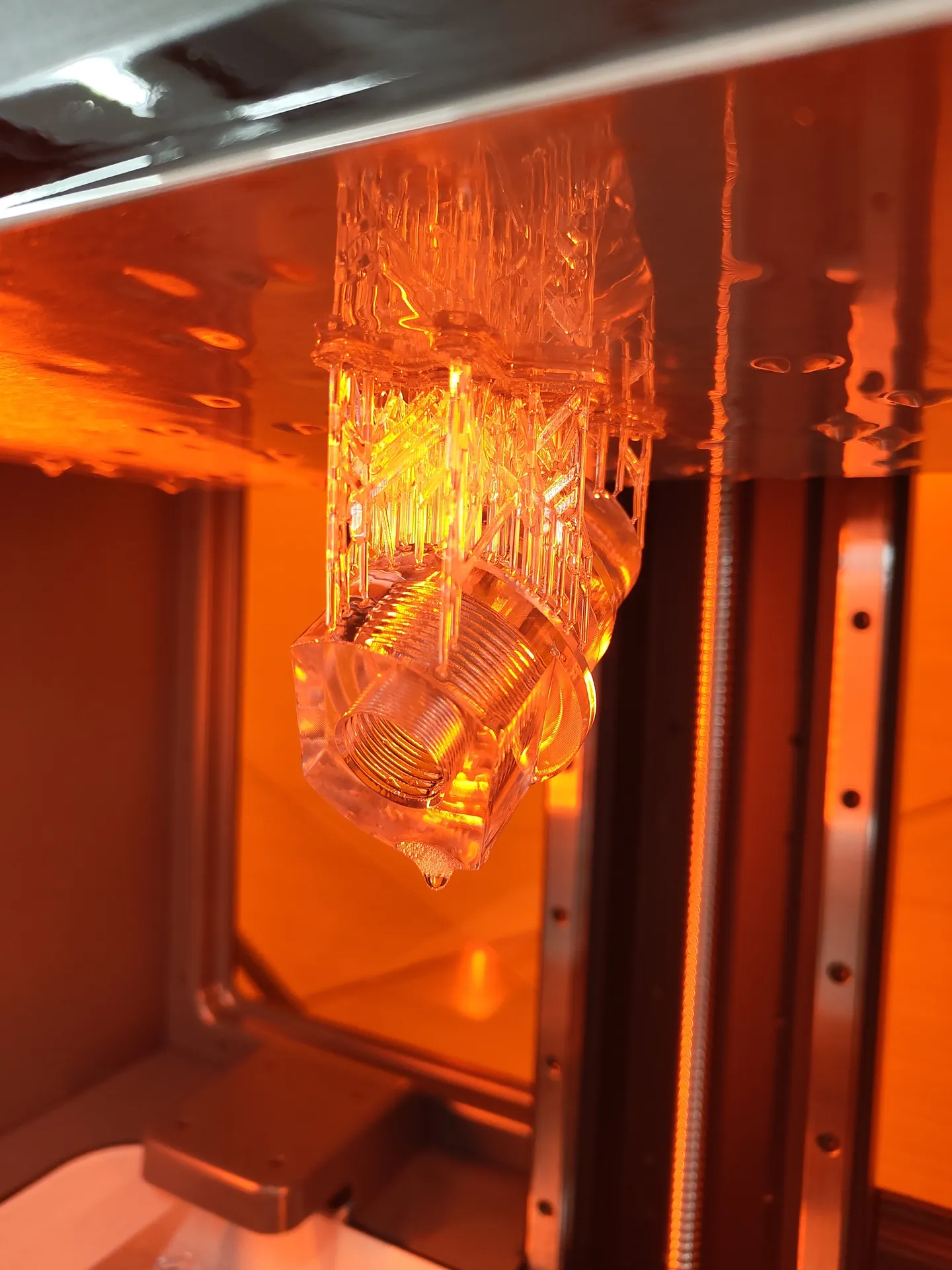

Stereolithography (SLA)	1–10,000	0–350 mm	0–200 mm	0–350 mm

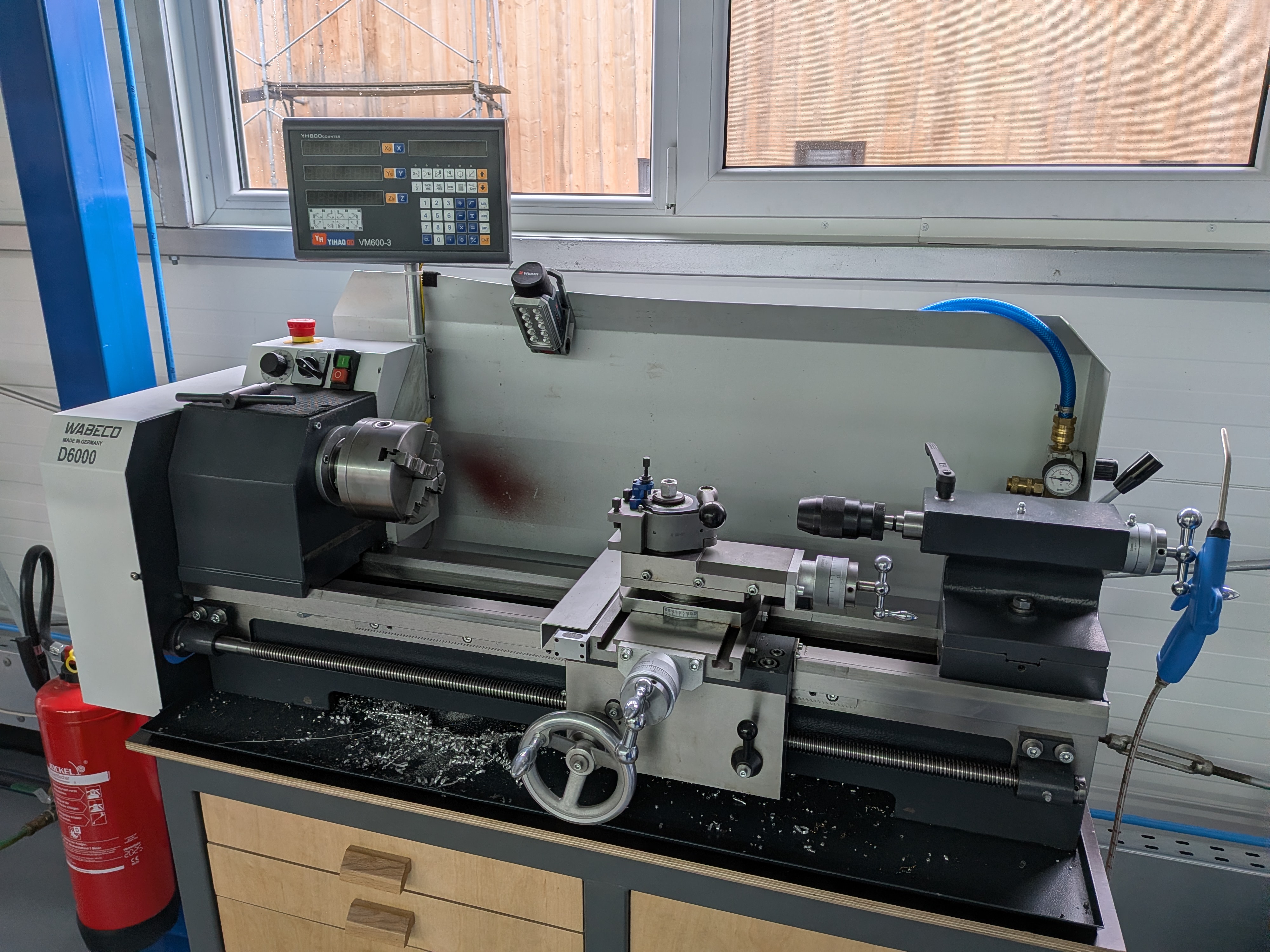

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–50	0–500 mm	0–160 mm
Full-range turning (including milling)	1–50	0–500 mm	0–160 mm

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg

Assembly

Technologies	Weight
Mechanical assembly	0–300 kg
Industrial / On-site-assembly	0–300 kg

Wire & Spring Bending

Technologies	Lotsize	Diameter
Wire bending	1–1,000	0–3 mm
Spring bending	1–1,000	0–3 mm

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Fineblanking tools	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Deep-drawing dies	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Die replacement / wearing part manufacturing	—	—	—	—

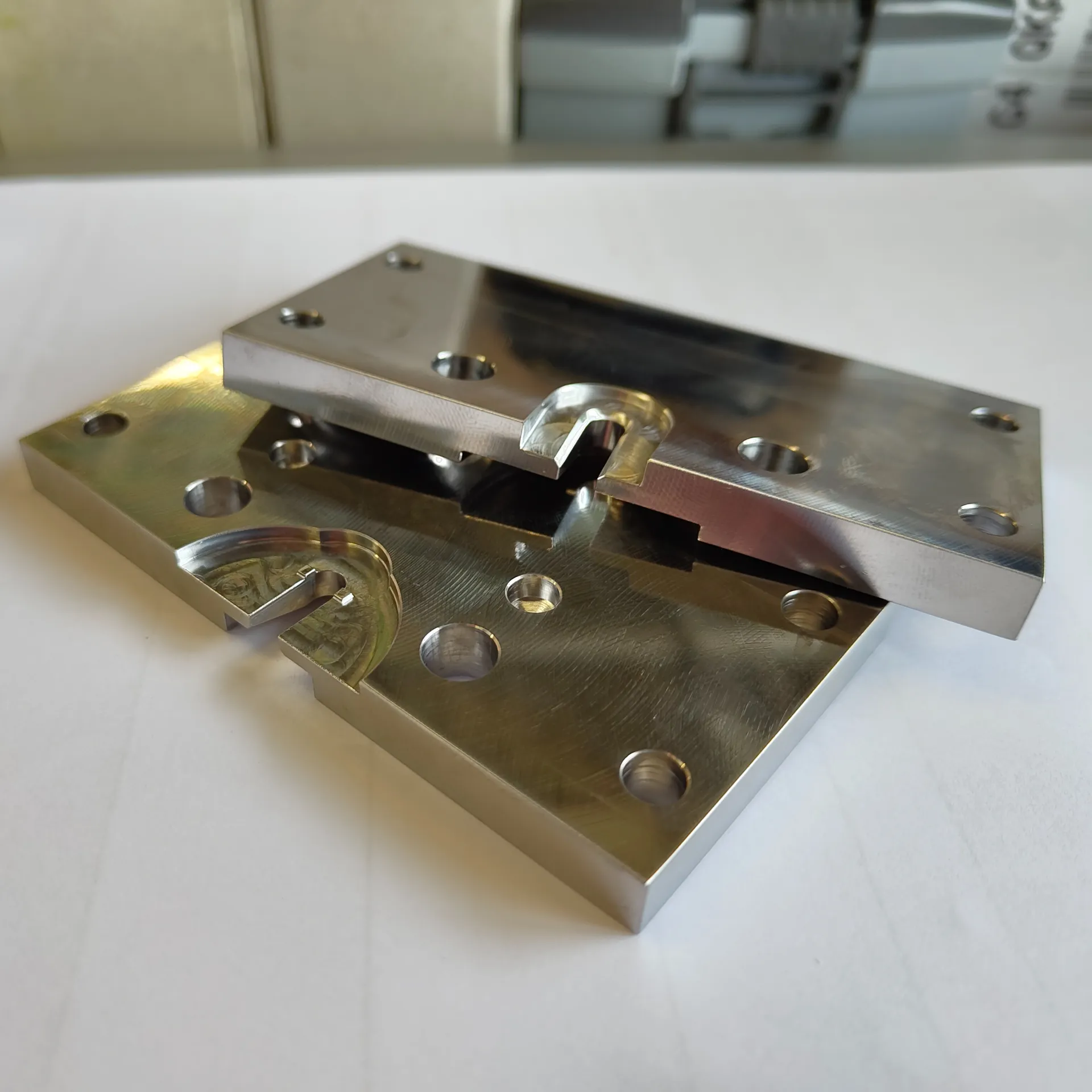

Embossing / swage dies	0–300 mm	0–210 mm	0–260 mm	0–100 kg

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Pressure die cast molds	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Modelmaking	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Squeeze moulds	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Vacuum deep-drawing moulds	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Forging dies	0–300 mm	0–210 mm	0–260 mm	0–100 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Measuring / testing jigs	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Assembly jigs	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Welding jigs	0–300 mm	0–210 mm	0–260 mm	0–100 kg
Clamping devices	0–300 mm	0–210 mm	0–260 mm	0–100 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg
Hydraulic engineering	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg
Pneumatic engineering	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg
Apparatus engineering	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg
Tool building	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg

Machining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Diameter
Turning	1–50	0–500 mm	—	—	0–160 mm
Full-range turning (including milling)	1–50	0–300 mm	—	—	0–160 mm
Milling	1–1,000	0–300 mm	0–210 mm	0–260 mm	—
Form milling (3 D)	1–1,000	0–300 mm	0–210 mm	0–260 mm	—

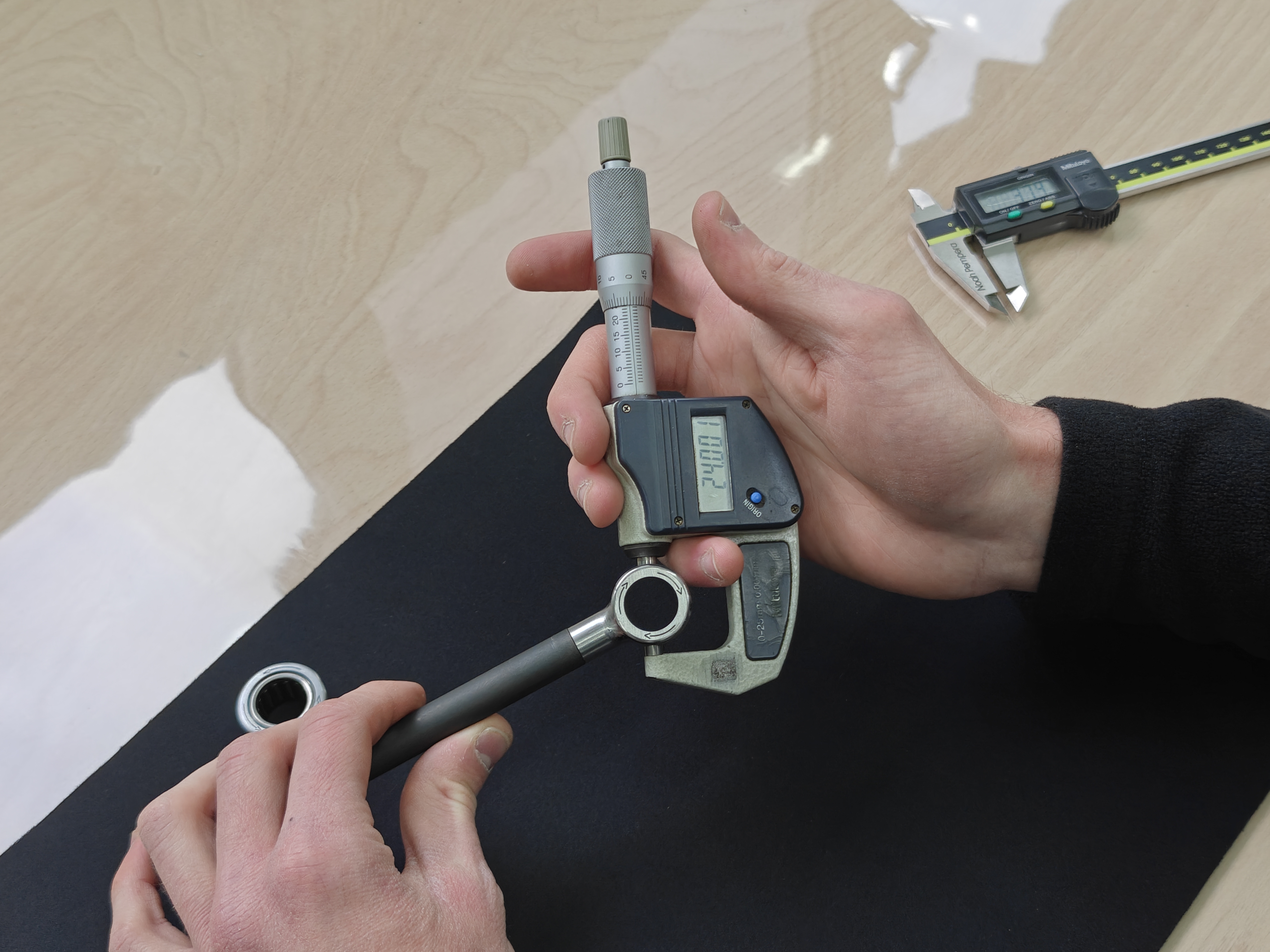

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

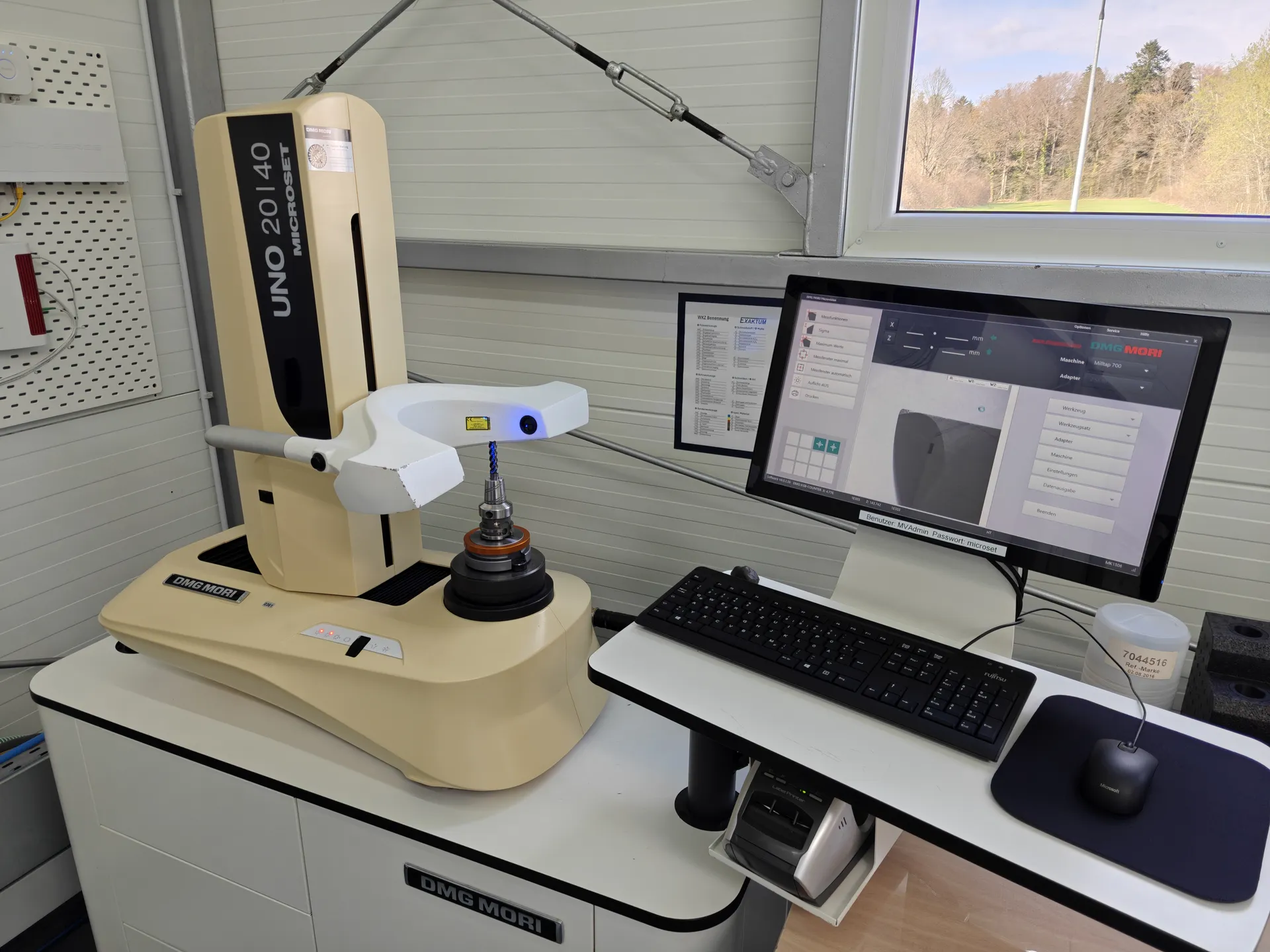

Measuring / testing	0–300 mm	0–210 mm	0–260 mm	1–210 mm	0–100 kg

Gear Making

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Cylindrical gear / spur gear	1–1,000	0–200 mm	—	—	0–210 mm	—
Bevel gear wheel	1–1,000	0–200 mm	—	—	0–210 mm	0–100 kg
Sprocket (wheel)	1–1,000	0–200 mm	—	—	0–210 mm	0–100 kg
Rack (toothed)	1–1,000	1–300 mm	1–210 mm	1–260 mm	1–210 mm	0–100 kg
Worm gear	1–1,000	0–300 mm	—	—	0–210 mm	0–100 kg

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (TIG)	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	—	0–300 kg	—
Manual electrode welding	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–500 mm	0–300 kg	0–20 mm

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Adhesive bonding	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–500 mm	0–300 kg	0–100 mm
Riveting	1–100	0–2,500 mm	0–2,500 mm	—	—	—	0–3 mm

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

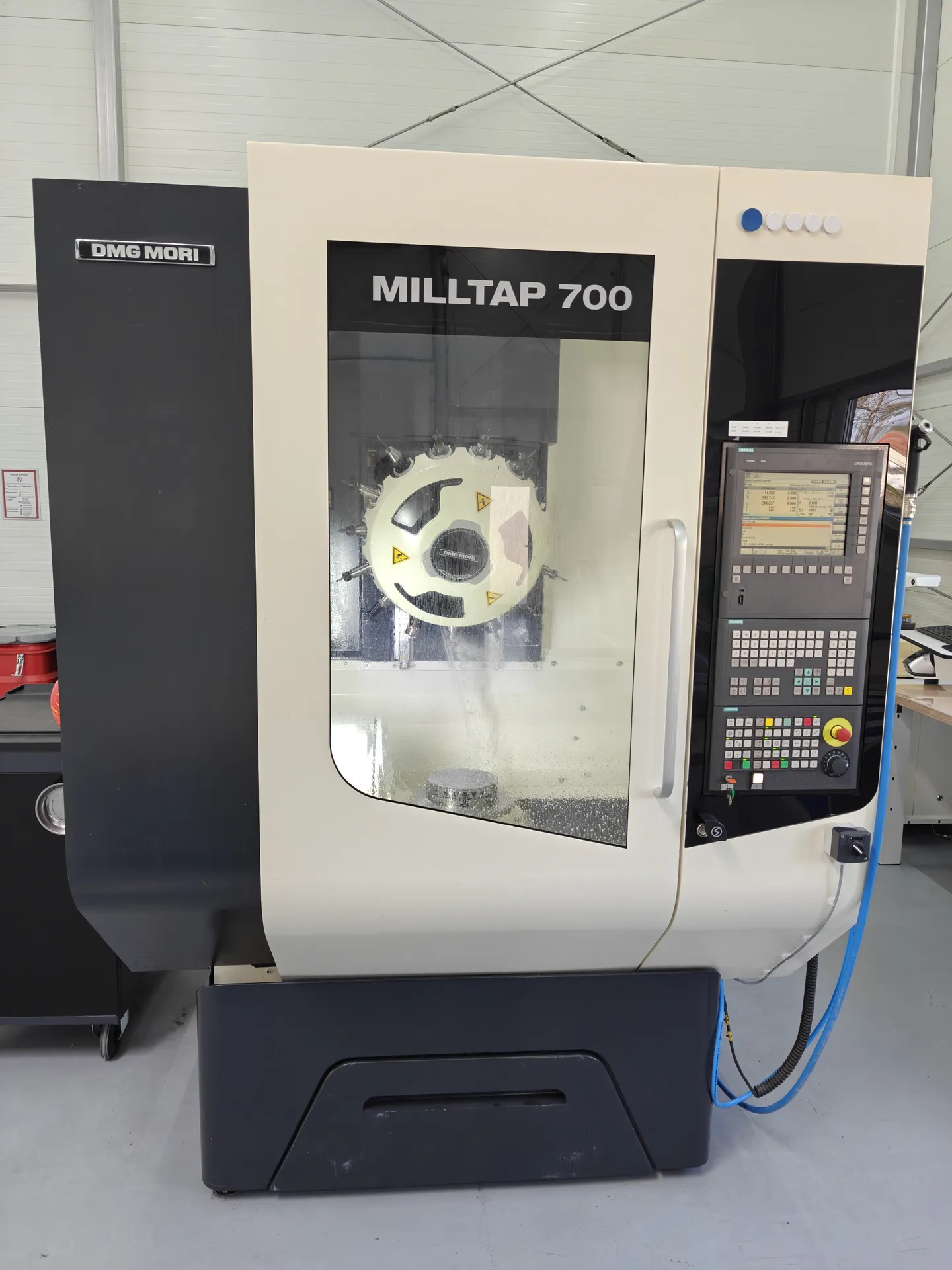

Milling	1–1,000	0–300 mm	0–210 mm	0–260 mm	—	—
5-axis milling machines	1–1,000	0–300 mm	0–210 mm	0–260 mm	—	—
Form milling (3 D)	1–1,000	0–300 mm	0–210 mm	0–260 mm	—	—
Full-range milling (including turning)	1–50	0–160 mm	0–160 mm	0–260 mm	0–160 mm	—
Engraver milling	1–1,000	0–300 mm	0–210 mm	0–260 mm	0–200 mm	0–100 kg

Finishing

Technologies	Lotsize	Width	Material thickness
Belt grinding	1–1,000	0–1,000 mm	0–1,000 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Deep-hole drilling	1–1,000	0–300 mm	0–210 mm	0–260 mm	0–200 mm	0–100 kg
Drilling / threading / tapping	1–1,000	0–300 mm	0–210 mm	0–260 mm	—	0–100 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Engraver milling	1–1,000	0–300 mm	0–210 mm	0–260 mm	0–210 mm	0–100 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Weight

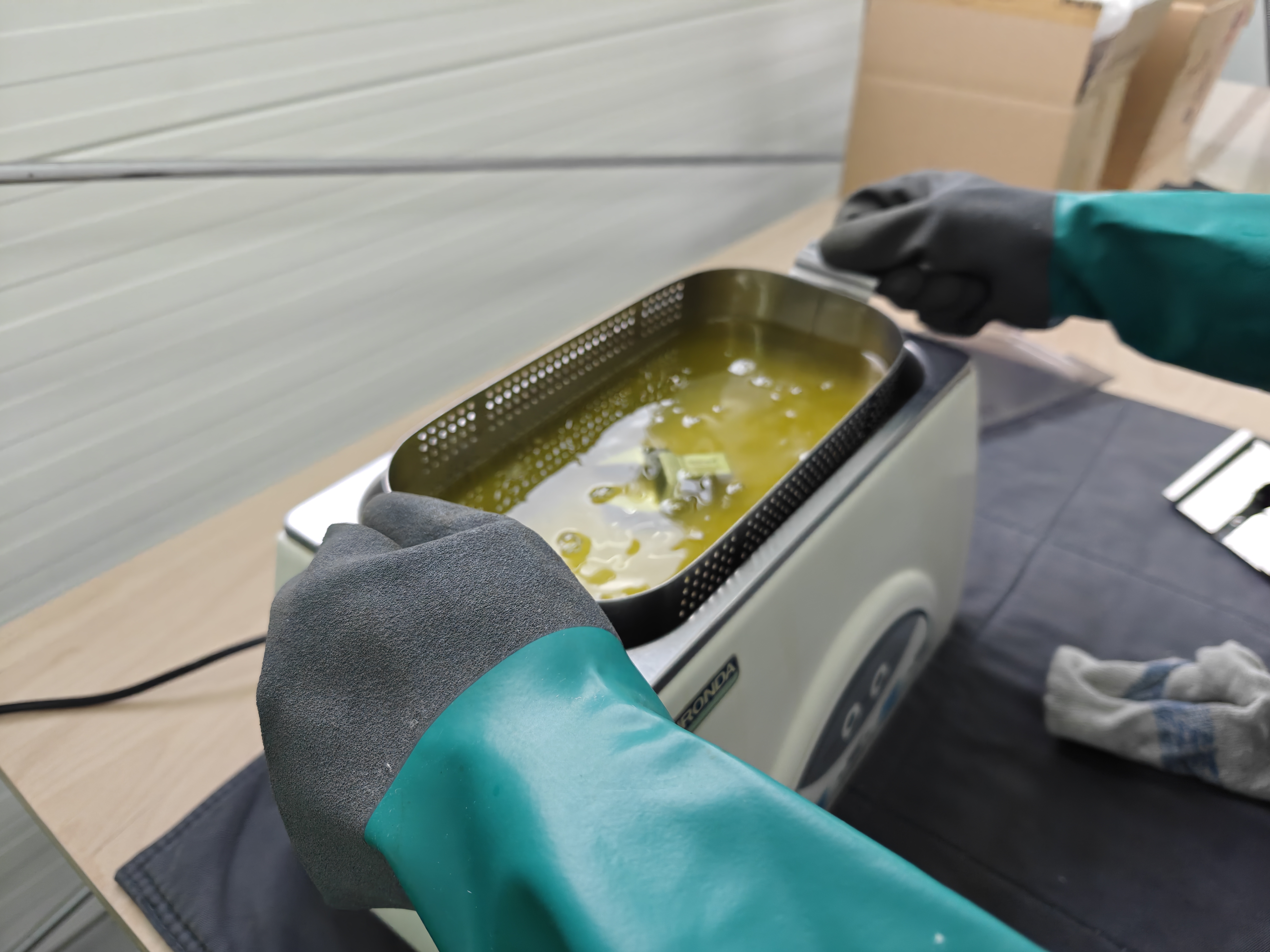

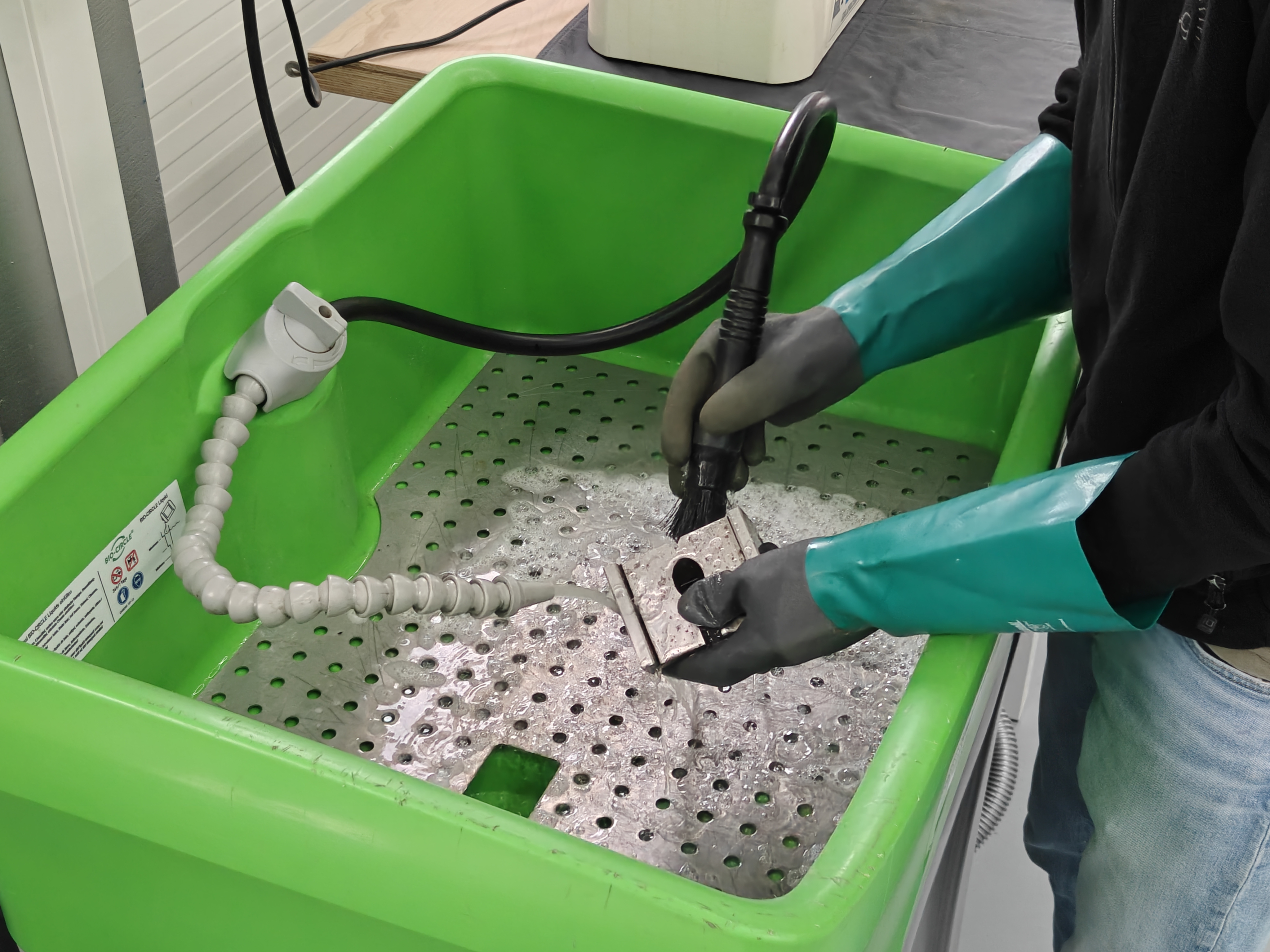

Parts cleaning/degreasing	1–1,000	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg
Spray-painting	1–100	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–300 kg

Materials

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsNatural Fibre Composites (NFC)

Precious metals

SilverGoldPlatinumOther precious metals

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Telecommunication industryPackaging industryMachine tool manufacturingMechanical engineeringPlant engineering and constructionDrive and gear engineeringApparatus engineeringFittings engineeringAutomation and control engineeringAutomotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingConstruction and architectural suppliesLighting industryMining and tunnel engineeringOffice machinery and suppliesChemical industryRailway and rail vehicles industryPower generation and transmission industryPrecision engineering, mechatronics and opticsHydraulic and pneumatic industryInformation technology (hardware)Household appliance industryAir conditioning, refrigeration and ventilation industryAerospace and aviation industryMedical technologyMeasurement and control technique, laboratory equipmentMilitary engineeringFurniture industryPaper and printing machinery industryClean room technologyShipbuilding industrySpecial purpose machinery manufacturing
