Feinwerkbau Westinger & Altenburger GmbH

Germany, 78727 Oberndorf am Neckar

Overview

About Feinwerkbau Westinger & Altenburger GmbH

Who we are

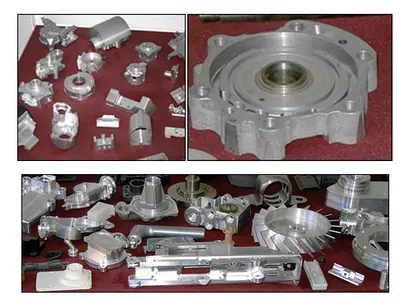

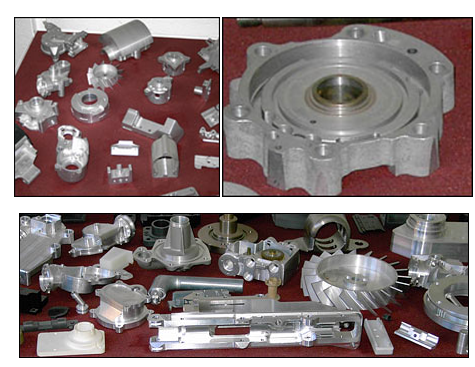

The development and manufacture of sporting weapons, the most demanding requirements - such as the Olympic Games and World and European Championships - correspond, requiring an extremely high degree of precision and care in the preparation of items, the modules and the complete units This rich experience find their application also in the design and manufacture of devices, models, samples and small series. Large and well-known German companies rely on and are in our reference list. Do you have to solve a related task, please feel free to contact us - we want to impress you. The usual Machining (turning, milling, surface and cylindrical grinding), jig grinding, sinker EDM, grinding, manual polishing grinding, salt bath, QPQ treatment and burnishing belong to our daily work. A quality department with three 3-D measuring machines and many other precision measuring devices (concentricity, surface roughness, etc.) sees to it!

1 / 1

Oberndorf am Neckar, Germany

Member since 2004

Employees100 - 200

Certificates1

Year of foundation1951

Competencies

Technologies

Assembly

Technologies	Length	Width	Height	Diameter	Weight	Material thickness
Mechanical assembly	from 0 mm	from 0 mm	from 0 mm	from 0 mm	0–20 kg	from 0 mm

Jigmaking

Technologies	Length	Width	Height	Diameter	Weight	Material thickness
Drilling / milling jigs	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm
Gauges	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm
Measuring / testing jigs	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm
Assembly jigs	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm
Welding jigs	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm
Clamping devices	20–600 mm	20–600 mm	20–600 mm	from 0 mm	0–20 kg	from 0 mm

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Turning	1–1,000	5–150 mm	—	—	5–150 mm	—	—
Automatic turning (bar)	20–1,000	5–150 mm	—	—	5–42 mm	—	—
Full-range turning (including milling)	20–3,000	5–150 mm	from 0 mm	from 0 mm	5–42 mm	from 0 kg	from 0 mm

Measuring & Testing

Technologies
Measuring / testing

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Case hardening/surface hardening	1–5,000	3–200 mm	3–200 mm	3–200 mm	3–200 mm	0–5 kg	from 0 mm
Annealing	1–5,000	3–200 mm	3–200 mm	3–200 mm	2–100 mm	0–5 kg	from 0 mm
Hardening	1–5,000	3–200 mm	3–200 mm	3–200 mm	3–200 mm	0–5 kg	from 0 mm
Nitriding processes	1–5,000	3–200 mm	3–200 mm	3–200 mm	3–200 mm	0–5 kg	from 0 mm
Hardening and tempering	1–5,000	3–200 mm	3–200 mm	3–200 mm	3–200 mm	0–5 kg	from 0 mm

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Milling	1–5,000	2–600 mm	2–600 mm	2–600 mm	from 0 mm	0–20 kg	from 0 mm
Form milling (3 D)	1–5,000	2–400 mm	2–400 mm	2–400 mm	from 0 mm	0–20 kg	from 0 mm
HSC milling	1–1,000	2–400 mm	2–400 mm	2–400 mm	from 0 mm	0–20 kg	from 0 mm

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Surface grinding machine	1–500	2–600 mm	2–200 mm	2–200 mm	from 0 mm	0–20 kg	from 0 mm
Coordinate jig grinding	1–50	2–200 mm	5–200 mm	2–200 mm	from 0 mm	0–10 kg	from 0 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight
Drilling / threading / tapping	1–5,000	2–400 mm	2–400 mm	2–400 mm	0–20 kg

Materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Plastics/synthetic materials

ThermoplasticsThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Cast metals

Cast steelCast iron

Industries

Packaging industryMedical technologyMachine tool manufacturingSpecial purpose machinery manufacturingPaper and printing machinery industryAir conditioning, refrigeration and ventilation industryPrecision engineering, mechatronics and opticsApparatus engineeringElectrical industryAutomation and control engineeringHydraulic and pneumatic industryMilitary engineeringChemical industryAutomotive and vehicle constructionPower generation and transmission industryPlant engineering and constructionAerospace and aviation industryMechanical engineering

+10 moreShow less

Certificates

No certificates

Contact

Location

Main locationNeckarstr 43, 78727 Oberndorf am Neckar, Germany

This map is hosted on Google Maps. See
privacy policy.

Further locations78727 Oberndorf am Neckar
Bundesland: Baden-Württemberg
Regierungsbezirk: Freiburg
Landkreis: Rottweil

Company contact

Contact persons

Willi Lemperle

Roger Schmid
