FINK Präzisionstechnik GmbH & Co.KG

Germany, 78147 Vöhrenbach

Overview

About FINK Präzisionstechnik GmbH & Co.KG

Who we are

With our know-how, which has accumulated since its foundation in 1978, we can offer comprehensive manufacturing capabilities. Be it in the molds, tools, device and machine or in the aerospace industry, with our production possibilities you always have the right machine for your application is available. Your orders will be accompanied by our qualified personnel, three masters and a technician, and a Dipl. Business Economist in air-conditioned spaces. Urgent orders be carried out overnight or over the weekend. We are the whole year without closing for you to disposal.

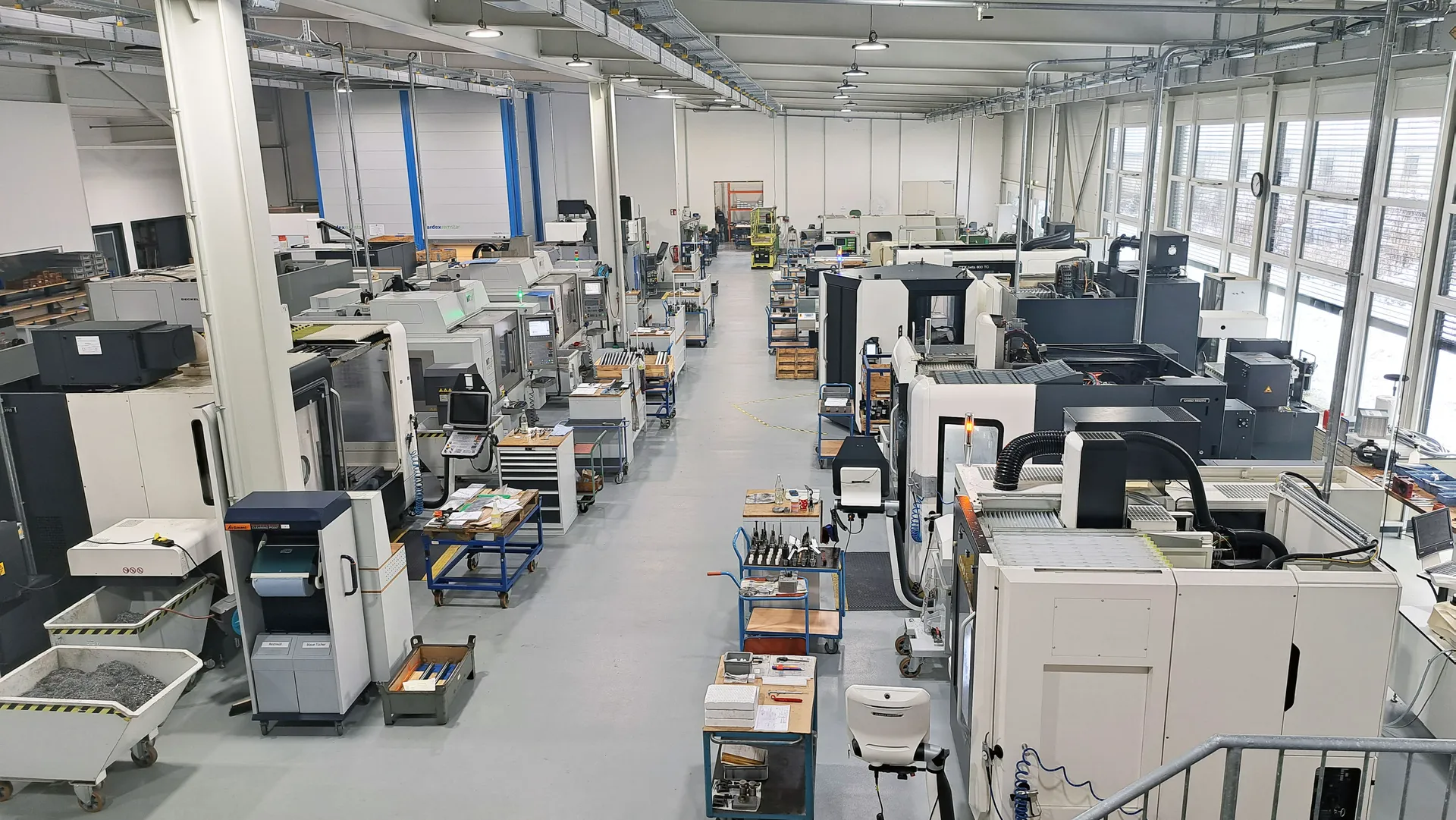

Vöhrenbach, Germany

Member since 2016

Employees20 - 50

Certificates1

Turnover1 - 5 Mil.

Year of foundation1989

Marketing documents

2024-maschinenliste.pdfPDF File

Competencies

Technologies

Assembly

Technologies	Weight
Mechanical assembly	0–200 kg

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Turning	1–5,000	0–1,000 mm	—	—	0–500 mm	—
Automatic turning (bar)	1–10,000	5–800 mm	—	—	5–50 mm	—

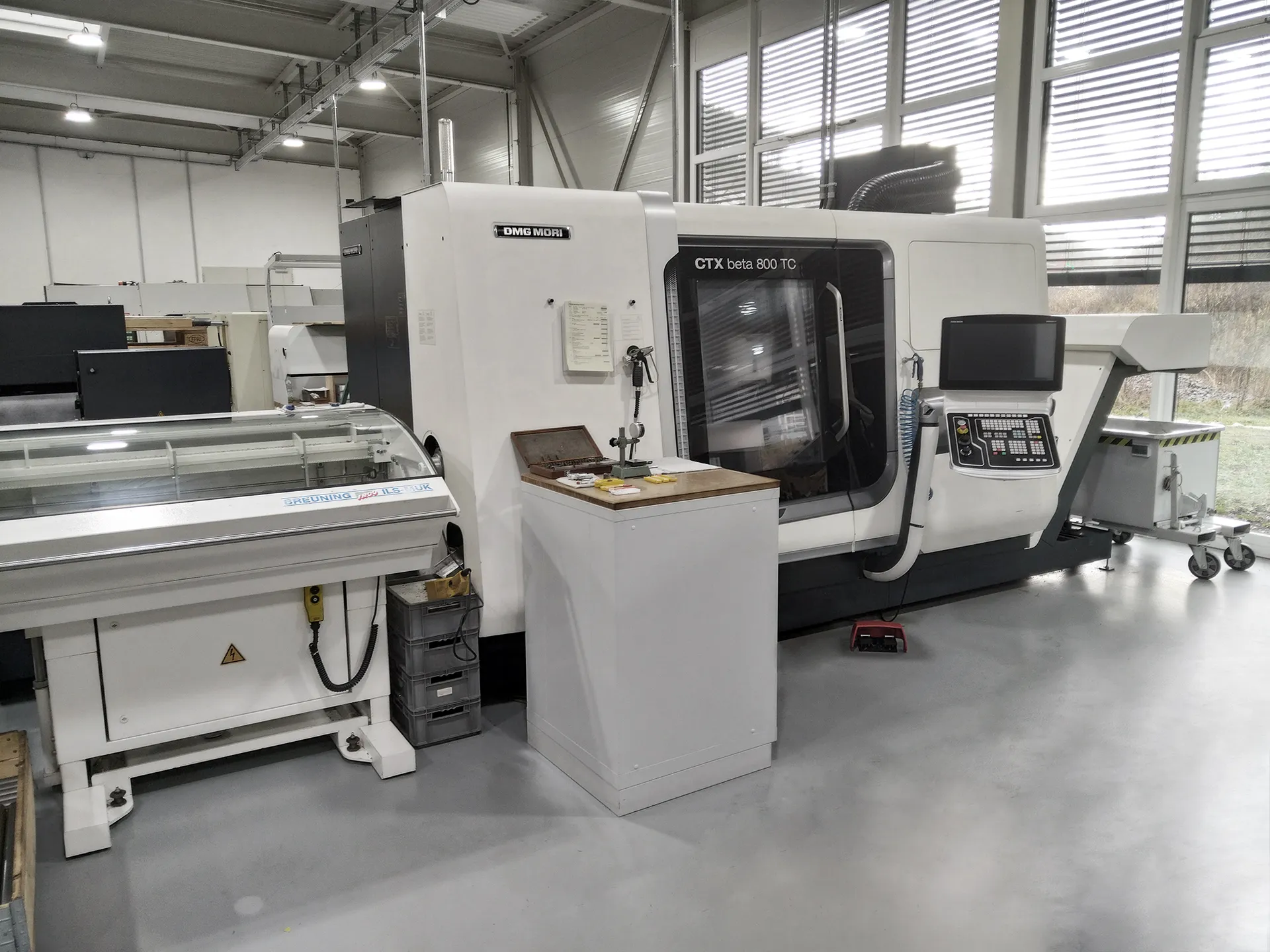

Full-range turning (including milling)	1–5,000	5–1,000 mm	—	—	4–500 mm	—
Deep-hole drilling	1–1,000	100–1,000 mm	20–1,000 mm	20–500 mm	4–60 mm	0–500 kg
Centering / end facing	1–1,000	10–800 mm	—	—	5–250 mm	—
Shaft machining	1–5,000	10–1,000 mm	—	—	5–100 mm	0–100 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

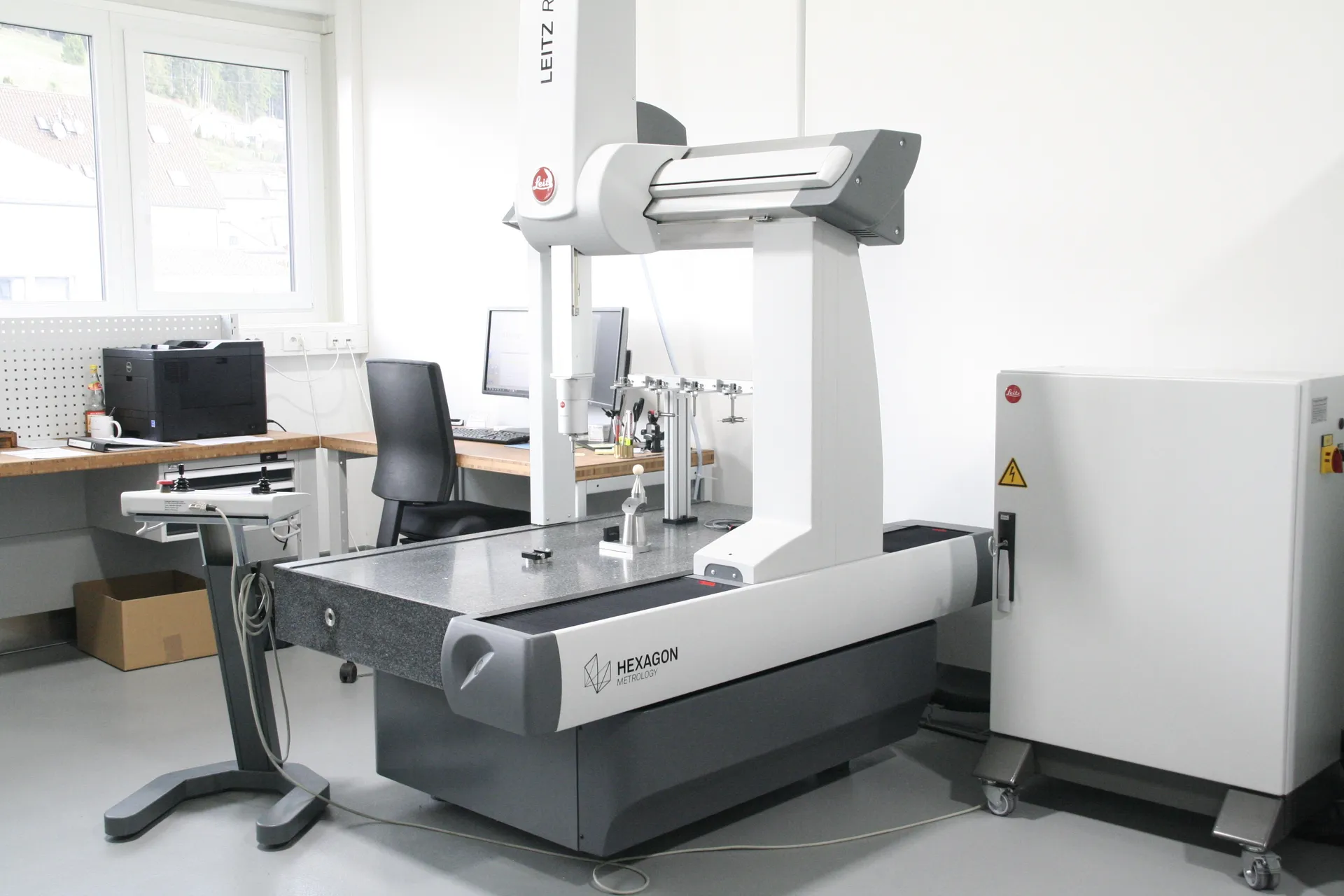

Measuring / testing	5–500 mm	5–500 mm	5–300 mm	2–500 mm	0–60 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	5–1,000 mm	5–500 mm	5–500 mm	0–800 kg
Gauges	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg

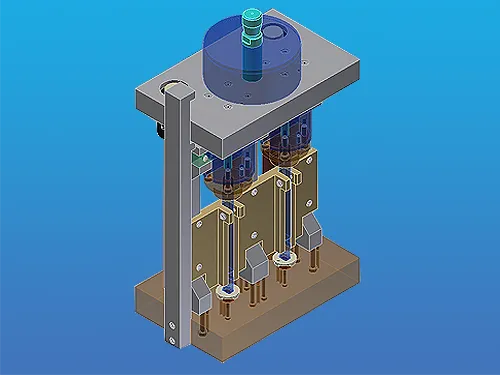

Measuring / testing jigs	5–1,000 mm	5–500 mm	5–500 mm	0–800 kg
Assembly jigs	5–1,000 mm	5–500 mm	5–500 mm	0–800 kg
Welding jigs	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg

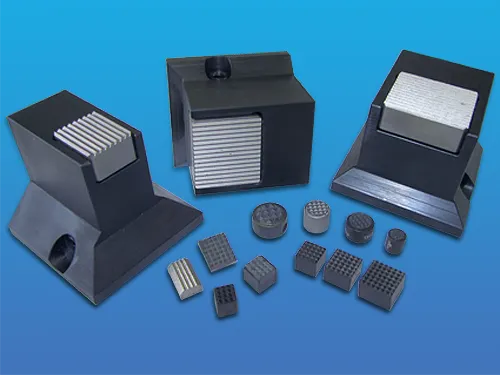

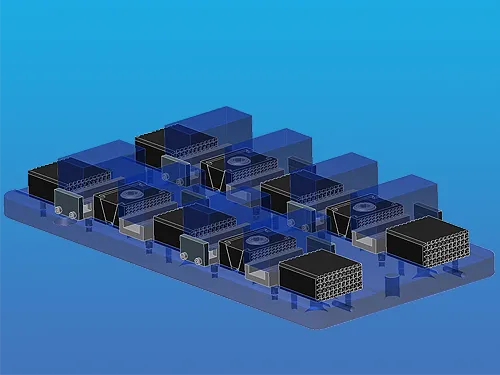

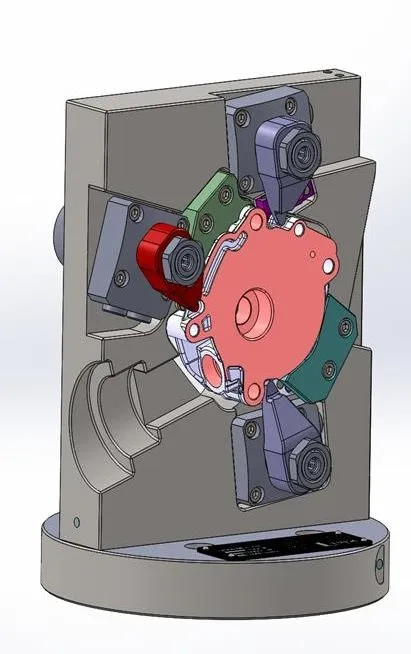

Clamping devices	5–1,000 mm	5–500 mm	5–500 mm	0–800 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight

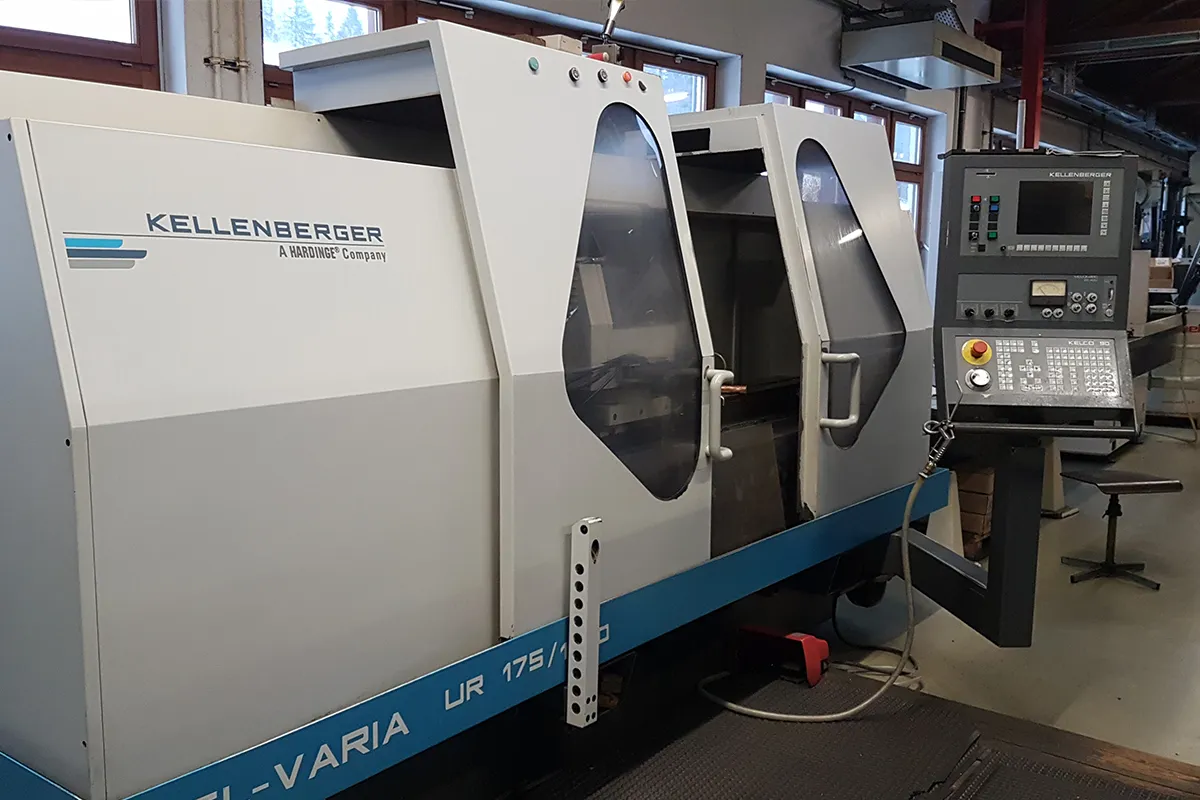

External cylindrical grinding	1–1,000	5–500 mm	—	—	0.5–350 mm	—
Internal cylindrical grinding	1–1,000	5–250 mm	—	—	2–200 mm	—
Surface grinding machine	1–2,000	1–1,000 mm	1–500 mm	2–400 mm	—	0–400 kg
Coordinate jig grinding	1–5,000	5–1,300 mm	5–800 mm	5–600 mm	—	0–800 kg
Rotofinishing, barrel finishing	1–2,000	1–250 mm	1–250 mm	1–200 mm	—	—

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	50–1,200 mm	50–800 mm	2–500 mm	0–1,000 kg
Pressure die cast molds	2–1,200 mm	50–800 mm	2–500 mm	0–1,000 kg

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	1–1,000 mm	1–500 mm	1–400 mm	0–500 kg
Follow-on composite tools	1–1,000 mm	1–500 mm	1–400 mm	0–500 kg
Embossing / swage dies	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	0–1,000 mm	0–1,000 mm	0–1,000 mm	25–500 kg

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight

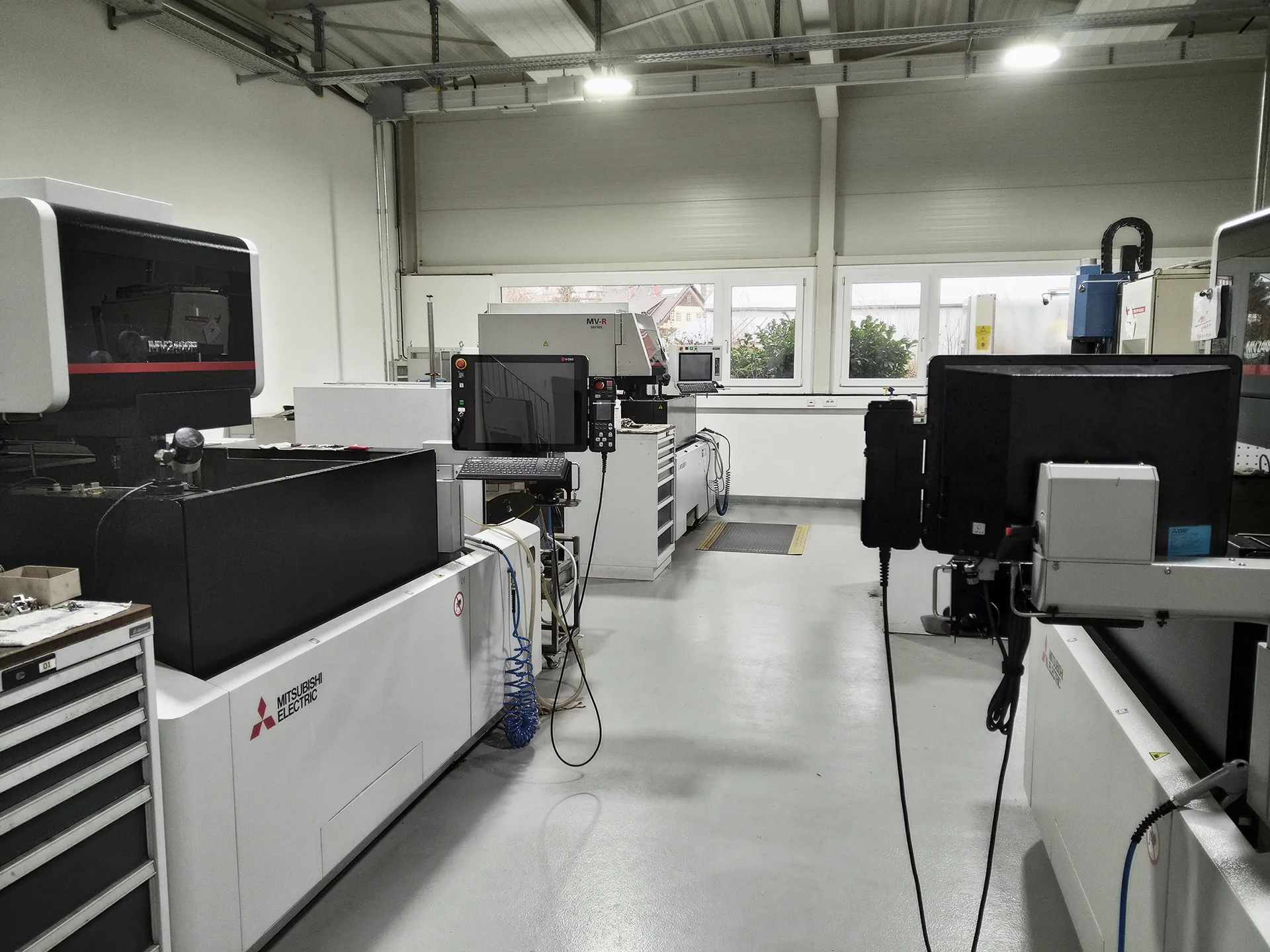

Spark erosion wire cutting	1–1,000	1–800 mm	1–500 mm	1–400 mm	0–300 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–1,000	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg
Hydraulic engineering	1–1,000	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg
Pneumatic engineering	1–1,000	5–1,000 mm	5–500 mm	5–400 mm	0–500 kg

Cutting tools (metal)

Technologies
Special drilling tool making

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	1–5,000	1–1,500 mm	1–500 mm	1–500 mm	—	—
5-axis milling machines	1–5,000	1–500 mm	1–500 mm	1–400 mm	—	—
Form milling (3 D)	1–5,000	1–500 mm	1–500 mm	1–400 mm	—	—
Full-range milling (including turning)	1–5,000	10–500 mm	5–500 mm	5–400 mm	5–160 mm	—
HSC milling	1–1,000	1–500 mm	1–500 mm	1–400 mm	—	0–500 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–1,000	5–1,000 mm	5–250 mm	5–250 mm	4–265 mm	—
Drilling / threading / tapping	1–5,000	1–1,000 mm	1–500 mm	1–400 mm	—	0–500 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	1–2,000	1–400 mm	1–250 mm	1–300 mm	1–200 mm

Materials

Sintered materials

Metal powder for formed partsMetal powder for hard metal

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)Carbide

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Light metals

Aluminium and aluminium alloys

Plastics/synthetic materials

Thermoplastics

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel

Non-metal inorganic materials

Ceramics

Industries

Plant engineering and constructionMachine tool manufacturingMedical technologyAutomation and control engineeringAerospace and aviation industryHydraulic and pneumatic industryPrecision engineering, mechatronics and opticsShipbuilding industryLighting industrySpecial purpose machinery manufacturingMechanical engineeringPackaging industry

+4 moreShow less
