About Franz Schirling Drehtechnik GmbH & Co. KG
Who we are
Complete machining of precision turned and milled parts Manufacturing material: 1.0038 1.0053 1.0718 1.0726 1.1191 1.2080 1.2210 1.2379 1.2826 1.3505 1.4021 1.4057 1.4104 1.4112 1.4301 1.4307 1.4305 1.4404 1.4571 1.4310 1.7131 1.7220 1.7225 1.7228 EN-JL-1040 Ms58 Rg7 CUBE2 aluminum alloy Si1-Si0, 5 AlCuMgPb 3.7165 Peek +30% GF Peek 450 G Pa Pet Pom PP PVC Teflon
1 / 9

2 / 9

3 / 9

4 / 9

5 / 9

6 / 9

7 / 9

8 / 9

9 / 9

Babenhausen, Germany
Member since 2005
Employees20 - 50
Certificates1
Year of foundation1981
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Turning | 50–15,000 | 3–200 mm | 4–160 mm | — |
Automatic turning (bar) | 50–15,000 | 3–200 mm | 4–90 mm | — |
Full-range turning (including milling) | 50–15,000 | 3–200 mm | 4–90 mm | — |
Hard turning | 50–15,000 | 3–200 mm | 4–90 mm | — |
Centering / end facing | 50–15,000 | 3–200 mm | 4–160 mm | — |
Shaft machining | 50–15,000 | 3–200 mm | 4–90 mm | 0–30 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–50 kg |
Threading
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Thread rolling | 50–100 k | 5–40 mm | 4–50 mm |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 1–400 mm | 1–500 mm | 1–450 mm | 1–160 mm | 0–50 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 50–15,000 | 1–400 mm | 1–500 mm | 1–450 mm | — | 0–50 kg |
Form milling (3 D) | 50–15,000 | 3–400 mm | 3–500 mm | 3–450 mm | — | 0–50 kg |
HSC milling | 50–15,000 | 3–400 mm | 3–500 mm | 3–450 mm | — | 0–50 kg |
Engraver milling | 50–15,000 | 1–400 mm | 1–500 mm | 1–450 mm | 1–160 mm | 0–50 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Sawing | — | — | — | — | — |
Drilling / threading / tapping | 50–1,000 | 10–1,000 mm | 10–500 mm | 10–500 mm | 0–1,000 kg |
Materials
Plastics/synthetic materials
ThermoplasticsThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Cast metals
Cast steelCast iron
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Special purpose machinery manufacturingMachine tool manufacturingElectrical industryChemical industryAerospace and aviation industryPaper and printing machinery industryMilitary engineeringRailway and rail vehicles industryPrecision engineering, mechatronics and opticsAir conditioning, refrigeration and ventilation industryMedical technologyAutomotive and vehicle constructionBoiler, container and tank construction Hydraulic and pneumatic industryAutomation and control engineeringPackaging industryPower generation and transmission industryMechanical engineeringConstruction and architectural suppliesBuilding, agricultural and forestry machinery manufacturingDrive and gear engineering
Certificates
ISO 9001:2008
Parts & Machines
Parts (3)
1 / 3

Name
DescriptionBeschreibung:
2 / 3

Name
DescriptionBeschreibung:
3 / 3

Name
DescriptionBeschreibung:
Machinery (8)
1 / 8

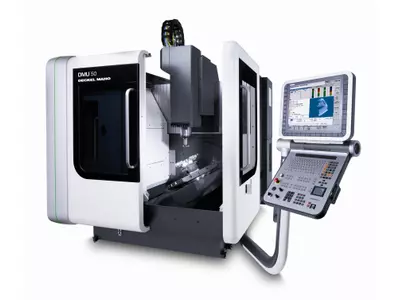

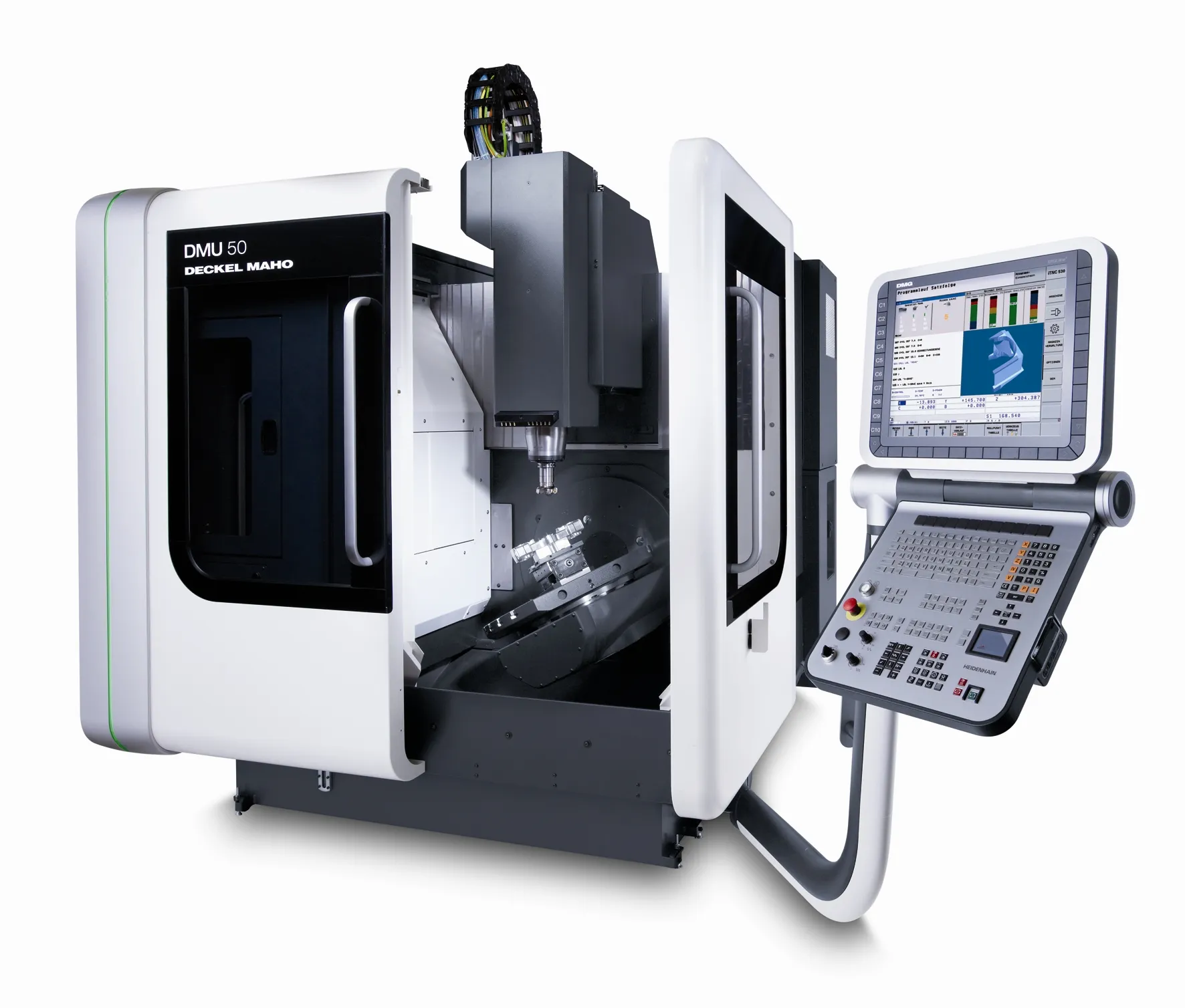

-dmu 50
Manufacturer-DMG
Control-840 D Powerline
Technology
Engraver millingForm milling (3 D)MillingDrilling / threading / tapping
2 / 8

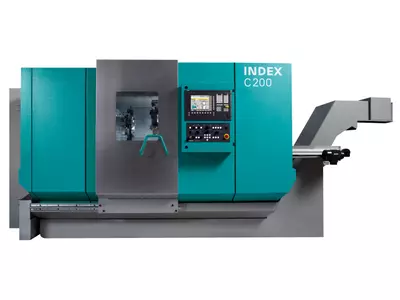

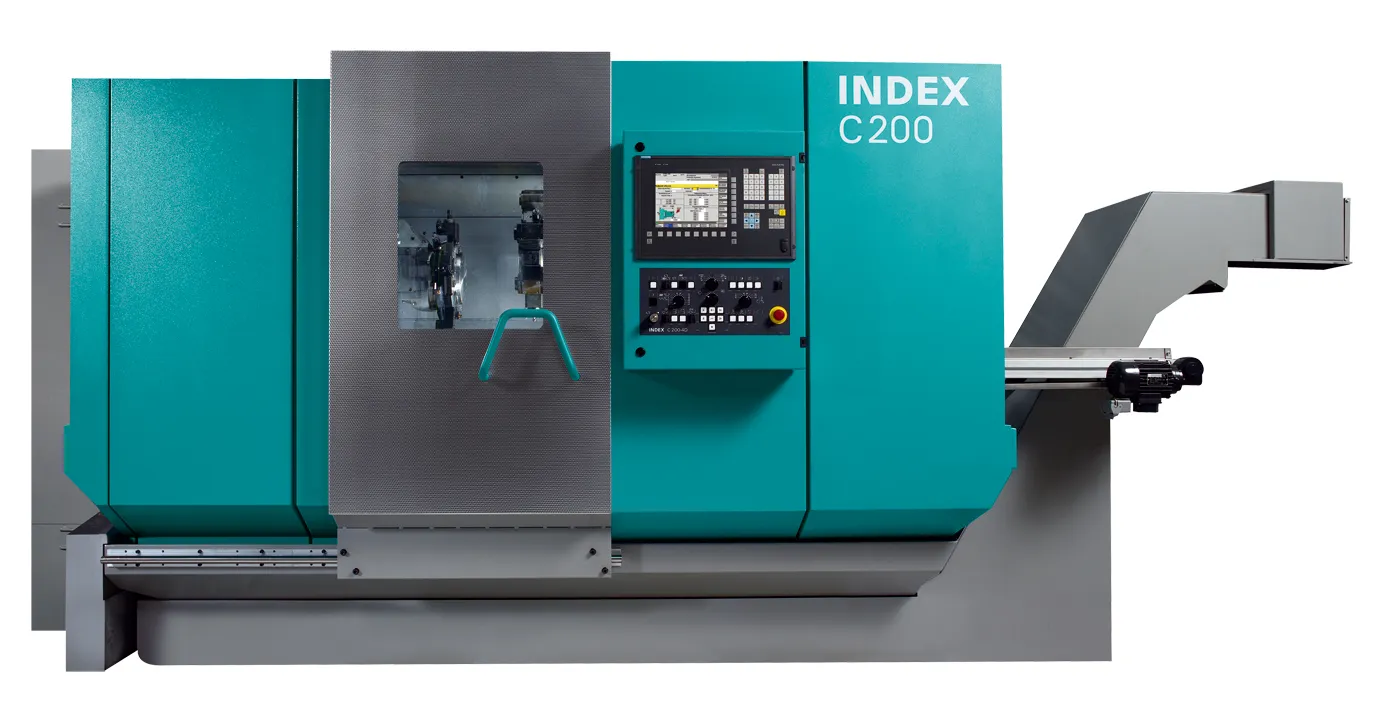

C 200
ManufacturerINDEX
Control-840 D Siemens
Technology
Hard turningFull-range turning (including milling)Engraver millingShaft machiningAutomatic turning (bar)Drilling / threading / tappingTurningThread rolling
3 / 8

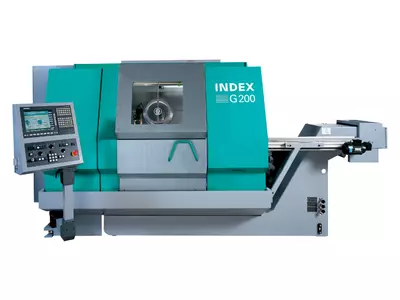

G200
ManufacturerINDEX
Control840 D Siemens
Technology
TurningAutomatic turning (bar)Thread rollingShaft machiningFull-range turning (including milling)Drilling / threading / tappingHard turning
4 / 8

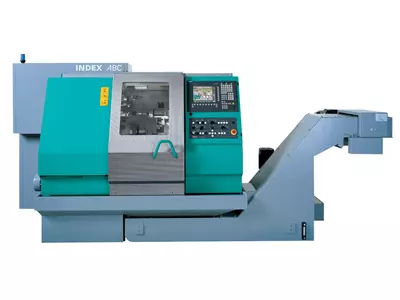

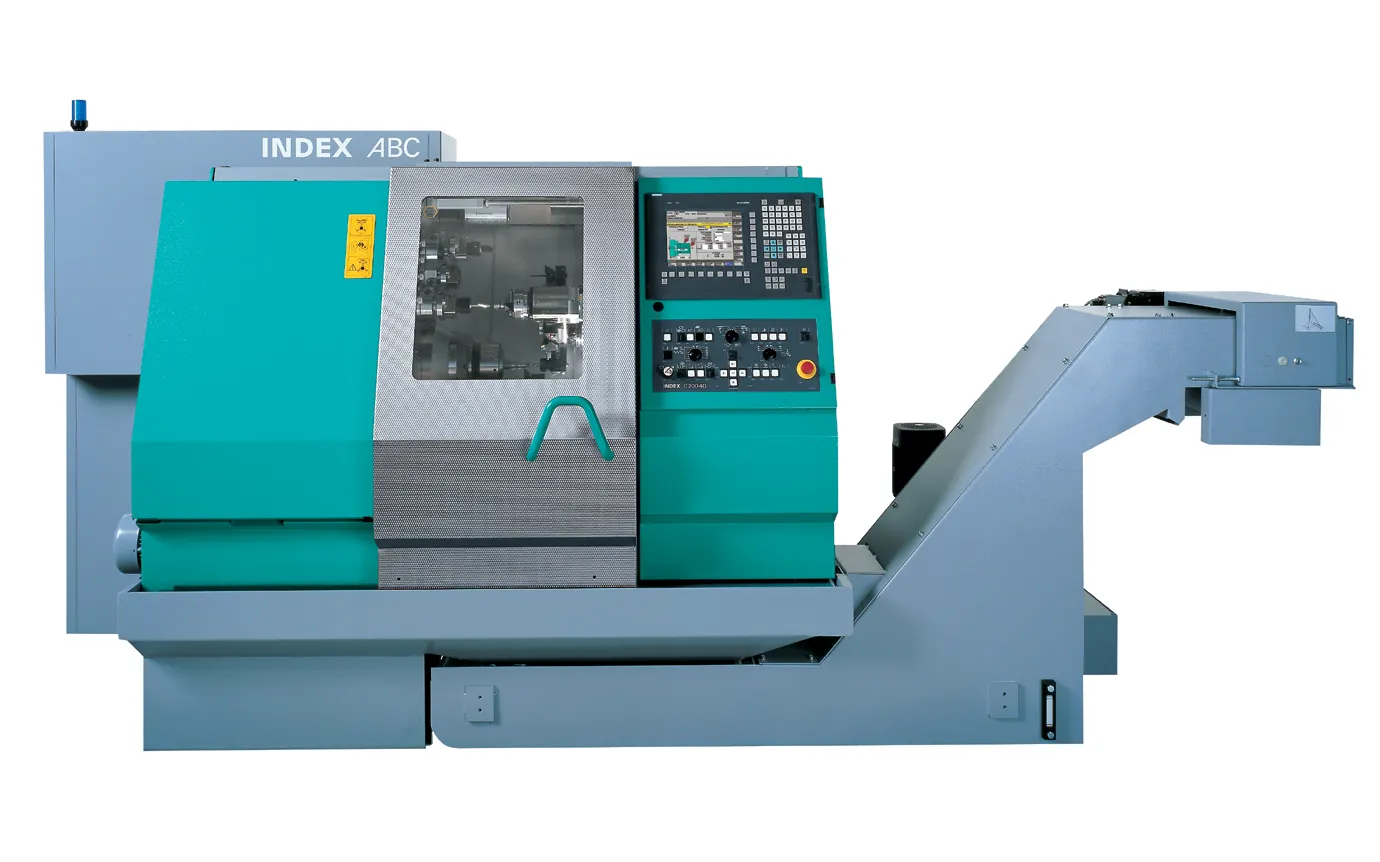

ABC
ManufacturerINDEX
Control840 D Siemens
Technology
Thread rollingShaft machiningFull-range turning (including milling)Drilling / threading / tappingTurningAutomatic turning (bar)
5 / 8

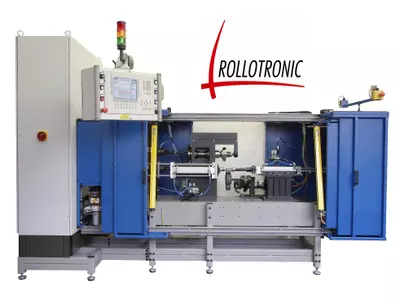

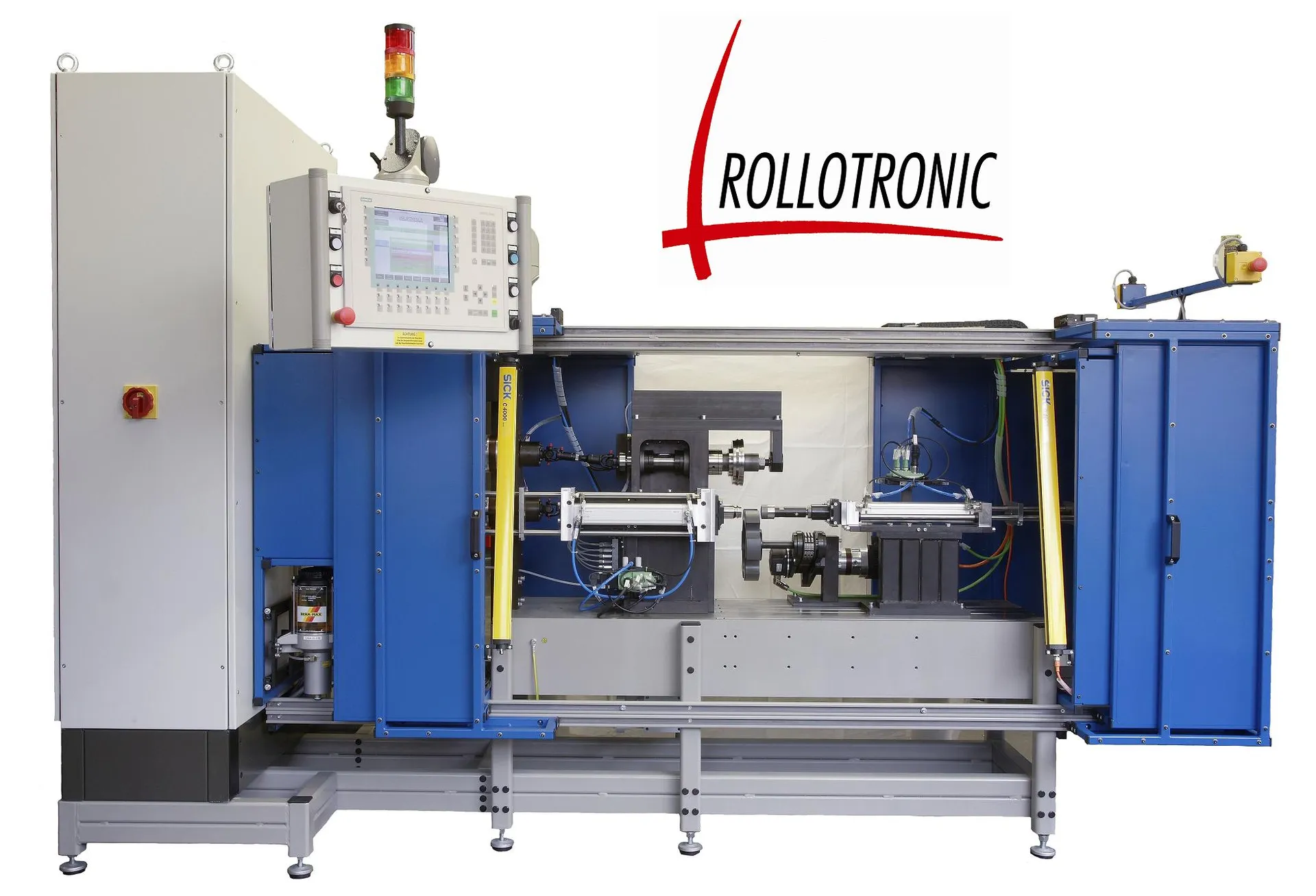

Rollotronic
ManufacturerMax Simmel
ControlSiemens
Technology
Thread rolling
6 / 8

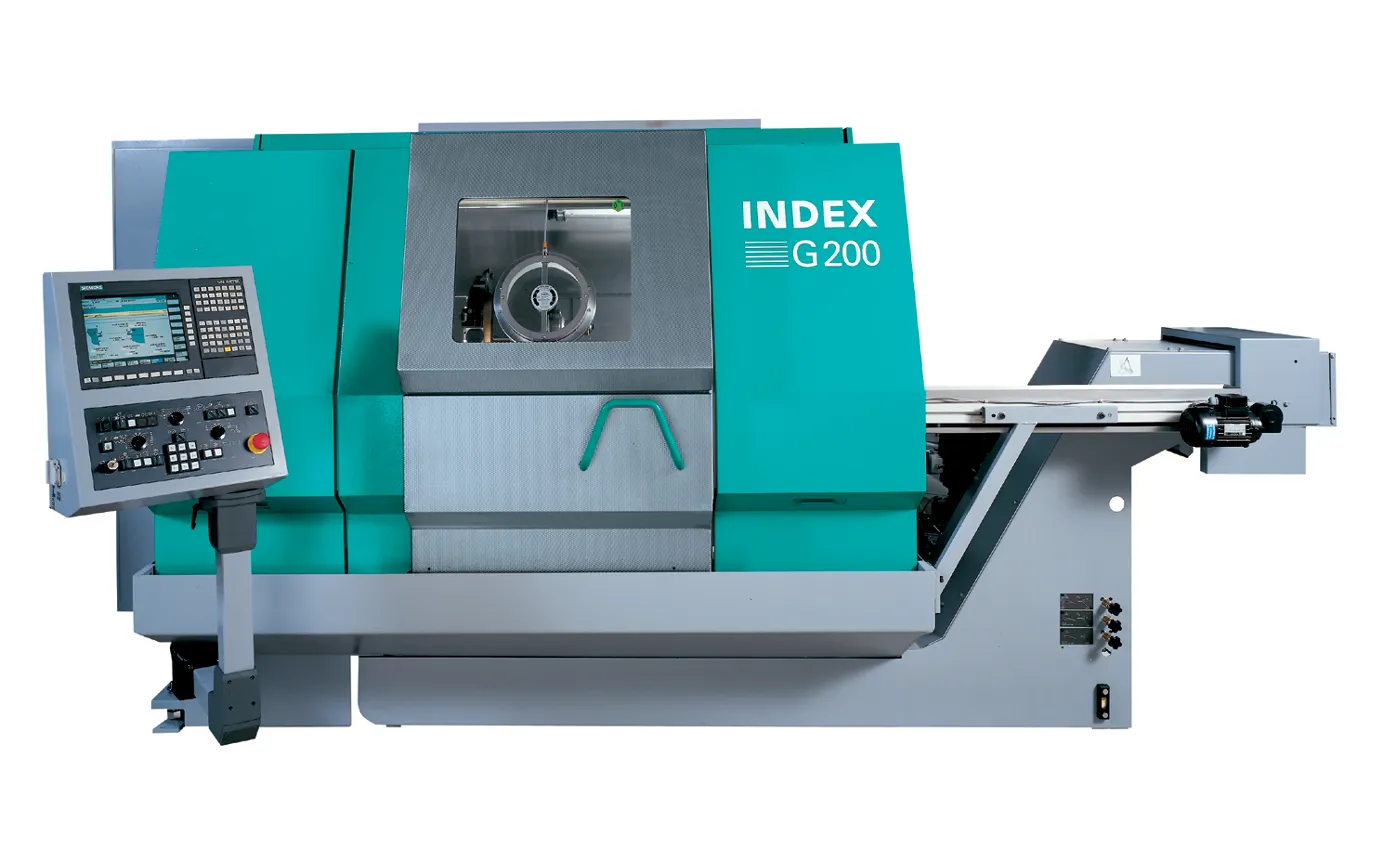

G 200
ManufacturerINDEX
Control840 D Siemens
Technology
Full-range turning (including milling)Shaft machiningThread rollingAutomatic turning (bar)Engraver millingHard turningCentering / end facingDrilling / threading / tappingTurningMilling
7 / 8

G 200
ManufacturerINDEX
Control840 D Siemens
Technology
Shaft machiningMillingAutomatic turning (bar)TurningCentering / end facingHard turningEngraver millingDrilling / threading / tappingThread rollingFull-range turning (including milling)
8 / 8

HA 250W
ManufacturerAMADA
Control-
Technology
Sawing
3 Parts
Others3
8 Machines
Engraver milling4
Form milling (3 D)1
Milling3
Drilling / threading / tapping6
Hard turning4
Full-range turning (including milling)5
Shaft machining5
Automatic turning (bar)5
Turning5
Thread rolling6
Centering / end facing2
Sawing1
