Friedli Mechanik AG

Switzerland, 4902 Langenthal

Competencies

Technologies

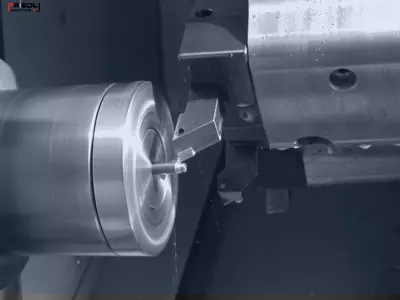

Turning

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Turning	10–10,000	5–300 mm	—	—	5–250 mm	—

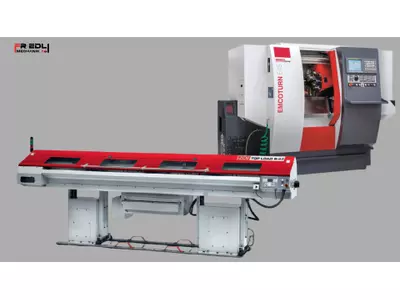

Automatic turning (bar)	10–100 k	5–300 mm	—	—	5–65 mm	—
Swiss turning	1–500 k	from 10 mm	—	—	from 3 mm	—
Full-range turning (including milling)	10–100 k	10–300 mm	—	—	5–100 mm	—
Hard turning	1–500 k	1–500 mm	—	—	1–500 mm	—
Broaching	1–500 k	3–150 mm	—	—	3–25 mm	—
Deep-hole drilling	1–500 k	1–500 mm	1–500 mm	1–500 mm	1–250 mm	0–35 kg
Centering / end facing	10–10,000	10–300 mm	—	—	5–100 mm	—
Shaft machining	10–10,000	10–400 mm	—	—	10–65 mm	0–20 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	10–1,200 mm	10–800 mm	1–500 mm	0–50 kg
Gauges	10–1,200 mm	10–800 mm	1–500 mm	0–50 kg
Measuring / testing jigs	1–1,200 mm	1–1,000 mm	1–800 mm	0–100 kg
Assembly jigs	10–2,000 mm	10–2,000 mm	1–2,500 mm	0–75 kg
Clamping devices	10–1,200 mm	10–800 mm	1–500 mm	0–50 kg

Assembly

Technologies	Weight
Mechanical assembly	0–2,500 kg
Industrial / On-site-assembly	0–1,000 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Anodizing	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—	0–25 kg	—
Blacking	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	—	0–50 kg	—
Electroplating	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	—	0–50 kg	—
Phosphatizing	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	—	0–50 kg	—
Powder coating	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—	0–50 kg	—
Rotofinishing, barrel finishing	1–1 M	1–500 mm	1–300 mm	1–250 mm	—	—	—
Chrome-plating	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—	0–50 kg	—
Nickel plating	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	—	0–50 kg	—
Galvanizing	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg	0.005–1 mm

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Carbonitriding	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Case hardening/surface hardening	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Flame-hardening	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Annealing	1–1 M	1–1,200 mm	1–1,000 mm	1–5,000 mm	1–250 mm	0–50 kg
Hardening	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Induction hardening	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Nitriding processes	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg
Hardening and tempering	1–1 M	1–1,200 mm	1–1,000 mm	1–500 mm	1–250 mm	0–50 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–1 M	1–500 mm	—	—	1–200 mm	—
Internal cylindrical grinding	1–1 M	1–500 mm	—	—	1–200 mm	—
Surface grinding machine	1–100 k	5–1,000 mm	3–350 mm	1–500 mm	—	0–35 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	1–1,200 mm	1–1,000 mm	1–800 mm	1–250 mm	0–50 kg

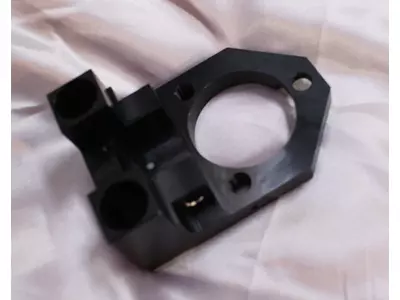

Machining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Diameter
Turning	1–500 k	1–500 mm	—	—	1–250 mm
Automatic turning (bar)	1–1 M	1–250 mm	—	—	1–42 mm
Full-range turning (including milling)	1–500 k	0–1,000 mm	—	—	from 0 mm
Milling	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—
Form milling (3 D)	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—

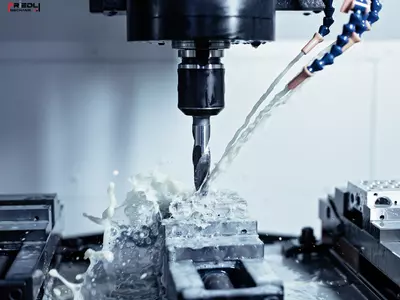

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	10–10,000	20–700 mm	15–250 mm	8–100 mm	—	0–50 kg
5-axis milling machines	1–500 k	0–500 mm	0–1,000 mm	100–500 mm	—	—
Form milling (3 D)	1–500 k	500–3,000 mm	0–1,000 mm	0–500 mm	—	—
Full-range milling (including turning)	1–500 k	3–250 mm	3–250 mm	1–500 mm	1–250 mm	—
HSC milling	1–500 k	1–1,200 mm	1–1,000 mm	1–500 mm	—	0–35 kg
Deep-hole drilling	1–500 k	1–500 mm	1–500 mm	1–500 mm	1–250 mm	0–35 kg
Engraver milling	1–1 M	3–1,000 mm	3–1,000 mm	1–500 mm	10–250 mm	0–25 kg

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Electron-beam welding	1–50,000	10–1,200 mm	10–1,000 mm	10–800 mm	0–50 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Deep-hole drilling	1–500 k	1–500 mm	1–500 mm	1–500 mm	1–250 mm	0–35 kg
Drilling / threading / tapping	1–1 M	1–1,200 mm	1–1,000 mm	1–800 mm	—	0–50 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	1–1 M	10–400 mm	10–400 mm	1–200 mm	5–250 mm

Materials

Plastics/synthetic materials

ThermoplasticsThermosets

Light metals

Aluminium and aluminium alloys

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel

Industries

Air conditioning, refrigeration and ventilation industryElectrical industryFittings engineeringAutomotive and vehicle constructionMilitary engineeringRailway and rail vehicles industryFurniture industryPrecision engineering, mechatronics and opticsAutomation and control engineeringDrive and gear engineeringMechanical engineeringSpecial purpose machinery manufacturingApparatus engineeringPlant engineering and constructionMachine tool manufacturingChemical industryHydraulic and pneumatic industry

+9 moreShow less
