FRITZ Präzisionsmaschinenbau GmbH

Germany, 71554 Weissach im Tal

Competencies

Technologies

Gear Making

Technologies	Lotsize	Length	Diameter	Weight
Cylindrical gear / spur gear	1–100	5–1,000 mm	5–600 mm	0–800 kg
Cogged belt pulley	1–100	5–1,000 mm	5–600 mm	0–800 kg

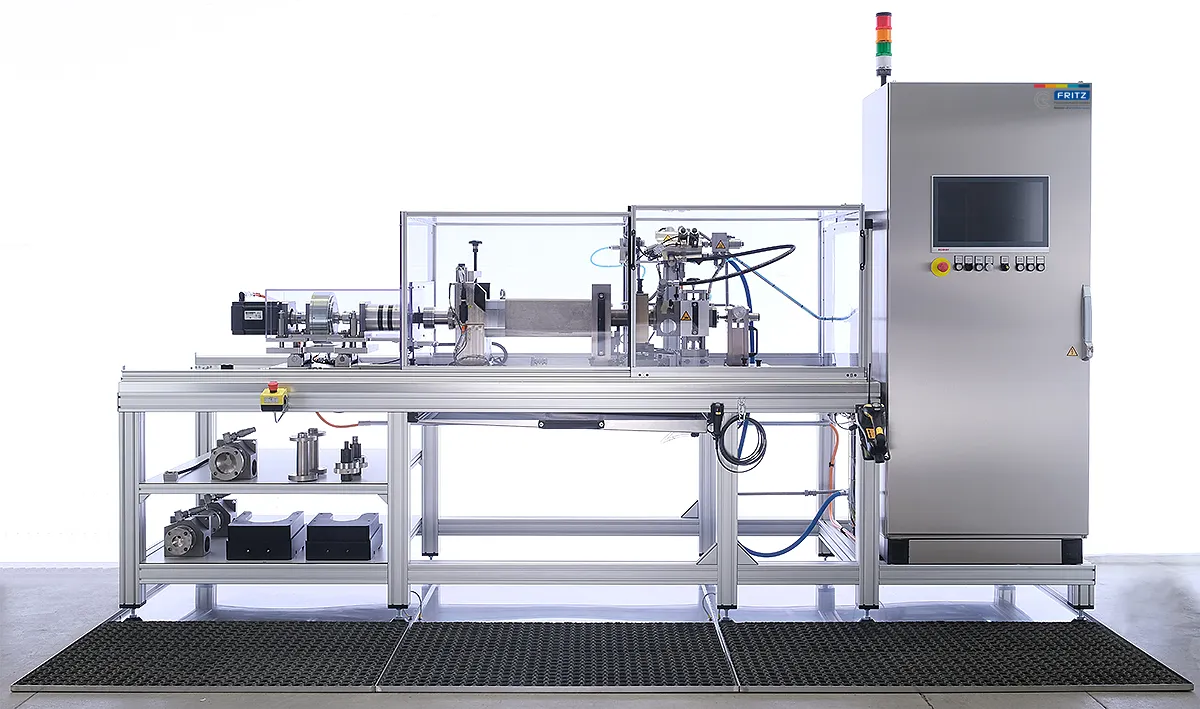

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–100	10–5,000 mm	10–3,000 mm	10–3,000 mm	0–5,000 kg
Hydraulic engineering	1–100	10–5,000 mm	10–3,000 mm	10–3,000 mm	0–5,000 kg
Pneumatic engineering	1–100	10–5,000 mm	10–3,000 mm	10–3,000 mm	0–5,000 kg
Apparatus engineering	1–100	10–5,000 mm	10–3,000 mm	10–3,000 mm	0–5,000 kg
Tool building	1–100	10–5,000 mm	10–3,000 mm	10–3,000 mm	0–5,000 kg
Handling technology	1–10	50–3,000 mm	50–3,000 mm	50–3,000 mm	0–500 kg

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–2,500	5–2,000 mm	5–600 mm
Automatic turning (bar)	1–10,000	50–800 mm	from 100 mm
Full-range turning (including milling)	1–2,500	5–1,000 mm	5–600 mm

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	10–2,000 mm	10–1,400 mm	10–1,600 mm	0–4,500 kg
Measuring / testing jigs	100–3,000 mm	100–3,000 mm	100–3,000 mm	0–500 kg
Assembly jigs	100–5,000 mm	100–3,000 mm	100–3,000 mm	0–5,000 kg
Clamping devices	10–2,000 mm	10–1,400 mm	10–1,600 mm	0–4,500 kg

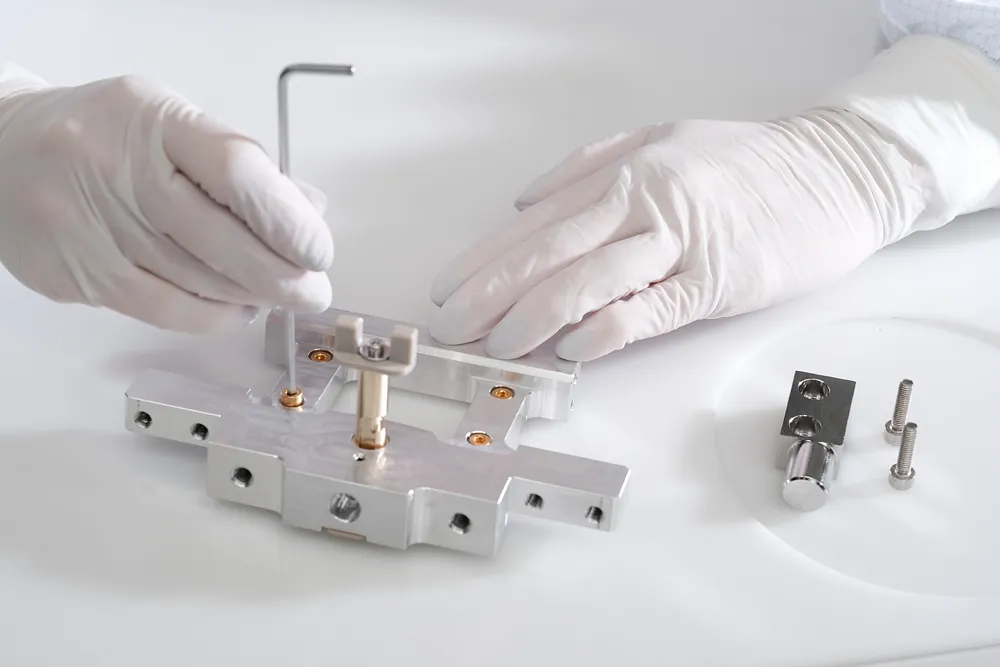

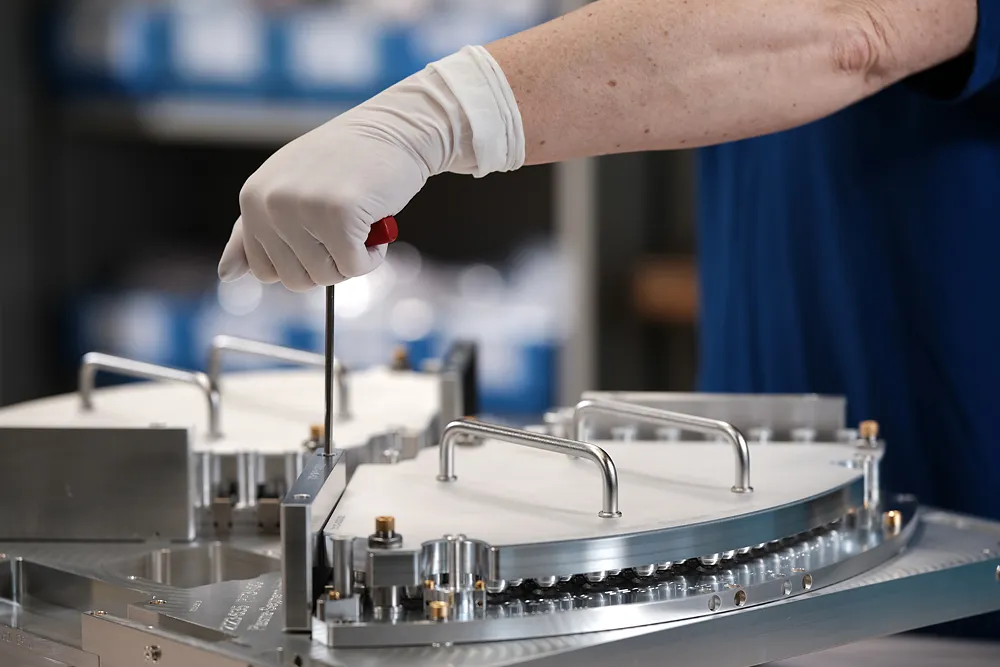

Assembly

Technologies	Weight
Mechanical assembly	0–5,000 kg
Electromechanical assembly	0–5,000 kg
Industrial / On-site-assembly	0–5,000 kg

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–100	5–500 mm	—	—	5–220 mm	0–400 kg
Surface grinding machine	1–500	5–600 mm	5–400 mm	5–250 mm	—	0–1,000 kg
Rotofinishing, barrel finishing	1–1,000	5–150 mm	5–150 mm	5–150 mm	—	—

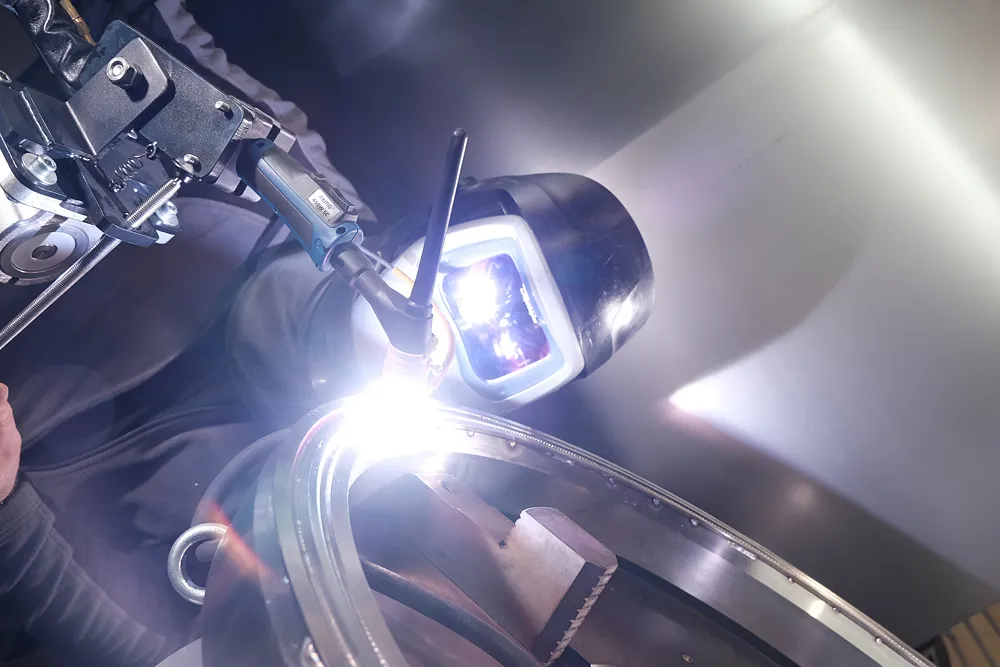

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Inert gas shielded arc welding (MIG/MAG)	1–25	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–500 kg
Inert gas shielded arc welding (TIG)	1–25	0–2,500 mm	0–2,500 mm	0–2,500 mm	0–500 kg

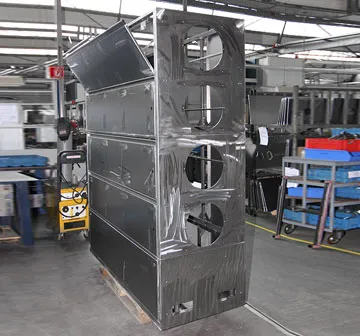

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Machine frames / bases / racks	1,000–3,000 mm	1,000–3,000 mm	1,000–3,000 mm	0–500 kg

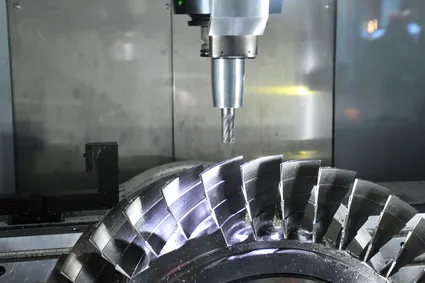

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	1–1,500	2–3,000 mm	2–500 mm	2–1,600 mm	—	0–3,500 kg
5-axis milling machines	1–2,500	1–500 mm	1–400 mm	1–500 mm	—	0–500 kg
Full-range milling (including turning)	1–2,500	2–1,000 mm	2–500 mm	2–500 mm	5–600 mm	—

Materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)CarbideSilicium

Precious metals

SilverGoldPlatinumOther precious metals

Non-metal inorganic materials

CeramicsCast mineralsGraphite

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Cast metals

Cast steelCast iron

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)

Industries

Precision engineering, mechatronics and opticsMedical technologyPlant engineering and constructionMechanical engineeringClean room technologyElectrical industryAerospace and aviation industry
