About Gebr. SCHMID GmbH

Who we are

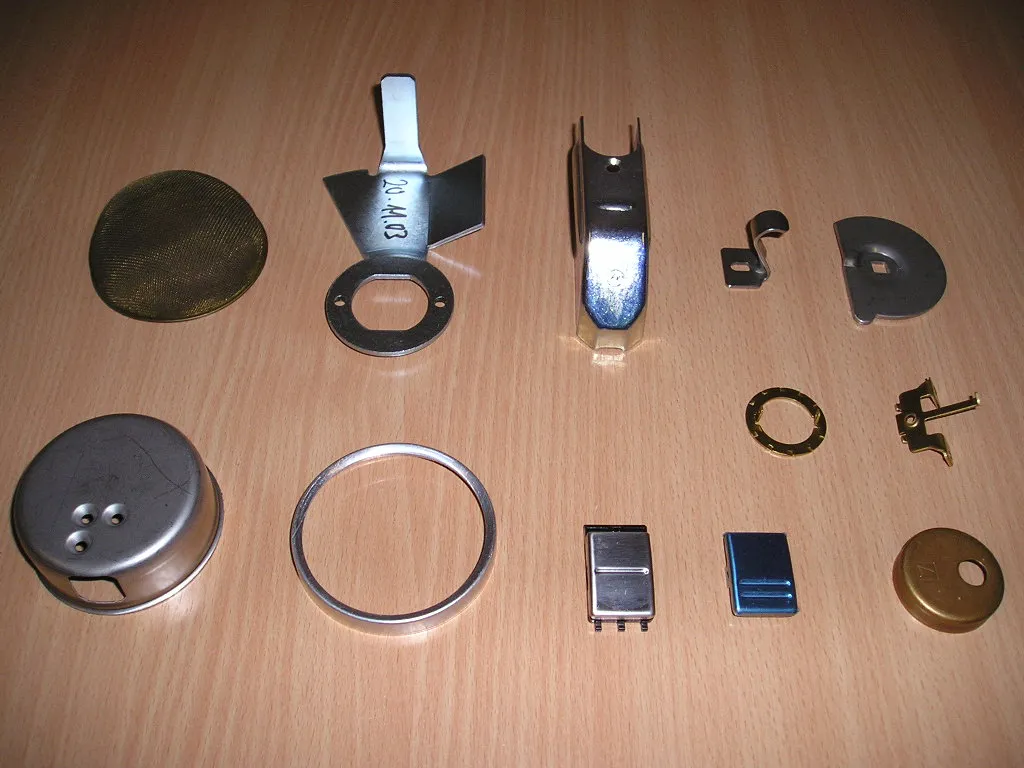

Punching and forming tools with its own tool. Production in lots of 1-100000 St. Processed materials: Steel sheet: 0.5-10mm VA-sheet: 0.5-3mm AL-sheet: 0.5-5mm MS sheet: 0.5-4mm, Cu sheet: 0.5-4mm Rod material are 15mm thick and 6m Length max. Tool dimensions: 900 mm max. Press force: 2500 KN Tube processing to D 200mm Deep drawn parts to D 250mm

1 / 3

2 / 3

3 / 3

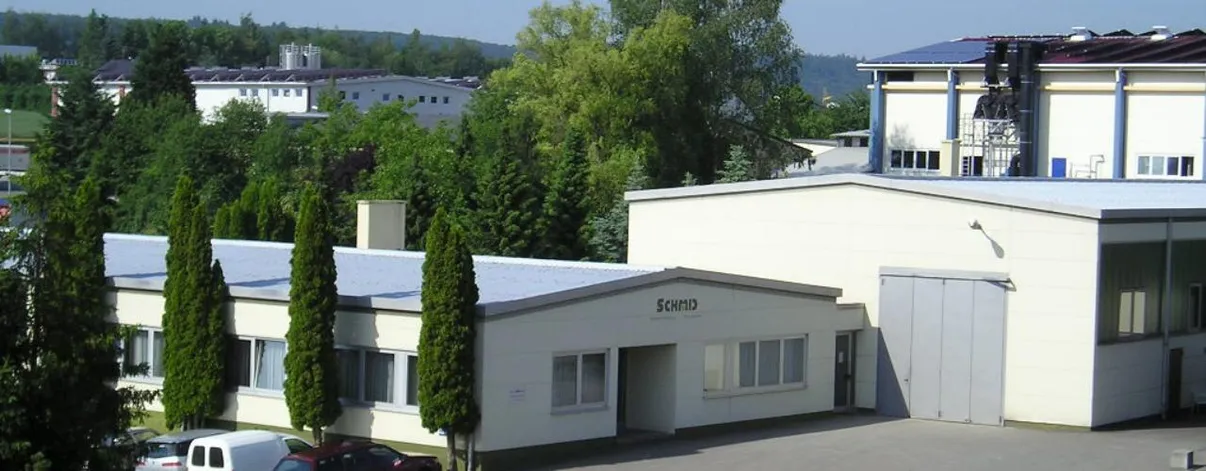

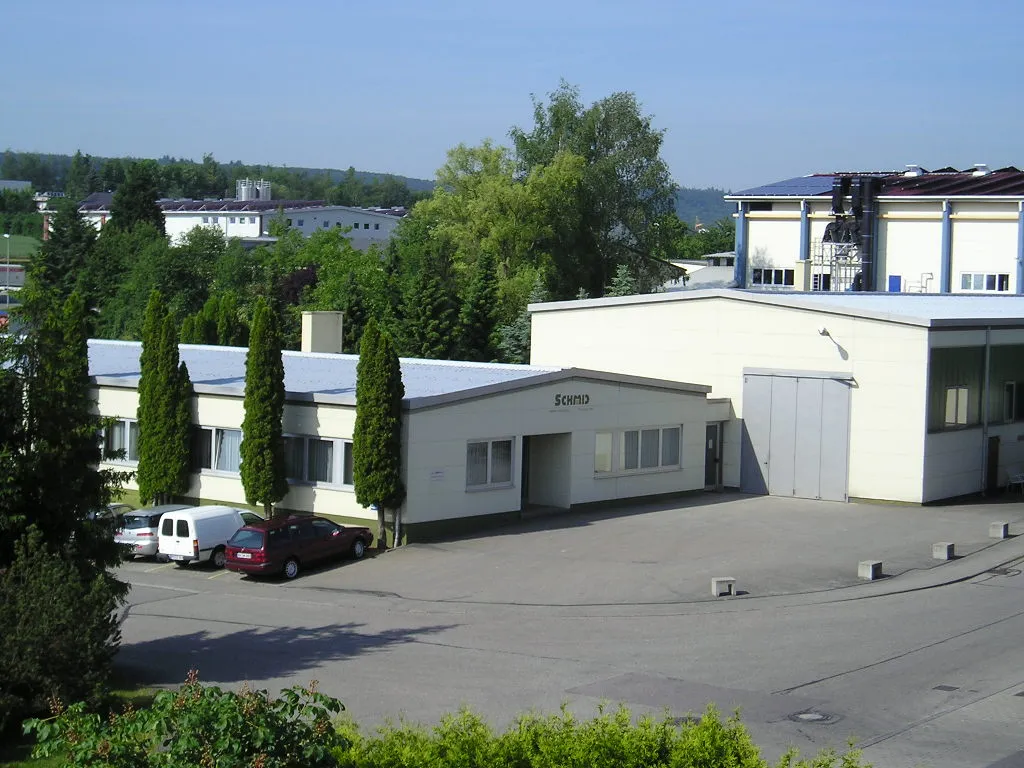

Schwaigern, Germany

Member since 2004

Premium Member since 2011

Employees10 - 20

Certificates1

Year of foundation1954

Marketing documents

DIN EN ISO 9001:2000

Competencies

Technologies

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Diameter	Weight	Material thickness
Punching / Cutting tools	1–900 mm	1–500 mm	1–400 mm	—	0–500 kg	—
Follow-on composite tools	1–900 mm	1–500 mm	1–400 mm	from 0 mm	0–500 kg	from 0 mm
Deep-drawing dies	1–500 mm	1–500 mm	1–400 mm	from 0 mm	0–500 kg	from 0 mm
Trimming	1–700 mm	1–500 mm	1–400 mm	from 0 mm	0–500 kg	from 0 mm
Die replacement / wearing part manufacturing	from 0 mm	from 0 mm	from 0 mm	from 0 mm	from 0 kg	from 0 mm

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width	Material thickness
Punching / pressing (Out-of-tool)	1–10 M	1–800 mm	1–600 mm	0.1–10 mm

Finishing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
External cylindrical grinding	1–1,000	1–300 mm	—	—	1–200 mm	0–20 kg
Surface grinding machine	1–1,000	1–800 mm	1–400 mm	1–100 mm	—	0–100 kg
Rotofinishing, barrel finishing	1–100 k	1–250 mm	1–250 mm	1–250 mm	—	—

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Material thickness
Clinching	1,000–10,000	1–400 mm	1–400 mm	1–3 mm
Riveting	1,000–10,000	1–400 mm	1–400 mm	1–5 mm

Assembly

Technologies	Weight
Mechanical assembly	0–2 kg

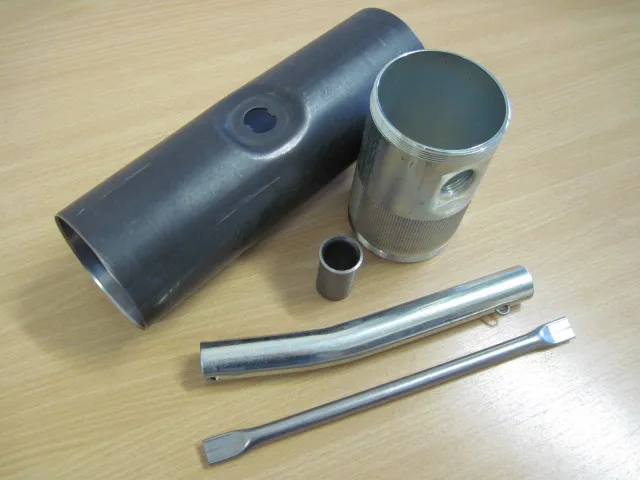

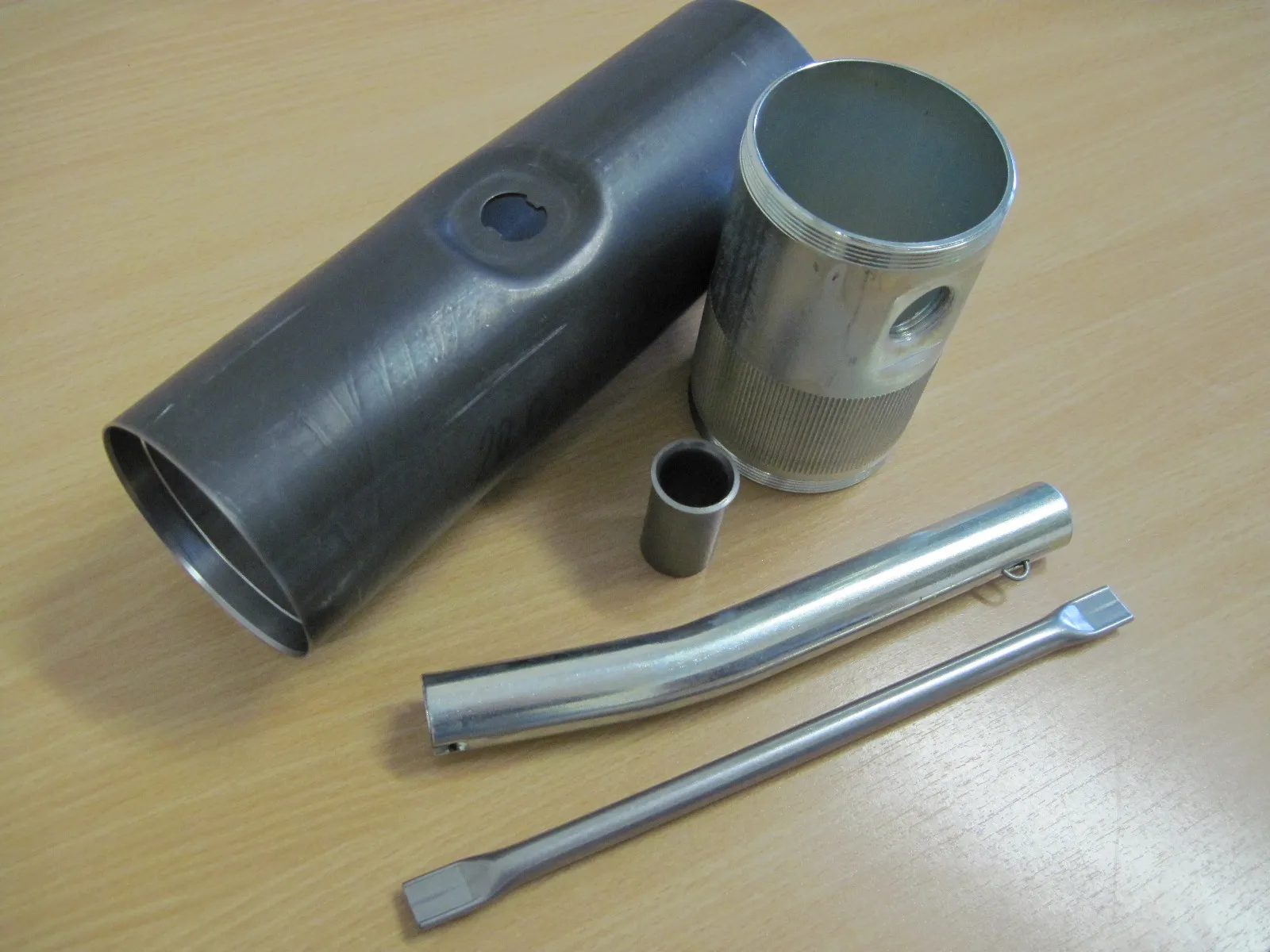

Pipe & Tube Manufacturing

Technologies	Lotsize	Length	Diameter	Material thickness
Pipe bending	1–10 M	1–1,750 mm	1–150 mm	0.1–20 mm
Pipe forming	1–10,000	1–750 mm	1–200 mm	—

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Bending / folding	1–10,000	1–10,000 mm	—	—	0.5–10 mm
Punching / nibbling	1–10,000	1–2,000 mm	1–1,000 mm	0–40 kg	0.5–3 mm
Shearing (rectangular blank/strip)	1–10,000	—	—	—	0.5–6 mm

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Annealing	1–10,000	1–300 mm	1–300 mm	1–200 mm	1–200 mm	0–10 kg

Welding

Technologies	Lotsize	Material thickness
Spot welding	1–10,000	0.5–4 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–10,000	1–6,000 mm	8–240 mm	8–240 mm	8–240 mm	—
Drilling / threading / tapping	1–10,000	1–400 mm	1–400 mm	1–400 mm	—	0–2 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Galvanizing	1–10,000	1–400 mm	1–400 mm	1–400 mm	1–200 mm	0–2 kg	1–10 mm

Materials

Plastics/synthetic materials

ThermoplasticsThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Cast metals

Cast steelCast iron

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel

Industries

Lighting industryMining and tunnel engineeringOffice machinery and suppliesShipbuilding industryBoiler, container and tank construction Power generation and transmission industryRailway and rail vehicles industryBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionApparatus engineeringPlant engineering and constructionPackaging industryHydraulic and pneumatic industryInformation technology (hardware)Air conditioning, refrigeration and ventilation industryAerospace and aviation industryDrive and gear engineeringMeasurement and control technique, laboratory equipmentAutomation and control engineeringPrecision engineering, mechatronics and opticsMachine tool manufacturingMilitary engineeringPaper and printing machinery industryFurniture industryTelecommunication industryChemical industryElectrical industryClean room technologyHousehold appliance industryMedical technologyFittings engineeringSpecial purpose machinery manufacturingConstruction and architectural suppliesMechanical engineering

+26 moreShow less

Certificates

ISO 9001:2015
