About Gebr.Diemer Modell-+Formenbau GmbH
Who we are

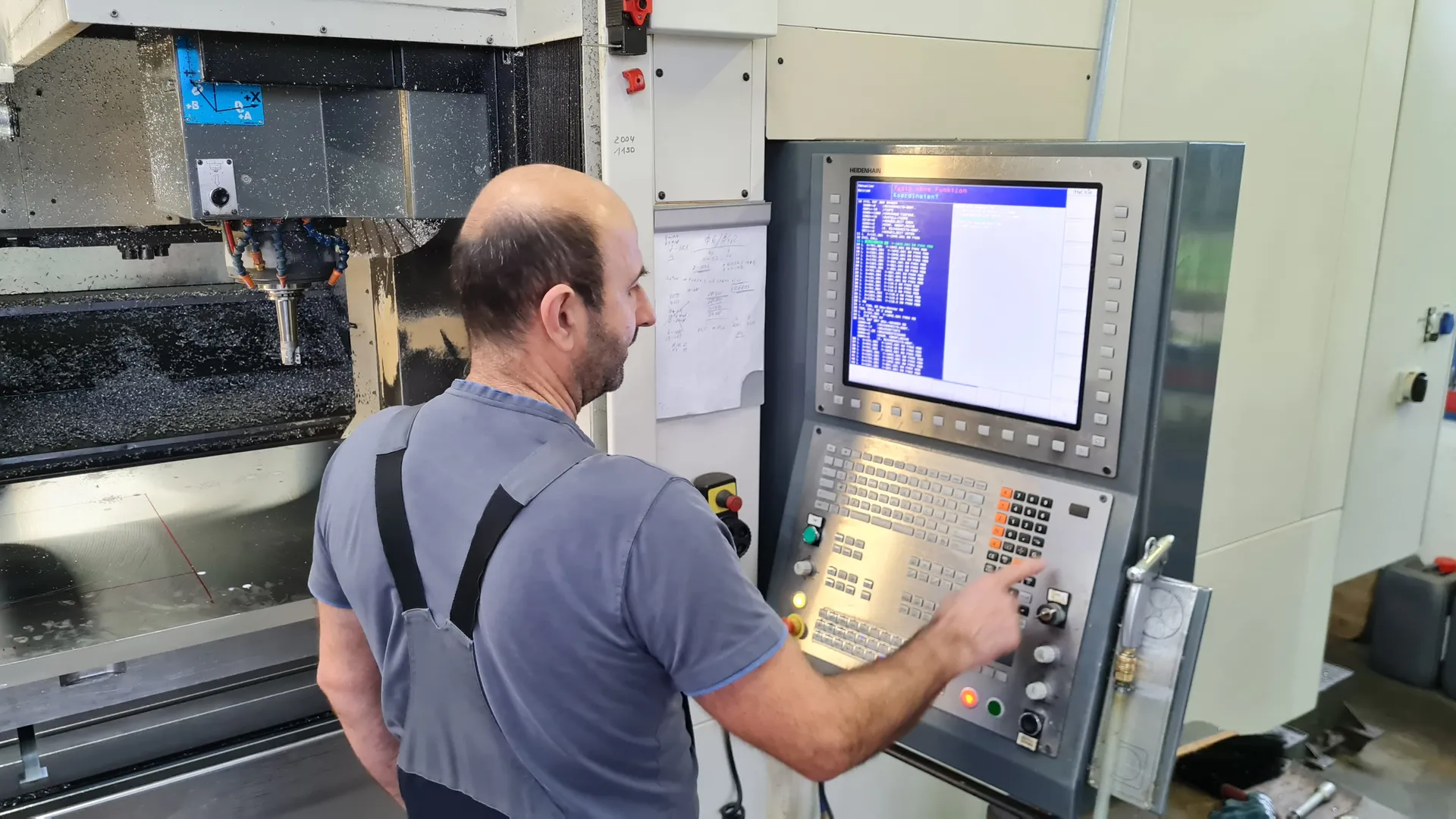

Mold making Diemer Particle foam tools, deep-drawing tools, fiber casting tools, contract machining We mainly produce tools for particle foam processing, e.g. for EPP, EPS, Piocelan, eTPU. Other mainstays of our company are the manufacture of deep-drawing, fiber-casting and pressing tools of various designs. We offer contract machining on our CNC milling machines. In the 3-axis area, our machining areas are up to 2200x1150x700 mm and in the 5-axis area we can machine up to an interference circle diameter of 950mm. All processing is possible fully simultaneously. Thanks to our experienced team, we can guarantee the highest quality with fast delivery times and an affordable price. We offer you the entire range of services from CAD design to machining, surface processing such as lasering, etching or teflon coating, the assembly of your tools, changes and repairs to existing and third-party tools, as well as personal on-site support. Contact us.
1 / 4
2 / 4
3 / 4
4 / 4

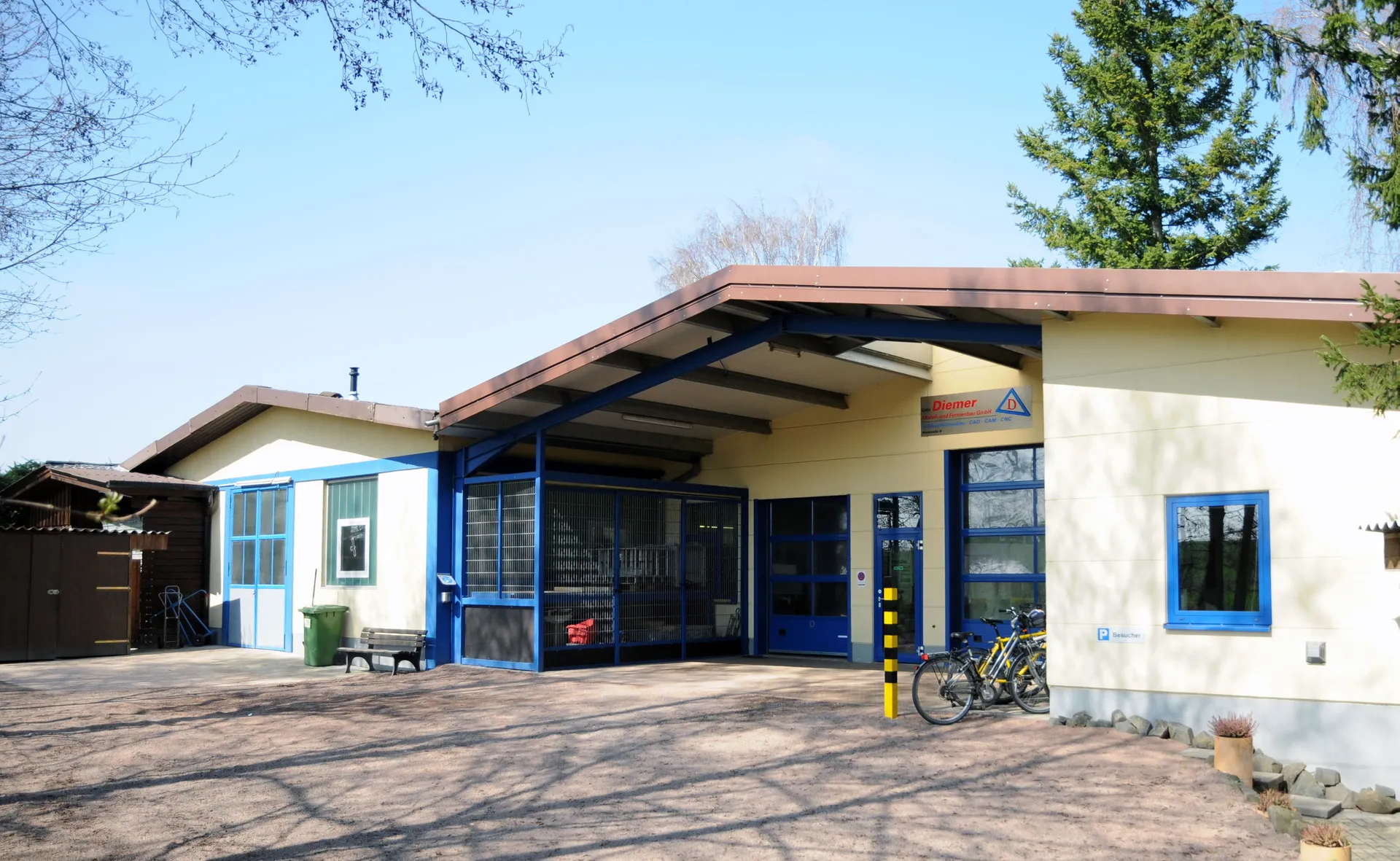

Ebertsheim, Germany
Member since 2019
Employees10 - 20
Certificates1
Turnover1 - 5 Mil.
Year of foundation1970
Marketing documents
Competencies
Technologies
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–5,000 | 1–2,400 mm | 1–1,500 mm | 1–800 mm | — | 0–1,000 kg | — |
Inert gas shielded arc welding (TIG) | 1–5,000 | 1–3,500 mm | 1–2,000 mm | 1–1,500 mm | — | 0–1,000 kg | — |
Manual electrode welding | 1–5,000 | 1–2,400 mm | 1–1,500 mm | 1–600 mm | 1–1,500 mm | 0–1,000 kg | 2–40 mm |
Soldering | 1–5,000 | 1–2,400 mm | 1–1,500 mm | 1–600 mm | 1–1,500 mm | 0–800 kg | — |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–2,000 kg |

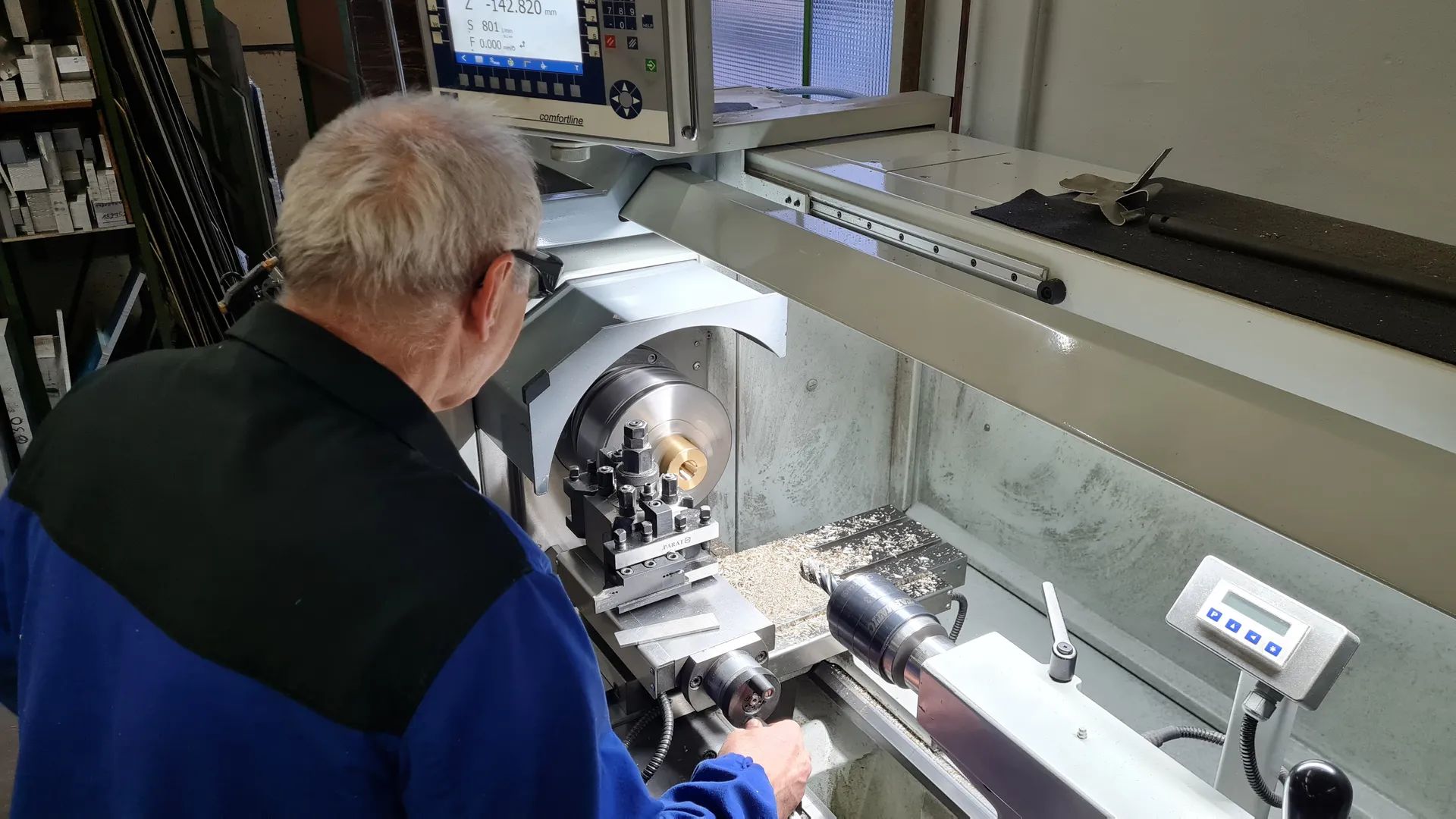

Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1–100 | 0–1,000 mm | from 0 mm |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gauges | 1–1,950 mm | 1–1,100 mm | 1–200 mm | 0–2,000 kg |
Measuring / testing jigs | 1–1,950 mm | 1–1,100 mm | 1–400 mm | 0–2,000 kg |
Mould construction
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Modelmaking | — | 1–2,500 mm | 1–1,700 mm | 1–500 mm | 0–2,000 kg |
Foam molds | 1–100 | 1–2,500 mm | 1–1,700 mm | 1–1,000 mm | 0–2,000 kg |
Squeeze moulds | — | 1–1,950 mm | 1–1,100 mm | 1–400 mm | 0–2,000 kg |
Vacuum deep-drawing moulds | — | 1–2,500 mm | 1–1,700 mm | 1–600 mm | 0–2,000 kg |
Blow moulds | — | 1–1,900 mm | 1–1,100 mm | 1–400 mm | 0–2,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–5,000 | 1–2,200 mm | 1–1,140 mm | 1–400 mm | — | — |
5-axis milling machines | 1–5,000 | 1–950 mm | 1–950 mm | 1–600 mm | — | — |
Form milling (3 D) | 1–5,000 | 1–2,200 mm | 1–1,140 mm | 1–400 mm | — | — |
Engraver milling | 1–5,000 | 1–2,200 mm | 1–1,140 mm | 1–400 mm | 1–1,140 mm | 0–1,300 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 1–5,000 | 1–2,200 mm | 1–1,140 mm | 1–600 mm | 0–1,300 kg |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomers
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Industries
Packaging industryPlant engineering and constructionConstruction and architectural suppliesPrecision engineering, mechatronics and opticsApparatus engineeringMachine tool manufacturingLighting industryHydraulic and pneumatic industryMechanical engineeringSpecial purpose machinery manufacturingRailway and rail vehicles industryAir conditioning, refrigeration and ventilation industryPaper and printing machinery industry
Certificates
No certificates
Parts & Machines
Parts (4)
1 / 4

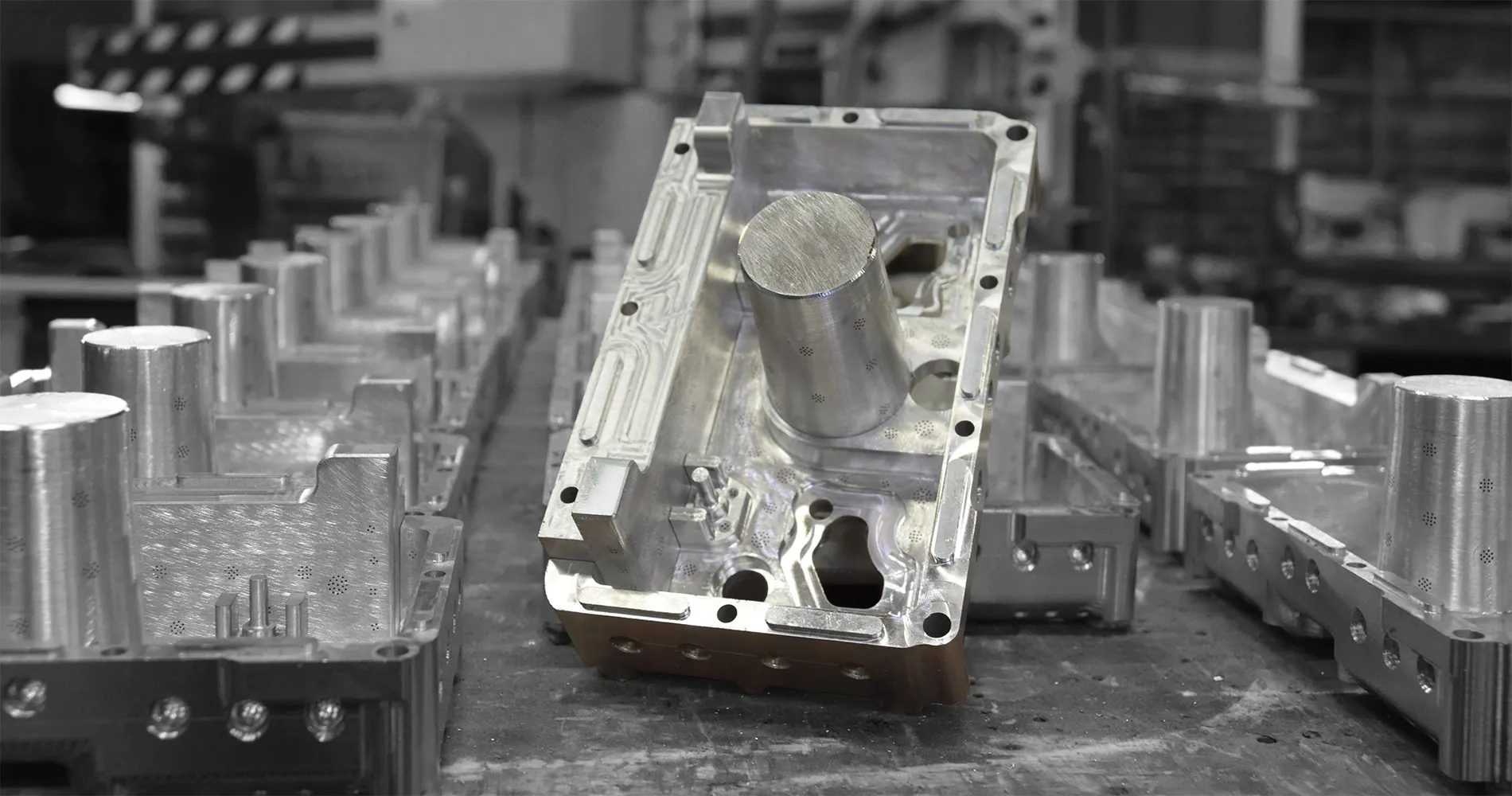

Haubenboden
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Dimensions
Height120 mm
Width120 mm
Length280 mm
Lotsize16
ComplexityLow
IndustriesPackaging industry
2 / 4

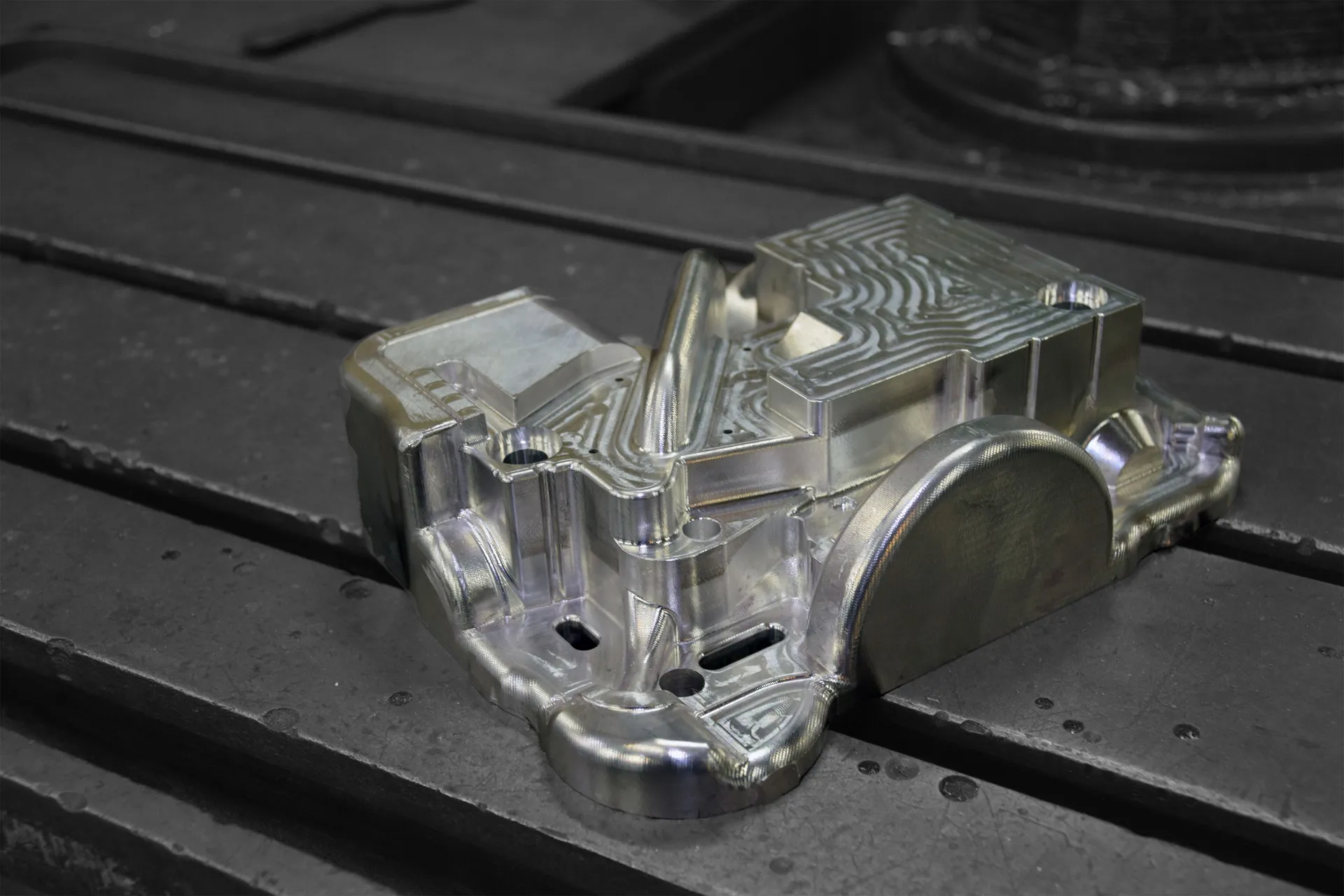

Kern
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Dimensions
Length300 mm
Height80 mm
Width200 mm
Lotsize0
ComplexityLow
IndustriesAutomotive and vehicle construction
3 / 4

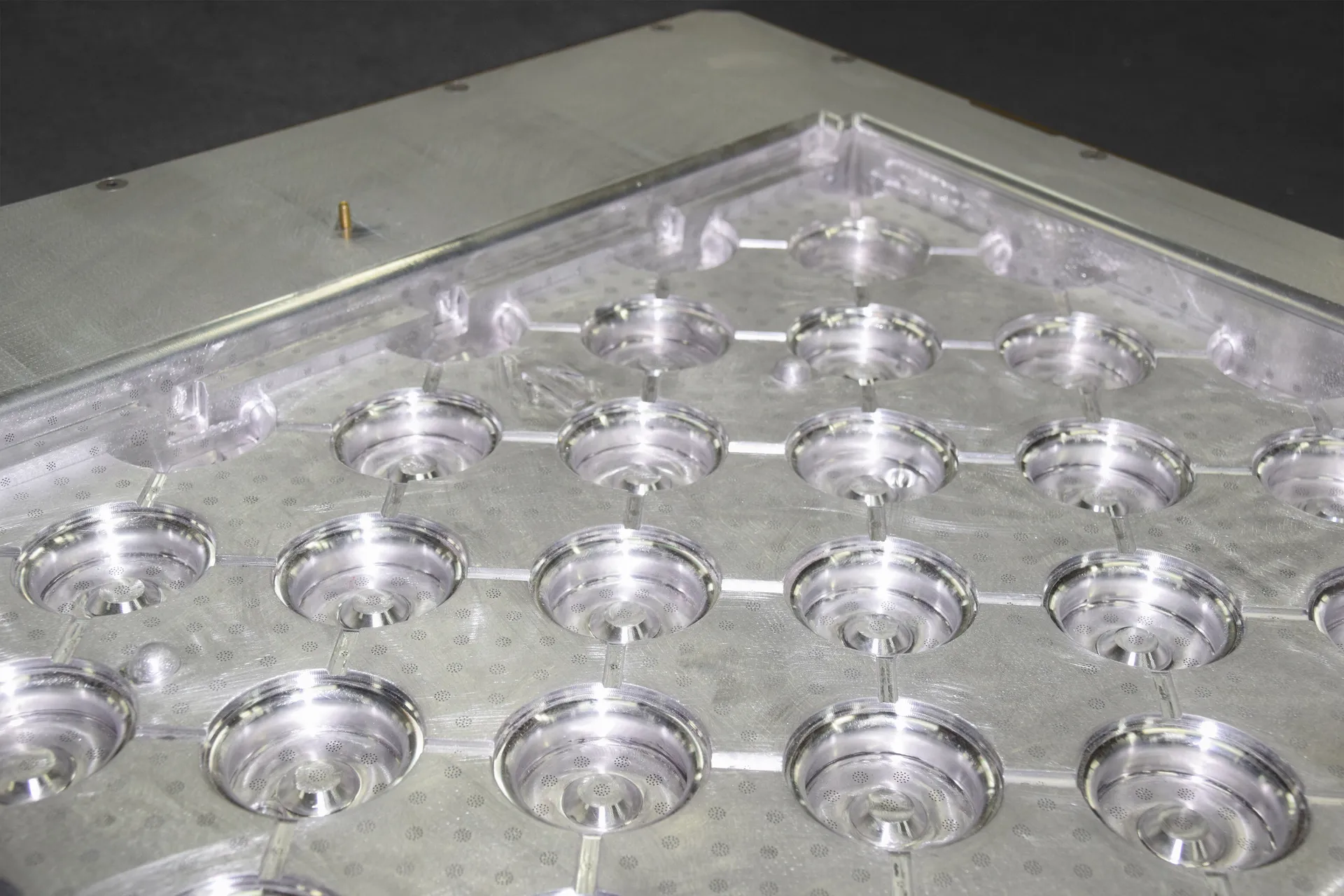

Bodenplatte
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Dimensions
Length1400 mm
Height120 mm
Width1000 mm
Lotsize1
IndustriesConstruction and architectural supplies
4 / 4

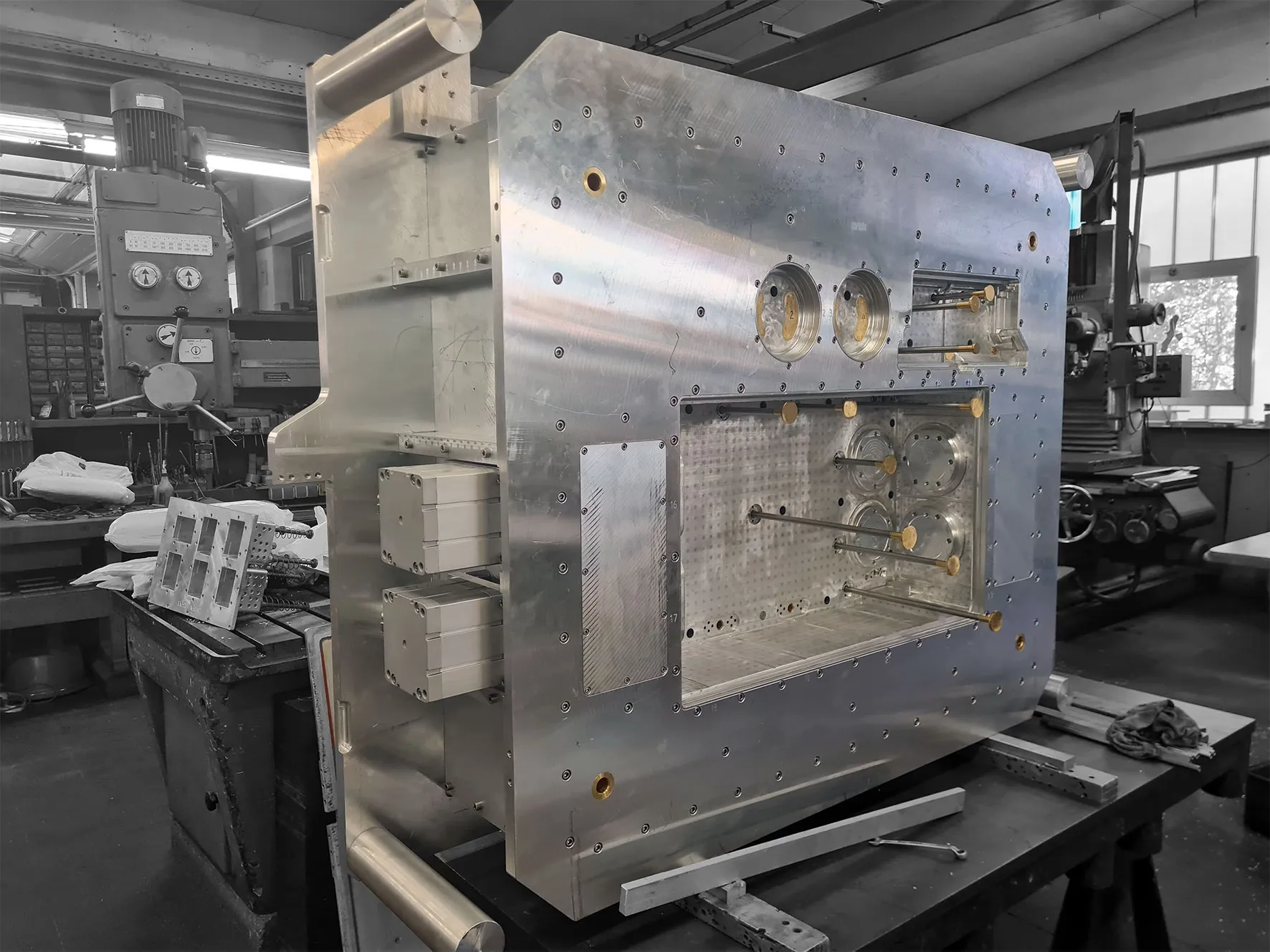

Schäumwerkzeug bei der Endmontage
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Dimensions
Width1300 mm
Length1800 mm
Height600 mm
Lotsize1
ComplexityMedium
Machinery (1)
1 / 1

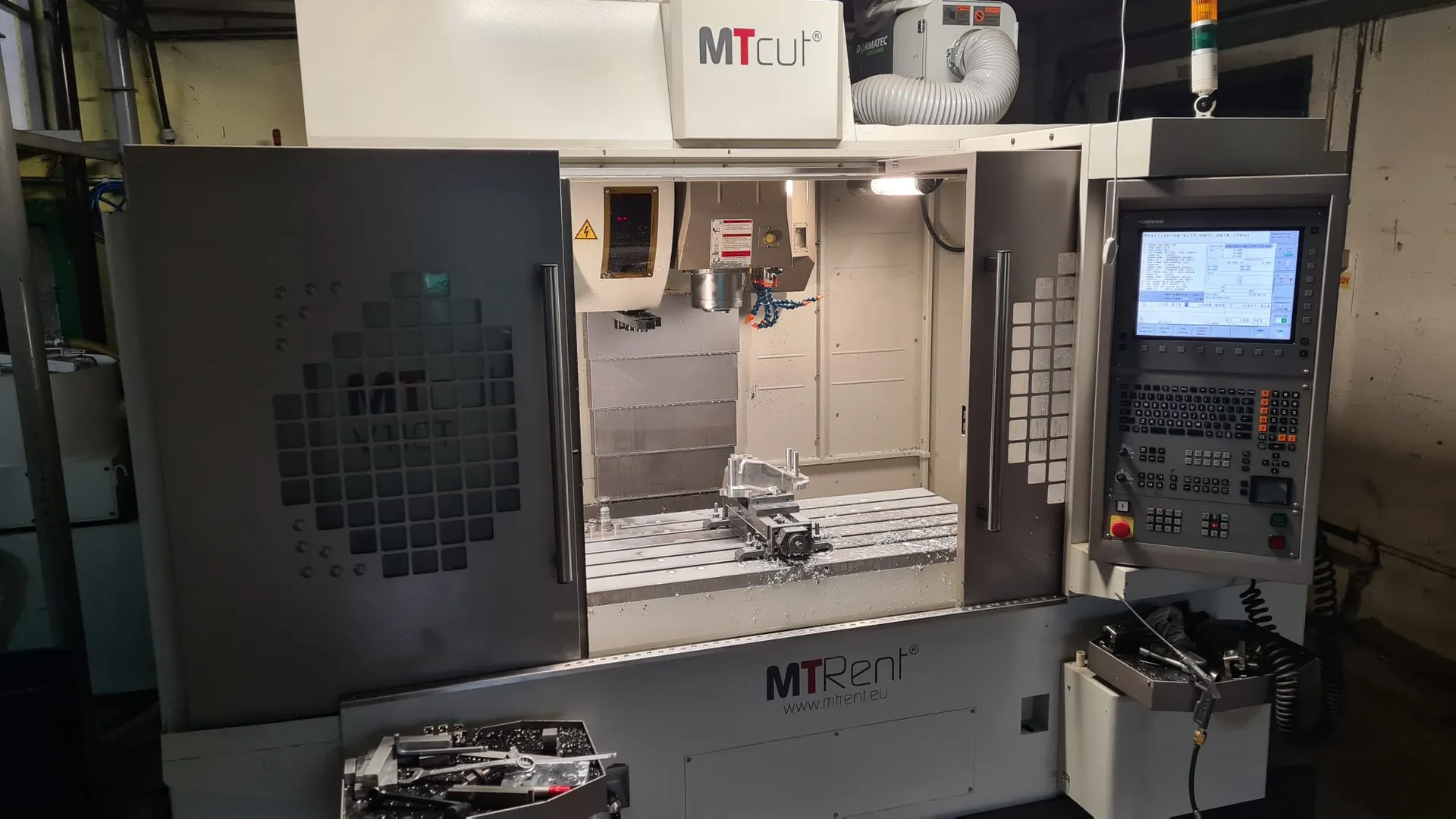

MTCut V110T
ManufacturerMT Rent
Technology
Form milling (3 D)Milling
4 Parts
Form milling (3 D)4
1 Machinery
Form milling (3 D)1
Milling1
