Competencies

Technologies

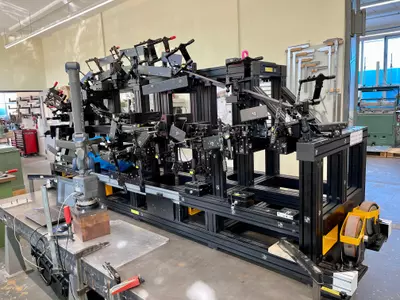

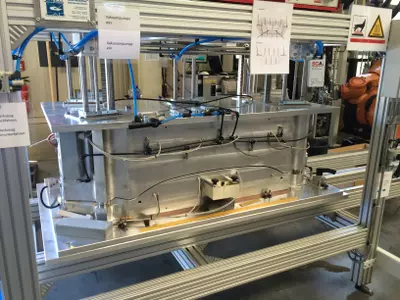

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg
Gauges	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg

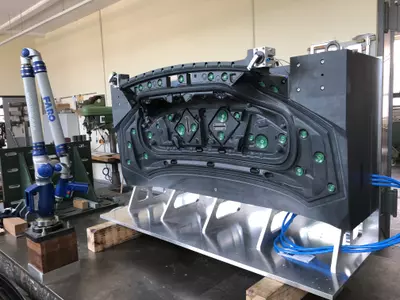

Measuring / testing jigs	100–2,000 mm	100–1,000 mm	10–1,500 mm	0–1,000 kg

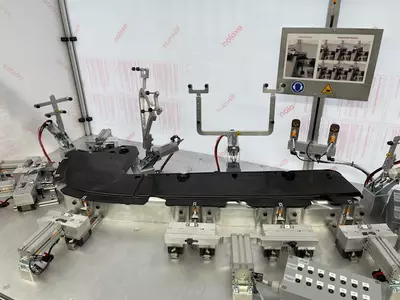

Assembly jigs	100–2,000 mm	100–1,000 mm	10–1,000 mm	0–1,000 kg
Welding jigs	100–2,000 mm	100–1,000 mm	10–600 mm	0–1,000 kg

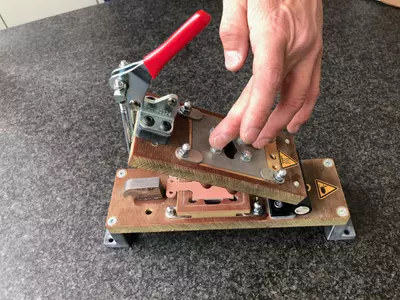

Clamping devices	100–2,000 mm	100–1,000 mm	10–1,000 mm	0–1,000 kg

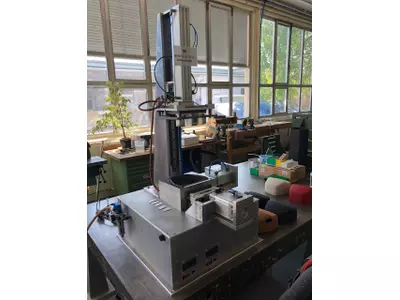

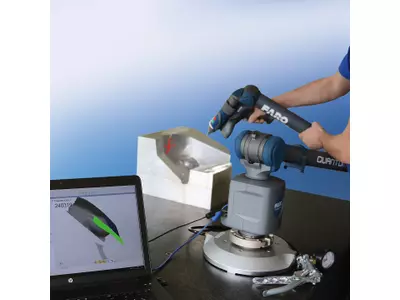

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	100–2,400 mm	100–1,500 mm	10–1,500 mm	100–2,400 mm	0–1,000 kg

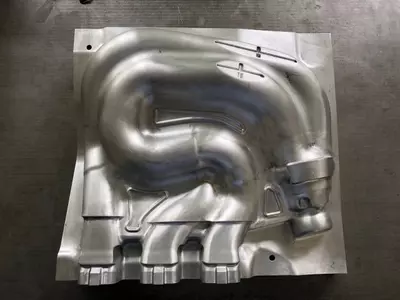

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Deep-drawing dies	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg
Embossing / swage dies	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg

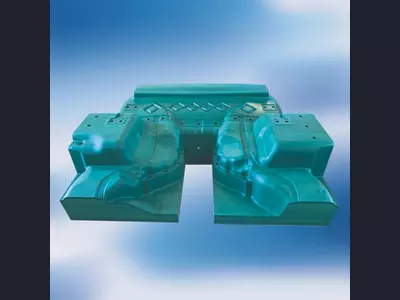

Mould construction

Technologies	Length	Width	Height	Weight
Modelmaking	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg

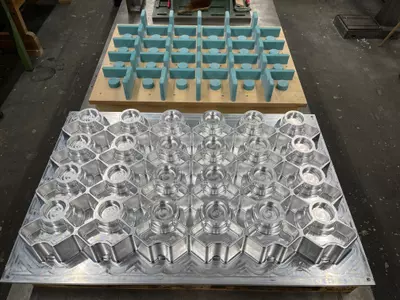

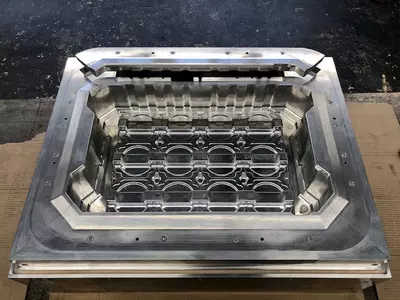

Vacuum deep-drawing moulds	100–2,000 mm	100–1,000 mm	10–400 mm	0–1,000 kg

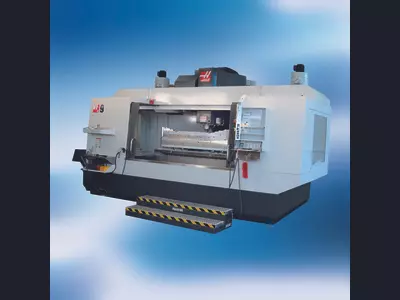

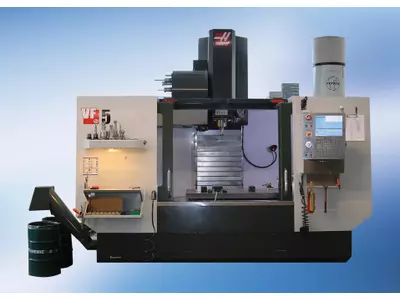

Milling

Technologies	Lotsize	Length	Width	Height
Milling	1–1,000	1–2,000 mm	1–1,000 mm	1–600 mm

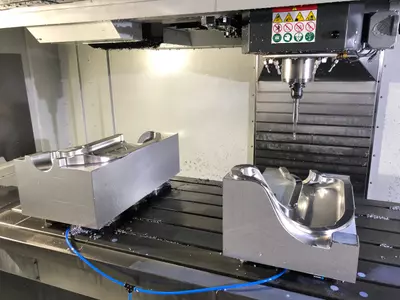

Form milling (3 D)	1–1,000	1–2,000 mm	1–1,000 mm	1–600 mm

Materials

Light metals

Aluminium and aluminium alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticWood-Plastic-Composites (WPC)

Industries

Medical technologyPlant engineering and constructionSpecial purpose machinery manufacturingAutomotive and vehicle constructionMechanical engineeringPackaging industryRailway and rail vehicles industry
