Heuer Präzisionsteile GmbH
Germany, 73773 Aichwald
Overview
About Heuer Präzisionsteile GmbH
Who we are
Welcome to the Heuer precision parts GmbH in Wernau near Esslingen. Our specialty is the CNC machining of metals and non-metals. For our customers, we produce high quality parts in small quantities, prototypes and pilot series to series parts in larger editions. Again this year, we continue to invest. We have end of January 2012 took another 4-axis machining center with pallet changer 14 in operation. We offer a wide range of other services such as grinding, broaching, burnishing and honing. For edits, we can not perform at our house, we cooperate with reliable partners. The assembly in our house rounds off our product and service range. We have here a selection of stocked by us or short-relatable materials listed: Steel: * Cutting steel: 11SMn30 (1.0715, 11SMnPb30 (1.0718) * Structural steel unalloyed: S235JR (10037 / St37-2), S355JO (1.0553 / St52-3) * Coating carbon steel: C35 (1.0501), C45 (1.0503), C60 (1.0601) * Tempered steel alloyed: 42CrMo4 (1.7225), 42CrMoS4 (1.7227), * Use steel: 16MnCr5 (1.7131), 20MnCr5 * Alloyed Ni - steel: X45NiCrMo4 (1.2767), * Tool steel: 90MnCrV8 (1.2842), X155CrVMo12 (1.2379), X210CrW12 (1.2436) * Bearing Steel: 100Cr6 (1.2067), Cf53 (1.1213) Stainless Steel: * Austenitic: X5VrNi18-10 (1.4301), X8CrNiS18-9 (1.4305) * Tempered, rust-resistant, acid-resistant: X39CrMo17-1 (14122) * Curable X90CrMoV18 (1.4112) * And many more Special materials * Hasteloy * Inconel Non-ferrous metals * Aluminium and aluminum alloys * Brass * Copper * Bronze engineering plastics * PVC (polyvinyl chloride) * PP (Polypropylene) * PE (polyethylene) * PA (polyamide), * POM (polyoxymethylene) * PS (polystyrene) Hochleistungskunststoffe * PEEK and PEK (polyaryletherketones) * PI (pressed polyimides) Examples of our production parts: Adapter flange ring threaded ring gear flange spindle nut gear carrier bracket bolt shaft bottle cap workpiece special flange deflection deflection receiving sleeve socket mount cup leadership leadership idler pulley roller shaft pulley welding flange block driver clamp clamping disc hub spring receptacle lid bearing seat tightening bolt motor flange motor housing brake flange rotor cylinder tube tube cam plate gripper finger gripper
1 / 1
Aichwald, Germany
Member since 2009
Employees5 - 10
Certificates1
Turnover1 - 5 Mil.
Year of foundation2006
Marketing documents
Competencies
Technologies
Assembly
| Technologies | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|
Mechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–10 kg | from 0 mm |
Electromechanical assembly | from 0 mm | from 0 mm | from 0 mm | from 0 mm | 0–10 kg | from 0 mm |
Measuring & Testing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Measuring / testing | 1–1,000 | 1–500 mm | 1–500 mm | 1–500 mm | 1–500 mm | 0–10 kg | from 0 mm |
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Turning | 1–20,000 | 1–350 mm | from 0 mm | from 0 mm | 1–200 mm | 0–5 kg | from 0 mm |
Automatic turning (bar) | 1–200 k | 1–250 mm | — | — | 1–65 mm | — | — |
Full-range turning (including milling) | 5–10,000 | 1–300 mm | — | — | 1–250 mm | — | — |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–25,000 | 1–250 mm | 1–250 mm | 1–252 mm | 0–10 kg |
Form milling (3 D) | 10–50,000 | 1–250 mm | 1–250 mm | 1–250 mm | 0–10 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drilling / threading / tapping | 1–5,000 | 1–250 mm | 1–250 mm | 1–250 mm | from 0 mm | 0–10 kg | from 0 mm |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Cast metals
Cast steelCast iron
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsHigh performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Precious metals
Other precious metals
Industries
Lighting industryMechanical engineeringMachine tool manufacturingTelecommunication industryShipbuilding industryMeasurement and control technique, laboratory equipmentApparatus engineeringFittings engineeringRailway and rail vehicles industryConstruction and architectural suppliesChemical industryAutomation and control engineeringMining and tunnel engineeringBoiler, container and tank construction Medical technologyPower generation and transmission industryElectrical industryOffice machinery and suppliesBuilding, agricultural and forestry machinery manufacturingAir conditioning, refrigeration and ventilation industryFurniture industryHydraulic and pneumatic industryAerospace and aviation industryHousehold appliance industryDrive and gear engineeringClean room technologyInformation technology (hardware)Plant engineering and constructionAutomotive and vehicle constructionPackaging industryMilitary engineeringPaper and printing machinery industrySpecial purpose machinery manufacturingPrecision engineering, mechatronics and optics
Certificates
ISO 9001:2008
Parts & Machines
Parts (1)
1 / 1

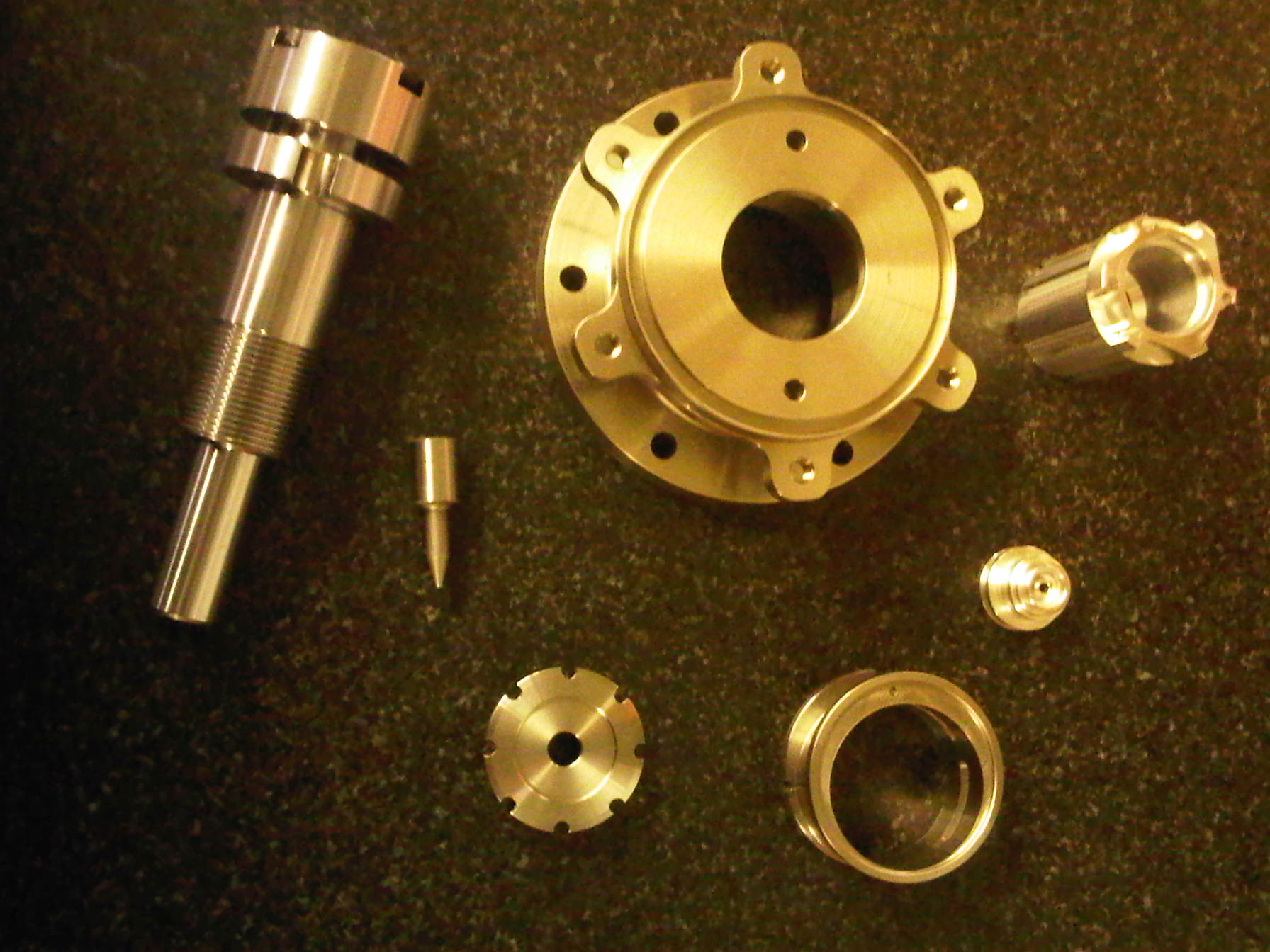

Dreh- und Frästeile
Descriptionnach Kundenzeichnung
Machinery (11)
1 / 11
NZ2000 3T3Y
ManufacturerMoriSeiki
ControlFANUC
Year of Construction2009
Technology
Drilling / threading / tappingForm milling (3 D)TurningMillingAutomatic turning (bar)
2 / 11
EH 66 S
ManufacturerSpinner
ControlFANUC
Year of Construction2007
3 / 11
Traub
ManufacturerTNA 300
ControlTraub TX8H
Year of Construction2001
Technology
MillingDrilling / threading / tappingTurning
4 / 11

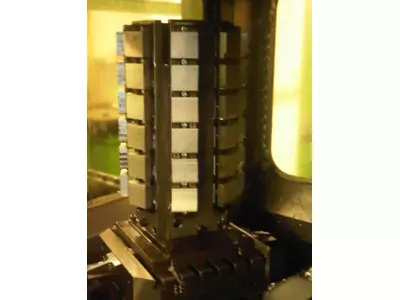

DC35 - 9fach Palettenpool
ManufacturerDECKEL MAHO
ControlSiemens
Year of Construction1991
Technology
MillingDrilling / threading / tappingForm milling (3 D)
5 / 11
DC35 - 12fach Palettenpool
ManufacturerDECKEL MAHO
ControlSiemens
Year of Construction1990
Technology
Form milling (3 D)MillingDrilling / threading / tapping
6 / 11
B16 - E
ManufacturerCITIZEN
ControlFanuc
Year of Construction2013
Technology
Automatic turning (bar)MillingDrilling / threading / tappingTurning
7 / 11
MV40
ManufacturerMori Seiki
ControlFANUC
Year of Construction1990
Technology
Drilling / threading / tappingMilling
8 / 11
SL 153 Y
ManufacturerMori Seiki
ControlFANUC
Year of Construction2001
Technology
MillingAutomatic turning (bar)TurningDrilling / threading / tapping
9 / 11
Chiron FZ 22 W
ManufacturerCHIRON
ControlSiemens
Year of Construction1991
Technology
Drilling / threading / tappingMilling
10 / 11
PMC 850
ManufacturerZeiss
Control-
Year of Construction1990
Technology
Measuring / testing
11 / 11
Montagen
Manufacturer-
Control-
Year of Construction2014
Technology
Mechanical assemblyElectromechanical assembly
1 Parts
11 Machinery
Drilling / threading / tapping8
Form milling (3 D)3
Turning4
Milling8
Automatic turning (bar)3
Measuring / testing1
Mechanical assembly1
Electromechanical assembly1
Contact
Location
Main locationBuchenteich 3, 73773 Aichwald, Germany
Further locationsBuchenteich 3
73773 Aichwald
Deutschland
73773 Aichwald
Deutschland
