ILLIG Maschinenbau GmbH & Co. KG
Germany, 74081 Heilbronn
Overview
About ILLIG Maschinenbau GmbH & Co. KG
1 / 2
2 / 2
Heilbronn, Germany
Member since 2019
Employees500 - 1000
Certificates1
Year of foundation1946
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Turning | 10–1,000 | 10–400 mm | — | — | 30–300 mm | — |
Automatic turning (bar) | 30–5,000 | 20–310 mm | — | — | 30–100 mm | — |
Swiss turning | — | — | — | — | — | — |
Full-range turning (including milling) | 10–1,000 | 10–300 mm | — | — | 5–200 mm | — |
Hard turning | 30–1,000 | 30–310 mm | — | — | 30–200 mm | — |
Deep-hole drilling | 10–300 | 100–600 mm | 100–500 mm | 100–250 mm | 10–40 mm | 0–200 kg |
Centering / end facing | 5–500 | 40–350 mm | — | — | 30–200 mm | — |
Shaft machining | 10–1,100 | 20–300 mm | — | — | 30–200 mm | 0–100 kg |
Cutting dies / deep drawing dies
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Punching / Cutting tools | 100–1,000 mm | 100–1,000 mm | 100–1,000 mm | 0–600 kg |
Die replacement / wearing part manufacturing | — | — | — | — |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 5–1,000 | 30–550 mm | 30–800 mm | 30–800 mm | 0–1,000 kg |
5-axis milling machines | 5–1,000 | 20–1,300 mm | 20–2,000 mm | 20–1,300 mm | 0–6,000 kg |
Form milling (3 D) | — | — | — | — | — |
Full-range milling (including turning) | — | — | — | — | — |
HSC milling | — | — | — | — | — |
Engraver milling | — | — | — | — | — |
Materials
Light metals
Aluminium and aluminium alloys
Plastics/synthetic materials
Thermoplastics
Heavy metals
Copper-zinc alloys (brass)
Steel
Case hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Industries
Packaging industryMeasurement and control technique, laboratory equipmentPrecision engineering, mechatronics and opticsHydraulic and pneumatic industryAerospace and aviation industrySpecial purpose machinery manufacturingMechanical engineeringMedical technologyElectrical industryRailway and rail vehicles industryFittings engineeringMachine tool manufacturingAutomotive and vehicle constructionPlant engineering and constructionApparatus engineeringPower generation and transmission industryDrive and gear engineering
Certificates
No certificates
Parts & Machines
Parts (5)
1 / 5

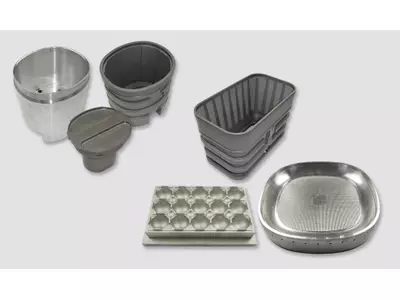

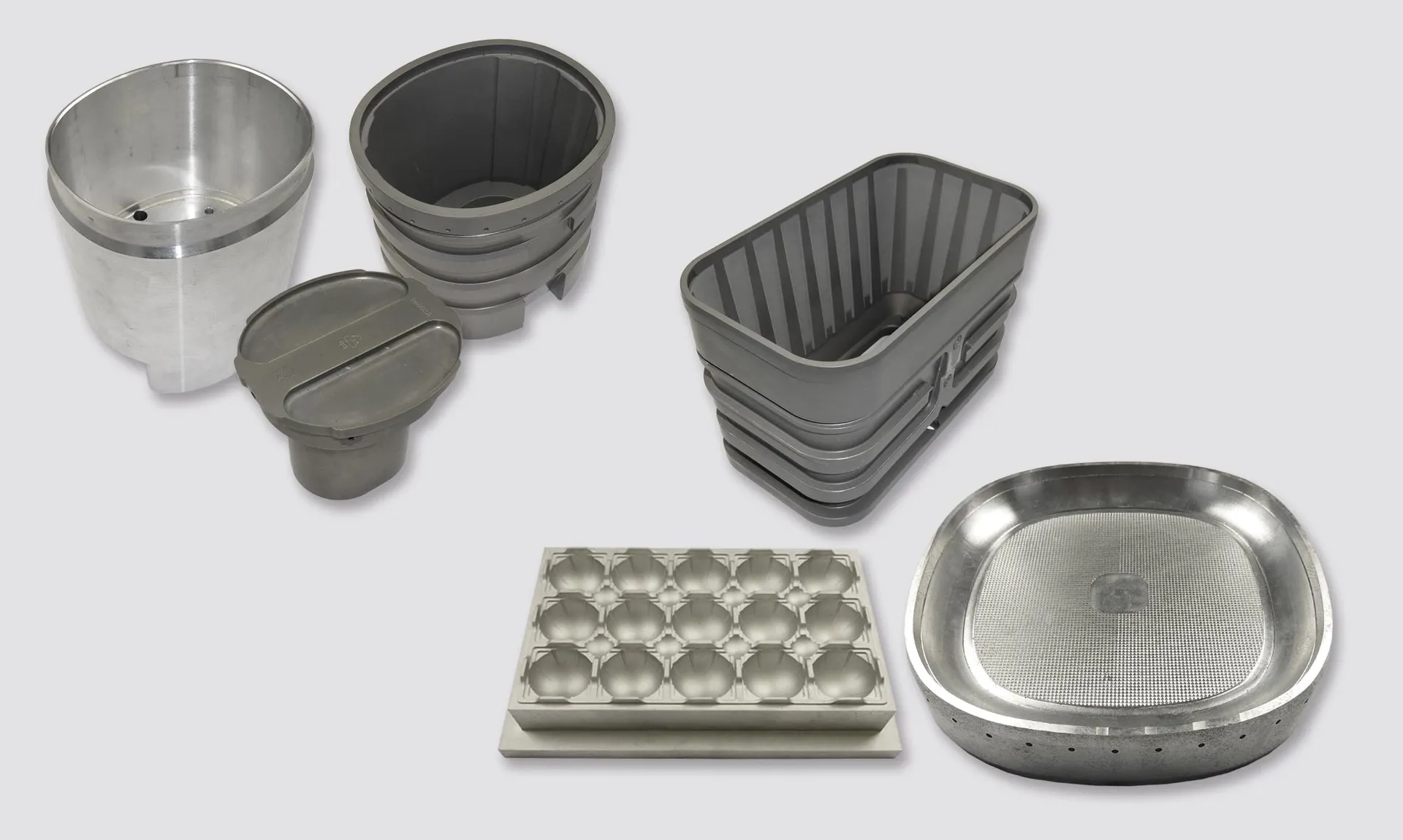

Beispiele Fertigungsteile
TechnologyMilling
Lotsize0
ComplexityMedium
IndustriesSpecial purpose machinery manufacturing
DescriptionDiverse Beispiele unserer Fertigungsteile
2 / 5

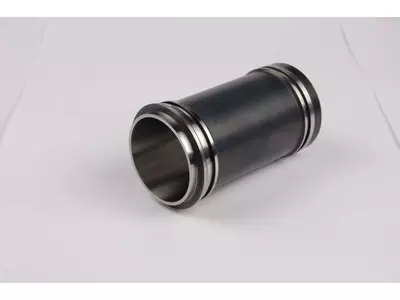

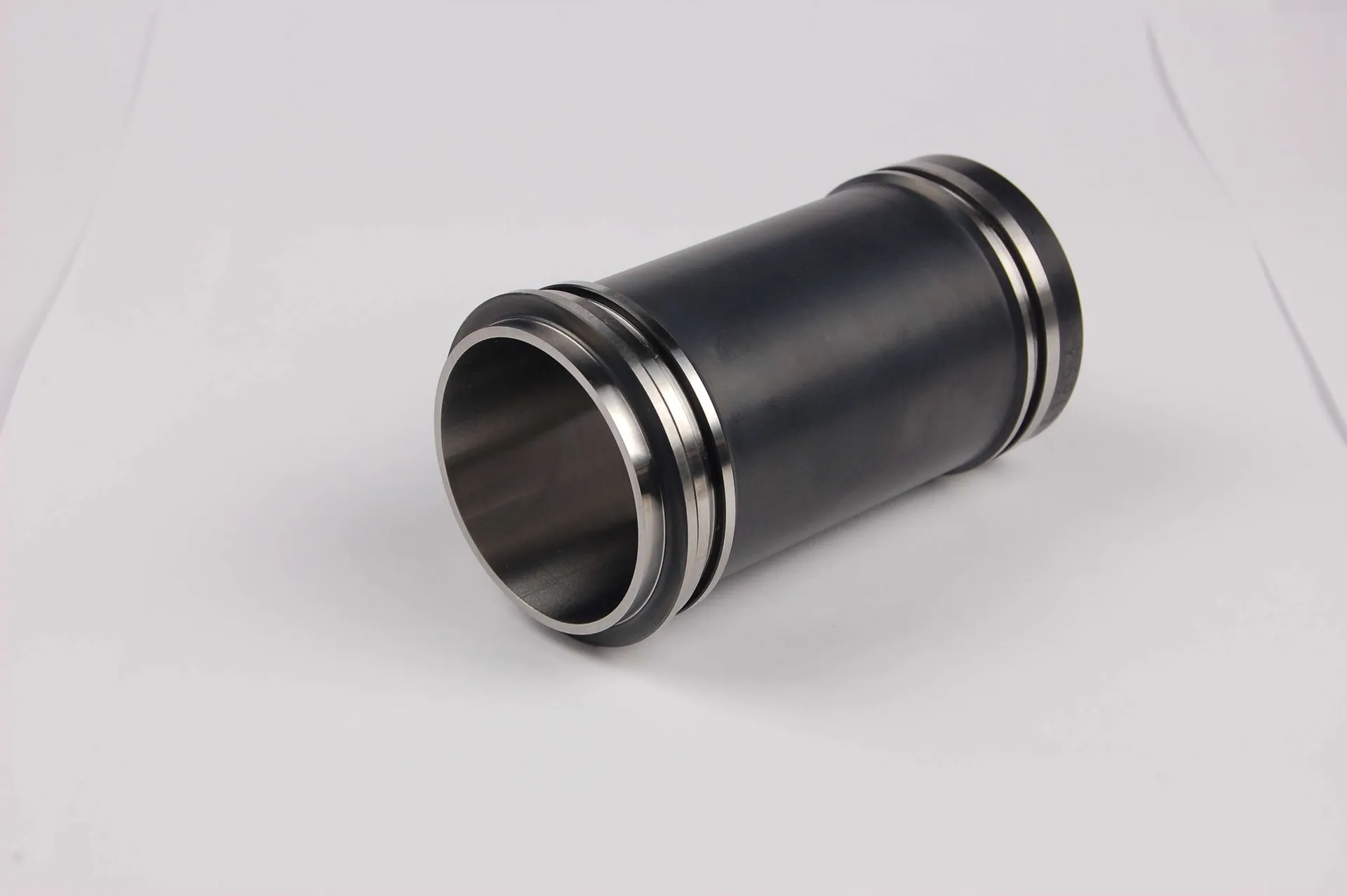

Schnittstempel
TechnologyTurning
MaterialTool steel
Lotsize60
DescriptionToleranz +/- 0,005mm
3 / 5

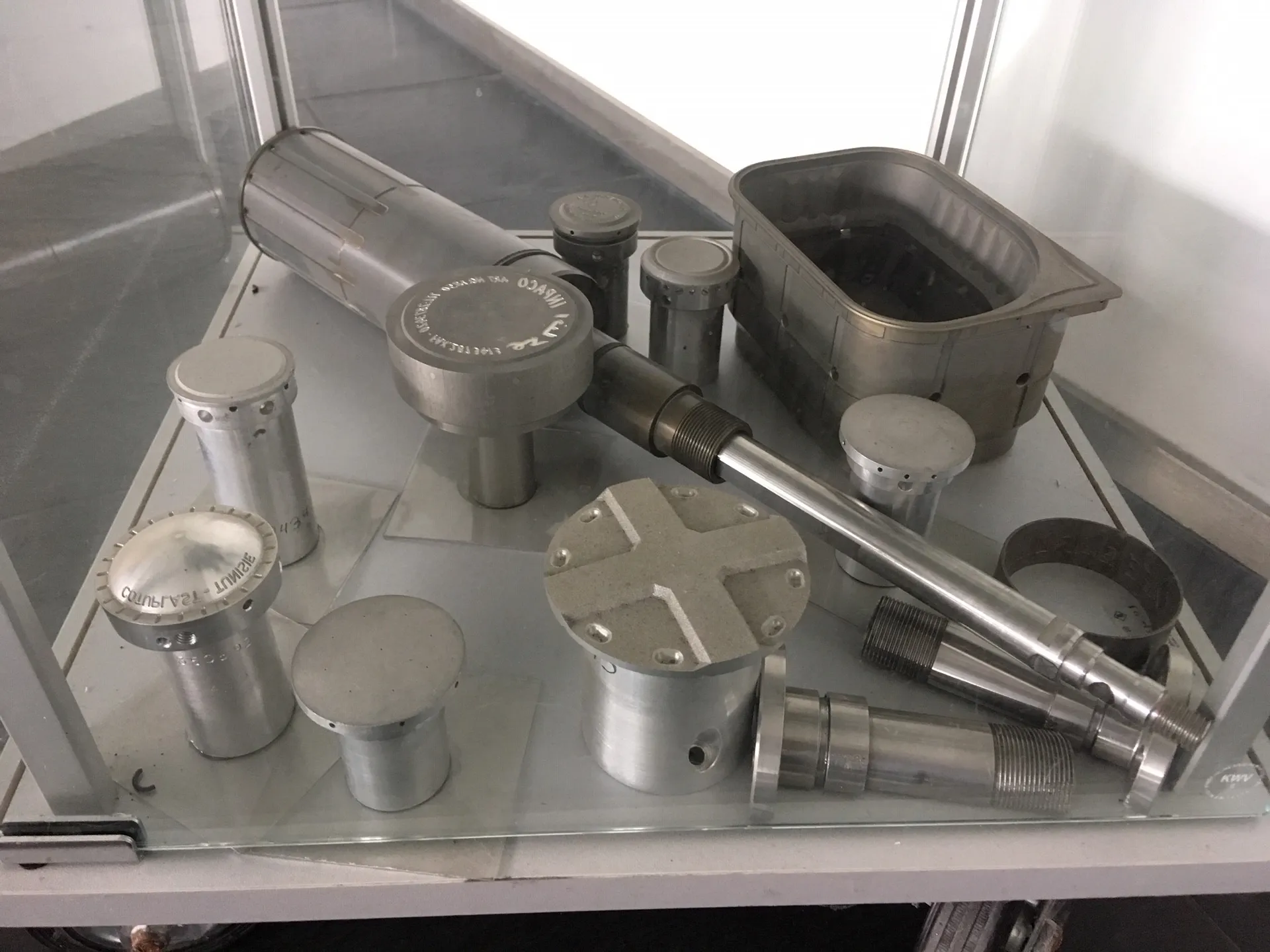

Diverse Fertigungsteile
TechnologyFull-range turning (including milling)
Lotsize0
4 / 5

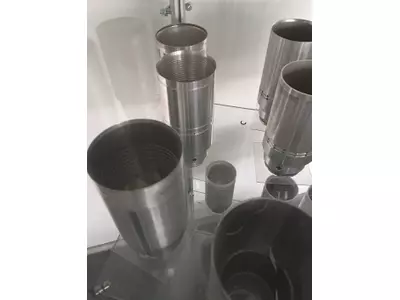

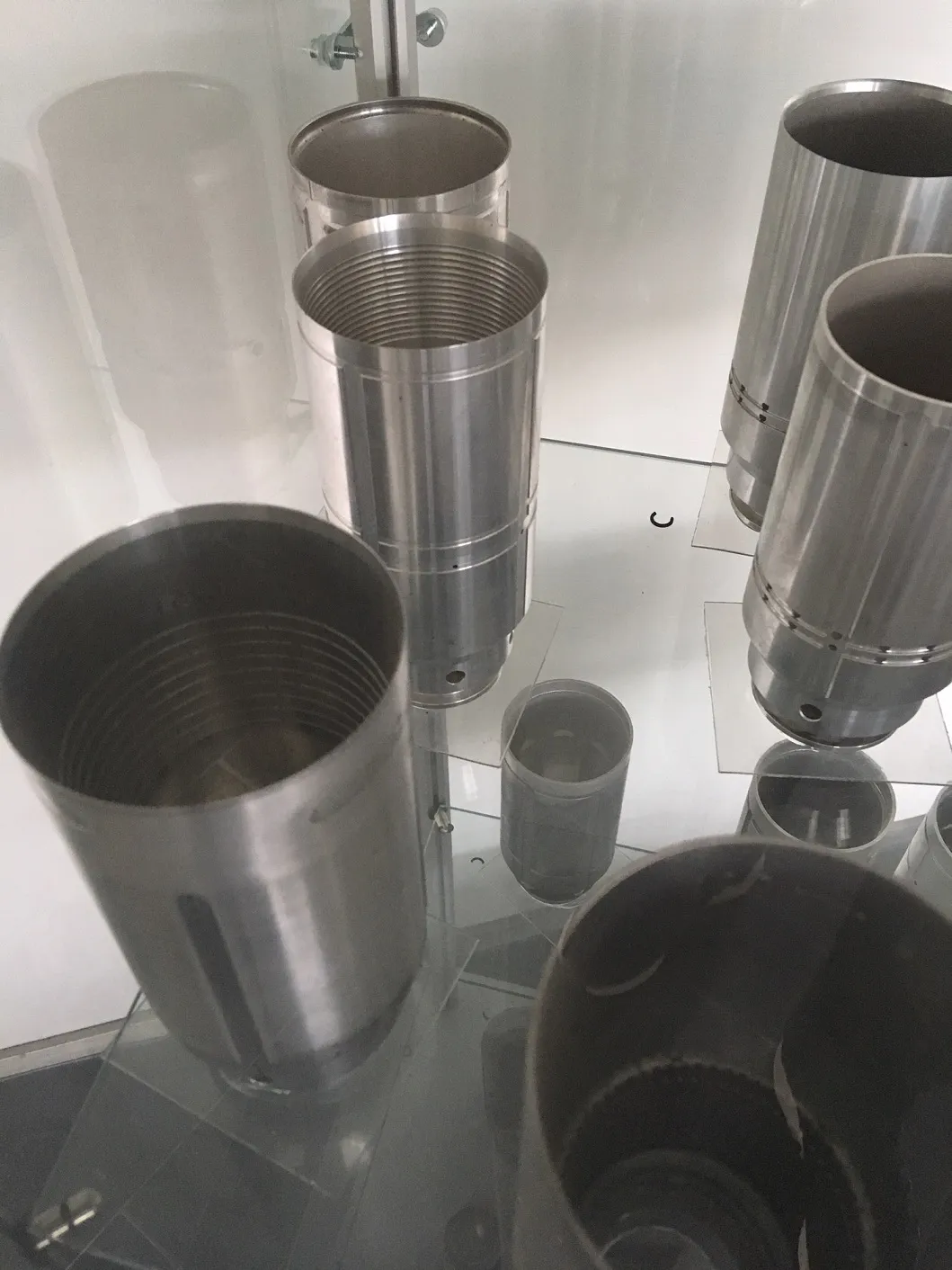

Diverse Drehteile mit Fräsbearbeitung
Lotsize0
5 / 5

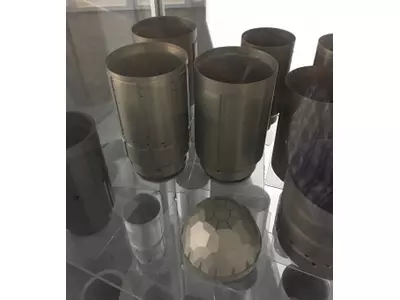

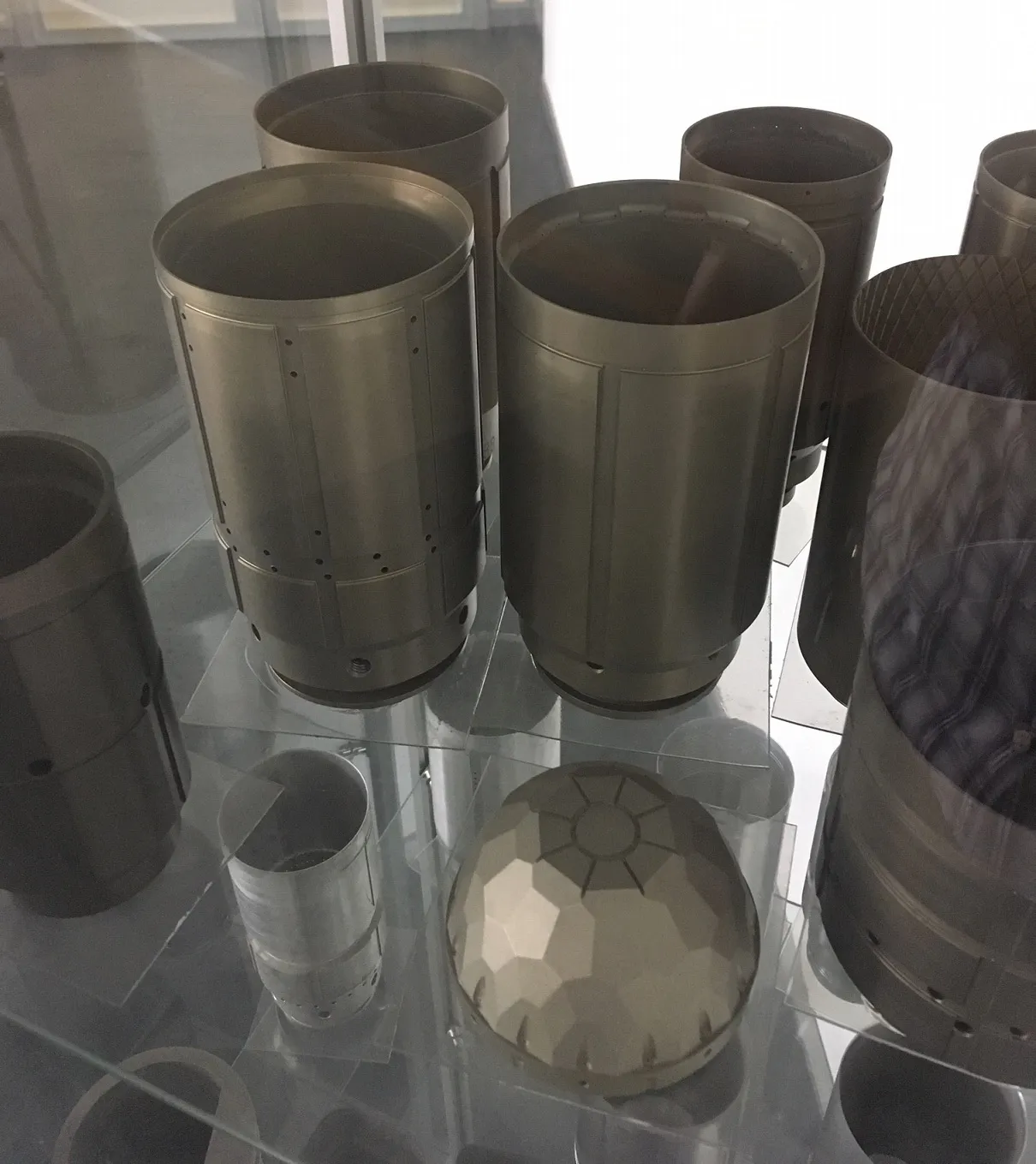

Drehteile mit Fräsbearbeitung
Lotsize0
Machinery (5)
1 / 5

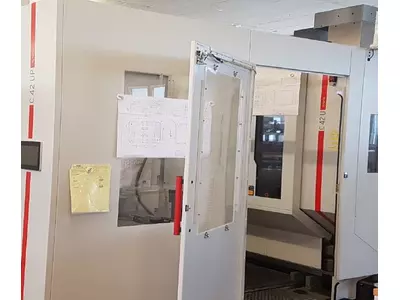

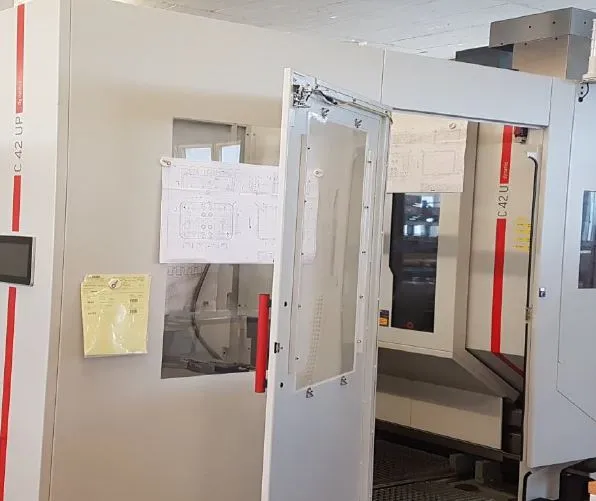

Hermle C42
ManufacturerHermle
ControlSinumerik 840
Year of Construction2017
Technology
Engraver millingFull-range milling (including turning)5-axis milling machinesDie replacement / wearing part manufacturingHSC millingForm milling (3 D)Milling
2 / 5

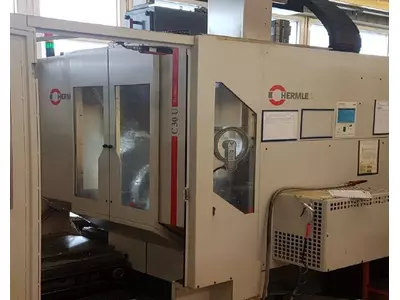

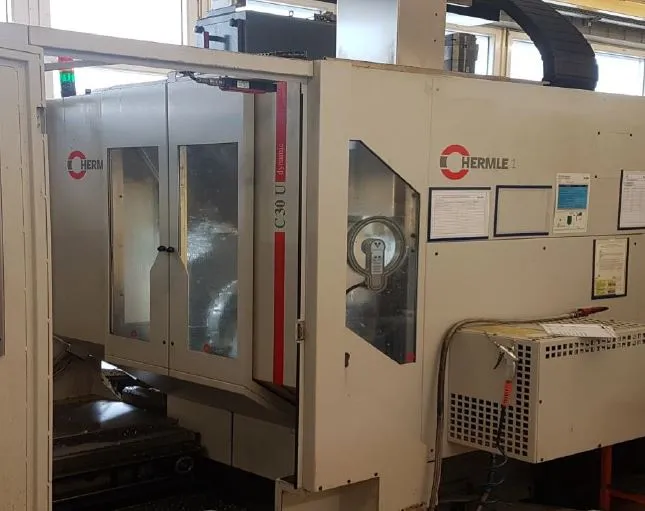

Hermle C30
ManufacturerHermle
ControlSinumerik 840
Year of Construction2007
Technology
Die replacement / wearing part manufacturing5-axis milling machinesForm milling (3 D)MillingFull-range milling (including turning)Engraver millingHSC milling
3 / 5

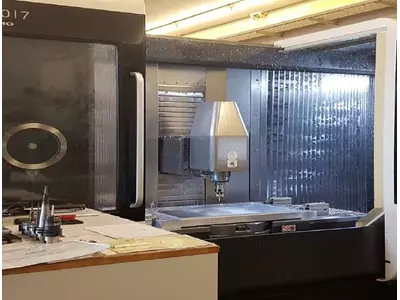

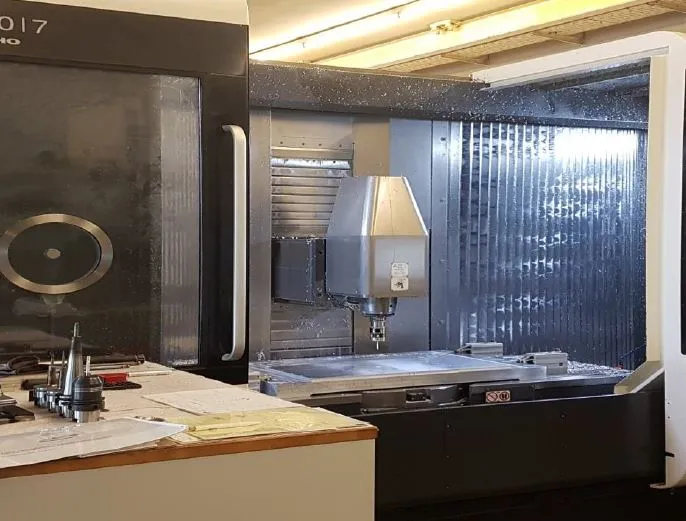

DMF 180/7
ManufacturerDMG Mori
ControlSiemens/Heidenhain
Year of Construction2015
Technology
Engraver millingMillingDie replacement / wearing part manufacturingHSC millingForm milling (3 D)5-axis milling machinesFull-range milling (including turning)
4 / 5

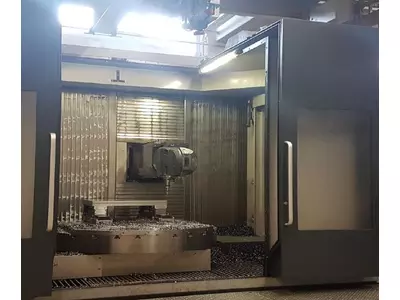

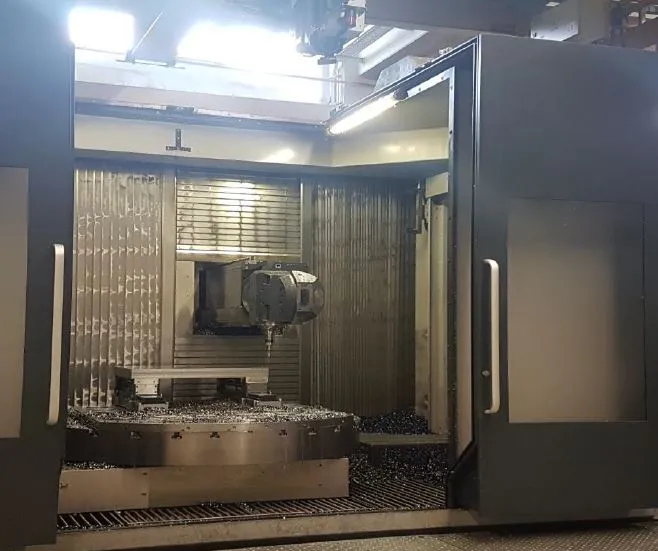

SHW US 5
ManufacturerSHW
ControlSinumerik 840
Year of Construction2013
Technology
Form milling (3 D)Die replacement / wearing part manufacturingHSC millingEngraver millingFull-range milling (including turning)Milling5-axis milling machines
5 / 5

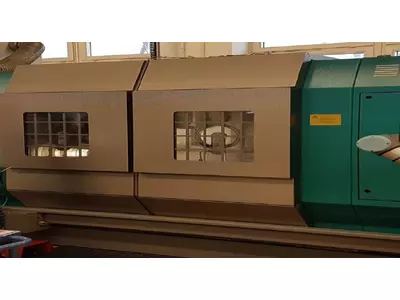

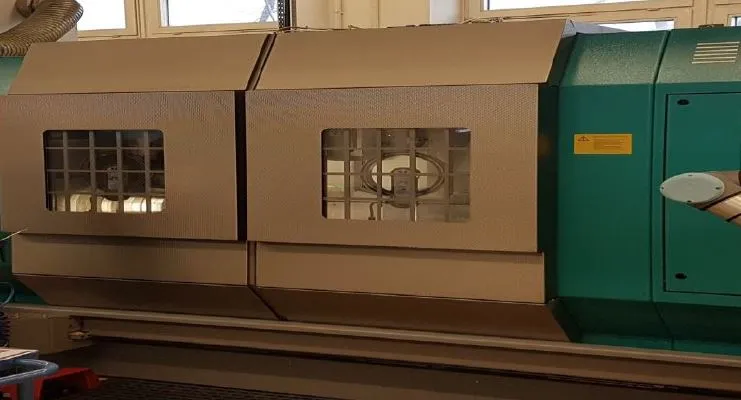

Index G 250
ManufacturerINDEX-Werke GmbH
ControlSinumerik 840
Year of Construction2014
Technology
Full-range turning (including milling)Centering / end facingTurningAutomatic turning (bar)
5 Parts
Milling1
Turning1
Full-range turning (including milling)1
5 Machinery
Engraver milling4
Full-range milling (including turning)4
5-axis milling machines4
Die replacement / wearing part manufacturing4
HSC milling4
Form milling (3 D)4
Milling4
Full-range turning (including milling)1
Centering / end facing1
Turning1
Automatic turning (bar)1
Contact
Location
Main locationRobert-Bosch-Strasse 10, 74081 Heilbronn, Germany
Further locationsHeilbronn
Company contact
Contact persons
DS
Daniel Stickel
RB
Ralf Bürkert
