Overview

About ITM Gmbh

Who we are

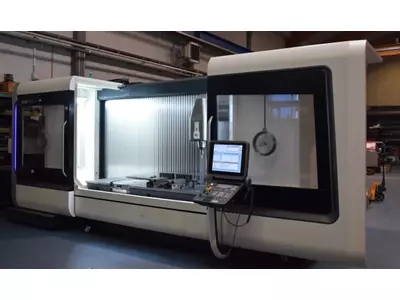

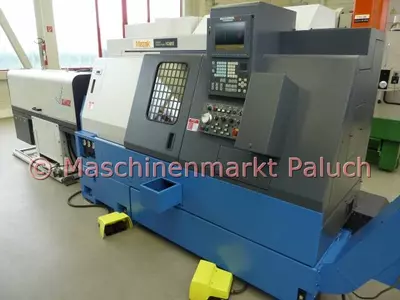

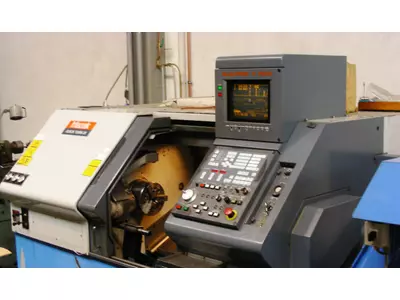

We are a mittelständiches company with about 10 employees. We are manufacturer and supplier of vacuum vapor deposition for the packaging and semiconductor industries and the construction of special machines for sheet metal machining and toolmaking. We have our own mechanical production with three CNC milling machines and two CNC lathes and other three conventional lathes, a hydraulic drawing press, a CNC band saw, several punching machines and other machines around the metalworking including a welding and electrical cabinets. All systems can be manufactured according to your specifications or designed by us on request, built, electrically connected and put into operation. Our assembly hall is 20x50m and has a 25t Kran.Einzelstücke up to 4500mm width, 3500mm 15000mm length and height are at a stretch without special effort transportable,. ITM GmbH was able to become successful in the fields of special purpose machinery, vacuum technology, prototyping and cryo-technology and through expertise and experiencevm position. Products such as vacuum vapor deposition, vapor deposition, cold traps and punching tools are made by an experienced employee base. When special machine and fixtures, cutting tool making and in the cryo-technique individual customer requirements are accurately implemented. As a reliable partner, we offer you in cold traps and Meisnerfallen from the cryo-technology excellent quality. Whether vacuum technology, vacuum vapor deposition or Gauge, permanent material control is self-evident for us.Our high quality metallizers find, among other things their use in the food industry. Special machine development · Vacuum Systems Solar Technology · Special machine construction · High vacuum evaporation systems · Special machinery manufacturing · Molds · injection molding tools · Special machine · Special tools · cutting tooling · cutting tools · Meisnerfallen · Prototype · Vacuum engineering · Cryo-technology · cold traps · Gauge · metallizers · vacuum vapor deposition We manufacture turned parts with diameters from 8mm to 50mm of the rod (also complete processing), larger diameter up to 250mm and length up to 450mm from semi-finished or Sägezuschnitten (CNC) and up to 800mm diameter and 2500mm length conventionally. We can accommodate up to 1.5 t edit milled parts, depending on the overall size (largest axis travel X-axis: 1200mm). Materials: We process plastics (PTFE, POM, PEEK), steel, stainless steel (1.4301, 1.4305, 1.4571, 1.2301,

1 / 3

2 / 3

3 / 3

Hainburg, Germany

Member since 2009

Employees5 - 10

Certificates1

Turnover1 - 5 Mil.

Year of foundation1978

Marketing documents

ITM Präsentation.pdfPDF File

Competencies

Technologies

Etching and Spark Erosion

Technologies	Lotsize	Length	Width	Height	Weight
Spark erosion wire cutting	1–1,000	2–1,200 mm	2–800 mm	1–600 mm	0–500 kg
Spark erosion countersinking	1–1,000	1–800 mm	1–500 mm	1–300 mm	0–400 kg

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Punching / Cutting tools	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg
Follow-on composite tools	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg
Fineblanking tools	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg
Deep-drawing dies	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg
Trimming	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg
Die replacement / wearing part manufacturing	—	—	—	—
Embossing / swage dies	5–2,600 mm	5–900 mm	5–500 mm	0–5,000 kg

Turning

Technologies	Lotsize	Length	Diameter	Weight
Turning	1–500	5–2,000 mm	10–700 mm	—
Automatic turning (bar)	1–30,000	3–500 mm	10–200 mm	—
Full-range turning (including milling)	1–30,000	3–150 mm	10–50 mm	—
Hard turning	1–1,000	3–500 mm	10–200 mm	—
Shaft machining	1–500	2–2,000 mm	5–800 mm	0–2,000 kg

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width	Height	Material thickness
Punching / pressing (Out-of-tool)	1–100 k	2–800 mm	3–250 mm	—	0.5–3 mm
Stamping and bending machine (Bihler)	1–100 k	2–800 mm	3–250 mm	—	0.5–3 mm
Deep-drawing	1–100 k	5–800 mm	5–600 mm	0.5–200 mm	0.5–1.5 mm

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Inert gas shielded arc welding (MIG/MAG)	1–50	5–5,000 mm	5–3,500 mm	5–3,500 mm	0–20,000 kg
Inert gas shielded arc welding (TIG)	1–50	5–5,000 mm	5–3,500 mm	5–3,500 mm	0–20,000 kg
Stud welding	1–10,000	—	—	—	—

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	5–5,000 mm	5–3,500 mm	5–3,500 mm	0–20,000 kg
Machine frames / bases / racks	5–5,000 mm	5–3,500 mm	5–3,500 mm	0–20,000 kg

Mould construction

Technologies	Length	Width	Height	Weight
Injection moulds	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg
Pressure die cast molds	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg
Modelmaking	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg
Squeeze moulds	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg
Vacuum deep-drawing moulds	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg
Forging dies	5–2,600 mm	5–900 mm	5–600 mm	0–2,000 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	5–3,500 mm	5–1,500 mm	1–700 mm	0–3,500 kg
Gauges	5–2,600 mm	5–900 mm	1–500 mm	0–2,000 kg
Measuring / testing jigs	5–2,600 mm	5–900 mm	1–600 mm	0–2,000 kg
Assembly jigs	5–2,600 mm	5–900 mm	1–600 mm	0–2,000 kg
Welding jigs	5–3,500 mm	5–1,500 mm	1–600 mm	0–3,500 kg
Clamping devices	5–2,600 mm	5–900 mm	1–500 mm	0–2,000 kg

Machining (Plastics & Rubber)

Technologies	Lotsize	Length	Width	Height	Diameter
Turning	1–500	5–2,000 mm	—	—	5–800 mm
Automatic turning (bar)	1–10,000	2–1,500 mm	—	—	5–110 mm
Full-range turning (including milling)	1–500 k	0–1,000 mm	—	—	0–50 mm
Milling	1–1,000	5–2,600 mm	5–900 mm	2–600 mm	—
Form milling (3 D)	1–500	5–2,600 mm	5–700 mm	5–500 mm	—

Assembly

Technologies	Weight
Mechanical assembly	0–25,000 kg
Industrial / On-site-assembly	0–25,000 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–100	5–30,000 mm	5–4,000 mm	5–3,500 mm	0–25,000 kg

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	1–999	3–1,200 mm	3–700 mm	3–700 mm	0–2,000 kg
5-axis milling machines	1–500 k	0–3,000 mm	0–1,000 mm	from 200 mm	—
Form milling (3 D)	1–10	10–1,200 mm	10–600 mm	10–500 mm	0–2,000 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter
Sawing	1–10,000	10–12,000 mm	5–400 mm	1–275 mm	1–275 mm

Materials

Precious metals

SilverGoldPlatinumOther precious metals

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Plastics/synthetic materials

ThermoplasticsThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsNatural Fibre Composites (NFC)

Cast metals

Cast steelCast iron

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Natural materials

Wood/timberRock

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Industries

Apparatus engineeringClean room technologyPackaging industryPower generation and transmission industryBoiler, container and tank construction Machine tool manufacturingAir conditioning, refrigeration and ventilation industryChemical industryPlant engineering and constructionConstruction and architectural suppliesMeasurement and control technique, laboratory equipmentSpecial purpose machinery manufacturingElectrical industryMedical technologyPaper and printing machinery industryPrecision engineering, mechatronics and opticsMechanical engineeringFittings engineeringMilitary engineeringAerospace and aviation industryHydraulic and pneumatic industryBuilding, agricultural and forestry machinery manufacturing

+14 moreShow less
