Overview

About K. Weinmann GmbH & Co. KG

Who we are

Weinmann is primarily for quality in small and medium series. But Weinmann is also diversity. Diversity in the processing of different materials such as stainless alloys, copper, aluminum, titanium or plastic. Diversity in the ways of module assembly. Diversity in the processing options and parts Dimensions: * Large diameter up to 250 mm * Great lengths to 1000 mm * Complex geometries * Micro turned parts * Revolver and rotational parts * Frästeile A diversity that makes you much easier. Especially when * Need many different parts * Change your parts often Block * all part families * Need "outliers" or special products.
1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8
Gosheim, Germany
Member since 2003
Employees20 - 50
Certificates1
Turnover1 - 5 Mil.
Year of foundation1932

Marketing documents

Präsentation K.Weinmann_DE.pdfPDF File

Competencies

Technologies

Turning

TechnologiesLotsizeLengthWidthHeightDiameterWeight
Turning
10–10,0001–1,000 mm——0.5–250 mm—
Automatic turning (bar)
50–10,0005–1,000 mm——1–32 mm—
Swiss turning
50–50,0001–350 mm——1–32 mm—
Full-range turning (including milling)
50–10,0005–450 mm——1–100 mm—
Hard turning
1–100 k5–1,000 mm——5–250 mm—
Deep-hole drilling
1–1 M1–100 mm6–100 mm5–450 mm1–32 mm0–38 kg
Centering / end facing
1–100 k5–1,000 mm——1–250 mm—
Shaft machining
1–100 k5–1,000 mm——1–250 mm0–38 kg

Assembly

TechnologiesWeight
Mechanical assembly
0–45 kg
Electromechanical assembly
0–45 kg

Measuring & Testing

TechnologiesLengthWidthHeightDiameterWeight
Measuring / testing
2–450 mm2–450 mm2–450 mm1–250 mm0–49 kg

Finishing

TechnologiesLotsizeLengthWidthHeightDiameterWeightMaterial thickness
External cylindrical grinding
1–100 k3–1,000 mm——1–250 mm——
Internal cylindrical grinding
1–10,0001–100 mm——3–250 mm——
Centreless grinding
1–100 k3–600 mm——1–100 mm0–49 kg—
Circular honing - internal
1–100 k1–450 mm1–450 mm1–450 mm1–60 mm0–50 kg—
Belt grinding
1–10,000—1–450 mm———5–70 mm
Surface grinding machine
1–100 k1–450 mm1–450 mm1–450 mm—0–80 kg—
Coordinate jig grinding
1–10,0001–450 mm6–450 mm5–450 mm—0–50 kg—
Shot blasting
1–10,0005–450 mm5–450 mm4–450 mm—0–45 kg—
Rotofinishing, barrel finishing
1–100 k1–450 mm1–450 mm1–450 mm———

Surface Treatment

TechnologiesLotsizeLengthWidthHeightDiameterWeightMaterial thickness
Anodizing
1–10,0001–1,000 mm1–800 mm1–800 mm—0–100 kg—
Blacking
1–10,0001–1,000 mm1–1,000 mm1–800 mm—0–100 kg—
Chromatizing
1–10,0001–1,000 mm1–1,000 mm1–800 mm—0–100 kg—
CVD-coating
1–10,0001–450 mm1–450 mm1–450 mm1–250 mm0–100 kg3–60 mm
Electropolishing
1–100 k1–1,000 mm1–1,000 mm1–800 mm———
Phosphatizing
1–100 k1–1,000 mm1–1,000 mm1–450 mm—0–100 kg—
Rotofinishing, barrel finishing
1–10,0001–300 mm1–300 mm1–300 mm———
Parts cleaning/degreasing
1–10,0001–450 mm1–450 mm1–450 mm—0–50 kg—
Sand blasting
1–10,0001–450 mm1–450 mm1–450 mm—0–15 kg—
Chrome-plating
1–10,0001–1,000 mm1–1,000 mm1–800 mm—0–100 kg—
Nickel plating
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm—0–100 kg—
Galvanizing
1–100 k1–1,000 mm1–1,000 mm1–1,000 mm1–250 mm0–100 kg5–50 mm

Heat Treatment

TechnologiesLotsizeLengthWidthHeightDiameterWeight
Carbonitriding
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–400 mm0–600 kg
Case hardening/surface hardening
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–500 mm0–300 kg
Annealing
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–1,000 mm0–300 kg
Hardening
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–400 mm0–300 kg
Induction hardening
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–250 mm0–100 kg
Oxidizing
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–250 mm0–100 kg
Vacuum annealing
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–400 mm0–450 kg
Hardening and tempering
1–10,0001–1,000 mm1–1,000 mm1–1,000 mm1–250 mm0–100 kg

Machining (Plastics & Rubber)

TechnologiesLotsizeLengthWidthHeightDiameter
Automatic turning (bar)
1–100 k1–1,000 mm——1–250 mm
Full-range turning (including milling)
1–500 k0–1,000 mm——from 0 mm
Milling
1–100 k5–1,000 mm5–450 mm5–450 mm—
Form milling (3 D)
1–100 k5–1,000 mm5–450 mm5–450 mm—

Milling

TechnologiesLotsizeLengthWidthHeightDiameterWeight
Milling
1–100 k6–450 mm3–450 mm5–450 mm——
5-axis milling machines
1–500 k0–500 mm0–1,000 mm0–500 mm——
Form milling (3 D)
1–100 k3–250 mm5–450 mm5–450 mm——
Full-range milling (including turning)
1–100 k5–450 mm5–450 mm5–450 mm1–250 mm—
HSC milling
25–10,0001–600 mm1–600 mm5–300 mm—0–35 kg
Engraver milling
1–100 k3–250 mm5–250 mm5–450 mm1–250 mm0–38 kg

Assembly Group Manufacturing

TechnologiesLotsizeLengthWidthMaterial thickness
Riveting
1–10,0003–250 mm3–250 mm5–20 mm

Drilling / Sawing

TechnologiesLotsizeLengthWidthHeightDiameter
Sawing
1–100 k5–1,000 mm5–450 mm5–450 mm1–250 mm

Labelling / marking

TechnologiesLotsizeLengthWidthHeightDiameter
Laser marking / Laser inscription
1–10,0001–450 mm4–450 mm5–450 mm1–250 mm

Materials

Cast metals
Cast steelCast iron
Plastics/synthetic materials
ThermoplasticsThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plastic
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Industries

Medical technologyMilitary engineeringPrecision engineering, mechatronics and opticsPower generation and transmission industryAutomation and control engineeringAerospace and aviation industryMechanical engineeringHydraulic and pneumatic industryMeasurement and control technique, laboratory equipmentSpecial purpose machinery manufacturingFurniture industryFittings engineeringPlant engineering and constructionAir conditioning, refrigeration and ventilation industryElectrical industryAutomotive and vehicle construction

Certificates

ISO 9001:2015

Parts & Machines

Parts (3)

1 / 3

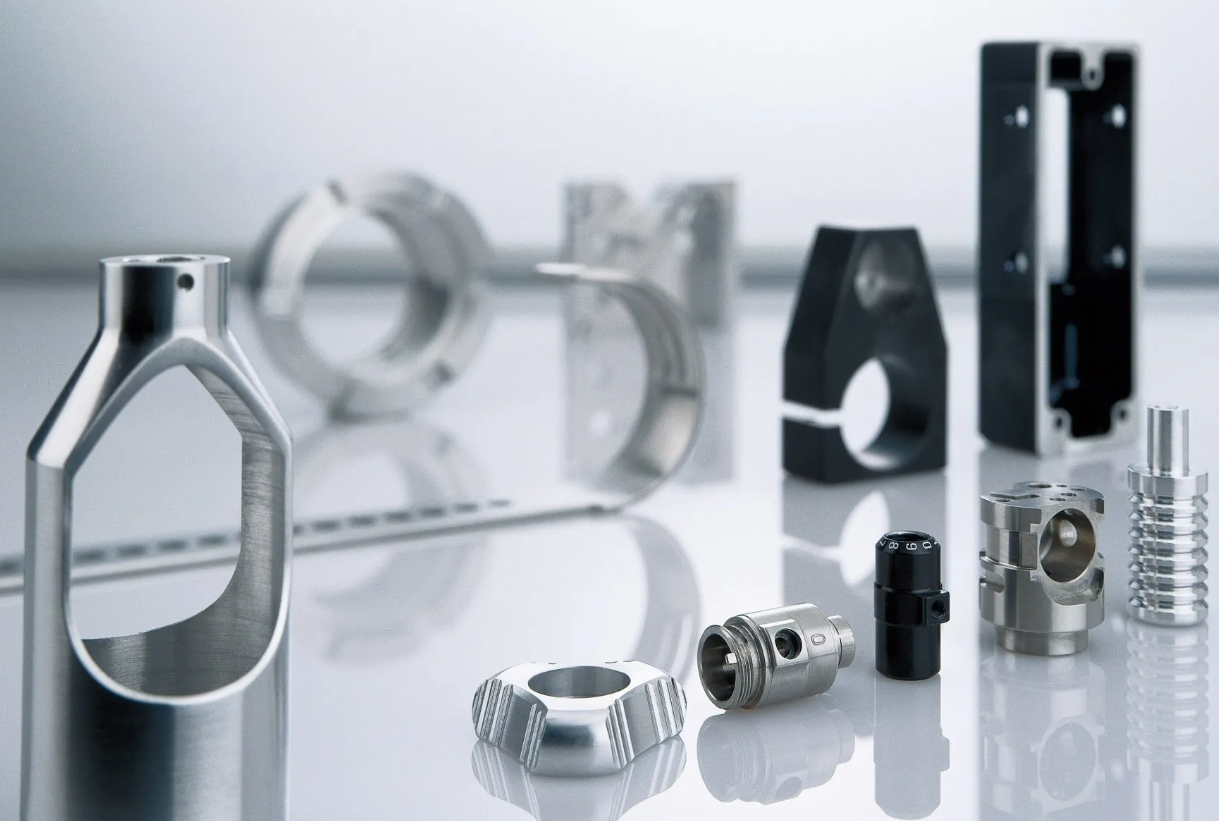

Frästeile
Frästeile
TechnologyMilling
MaterialStainless steel (rust-proof V2A)
Dimensions
Height100 mm
Length100 mm
Width100 mm
ComplexityMedium
IndustriesAutomation and control engineering
2 / 3

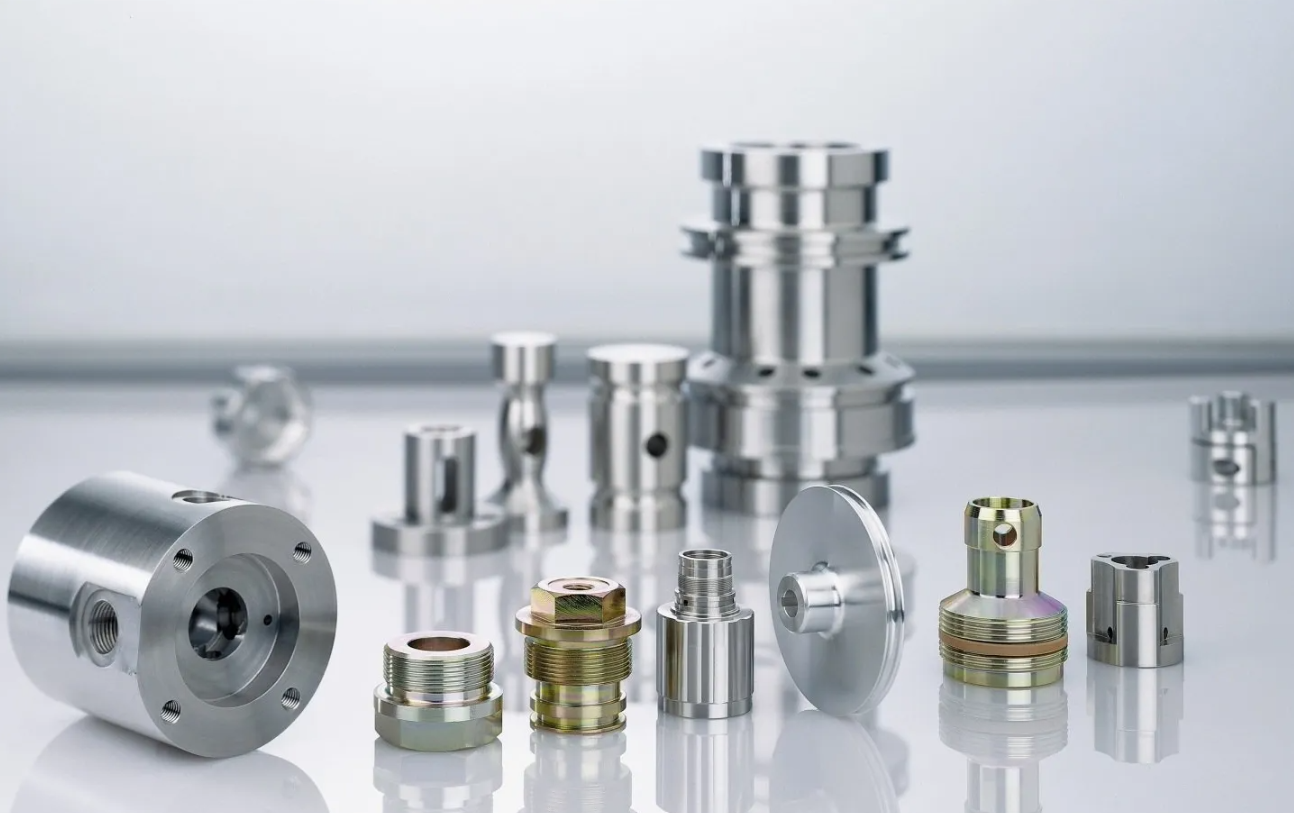

Drehteile
Drehteile
TechnologyTurning
MaterialCase hardening/tempering steel
Dimensions
Diameter250 mm
Length1000 mm
ComplexityMedium
IndustriesDrive and gear engineering
3 / 3

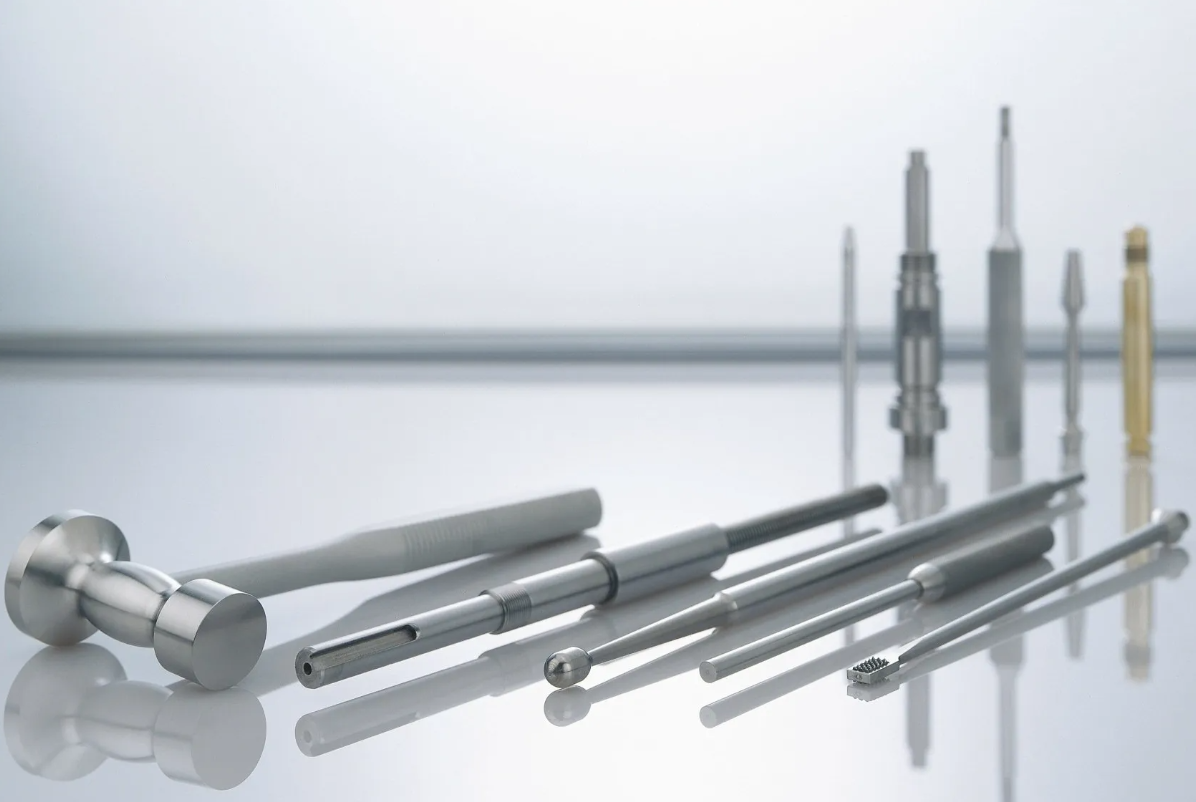

Medizinteile
Medizinteile
TechnologyAutomatic turning (bar)
MaterialStainless steel (rust-proof V2A)
Dimensions
Length1000 mm
Diameter40 mm
ComplexityHigh
IndustriesMedical technology

Machinery (3)

1 / 3

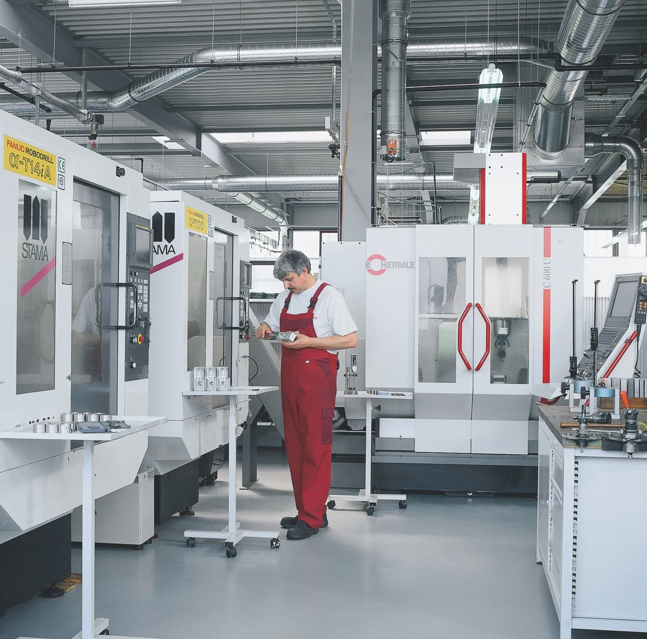

Fräserei
Fräserei
ManufacturerHermle / Stama
2 / 3

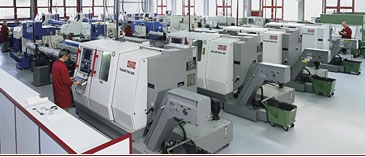

Dreherei
Dreherei
ManufacturerTraub / Star / Citizen
3 / 3

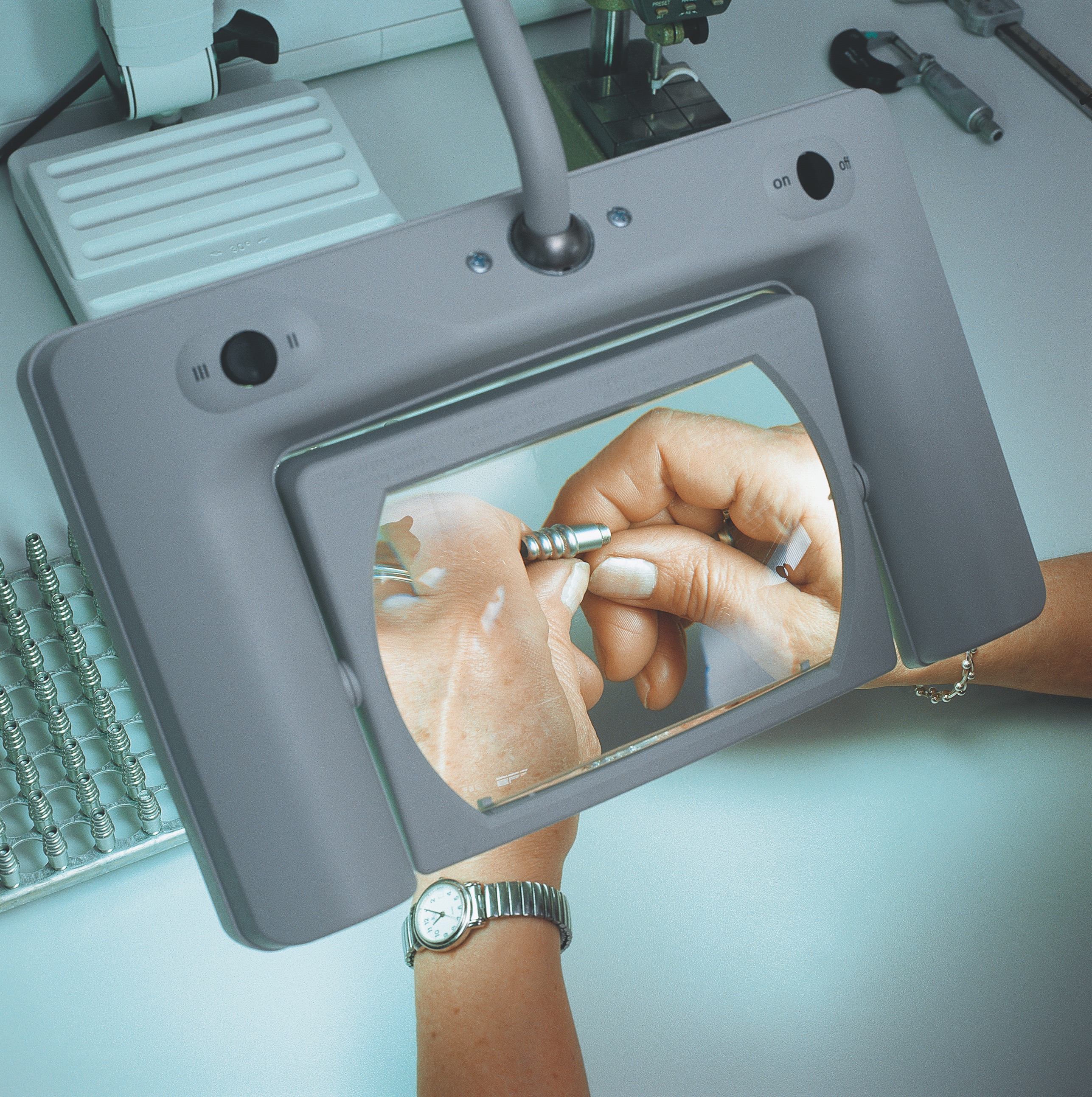

Qualitätskontrolle
Qualitätskontrolle
ManufacturerQS
3 Parts
Milling1
Turning1
Automatic turning (bar)1
3 Machinery

Contact

Location

Main locationRobert-Bosch-Straße 1, 78559 Gosheim, Germany
