About Kappes Maschinenbau GmbH
Who we are

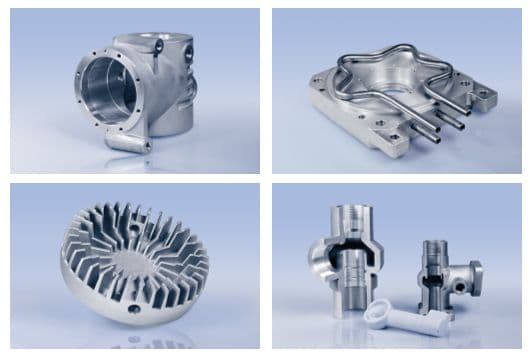

We are a aluminum gravity die casting with high quality standard - Private Kokillenbau, with processing of your CAD data and Transfer to our 3 - 4 - and 5-axis controlled machines - Alugussteile of 0.003 kg to 45 kg up to 1.5 meters in length Annual volume of 500 tonnes in different aluminum alloys - Parts production on 24 new CNC machines Turning / Milling also editing Aluvollmaterial - Finish work such as powders, trovalen, rays, anodize, assemble It is deliberately produced to 100% in Germany - we prove to our customers that we are competitive with quality, delivery and cost. Company History: 1965, shortly after his master's examination, the present owner and manager Manfred Kappes became self-employed and dropped two apprentices the foundation for the Kappes Maschinenbau GmbH and the metal casting GmbH in Pfaffhausen / Bavaria and Alko cast aluminum GmbH in drive / Thuringia. Now, in these three companies employs about 100 people and shed more than 500 tonnes of aluminum a year. This exclusively as gravity die in gravity die at a weight from 0.003 to 45 Kg The most common alloys are Al Si 7 Mg (wa), Al Si 9 Mg (wa), Al Si 11 Mg (wa), Zn Al 10 Si 8 Mg, Al, Si and Al 12 Si 8 Cu 3 A powerful tool manufacturing with advanced 3D - CAD / CAM system and CNC machines and EDM is able to implement the short-term customer needs. With 24 CNC - lathes and machining centers to process the Alugussteile in shifts finished. The high level of customer satisfaction in terms of quality and reliability make us confident to survive the challenges ahead. Many of our customers now use the offer to bring our experience in the development of new castings. We maintain, now 2600 products for our customers and deliver 10% to other European countries.Our clientele include the engineering, sun protection technology, Elektronikbau, vehicle and vehicle bodies, construction, air gun manufacturers, the German Federal Railways, facade, ladders and scaffolding manufacturer, drying plant manufacturers, car wash builders, equipment manufacturers and many more. Tooling / Kokillenbau: The duration of the form that the mold is made of steel or cast iron. Undercuts can be formed with trains, loose parts or sand cores. The sand cores are destroyed after casting. Of course, composite casting is that doable with cast steel parts or threaded brass bushes. Before casting, the molds are sized, that is, provided with a layer of clay, carbon black or the like. Compared to sand casting, the cooling rates in gravity casting due to the higher thermal conductivity of cast iron against sand are significantly higher. This results in a relatively fine-grained and dense structure, the better mechanical properties than sand cast from the same aluminum alloy. Foundry: Permanent mold casting is poured by hand, usually with the aid of hydraulic cylinders, the mold opened. The caster takes the part, includes the shape and pours again. - Hot swap - Supernatants and ridges are ground - X-ray control Cutting works: CNC Milling on our 12 horizontal BZ with a max. Travel of X 800 Y 800 Z 700mm on our 2 vertical BZ with a max. Travel of X 2000 Y 500 Z 600mm (Different with NC rotary table) CNC turning 6 machines with a max. Diameter of 350mm, with special jaws to ca.400mm 2 machines with automatic bar feeder max. Diameter 50, 4-axis gesteuerert 1 machine with automaischem bar feeder max. Diameter 72, 5-axis gesteuerert...
1 / 1
Pfaffenhausen, Germany
Member since 2003
Employees50 - 100
Certificates1
Turnover5 - 10 Mil.
Year of foundation1965
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 50–1,000 | 2–1,000 mm | 6–400 mm |
Automatic turning (bar) | 100–10,000 | 1–1,000 mm | 1–72 mm |
Casting
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Gravity die casting | 1–2,000 | 1–1,000 mm | 1–800 mm | 1–800 mm | 0–30 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 10–1,000 mm | 100–1,000 mm | 10–500 mm | 0–100 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 50–1,000 | 1–2,400 mm | 1–1,000 mm | 1–700 mm | — |
Form milling (3 D) | 50–1,000 | 1–800 mm | 1–800 mm | 1–700 mm | — |
HSC milling | 1–1,000 | 1–800 mm | 1–800 mm | 1–700 mm | 0–50 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 50–1,000 | 1–800 mm | 1–800 mm | 1–700 mm | 0–50 kg |
Materials
Light metals
Aluminium and aluminium alloys
Industries
Shipbuilding industryFurniture industryBoiler, container and tank construction Hydraulic and pneumatic industryMining and tunnel engineeringConstruction and architectural suppliesTelecommunication industryInformation technology (hardware)Power generation and transmission industryDrive and gear engineeringAir conditioning, refrigeration and ventilation industryRailway and rail vehicles industryClean room technologyBuilding, agricultural and forestry machinery manufacturingApparatus engineeringPlant engineering and constructionAutomotive and vehicle constructionHousehold appliance industryMachine tool manufacturingPackaging industryLighting industryPrecision engineering, mechatronics and opticsMilitary engineeringSpecial purpose machinery manufacturingMeasurement and control technique, laboratory equipmentMedical technologyAerospace and aviation industryElectrical industryAutomation and control engineeringChemical industryPaper and printing machinery industryOffice machinery and suppliesFittings engineering
Certificates
ISO 9001:2015
Parts & Machines
Parts (2)
1 / 2
Lagerschild
DescriptionLegierung: GK-AlSi8 Cu3, Gewicht 2,95Kg
Mit eingegossenem Edelstahlrohr 10x1mm als Kühlleitung.
2 / 2
Gehäuse
DescriptionLegierung: GK-AlSi9 Mg wa, Gewicht 0,46 bis 0,97 Kg
Um die Hinterschneidung herzustellen, wird ein Sandkern eingelegt.
Teile werden nur in einem Dreharbeitsgang komplett fertig bearbeitet.
2 Parts
