Kern Microtechnik GmbH
Germany, 82418 Murnau-Westried
Overview
About Kern Microtechnik GmbH
Who we are
For over 50 years KERN stands for highest precision, manufacturing know-how and reliability. The fact that we do not rely only on our experience but prove our promises with every job again, of course. Our state of the art measurement technology proves this μ-exact. A modern machine park, which is continually being renewed and extended, is ready for even the toughest tasks. Core has both 3 - and 5 - axis milling flexlible automation equipment. Our air-conditioned rooms, free of vibrations and temperature fluctuations are the basis for the highest precision on the workpiece. What we offer • Precision Parts • micro-parts production • Hard milling, eroding, grinding • assembly • Development and construction • Measure
1 / 1
Murnau-Westried, Germany
Member since 2006
Employees100 - 200
Certificates4
Turnover20 - 50 Mil.
Year of foundation1962
Competencies
Technologies
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Spark erosion wire cutting | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | 0–200 kg |
Spark erosion countersinking | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | 0–200 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Internal cylindrical grinding | 1–50,000 | 0.1–100 mm | — | — | 0.1–300 mm | — |
Circular honing - internal | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | 0.1–300 mm | 0–200 kg |
Surface grinding machine | 1–50,000 | 0.1–500 mm | 0.1–250 mm | 0.1–250 mm | — | 0–200 kg |
Coordinate jig grinding | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | — | 0–200 kg |
Rotofinishing, barrel finishing | 1–50,000 | 0.1–100 mm | 0.1–100 mm | 0.1–100 mm | — | — |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Milling | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | from 0 mm | 0–200 kg | from 0 mm |
5-axis milling machines | 1–50,000 | 1–50 mm | 1–50 mm | 1–50 mm | — | 0–50 kg | — |
Form milling (3 D) | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | from 0 mm | 0–200 kg | from 0 mm |
HSC milling | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | from 0 mm | 0–200 kg | from 0 mm |
Deep-hole drilling | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | 0.05–50 mm | 0–200 kg | — |
Engraver milling | 1–50,000 | 0.1–500 mm | 0.1–500 mm | 0.1–300 mm | 0.1–10 mm | 0–200 kg | — |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drilling / threading / tapping | 1–50,000 | 0.04–500 mm | 0.04–500 mm | 0.04–300 mm | from 0 mm | 0–200 kg | from 0 mm |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 1–1,000 | 1–500 mm | 1–500 mm | 1–256 mm | 1–100 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Cast metals
Cast steelCast iron
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)CarbideSilicium
Precious metals
SilverGoldPlatinumOther precious metals
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsNatural Fibre Composites (NFC)
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Non-metal inorganic materials
CeramicsGraphite
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Industries
Special purpose machinery manufacturingAutomotive and vehicle constructionAutomation and control engineeringPrecision engineering, mechatronics and opticsPlant engineering and constructionChemical industryMechanical engineeringAerospace and aviation industryTelecommunication industryElectrical industryDrive and gear engineeringMedical technologyMeasurement and control technique, laboratory equipmentPaper and printing machinery industryMachine tool manufacturingLighting industryApparatus engineering
Certificates
ISO 9001:2008
ISO 14001
QSF-A
QSF-B
Parts & Machines
Machinery (21)
1 / 21
Kern Pyramid Nano
ManufacturerKern Microtechnik
ControlHaidenhain iTNC 530
Year of Construction2011
Technology
Coordinate jig grindingInternal cylindrical grindingCircular honing - internalDrilling / threading / tappingMillingHSC millingForm milling (3 D)
2 / 21
Kern EVO
ManufacturerKern-Microtechnik
ControlHaidenhain iTNC 530
Year of Construction2011
Technology
Drilling / threading / tappingForm milling (3 D)HSC millingMilling
3 / 21
Kern EVO mit Workpal
ManufacturerKern Microtechnik
ControlHaidenhain ITNC 530
Year of Construction2011
4 / 21
Kern Triton
ManufacturerKern-Microtechnik
ControlHaidenhain iTNC 530
Year of Construction2011
Technology
HSC millingForm milling (3 D)Drilling / threading / tappingMilling
5 / 21
Hermle C30U 5Achsen
ManufacturerHermle
ControlHaidenhain iTNC530
Year of Construction2006
Technology
Form milling (3 D)HSC millingMillingDrilling / threading / tapping
6 / 21
Hermle C30UP
ManufacturerHermle
ControlHaidenhain iTNC 530
Year of Construction2012
Technology
Drilling / threading / tappingForm milling (3 D)HSC millingMilling5-axis milling machines
7 / 21
ZK850
ManufacturerZimmer & Kreim
ControlGenius
Year of Construction2002
Technology
Spark erosion countersinking
8 / 21
JF 520
ManufacturerJung
Control-
Year of Construction1988
Technology
Surface grinding machine
9 / 21
F 25 Messmaschine
ManufacturerZEISS
ControlCalypso Software
Year of Construction2008
10 / 21
DuraMax Messmaschine
ManufacturerZEISS
ControlCalypso Software
Year of Construction2010
11 / 21
O-Inspect Messmaschine
ManufacturerZEISS
ControlCalypso Software
Year of Construction2009
12 / 21
Prismo Messmaschine
ManufacturerZEISS
ControlCalypso Software
Year of Construction1999
13 / 21
Cut 3000
ManufacturerAGIE
ControlAgie Vision
Year of Construction2011
Technology
Spark erosion wire cutting
14 / 21
Vertex 3F
ManufacturerAGIE
ControlAgie Vision
Year of Construction2008
Technology
Spark erosion wire cutting
15 / 21
MITSUBISHI FA 20 S
ManufacturerMITSUBISHI
ControlMITSUBISHI
Year of Construction2004
Technology
Spark erosion wire cutting
16 / 21
Agie PräziDrill 11
ManufacturerAGIE
ControlAGIE
Year of Construction2007
17 / 21

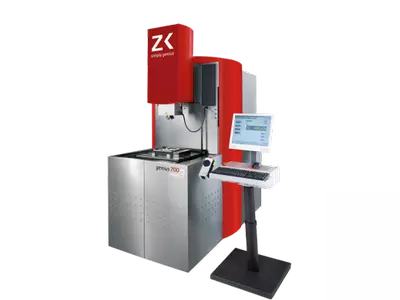

ZK700
ManufacturerZimmer
ControlGenius
Year of Construction2014
Technology
Spark erosion countersinking
18 / 21
Kern Micro
ManufacturerKern-Microtechnik
ControlHaidenhein iTNC 530
Year of Construction2014
Technology
HSC milling5-axis milling machinesForm milling (3 D)MillingDrilling / threading / tappingDeep-hole drilling
19 / 21
TruMark Station 5000
ManufacturerTrumpf
ControlTruTops Mark
Year of Construction2012
20 / 21
Convofis Duo Vario
ManufacturerConvofis
ControlMess-Software ConfoVIZ®
Year of Construction2016
21 / 21
Hermle
ManufacturerHermle
ControlHaidenhain iTNC 530
Year of Construction2006
Technology
MillingDrilling / threading / tapping
21 Machinery
Coordinate jig grinding1
Internal cylindrical grinding1
Circular honing - internal1
Drilling / threading / tapping7
Milling7
HSC milling6
Form milling (3 D)6
5-axis milling machines2
Spark erosion countersinking2
Surface grinding machine1
Spark erosion wire cutting3
Deep-hole drilling1
