About Kölbl GmbH
Who we are
We are a family business with over 40 professionals from the fields of precision engineering and toolmaking. Since 1975 we manufacture the most modern machinery single and series parts to complete, ready for installation, mechanical assemblies. On our machines, we process all machinable materials. Turning up to 200 mm diameter and a length up to 250 mm. Milling to a side length of 500 mm.
1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

Hohenkammer, Germany
Member since 2011
Employees20 - 50
Certificates1
Turnover5 - 10 Mil.
Year of foundation1995
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 20–5,000 | 1–250 mm | 3–200 mm |
Automatic turning (bar) | 50–5,000 | 1–250 mm | 3–200 mm |
Swiss turning | 20–5,000 | 1–150 mm | 5–30 mm |
Full-range turning (including milling) | 10–5,000 | 5–200 mm | 5–200 mm |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–20 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 3–500 mm | 3–250 mm | 3–250 mm | 3–200 mm | 0–15 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 10–1,000 | 5–500 mm | 5–500 mm | 5–500 mm | — | 0–40 kg |
5-axis milling machines | 10–500 | 5–400 mm | 5–400 mm | 5–400 mm | — | 0–20 kg |
Form milling (3 D) | 20–100 | 5–400 mm | 5–400 mm | 5–400 mm | — | 0–20 kg |
Full-range milling (including turning) | 10–1,000 | 5–500 mm | 5–500 mm | 5–500 mm | 3–220 mm | — |
Engraver milling | 10–1,000 | 5–500 mm | 5–500 mm | 5–500 mm | 3–220 mm | 0–15 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Sawing | 1–1,000 | 5–500 mm | 5–500 mm | 5–500 mm | 3–220 mm |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Cast metals
Cast steelCast iron
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsGlass fibre-reinforced plastic
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Industries
Packaging industryOffice machinery and suppliesHousehold appliance industryMedical technologyMachine tool manufacturingPrecision engineering, mechatronics and opticsSpecial purpose machinery manufacturingTelecommunication industryPower generation and transmission industryElectrical industryMeasurement and control technique, laboratory equipmentMechanical engineeringHydraulic and pneumatic industry
Certificates
ISO 9001:2008
Parts & Machines
Parts (5)
1 / 5

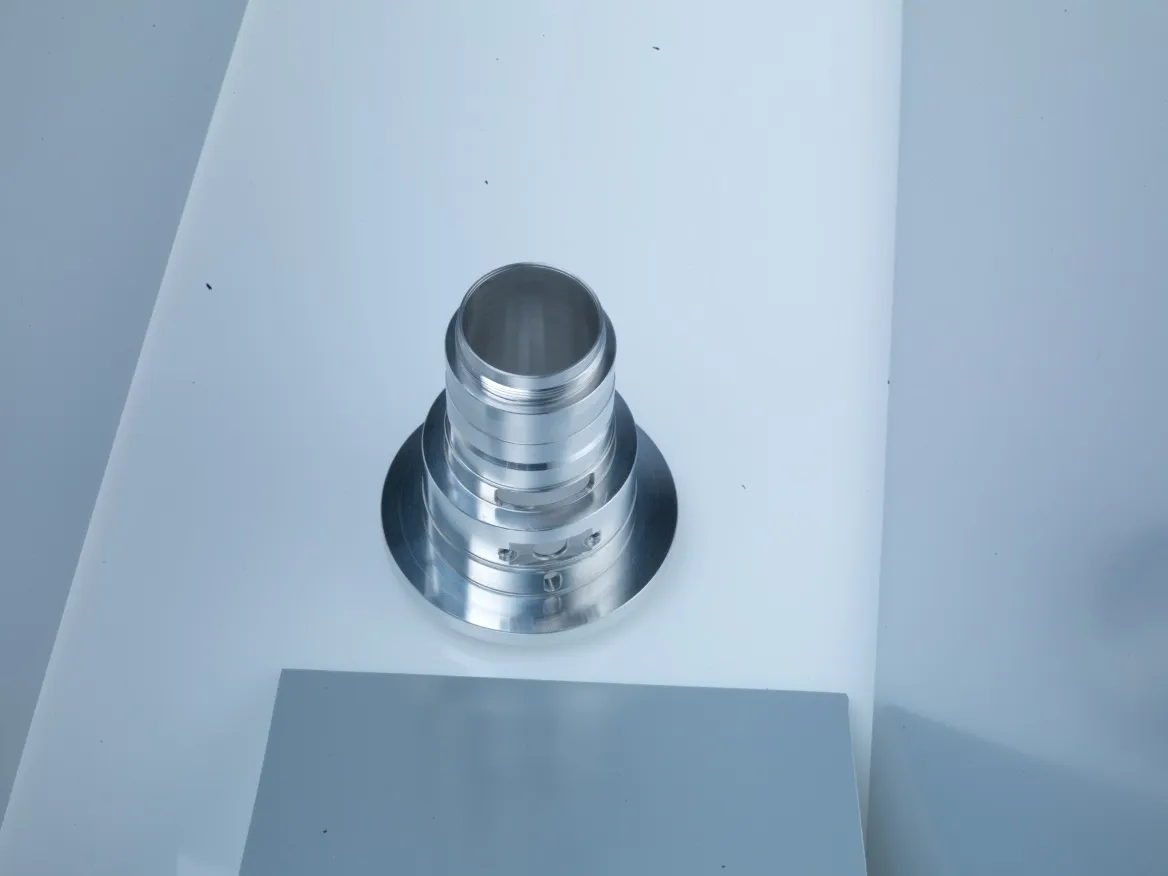

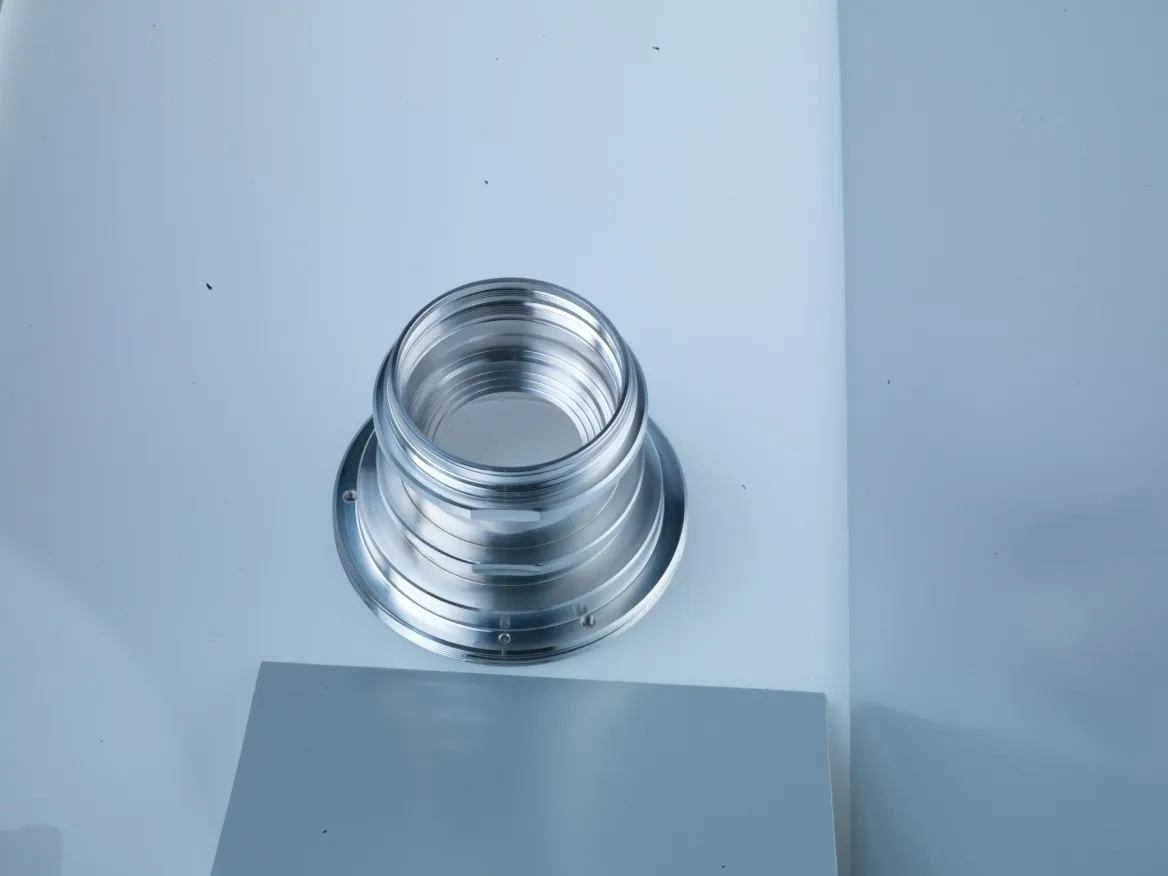

Okularfassung
DescriptionDrehteil aus Al Mg 5 für ein Kameraobjektiv.
2 / 5

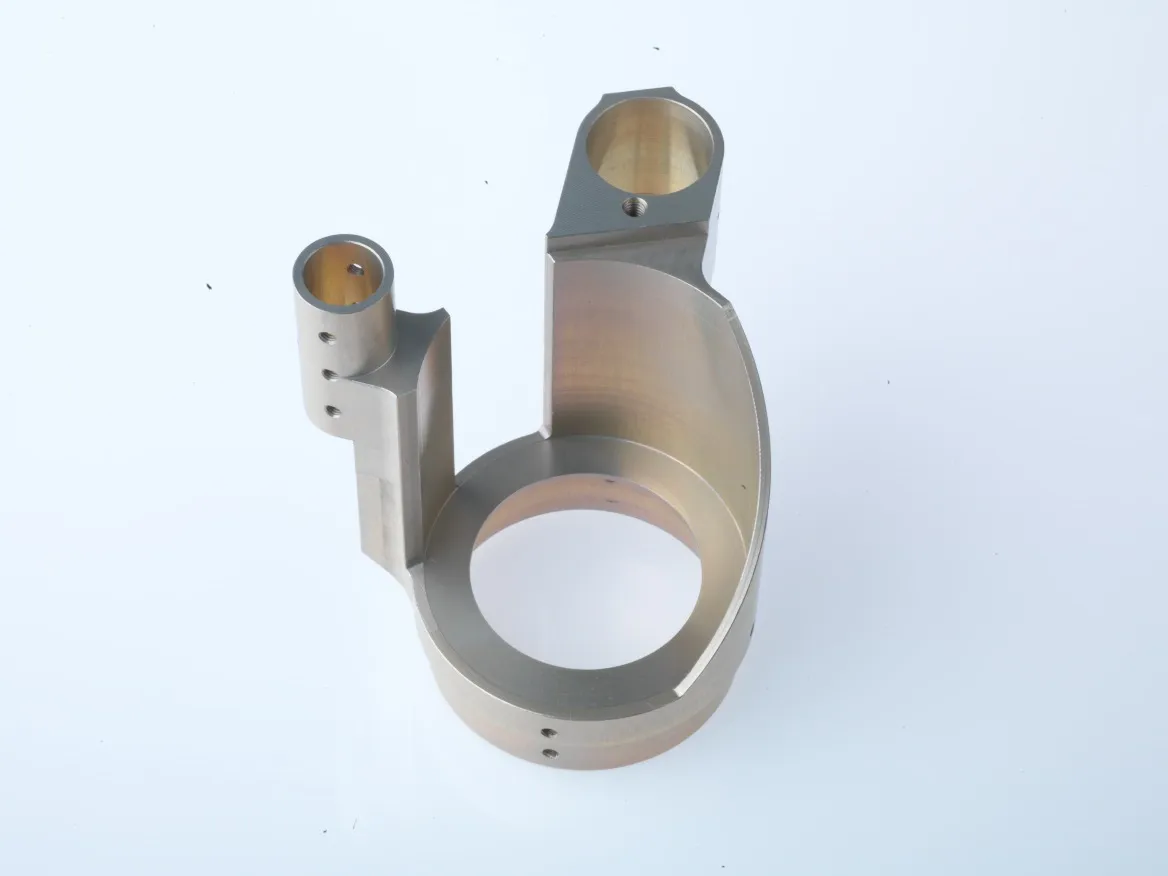

Motorhalter
DescriptionDreh-Frästeil aus Al Zn Mg Cu 1,5 für ein elektrisch angetriebenes Zoom.
3 / 5

Zahnrad
DescriptionZahnrad ( m0.5 ) aus Al Zn Mg Cu 1.5 weiss Eloxiert.
4 / 5

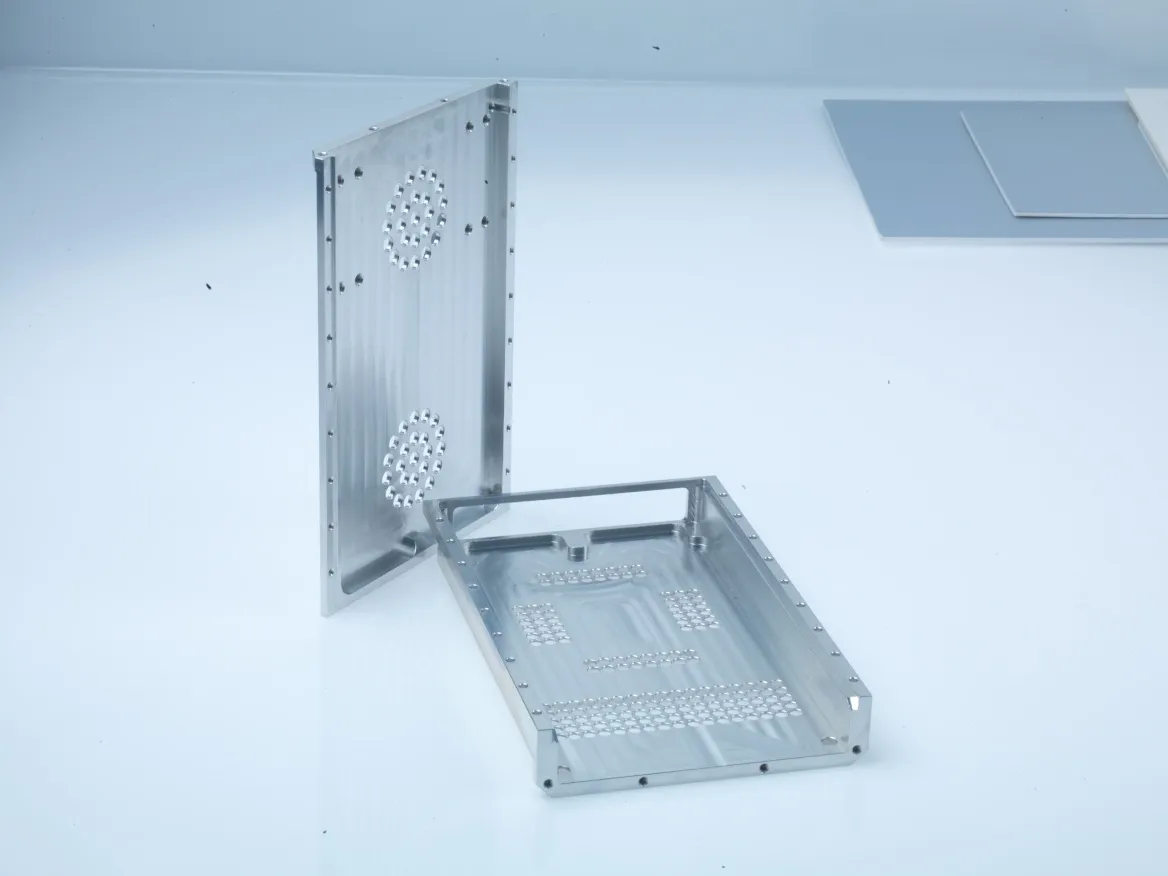

Platinengehäuse
DescriptionFrästeil aus Al Mg 4,5 Mn
5 / 5

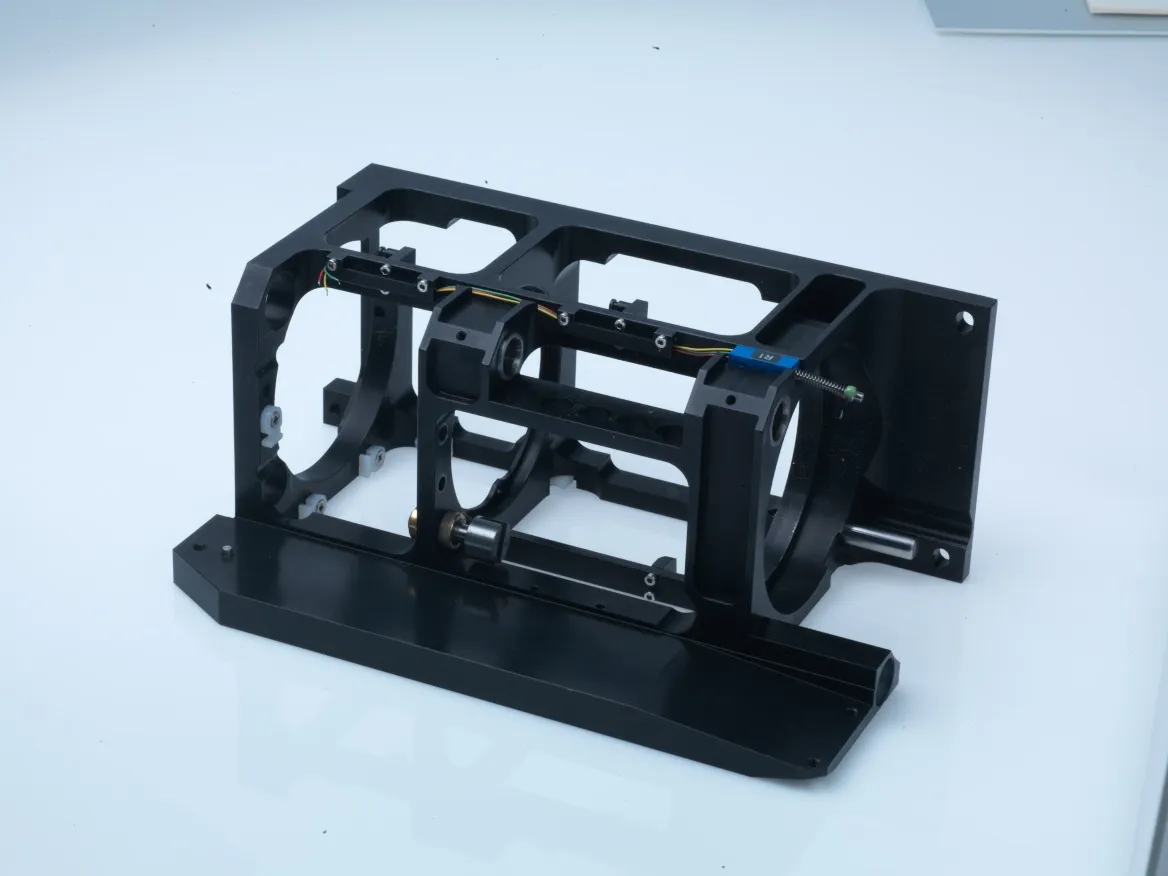

Rahmenbaugruppe
DescriptionRahmenbaugruppe aus einem Fräsrahmen, diversen Dreh- und Normteilen aus Aluminium, Stahl, Kunststoff.
Machinery (18)
1 / 18

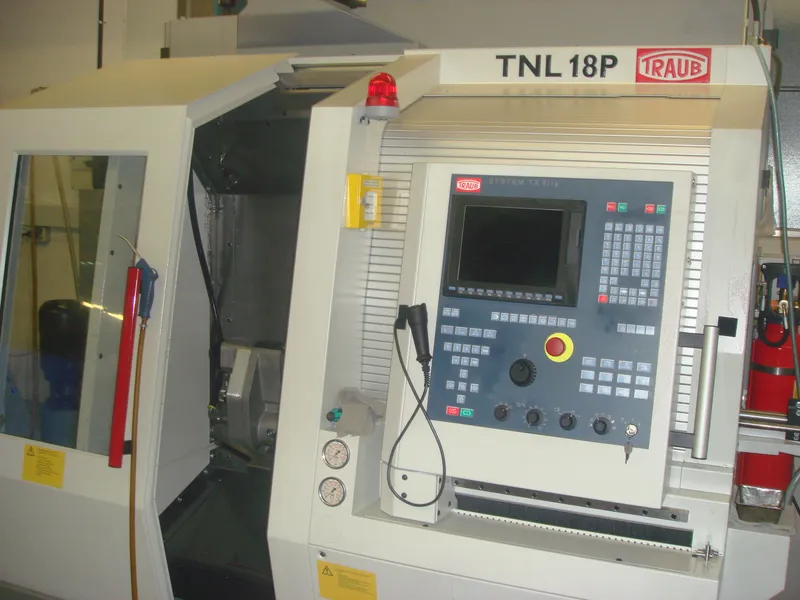

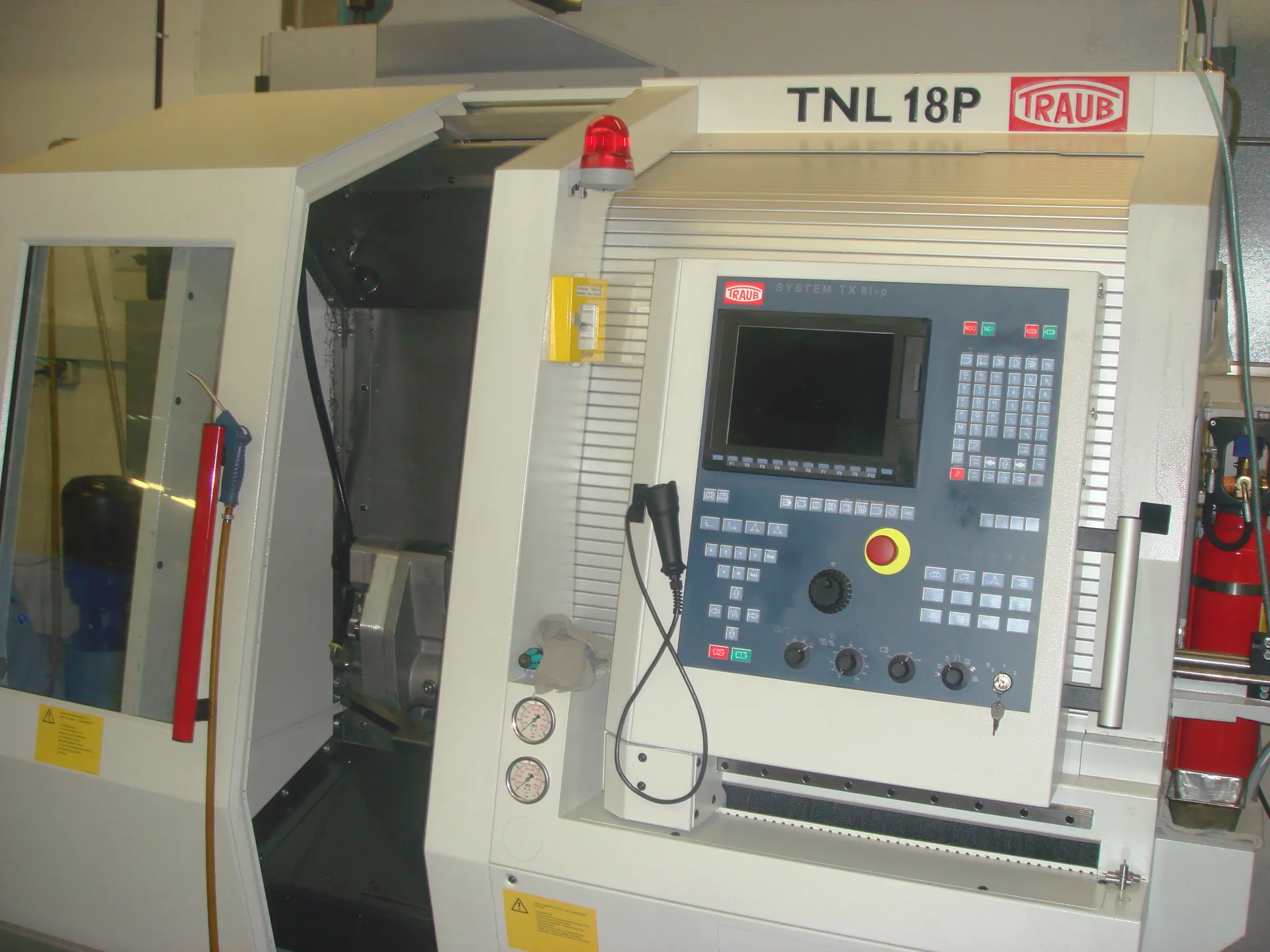

Traub TNL 18
ManufacturerTraub
ControlSIEMENS 840 D
Year of Construction2012
Technology
Swiss turningFull-range turning (including milling)
2 / 18

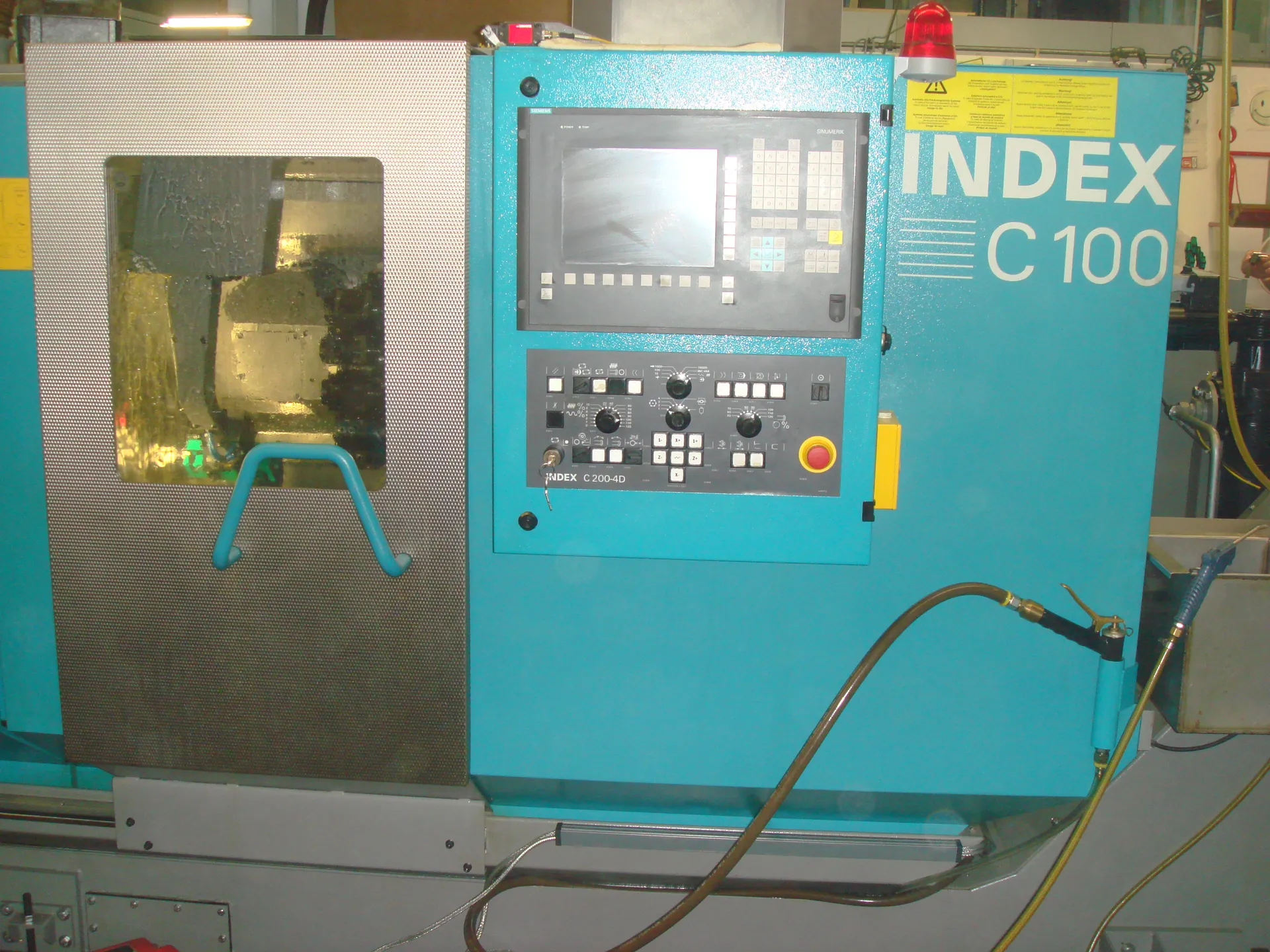

C100
ManufacturerINDEX
ControlSiemens 840D
Year of Construction2011
Technology
Full-range turning (including milling)Automatic turning (bar)Turning
3 / 18

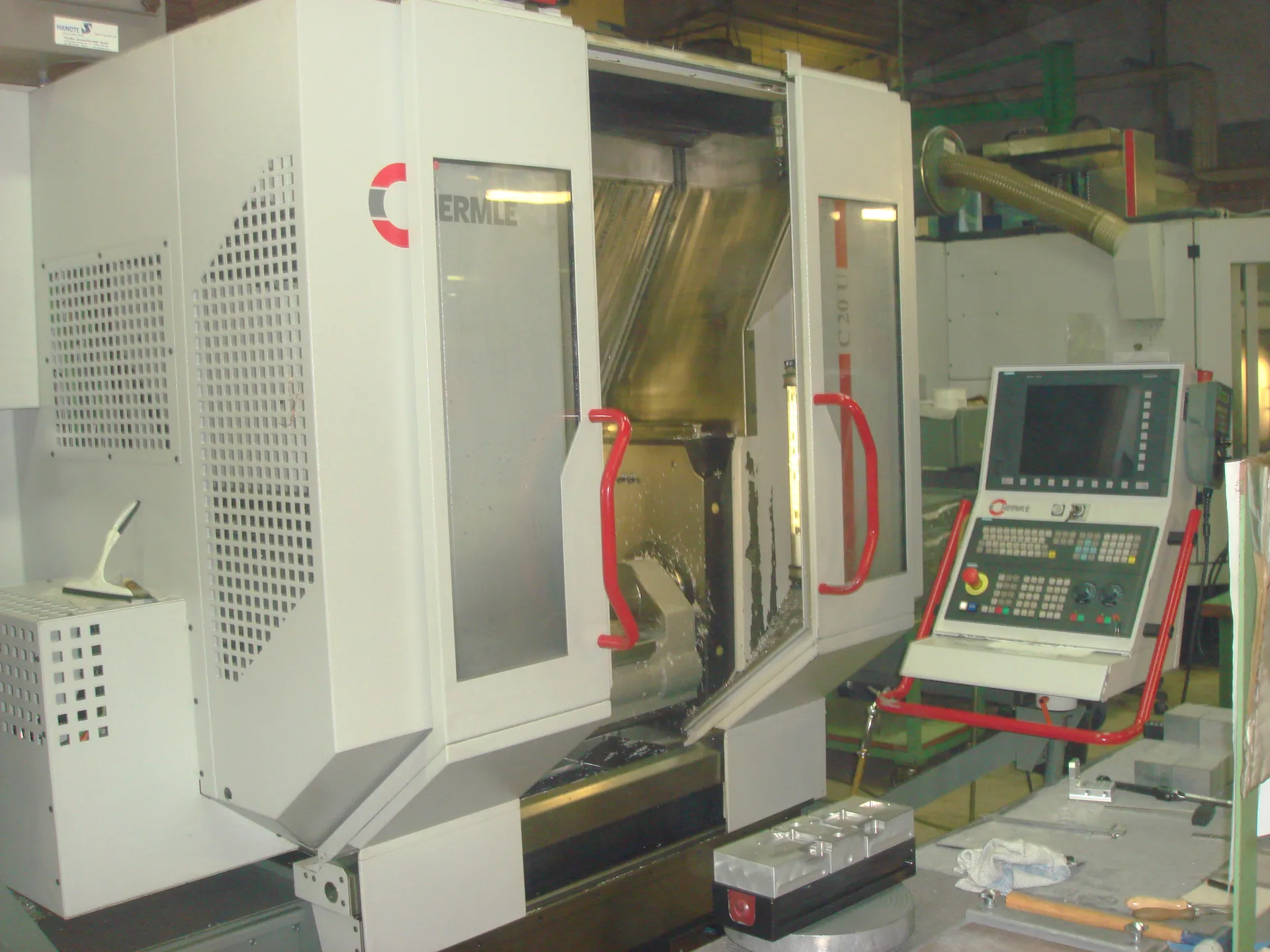

Hermle C20 U 5 Achsen
ManufacturerHermle
ControlHEIDENAIN
Year of Construction2009
Technology
Form milling (3 D)
4 / 18

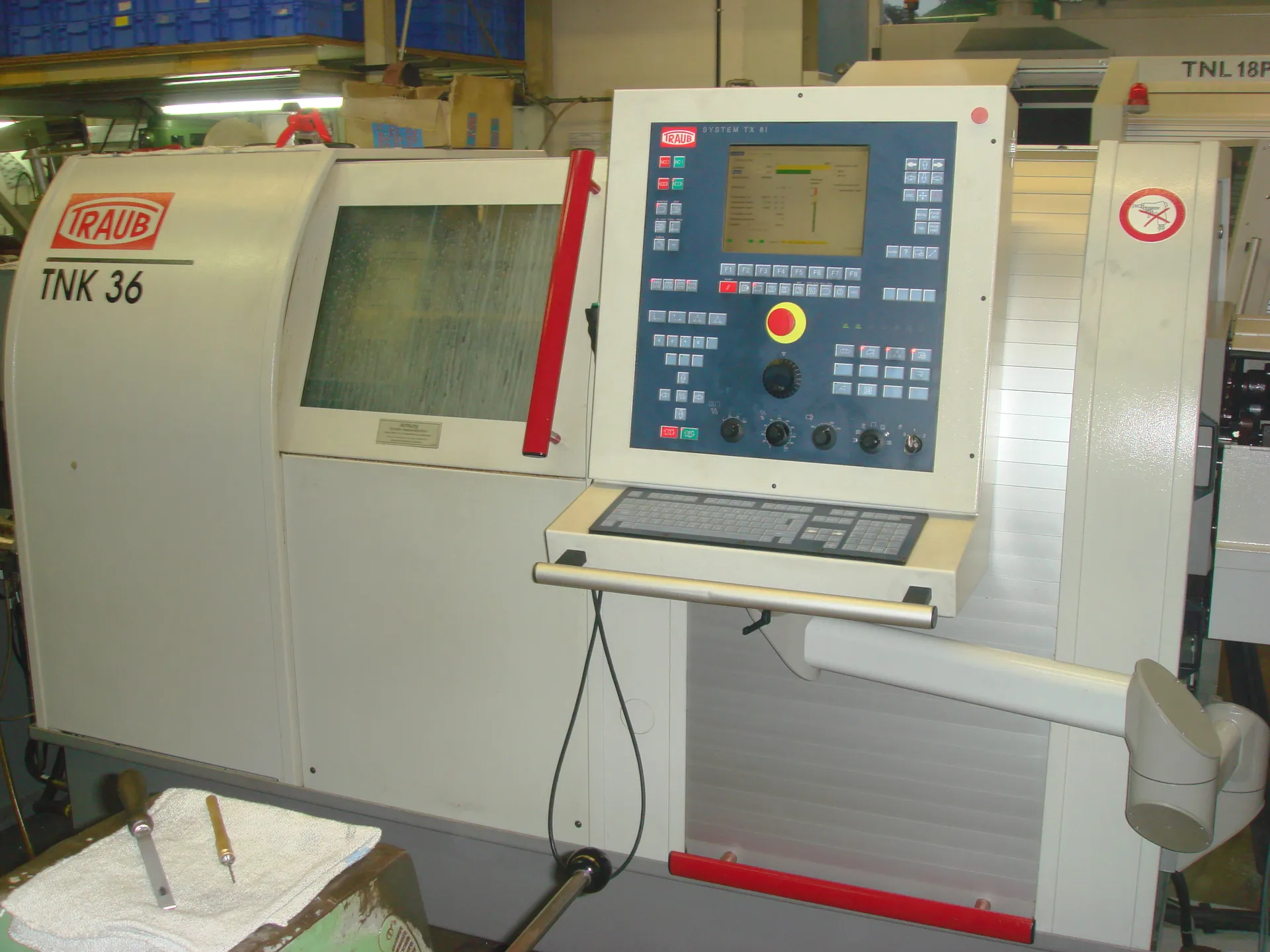

TNK 36
ManufacturerTraub
ControlSiemens 840D
Year of Construction2008
Technology
Full-range turning (including milling)TurningAutomatic turning (bar)
5 / 18

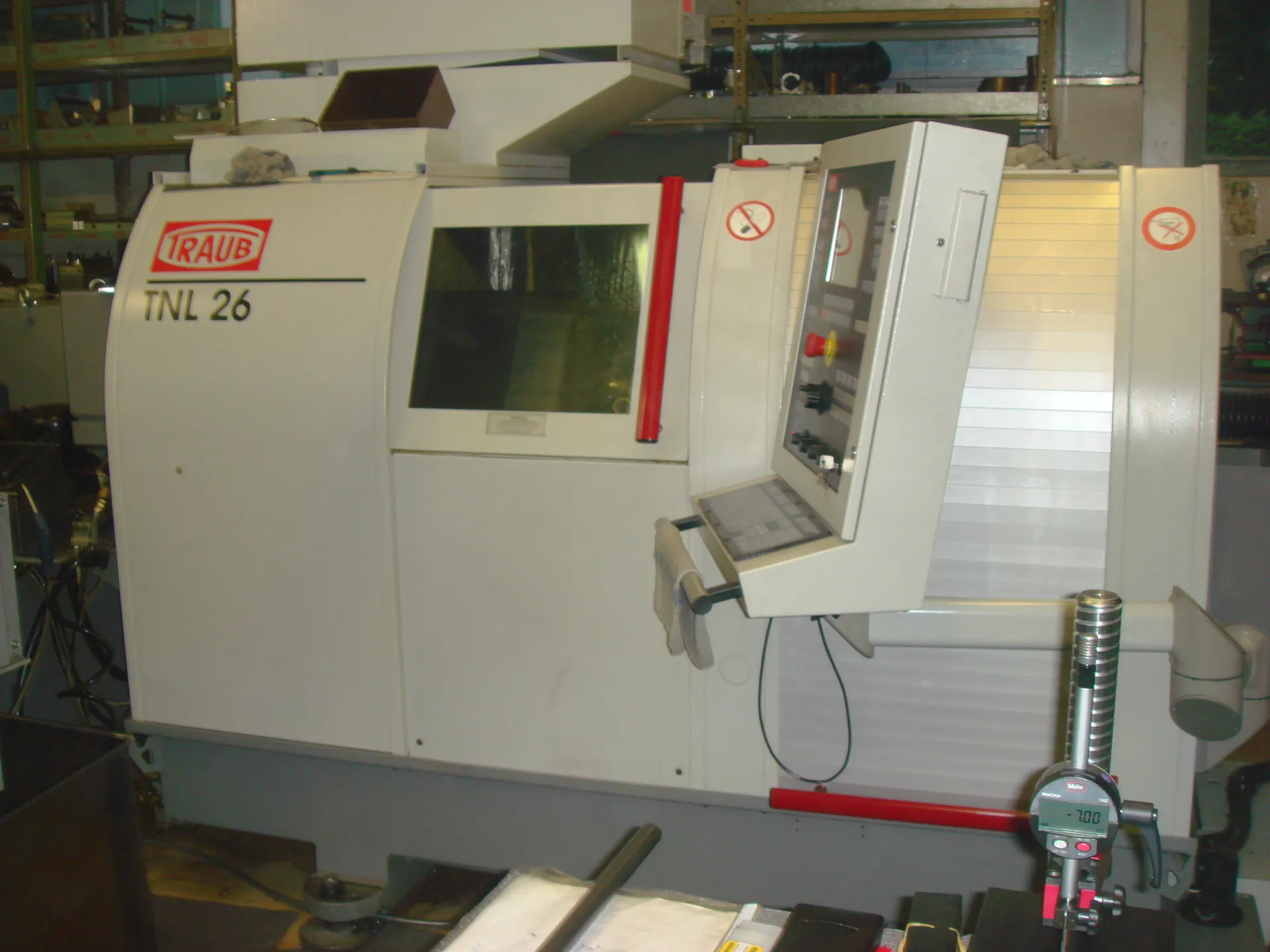

TNL 26
ManufacturerTRAUB
ControlSiemens 840D
Year of Construction2006
Technology
Swiss turningAutomatic turning (bar)Full-range turning (including milling)
6 / 18

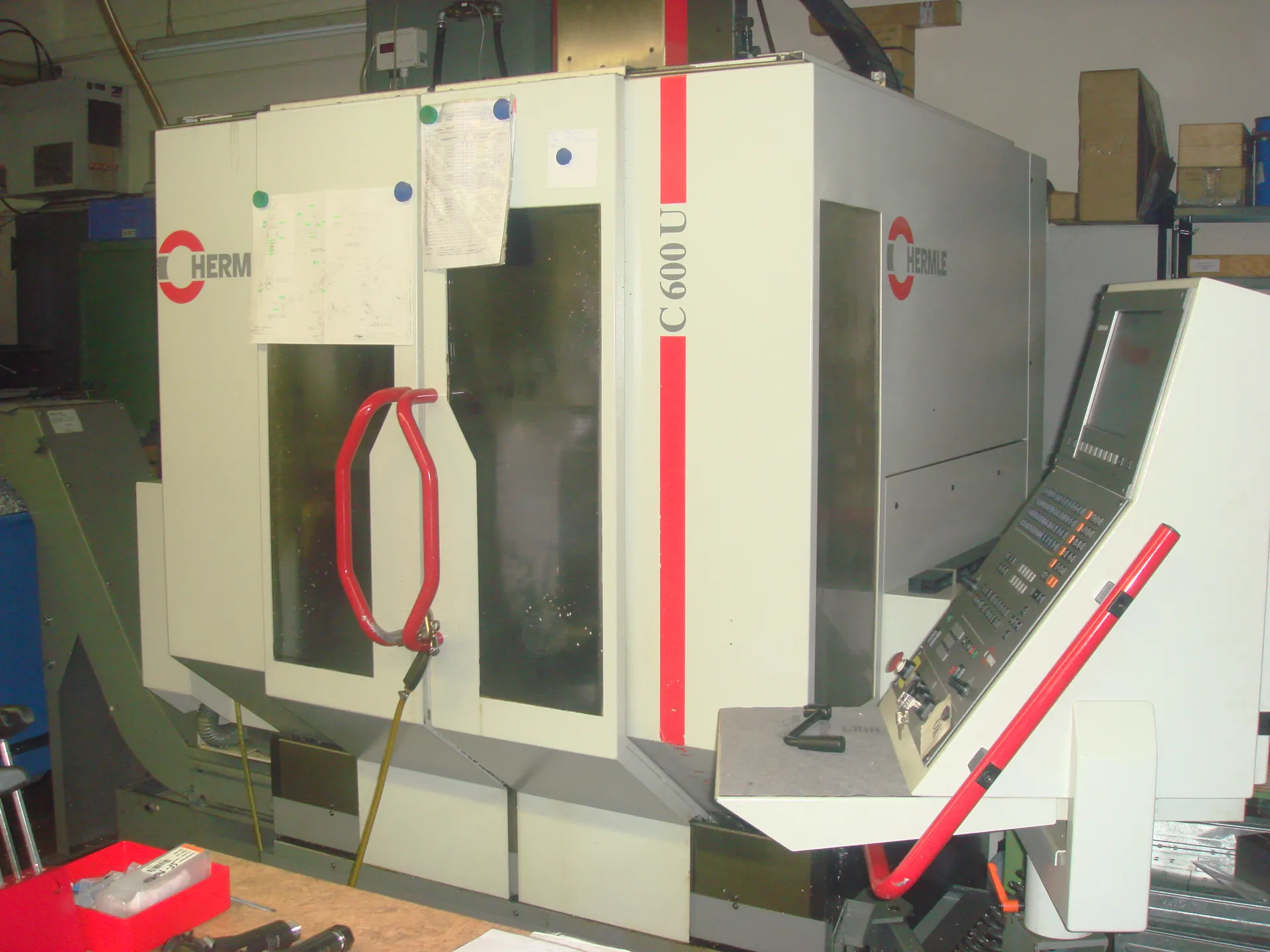

Hermle C600U 4Achsen
ManufacturerHermle
ControlHEIDENHAIN
Year of Construction2005
7 / 18
Glasperlenstrahlen
ManufacturerRösler
Control-
Year of Construction2012
8 / 18
MC 400
ManufacturerINDEX
ControlSIEMENS
Year of Construction2011
Technology
TurningAutomatic turning (bar)Full-range turning (including milling)
9 / 18
Weiler E30
ManufacturerWEILER
Control-
Year of Construction2011
Technology
Turning
10 / 18
Hermle C20 5Achsen
ManufacturerHermle
ControlHEIDENAIN
Year of Construction2010
Technology
Form milling (3 D)
11 / 18
Hermle C20 U 5 Achsen
ManufacturerHERMLE
ControlHEIDENHAIN
Year of Construction2008
Technology
Mechanical assemblyFull-range turning (including milling)Form milling (3 D)Swiss turningMeasuring / testingTurningAutomatic turning (bar)
12 / 18
TNC 65
ManufacturerTRAUB
ControlSiemens 840D
Year of Construction2006
Technology
Automatic turning (bar)Full-range turning (including milling)Turning
13 / 18
Hermle 600 U
ManufacturerHERMLE
ControlHEIDENAIN
Year of Construction2005
14 / 18
ABC 42 - SpeedLine
ManufacturerINDEX
ControlSIEMENS
Year of Construction2002
Technology
TurningFull-range turning (including milling)Automatic turning (bar)
15 / 18
CTX 400
ManufacturerGILDEMEISTER
ControlSIEMENS
Year of Construction2002
Technology
Full-range turning (including milling)TurningAutomatic turning (bar)
16 / 18
W 53
ManufacturerWahli S.A.
ControlSiemens 840D
Year of Construction2001
17 / 18
EMCO Turn
ManufacturerEMCO
ControlSIEMENS
Year of Construction2001
Technology
Automatic turning (bar)Turning
18 / 18
Trommelgraten
ManufacturerRösler
Control-
5 Parts
Others5
18 Machines
Swiss turning3
Full-range turning (including milling)9
Automatic turning (bar)9
Turning9
Form milling (3 D)3
Mechanical assembly1
Measuring / testing1
