About LBC LaserBearbeitungsCenter GmbH
Who we are
The LBC LaserBearbeitungsCenter GmbH was founded in October 2002. LBC is an innovative service for different customer groups. The core competencies are laser generation, and laser sintering, based on metallic materials and the 3D laser engraving. These two technologies provide our customers with an enormous savings potential. Manufacturing costs and production time can be substantially reduced. LBC is a pioneering first for the generative production of contour-tempered tools. Since 2004, we successfully implement customer-specific tasks by laser generation. Through significant cycle time reduction, with simultaneous optimization of part quality and process control capability of numerous tools for plastic injection molding and metal die-casting could be successfully implemented in more than 5 years. An essential prerequisite is always to be on the cutting edge of technology. We achieve this through the constant contact with universities and machine manufacturers. Before the production of custom components LBC puts a strong emphasis on a detailed, project-specific advice to customers. Only such a perfect implementation of this technology is to be implemented in the market.
1 / 7
2 / 7
3 / 7
4 / 7
5 / 7
6 / 7
7 / 7
Kornwestheim, Germany
Member since 2004
Employees5 - 10
Certificates1
Year of foundation2002
Competencies
Technologies
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Laser removing | 1–300 | 1–300 mm | 1–400 mm | 1–300 mm | 0–50 kg |
Additive Manufacturing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Metal laser sintering | 1–1,000 | 3–250 mm | 1–250 mm | 2–180 mm | from 0 mm | from 0 kg | from 0 mm |
3D printing (general) | 1–1,000 | 0.5–250 mm | 0.5–250 mm | 0.02–180 mm | from 0 mm | from 0 kg | from 0 mm |
Selective laser sintering | 1–1,000 | 3–250 mm | 1–250 mm | 2–180 mm | from 0 mm | from 0 kg | from 0 mm |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Laser marking / Laser inscription | 1–200 k | 1–300 mm | 1–300 mm | 1–300 mm | 1–180 mm | from 0 kg | from 0 mm |
Laser depth engraving | 1–100 | 1–300 mm | 1–300 mm | 1–300 mm | 1–180 mm | from 0 kg | from 0 mm |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Cast metals
Cast steelCast iron
Non-metal inorganic materials
Ceramics
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Precious metals
SilverGoldPlatinumOther precious metals
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)Carbide
Plastics/synthetic materials
ThermoplasticsThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materials
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Industries
Precision engineering, mechatronics and opticsAutomotive and vehicle constructionAerospace and aviation industryFurniture industryElectrical industryChemical industryMedical technology
Certificates
No certificates
Parts & Machines
Parts (4)
1 / 4

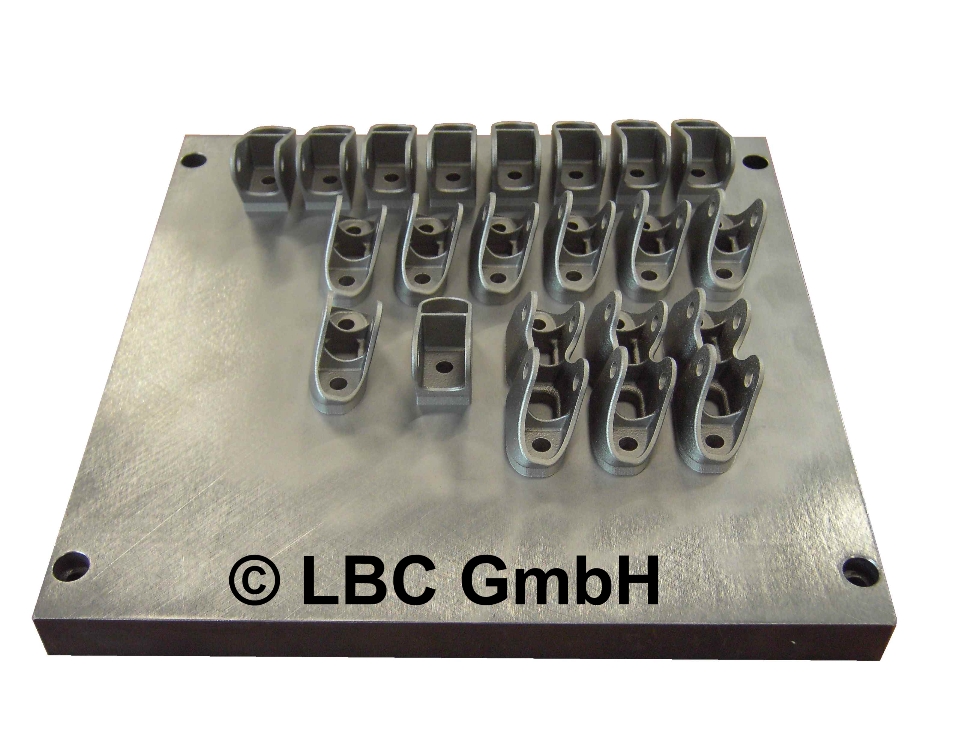

Funktionsbauteile
DescriptionFunktionsbauteile für einen Rennwagen der Formula Student. Die Bauteile sind noch auf der Bauplattform durch eine Stützkonstruktion fixiert. Nach dem Abtrennen und Entfernen der Stützen sind die Bauteile direkt einsetzbar.
2 / 4

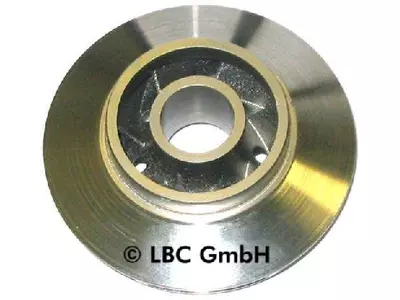

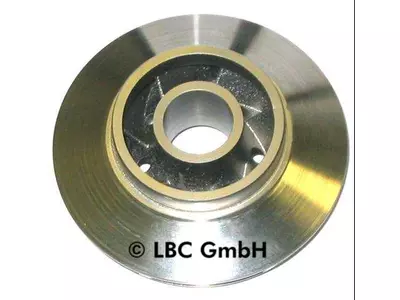

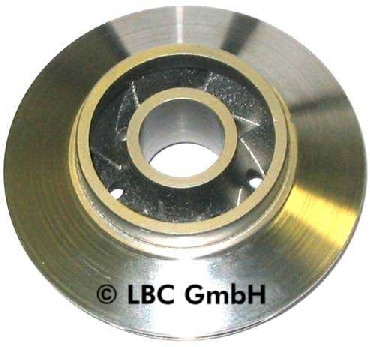

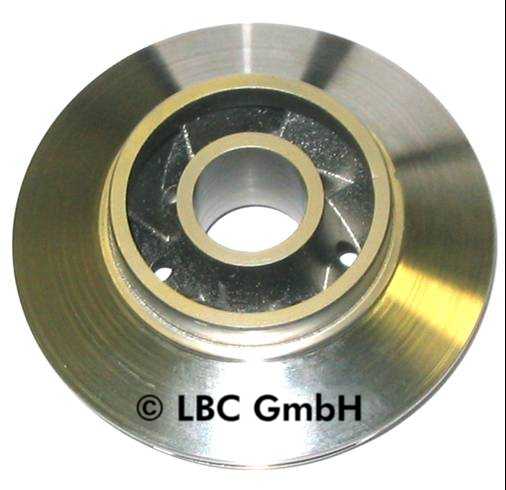

Turbinenrad
DescriptionDieses Turbinenrad wurde nur partiell durch konventionelle Bearbeitung optimiert. Die innenliegende Flügelgeometrie ist im lasergnerierten Zustand verblieben.
3 / 4

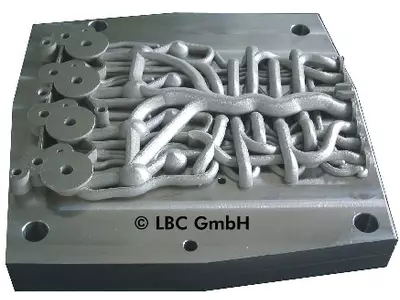

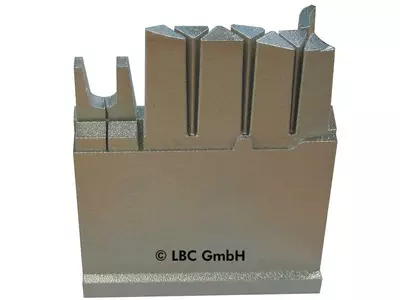

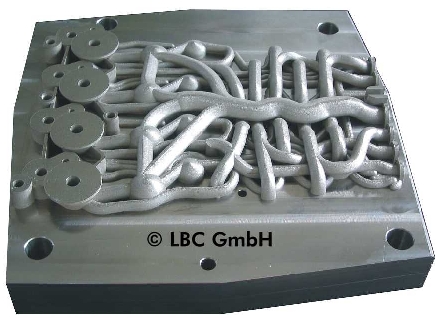

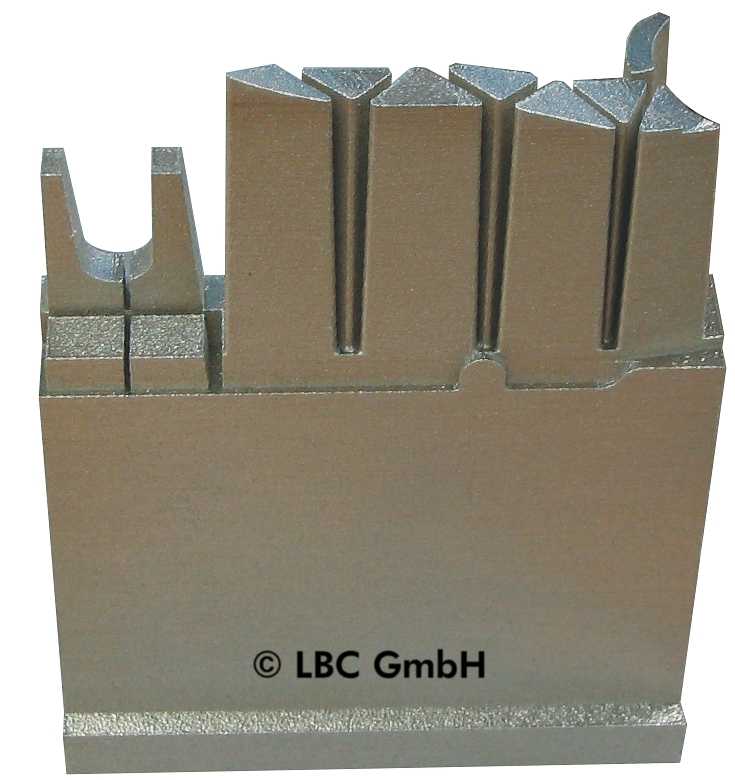

konturnah temperierter Werkzeugeinsatz
DescriptionLasergenerierte, konturnah temperierte Werkzeuge bieten ein enormes Einsparungspotential für den Kunststoffspritzguß. Neben der Zykluszeitreduzierung können gleichzeitig die Geometriegenauigkeit und der Fertigungsprozess optimiert werden.
4 / 4

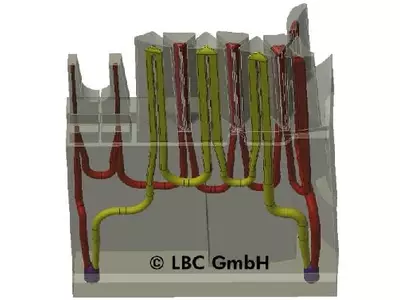

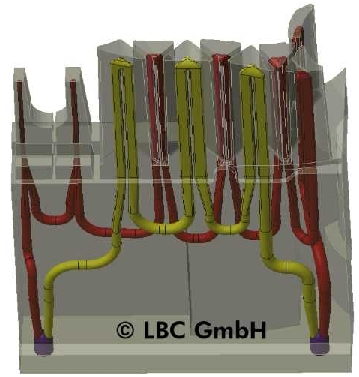

konturnah temperierter Werkzeugeinsatz
DescriptionDas hier gezeigte CAD Modell zeigt die Freiheitsgrade einer lasergenerierten, konturnahen Temperierung sehr deutlich.
Machinery (2)
1 / 2

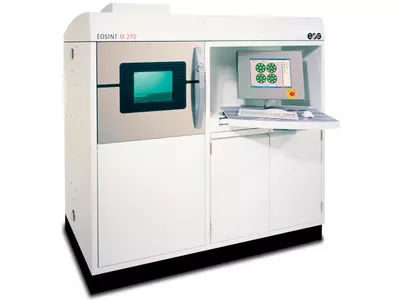

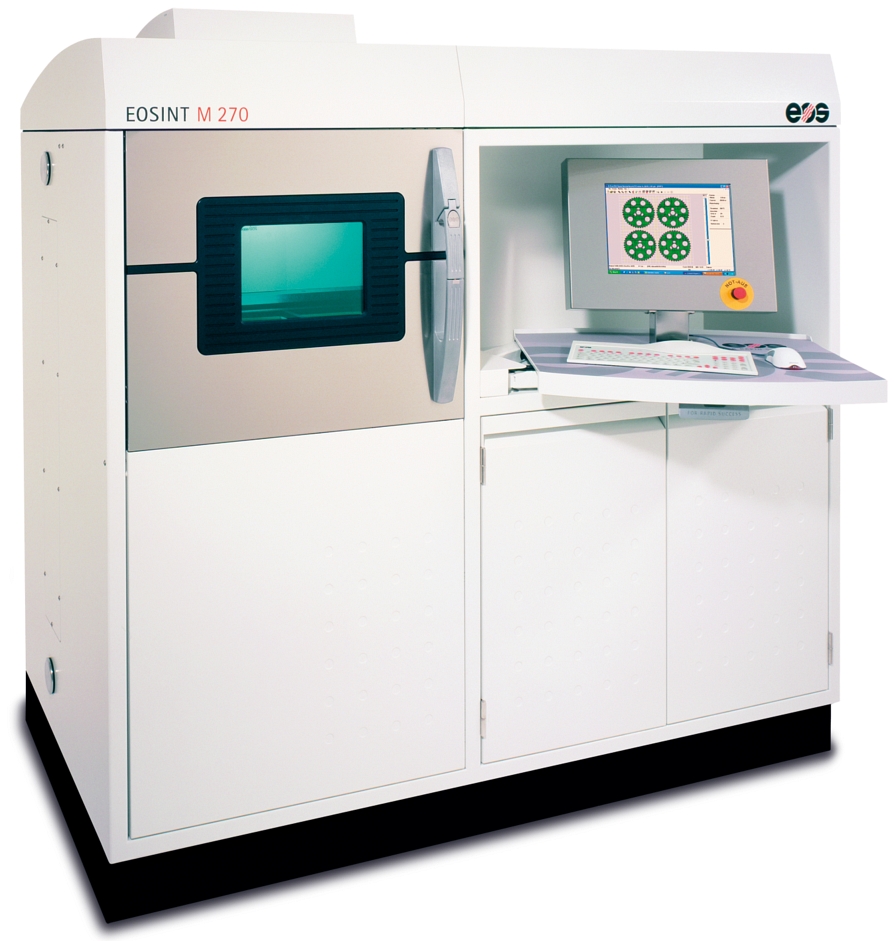

EOSINT M270
ManufacturerEOS GmbH
Control-
Technology
Metal laser sintering3D printing (general)Selective laser sintering
2 / 2
G900
ManufacturerFOBA
Control-
Technology
Laser removingLaser marking / Laser inscriptionLaser depth engraving
4 Parts
2 Machinery
Metal laser sintering1
3D printing (general)1
Selective laser sintering1
Laser removing1
Laser marking / Laser inscription1
Laser depth engraving1
Contact
Location
Main locationIm Moldengraben 34, 70806 Kornwestheim, Germany
Further locationsLBC fertigt ausschließlich am Standort Kornwestheim
