M. Mütze GmbH
Germany, 59964 Medebach
Overview
About M. Mütze GmbH
Who we are
The powerful, modern machinery, which was founded in 1958 M. Cap GmbH includes automatic punching machine, eccentric and hydraulic presses and a 2D laser cutting system. The development and construction of tools and tube bending belong to the range. From prototype to mass production you receive everything from one source. Punching, pressing, drawing: With a press force of up to 400 tons. be processed up to 6.0 mm strap width up to 630 mm and strip thicknesses. Steel bar can be stamped up to 200 mm x 20 mm and bent be. Toolmaking: Together with you we develop the economic and technical sinvollste solution for your applications. In our tool, we design and produce for you advanced composite tools with CAD, CAM, CIM, CNC-based manufacturing. 2 D laser cutting: The process completes our manufacturing program. On our 5 kW laser system, we can process the following material thicknesses: - Up to 25 mm mild steel - Up to 20 mm in stainless steel - Up to 12 mm of aluminum Tube bending: On CNC controlled rotary rollers and mandrel bending machines we process pipe sizes from 4 mm to 50 mm diameter.Steel pipes, copper pipes, brass pipes, stainless steel pipes. Welding: We manufacture complete assemblies including MAG, MIG, TIG and projection welding process. In the case of large numbers and the highest quality standards effective Robot installations. Further processing: Cut to Mehrspindelbohrwerken and we form thread to M20. The surface of our products can be improved by trovalizing if necessary. Galvanic processing procedures as well as paint and powder coatings gehöhren with the delivery. Quality Management: Our company is certified according to ISO 9001:2000. With modern 3D measuring machines and Prüfleheren we constantly monitor the quality of our products.
1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8
Medebach, Germany
Member since 2010
Employees20 - 50
Certificates2
Turnover10 - 20 Mil.
Year of foundation1958
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | 50–10 M | 1–3,000 mm | 1–1,500 mm | 1–25 mm |
Bending / folding | 200–10 M | 3–1,200 mm | — | 0.5–15 mm |
Sheet Metal Forming (Stamping, Deep-drawing)
| Technologies | Lotsize | Length | Width | Height | Material thickness |
|---|---|---|---|---|---|
Punching / pressing (Out-of-tool) | from 15,000 | 3–2,300 mm | 3–630 mm | — | 0.5–6 mm |
Deep-drawing | from 5,000 | 1–1,000 mm | 15–630 mm | 1–200 mm | 1–6 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 500–10 M | 5–1,400 mm | 5–1,400 mm | 5–1,400 mm | — | 0–70 kg | — |
Inert gas shielded arc welding (TIG) | 500–10 M | 5–1,400 mm | 5–1,400 mm | 5–1,400 mm | — | 0–70 kg | — |
Laser-beam welding | 1,000–10 M | 15–3,000 mm | 15–1,500 mm | 1–150 mm | 1–1,500 mm | 0–300 kg | — |

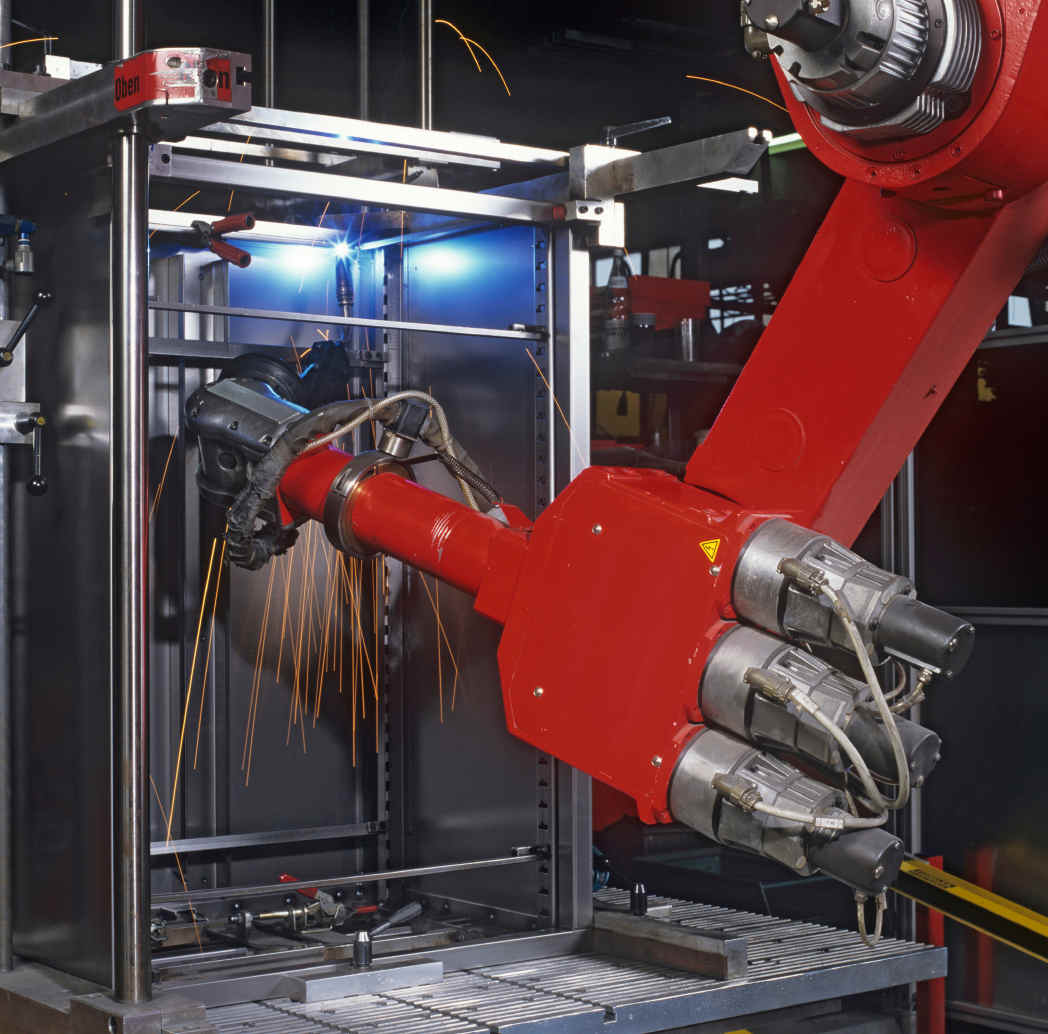

Robot welding | 500–10 M | 1–1,000 mm | 1–1,000 mm | 1–1,000 mm | — | 0–40 kg | — |
Spot welding | 500–10 M | — | — | — | — | — | 1–3 mm |
Stud welding | 500–10 M | — | — | — | — | — | — |
Projection welding | 500–10 M | — | — | — | — | — | 1–10 mm |
Cutting dies / deep drawing dies
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Punching / Cutting tools | 1–2,500 mm | 1–1,200 mm | 1–750 mm | 0–5,000 kg |
Follow-on composite tools | 1–2,500 mm | 1–1,200 mm | 1–750 mm | 0–5,000 kg |
Deep-drawing dies | 1–2,500 mm | 1–1,200 mm | 1–750 mm | 0–5,000 kg |
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Spark erosion wire cutting | 1–5,000 | 1–750 mm | 1–750 mm | 20–150 mm | 0–500 kg |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gauges | 1–3,000 mm | 1–3,000 mm | 1–3,000 mm | 0–5,000 kg |
Measuring / testing jigs | 1–3,000 mm | 1–3,000 mm | 1–3,000 mm | 0–5,000 kg |
Assembly jigs | 200–1,500 mm | 200–1,500 mm | 200–1,500 mm | 0–5,000 kg |
Welding jigs | 200–1,500 mm | 200–1,500 mm | 200–1,500 mm | 0–5,000 kg |
Clamping devices | 200–1,500 mm | 200–1,500 mm | 200–1,500 mm | 0–5,000 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 100–10 M | 5–500 mm | 5–500 mm | 1–10 mm | 0–25 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Rotofinishing, barrel finishing | 1,000–10 M | 15–300 mm | 15–300 mm | 1–300 mm |
Materials
Steel
Structural steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Spring steel
Light metals
Aluminium and aluminium alloys
Industries
Automotive and vehicle constructionBuilding, agricultural and forestry machinery manufacturingFurniture industryPackaging industry
Certificates
ISO 9001:2015
ISO 14001
Parts & Machines
Parts (12)
1 / 12

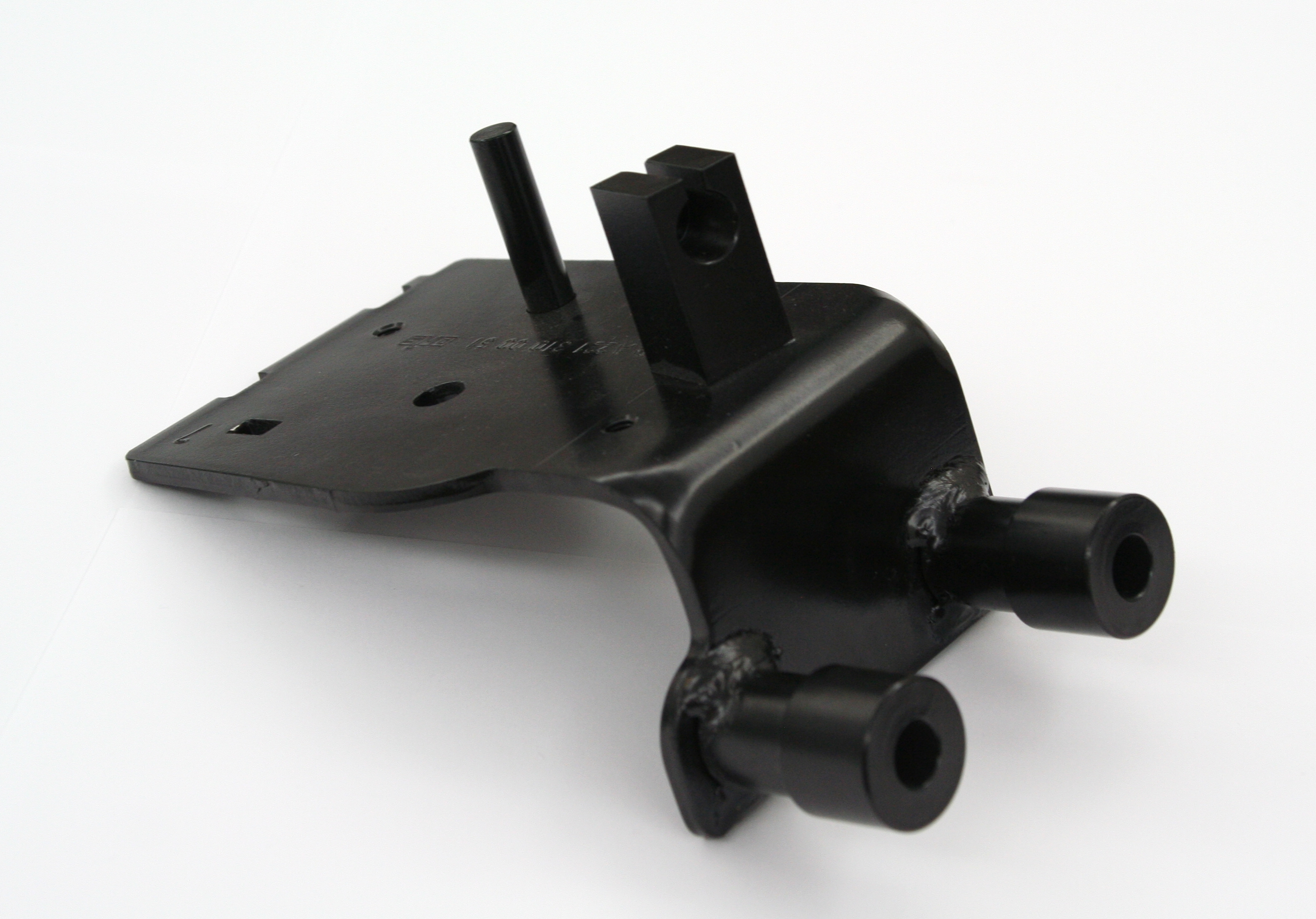

Schweißbaugruppe
TechnologyRobot welding
MaterialStructural steel
Lotsize0
IndustriesAutomotive and vehicle construction
2 / 12

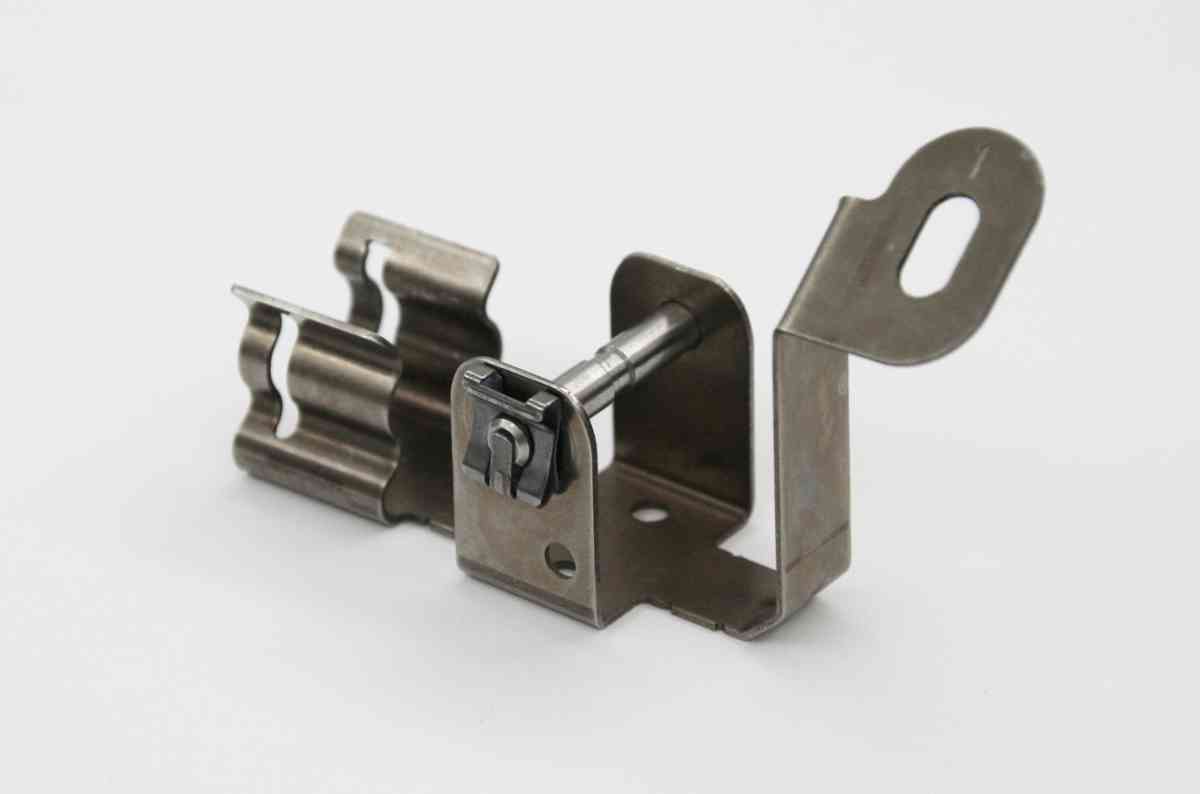

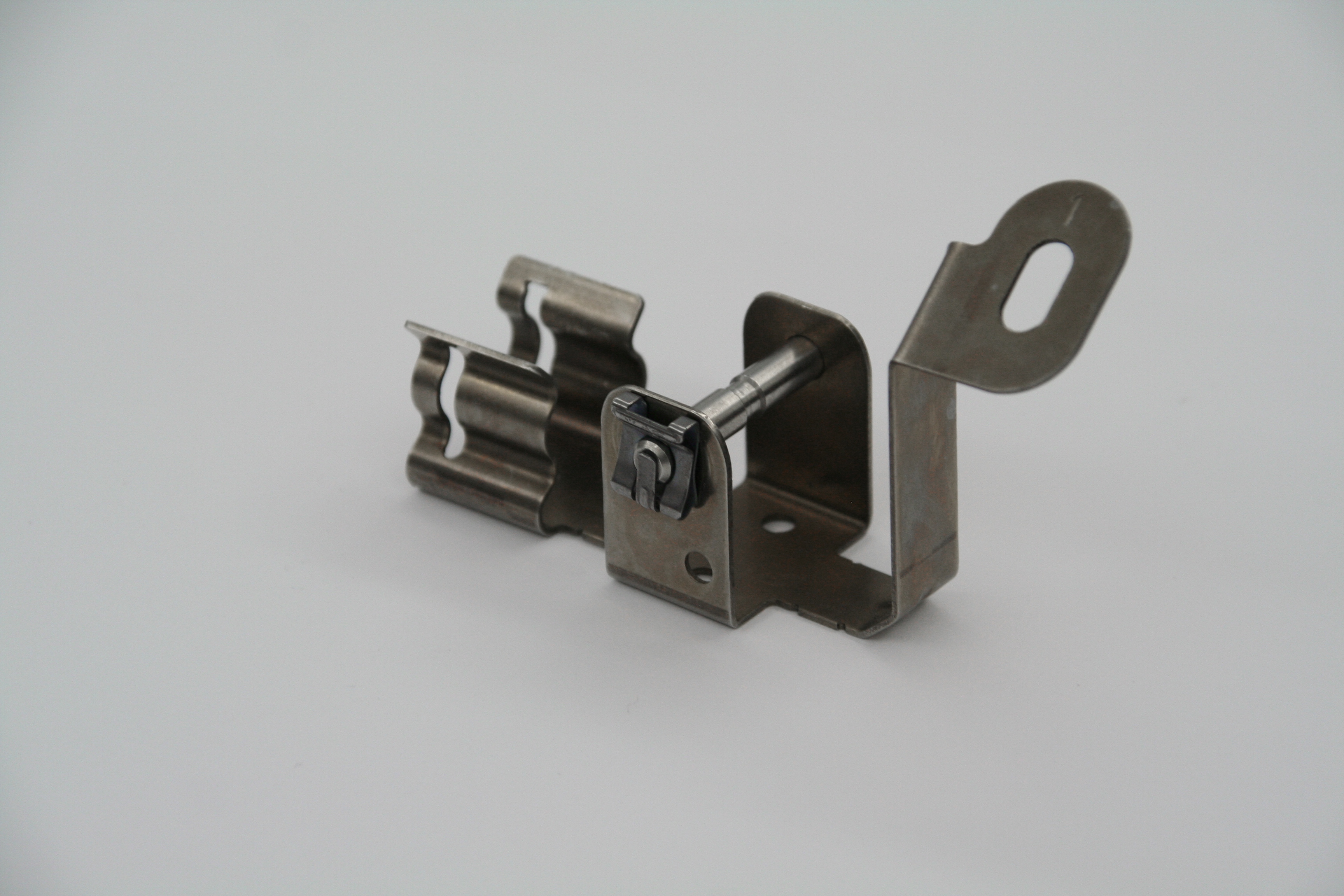

Feder
TechnologyPunching / pressing (Out-of-tool)
MaterialSpring steel
Lotsize0
IndustriesAutomotive and vehicle construction
3 / 12

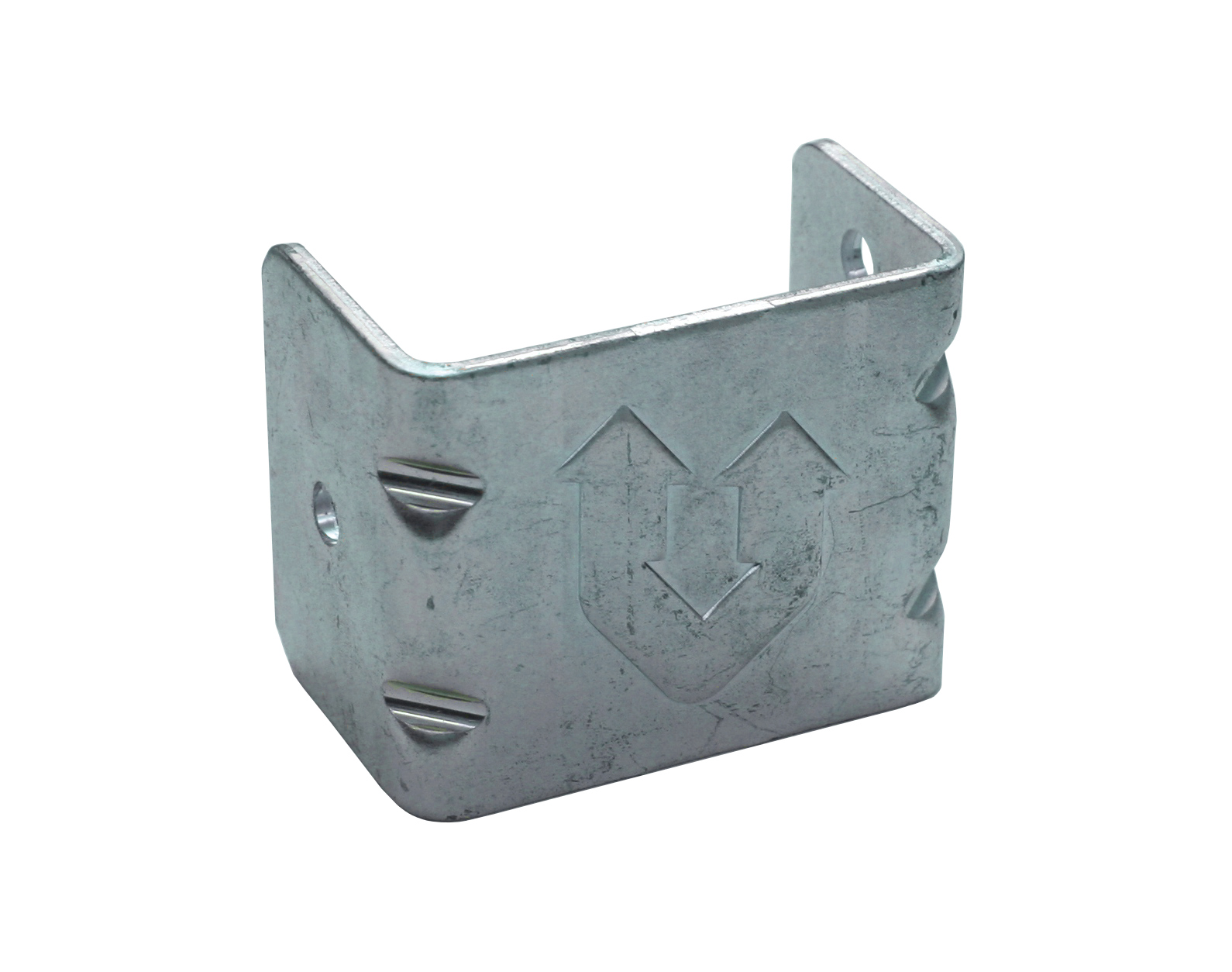

Palettenwinkel
TechnologyPunching / pressing (Out-of-tool)
MaterialStructural steel
Lotsize0
4 / 12

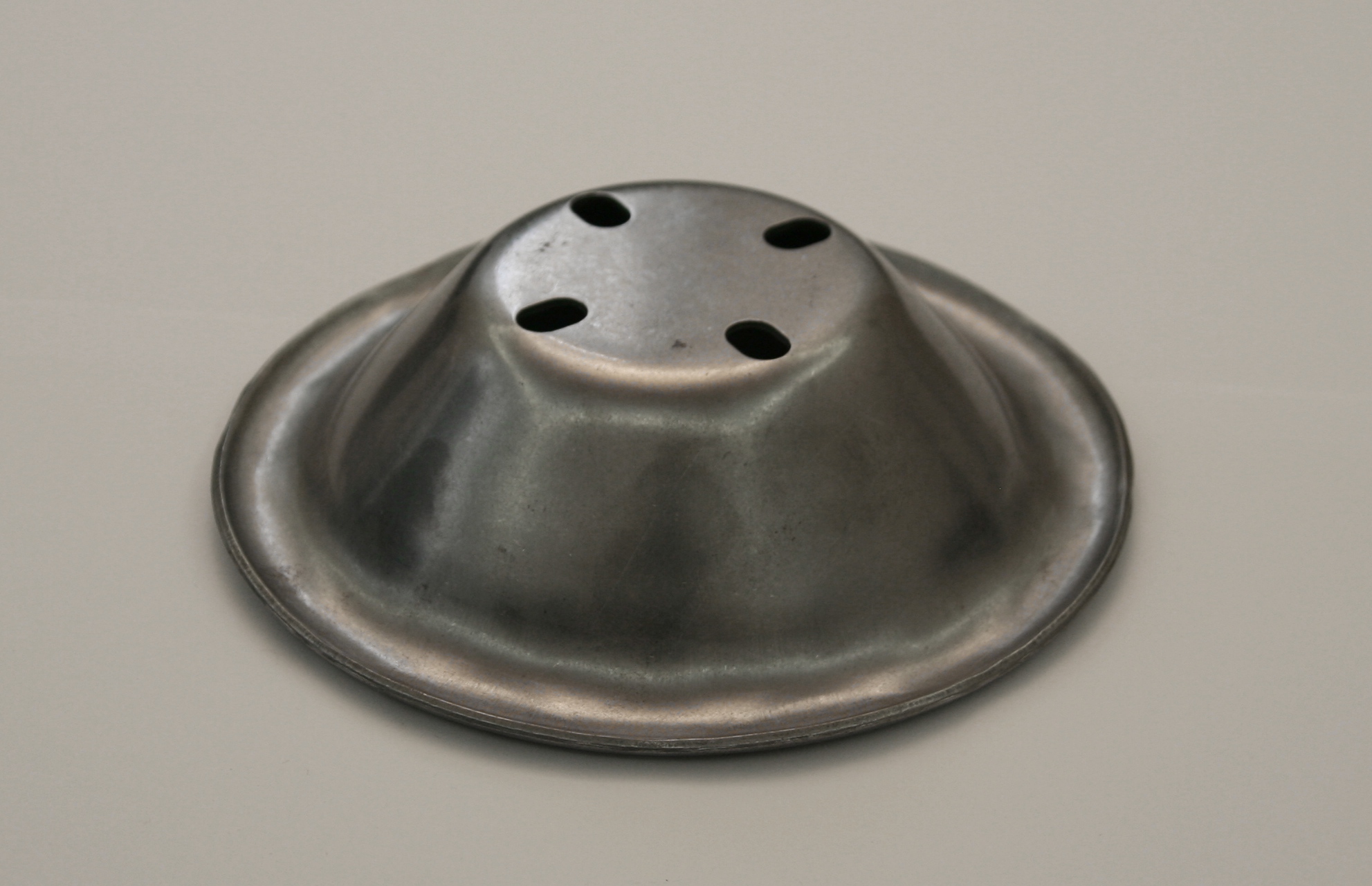

Tellerfuß
TechnologyDeep-drawing
Lotsize0
5 / 12

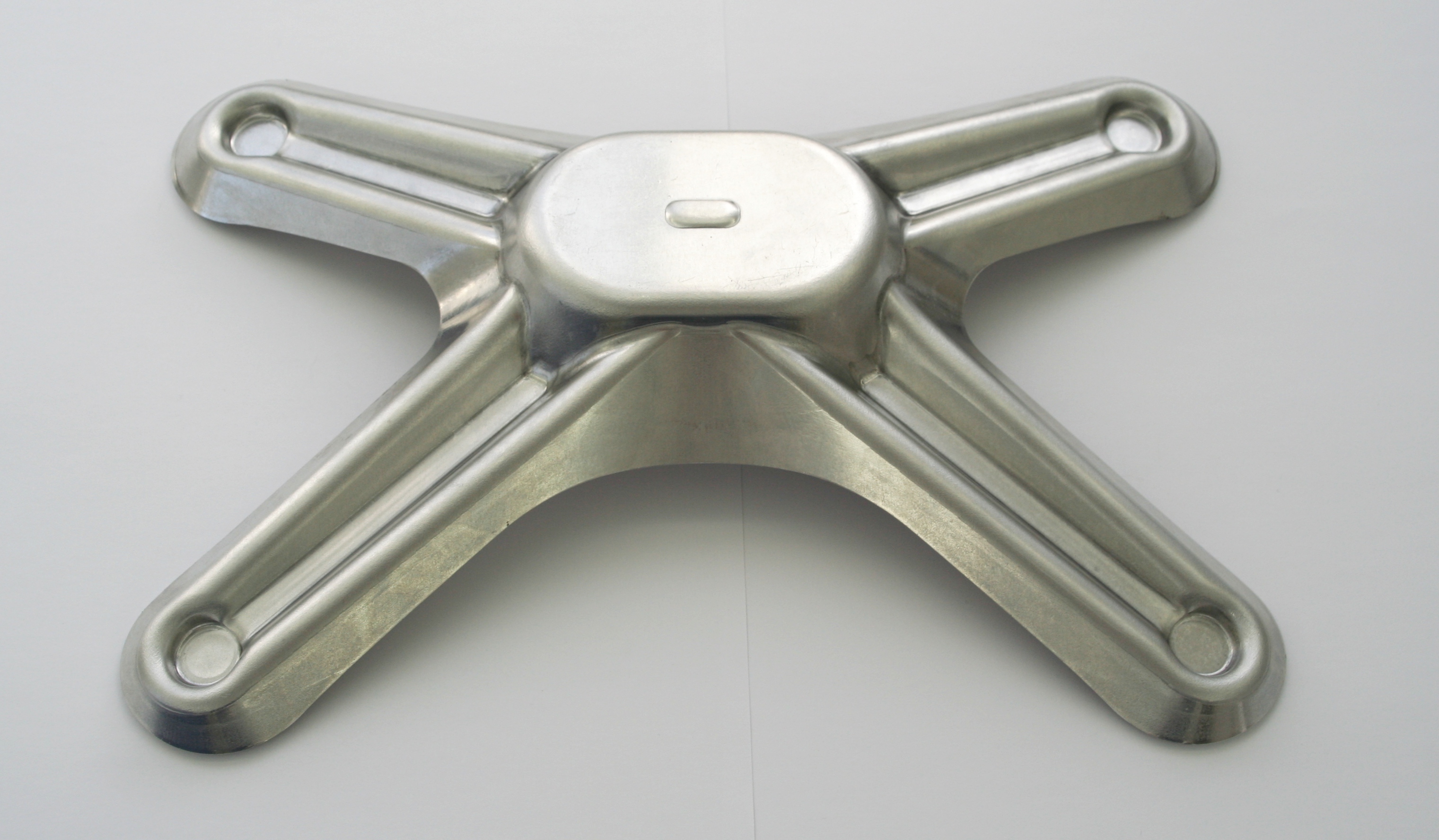

Sitzträger
TechnologyLaser cutting 2D
Lotsize0
6 / 12

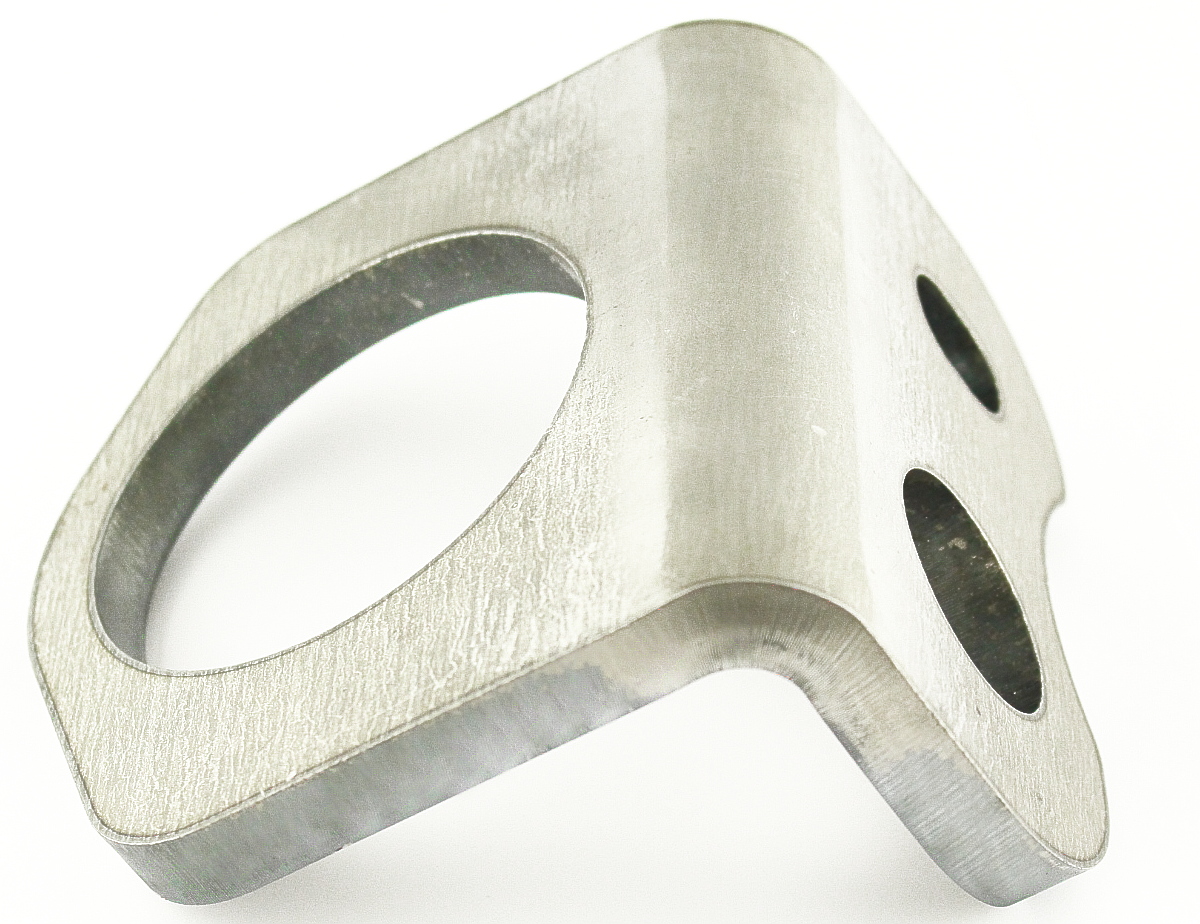

Abdruckfreies Biegen
TechnologyBending / folding
MaterialStructural steel
Dimensions
Material thickness12 mm
Length125 mm
Lotsize0
7 / 12

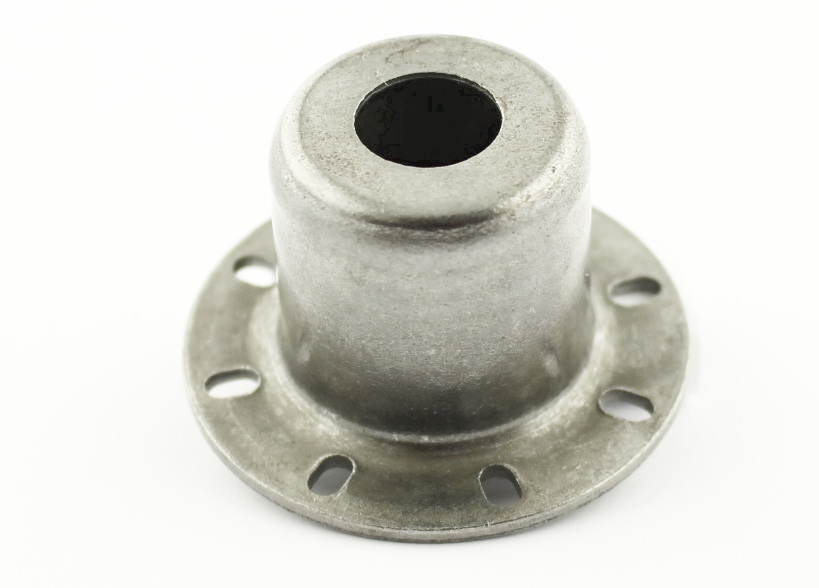

Tiefziehteil
TechnologyDeep-drawing
Lotsize0
8 / 12

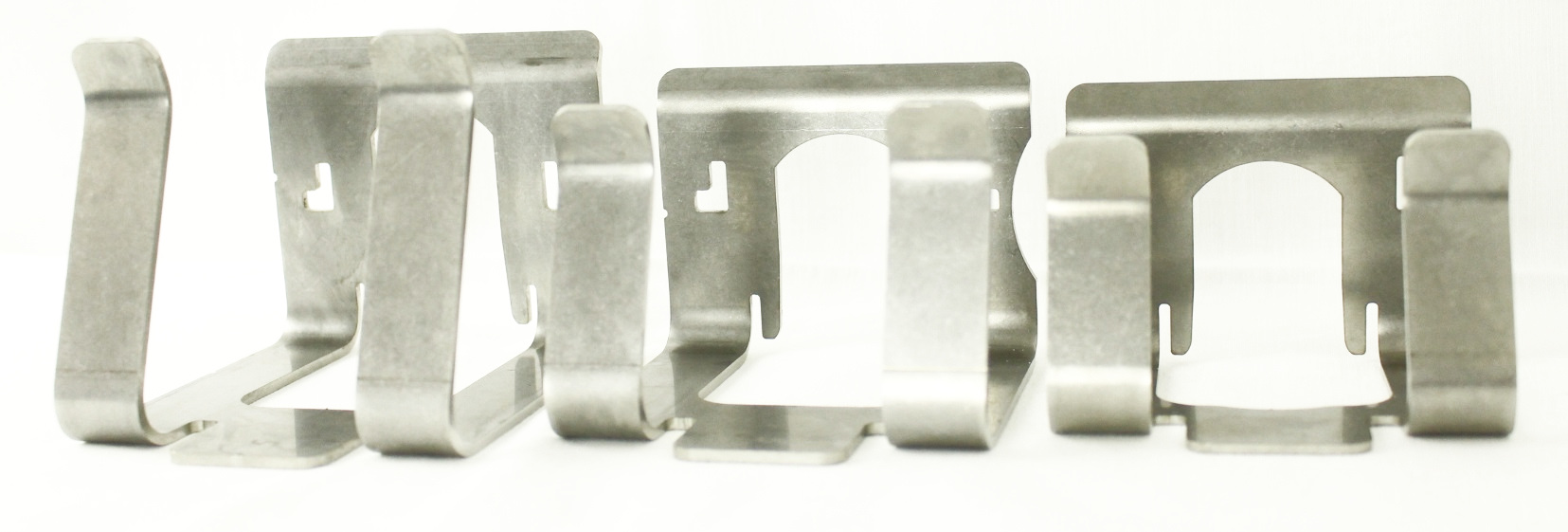

Federelemente
TechnologyLaser cutting 2D
MaterialSpring steel
Lotsize0
9 / 12

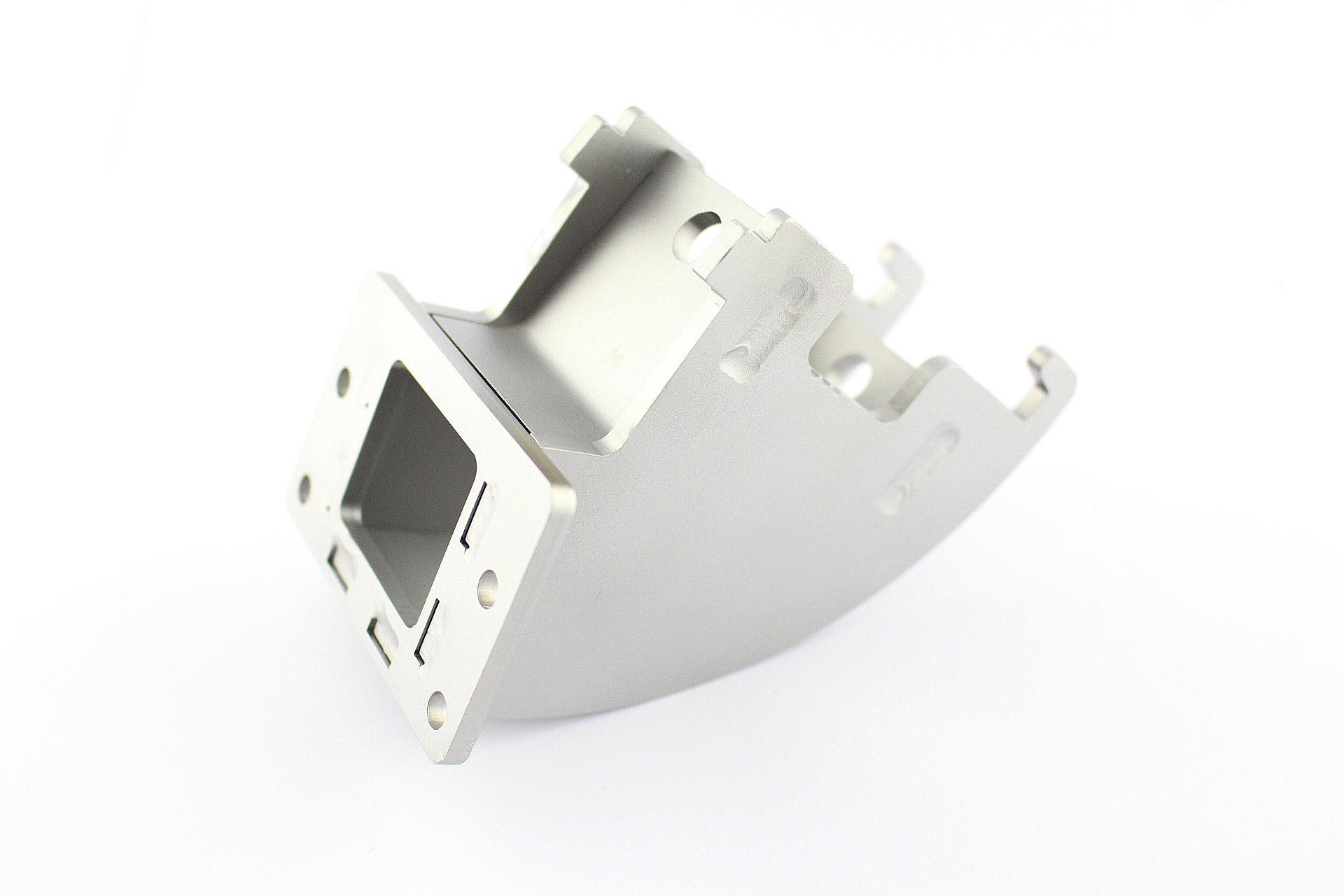

Schweißbauguppe
TechnologyInert gas shielded arc welding (TIG)
MaterialStructural steel
Lotsize0
10 / 12

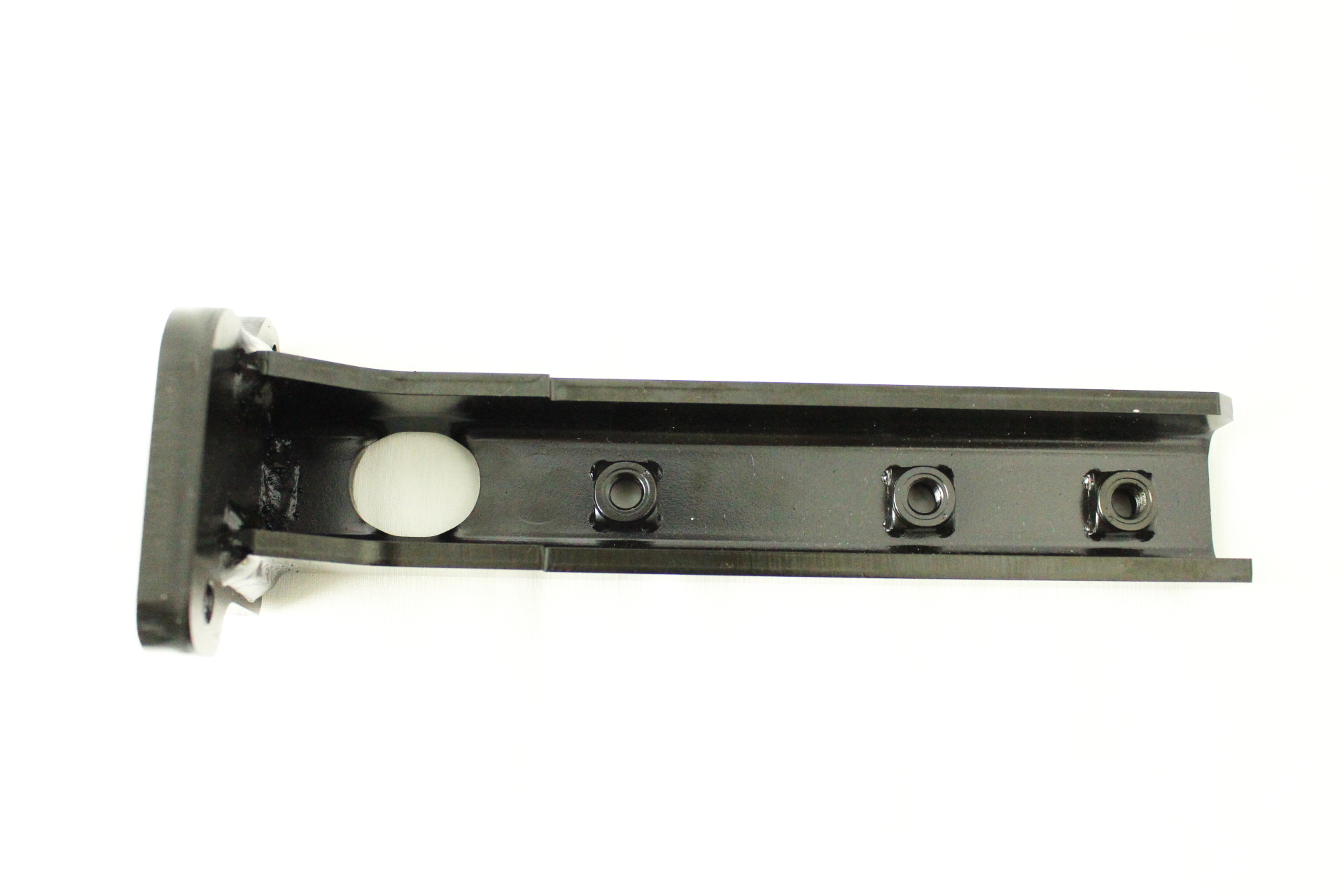

MAG und Buckelschweißen
TechnologyProjection welding
MaterialStructural steel
Lotsize0
11 / 12

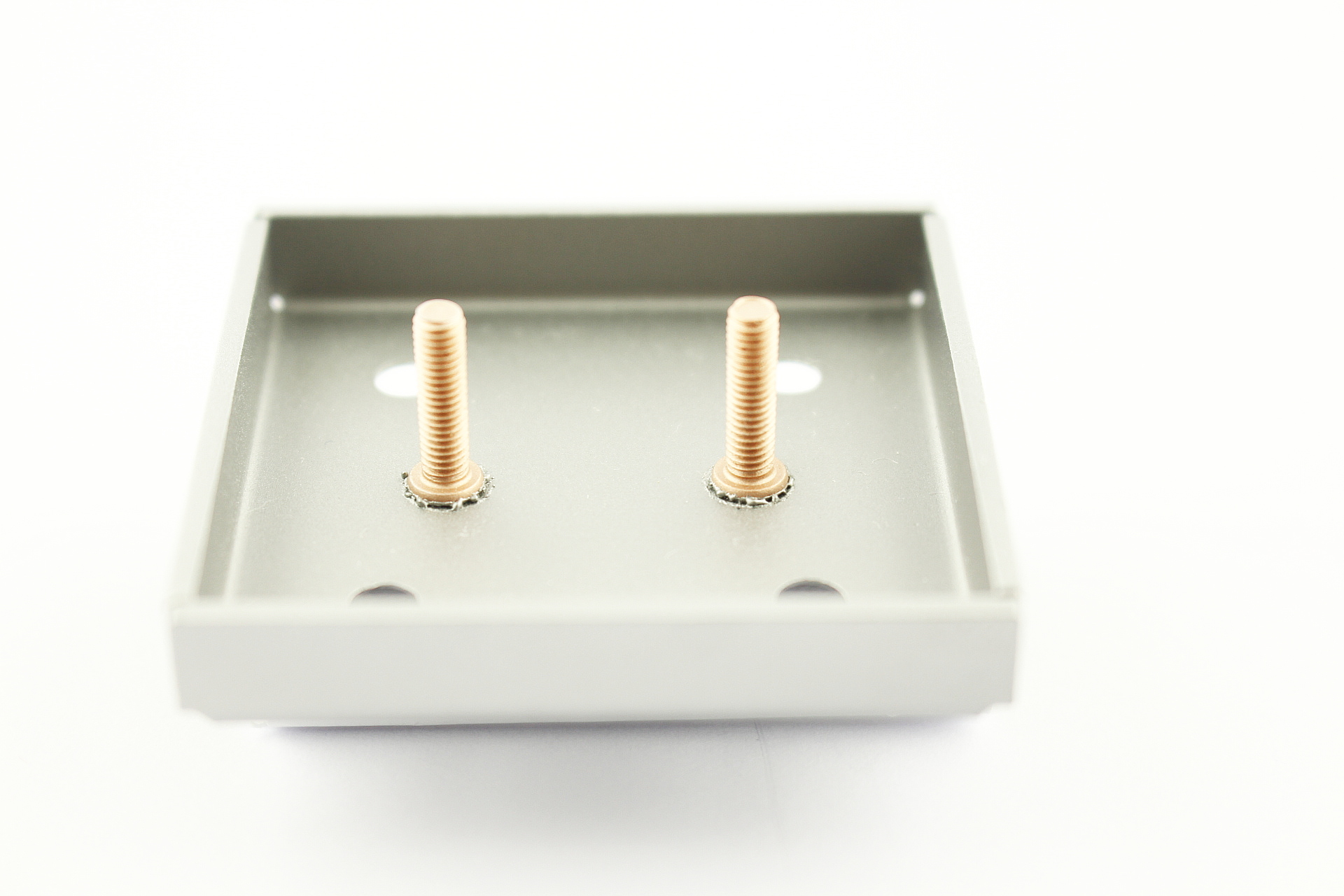

Bolzenschweißen
TechnologyStud welding
MaterialStructural steel
Lotsize0
12 / 12

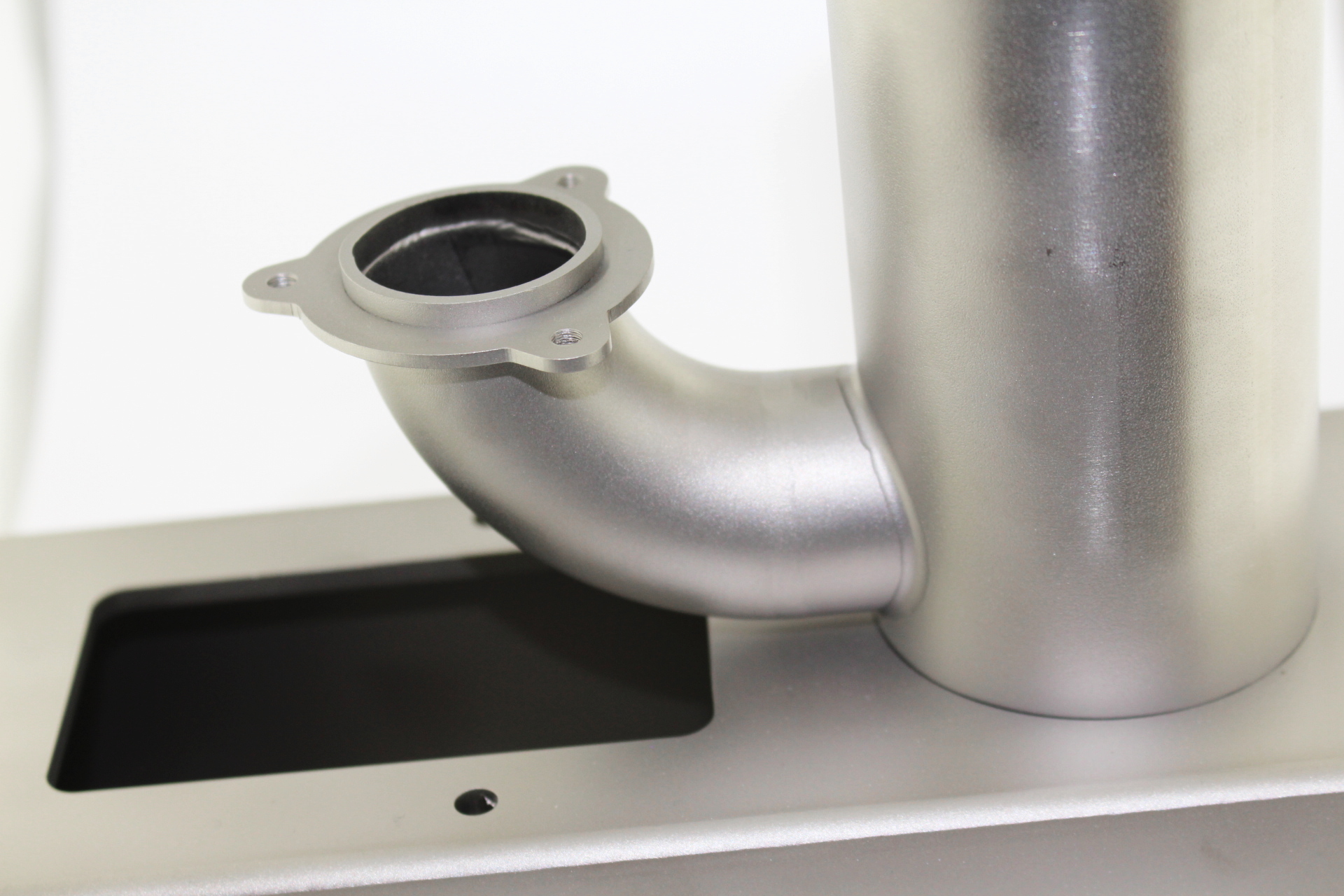

Schweißbaugruppe
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Lotsize0
Machinery (3)
1 / 3

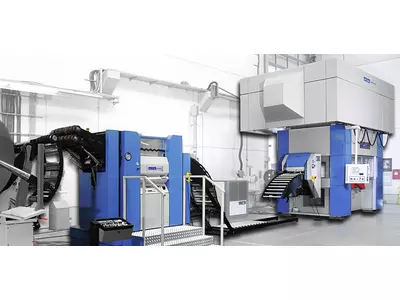

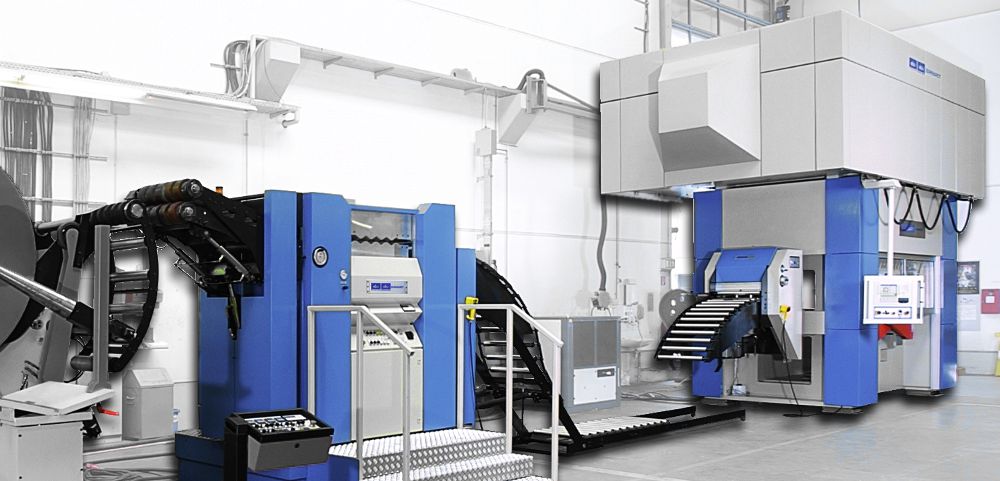

400 to Presse m. Bandzuführung
ManufacturerEBU
Control-
Year of Construction2002
Technology
Punching / pressing (Out-of-tool)Deep-drawing
2 / 3

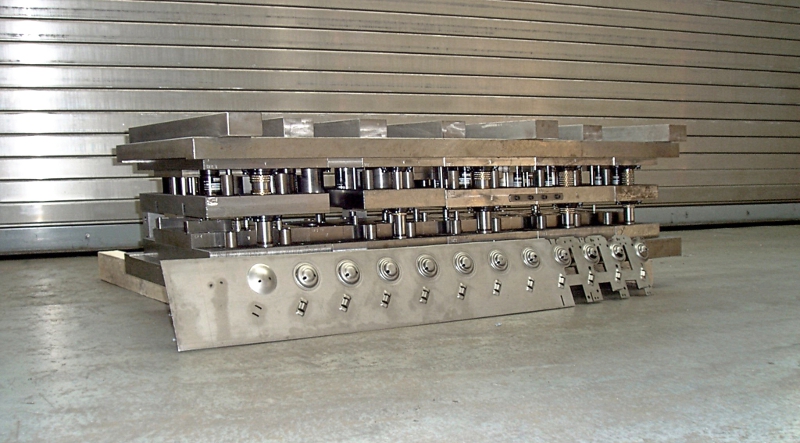

Werkzeugbau
ManufacturerM. Mütze GmbH
Control-
Technology
Deep-drawing diesFollow-on composite toolsPunching / Cutting tools
3 / 3

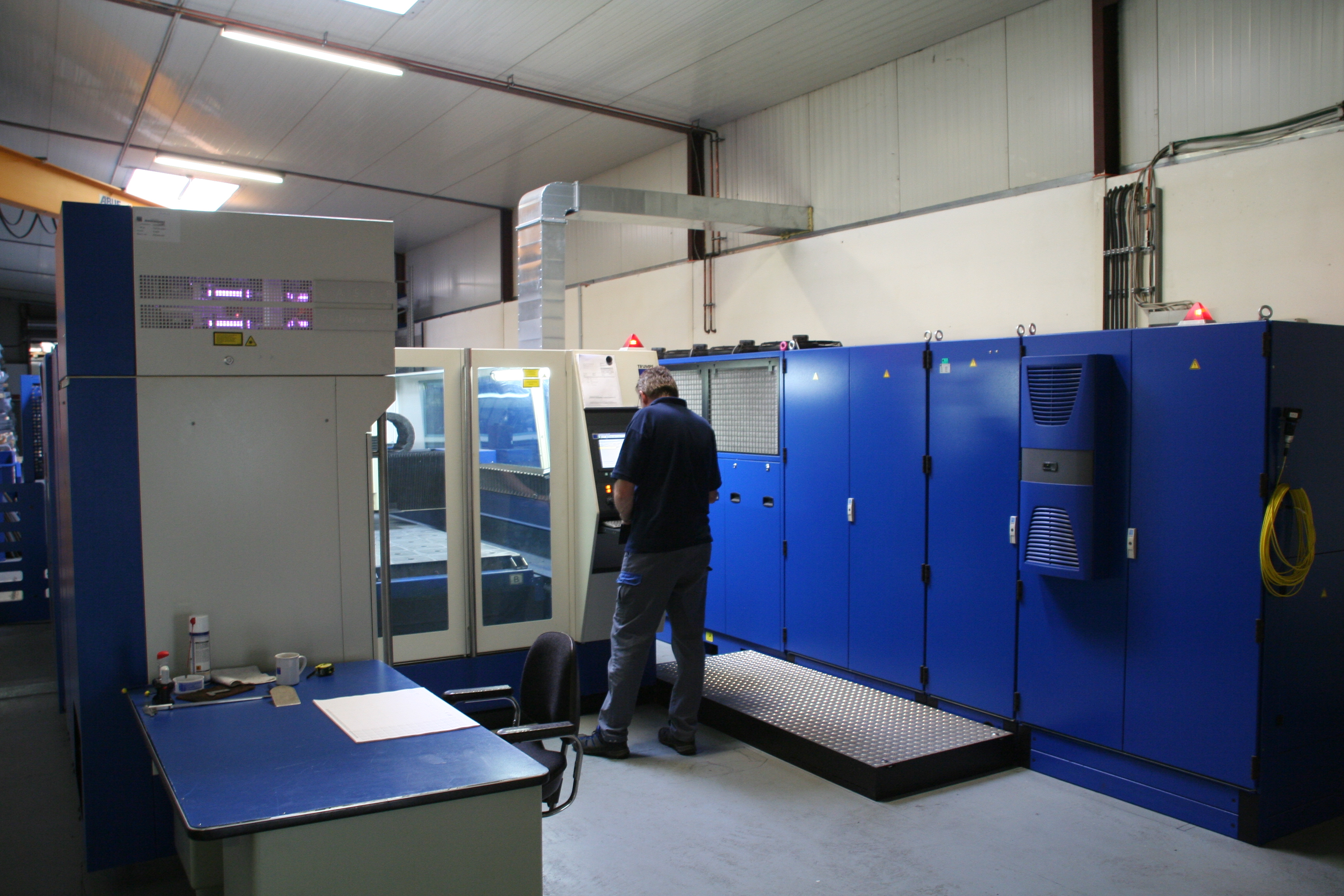

TruLaser 5030 classic
ManufacturerTrumpf
ControlTrumpf
Year of Construction2008
Technology
Laser cutting 2D
12 Parts
Robot welding1
Punching / pressing (Out-of-tool)2
Deep-drawing2
Laser cutting 2D2
Bending / folding1
Inert gas shielded arc welding (TIG)2
Projection welding1
Stud welding1
3 Machinery
Punching / pressing (Out-of-tool)1
Deep-drawing1
Deep-drawing dies1
Follow-on composite tools1
Punching / Cutting tools1
Laser cutting 2D1
Contact
Location
Main locationOggetal 14, 59964 Medebach, Germany
Further locationsMedebach
Company contact
Contact persons
NG
Nadine Goder
CM
Christian Mütze
JS
Jochen Schmitt
PD
Peter Damitsch
