MARTON AG
Switzerland, 9230 Flawil
Overview
About MARTON AG
Who we are
Firmenbeschreibung Innovation in der Blechfertigung Die Firma MARTON AG fertigt auf 4000qm Produktionsfläche Blechteile und komplexe Schweisskonstruktion in Chromstahl, Aluminium und Stahl mit geprüften Schweissern nach SN EN 287-1 / 9606-2 /DIN 3834 und EN 15085 CL 1 mit eigenen Schweissingenieur Unser eigenes Engineering verfügt über die modernsten 3D CAD Systeme um Kundenbedürfnisse rationell zu bearbeiten, unsere Dienstleistungen reichen bis hin zur Festigkeitsberechnungen der Bauteile. Kleinteilen von einigen Millimeter und Materialdicken von 0.2 – 30mm bis zu grossen Konstruktionen von max. 6.3 Tonnen - Losgrösse 1 bis Tausende Dank unserem modernen Maschinenpark (automatisierte Kombimaschine TruMatic 7000, neuste Flachlasertechnik Trumpf FIBER 5040 6kW 4 x 2 m automatisiert ans Blechlager angebunden und einer Bystronic-Wasserstrahlanlage 3 x 1.5 m) und unserem Blechlager mit bis zu 1`200 Tonnen Blech (Edelstahl, Aluminium und Stahl in allen Qualitäten) garantieren wir kürzeste Lieferfristen. Viele langjährige Kunden aus allen Bereichen der Industrie, Pharma, Medizinal, Defence, Luftfahrt, Lebensmitteltechnik, Maschinen- sowie Fahrzeugbau sind seit über 45 Jahren von unserer Leistung, hoher Qualität und konkurrenzfähigen Preisen überzeugt. Des Weiteren verfügen wir über folgende Zertifikate: • Schweissnorm EN 1090-2 EXC 3 • Schweissnorm DIN 18085 CL 1 • Schweissnorm DIN 3834 - 2 • Klebenorm DIN 6701 A2 • QS 9001:2015 • Umwelt DIN 14001 Bearbeitungsmöglichkeiten: - Flachlaser - Kombibearbeitung - Laserschweissen - biegen bis 4m und 320 to - Profilfräsmaschine bis 3.5m - 3D CAD Systeme - Einpressbefestigung HAEGER Lasergraviermaschine - Klebenorm DIN 6701 A2 - DIN 9001:2008 - DIN 1090-2 EXC 3 - DIN 14001 - DIN 3834-2 - DIN 15085 - CL 1 - Wasserstrahlanlage - 3D Messarm FARO - Vormontage - Baugruppenfertigung - Prototypenbau - Serienfertigung - Oberflächenbehandlungen mit Partnerfirmen
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Flawil, Switzerland
Member since 2011
Employees50 - 100
Certificates5
Turnover10 - 20 Mil.
Year of foundation1974
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Laser cutting 2D | 1–100 k | 1–6,000 mm | 1–2,000 mm | — | — | 0–2,000 kg | 0.1–30 mm |
Laser cutting 3D | 1–1,000 | 1–2,000 mm | 1–2,000 mm | 1–2,000 mm | — | 0–250 kg | 0.1–5 mm |
Bending / folding | 1–2,000 | 1–6,000 mm | — | — | — | — | 0.5–20 mm |
Punching / nibbling | 1–100 k | 1–3,000 mm | 1–1,500 mm | — | — | 0–300 kg | 1–8 mm |
Combined forming laser cutting / punching | 1–100 k | 1–3,000 mm | 1–1,500 mm | — | — | 0–300 kg | 0.1–8 mm |
Laser cutting, tube & section | 10–1,000 | 1–6,000 mm | 1–200 mm | 1–200 mm | 1–200 mm | 0–50 kg | 0.1–5 mm |
Plate straightening | 100–1,000 | — | 1–1,500 mm | — | — | — | 1–12 mm |
Shearing (rectangular blank/strip) | 1–1,000 | — | — | — | — | — | 1–3 mm |
Water jet cutting
| Technologies | Lotsize | Length | Width | Weight | Material thickness |
|---|---|---|---|---|---|
Water jet cutting 2D | 1–10,000 | 1–3,000 mm | 1–1,500 mm | 0–4,000 kg | 0.1–100 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 1–6,000 mm | 1–3,000 mm | 1–3,000 mm | 0–5,400 kg |
Machine frames / bases / racks | 1–6,000 mm | 1–3,000 mm | 1–3,000 mm | 0–5,400 kg |
Pipe & Tube Manufacturing
| Technologies | Lotsize | Length | Width | Diameter | Material thickness |
|---|---|---|---|---|---|
Pipe bending | 1–10,000 | 1–8,000 mm | — | 1–300 mm | 1–10 mm |
Flange bending, profile bending | 1–500 | — | 1–100 mm | — | 1–10 mm |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Clinching | 10–10,000 | 1–4,000 mm | 1–1,000 mm | — | — | — | 0.1–2 mm |
Folding | 10–10,000 | — | — | — | — | — | 0.1–2 mm |
Adhesive bonding | 10–10,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 0–6,300 kg | 0.1–20 mm |
Riveting | 10–10,000 | 1–4,000 mm | 1–2,000 mm | — | — | — | 1–3 mm |
Shrinking / cold-stretching | 10–500 | 1–300 mm | — | — | 1–300 mm | 0–30 kg | — |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–6,300 kg |
Electromechanical assembly | 0–6,300 kg |
Industrial / On-site-assembly | 0–6,300 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 1–2,400 mm | 1–2,400 mm | 1–2,400 mm | 1–2,400 mm | 0–2,000 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 10–10,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 1–2,000 mm | 0–6,300 kg | 1–70 mm |
Inert gas shielded arc welding (Plasma) | 10–1,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 1–1,500 mm | 0–6,300 kg | 0.2–3 mm |
Inert gas shielded arc welding (TIG) | 10–10,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 1–2,000 mm | 0–6,300 kg | 1–70 mm |
Laser-beam welding | 1–10,000 | 1–2,000 mm | 1–2,000 mm | 1–1,500 mm | 1–2,000 mm | 0–250 kg | — |
Robot welding | 10–10,000 | 1–2,500 mm | 1–2,500 mm | 1–2,500 mm | — | 0–250 kg | — |
Spot welding | 10–1,000 | — | — | — | — | — | 0.2–3 mm |
Stud welding | 10–10,000 | — | — | — | — | — | — |
Projection welding | 10–10,000 | — | — | — | — | — | 1–5 mm |
Soldering | 1–500 | 1–1,500 mm | 1–1,500 mm | 1–1,500 mm | 1–1,500 mm | 0–500 kg | — |
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1–1,000 | 5–800 mm | 20–250 mm |
Full-range turning (including milling) | 20–10,000 | 5–800 mm | 20–250 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Anodizing | 1–10,000 | 1–3,000 mm | 1–1,500 mm | 1–1,500 mm | 0–350 kg |
Pickling | 0–10,000 | 1–3,500 mm | 1–1,000 mm | 1–1,500 mm | 0–1,000 kg |
Electropolishing | 1–10,000 | 1–2,500 mm | 1–1,500 mm | 1–1,500 mm | — |
Electroplating | 1–1,000 | 1–4,000 mm | 1–1,500 mm | 1–2,000 mm | 0–1,500 kg |
Phosphatizing | 1–1,000 | 1–4,000 mm | 1–1,500 mm | 1–2,000 mm | 0–1,500 kg |
Powder coating | 1–10,000 | 1–6,000 mm | 1–1,500 mm | 1–1,500 mm | 0–400 kg |
Parts cleaning/degreasing | — | 1–1,500 mm | 1–3,300 mm | 1–1,500 mm | 0–3,000 kg |
Sand blasting | 1–1,000 | 1–800 mm | 1–800 mm | 1–800 mm | 0–80 kg |
Spray-painting | 1–10,000 | 1–4,000 mm | 1–1,500 mm | 1–1,500 mm | 0–1,500 kg |
Machining (Extruded Profiles)
| Technologies | Width | Height | Weight |
|---|---|---|---|
Machining of extruded sections | 1–120 mm | 1–3,500 mm | 0–250 kg |
Sheet Metal Forming (Stamping, Deep-drawing)
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Stamping and bending machine (Bihler) | 1–200 k | 1–4,000 mm | 1–4,000 mm | 0.2–10 mm |
Plate rolling / bending | 50–1,000 | — | 1–2,500 mm | 0.2–8 mm |
Mechanical Engineering
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Apparatus engineering | 1–1,000 | 1–4,000 mm | 1–4,000 mm | 1–4,000 mm | 0–6,300 kg |
Tool building | 1–1 | 1–6,000 mm | 1–6,000 mm | 1–6,000 mm | 0–6,300 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 10–10,000 | 10–4,000 mm | 10–1,500 mm | 10–1,500 mm | 0–6,500 kg |
Form milling (3 D) | 10–10,000 | 10–2,000 mm | 10–2,000 mm | 10–2,000 mm | 0–4,000 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Material thickness |
|---|---|---|---|---|---|
Belt grinding | 1–10,000 | — | 1–2,500 mm | — | 1–100 mm |
Rotofinishing, barrel finishing | 10–10,000 | 1–150 mm | 1–150 mm | 1–150 mm | — |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 1–10,000 | 1–4,000 mm | 1–1,500 mm | 1–800 mm | 0–200 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 1–10,000 | 1–600 mm | 1–600 mm | 1–400 mm | 1–600 mm |
Laser depth engraving | 1–10,000 | 1–600 mm | 1–600 mm | 1–400 mm | 1–600 mm |
Marking | 1–1,000 | 1–1,500 mm | 1–1,500 mm | 1–1,500 mm | 1–1,500 mm |
Materials
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersSilocone (LSR)Natural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Natural materials
Wood/timberRock
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Non-metal inorganic materials
GlassCast minerals
Industries
Power generation and transmission industryMilitary engineeringPackaging industrySpecial purpose machinery manufacturingClean room technologyFurniture industryMedical technologyApparatus engineeringPlant engineering and constructionMechanical engineeringBuilding, agricultural and forestry machinery manufacturingChemical industryAir conditioning, refrigeration and ventilation industryShipbuilding industryBoiler, container and tank construction Aerospace and aviation industryMining and tunnel engineeringLighting industryPaper and printing machinery industry
Certificates
ISO 9001:2015
ISO 14001
DIN EN 1090
DIN EN ISO 3834
EN 15085
Parts & Machines
Parts (10)
1 / 10
2 / 10

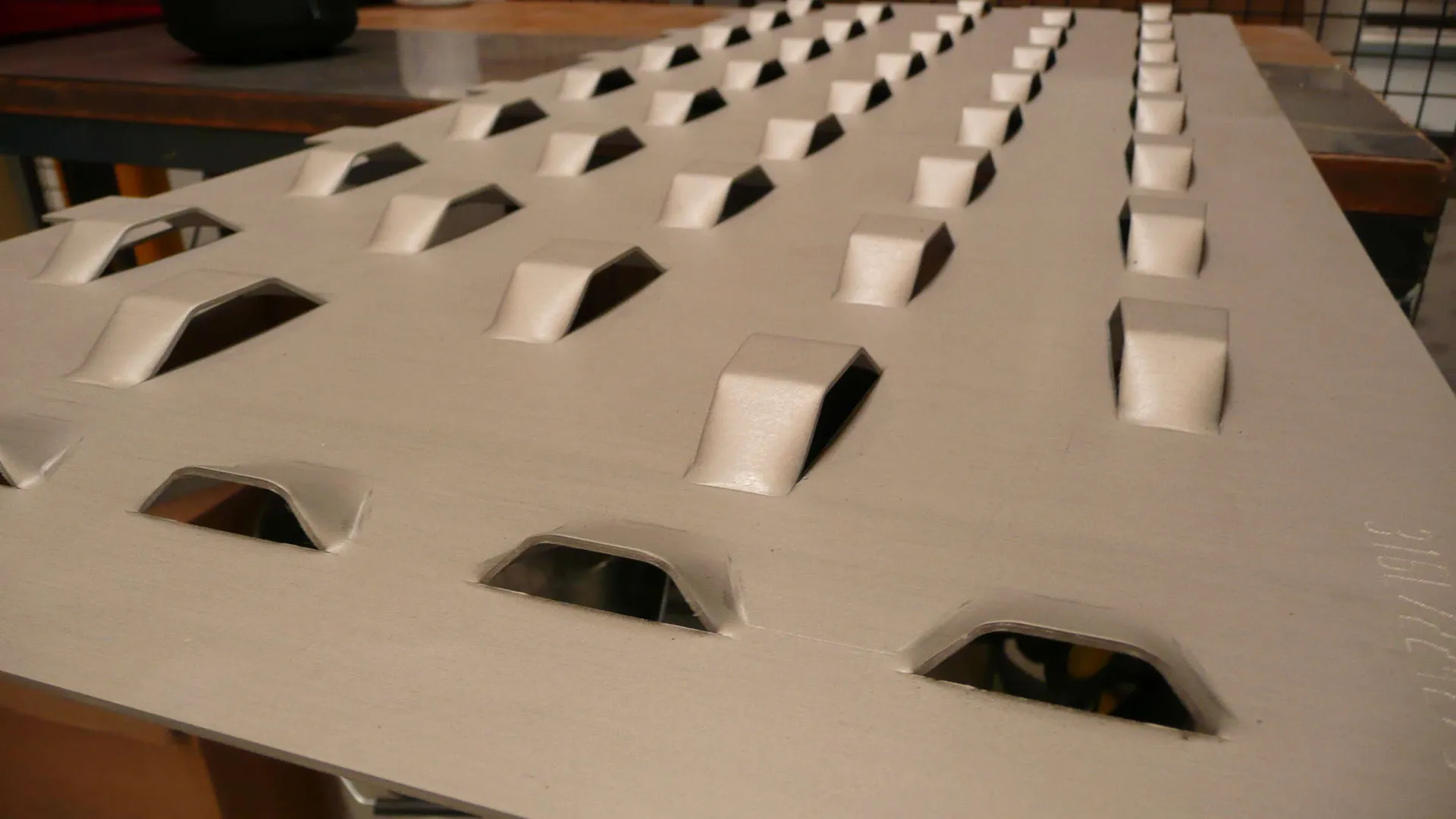

Titan
DescriptionKombiteil
3 / 10
4 / 10

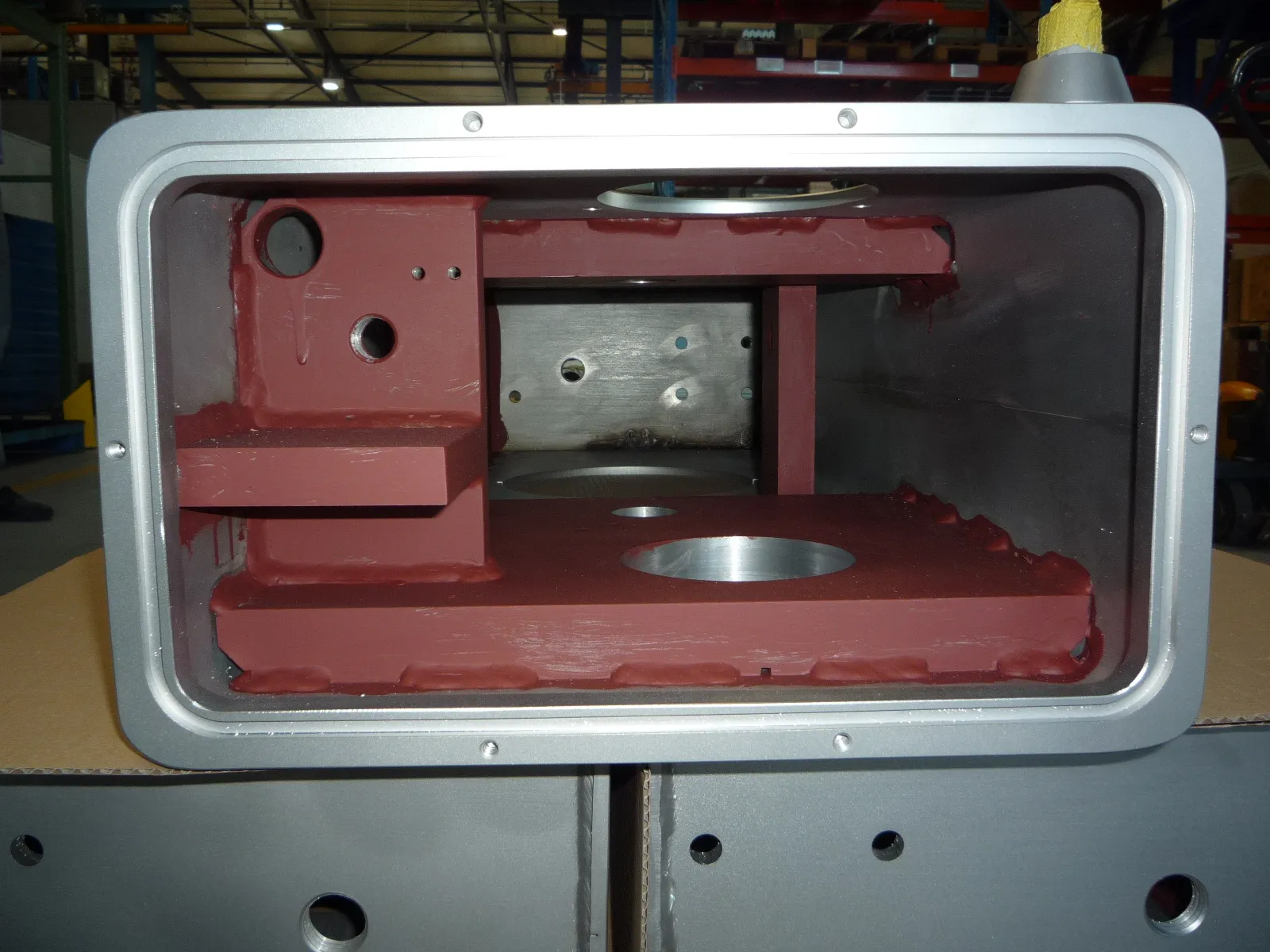

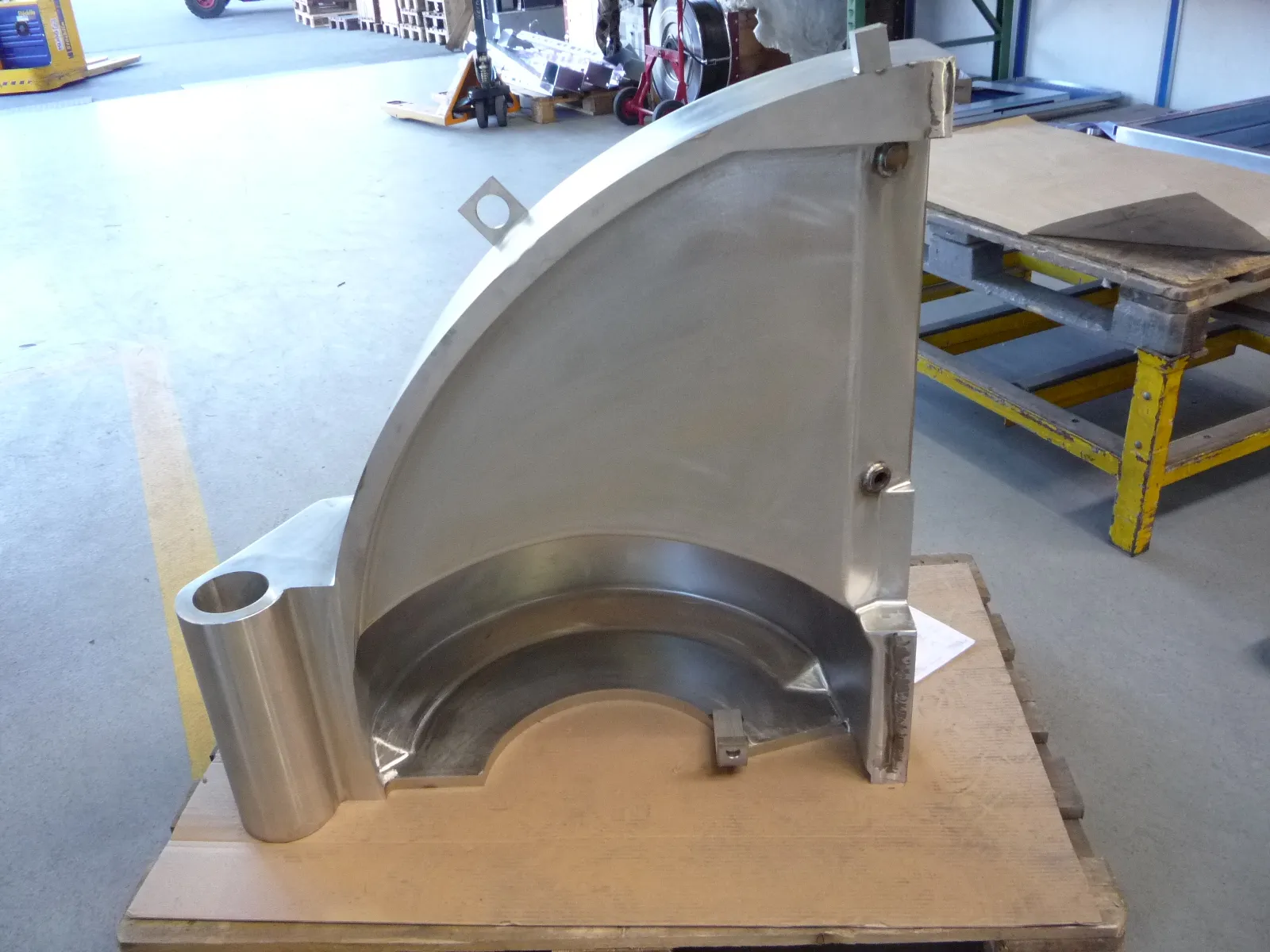

Schweisskonstruktionen
Descriptioninkl. mechanische Bearbeitung
5 / 10
6 / 10
7 / 10

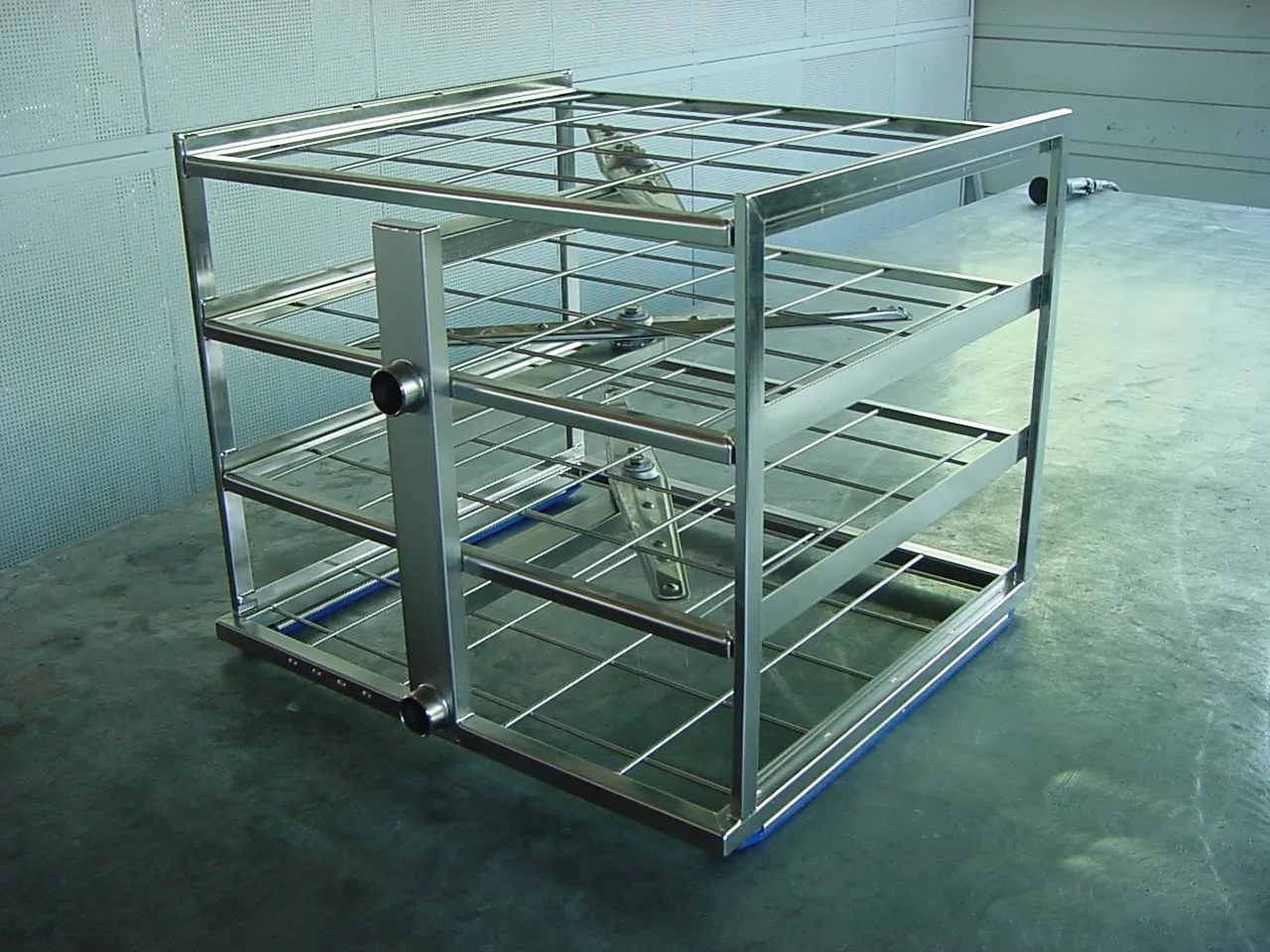

Medizinaltechnik
DescriptionVA kompl. verschweisst und e-poliert
8 / 10
9 / 10
10 / 10

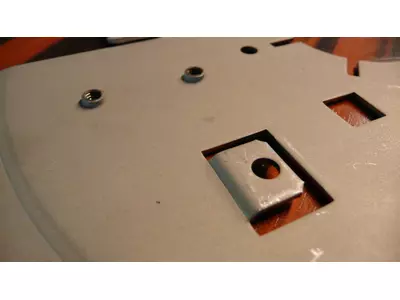

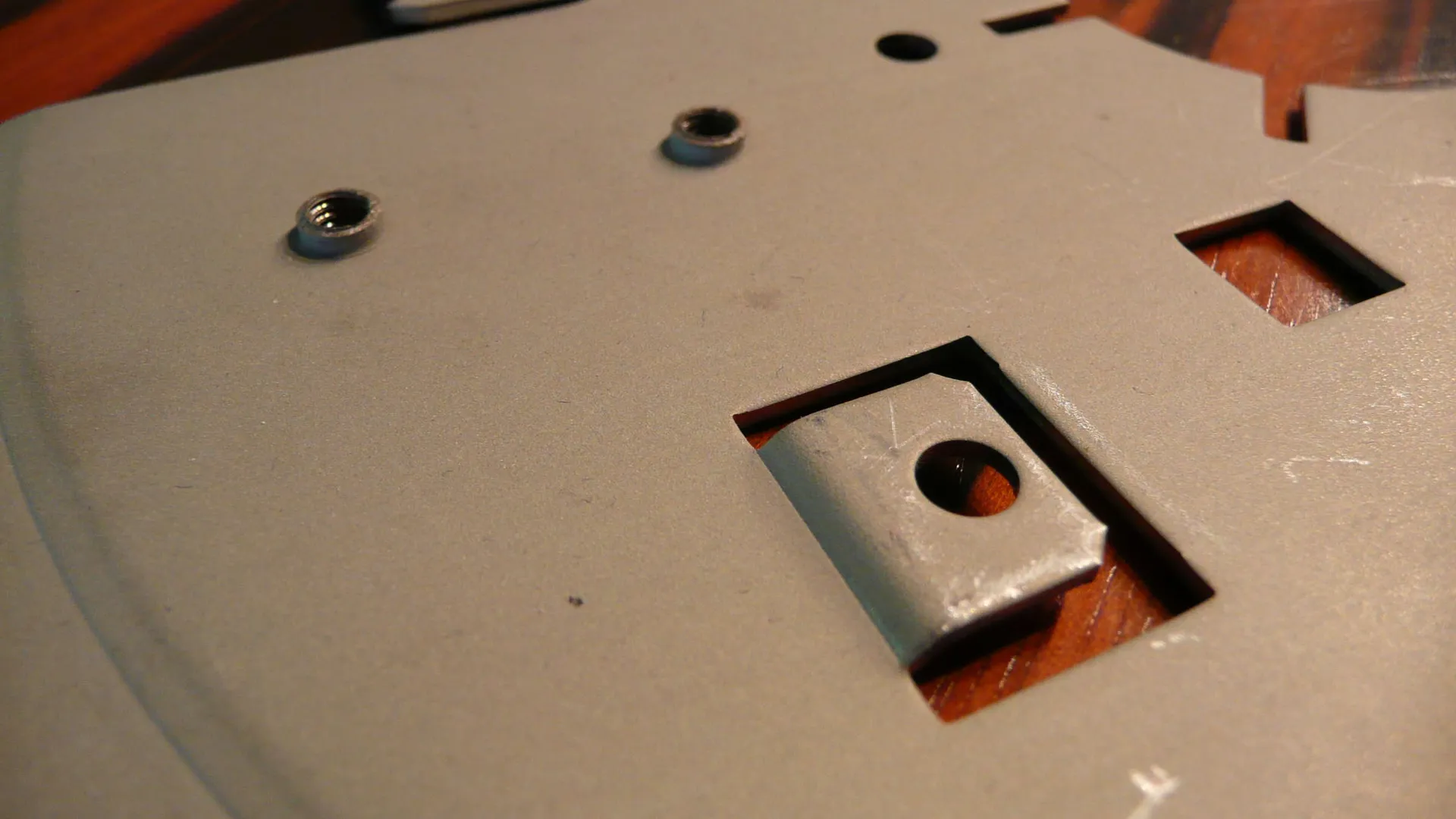

Kombiteil
DescriptionTrumpf TC 7000
Machinery (6)
1 / 6

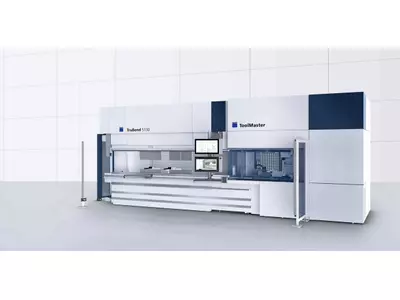

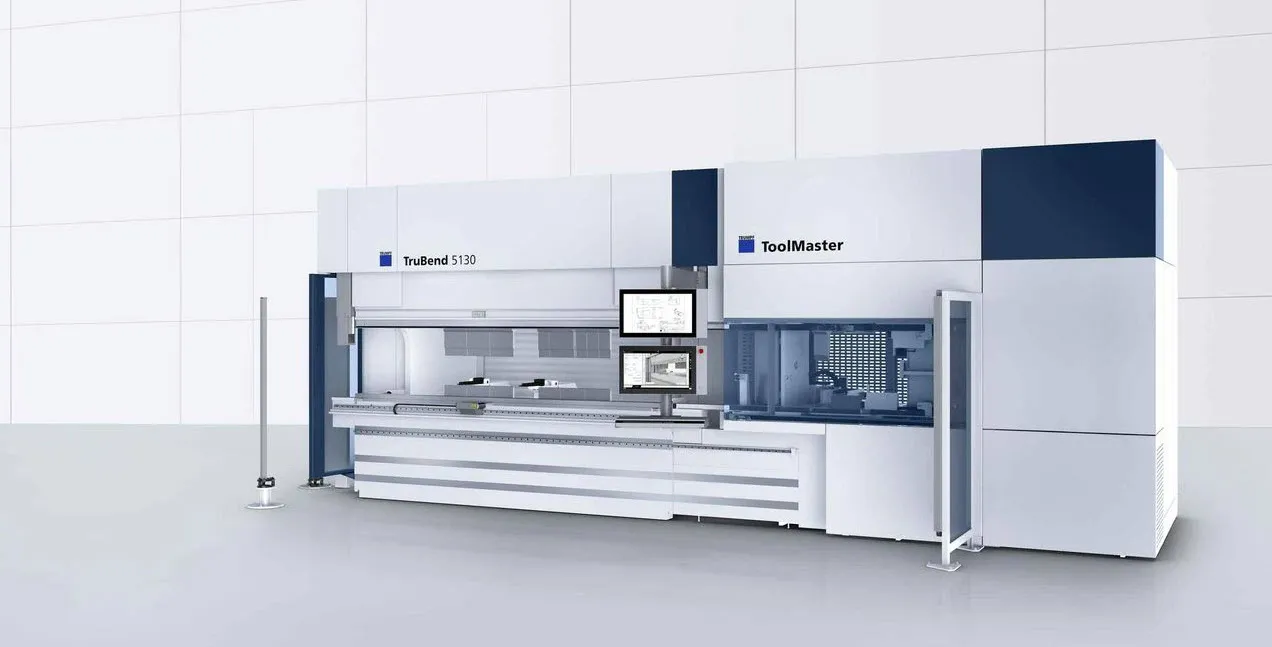

TruBend 5320 Toolmaster
ManufacturerTRUMPF
ControlBoost
Year of Construction2022
Technology
Apparatus engineeringBending / foldingTool building
2 / 6

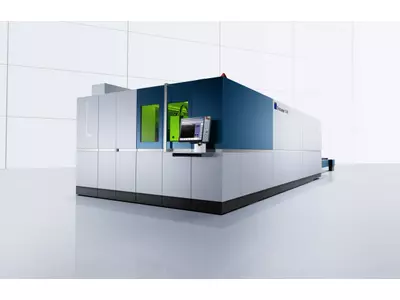

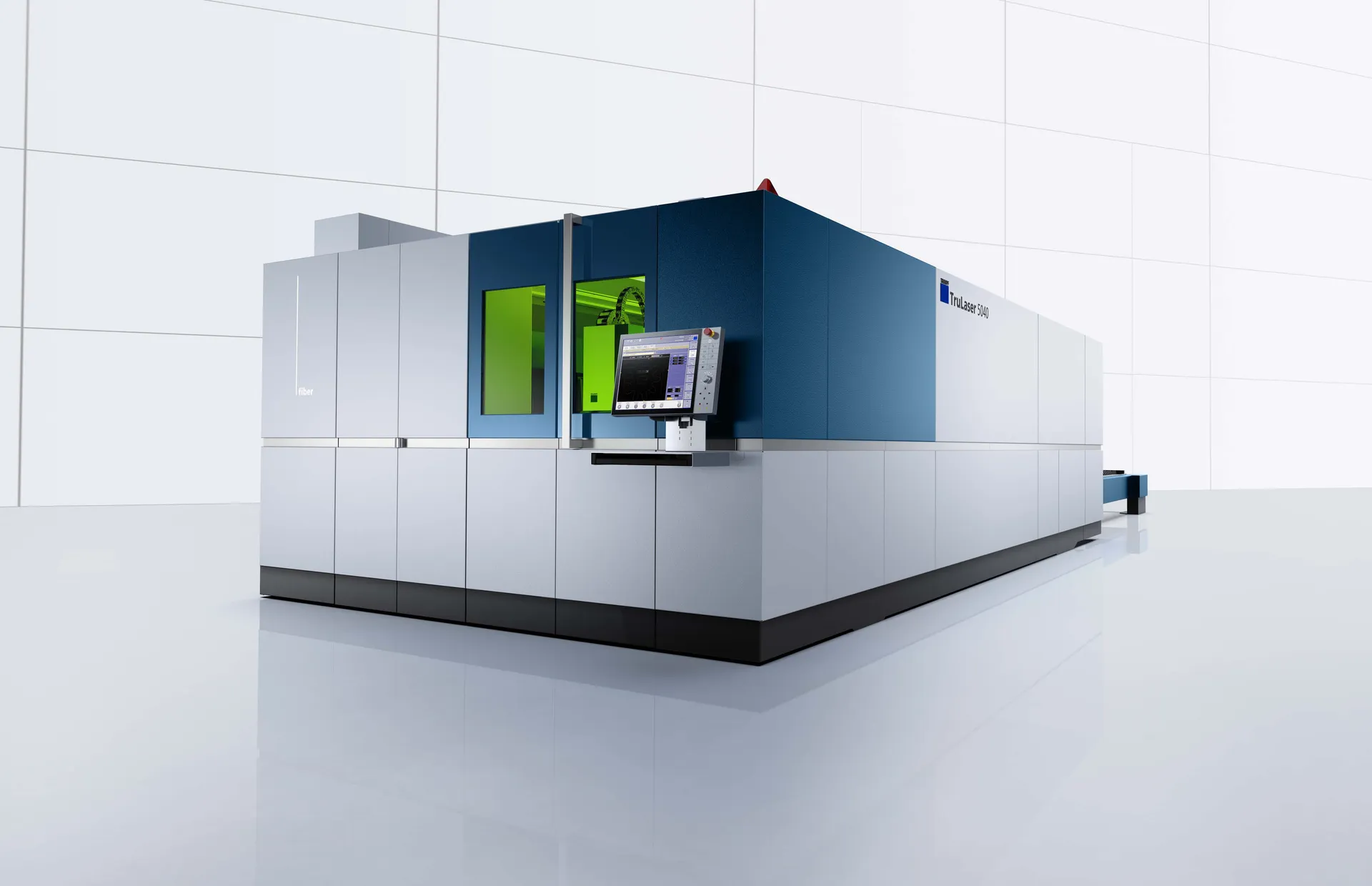

Trumpf 5040 FIBER 6kW
ManufacturerTRUMPF
ControlBoost
Year of Construction2016
Technology
Laser cutting 2D
3 / 6

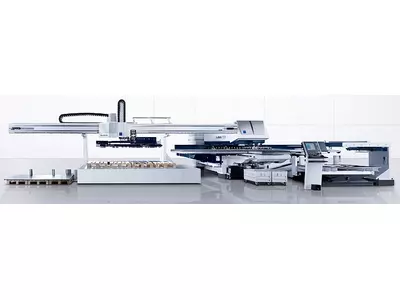

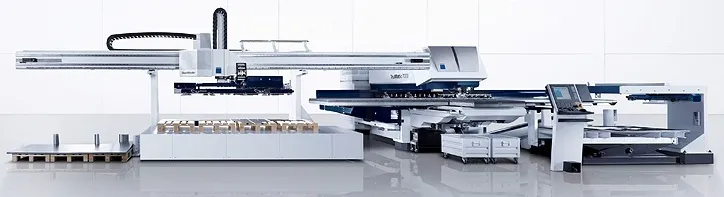

Trumatic TC 7000 FMC
ManufacturerTrumpf
ControlBoost
Year of Construction2010
Technology
Combined forming laser cutting / punchingLaser cutting 2DPunching / nibbling
4 / 6

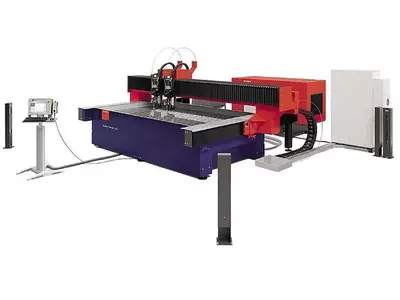

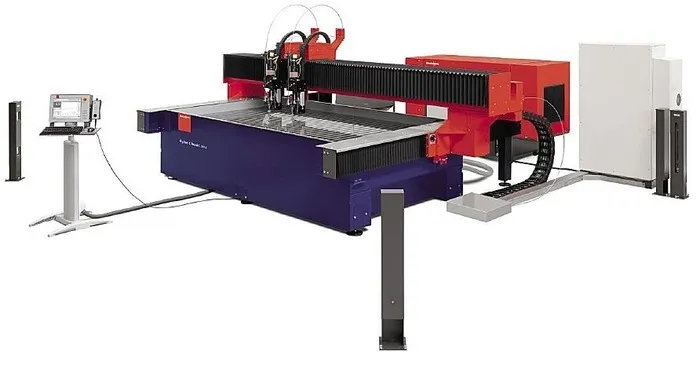

Wasserstrahlschneidanlage
ManufacturerBystronic
ControlBysoft 7
Year of Construction2010
Technology
Apparatus engineeringTool buildingWater jet cutting 2D
5 / 6

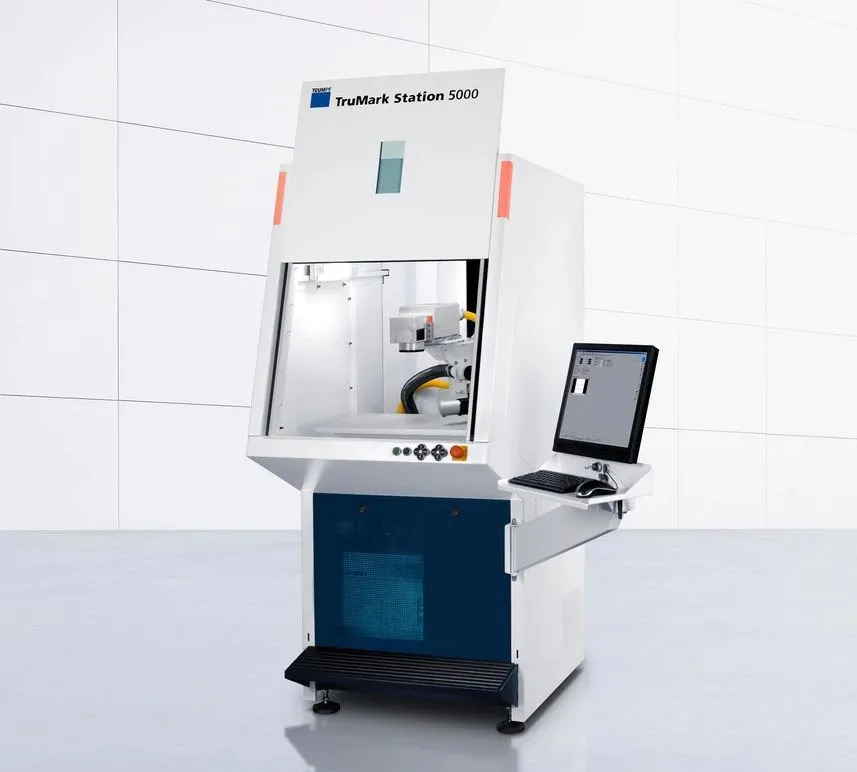

Lasergraviermaschine
ManufacturerTRUMPF
ControlTrumpf
Year of Construction2010
Technology
Laser marking / Laser inscriptionLaser depth engraving
6 / 6
Einpressbefestiger und Clinchen
ManufacturerHAEGER
ControlMaschiensteuerung
Year of Construction2019
Technology
Apparatus engineeringClinching
10 Parts
6 Machinery
Apparatus engineering3
Bending / folding1
Tool building2
Laser cutting 2D2
Combined forming laser cutting / punching1
Punching / nibbling1
Water jet cutting 2D1
Laser marking / Laser inscription1
Laser depth engraving1
Clinching1
