Overview

About MAW GmbH

Who we are

MAW GmbH from Ilshofen-Eckartshausen is an owner-managed contract manufacturer for metalworking. Since 1996, around 35 specialists have been processing tubes and aluminium profiles, welding assemblies, and powder coating them in-house. Managing directors are Ernst Holzinger and Michael Diehl; Michael Diehl heads the operational business. MAW's contract manufacturing is exclusively aimed at industrial and craft businesses throughout Germany and in foreign European countries. For tube laser cutting, MAW uses a TRUMPF TruLaser Tube 7000, which cuts round, square, rectangular, and oval tubes up to 6,000 mm finished part length and 200 mm circumscribing circle. Special profiles are also possible after testing. Wall thicknesses range up to 8 mm for steel, up to 6 mm for stainless steel, and up to 5 mm for aluminium. Bevel cuts up to 45° as well as cut or formed threads from M4 to M12 are produced directly in the machine. In aluminium profile processing, MAW saws, drills, mills, and clinches profiles up to 7,300 mm in length and cuts threads. For this, MAW uses the 5-axis bar machining centre Elumatec SBZ 151 Edition 90. In contract welding, MAW welds steel, stainless steel, and aluminium using MIG, MAG, and TIG processes as well as spot welding. For welding work on steel, MAW is certified as a welding specialist company according to EN 1090 EXC 2. The certificate was issued by DVS ZERT GmbH. MAW manufactures tube frames and other welded assemblies completely according to customer drawings, from tube cutting to welding and powder coating. Laser cutting and bending of sheet metal parts are carried out by partner companies. In its own powder coating facility, MAW coats parts made of steel and aluminium up to 4,000 mm in length, 2,000 × 2,000 mm cross-section, and 1,000 kg piece weight. Before coating, the parts are pre-treated using a nanoceramic process. Available are RAL, NCS, and house colours in various gloss levels and structures. Coating thickness, gloss, adhesion via cross-hatch test, and resistance in the salt spray test are checked. The standard delivery time is 5 to 10 working days. By agreement, coating within 72 hours is also possible for an additional charge. MAW offers powder coating within a radius of around 80 km around Ilshofen, including for companies from Stuttgart, Heilbronn, Ulm, Würzburg, and Nuremberg. MAW works for companies in the machinery and plant engineering, special machinery, material handling, commercial vehicle and agricultural machinery manufacturing, furniture industry, aerospace, and defense technology sectors, for component manufacturers, as well as for metal construction and craft businesses. MAW handles individual parts, series production, and framework orders. An offer is usually provided within 48 hours. Delivery is made using MAW's own trucks or via freight forwarders. In addition to contract manufacturing, MAW builds breathing apparatus workshops, breathing apparatus training systems, PPE treatment systems, and mobile training systems for fire departments worldwide. MAW presents this business area on mawonline.de. All metalworking services are described in detail by MAW on maw-metallbearbeitung.de.
1 / 10
2 / 10
3 / 10
4 / 10
5 / 10
6 / 10
7 / 10
8 / 10
9 / 10
10 / 10
Ilshofen, Germany
Member since 2018

Videos

Drohnenflug über das MAW-Firmengelände in Ilshofen
Employees20 - 50
Certificates1
Turnover5 - 10 Mil.
Year of foundation1996

Competencies

Technologies

Machining (Extruded Profiles)

TechnologiesWidthHeightWeight
Machining of extruded sections
10–500 mm10–250 mm1–100 kg

Welding

TechnologiesLotsizeLengthWidthHeightWeight
Inert gas shielded arc welding (MIG/MAG)
from 0from 0 mmfrom 0 mmfrom 0 mmfrom 0 kg
Inert gas shielded arc welding (TIG)
from 0from 0 mmfrom 0 mmfrom 0 mmfrom 0 kg

Pipe & Tube Manufacturing

TechnologiesLotsizeLengthWidthHeightDiameterWeightMaterial thickness
Laser cutting, tube & section
10–100 k0–6,000 mm15–200 mm15–200 mm15–200 mm0–225 kg0.5–10 mm

Surface Treatment

TechnologiesLotsizeLengthWidthHeightWeight
Powder coating
1–10,000100–4,000 mm100–2,000 mm100–2,000 mm0–2,000 kg

Materials

Light metals
Aluminium and aluminium alloys
Steel
Stainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Tool steel

Industries

Building, agricultural and forestry machinery manufacturingApparatus engineeringMechanical engineeringSpecial purpose machinery manufacturingFurniture industryMilitary engineeringPlant engineering and constructionAerospace and aviation industryAutomotive and vehicle construction

Certificates

DIN EN 1090

Parts & Machines

Machinery (2)

1 / 2
SBZ 151 Edition 90
SBZ 151 Edition 90
ManufacturerElumatec
Technology
5-axis milling machines
2 / 2

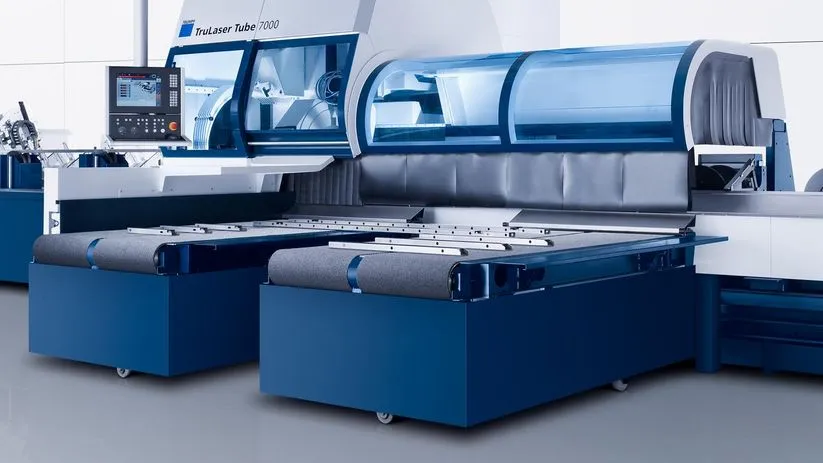

TruLaser Tube 7000
ManufacturerTrumpf
Year of Construction2018
Technology
Laser cutting, tube & section
2 Machines
5-axis milling machines1
Laser cutting, tube & section1

Contact

Location

Main locationMax-Eyth-Straße 5, 74532 Ilshofen, Germany
