MAZ Maschinen- und Apparatebau GmbH & Co KG

Germany, 88605 Meßkirch

Overview

About MAZ Maschinen- und Apparatebau GmbH & Co KG

Who we are

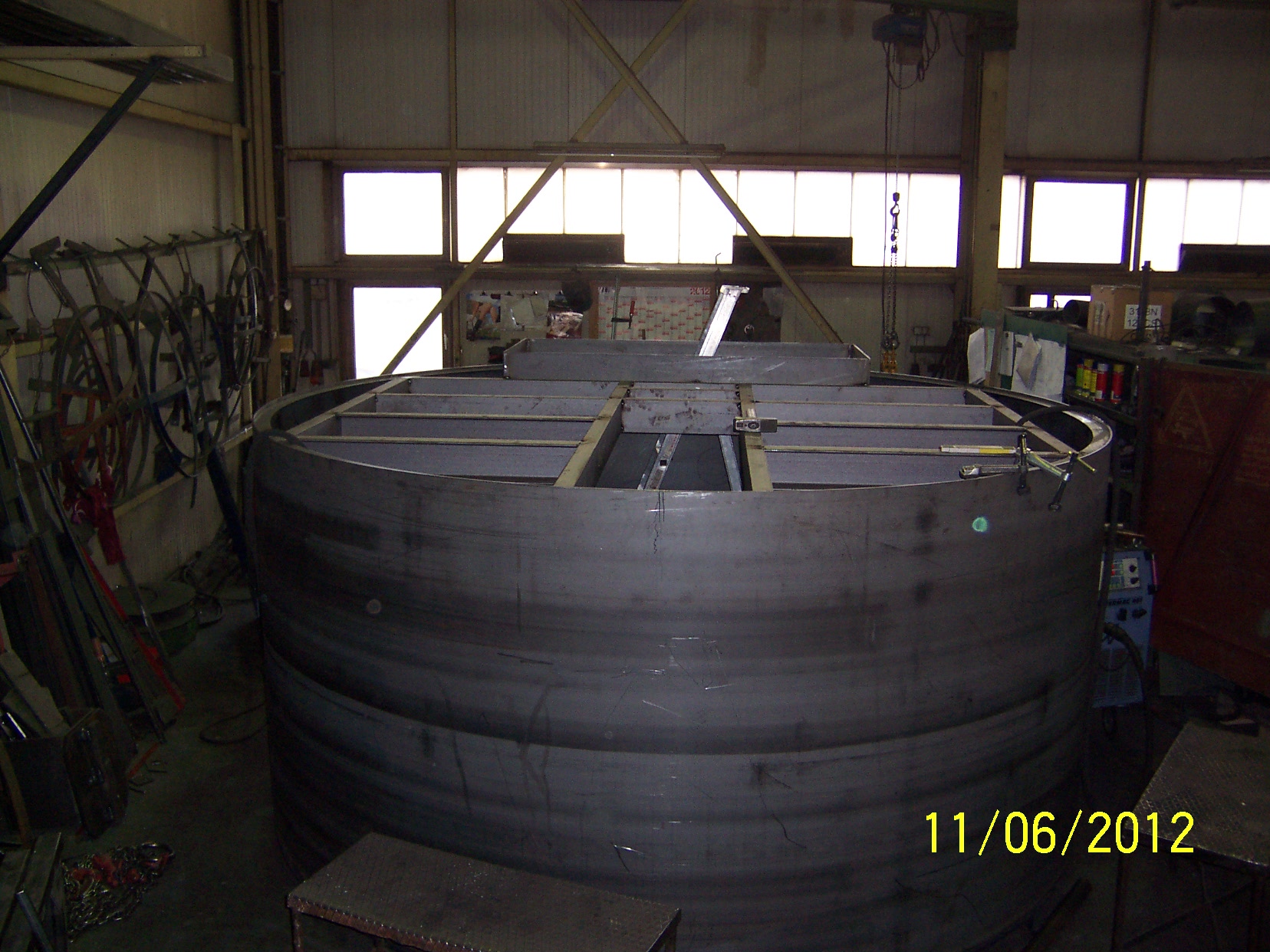

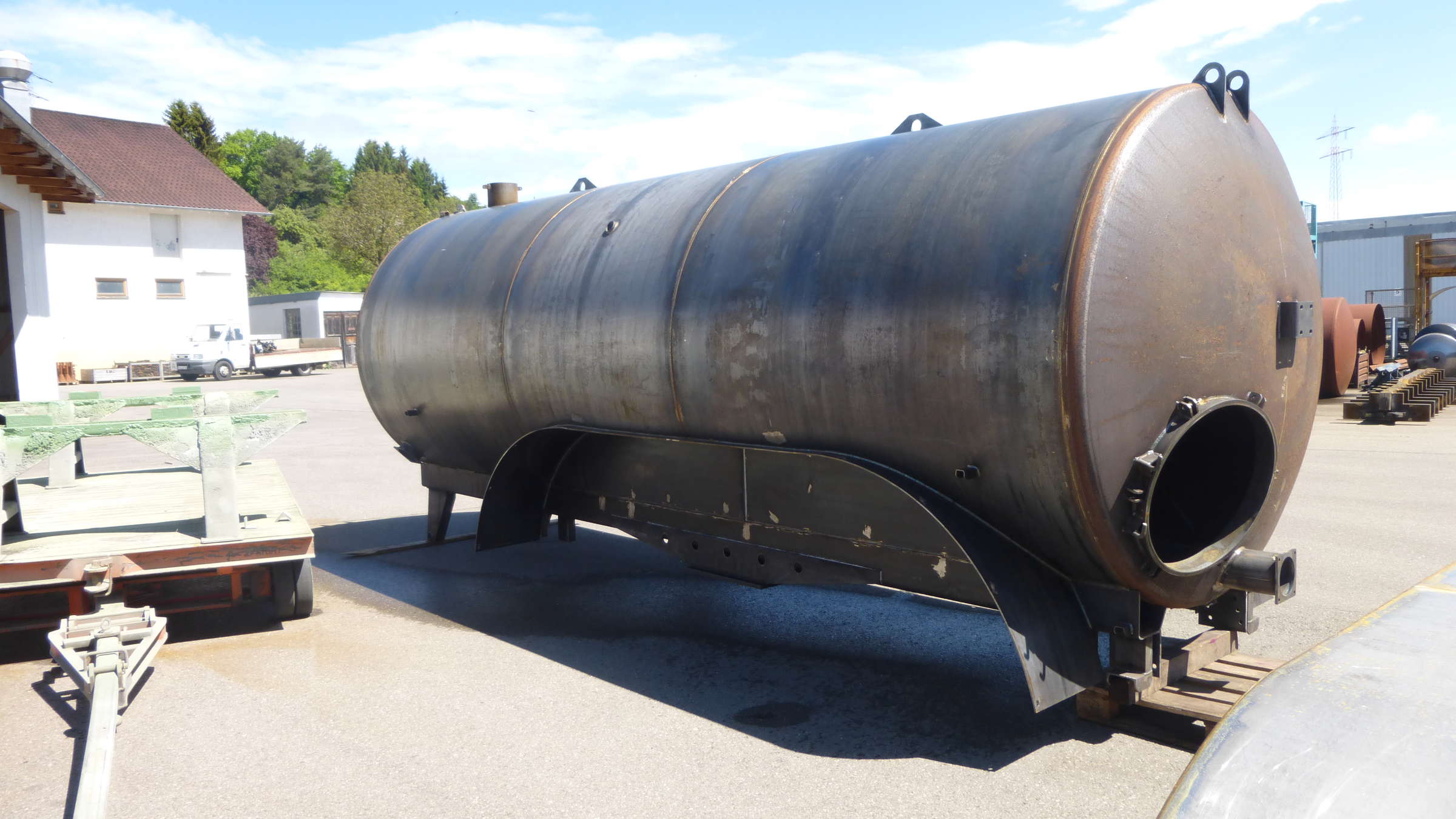

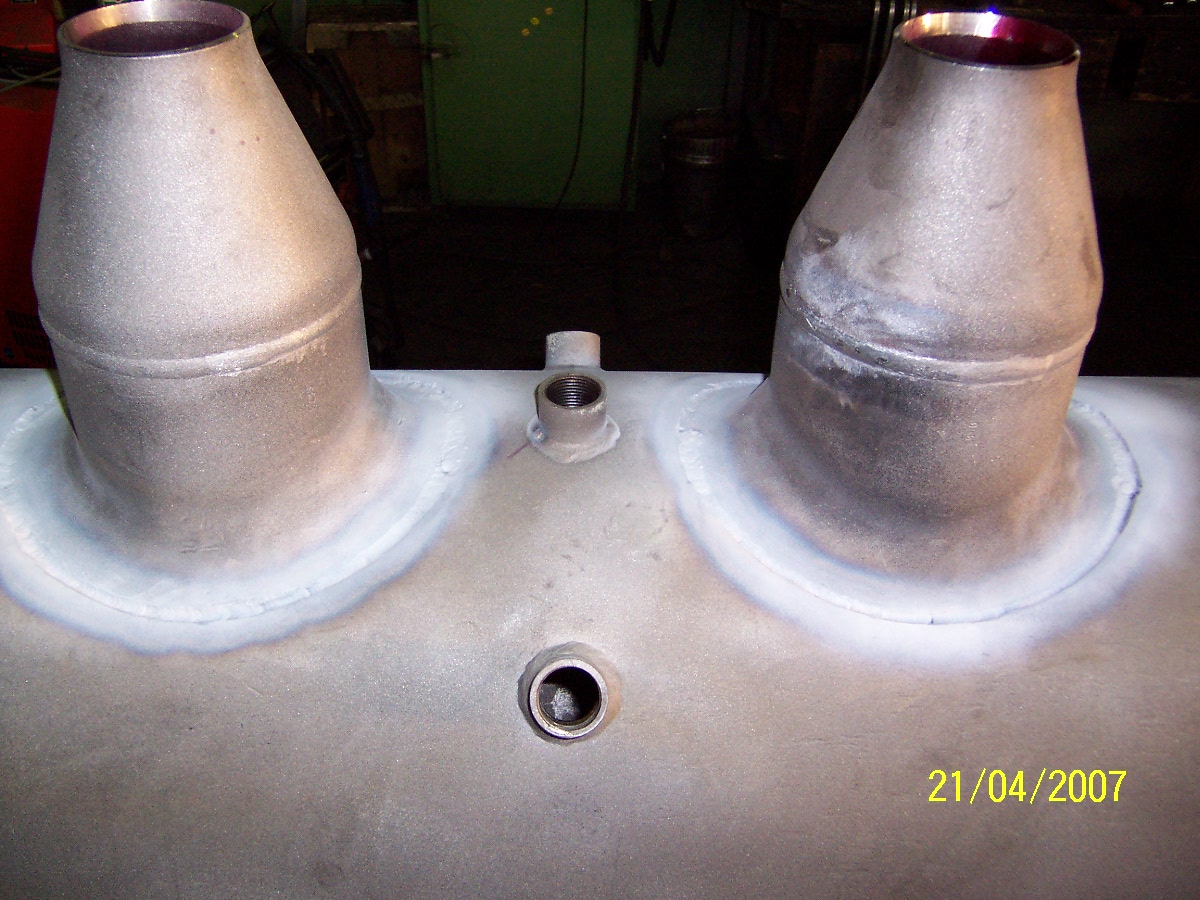

Company: Building on a long tradition We offer technical quality products in the manufacture of welded parts and containers made of steel for industry and agriculture. Production is carried out following our own Calculations and constructions as also according to customer drawings. Our modern production facilities and enable the efficient production processes this attractive prices. We have the approvals HP0 / TRD 201 the small and the great proof of suitability according to DIN 18800-7 - DIN 18 808, the certificate Germanischer Lloyd, and our certification DIN EN ISO 9001: 2000 and DIN 6700-2. Furthermore, we have the certificates to non-destructive testing: * Level 2 penetrant testing (PT 2) * Magentpulverprüfung Level 2 (MT 2) * Leakage test (pressure, water) * Air pressure differential test Every step of our production expiration is by our quality assurance system monitored, allowing us to consistently ensure good quality for our customers. We manufacture: * Motor base frame * Welded structures for machine and equipment such as machine stand, Machine bases, press stand and parts, frames and parts for Production lines * Steel molds for casting machine beds and speaker stands and racks from mineral casting * Mobile container for strength and hazardous substances * Container for agriculture * Weldments generally We are ready for you: * 1 Boring (X = 5500mm, y = 2000mm, z = 846mm + Table = 417mm) * Several smaller machining centers * Round automatic welding machine for Containers up to 2500 mm dia. and 8000 mm length * Degreasing and painting of parts to 7000 mm length (Airless Electrostatic) Through the use of advanced computer and CAD technology is our documentation always on time.Flexible and immediately can so on the latest developments be engaged in planning activities Through continuous training and training dominate our employees dealing effortlessly with our equipment. There we attach great importance to our Documentation with the software of the Customers are always compatible. Of course, we have all current and relevant Eignungsnach- example and tests, constantly striving to be updated.

1 / 3

2 / 3

3 / 3

Meßkirch, Germany

Member since 2004

Employees20 - 50

Certificates5

Marketing documents

Bahnzulassung_EN_15085_CL1_2013_Vorderseite.pdfPDF File AD_2000-Merkblatt_HP_0_und_DIN_EN_3834-2_bis_1-2012.pdfPDF File Stahlbauten_DIN18800-7_2008_Klasse_D_bis_3-2012_Vorderseite.pdfPDF File DIN_EN_ISO_9001_2008_bis_18_gueltig_5-2013.PDFPDF File

Competencies

Technologies

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	1–1,000	100–9,000 mm	100–3,500 mm	100–4,000 mm	1–3,500 mm	0–10,000 kg	1–500 mm
Stud welding	1–500	—	—	—	—	—	—

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	100–9,000 mm	100–3,500 mm	100–4,000 mm	0–10,000 kg

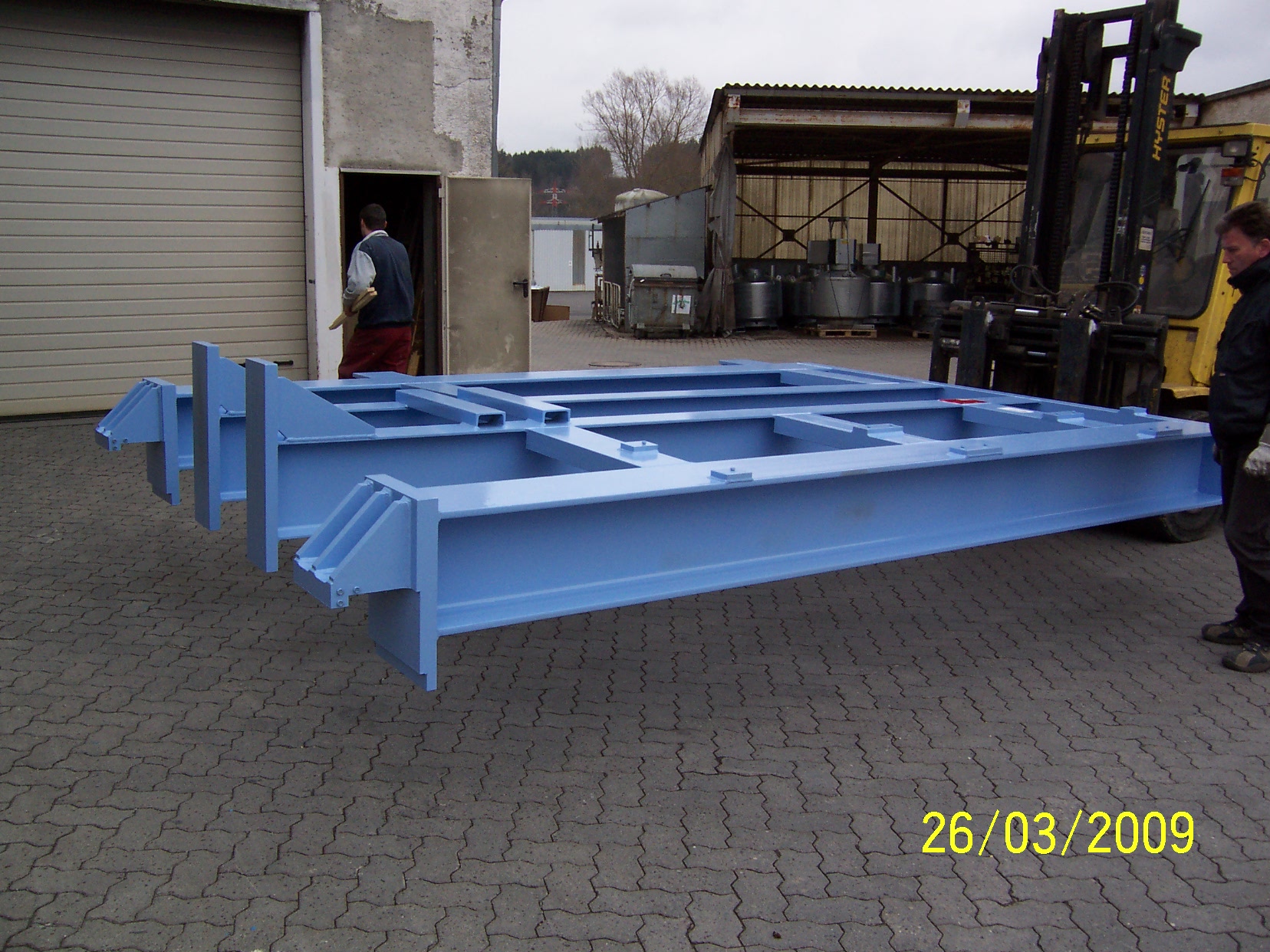

Machine frames / bases / racks	100–9,000 mm	100–3,500 mm	100–4,000 mm	0–10,000 kg

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–50	10–6,000 mm	10–1,300 mm
Full-range turning (including milling)	1–200	100–600 mm	50–500 mm
Broaching	1–100	20–500 mm	200–1,000 mm

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Laser cutting 2D	1–500	50–15,000 mm	10–4,000 mm	0–3,000 kg	2–25 mm
Bending / folding	1–200	10–6,000 mm	—	—	2–60 mm
Punching / nibbling	1–200	50–6,000 mm	50–1,600 mm	0–3,000 kg	2–10 mm
Oxyacetylene cutting	1–500	50–12,000 mm	50–4,000 mm	0–10,000 kg	8–800 mm
Plasma fusion cutting	1–500	10–15,000 mm	10–4,000 mm	0–3,000 kg	2–50 mm
Plate rolling / bending	1–200	—	50–3,000 mm	—	2–40 mm
Plate straightening	1–50	—	50–1,600 mm	—	10–40 mm
Shearing (rectangular blank/strip)	1–500	—	—	—	2–15 mm

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Mechanical engineering	1–100	100–8,000 mm	100–2,500 mm	100–3,500 mm	0–8,000 kg
Apparatus engineering	1–1,000	150–9,000 mm	100–3,500 mm	100–4,000 mm	0–10,000 kg

Assembly

Technologies	Weight
Mechanical assembly	0–8,000 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	100–8,000 mm	100–2,500 mm	100–3,000 mm	10–1,000 mm	0–5,000 kg

Gear Making

Technologies	Lotsize	Length	Diameter	Weight
Cylindrical gear / spur gear	1–200	10–1,000 mm	10–630 mm	0–1,000 kg

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Annealing	1–250	100–13,000 mm	100–3,000 mm	100–4,000 mm	1–3,000 mm	0–8,000 kg

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	1–200	100–8,500 mm	100–1,300 mm	100–2,500 mm	0–10,000 kg
5-axis milling machines	1–500	100–510 mm	100–800 mm	100–700 mm	0–1,000 kg

Jigmaking

Technologies	Length	Width	Height	Weight
Welding jigs	100–8,000 mm	100–2,500 mm	100–3,500 mm	0–8,000 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–200	20–13,000 mm	20–600 mm	20–320 mm	10–320 mm	—
Drilling / threading / tapping	1–200	10–5,000 mm	10–2,200 mm	10–6,000 mm	—	0–6,000 kg

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Sand blasting	1–1,000	100–8,000 mm	100–3,500 mm	100–3,500 mm	—	0–8,000 kg	—
Spray-painting	1–100	100–8,000 mm	100–2,500 mm	100–3,000 mm	—	0–8,000 kg	—
Galvanizing	1–100	100–8,000 mm	100–3,000 mm	100–3,500 mm	10–2,500 mm	0–8,000 kg	2–20 mm

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)

Industries

Railway and rail vehicles industryAutomotive and vehicle constructionPower generation and transmission industryConstruction and architectural suppliesBuilding, agricultural and forestry machinery manufacturingApparatus engineeringBoiler, container and tank construction Mechanical engineeringChemical industryMachine tool manufacturingPlant engineering and constructionFittings engineeringSpecial purpose machinery manufacturingMilitary engineering

+6 moreShow less
