About mb - steeldesign GmbH
Who we are
m s d - steel design msd, based in the Sauerland region, is your innovative partner for individua single components, system components and assemblies made of metal or plastic and specified electronics. We develop, produce and offer logistics services with a own warehouse. msd was founded in 1996 and is located in Finnentrop (Olpe) & Bottrop. With our competence network of 5 companies, we have a daily capacity of 250 employees and thus guarantee performance, flexibility and reliability. Designing & development Procurement and disposition exact sheet metal processing Surface treatment Mechanical processing / machining Sealing / gluing / foaming Installation of specified electronics Assembly, test and inspection
1 / 3
2 / 3
3 / 3
Bottrop, Germany
Member since 2008
Employees100 - 200
Certificates3
Turnover10 - 20 Mil.
Year of foundation1996
Marketing documents
Competencies
Technologies
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 50–100 k | 0–2,000 mm | 0–5,000 mm | 0–2,000 mm | — | 0–5,000 kg | — |
Inert gas shielded arc welding (TIG) | 5–5,000 | 0–2,000 mm | 0–1,000 mm | 0–2,000 mm | — | 0–5,000 kg | — |
Laser-beam welding | 10–10,000 | 0–2,000 mm | 0–1,000 mm | 0–500 mm | 0–500 mm | 0–500 kg | — |
Spot welding | 1–10,000 | — | — | — | — | — | 0.5–5 mm |
Stud welding | 1–1,000 | — | — | — | — | — | — |
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Height | Weight | Material thickness |
|---|---|---|---|---|---|---|
Laser cutting 2D | 50–50,000 | 0–3,000 mm | 0–1,500 mm | — | — | 0–25 mm |
Laser cutting 3D | 10–5,000 | 0–2,000 mm | 0–1,000 mm | 0–300 mm | 0–250 kg | 0–15 mm |
Bending / folding | 50–100 k | 100–3,000 mm | — | — | — | 0.5–4 mm |
Punching / nibbling | 50–50,000 | 0–3,000 mm | 0–1,500 mm | — | — | 0–12 mm |
Combined forming laser cutting / punching | 50–50,000 | 0–3,000 mm | 0–1,500 mm | — | — | 0.5–12 mm |
Laser cutting, tube & section | 50–50,000 | 0–6,000 mm | 0–500 mm | 0–500 mm | — | 0.5–10 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 100–2,000 mm | 100–2,000 mm | 100–2,000 mm | 0–500 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–500 kg |
Electromechanical assembly | 0–500 kg |
Industrial / On-site-assembly | 0–500 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Clinching | 1–10,000 | 0–2,000 mm | 0–1,000 mm | — | — | — | 0–3 mm |
Gasketing / seal foaming | 1–10,000 | 0–2,000 mm | 0–1,000 mm | 0–400 mm | — | 0–30 kg | — |
Adhesive bonding | 0–1,000 | 0–2,000 mm | 0–1,000 mm | 0–400 mm | 0–100 mm | 0–150 kg | 0–10 mm |
Riveting | 0–1,000 | 0–3,000 mm | 0–2,000 mm | — | — | — | 0–15 mm |
Pipe & Tube Manufacturing
| Technologies | Lotsize | Width | Material thickness |
|---|---|---|---|
Plate rolling / bending | 0–50,000 | 0–1,000 mm | 0–15 mm |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Laser marking / Laser inscription | 50–50,000 | 0–500 mm | 0–500 mm | 0–20 mm | 0–500 mm |
Surface Treatment
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Powder coating | 50–100 k | 100–3,000 mm | 100–3,000 mm | 100–3,000 mm | 0–100 kg |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Industries
Military engineeringBuilding, agricultural and forestry machinery manufacturingPower generation and transmission industryMeasurement and control technique, laboratory equipmentInformation technology (hardware)Precision engineering, mechatronics and opticsConstruction and architectural suppliesClean room technologySpecial purpose machinery manufacturingFurniture industryBoiler, container and tank construction Electrical industryAutomotive and vehicle constructionApparatus engineeringRailway and rail vehicles industryMedical technologyMechanical engineeringPlant engineering and constructionFittings engineeringAir conditioning, refrigeration and ventilation industryPaper and printing machinery industryAerospace and aviation industry
Certificates
ISO 9001:2015
DIN EN ISO 3834
EN 15085
Parts & Machines
Parts (2)
1 / 2

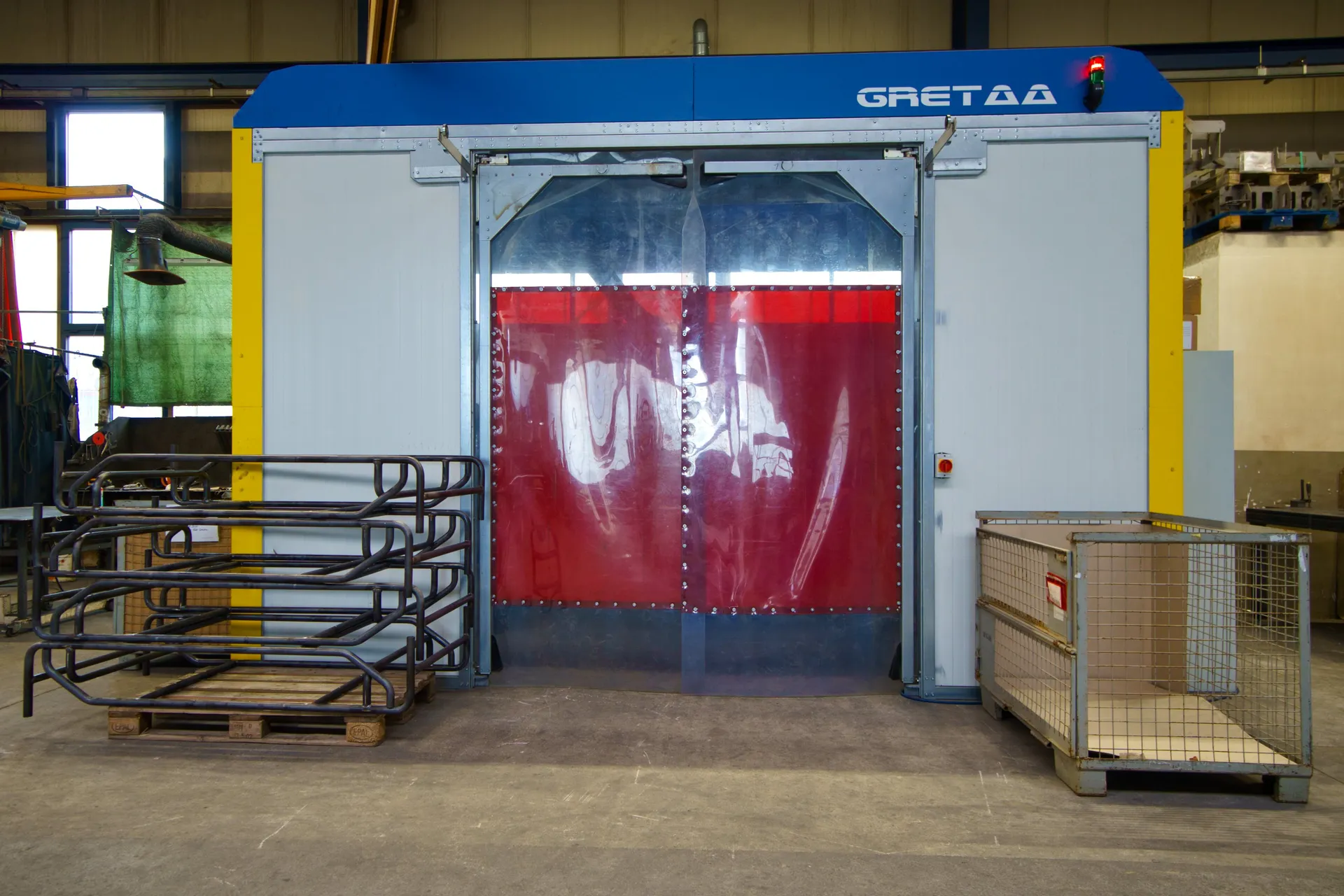

eigenkonstruierte Schweißkabine
TechnologyLaser cutting 2D
MaterialStructural steel
Lotsize1
ComplexityMedium
DescriptionDie gesamte Schweißkabine wurde selbst konstruiert und alle Blechteile selbst hergestellt.
Price per piece€20,000.00
2 / 2

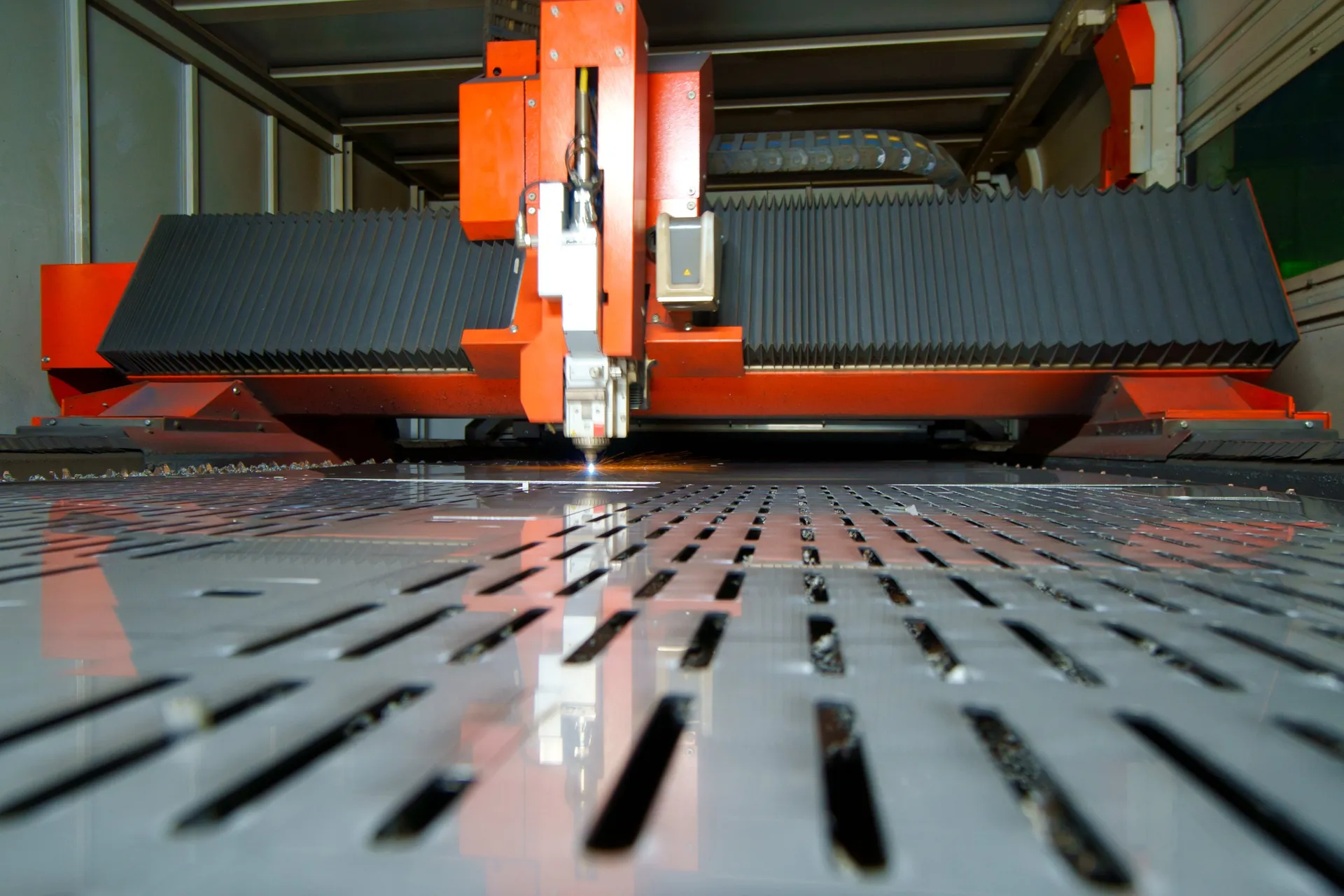

Kabelkanäle
TechnologyLaser cutting 2D
MaterialStainless steel (rust-proof V4A)
Lotsize500
Machinery (7)
1 / 7

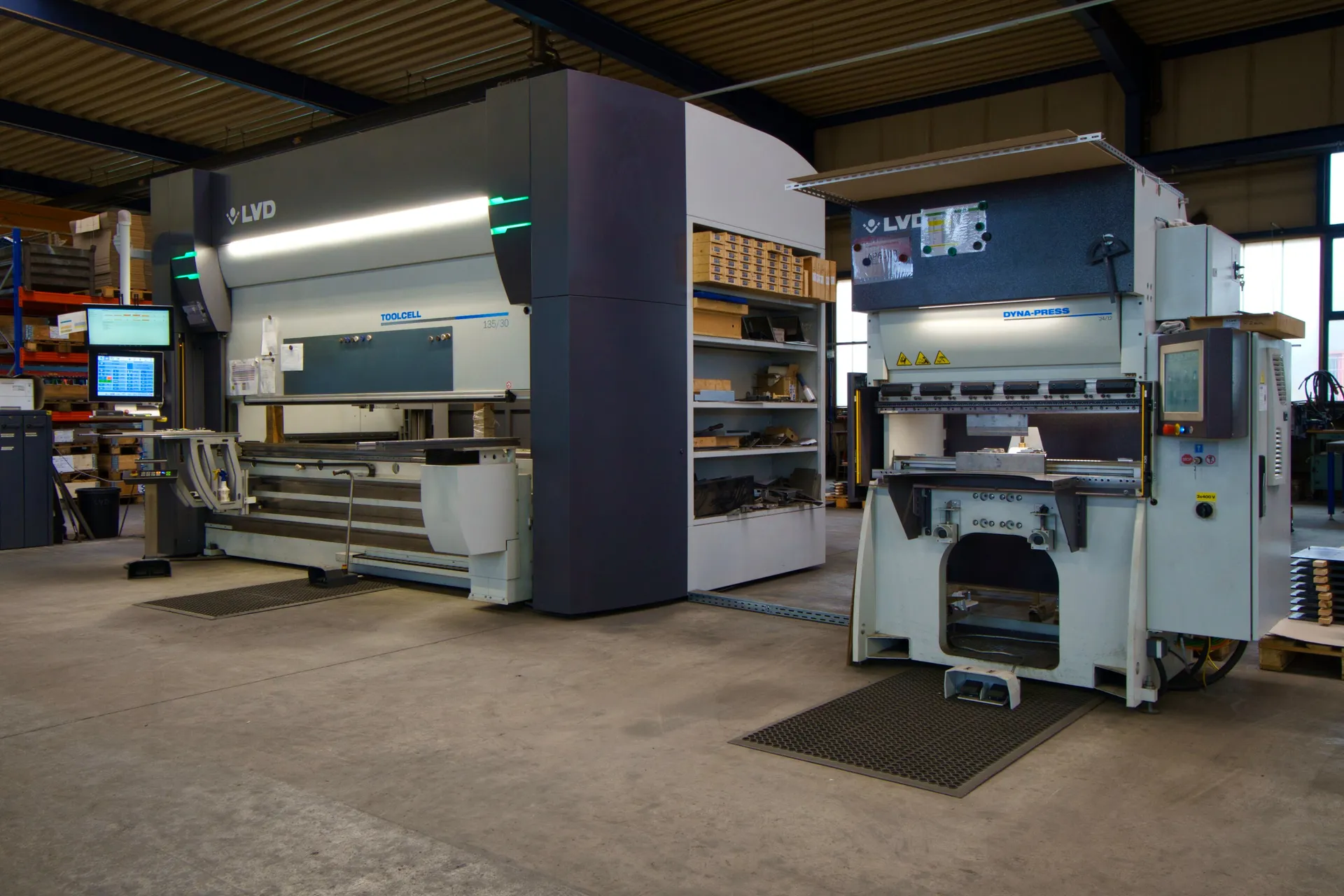

Abkantpresse
ManufacturerLVD
ControlLVD
Year of Construction2018
Technology
Bending / folding
2 / 7

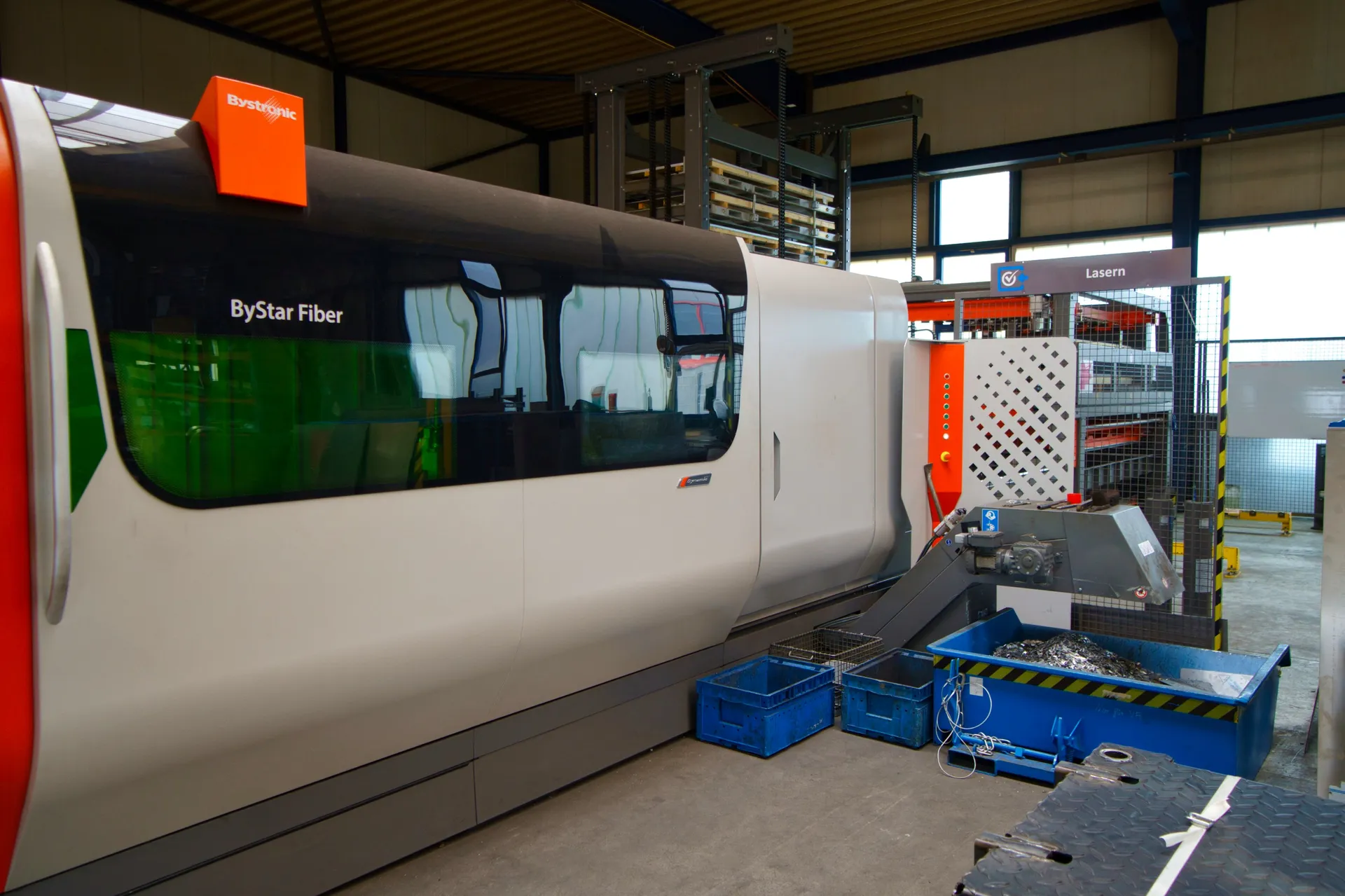

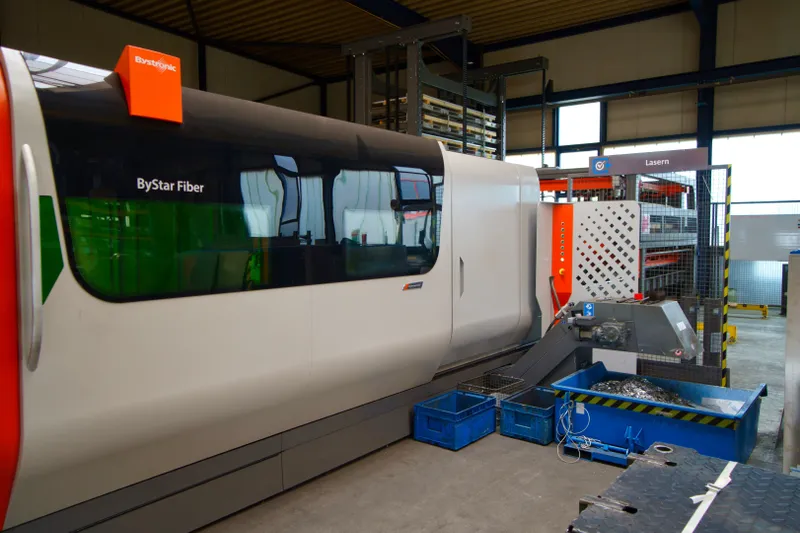

Laserschneidanlage
ManufacturerBystronic
ControlBystronic
Year of Construction2018
Technology
Laser cutting 2D
3 / 7

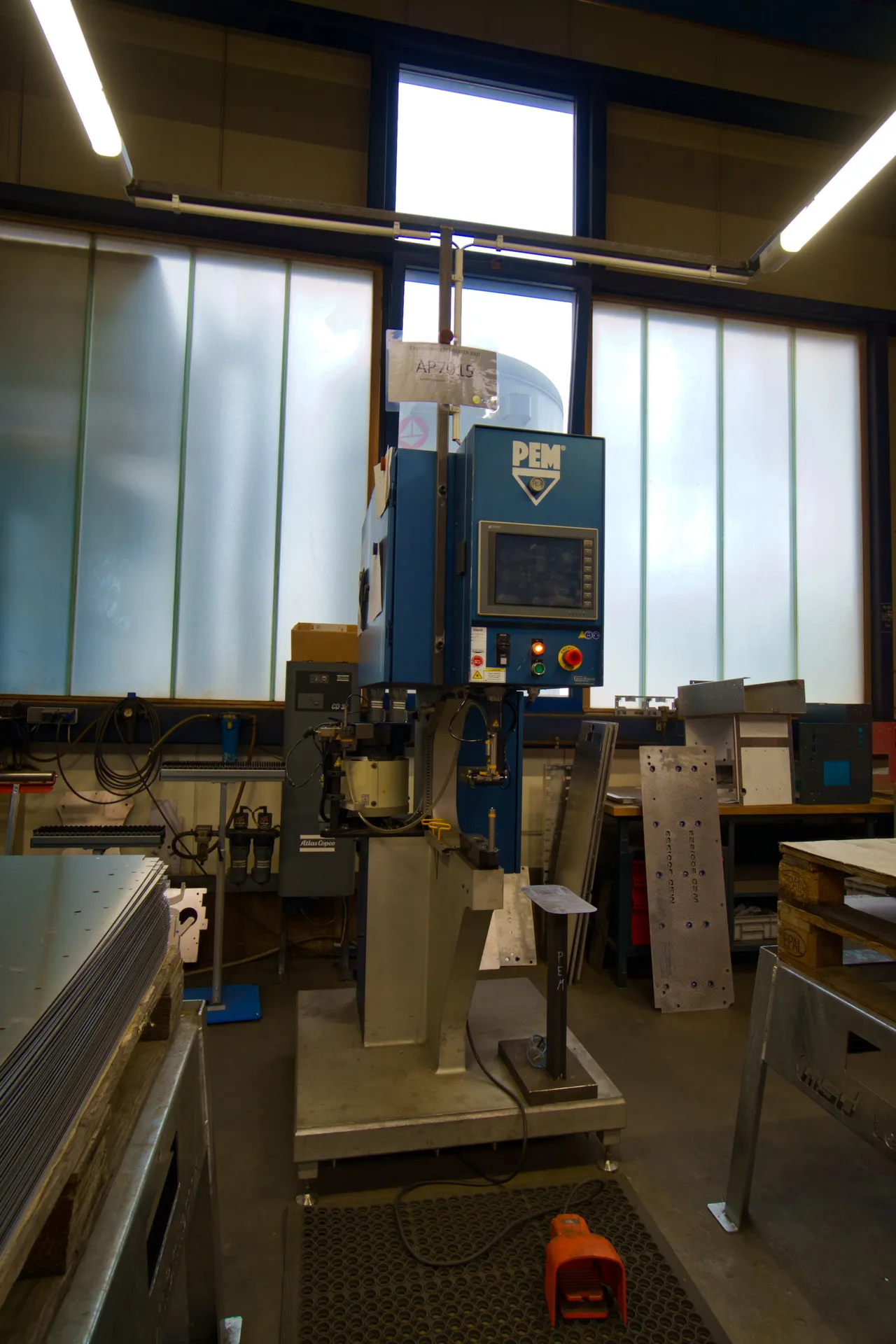

Einpresscenter
ManufacturerPEM
ControlPEM
Year of Construction2018
Technology
Clinching
4 / 7

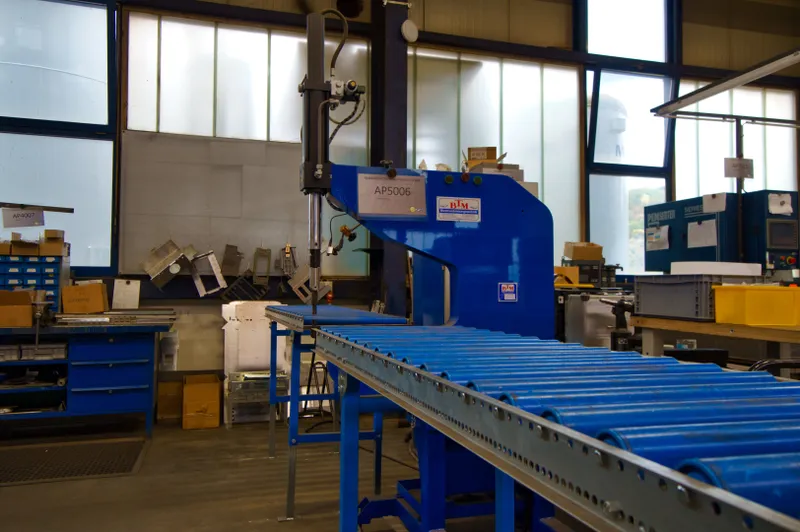

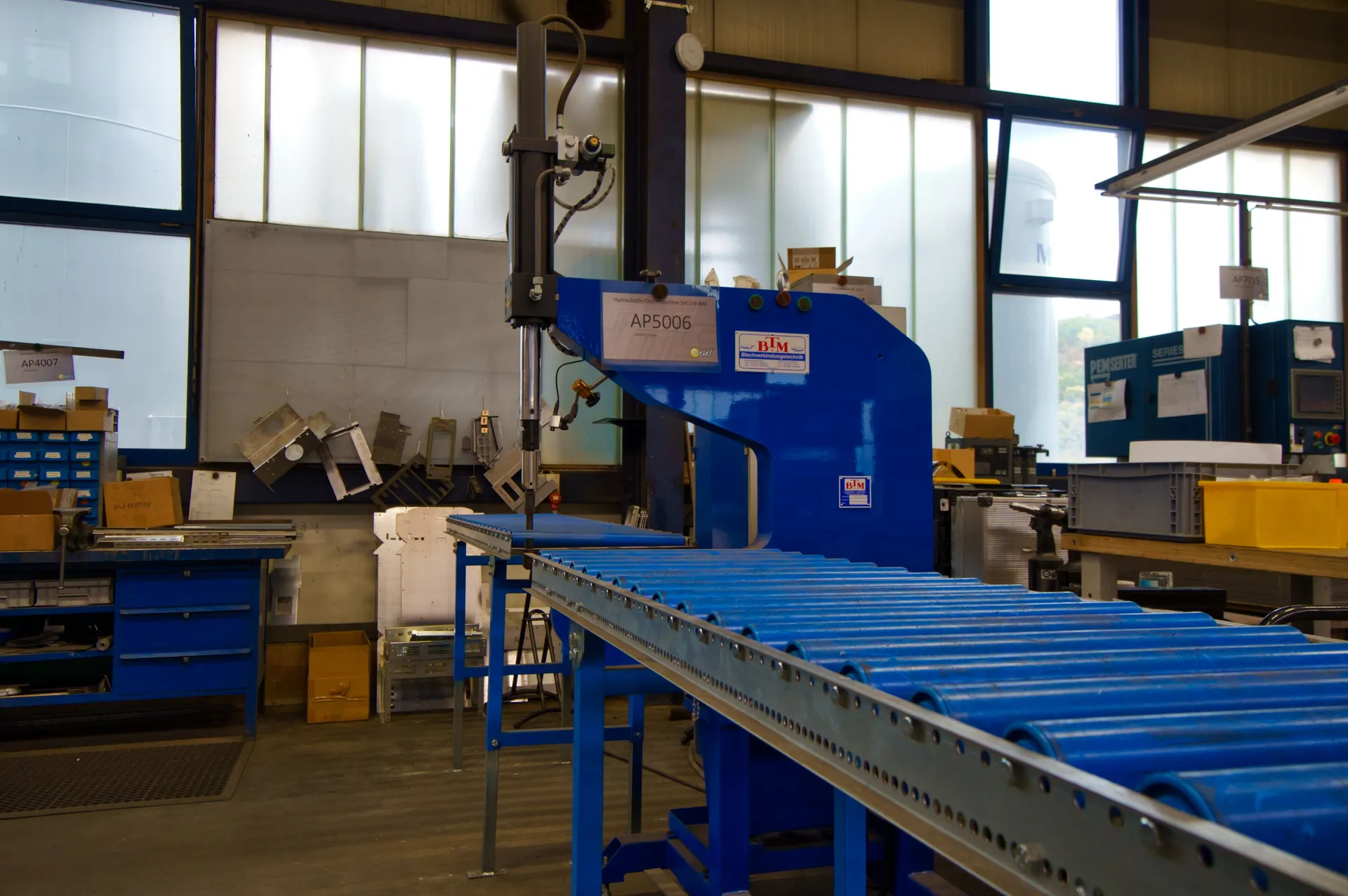

Clinchmaschine
ManufacturerBTM
ControlBTM
Year of Construction2019
Technology
Clinching
5 / 7

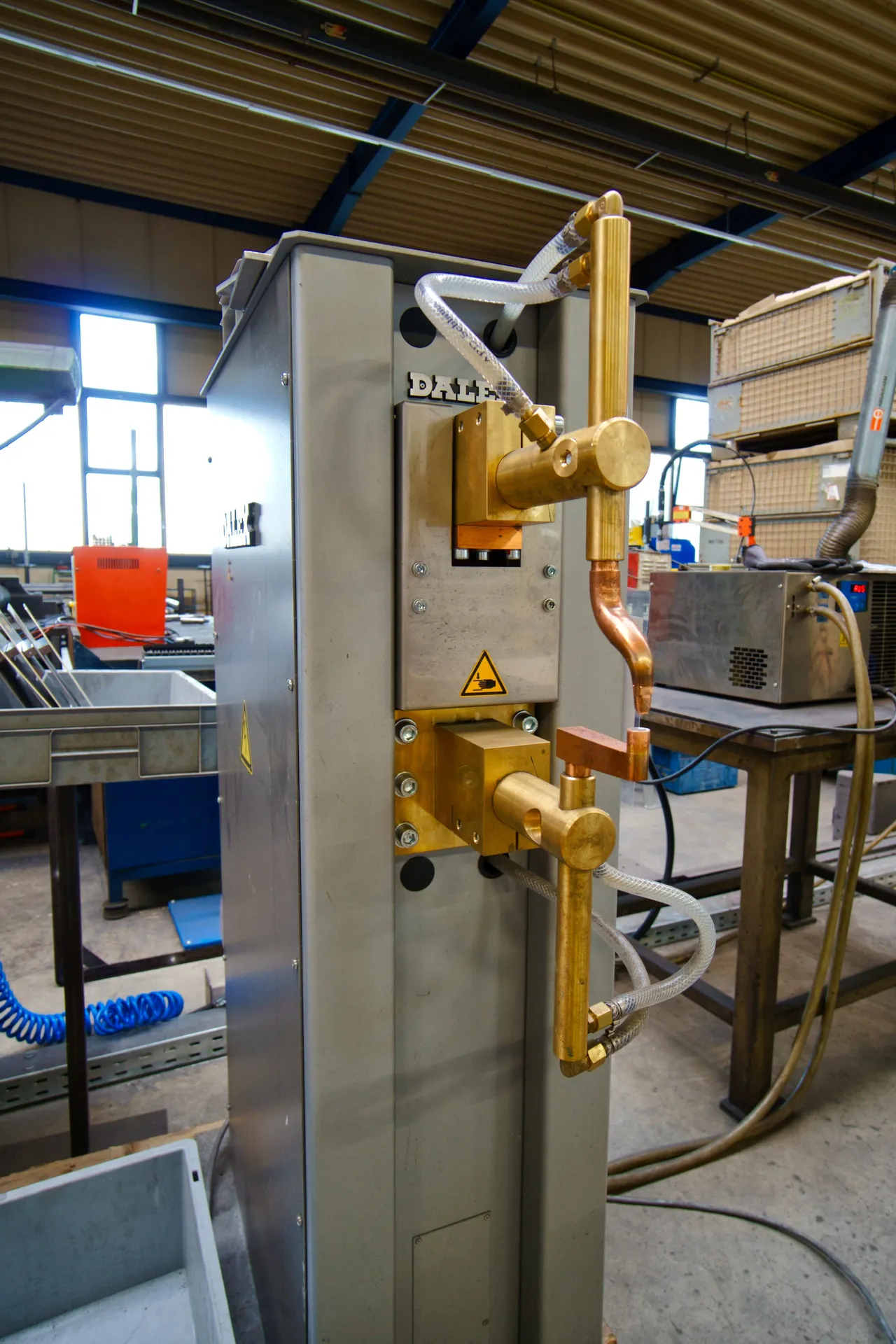

Punktschweißmaschine
ManufacturerDalex
ControlDalex
Year of Construction2019
Technology
Spot welding
6 / 7

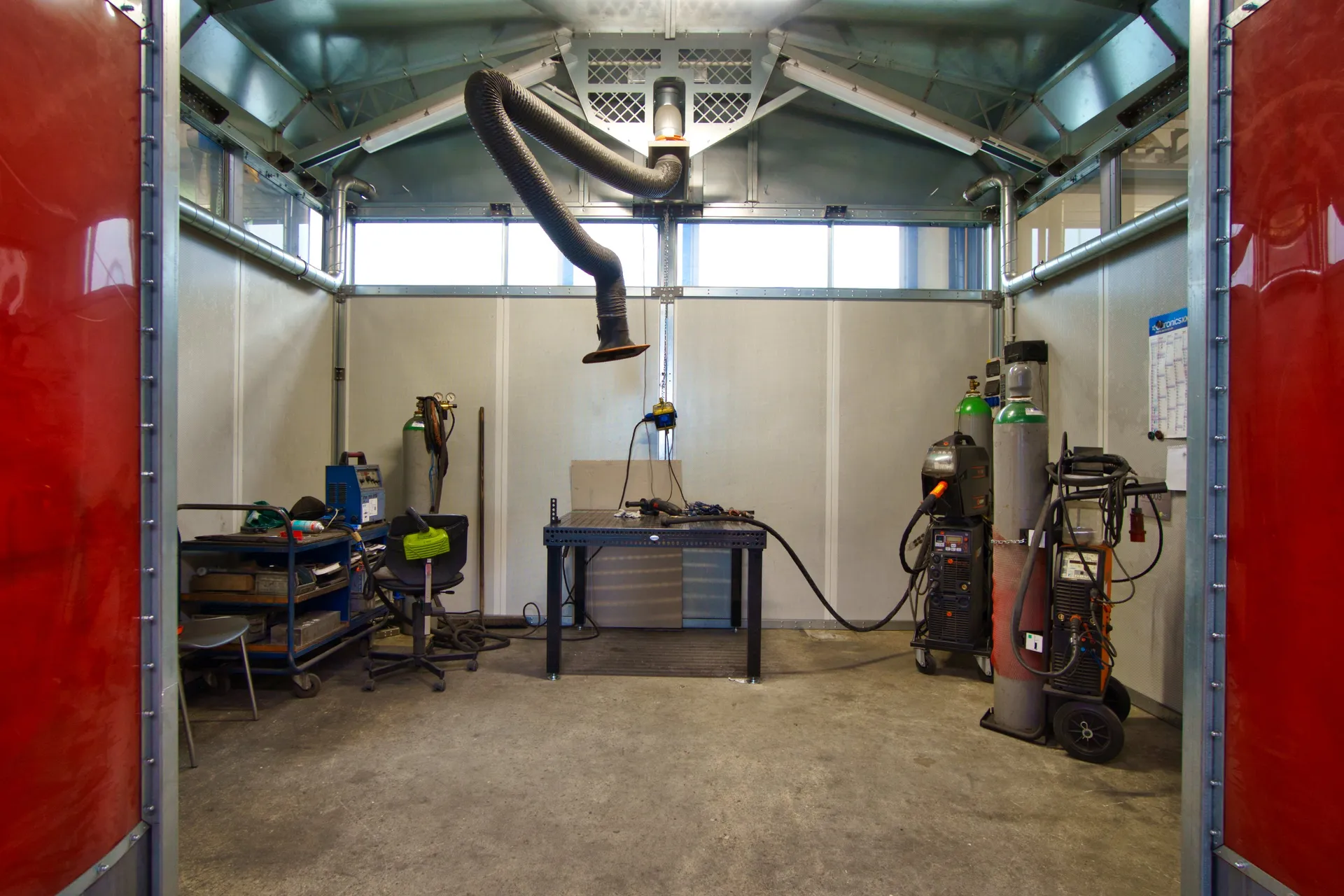

Schweißplätze
ManufacturerKemppi/Siegmund
Control-
Year of Construction2019
Technology
Inert gas shielded arc welding (MIG/MAG)Inert gas shielded arc welding (TIG)
7 / 7

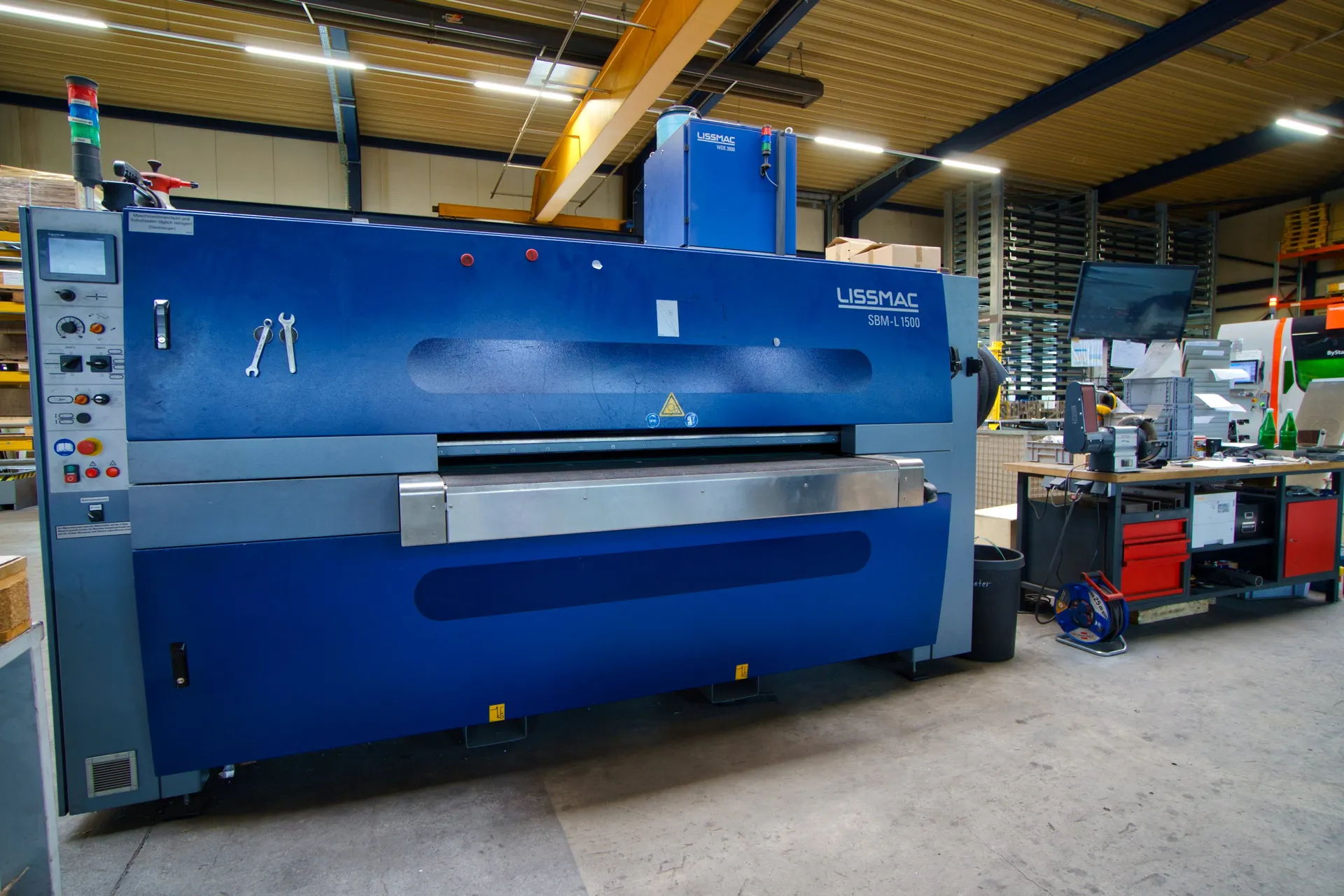

Entgratanlage
ManufacturerLissmac
ControlLissmac
Year of Construction2018
2 Parts
Laser cutting 2D2
7 Machinery
Bending / folding1
Laser cutting 2D1
Clinching2
Spot welding1
Inert gas shielded arc welding (MIG/MAG)1
Inert gas shielded arc welding (TIG)1
Contact
Location
Main locationAn der Knippenburg 15, 46238 Bottrop, Germany
Further locationsmsd-steeldesign GmbH (Finnentrop) / msd-steeldesign Leichtbau + Umformtechnik (Finnentrop) / msd-steeldesign Präzisionskomponenten (Bottrop)
Company contact
Contact persons
TS
Thomas Scheicher
FS
Fabian Stamm
GH
Golo Hamers
MS
Mike Schulte
BV
Bernd Vollmer
MS
Marcel Sperzel
