Meccanica Marcato srl
Italy, 35012 Camposampiero
Overview
About Meccanica Marcato srl
Who we are

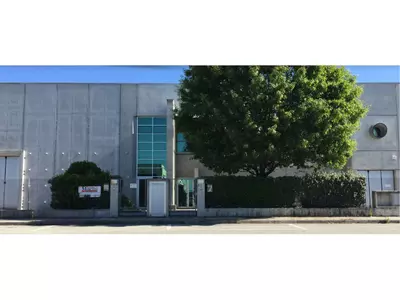

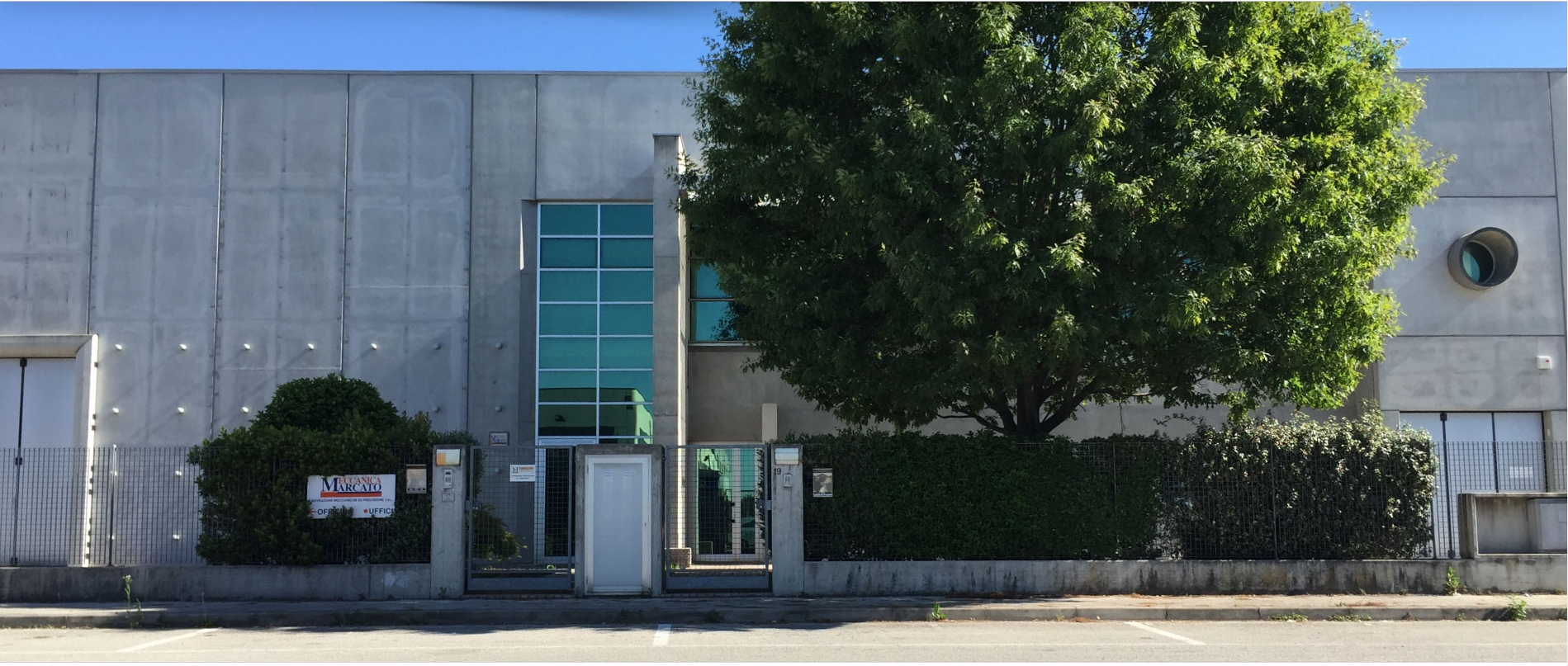

Our company, Meccanica Marcato, was born in 1996 and is specialized in precision mechanical workings. We operate in Camposampiero (PD) in a production site of 1200 m2, in which 20 people, considering operators, technical and administrative staff, work. Over the years, we have been able to reach high standards of processing that have led us to work for internationally renowned companies in the various sectors listed below. Our production department is equipped with 18 high-tech machines, all with CNC machining centers up to 6 controlled axes and milling / turning centers up to 11 controlled axes. We have an integrated production-management and quality-control system TESAR: all machines are networked to 2 control terminals inside the industrial premises. Firstly, they control the production, by carrying out its daily analysis, pointing out any machine pause, etc. Secondly, they check the quality by means of control instruments in serial connection, micrometers, calibres, altimeter comparators as well as data analysis, X-R control cards capability, certificates of compliance, etc. We have, in addition to various instruments for quality control, a three-dimensional continuous scanning measuring machine DEA GLOBAL PERFORMANCE We meet the requirements of the industry 4.0.
1 / 8
2 / 8
3 / 8
4 / 8
5 / 8
6 / 8
7 / 8
8 / 8
Camposampiero, Italy
Member since 2018
Employees10 - 20
Certificates1
Turnover1 - 5 Mil.
Year of foundation1996
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 200–2,000 | 5–300 mm | 5–200 mm |
Automatic turning (bar) | 100–20,000 | 1–800 mm | 1–36 mm |
Swiss turning | 200–20,000 | 1–500 mm | 5–36 mm |
Full-range turning (including milling) | 200–10,000 | 1–400 mm | 5–200 mm |
Centering / end facing | 50–5,000 | 5–600 mm | 5–200 mm |
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Spark erosion wire cutting | 2–1,000 | 10–215 mm | 10–810 mm | 10–700 mm | 0–500 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 200–20,000 | 1–300 mm | 1–300 mm | 1–300 mm | — | — |
5-axis milling machines | 200–20,000 | 1–300 mm | 1–300 mm | 1–300 mm | — | — |
Form milling (3 D) | 50–20,000 | 1–300 mm | 1–300 mm | 1–300 mm | — | — |
Full-range milling (including turning) | 200–20,000 | 5–300 mm | 5–200 mm | 5–300 mm | 4–65 mm | — |
HSC milling | 50–20,000 | 1–300 mm | 1–300 mm | 1–300 mm | — | 0–1,000 kg |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelCold extruding steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloys
Cast metals
Cast steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)High performance plasticThermosets
Industries
Furniture industryAerospace and aviation industryMedical technologyAutomotive and vehicle constructionPrecision engineering, mechatronics and opticsLighting industryMechanical engineering
Certificates
ISO 9001:2015
Parts & Machines
Parts (10)
1 / 10

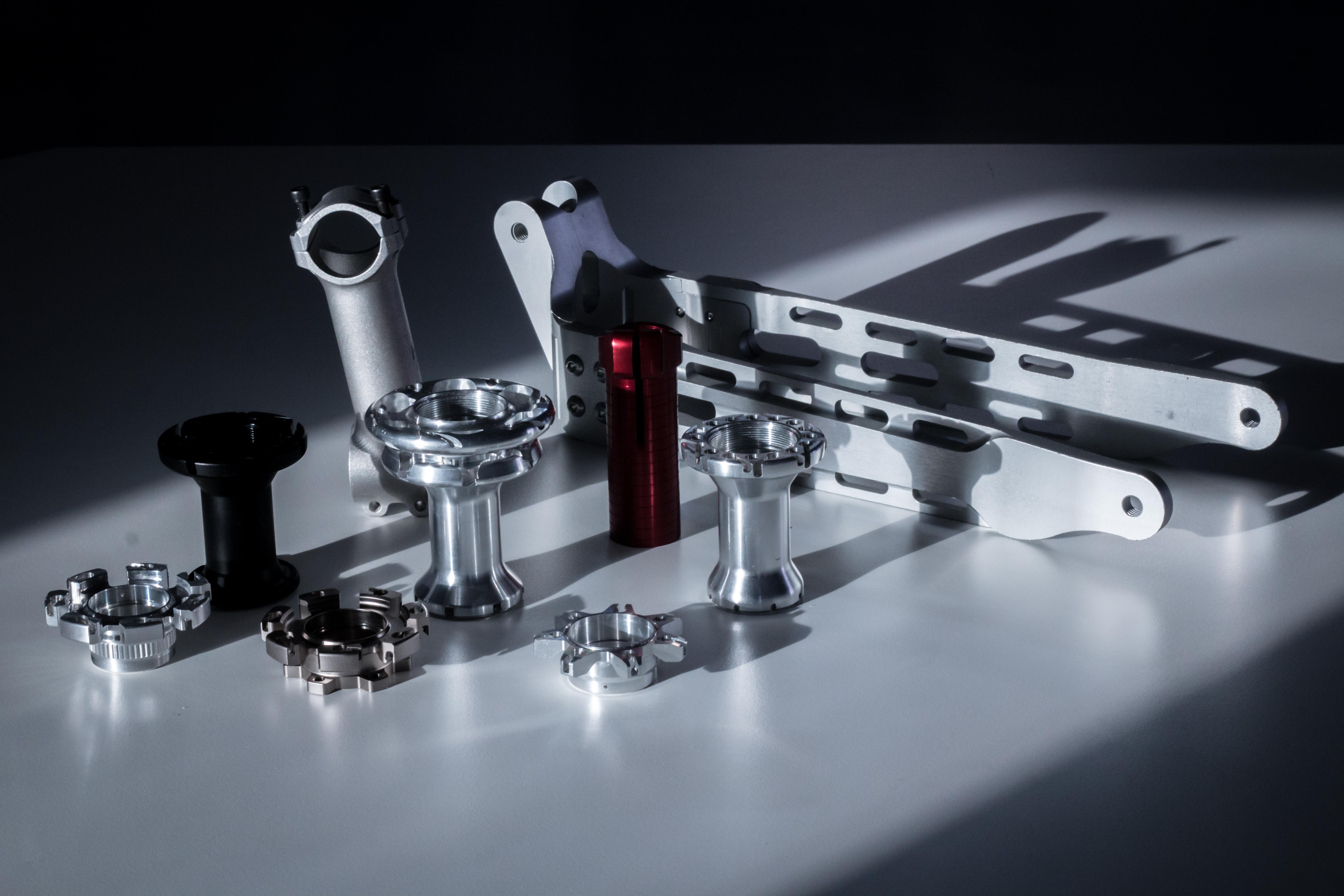

Bike parts
TechnologyFull-range turning (including milling)
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityMedium
IndustriesAutomotive and vehicle construction
DescriptionBike parts produced with our lathes and milling centers
2 / 10
.jpg)

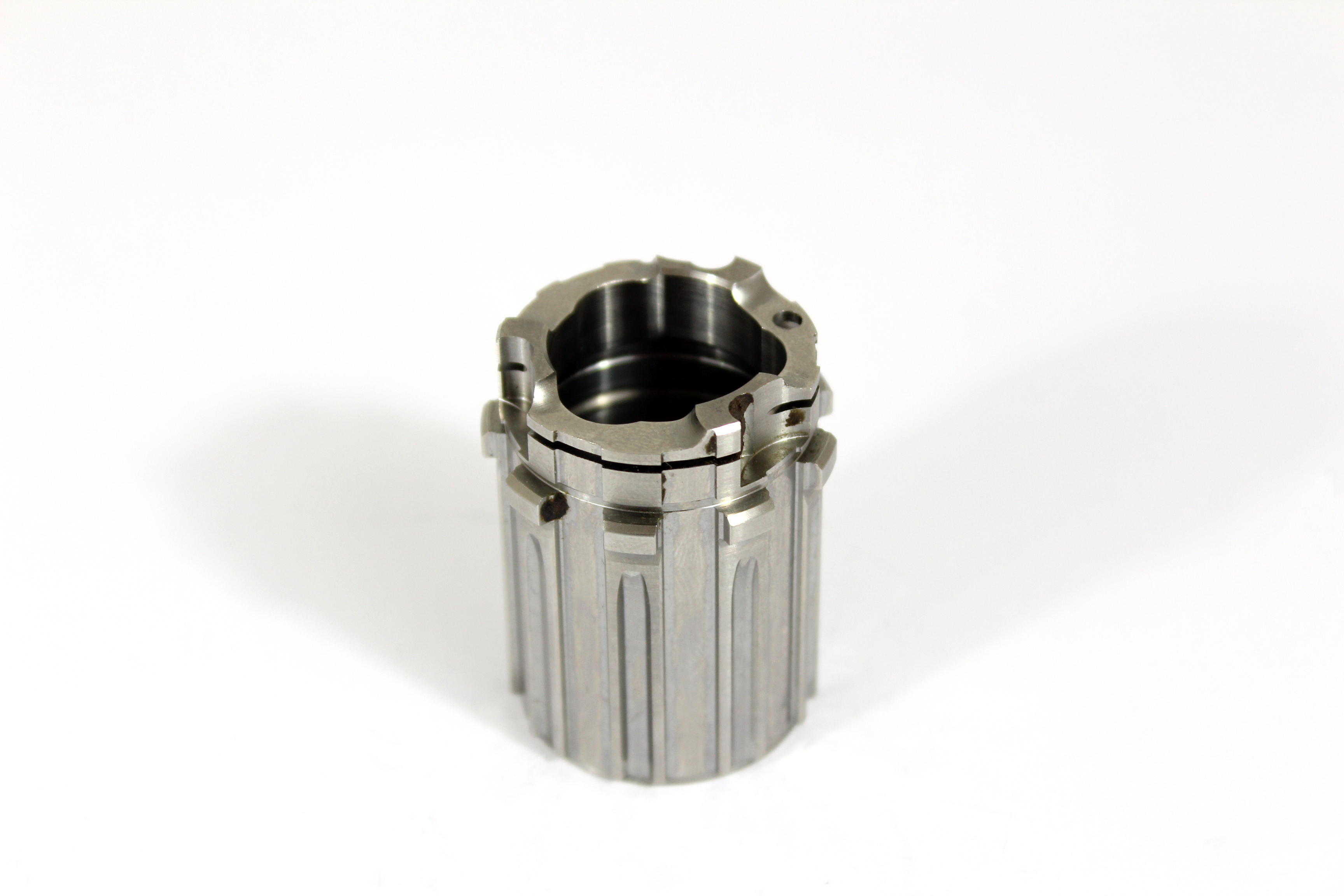

Pinion support
TechnologyFull-range turning (including milling)
MaterialTitanium and titanium alloys
Lotsize0
ComplexityMedium
IndustriesMechanical engineering
3 / 10
.jpg)

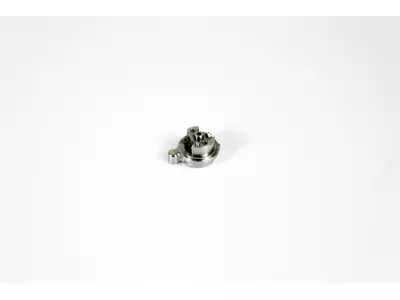

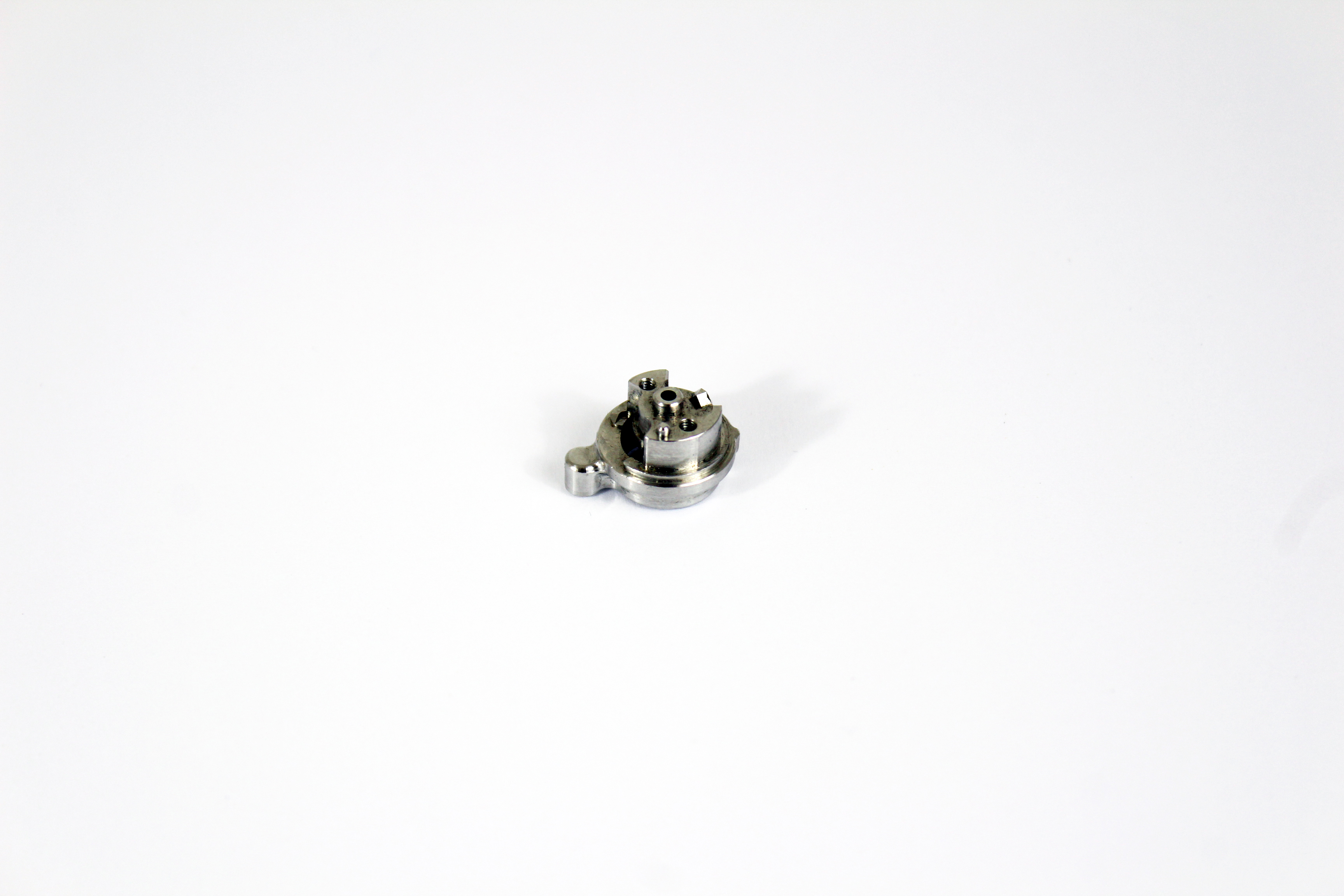

Camera button
TechnologyFull-range turning (including milling)
MaterialTitanium and titanium alloys
Lotsize0
ComplexityMedium
IndustriesPrecision engineering, mechatronics and optics
4 / 10
.jpg)

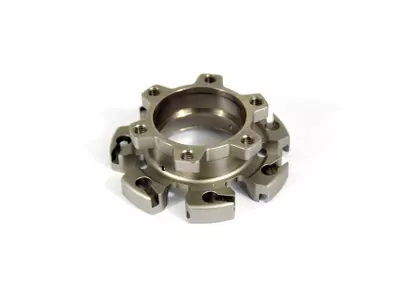

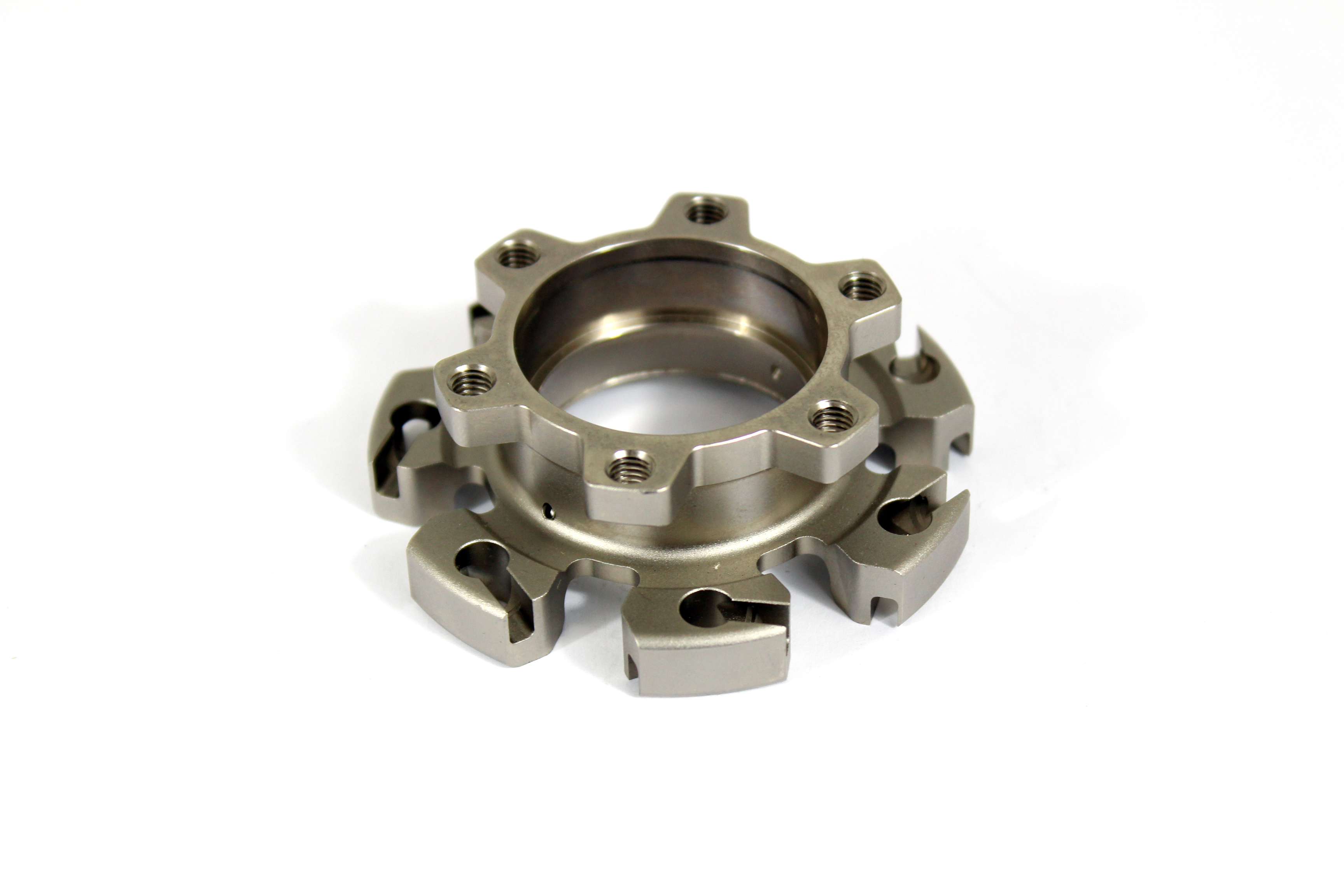

Bike Flange
TechnologyFull-range turning (including milling)
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityLow
IndustriesPrecision engineering, mechatronics and optics
5 / 10
.jpg)

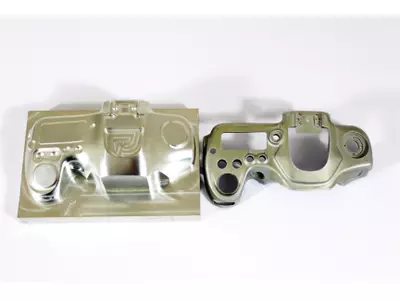

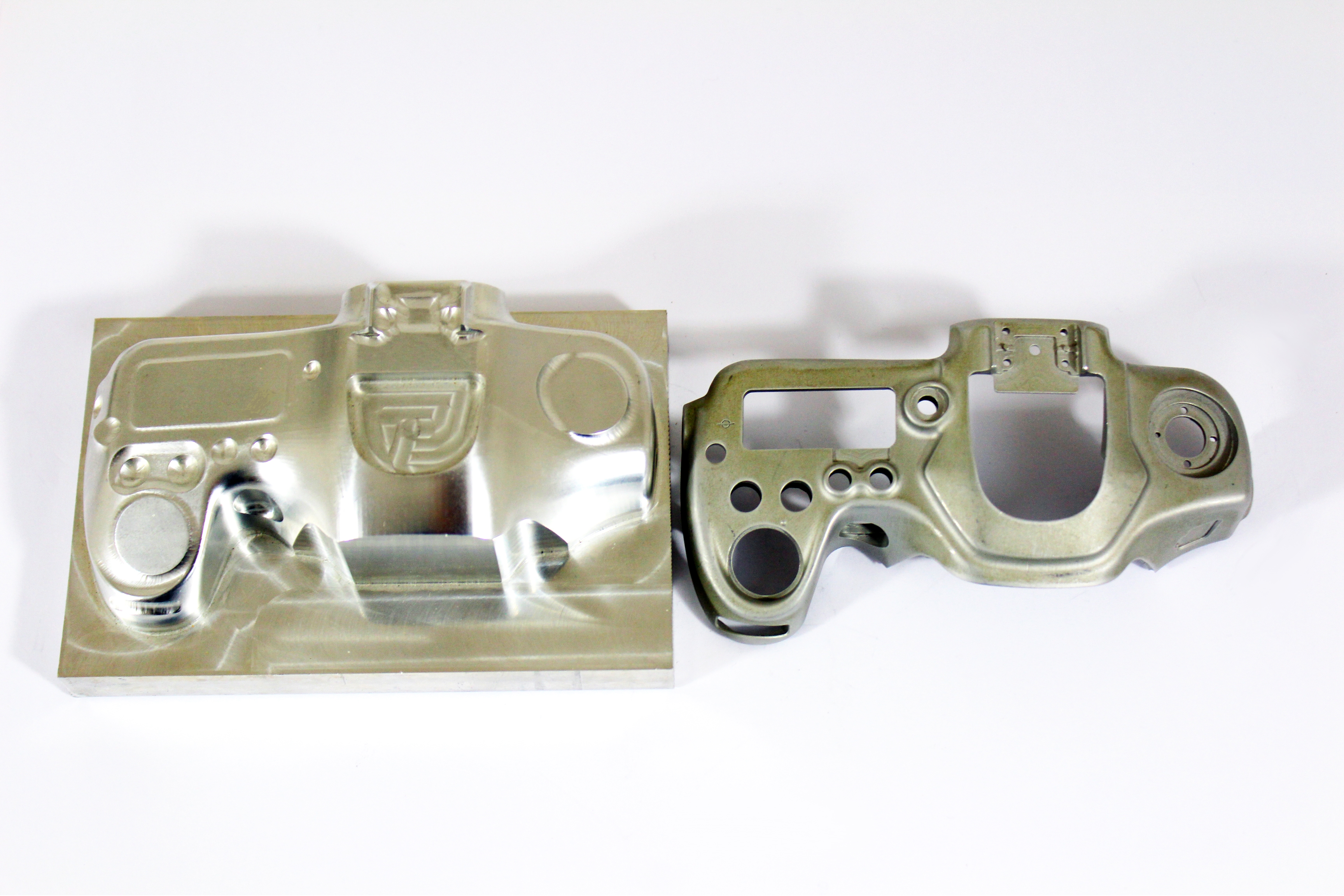

Camera mask
Technology5-axis milling machines
MaterialAluminium and aluminium alloys
Lotsize0
IndustriesPrecision engineering, mechatronics and optics
6 / 10
.jpg)

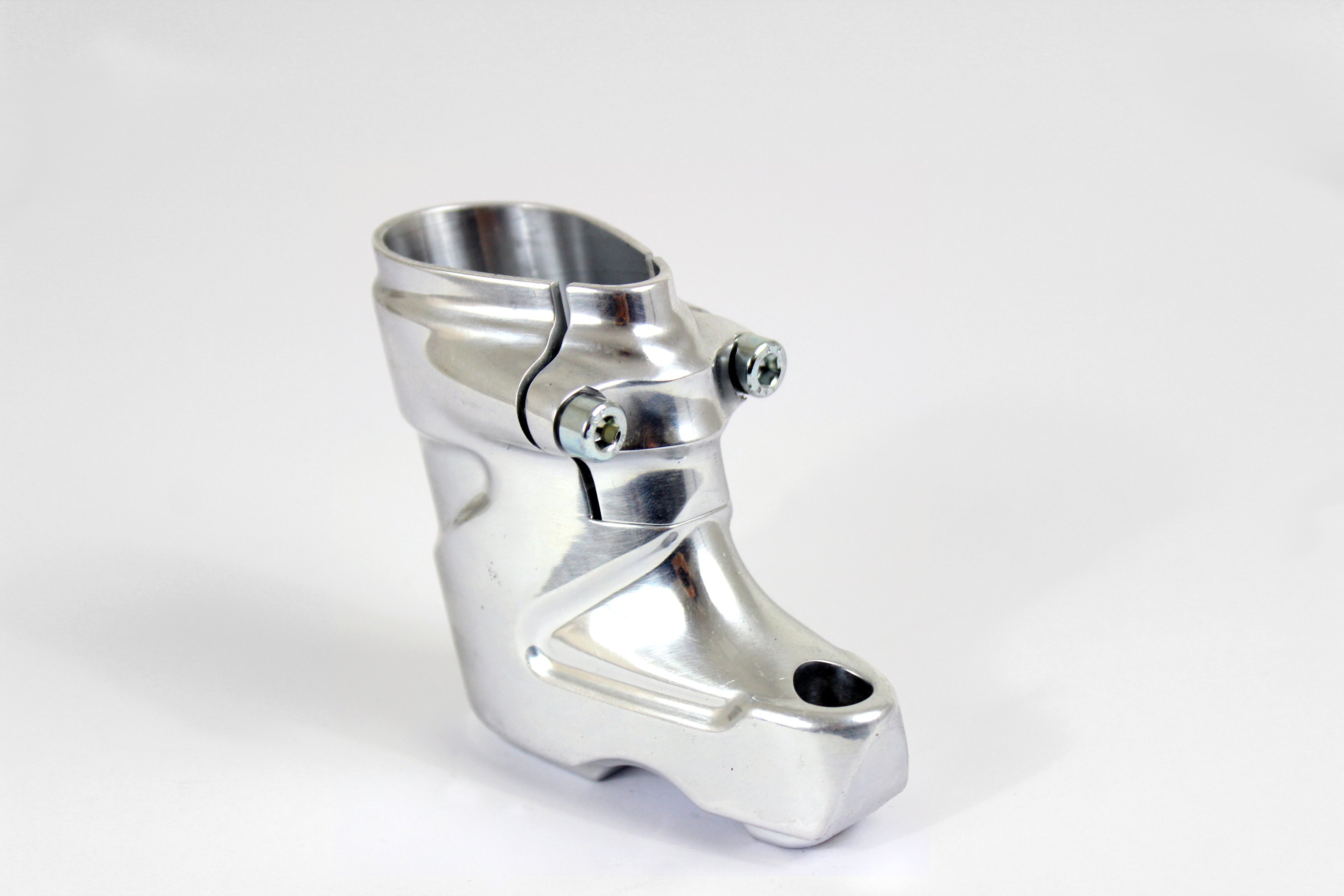

Bike seat support
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Lotsize0
IndustriesPrecision engineering, mechatronics and optics
7 / 10

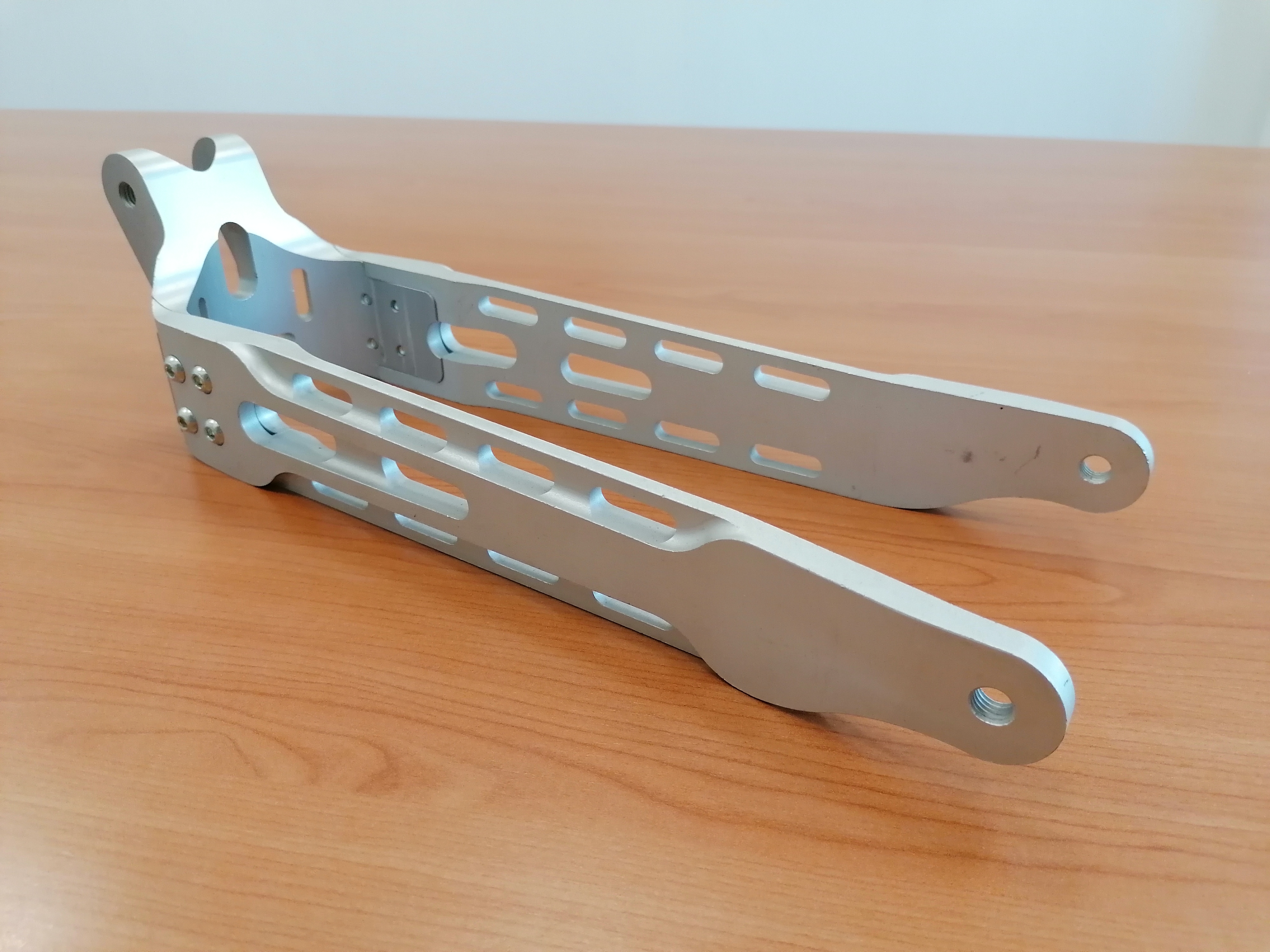

lower part of downhill bike frame
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityLow
IndustriesMechanical engineering
8 / 10

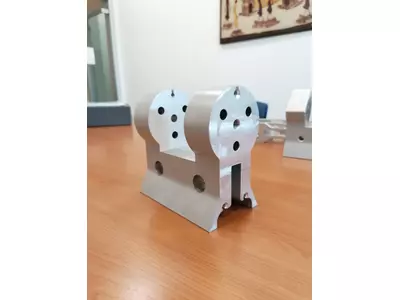

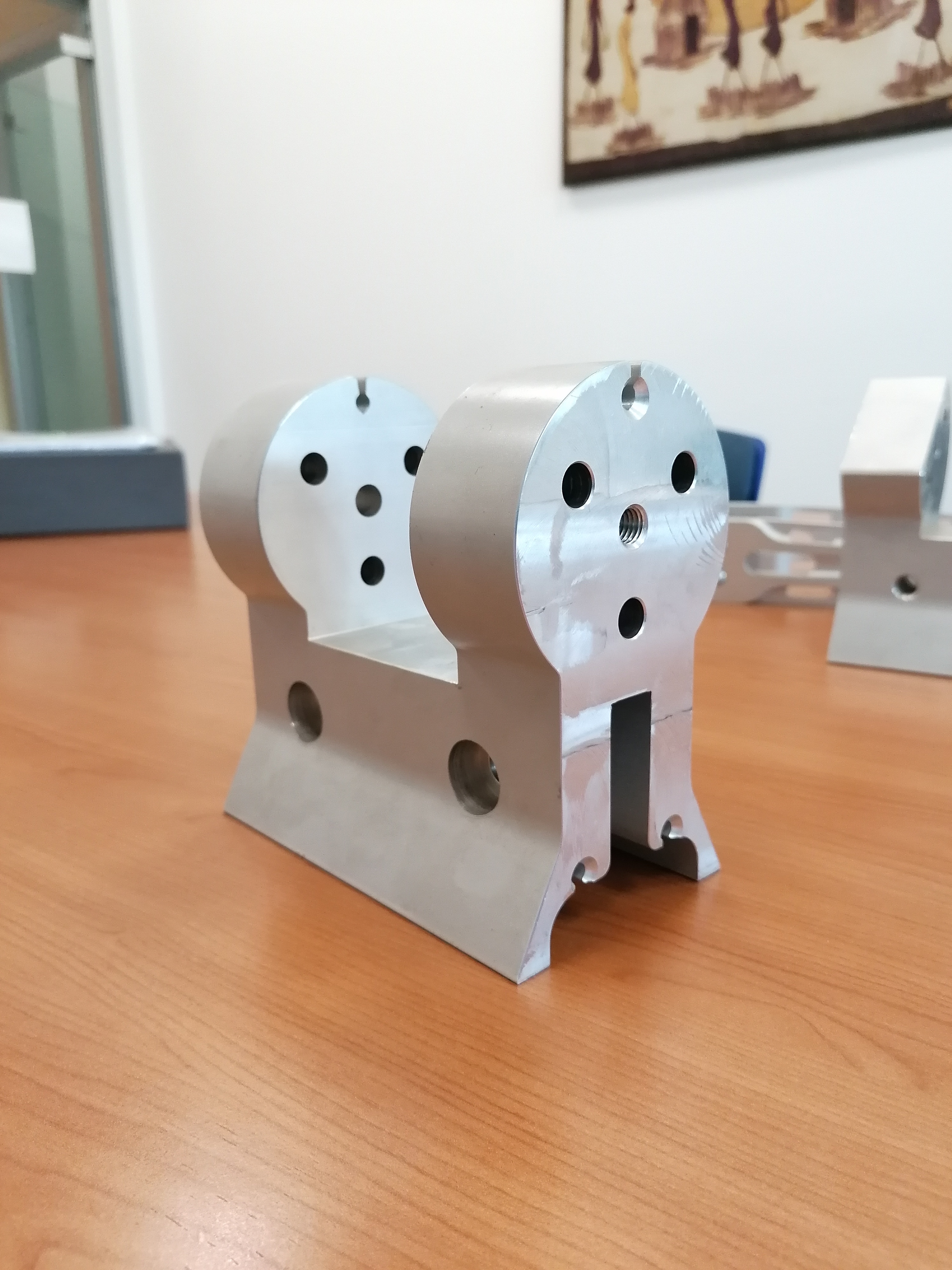

window support for German skyscraper
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityLow
IndustriesMechanical engineering
9 / 10

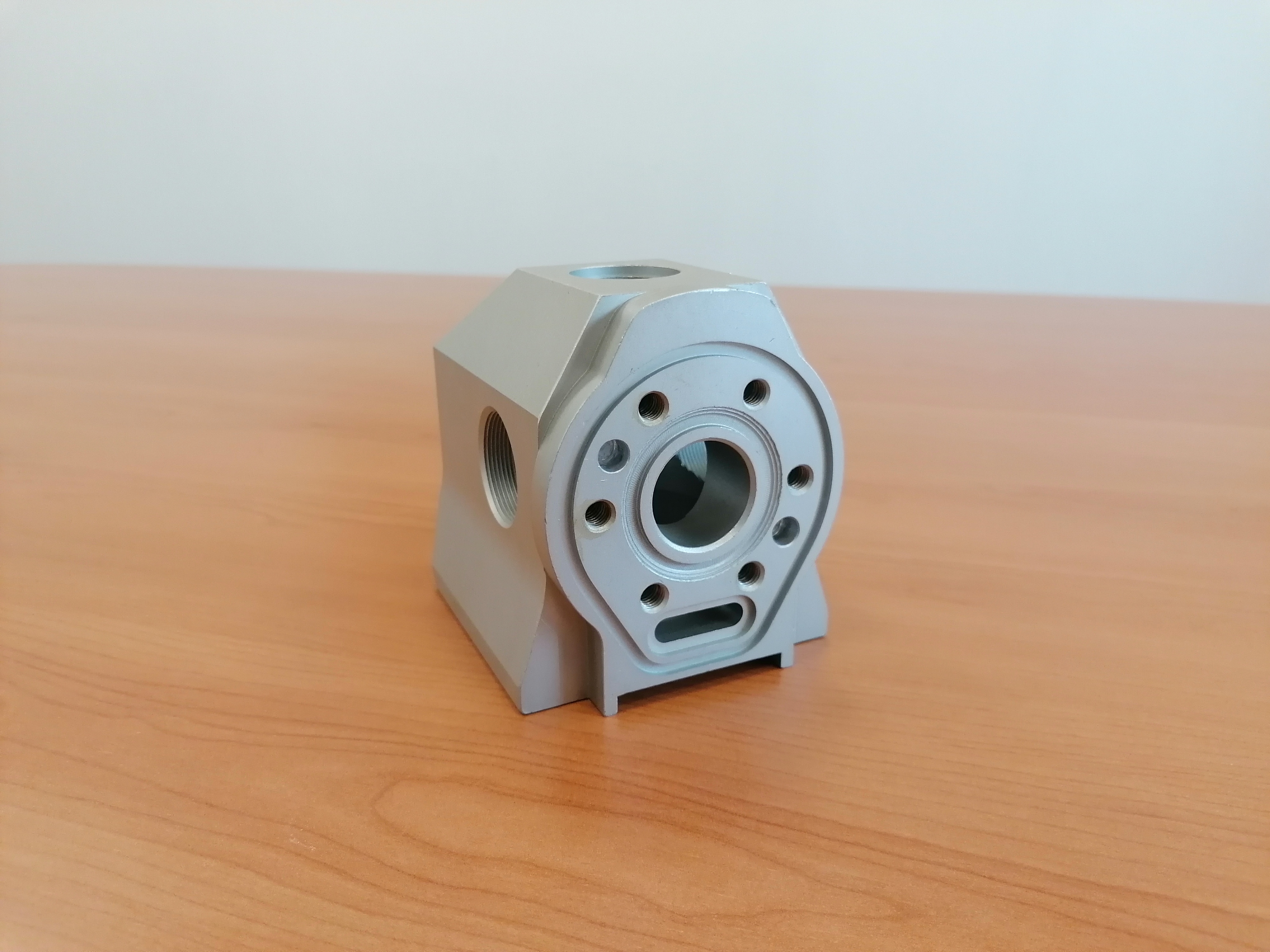

Lower body pump
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityLow
IndustriesMechanical engineering
10 / 10

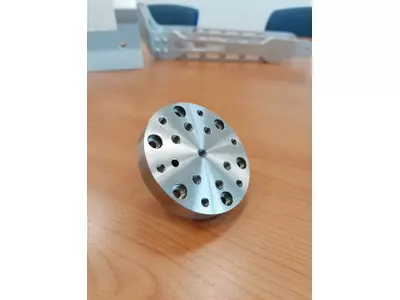

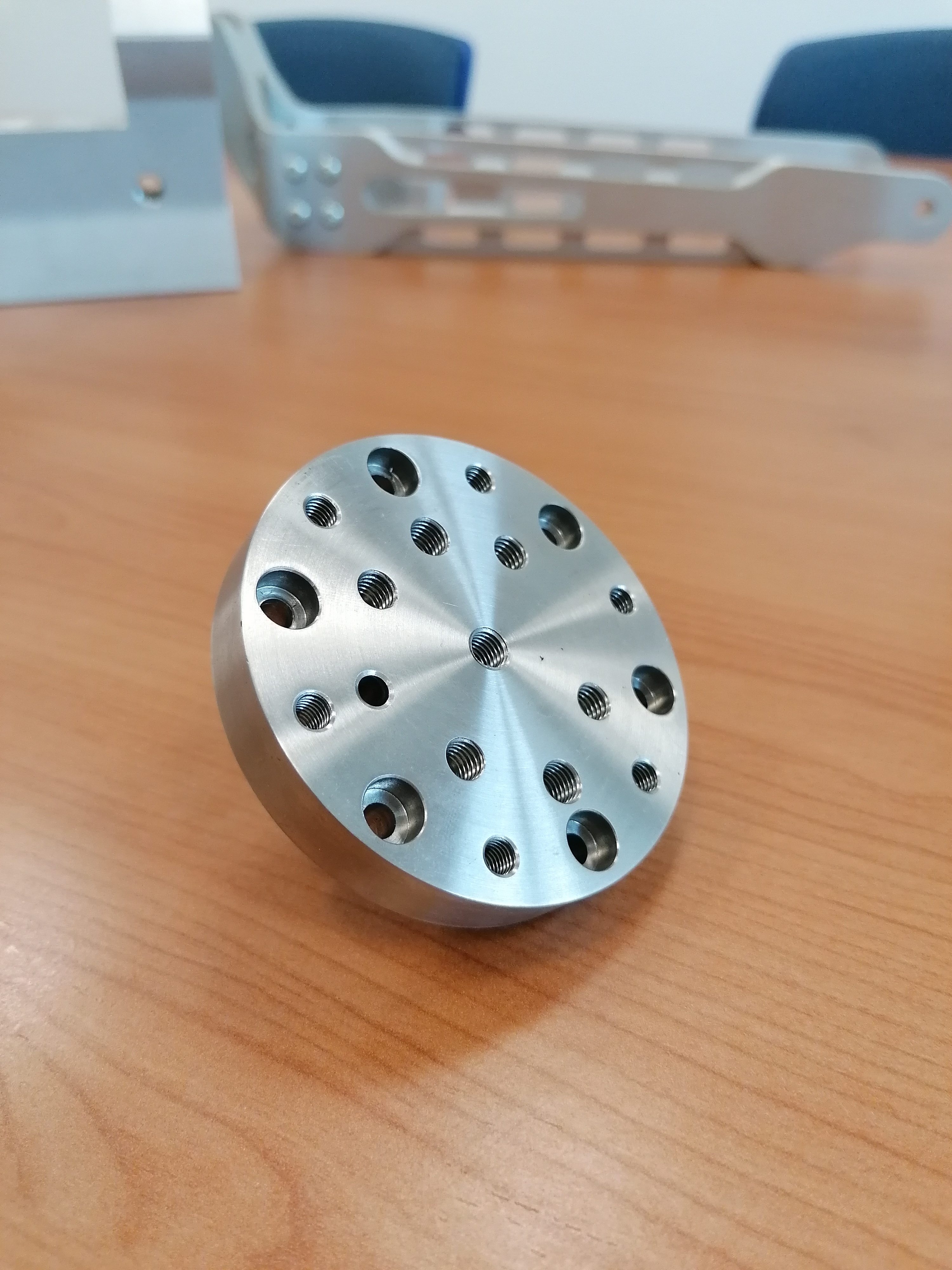

Component for university of Padua
TechnologyTurning
MaterialStainless steel (rust-proof V4A)
Lotsize0
Machinery (12)
1 / 12

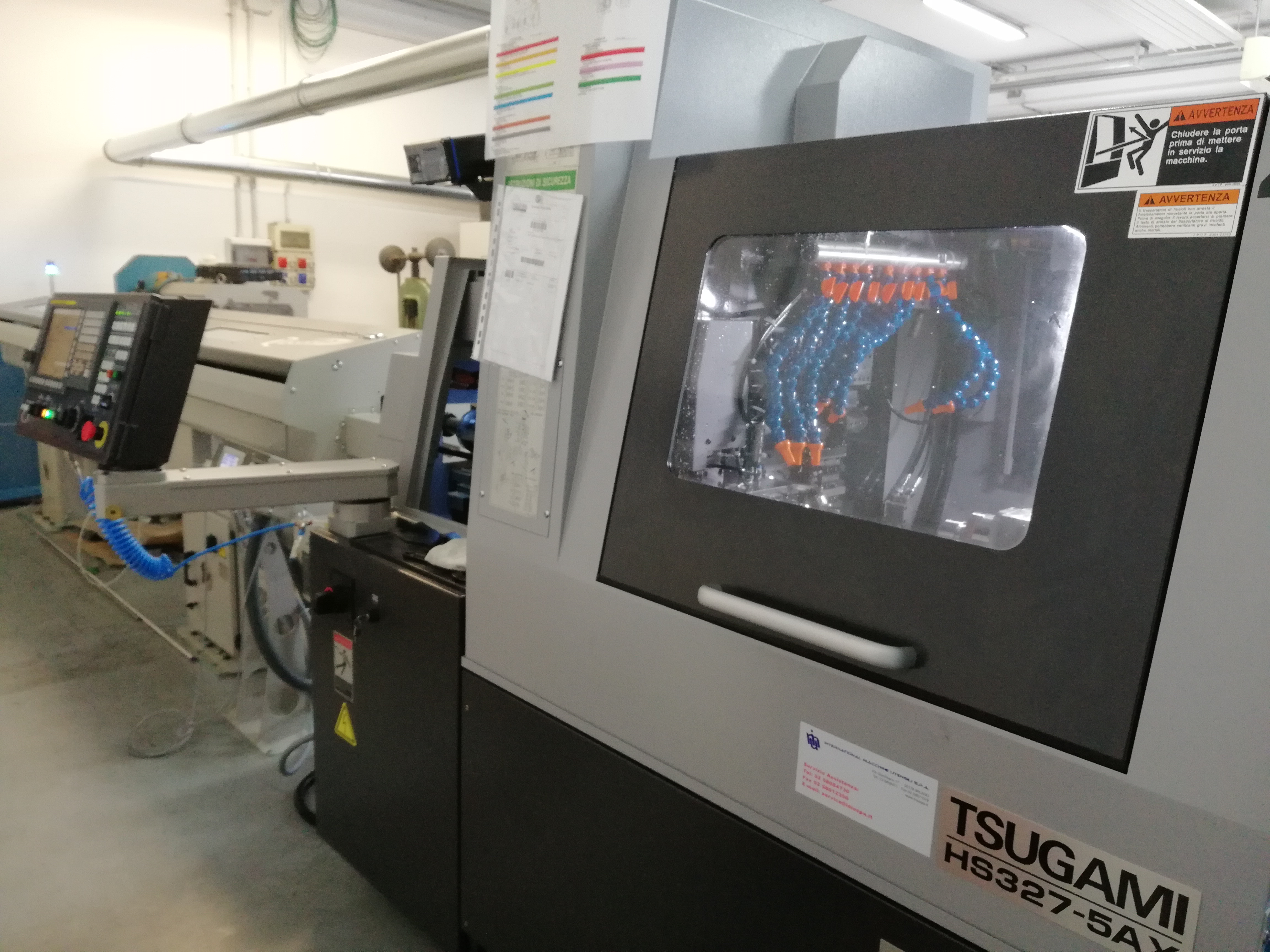

HS327-5AX lathe
ManufacturerTSUGAMI
ControlFanuc
Year of Construction2017
Technology
Swiss turningTurning
2 / 12

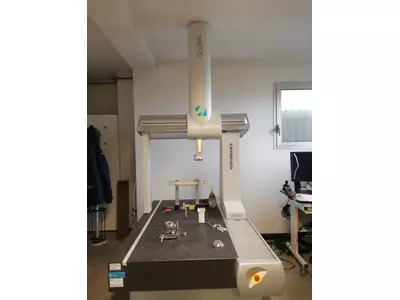

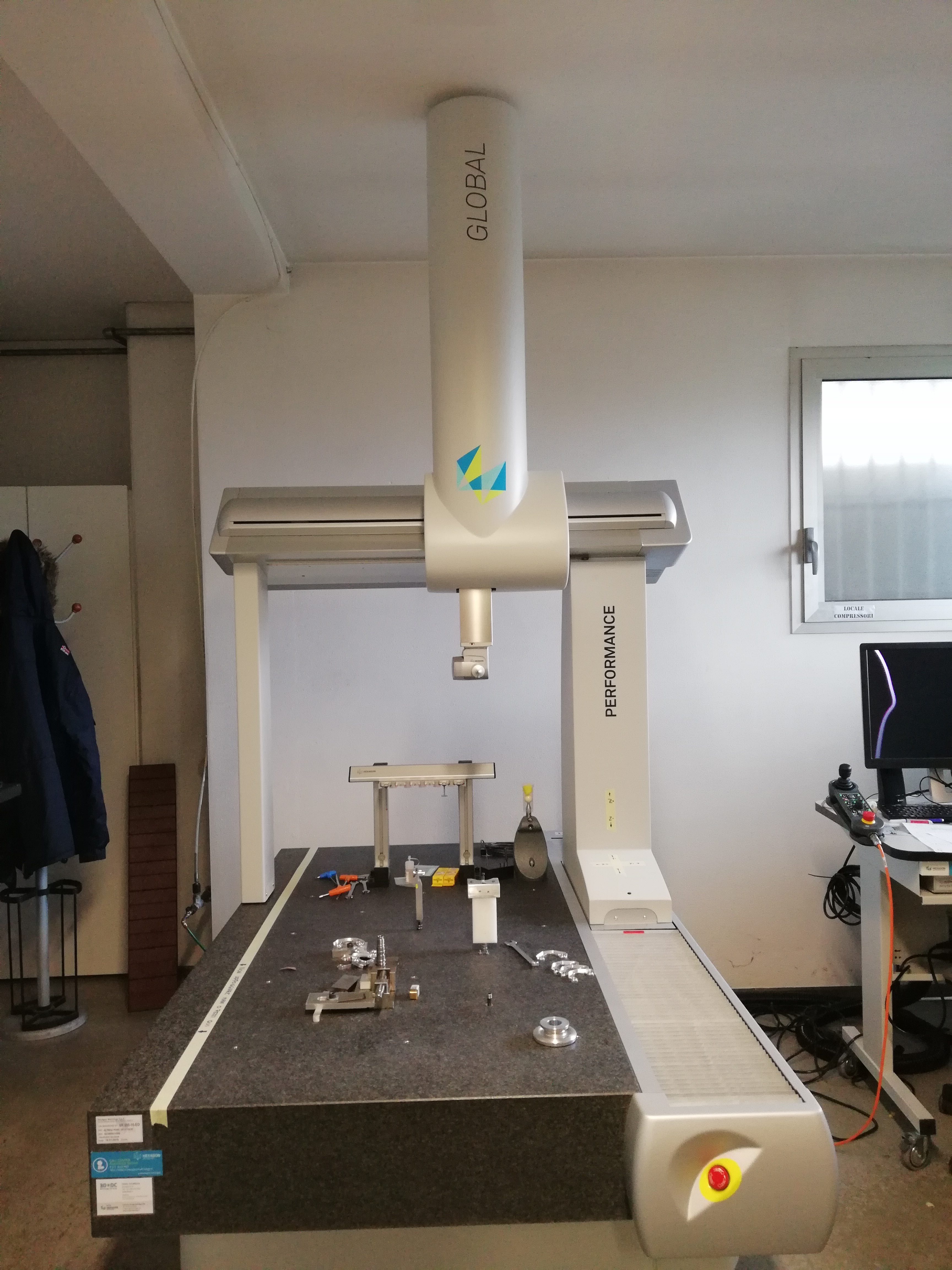

DEA GLOBAL PERFORMANCE
ManufacturerHEXAGON Manufacturing Intelligence
ControlContinuous scanning measuring machine
Year of Construction2017
3 / 12

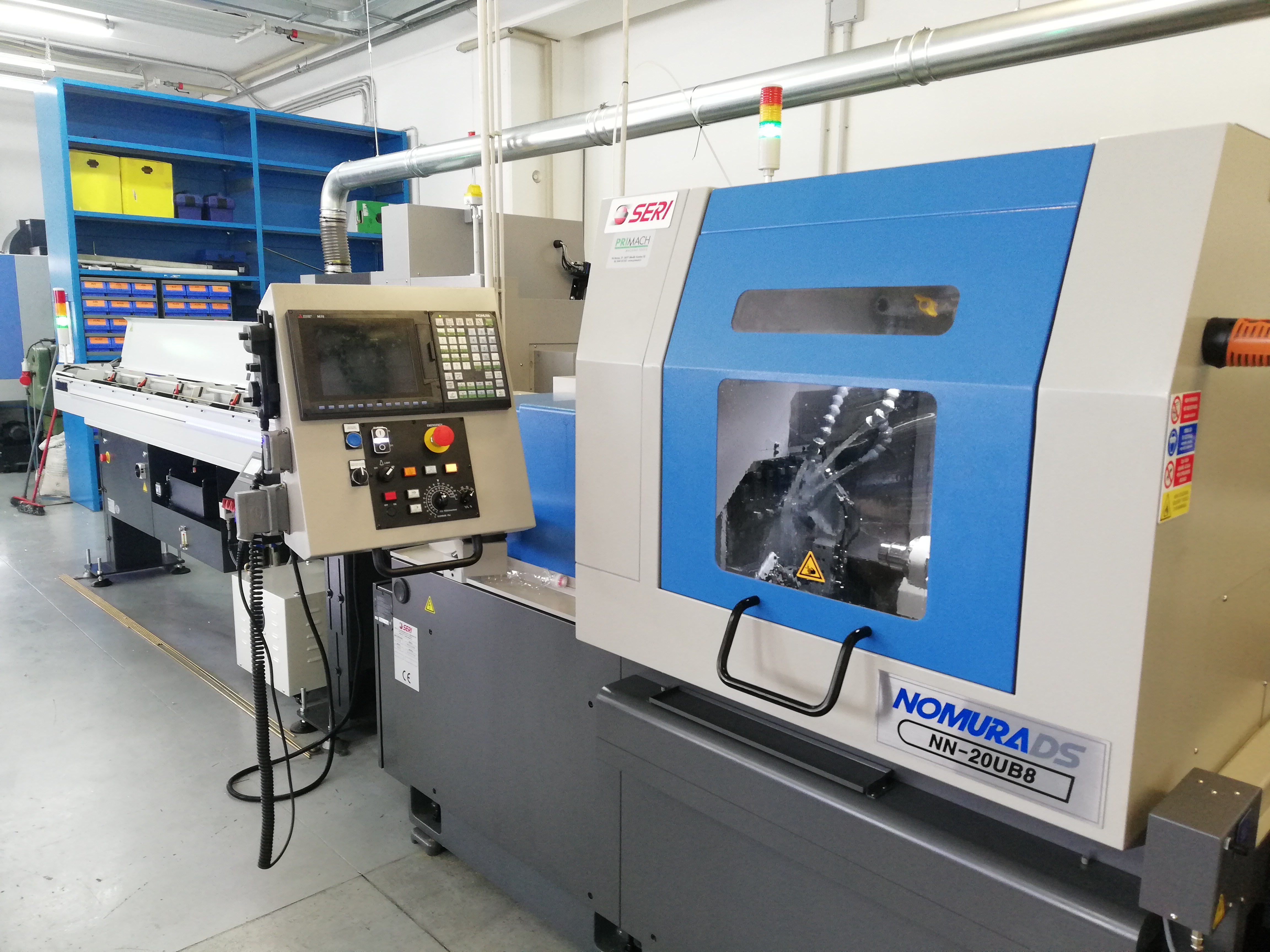

Nomura NN - 20UB8
ManufacturerNomura DS
ControlMitsubishi
Year of Construction2018
Technology
TurningSwiss turning
4 / 12

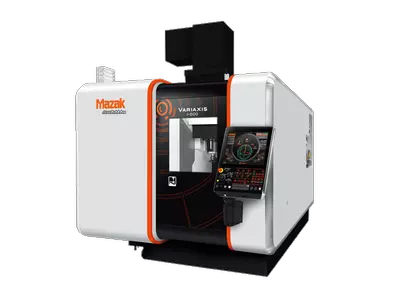

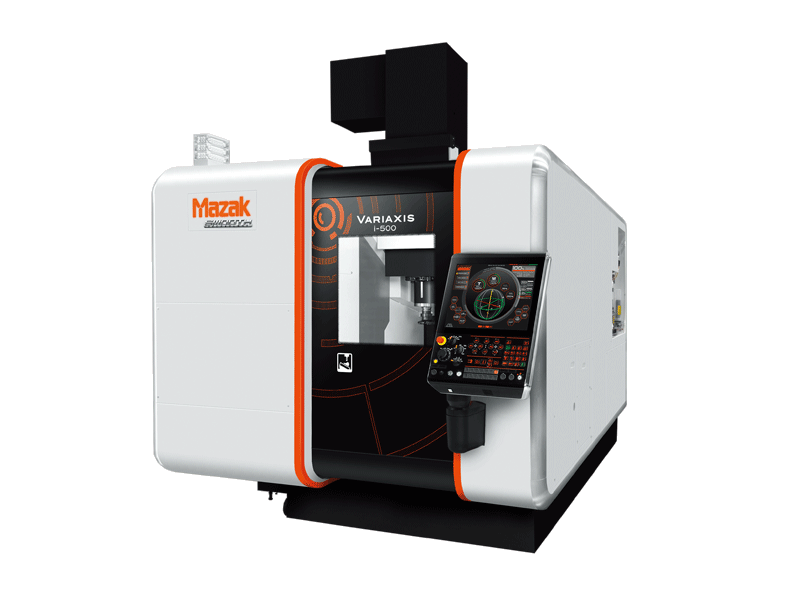

Mazak Variaxis i500
ManufacturerMazak
ControlMazak
Year of Construction2019
Technology
Milling5-axis milling machinesForm milling (3 D)HSC milling
5 / 12

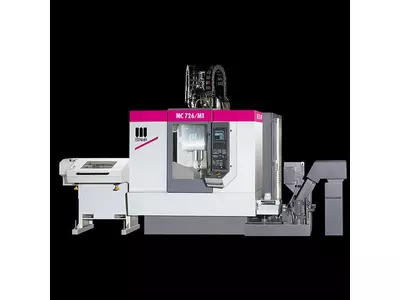

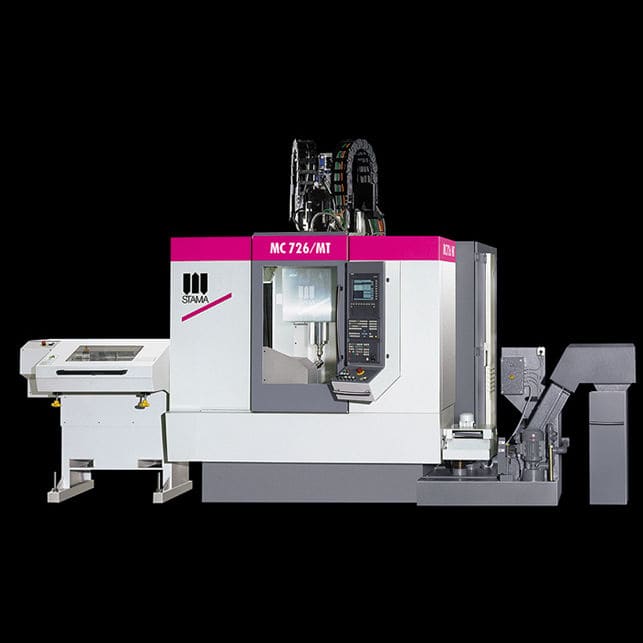

Stama MC 726/MT
ManufacturerStama
ControlSiemens
Year of Construction2009
Technology
5-axis milling machinesForm milling (3 D)Full-range milling (including turning)HSC millingMilling
6 / 12

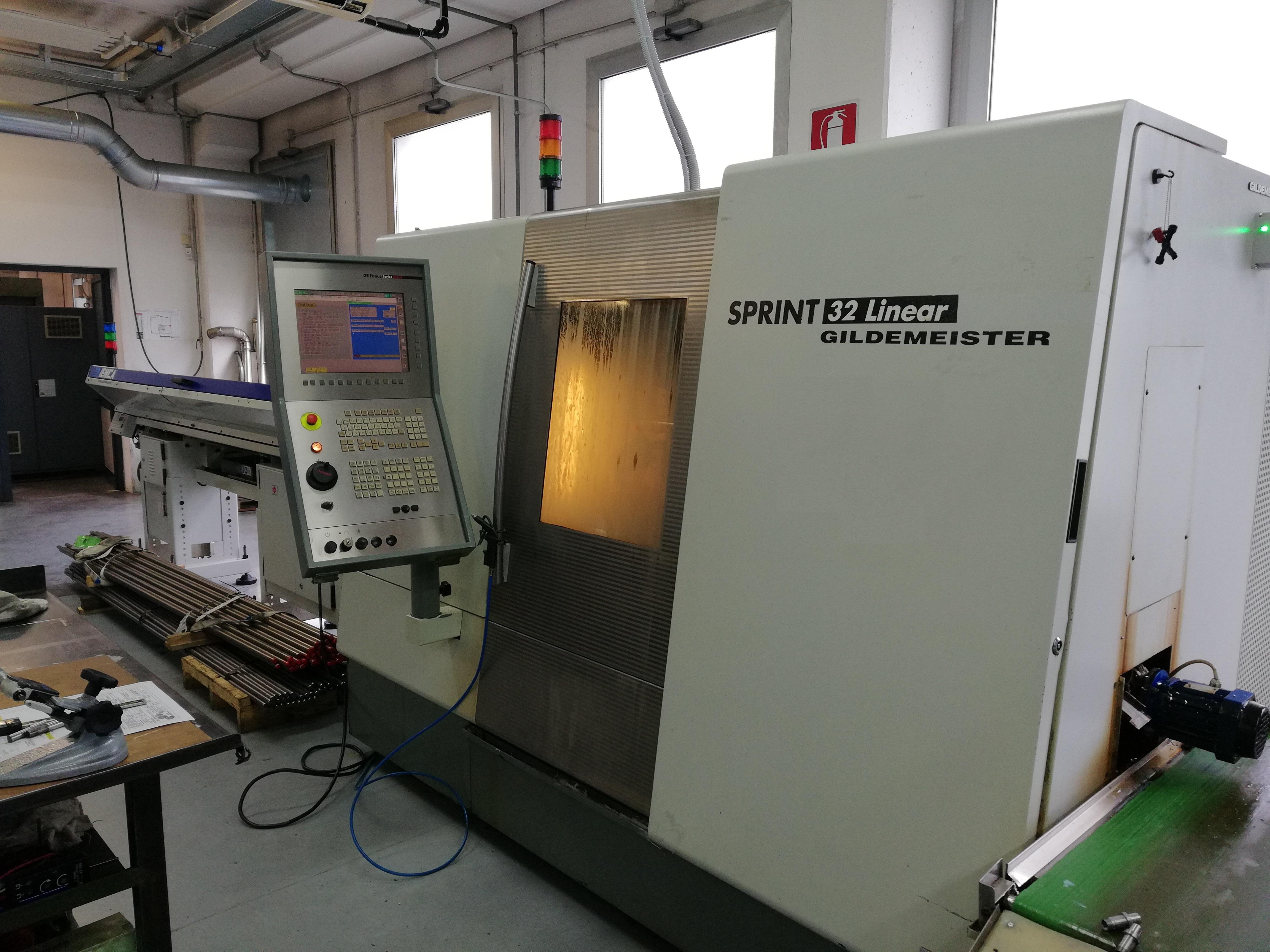

Gildemeister Sprint 32 Linear
ManufacturerDMG MORI
ControlFANUC
Year of Construction2005
Technology
Swiss turningTurning
7 / 12

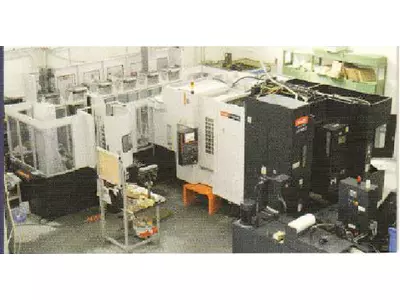

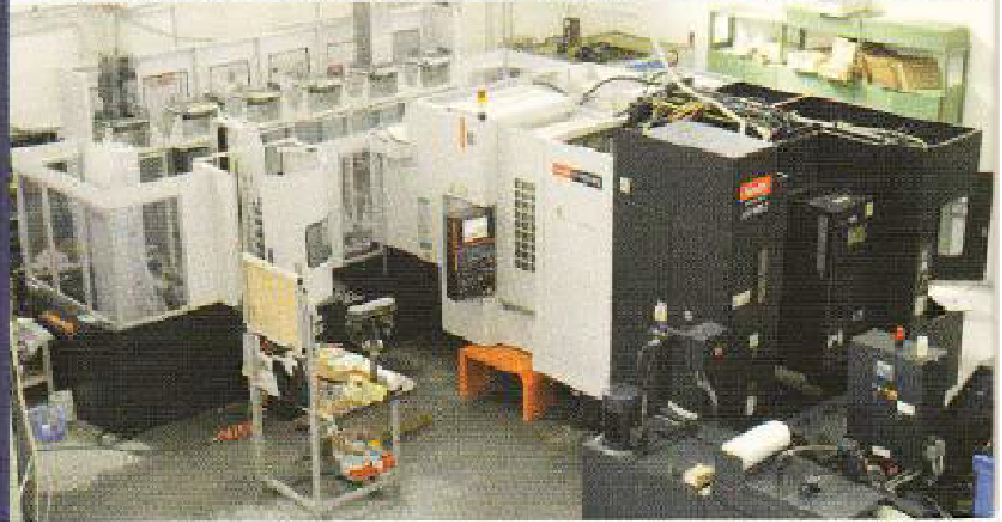

NEXUS 4000-II
ManufacturerMazak
ControlMitsubishi
Year of Construction2007
Technology
MillingHSC milling
8 / 12

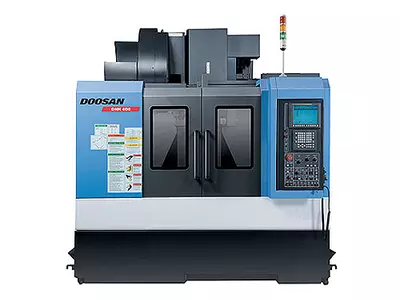

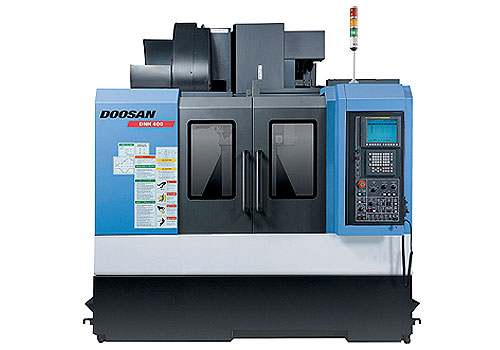

Doosan DNM 400
ManufacturerOvermach
ControlHeidenhain
Year of Construction2015
Technology
MillingForm milling (3 D)HSC milling5-axis milling machines
9 / 12

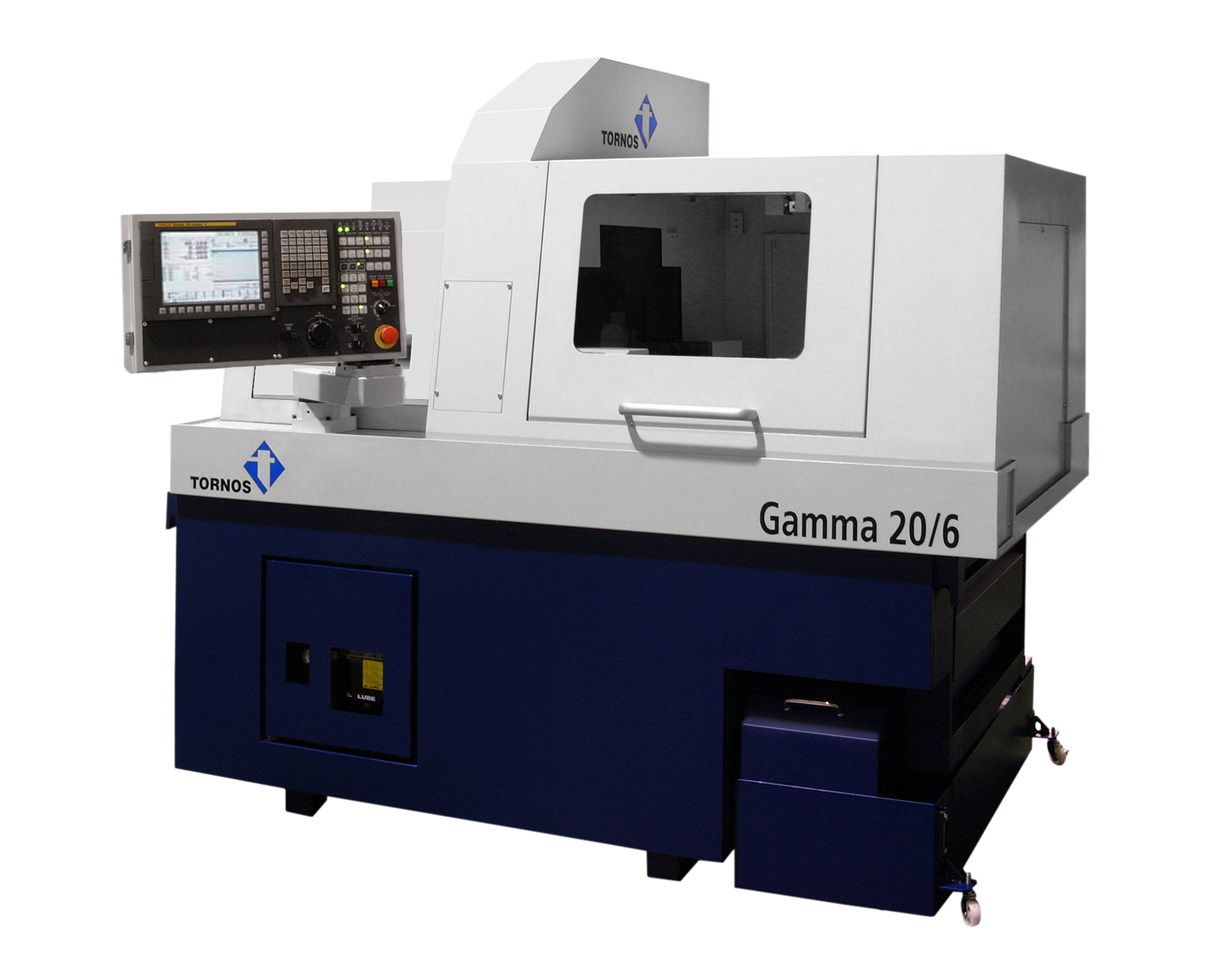

Gamma �20
ManufacturerTornos
ControlFanuc
Year of Construction2009
Technology
Swiss turningTurning
10 / 12

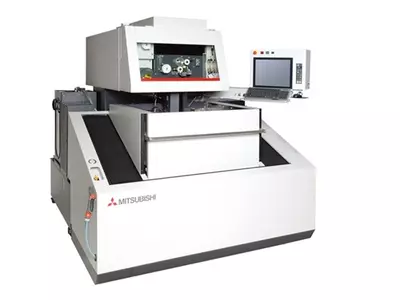

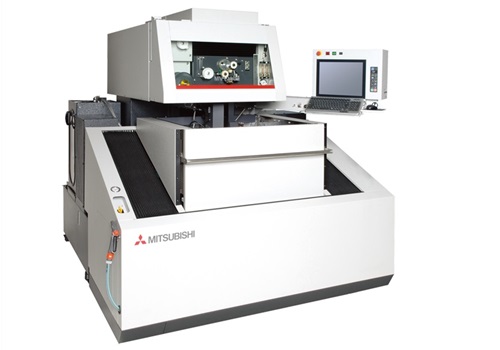

MITSUBISHI MV 1200S
ManufacturerMITSUBISHI
ControlMITSUBISHI
Year of Construction2019
Technology
Spark erosion wire cutting
11 / 12

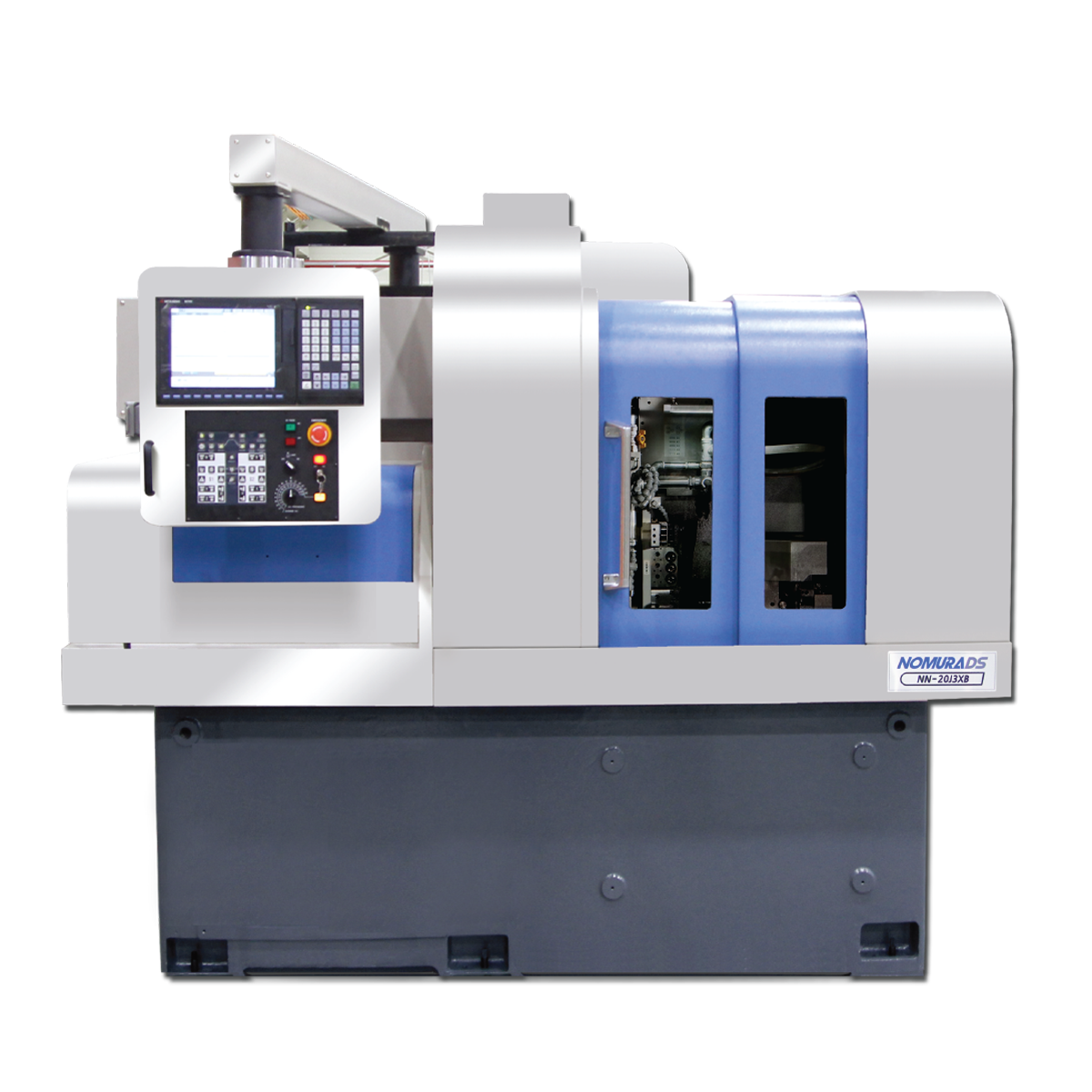

NOMURA NN20J3XB
ManufacturerNomura DS
ControlMitsubishi
Year of Construction2020
Technology
Full-range turning (including milling)Swiss turningTurningAutomatic turning (bar)
12 / 12

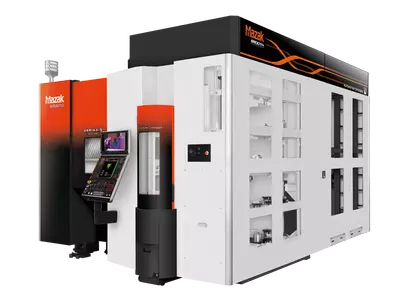

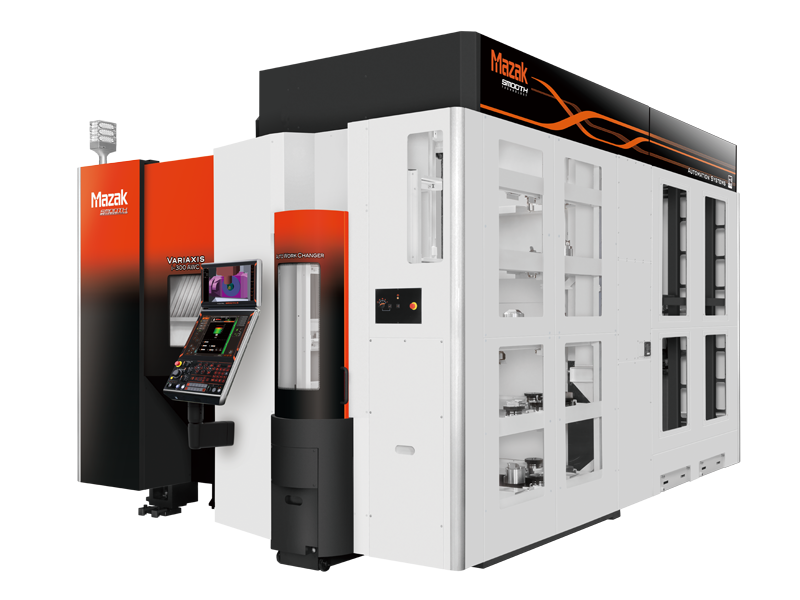

MAZAK VARIAXIS i-300 AWC
ManufacturerMAZAK
ControlMAZATROL
Year of Construction2021
Technology
5-axis milling machinesForm milling (3 D)MillingHSC milling
10 Parts
Full-range turning (including milling)4
5-axis milling machines1
Form milling (3 D)1
Milling3
Turning1
12 Machinery
Swiss turning5
Turning5
Milling5
5-axis milling machines4
Form milling (3 D)4
HSC milling5
Full-range milling (including turning)1
Spark erosion wire cutting1
Full-range turning (including milling)1
Automatic turning (bar)1
Contact
Location
Main locationMartiri della Libertà 17, 35012 Camposampiero, Italy
Further locationsCamposampiero (Padova), Italy
