mech-tron GmbH & Co. KG

Germany, 93426 Roding

Competencies

Technologies

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness

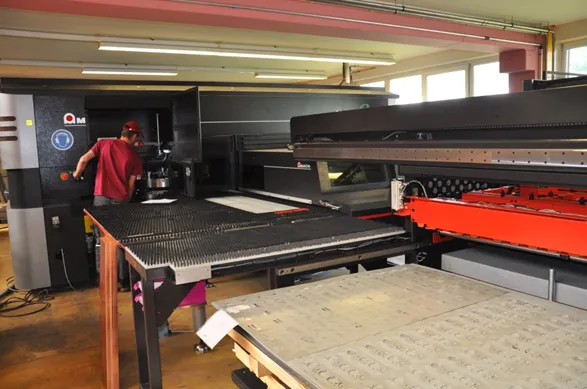

Laser cutting 2D	5–100 k	20–3,000 mm	20–1,500 mm	0–100 kg	0.3–6 mm

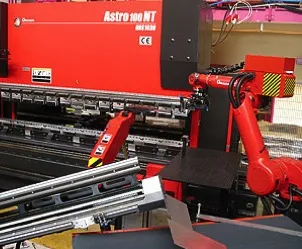

Bending / folding	10–10,000	10–4,300 mm	—	—	0.5–6 mm
Punching / nibbling	10–10,000	10–2,500 mm	10–1,250 mm	0–100 kg	0.5–6 mm

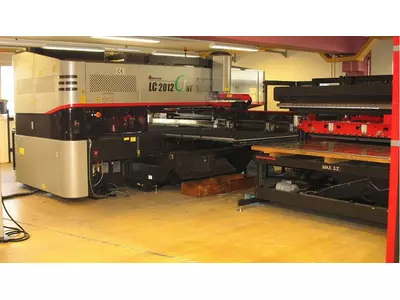

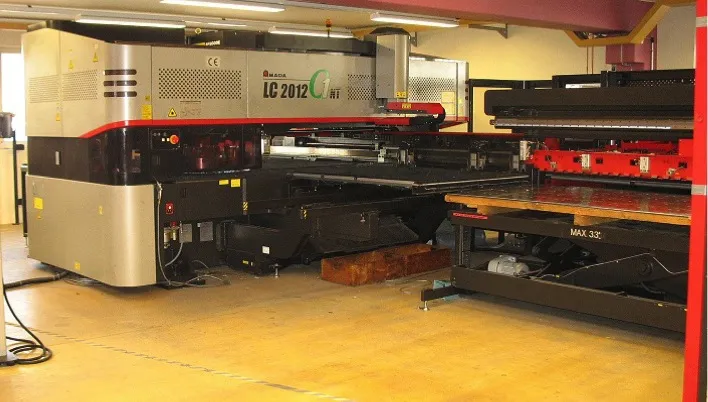

Combined forming laser cutting / punching	10–10,000	10–3,000 mm	10–1,500 mm	0–100 kg	0.5–6 mm
Plate straightening	10–10,000	—	100–800 mm	—	0.5–4 mm
Shearing (rectangular blank/strip)	10–10,000	—	—	—	0.5–6 mm

Assembly

Technologies	Weight
Mechanical assembly	0–250 kg

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width
Punching / pressing (Out-of-tool)	5–100 k	2–400 mm	2–800 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	5–100 k	2–3,000 mm	2–1,500 mm	0.3–6 mm	0.3–6 mm	0–100 kg	0.3–6 mm
Inert gas shielded arc welding (TIG)	5–100 k	2–3,000 mm	2–1,500 mm	2–3,000 mm	0.3–6 mm	0–100 kg	0.3–6 mm

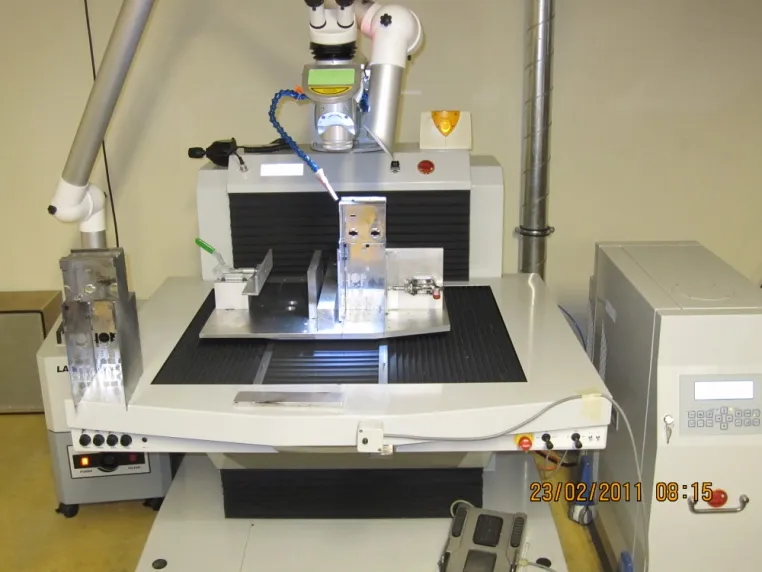

Laser-beam welding	5–100 k	2–3,000 mm	2–1,500 mm	0.3–6 mm	2–3,000 mm	0–100 kg	—
Spot welding	5–100 k	—	—	—	—	—	0.3–6 mm
Stud welding	5–100 k	—	—	—	—	—	—

Threading

Technologies	Lotsize	Length	Diameter
Thread rolling	5–100 k	2–3,000 mm	0.3–6 mm

Assembly Group Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Adhesive bonding	5–100 k	2–3,000 mm	2–1,500 mm	2–3,000 mm	2–3,000 mm	0–100 kg	0.3–6 mm
Riveting	5–100 k	2–3,000 mm	2–1,500 mm	—	—	—	0.3–6 mm

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Milling	10–10,000	1–650 mm	1–2,000 mm	1–520 mm	—	0–50 kg

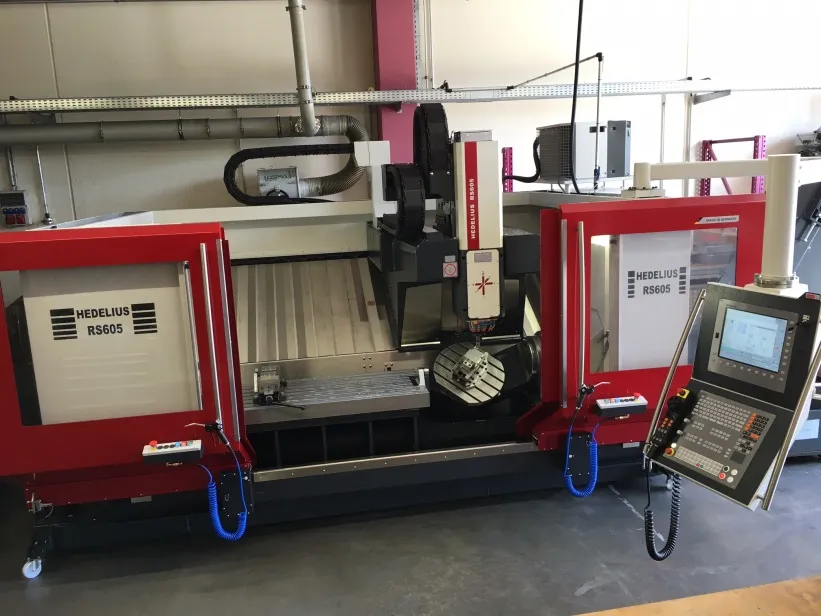

5-axis milling machines	10–10,000	1–650 mm	1–620 mm	1–520 mm	—	0–50 kg
Form milling (3 D)	1–10,000	1–650 mm	1–620 mm	1–520 mm	—	0–50 kg

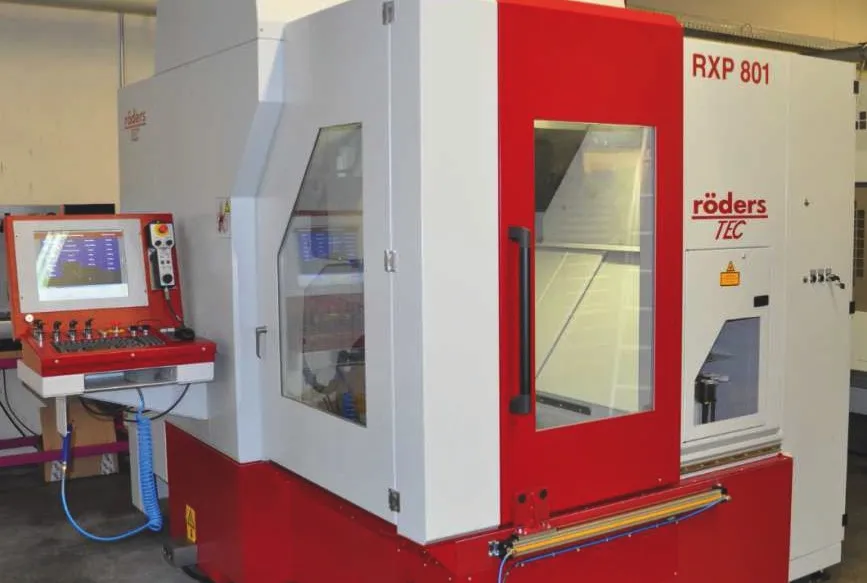

HSC milling	10–10,000	1–1,000 mm	1–700 mm	1–240 mm	—	0–30 kg
Deep-hole drilling	10–10,000	1–650 mm	1–2,000 mm	1–520 mm	1–20 mm	0–50 kg
Engraver milling	10–10,000	1–650 mm	1–2,000 mm	1–520 mm	1–650 mm	0–50 kg

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Weight
Drilling / threading / tapping	5–100 k	1–3,000 mm	1–1,500 mm	0.3–6 mm	0–100 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	5–100 k	10–600 mm	10–1,000 mm	10–400 mm	0.3–6 mm
Pad printing	5–100 k	10–3,000 mm	10–1,500 mm	—	—

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Weight

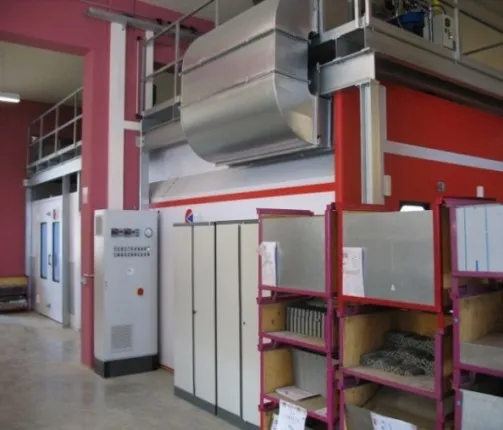

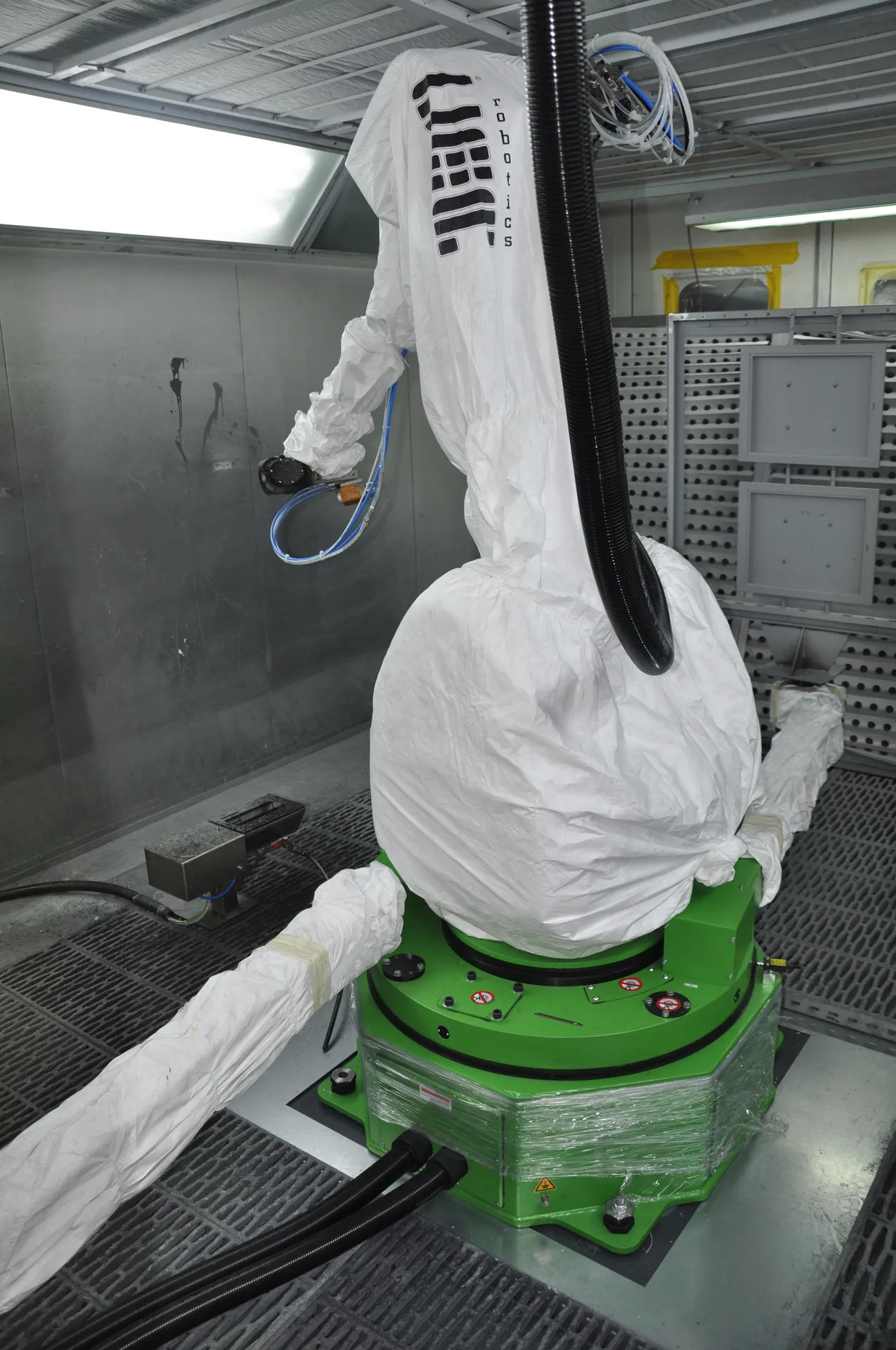

Powder coating	5–100 k	2–3,000 mm	2–600 mm	2–1,200 mm	0–100 kg
Parts cleaning/degreasing	—	10–3,000 mm	10–800 mm	10–600 mm	0–100 kg

Materials

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Industries

Military engineeringAir conditioning, refrigeration and ventilation industryRailway and rail vehicles industryTelecommunication industryPrecision engineering, mechatronics and opticsInformation technology (hardware)Mechanical engineeringAerospace and aviation industryAutomotive and vehicle constructionMedical technologyMeasurement and control technique, laboratory equipmentElectrical industryAutomation and control engineering

+5 moreShow less
