Meindl-Köhle Umform- und Systemtechnik GmbH & Co. KG
Germany, 86899 Landsberg
Overview
About Meindl-Köhle Umform- und Systemtechnik GmbH & Co. KG
Who we are
- Tool with its own design for the production of progressive and Forming tools - Profile sanding to 2.000 mm - 2D/3D-Laserschneiden - Auto parts production on eccentric and hydraulic presses 4-630 to with subsequent installation to complete. Assemblies including cathodic surface. - Single orders with customer supplied materials and tools - Milling of aluminum and steel parts 3 to 5-axis machining centers (Prototypes, small and medium series) - Compl. Modules f bus air-conditioning systems, for example, discharge housing to 2 m in length, Refrigerant collector
1 / 4
2 / 4
3 / 4
4 / 4

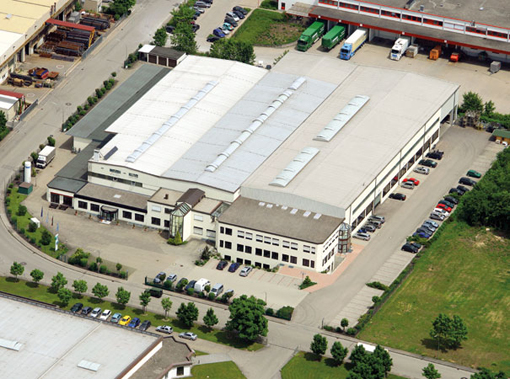

Landsberg, Germany
Member since 2004
Employees50 - 100
Certificates2
Turnover5 - 10 Mil.
Year of foundation1928
Competencies
Technologies
Etching and Spark Erosion
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Spark erosion wire cutting | 1–100 | 20–700 mm | 20–500 mm | 20–280 mm | 0–100 kg |
Spark erosion countersinking | 1–100 | 20–700 mm | 20–400 mm | 20–380 mm | 0–100 kg |
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Height | Weight | Material thickness |
|---|---|---|---|---|---|---|
Laser cutting 2D | 1–10,000 | 5–3,000 mm | 5–1,500 mm | — | 0–432 kg | 0.5–12 mm |
Laser cutting 3D | 1–10,000 | 20–3,000 mm | 20–1,000 mm | 20–650 mm | 0–200 kg | 0.5–8 mm |
Bending / folding | 1–10,000 | 10–2,000 mm | — | — | — | 0.5–8 mm |
Punching / nibbling | 1–10,000 | 5–2,500 mm | 5–1,250 mm | — | 0–150 kg | 0.5–6 mm |
Sheet Metal Forming (Stamping, Deep-drawing)
| Technologies | Lotsize | Length | Width |
|---|---|---|---|
Punching / pressing (Out-of-tool) | 1,000–1 M | 5–2,800 mm | 5–1,200 mm |
Deep-drawing | 1–50,000 | — | — |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–100 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–10,000 | 10–3,000 mm | 10–3,000 mm | 10–3,000 mm | 10–1,000 mm | 0–50 kg | 2–20 mm |
Inert gas shielded arc welding (TIG) | 1–5,000 | 1–3,000 mm | 1–3,000 mm | 1–3,000 mm | 10–500 mm | 0–500 kg | 1–20 mm |
Laser-beam welding | 1,000–50,000 | 10–500 mm | 10–500 mm | 10–500 mm | 10–500 mm | 0–100 kg | — |
Robot welding | 1,000–10,000 | 100–500 mm | 100–500 mm | 100–500 mm | — | 0–25 kg | — |
Spot welding | 1–10,000 | — | — | — | — | — | 0.5–3 mm |
Cutting dies / deep drawing dies
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Punching / Cutting tools | 5–2,800 mm | 5–1,200 mm | 5–1,000 mm | 0–4,000 kg |
Follow-on composite tools | 100–2,800 mm | 100–1,200 mm | 100–1,000 mm | 0–4,000 kg |
Deep-drawing dies | 5–1,000 mm | 5–1,000 mm | 5–800 mm | 0–4,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–50,000 | 1–740 mm | 1–730 mm | 1–730 mm | 0–500 kg |
5-axis milling machines | 1–1,000 | 100–1,150 mm | 100–1,250 mm | 20–1,000 mm | 0–2,200 kg |
Form milling (3 D) | 1–2,000 | 1–1,500 mm | 1–800 mm | 1–1,050 mm | 0–1,500 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Surface grinding machine | 1–10,000 | 1–2,000 mm | 1–800 mm | 1–650 mm | — | 0–2,000 kg |
Profile grinding | 1–10,000 | 300–2,000 mm | 1–100 mm | 10–500 mm | 1–10 mm | — |
Materials
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Cast metals
Cast steelCast iron
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Industries
Military engineeringShipbuilding industryMeasurement and control technique, laboratory equipmentRailway and rail vehicles industryAerospace and aviation industryTelecommunication industryInformation technology (hardware)Power generation and transmission industryLighting industryAir conditioning, refrigeration and ventilation industryHousehold appliance industryDrive and gear engineeringConstruction and architectural suppliesMining and tunnel engineeringPrecision engineering, mechatronics and opticsPaper and printing machinery industryMachine tool manufacturingPackaging industryMechanical engineeringSpecial purpose machinery manufacturingClean room technologyElectrical industryPlant engineering and constructionApparatus engineeringFittings engineeringAutomotive and vehicle constructionMedical technologyFurniture industryBoiler, container and tank construction Hydraulic and pneumatic industryBuilding, agricultural and forestry machinery manufacturingAutomation and control engineeringOffice machinery and suppliesChemical industry
Certificates
ISO 9001:2008
EN 15085
Parts & Machines
Parts (3)
1 / 3

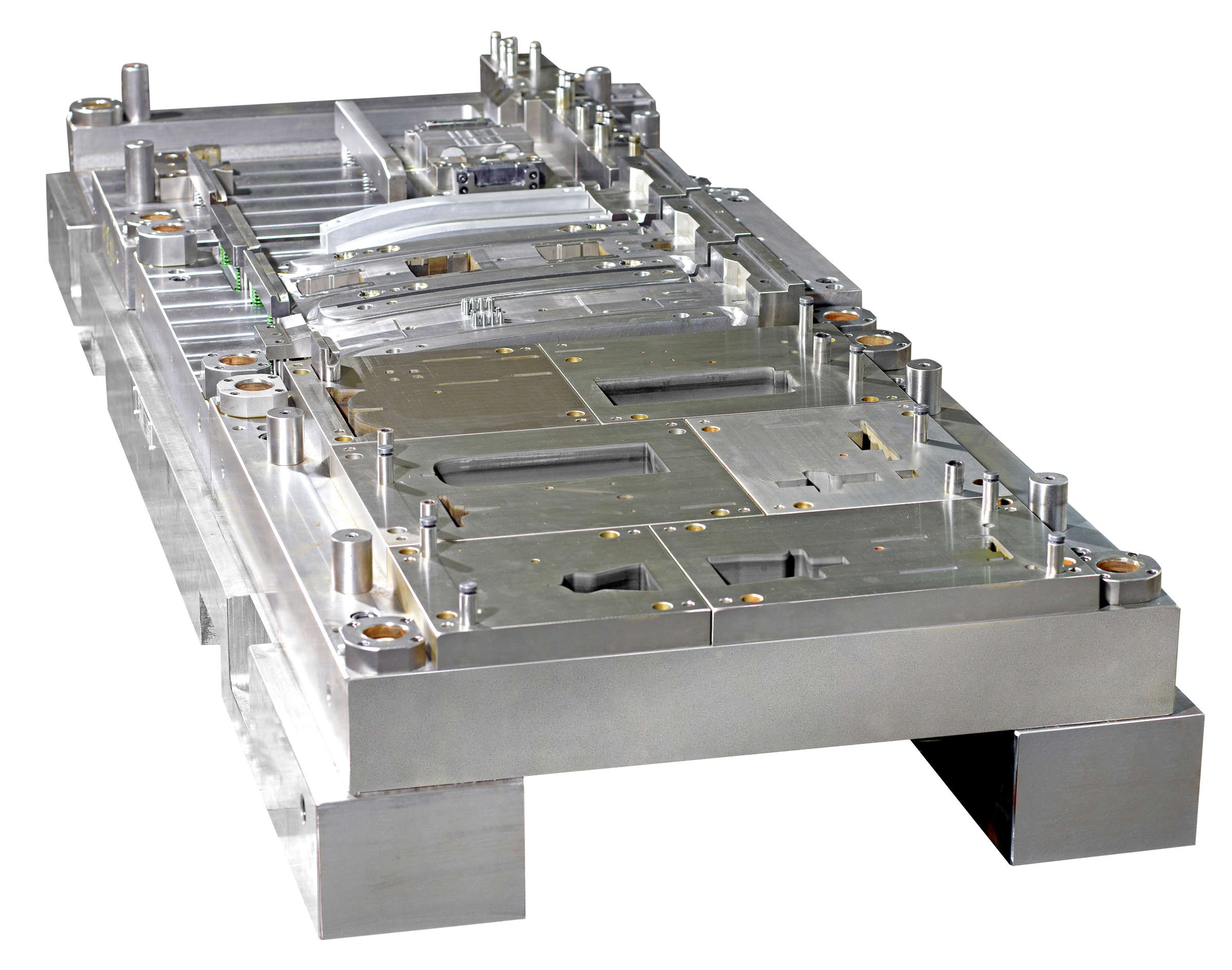

Werkzeuge
DescriptionStanz-, Zieh-, und Folgeverbundwerkzeuge
bis max. 2500 x 1000 x 600 mm (LxBxH)
2 / 3

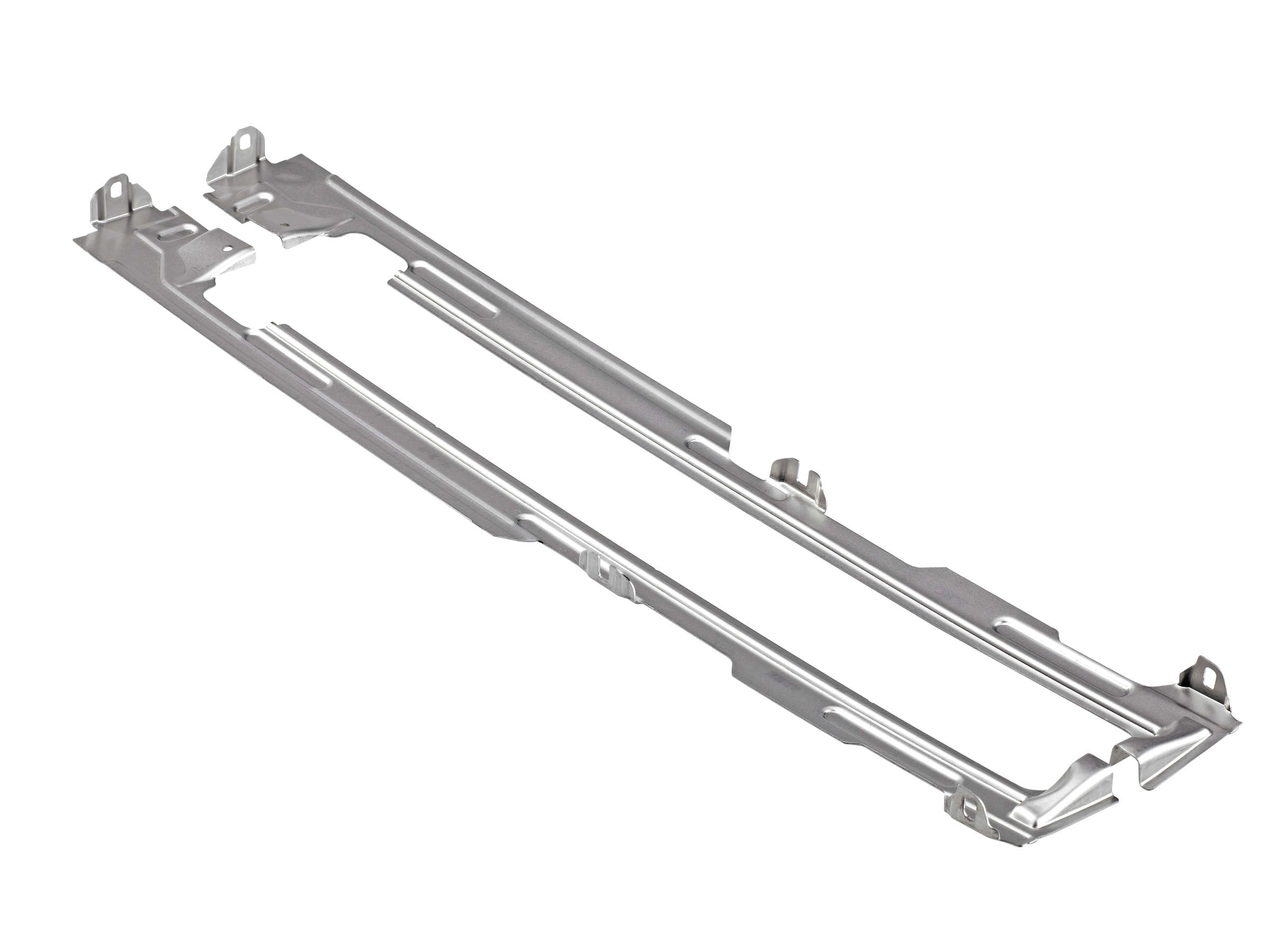

Stanzteil aus Folgeverbundwerkzeug
DescriptionStanzteil (Verstärkung 1,25 mm dick) aus
einem Folgeverbundwerkzeug für li/re Teile,
gefertigt in einer 400 to Presse
3 / 3

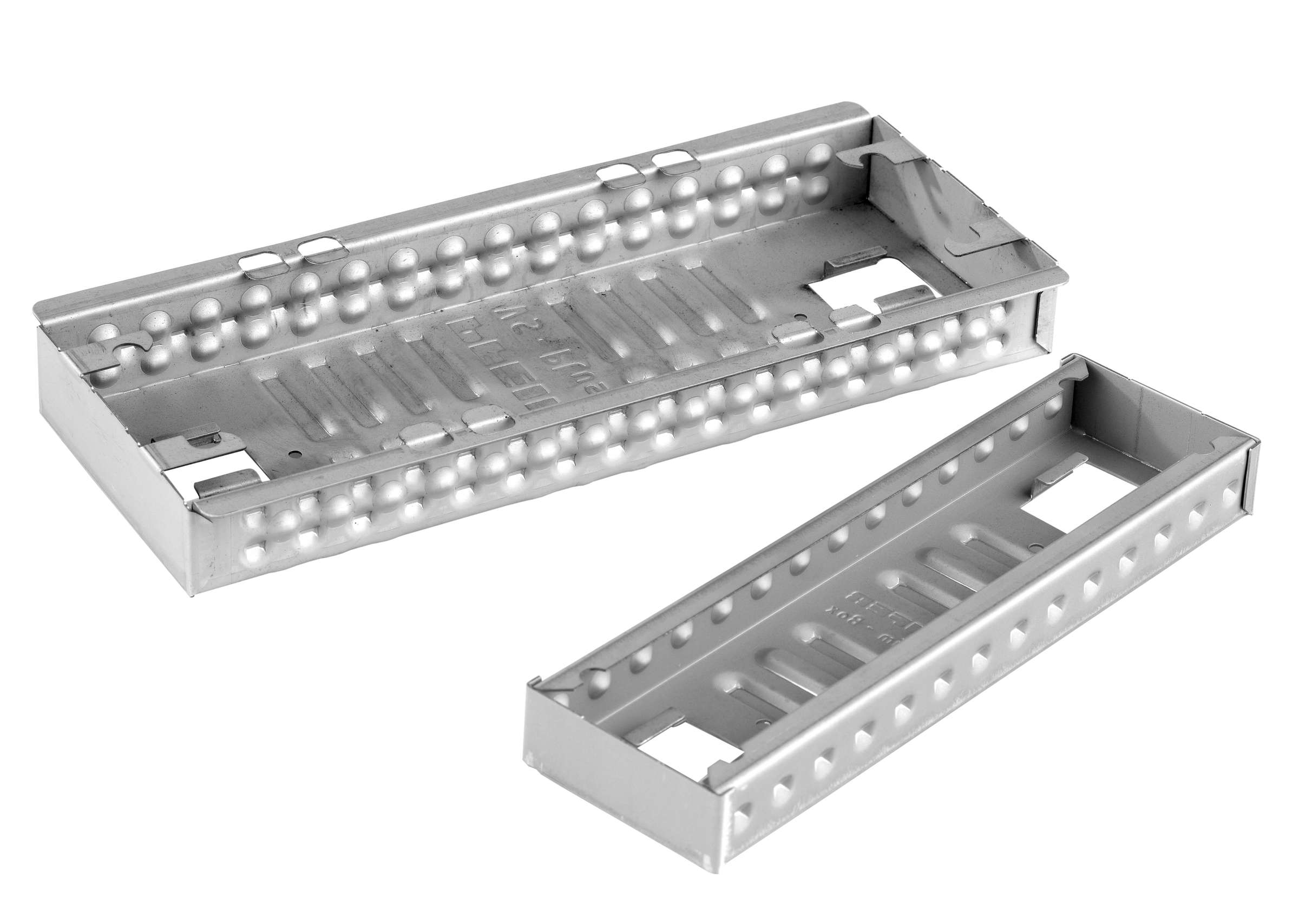

Stanzteile im Folgeverbundwerkzeug
DescriptionStanzteile (Box 0,7 mm dick) aus
Folgeverbundwerkzeuge gefertigt in einer 250 to Presse
3 Parts
Contact
Location
Main locationJustus-von-Liebig-Str 14, 86899 Landsberg, Germany
Further locationsD 86899 Landsberg am Lech
Company contact
Contact persons
BM
Birgit Meindl-Köhle
RS
Robert Schneider
