About Metallbaumontage Batzel
Who we are
Medium-sized enterprises Specialized in professional sheet metal working - Laser sheet blanks - Blechabkantantungen - Mechanical machining
1 / 3
2 / 3
3 / 3
.webp)
Hohenahr-Erda, Germany
Member since 2019
Employees20 - 50
Certificates2
Turnover1 - 5 Mil.
Year of foundation2007
Marketing documents
Competencies
Technologies
Sheet Metal Processing
| Technologies | Lotsize | Length | Width | Material thickness |
|---|---|---|---|---|
Laser cutting 2D | 1–1 M | 5–3,980 mm | 5–1,980 mm | 0.5–25 mm |
Bending / folding | 1–10,000 | 10–4,000 mm | — | 0.5–20 mm |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–1,000 | 40–6,000 mm | 40–2,000 mm | 40–2,000 mm | — | 0–8,000 kg | — |
Inert gas shielded arc welding (TIG) | 1–1,000 | 40–3,500 mm | 40–1,500 mm | 40–1,500 mm | — | 0–2,000 kg | — |
Manual electrode welding | 1–1,000 | 10–6,000 mm | 10–2,000 mm | 40–2,000 mm | 40–1,000 mm | 0–8,000 kg | 3–300 mm |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 40–6,000 mm | 40–2,000 mm | 40–2,000 mm | 0–8,000 kg |
Machine frames / bases / racks | 40–6,000 mm | 40–2,000 mm | 40–2,000 mm | 0–8,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–100 k | 10–1,500 mm | 10–1,200 mm | 1–600 mm | — |
HSC milling | 1–100 k | 10–1,500 mm | 10–1,200 mm | 2–600 mm | 0–5,000 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Drilling / threading / tapping | 1–1 M | 10–1,600 mm | 10–1,200 mm | 2–600 mm | 0–5,000 kg |
Materials
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys
Light metals
Aluminium and aluminium alloys
Industries
Automotive and vehicle constructionPaper and printing machinery industryAutomation and control engineeringMechanical engineeringApparatus engineeringPlant engineering and constructionMachine tool manufacturingShipbuilding industrySpecial purpose machinery manufacturingAir conditioning, refrigeration and ventilation industryPackaging industryLighting industryBoiler, container and tank construction Drive and gear engineeringElectrical industry
Certificates
DIN EN 1090
DIN EN ISO 3834
Parts & Machines
Parts (11)
1 / 11

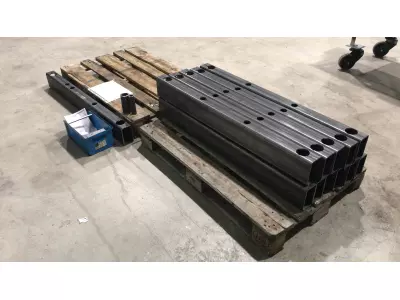

Traverse
TechnologyDrilling / threading / tapping
MaterialStructural steel
Dimensions
Width80 mm
Height140 mm
Length1210 mm
Weight12 mm
Lotsize10
DescriptionTraversen als Trägerhalterungen genutzt, in denen Zylinderkolben durchgesteckt und fixiert werden.
2 / 11
.webp)

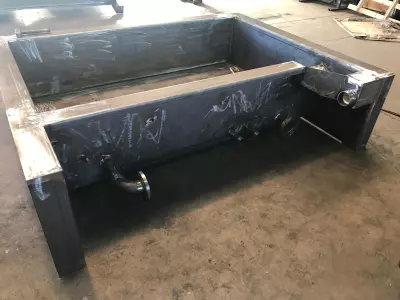

Wasserbottich
TechnologyWelded constructions (weldments)
MaterialStructural steel
Lotsize2
ComplexityLow
DescriptionKundenspezifische Bauteile
Blechkonstruktion komplett dicht zusammengeschweißt.
3 / 11
.webp)

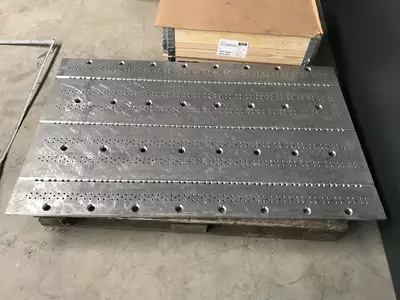

Spannplatte
TechnologyHSC milling
MaterialAluminium and aluminium alloys
Dimensions
Width800 mm
Height20 mm
Length1400 mm
Weight60 mm
Lotsize0
ComplexityLow
DescriptionHerstellung für eigene Zwecke um Spannmittel besser und schneller zu verfahren.
4 / 11
.webp)

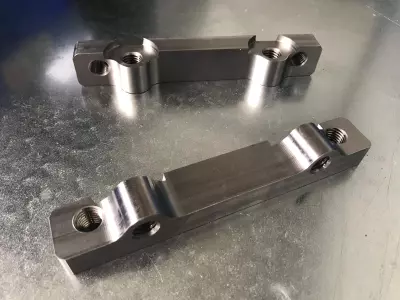

Bremssattelhalter
TechnologyHSC milling
MaterialStructural steel
Dimensions
Weight0.5 mm
Length160 mm
Height20 mm
Width25 mm
Lotsize2
ComplexityLow
DescriptionMechanisches Bearbeiten von S355 für BMW E35 Bremsattelhalter.
5 / 11

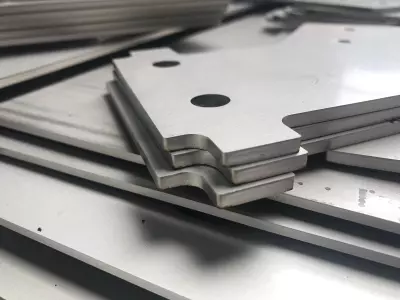

Qualität Laserzuschnitt
TechnologyLaser cutting 2D
MaterialStainless steel (rust-proof V2A)
Lotsize10
DescriptionQualitätsschnitte einer Fibermaschine bei Edelstahl.
6 / 11

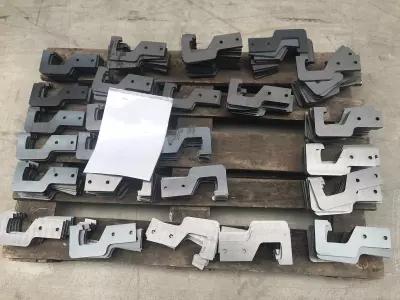

Haken
TechnologyLaser cutting 2D
MaterialStructural steel
Lotsize200
DescriptionAufhängungen, die vom Kunden als Haken benutzt werden.
7 / 11

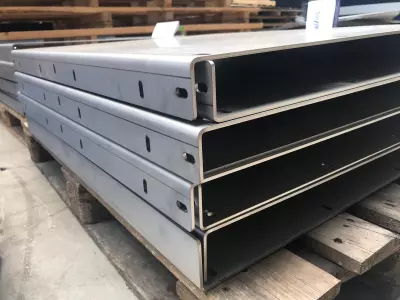

Abdeckung
TechnologyBending / folding
MaterialStainless steel (rust-proof V2A)
Lotsize16
DescriptionLaserzuschnitte mit anschließenden Abkantungen für Abdeckungen.
8 / 11
.webp)

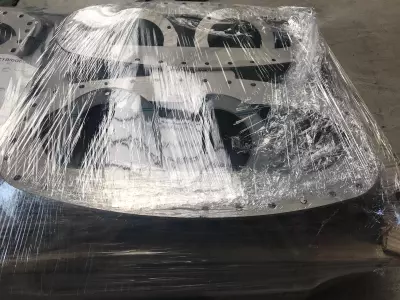

Verpackt & Versandbereit
TechnologyLaser cutting 2D
MaterialStructural steel
Lotsize10
DescriptionLaserzuschnitte kontrolliert und auf Europalette verpackt.
9 / 11

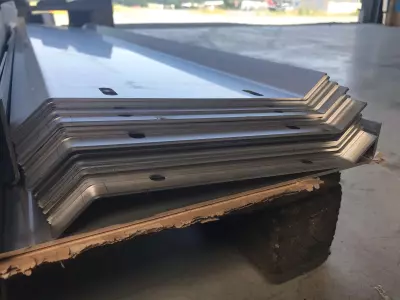

Seitenschutz
TechnologyBending / folding
MaterialStainless steel (rust-proof V2A)
Lotsize20
DescriptionBlechlaserzuschnitt + Abkantung
10 / 11

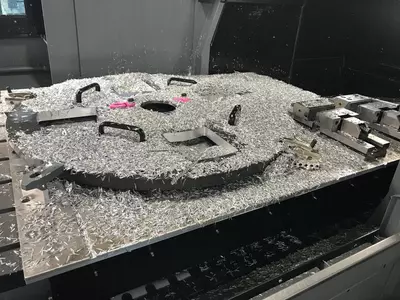

Späneparty
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize0
DescriptionSpäneansammlung bei Aluminiumbearbeitung
11 / 11
.webp)

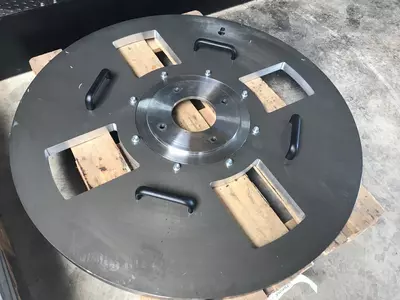

Deckel
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize1
ComplexityLow
DescriptionIn einen Runden 40mm dicken Deckel mit einem Durchmesser von 1200mm, vier Fensterausschnitte rausfräsen, vorher Achsenausrichtung.
Price per piece€800.00
Machinery (3)
1 / 3

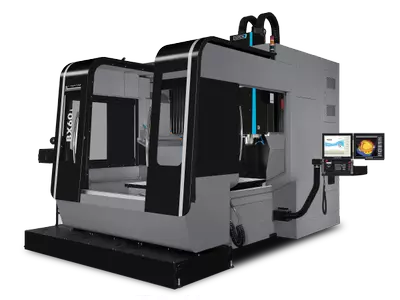

BX 60i
ManufacturerHURCO
ControlWIn Max 5
Year of Construction2018
2 / 3

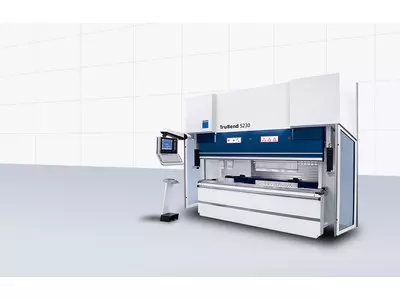

TruBend B23 5230
ManufacturerTrumpf
ControlTrumpf
Year of Construction2018
3 / 3

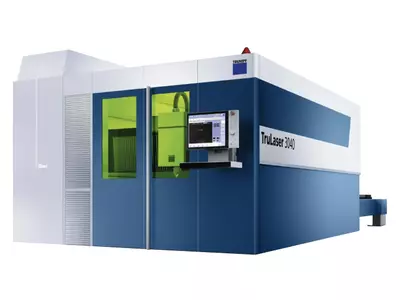

TruLaser 3040_6000kw
ManufacturerTrumpf
ControlTrumpf
Year of Construction2018
11 Parts
Drilling / threading / tapping1
Welded constructions (weldments)1
HSC milling2
Laser cutting 2D3
Bending / folding2
Milling2
3 Machinery
Contact
Location
Main locationGewerbestraße 19-23, 35644 Hohenahr-Erda, Germany
Further locationsZu den Neuen Wiesen 8, 35644 Hohenahr-Erda_Zentrale Gossbachstraße 16, 35644 Hohenahr-Erda_Edelstahlbearbeitung Gewerbestraße 19-23, 35644 Hohenahr-Erda_Blechbearbeitung
Company contact
Contact persons
EB
Eugen Batzel
EB
Eduard Batzel
