About Modellbau Fickel GmbH & Co.KG
Who we are

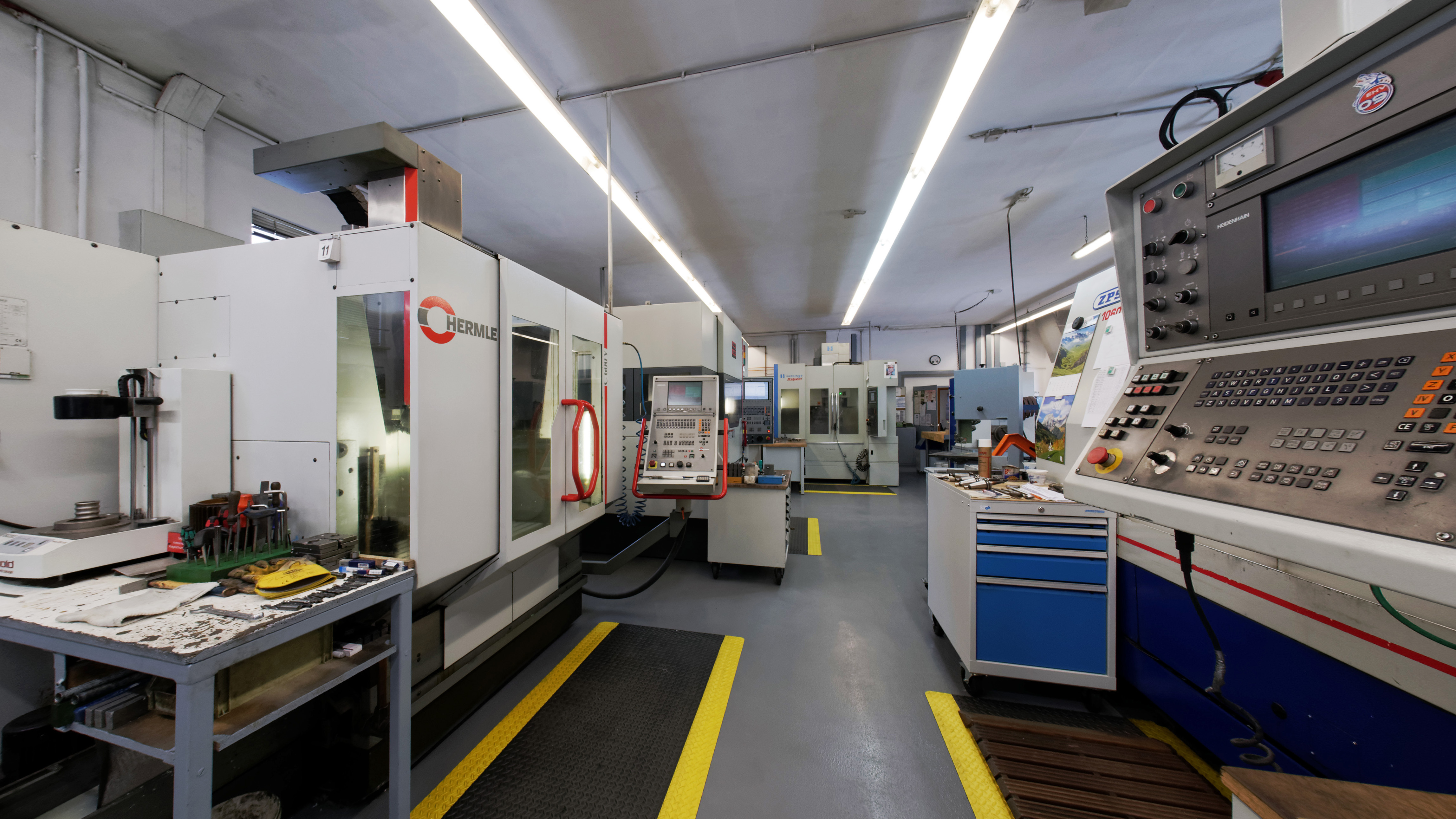

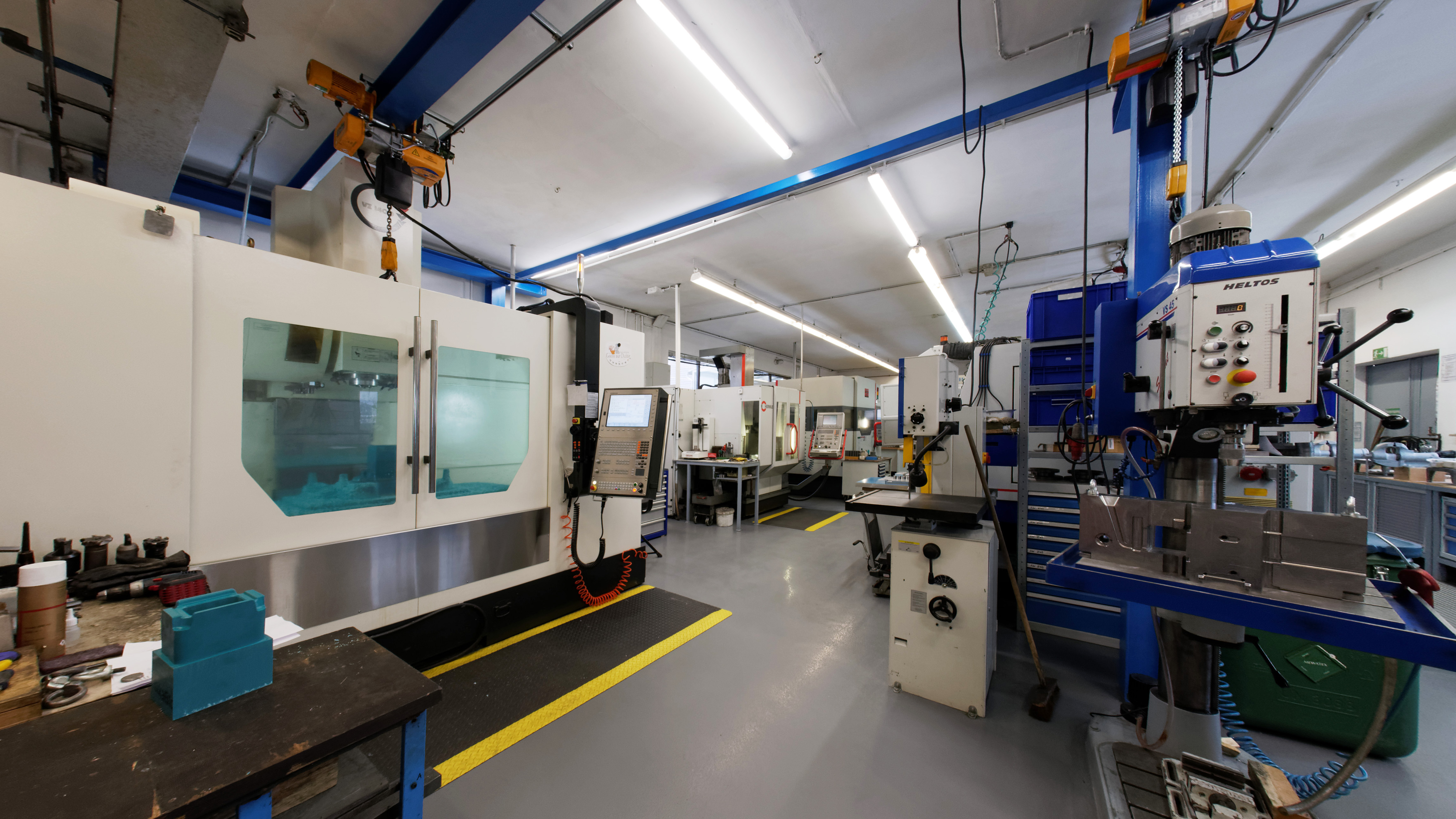

Our registered office is located in Schönheide, a nice industrial and business place in western Erzgebirge (Ore Mountains) (New Federal States). My company is located since the beginning of 1992 in a newly constructed factory building and is equipped with modern technology. By the use of two CNC- tool milling machines (maximum travel 1.50 x 1.00 x 1.00 m), two HSC machining centres and a 5 – axle – CNC – milling machine we are able to work effectively. The operations are prepared by modern CAD / CAM workstations like: Pro Engineer, Gib-Cam, Depo-Cam and Auto-CAD-Mechanical Desktop. By means of these systems we are able to accept and process data of our customers in all common formats in order to carry out thus every machining task with the most effective milling strategy. We are 17 employees and produce synthetic and metal patterns, permanent moulds, tools and jigs as well as complete pattern devices and match plates. Should you be interested in a cooperation, we would be very grateful if you include us in your circle of tenderer.
1 / 4
2 / 4
3 / 4
4 / 4
Schönheide, Germany
Member since 2004
Employees10 - 20
Certificates1
Turnover1 - 5 Mil.
Year of foundation1986
Competencies
Technologies
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 100–1,300 mm | 80–750 mm | 50–600 mm | 0–5,000 kg |
Modelmaking | 50–1,300 mm | 30–850 mm | 20–500 mm | 0–3,000 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Milling | 1–5 | 10–1,400 mm | 10–900 mm | 10–900 mm | from 0 mm | 0–7,000 kg | from 0 mm |
5-axis milling machines | 1–200 | 30–1,300 mm | 30–750 mm | 5–400 mm | — | — | — |
Form milling (3 D) | 1–50 | 10–1,300 mm | 10–900 mm | 10–600 mm | — | — | — |
HSC milling | 1–5 | 10–1,100 mm | 10–800 mm | 10–600 mm | from 0 mm | 0–2,000 kg | from 0 mm |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Drilling / threading / tapping | 1–5 | 10–1,400 mm | 10–900 mm | 10–900 mm | from 0 mm | 0–7,000 kg | from 0 mm |
Materials
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Precious metals
SilverGoldPlatinumOther precious metals
Sintered materials
Metal powder for formed partsMetal powder for hard metal
Plastics/synthetic materials
ThermoplasticsAcrylic (PMMA)ThermosetsElastomersGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)
Natural materials
Wood/timber
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel
Cast metals
Cast steelCast iron
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Non-metal inorganic materials
Cast mineralsGraphite
Industries
Medical technologySpecial purpose machinery manufacturingMachine tool manufacturingAir conditioning, refrigeration and ventilation industryPrecision engineering, mechatronics and opticsDrive and gear engineeringMilitary engineeringPlant engineering and constructionMechanical engineeringAutomotive and vehicle construction
Certificates
ISO 9001:2015
Parts & Machines
Parts (2)
1 / 2

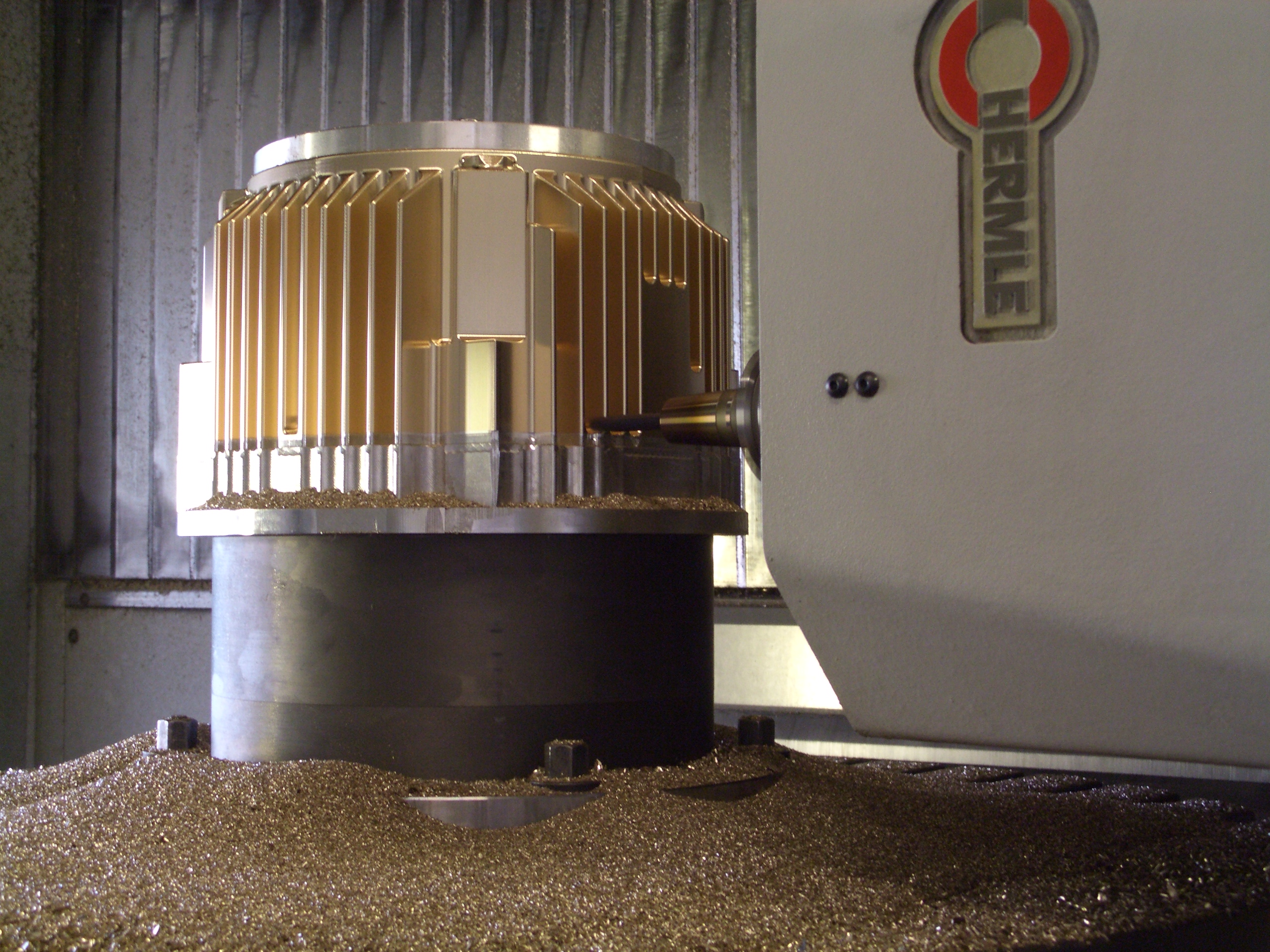

Modell für Elektromotorengehäuse
Technology5-axis milling machines
MaterialCopper and copper alloys
Lotsize4
ComplexityLow
IndustriesMechanical engineering
DescriptionFräsen einer Messingmodell-hälfte für die Formeinrichtung eines Elektromotors
Price per piece€4,500.00
2 / 2

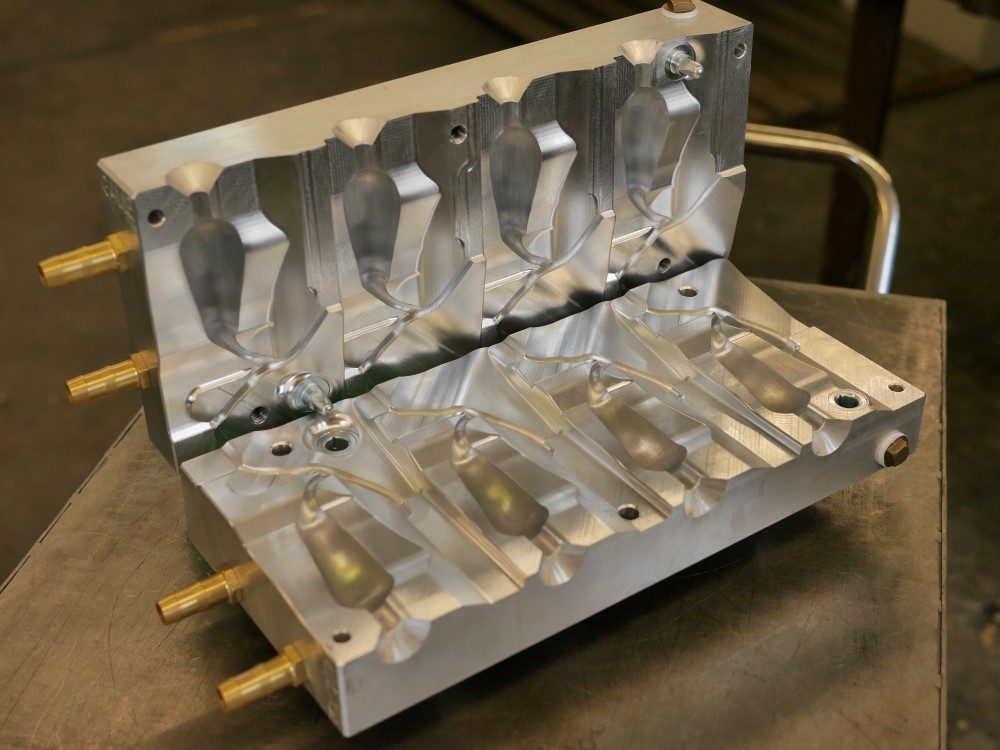

Aluminiumform
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Lotsize1
ComplexityLow
IndustriesMedical technology
DescriptionForm für Organe zu Schulungszwecken
Price per piece€2,500.00
Machinery (6)
1 / 6
U 1130
ManufacturerHermle
ControlHeidenhain
Year of Construction2004
Technology
Drilling / threading / tappingMillingHSC milling5-axis milling machinesForm milling (3 D)
2 / 6
C 600 V
ManufacturerHermle
ControlHeidenhain
Year of Construction1999
Technology
HSC millingDrilling / threading / tappingForm milling (3 D)Milling
3 / 6
MCFV 1060
ManufacturerDEPO
ControlHeidenhain
Year of Construction2000
Technology
MillingDrilling / threading / tappingForm milling (3 D)HSC milling
4 / 6
WEMAS VZ 1400 Quick
ManufacturerWEMAS
ControlHeidenhain
Year of Construction2014
Technology
Drilling / threading / tappingMillingForm milling (3 D)
5 / 6
Quaser MV 154 PL
ManufacturerHommel
ControlHeidenhain
Year of Construction2008
Technology
HSC millingMillingDrilling / threading / tappingForm milling (3 D)
6 / 6

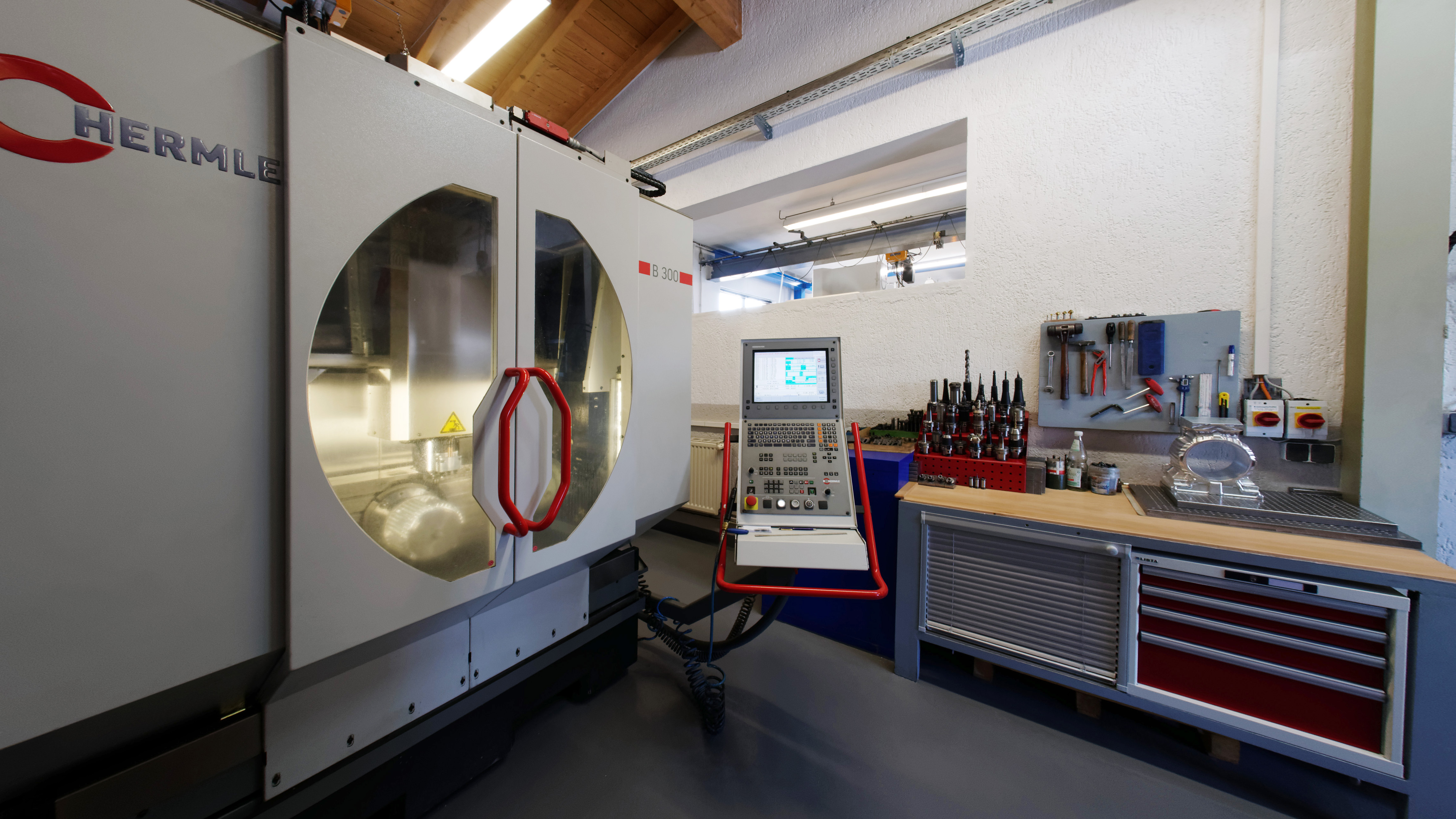

Hermle B300
ManufacturerHermle
ControlHeidenhain
Year of Construction2010
Technology
HSC millingForm milling (3 D)Modelmaking5-axis milling machinesMillingDrilling / threading / tappingGravity casting moulds
2 Parts
5-axis milling machines1
Form milling (3 D)1
6 Machinery
Drilling / threading / tapping6
Milling6
HSC milling5
5-axis milling machines2
Form milling (3 D)6
Modelmaking1
Gravity casting moulds1
Contact
Location
Main locationNeuheider Straße 6a, 08304 Schönheide, Germany
Further locationsSchönheide
