Overview
About MSM Maschinen-Stahl-Metallbau GmbH
Who we are
All from one source! Aluminum and mild steel of course. Tool-and chromium-nickel steels, titanium and carbon fiber, no problem. Send your CAD data as STP or VDA data file. Then these parts on CNC lathes or milling machines 5 axis in compliance with the EN 9100:2003 and the QSF-A manufactured. The heat treatment and surface protection are carried out in close proximity to the MSM, according to the current state of the art. You get ready to install components or modules! Furthermore, the MSM GmbH offers the necessary assembly and disassembly tools. For this production range also includes the fixture and thus the production of special transport units, among other container for turbines and turbine spare parts.
1 / 9
2 / 9
3 / 9
4 / 9
5 / 9
6 / 9
7 / 9
8 / 9
9 / 9
Dresden, Germany
Member since 2010
Employees10 - 20
Certificates2
Turnover< 1 Mil.
Year of foundation1994
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 1–100 | 6–1,000 mm | 5–200 mm |
Automatic turning (bar) | 50–10,000 | 6–190 mm | 10–55 mm |
Full-range turning (including milling) | 1–200 | 20–500 mm | 10–400 mm |
Broaching | 4–20 | 5–300 mm | 30–500 mm |
Gear Making
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Cylindrical gear / spur gear | 1–100 | 10–250 mm | 5–500 mm | — |
Sprocket (wheel) | 1–200 | 10–200 mm | 50–500 mm | 0–50 kg |
Cogged belt pulley | 1–200 | 10–200 mm | 30–500 mm | 0–50 kg |
Finishing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
External cylindrical grinding | 1–200 | 50–400 mm | — | — | 4–150 mm | — |
Internal cylindrical grinding | 1–50 | 50–300 mm | — | — | 50–200 mm | — |
Centreless grinding | 10–100 | 10–100 mm | — | — | 10–50 mm | 0–20 kg |
Circular honing - internal | 1–10 | 100–1,000 mm | 100–400 mm | 100–400 mm | 60–200 mm | 0–40 kg |
Surface grinding machine | 1–200 | 10–400 mm | 10–100 mm | 5–100 mm | — | 0–30 kg |
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 200–6,000 mm | 200–2,500 mm | 200–2,500 mm | 0–3,200 kg |
Machine frames / bases / racks | 100–1,500 mm | 100–500 mm | 100–500 mm | 0–800 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight | Material thickness |
|---|---|---|---|---|---|---|---|
Inert gas shielded arc welding (MIG/MAG) | 1–100 | 20–6,000 mm | 20–2,500 mm | 20–2,000 mm | — | 0–3,200 kg | — |
Inert gas shielded arc welding (TIG) | 1–50 | 10–1,000 mm | 10–1,000 mm | 10–1,000 mm | — | 0–50 kg | — |
Spot welding | 1–10 | — | — | — | — | — | 1–4 mm |
Manual electrode welding | 1–10 | 50–6,000 mm | 20–2,000 mm | 20–2,000 mm | 20–3,000 mm | 0–3,200 kg | 2–30 mm |
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 100–1,500 mm | 100–500 mm | 100–500 mm | 0–500 kg |
Gauges | 100–1,500 mm | 100–500 mm | 100–500 mm | 0–500 kg |
Assembly jigs | 100–2,000 mm | 100–2,000 mm | 100–2,000 mm | 0–800 kg |
Welding jigs | 100–2,500 mm | 100–2,500 mm | 100–2,500 mm | 0–3,200 kg |
Clamping devices | 100–500 mm | 100–500 mm | 100–500 mm | 0–800 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–3,200 kg |
Electromechanical assembly | 0–3,200 kg |

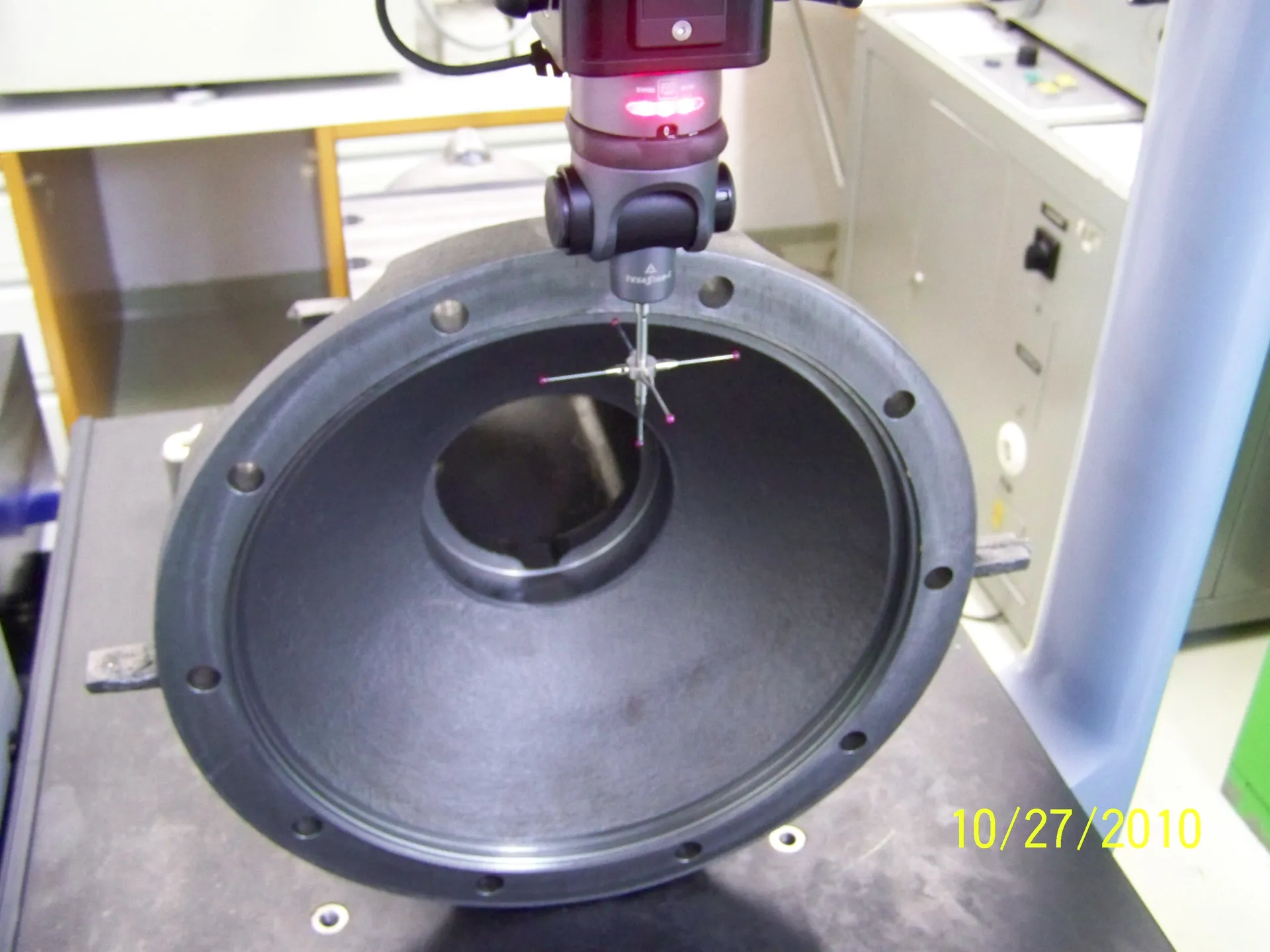

Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 10–500 mm | 10–500 mm | 10–500 mm | 10–500 mm | 0–50 kg |
Threading
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Thread rolling | 1–200 | 20–150 mm | 5–50 mm |
Additive Manufacturing
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Fused deposition modelling (FDM) | 1–50 | 10–400 mm | 10–300 mm | 10–300 mm |
Milling
| Technologies | Lotsize | Length | Width | Height |
|---|---|---|---|---|
Milling | 1–50 | 30–1,500 mm | 30–400 mm | 30–500 mm |
5-axis milling machines | 1–500 | 50–600 mm | 50–700 mm | 50–500 mm |
Form milling (3 D) | 1–500 | 30–750 mm | 30–650 mm | 30–550 mm |
Cutting dies / deep drawing dies
| Technologies |
|---|
Die replacement / wearing part manufacturing |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–100 | 20–3,000 mm | 20–300 mm | 100–150 mm | 20–260 mm | — |
Drilling / threading / tapping | 1–100 | 10–1,500 mm | 10–500 mm | 10–500 mm | — | 0–500 kg |
Materials
Plastics/synthetic materials
ThermoplasticsHigh performance plasticThermosetsGlass fibre-reinforced plasticCarbon fibre-reinforced plasticNatural Fibre Composites (NFC)
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Cast metals
Cast steelCast iron
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)
Light metals
Aluminium and aluminium alloysTitanium and titanium alloys
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloys
Industries
Aerospace and aviation industryMechanical engineeringDrive and gear engineeringSpecial purpose machinery manufacturingPlant engineering and construction
Certificates
EN 9100
QSF-A
Parts & Machines
Parts (3)
1 / 3
.webp)

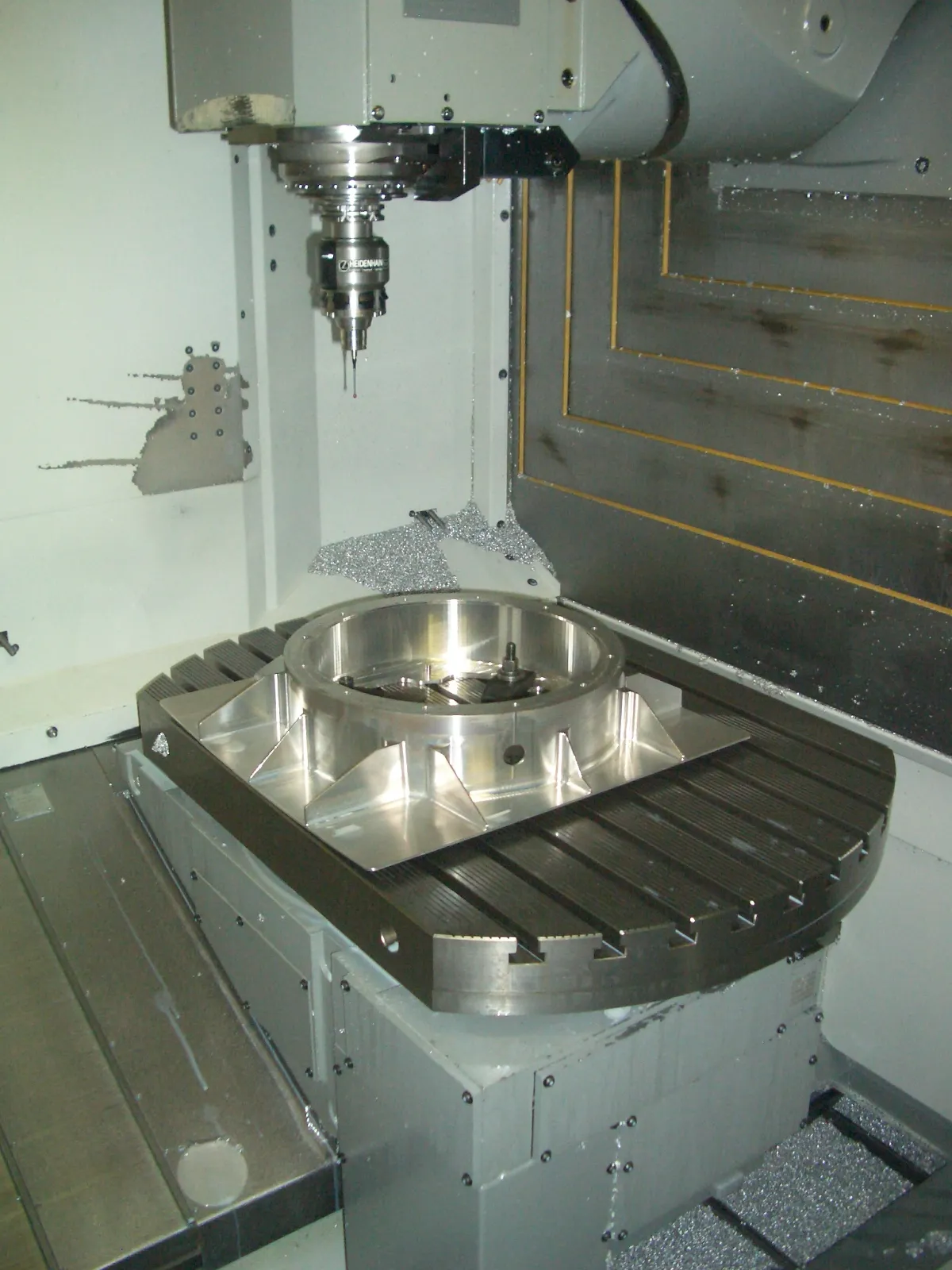

Radar - Aufnahme Airbus A 310
Technology5-axis milling machines
MaterialAluminium and aluminium alloys
Dimensions
Width500 mm
Height100 mm
Length500 mm
Weight70 mm
Lotsize5
ComplexityMedium
IndustriesAerospace and aviation industry
Description5 Achs Simultanbearbeitung
2 / 3

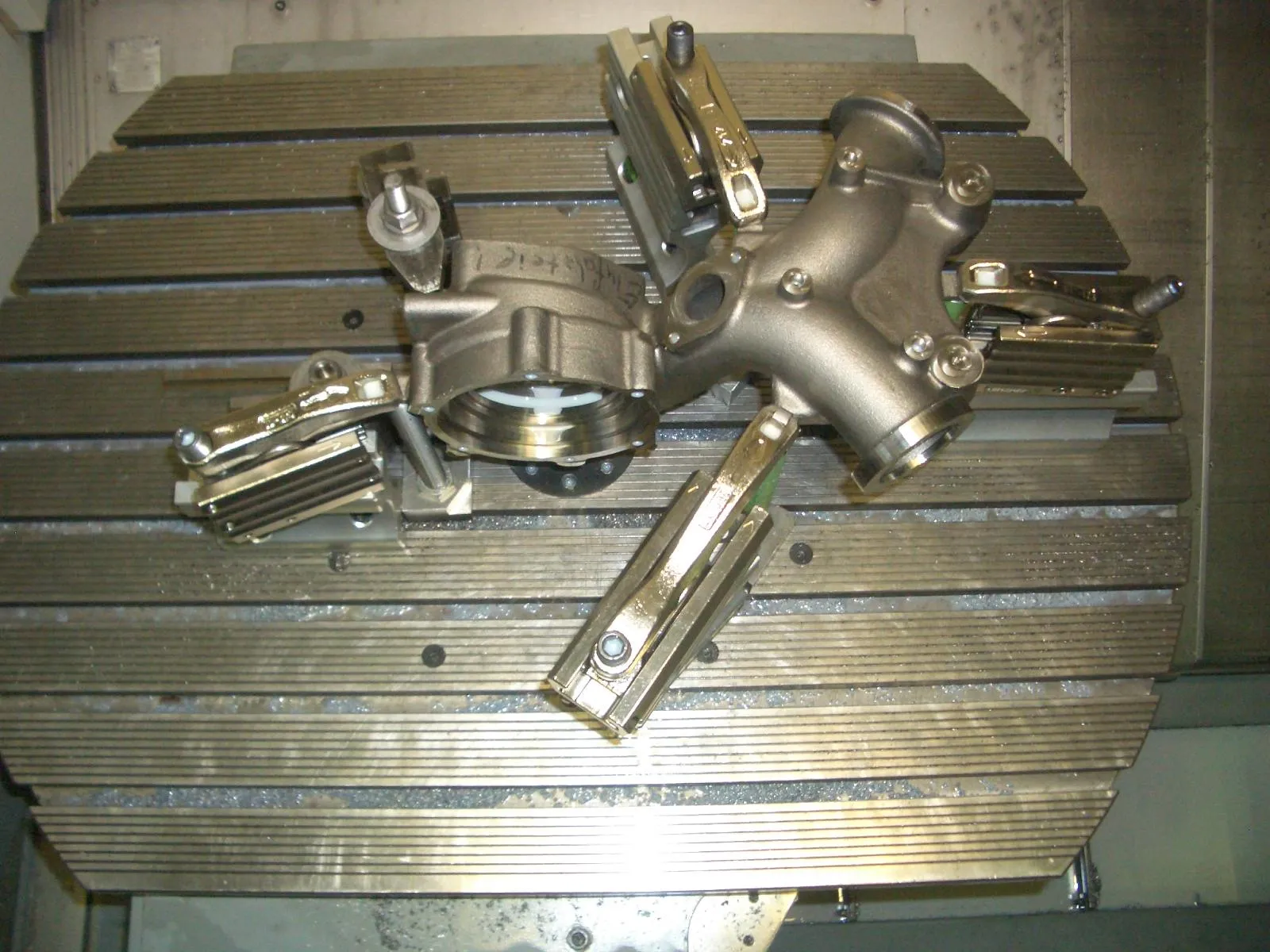

Prototypenbearbeitung
Technology5-axis milling machines
MaterialCast steel
Dimensions
Weight8 mm
Lotsize1
DescriptionTurbolader Gehäuse,
Bearbeitung des Guss Rohlings
Einzelstück
3 / 3

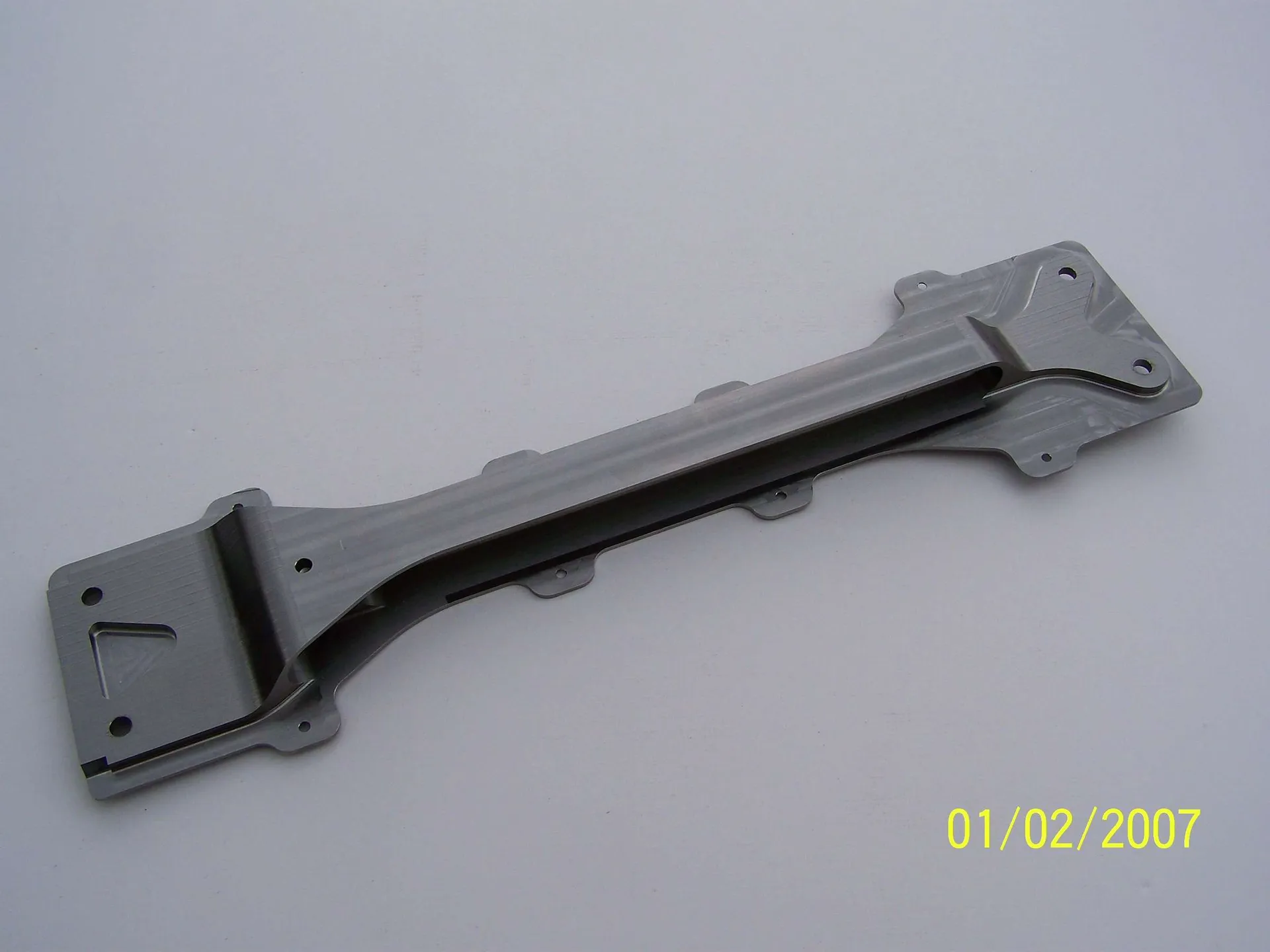

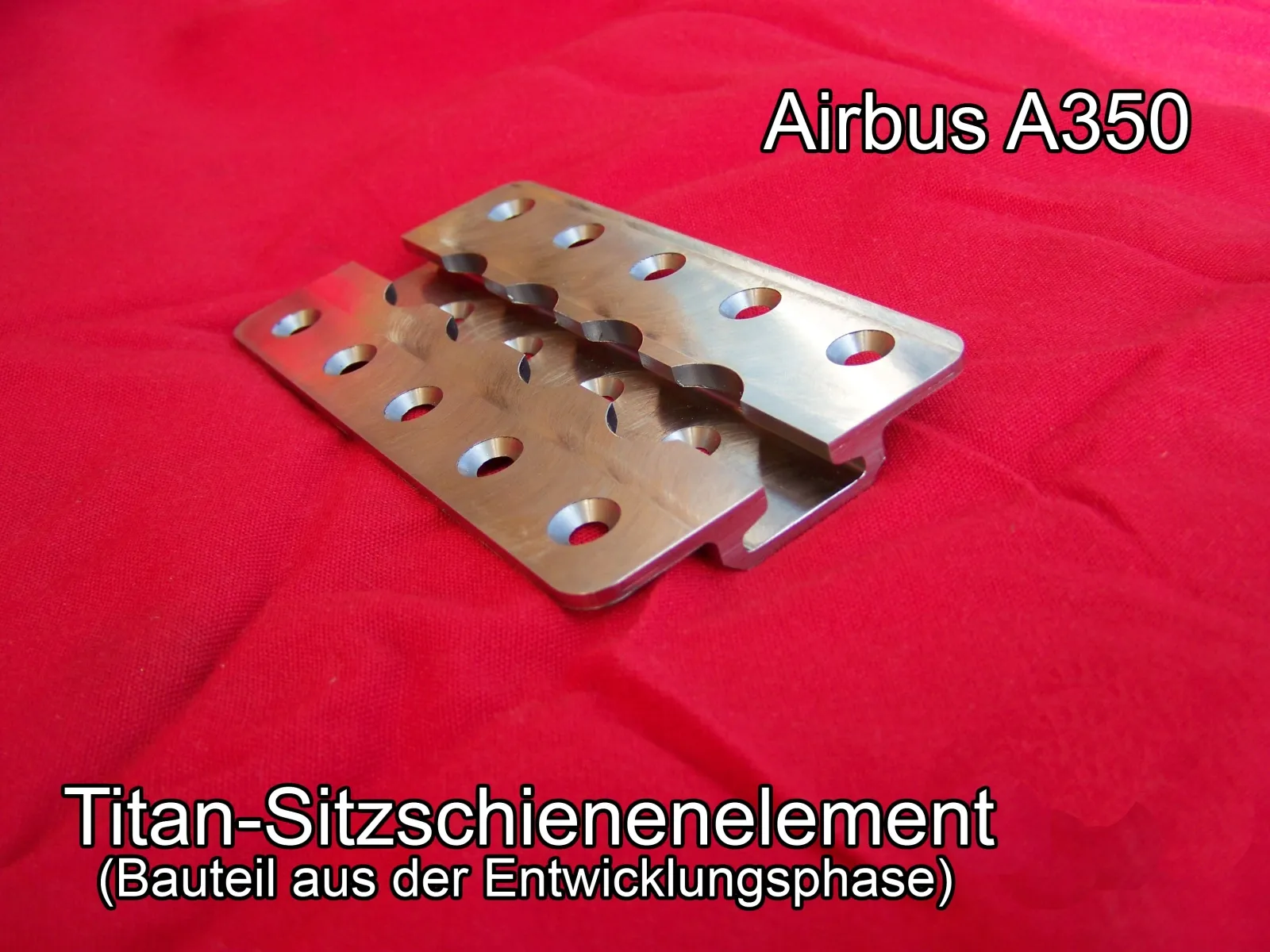

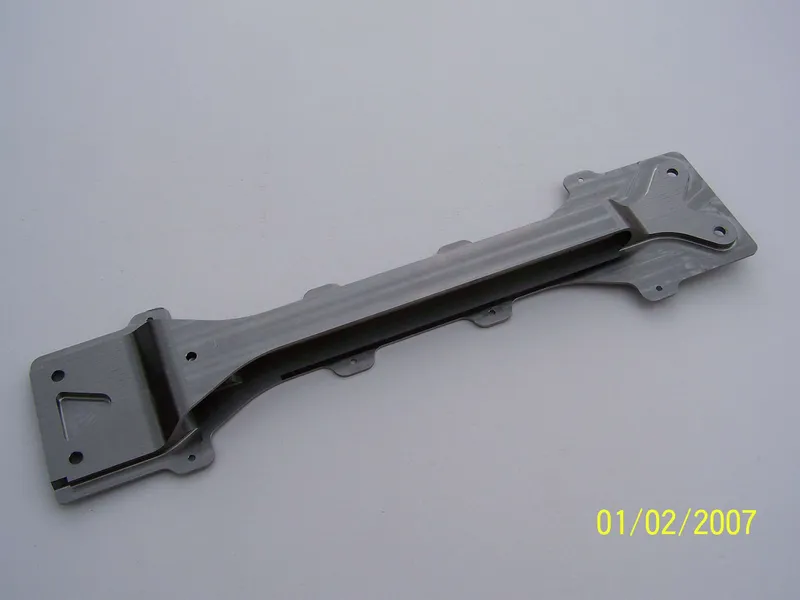

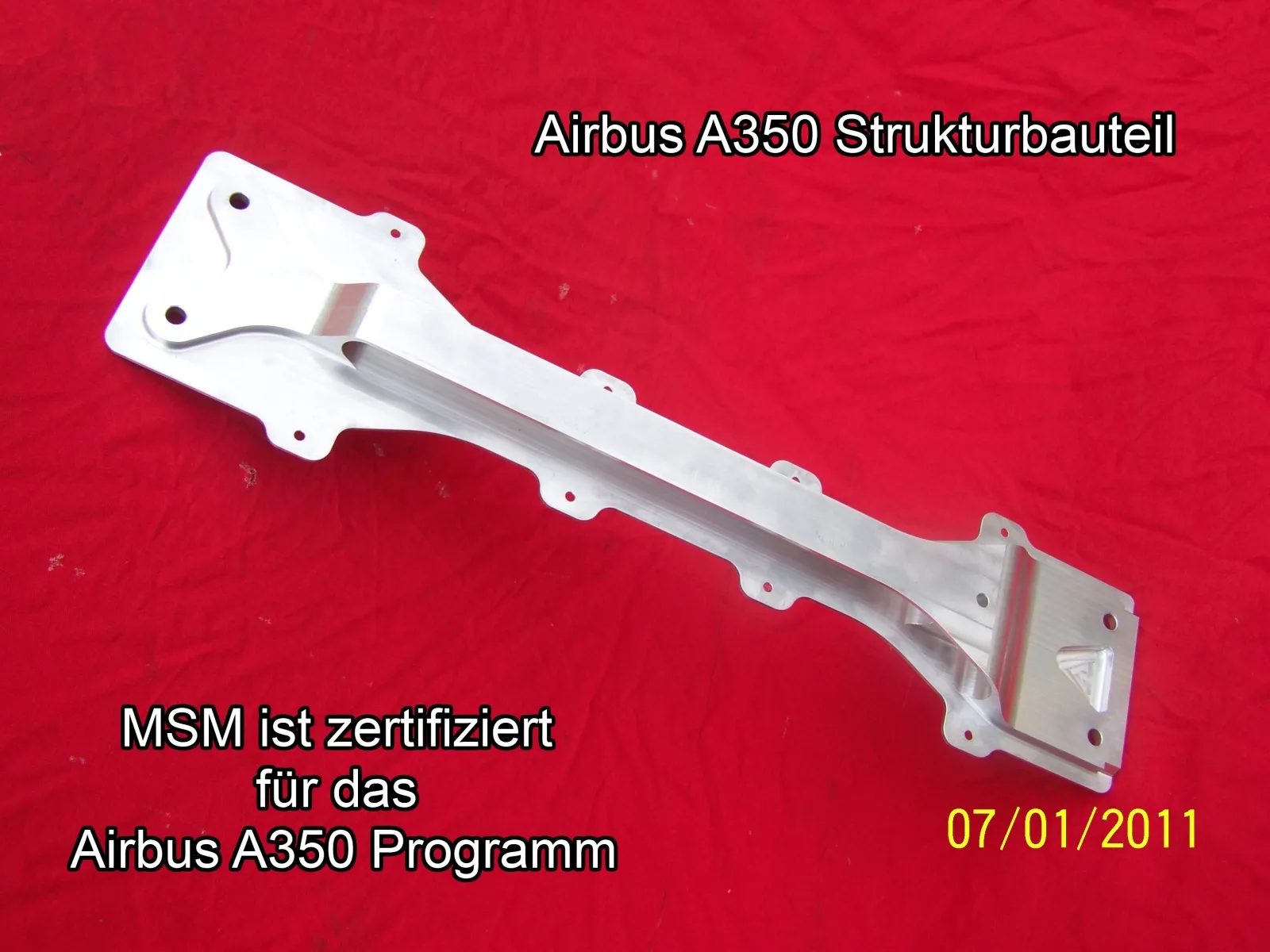

Strukturbauteil Airbus A 350
TechnologyForm milling (3 D)
MaterialTitanium and titanium alloys
Dimensions
Width200 mm
Height40 mm
Length600 mm
Lotsize20
DescriptionTitanbearbeitung
Enwicklungsunterstützung
Machinery (4)
1 / 4

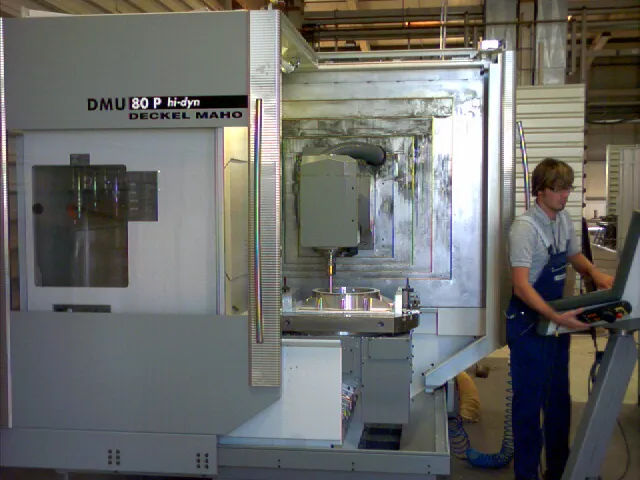

DMU 80 5-Achs-Simultan
ManufacturerDMG
ControlMill Plus
2 / 4

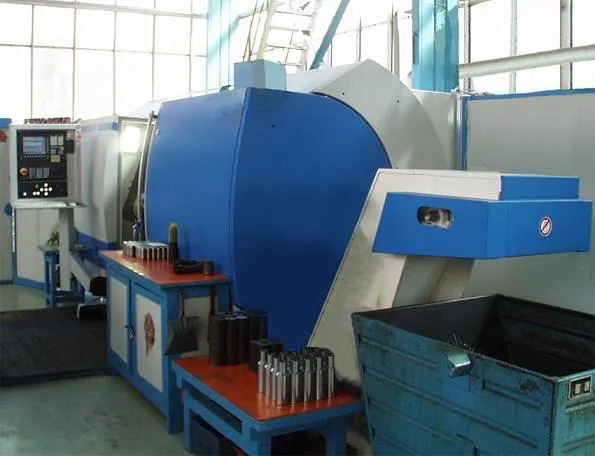

Boehringer NC 180
ManufacturerBoehringer
ControlSiemens Sinumeric 840d
Technology
Hard turning
3 / 4

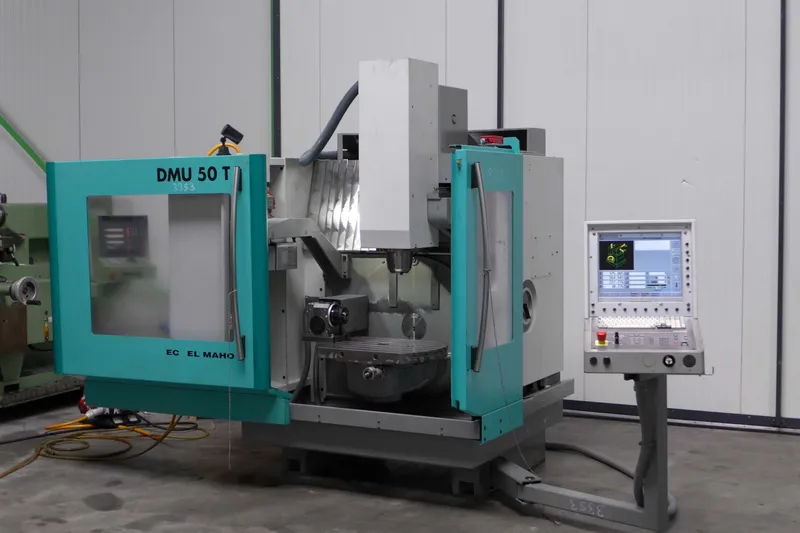

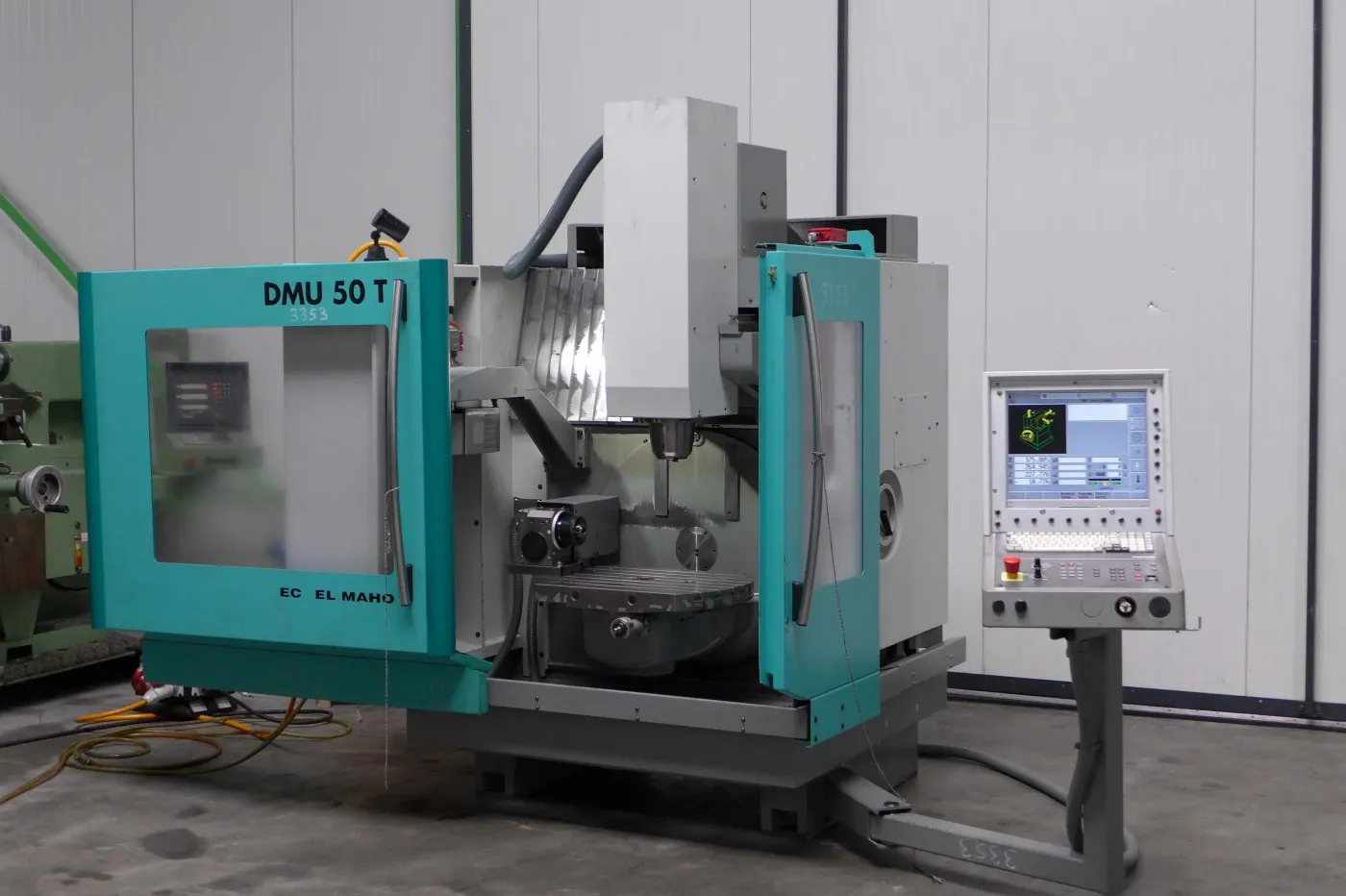

DMU 50 T
ManufacturerDMG
ControlMill Plus
4 / 4

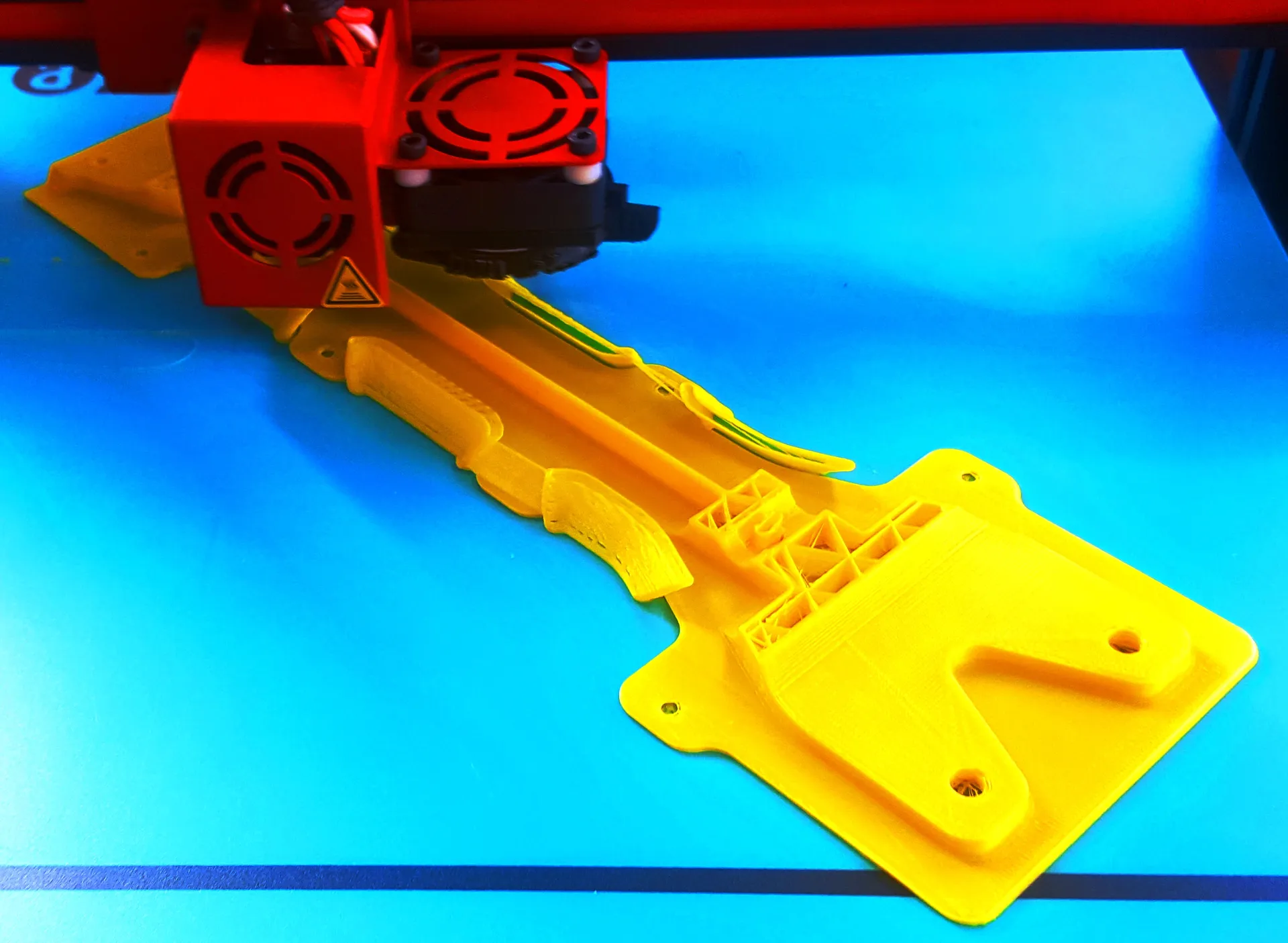

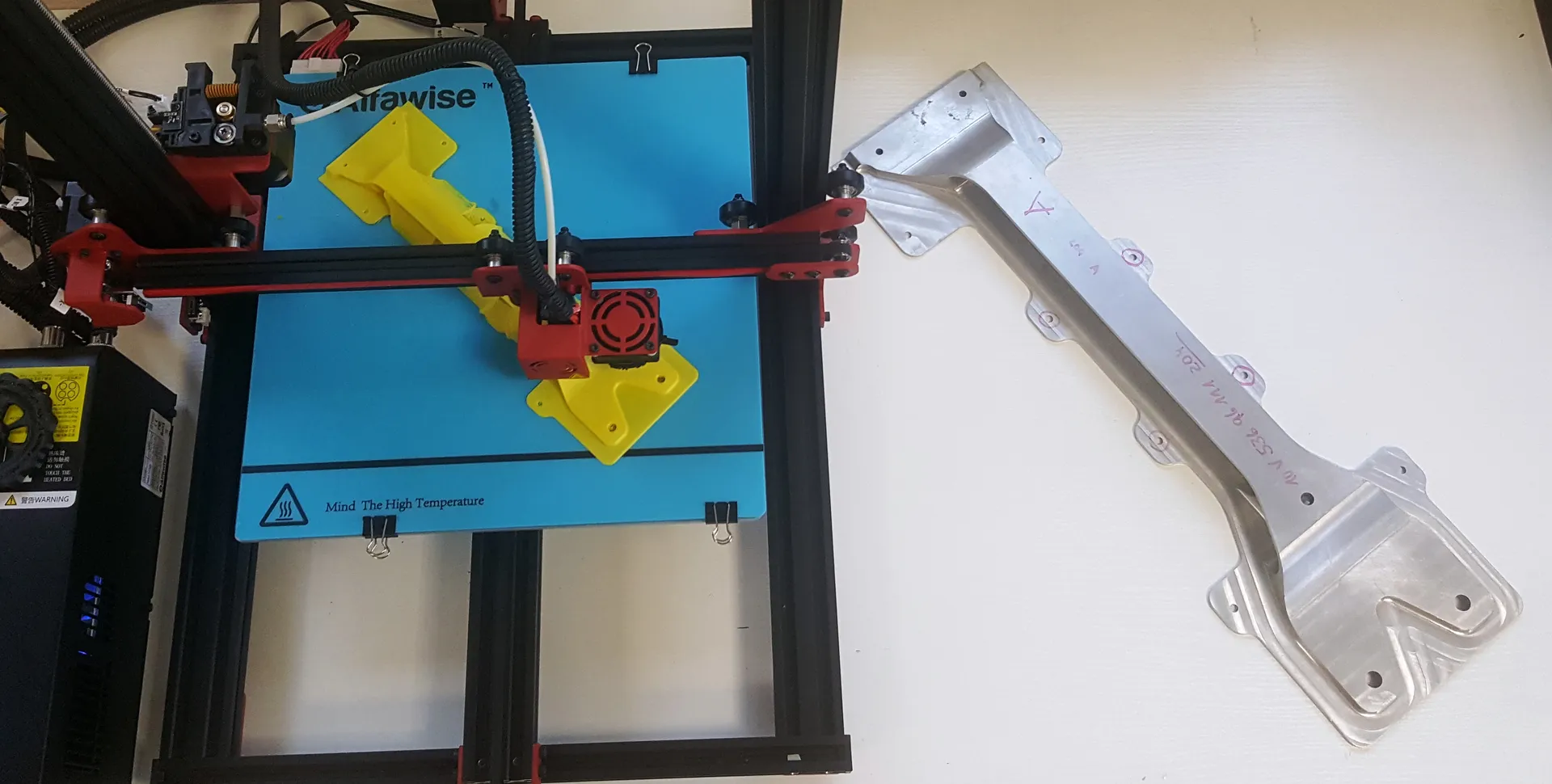

Additive 3 D FDM
ManufacturerAlfawise
3 Parts
5-axis milling machines2
Form milling (3 D)1
4 Machinery
Hard turning1
Contact
Location
Main locationBreitscheidtstraße 45, 01156 Dresden, Germany
Further locationsMSM ; Breitscheid Str. 45 ; 1156 Dresden - Cossebaude
Company contact
Contact persons
GH
Gunter Heinze
AH
Albert Holz
