MTS- Mekotec Technical Solutions GmbH & Co. KGGeschäftsführer: Gerhard Armbruster

Germany, 77933 Lahr/Schwarzwald

Competencies

Technologies

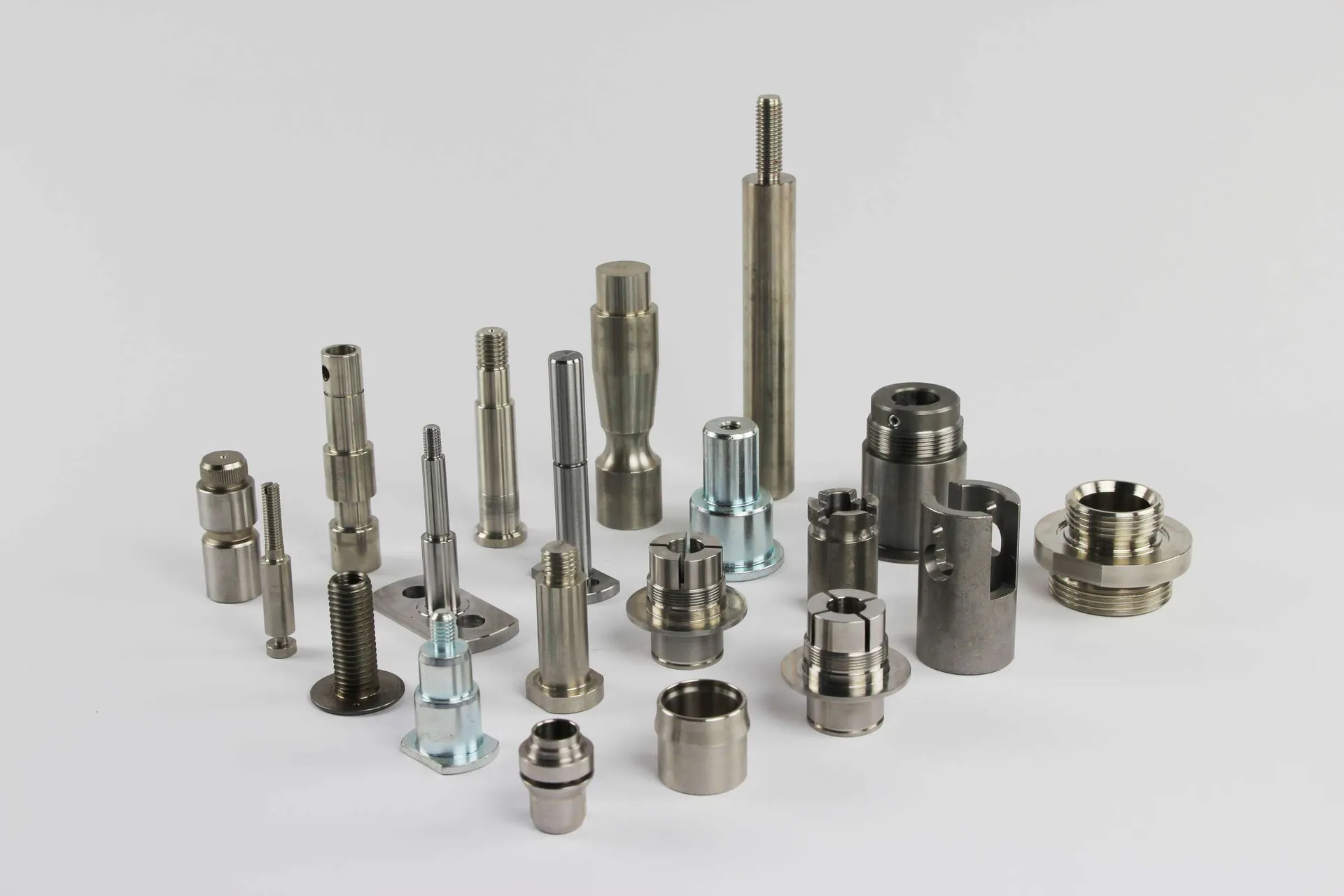

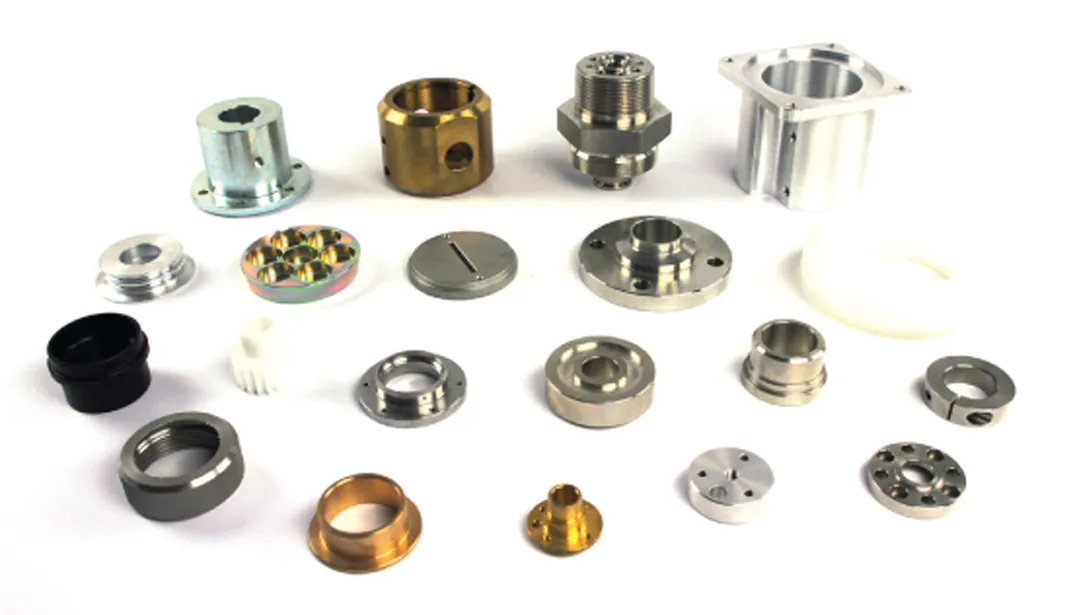

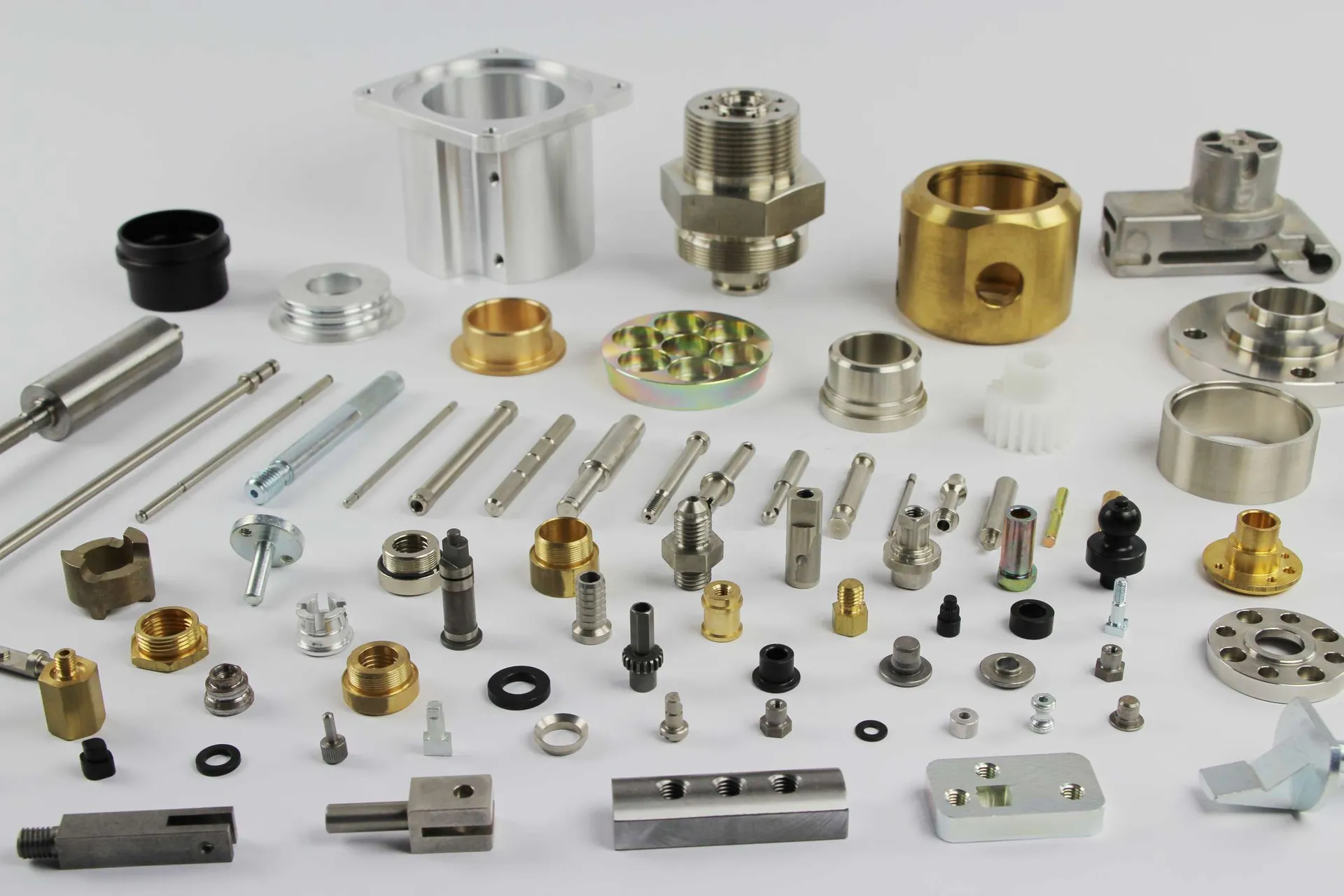

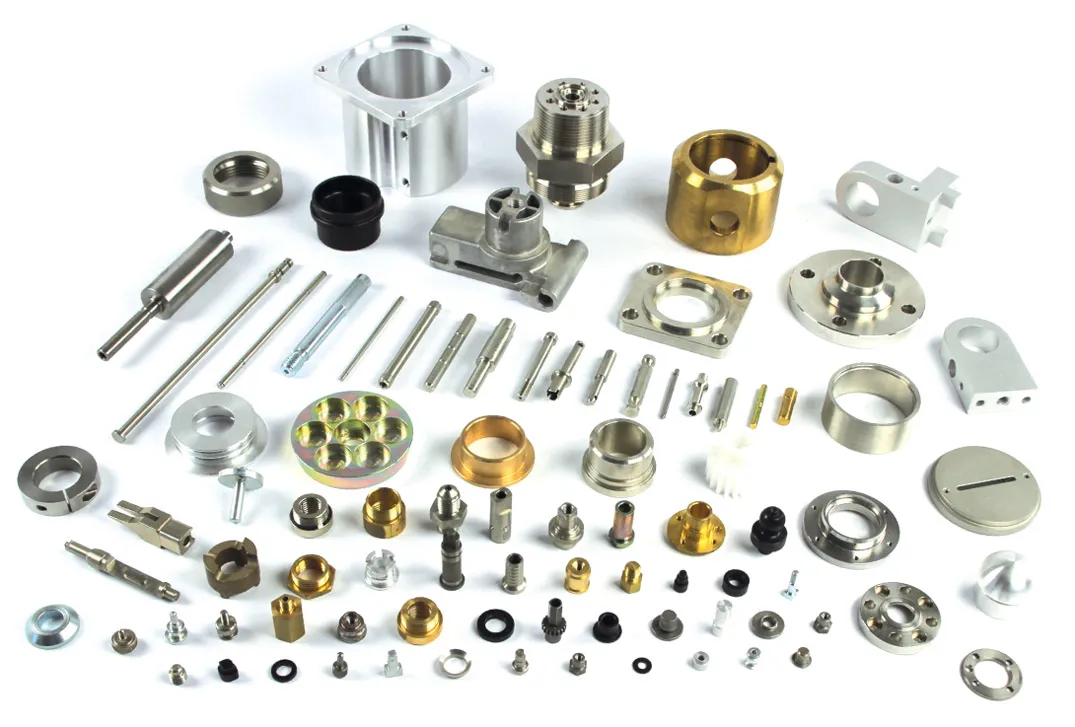

Turning

Technologies	Lotsize	Length	Diameter
Turning	50–500 k	2–1,500 mm	2–600 mm
Automatic turning (bar)	100–200 k	1–250 mm	1–60 mm
Full-range turning (including milling)	50–500 k	1–1,500 mm	2–600 mm

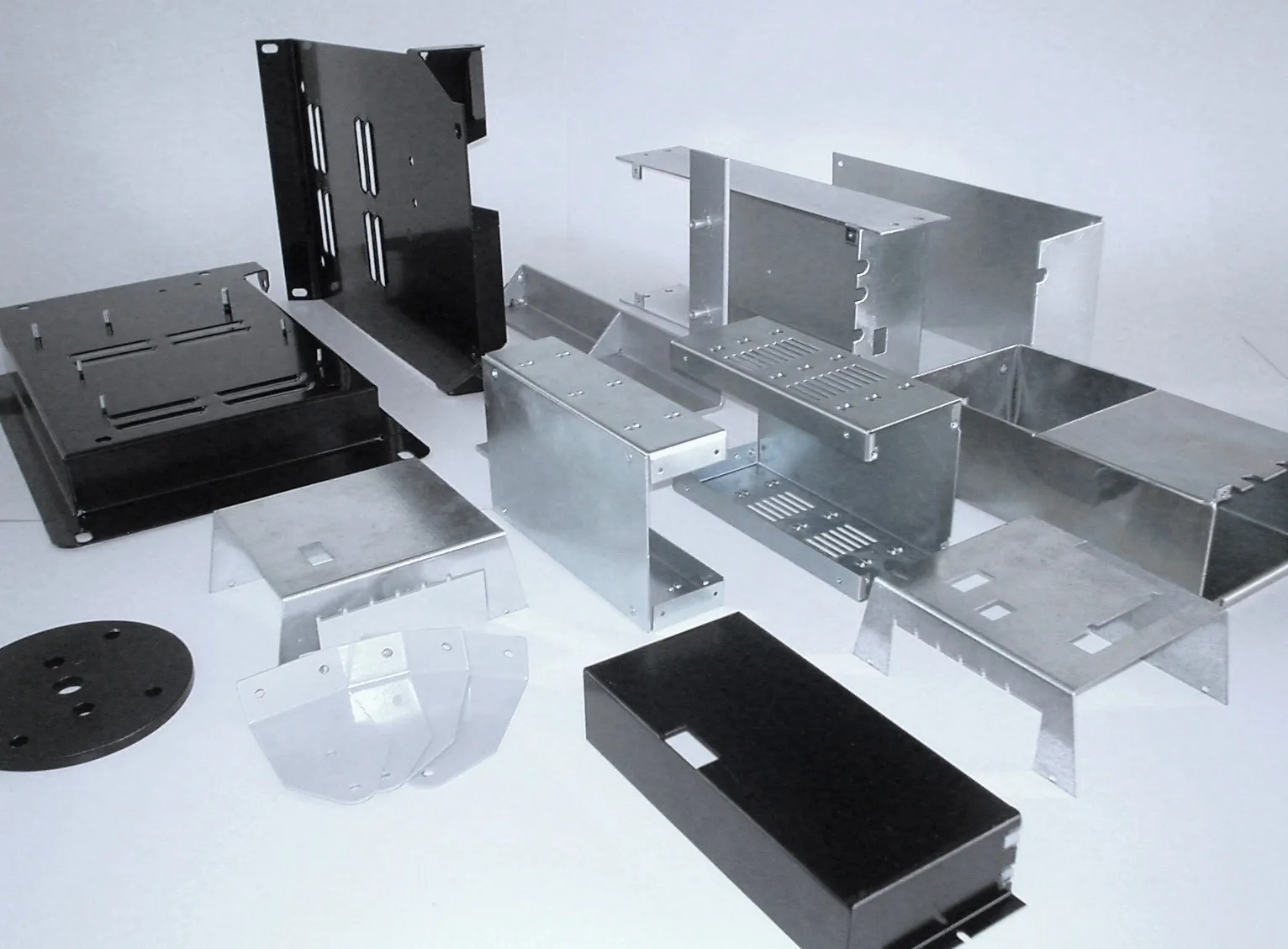

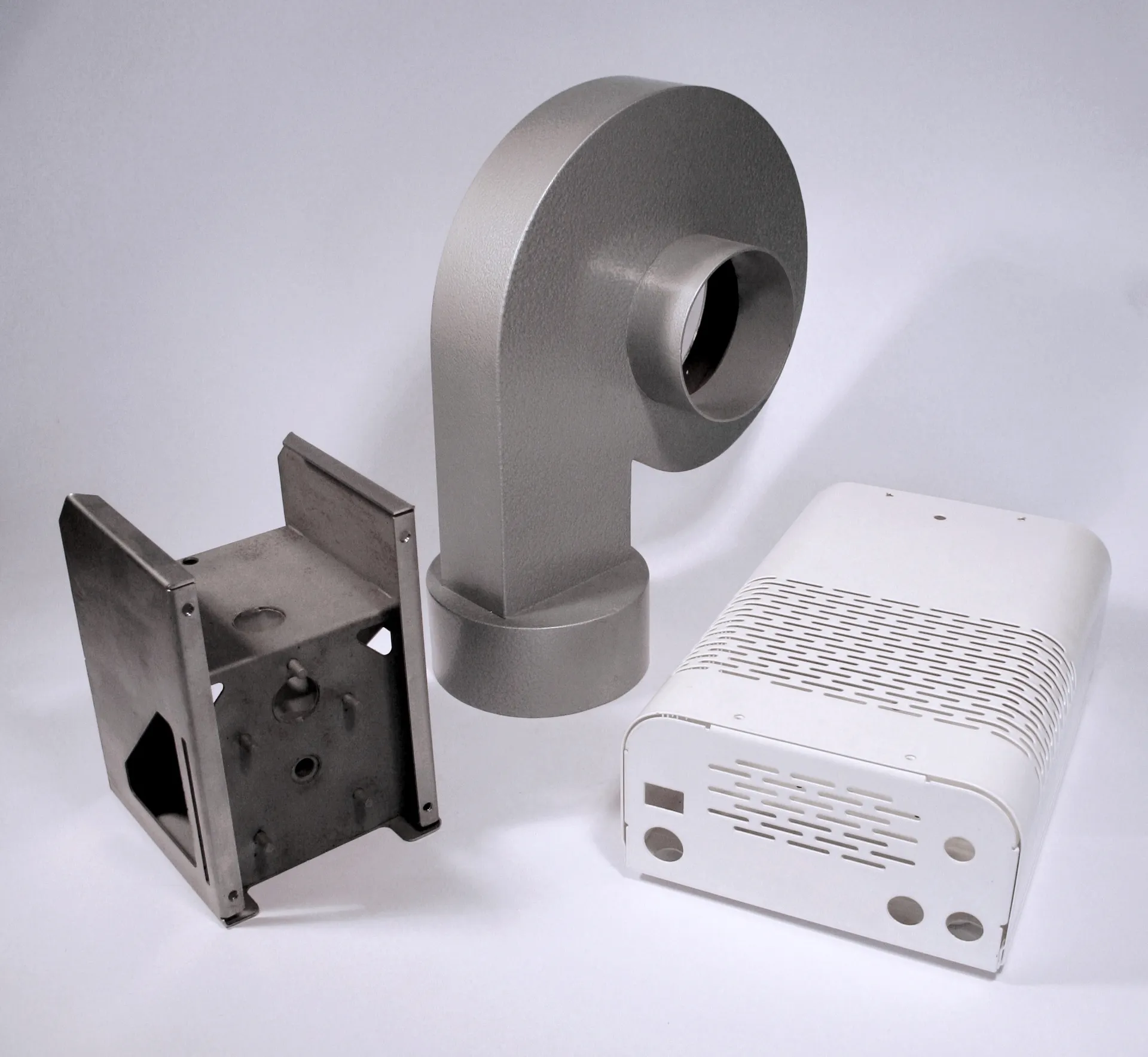

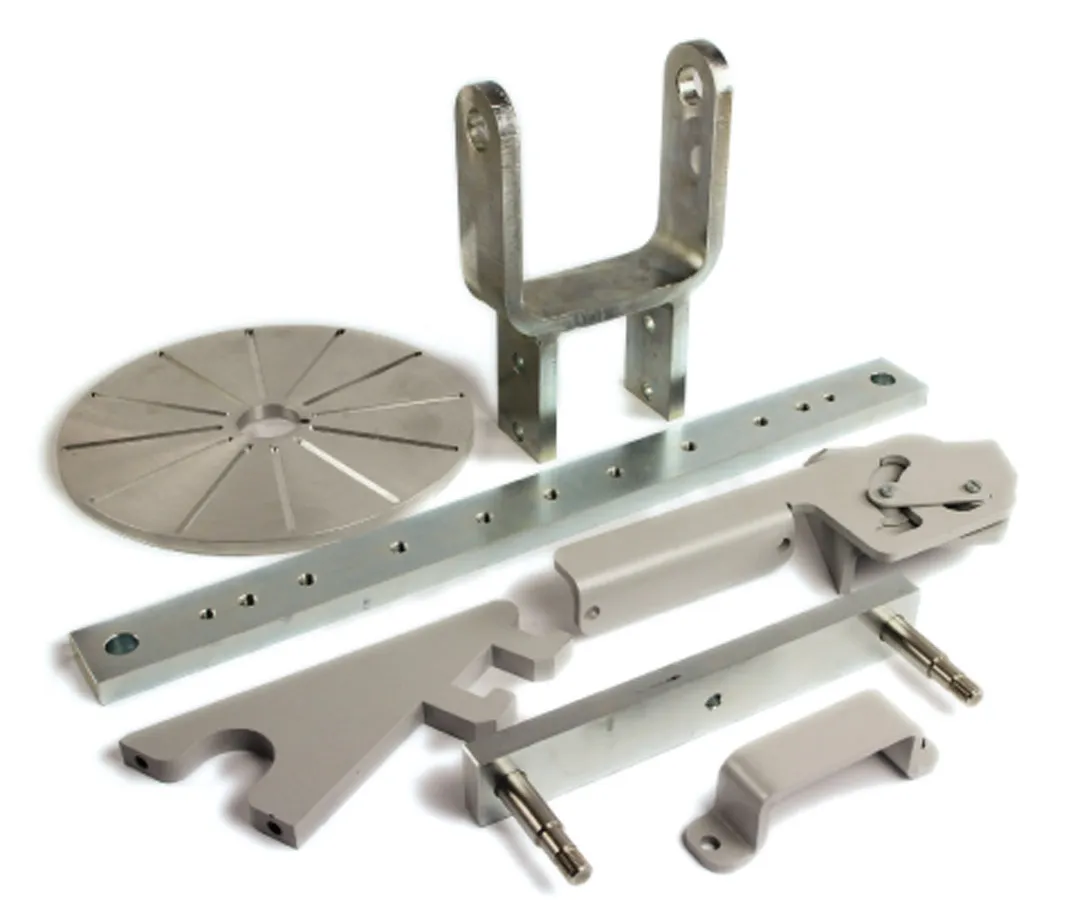

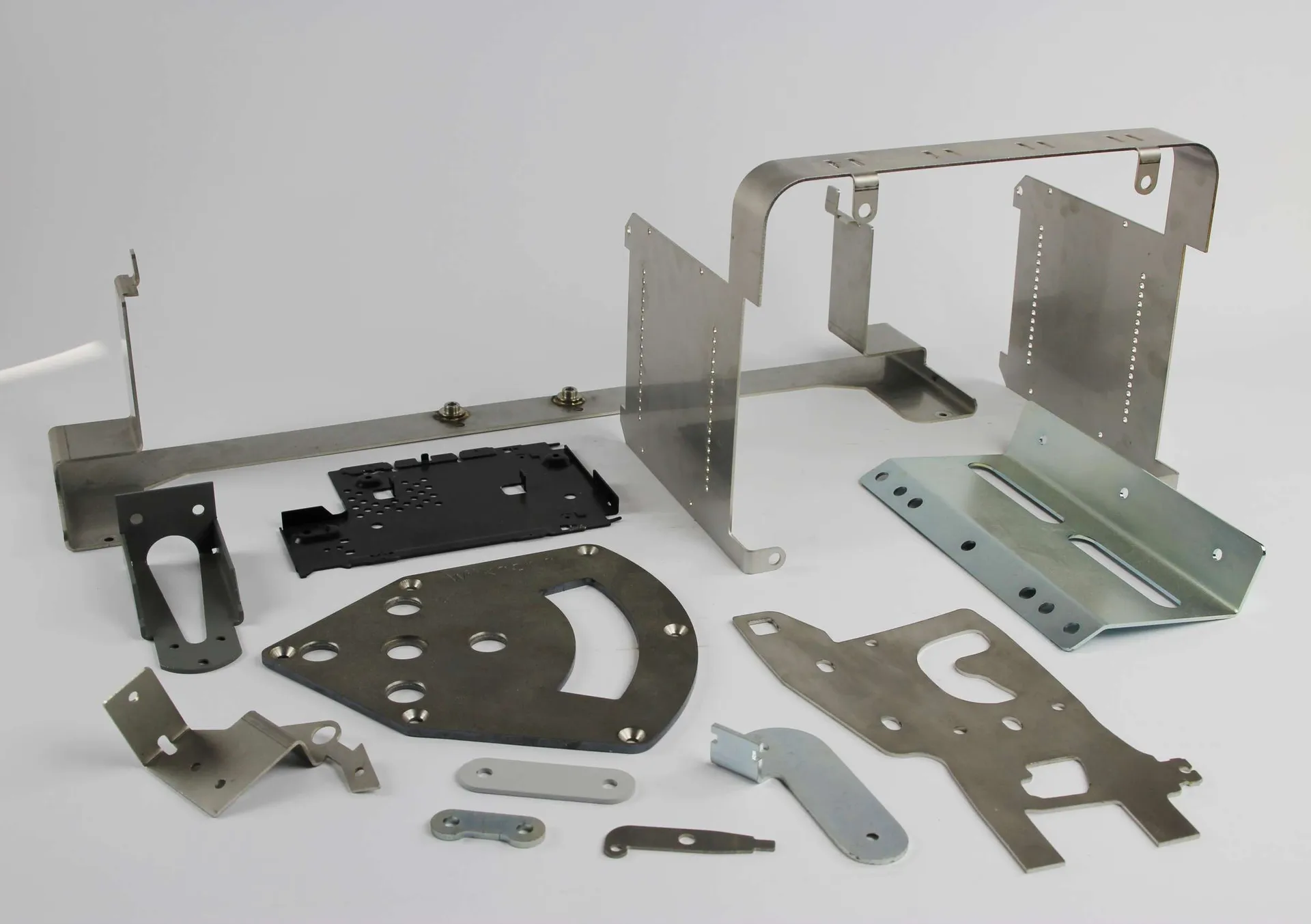

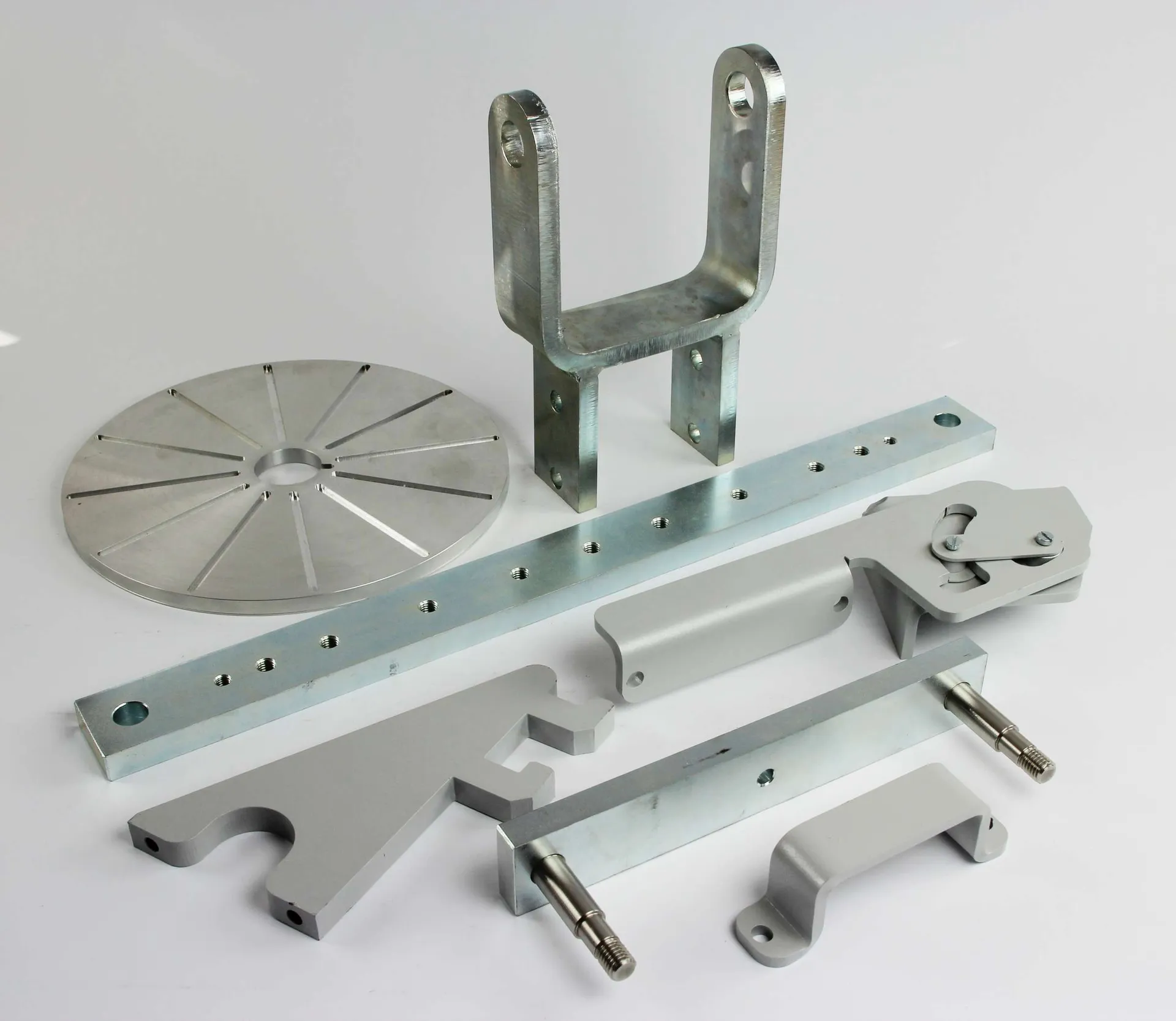

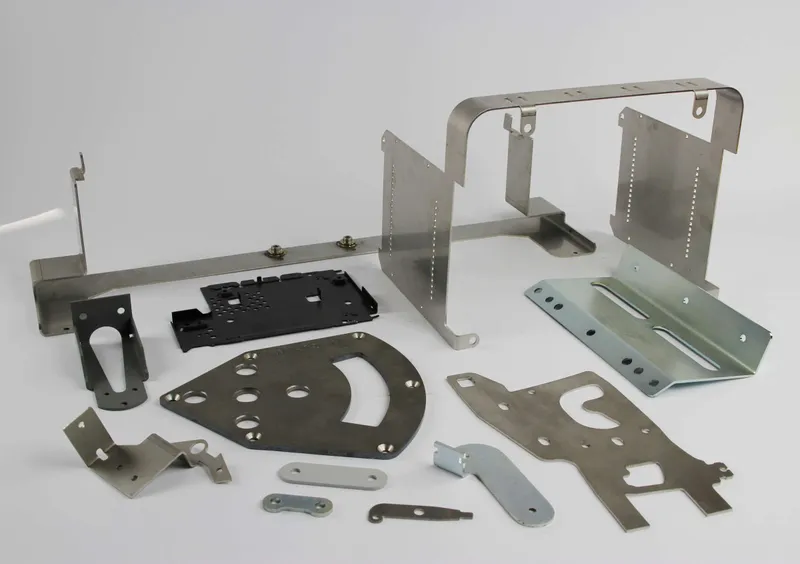

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Laser cutting 2D	100–100,000	5–3,000 mm	5–1,500 mm	0–720 kg	0.5–20 mm
Bending / folding	50–100 k	10–4,000 mm	—	—	0.5–20 mm
Punching / nibbling	100–100,000	5–3,000 mm	5–1,500 mm	0–250 kg	0.5–6 mm
Combined forming laser cutting / punching	100–100,000	5–3,000 mm	5–1,500 mm	0–720 kg	0.5–20 mm
Plasma fusion cutting	50–100 k	20–3,000 mm	20–1,500 mm	0–1,000 kg	5–50 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Inert gas shielded arc welding (MIG/MAG)	100–100,000	20–1,000 mm	20–1,000 mm	20–1,000 mm	5–1,000 mm	0–500 kg	1–20 mm
Inert gas shielded arc welding (Plasma)	100–100,000	20–1,000 mm	20–1,000 mm	20–1,000 mm	5–1,000 mm	0–500 kg	2–50 mm
Inert gas shielded arc welding (TIG)	100–100,000	20–1,000 mm	20–1,000 mm	20–1,000 mm	5–1,000 mm	0–500 kg	2–50 mm
Robot welding	100–100,000	20–1,000 mm	20–1,000 mm	20–1,000 mm	—	0–500 kg	—
Spot welding	100–100,000	—	—	—	—	—	1–6 mm
Stud welding	100–100,000	—	—	—	—	—	—

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	20–4,000 mm	20–2,500 mm	20–2,500 mm	0–2,500 kg

Assembly

Technologies	Weight
Mechanical assembly	0–100 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	0.001–1,500 mm	0.001–1,500 mm	0.001–1,500 mm	0.005–600 mm	0–1,000 kg

Threading

Technologies	Lotsize	Length	Diameter
Thread rolling	100–100,000	5–1,000 mm	2–100 mm

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Anodizing	100–100,000	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–100 kg	—
Pickling	100–100,000	10–1,000 mm	10–1,000 mm	10–500 mm	—	0–100 kg	—
Blacking	100–100,000	10–1,500 mm	10–1,500 mm	10–1,000 mm	—	0–100 kg	—
Chromatizing	100–100,000	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–100 kg	—
Electropolishing	100–100,000	10–200 mm	10–200 mm	10–200 mm	—	—	—
Electroplating	100–100,000	10–2,500 mm	10–1,500 mm	10–800 mm	—	0–100 kg	—
Phosphatizing	100–100,000	10–2,500 mm	10–1,000 mm	10–500 mm	—	0–100 kg	—
Powder coating	100–100,000	10–2,500 mm	10–1,200 mm	10–2,000 mm	—	0–250 kg	—
Rotofinishing, barrel finishing	100–100,000	10–350 mm	10–150 mm	10–150 mm	—	—	—
Parts cleaning/degreasing	—	10–2,000 mm	10–2,000 mm	10–2,000 mm	—	0–250 kg	—
Spray-painting	100–10,000	10–2,000 mm	10–2,000 mm	10–2,000 mm	—	0–1,000 kg	—
Nickel plating	100–100,000	5–2,500 mm	5–600 mm	5–600 mm	—	0–150 kg	—
Galvanizing	100–100,000	5–3,000 mm	5–1,500 mm	5–1,500 mm	1–1,000 mm	0–250 kg	1–1,000 mm

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Carbonitriding	100–100,000	5–250 mm	5–250 mm	5–250 mm	1–250 mm	0–50 kg
Case hardening/surface hardening	100–100,000	5–450 mm	5–450 mm	5–450 mm	1–450 mm	0–50 kg
Annealing	100–100,000	5–450 mm	5–450 mm	5–450 mm	1–450 mm	0–50 kg
Hardening	100–100,000	5–450 mm	5–450 mm	5–450 mm	1–450 mm	0–50 kg
Induction hardening	100–100,000	5–450 mm	5–450 mm	5–450 mm	1–450 mm	0–50 kg
Nitriding processes	100–100,000	10–500 mm	10–500 mm	10–500 mm	10–500 mm	0–80 kg
Hardening and tempering	100–100,000	10–250 mm	10–250 mm	10–250 mm	10–250 mm	0–50 kg

Water jet cutting

Technologies	Lotsize	Length	Width	Weight	Material thickness
Water jet cutting 2D	100–100,000	10–3,000 mm	10–1,500 mm	0–700 kg	3–20 mm

Wire & Spring Bending

Technologies	Lotsize	Diameter
Wire bending	1,000–500,000	1–15 mm
Spring bending	1,000–500,000	1–10 mm

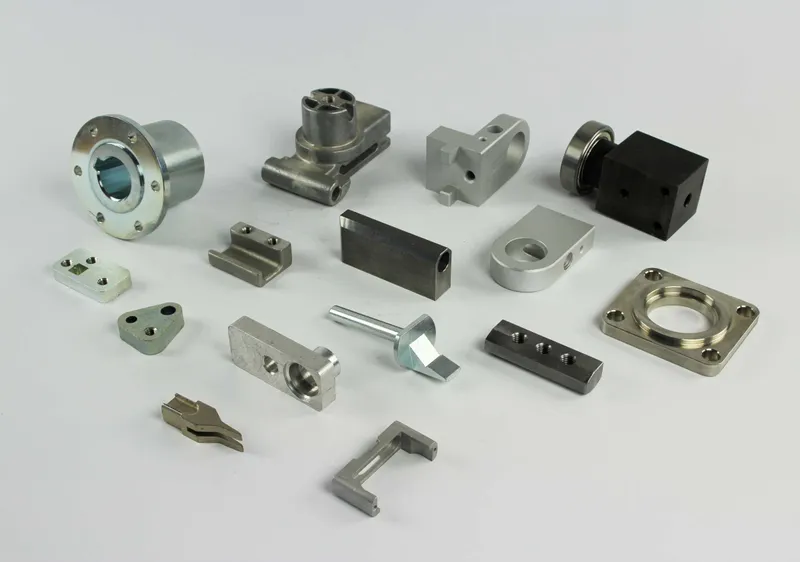

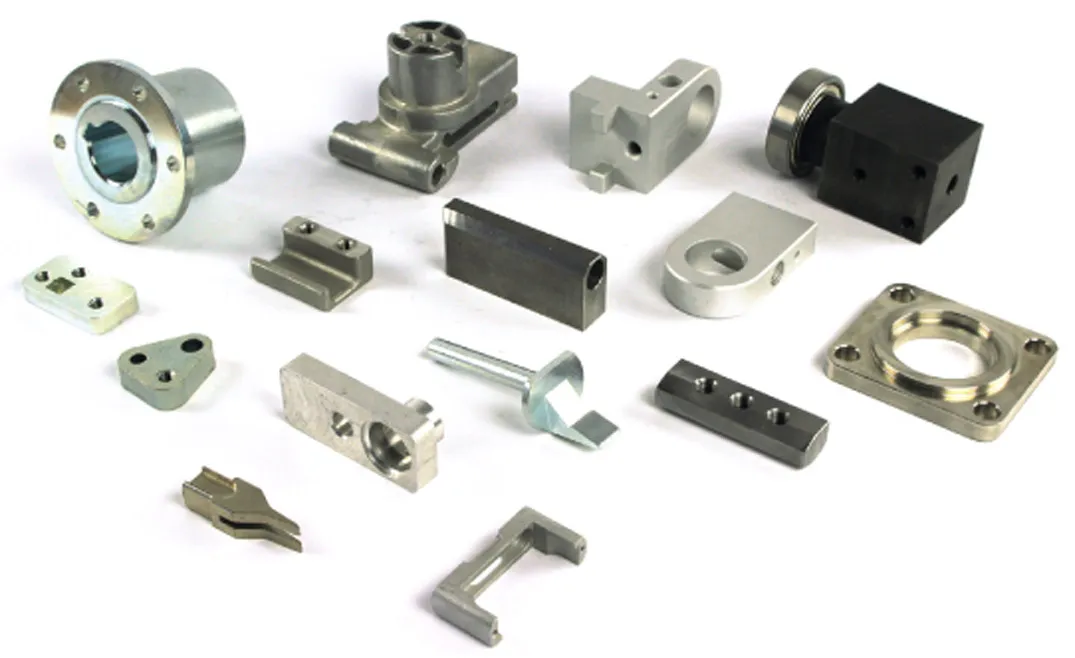

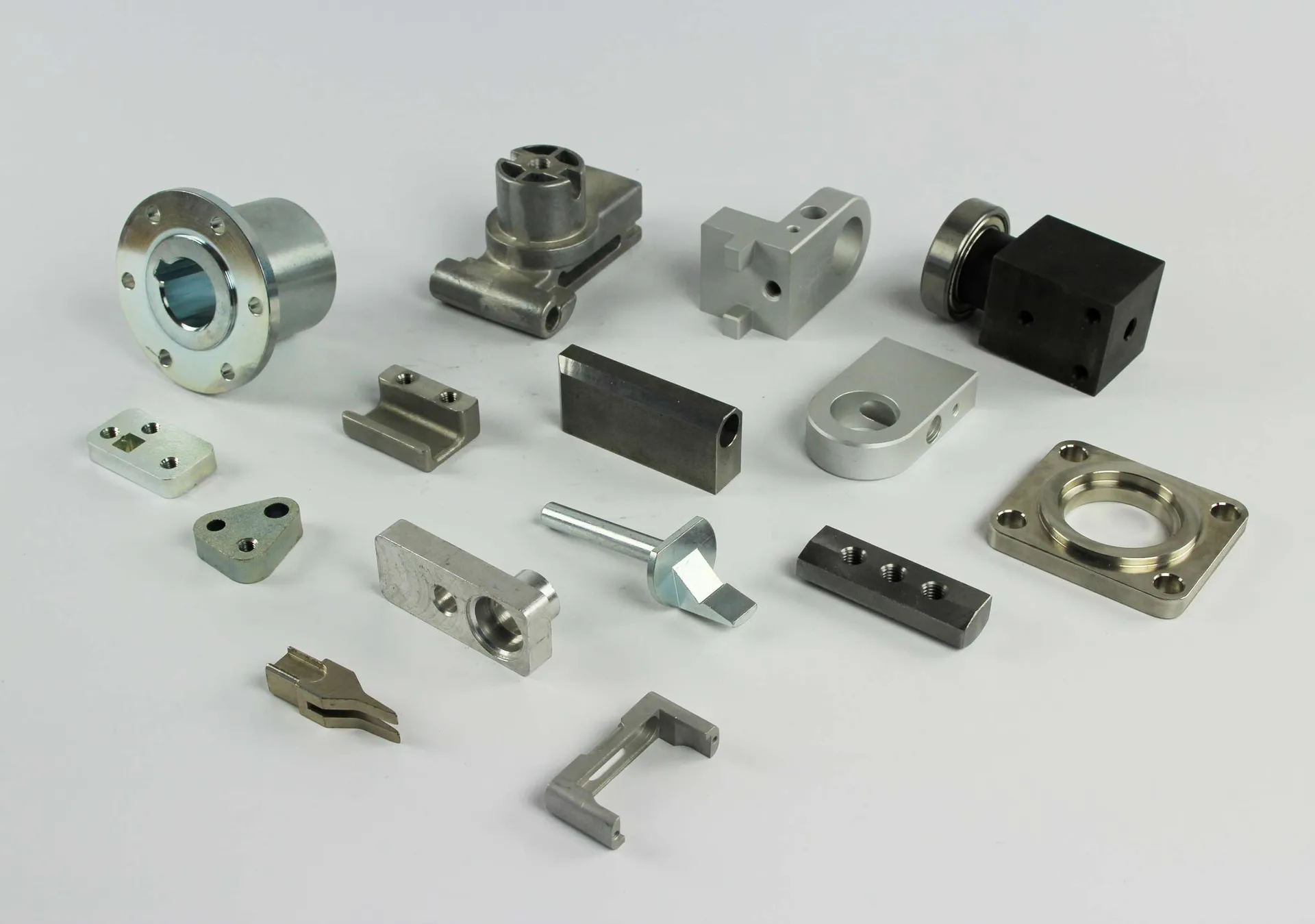

Milling

Technologies	Lotsize	Length	Width	Height	Weight
Milling	50–25,000	5–800 mm	5–600 mm	5–600 mm	0–100 kg
5-axis milling machines	50–25,000	5–800 mm	5–600 mm	5–600 mm	0–100 kg

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter
Laser marking / Laser inscription	100–100,000	5–600 mm	5–400 mm	0.1–250 mm	1–250 mm

Materials

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Sintered materials

Metal powder for formed parts

Light metals

Aluminium and aluminium alloysTitanium and titanium alloys

Plastics/synthetic materials

ThermoplasticsThermosetsElastomers

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloys

Industries

Power generation and transmission industryAutomotive and vehicle constructionHydraulic and pneumatic industryAerospace and aviation industryPrecision engineering, mechatronics and opticsPlant engineering and constructionMedical technologyFurniture industryApparatus engineeringDrive and gear engineeringElectrical industryLighting industryMechanical engineeringPaper and printing machinery industryMining and tunnel engineeringAutomation and control engineeringMeasurement and control technique, laboratory equipment

+9 moreShow less
