NC-Technik <br>Thomas Graf GmbH & Co.KG

Germany, 78661 Dietingen

Competencies

Technologies

Assembly

Technologies	Weight
Mechanical assembly	0–200 kg

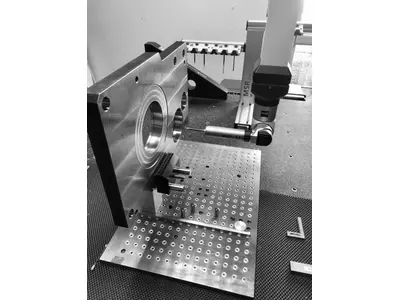

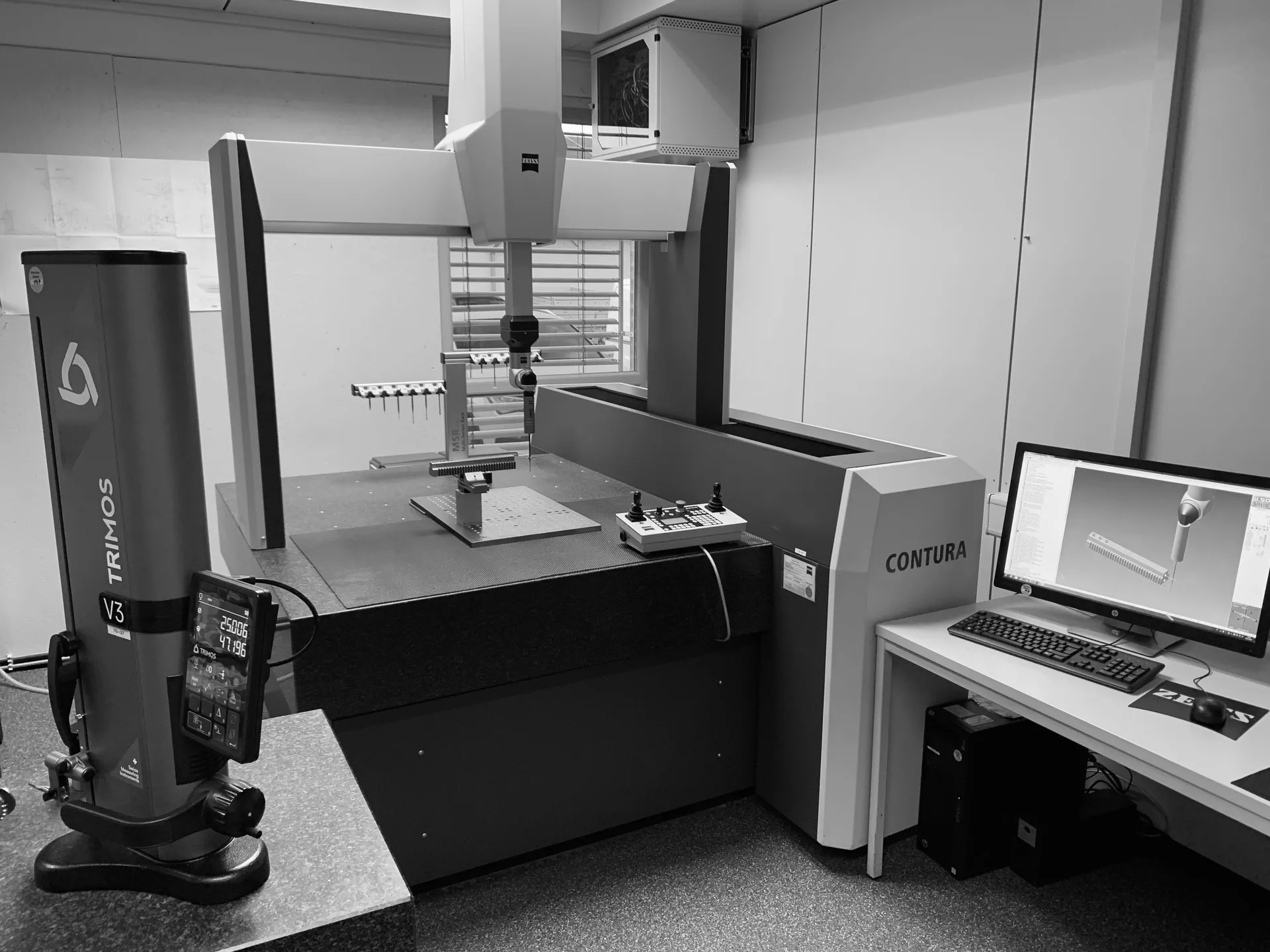

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight

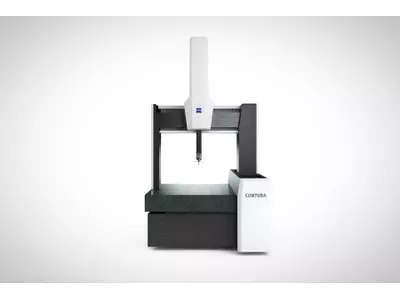

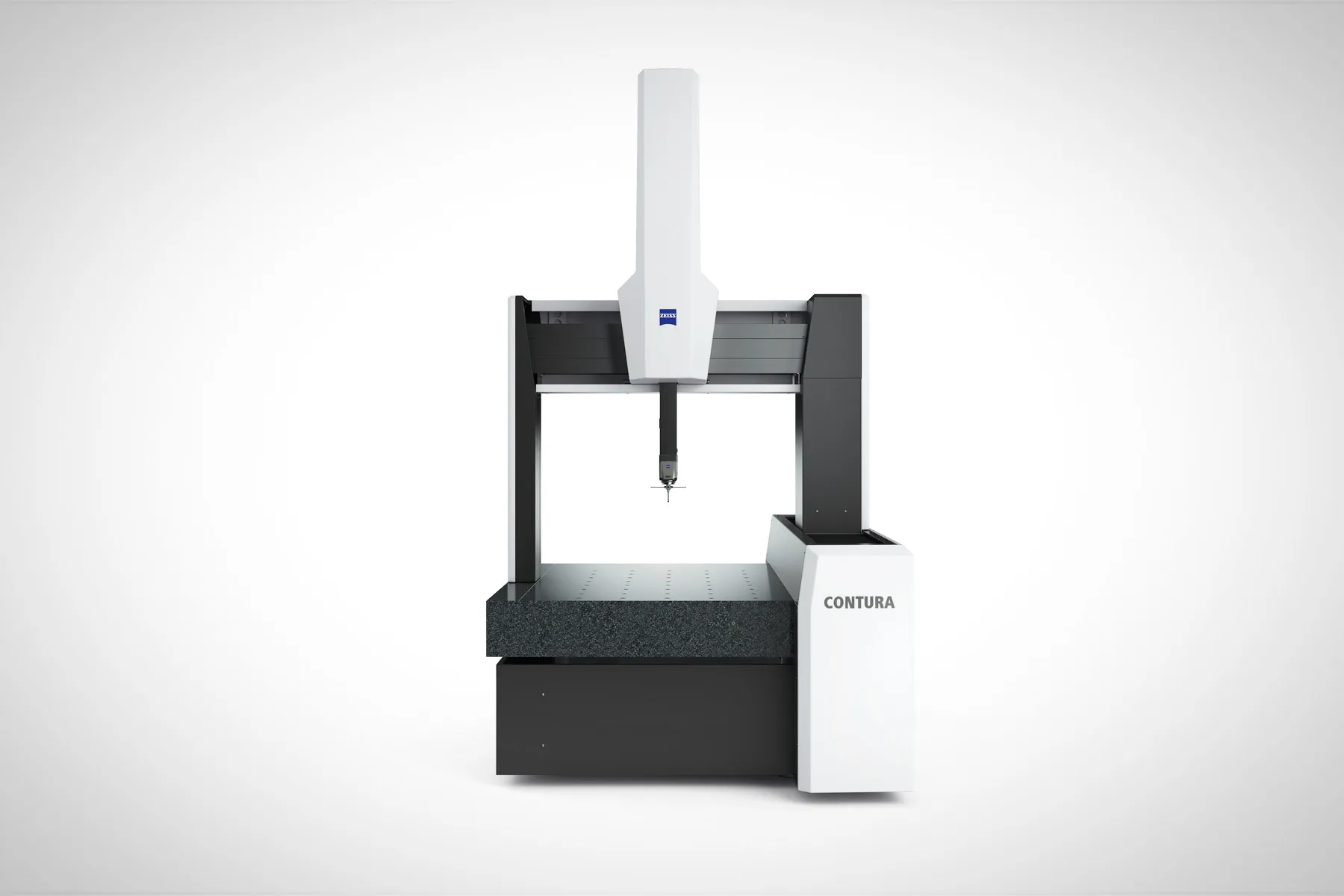

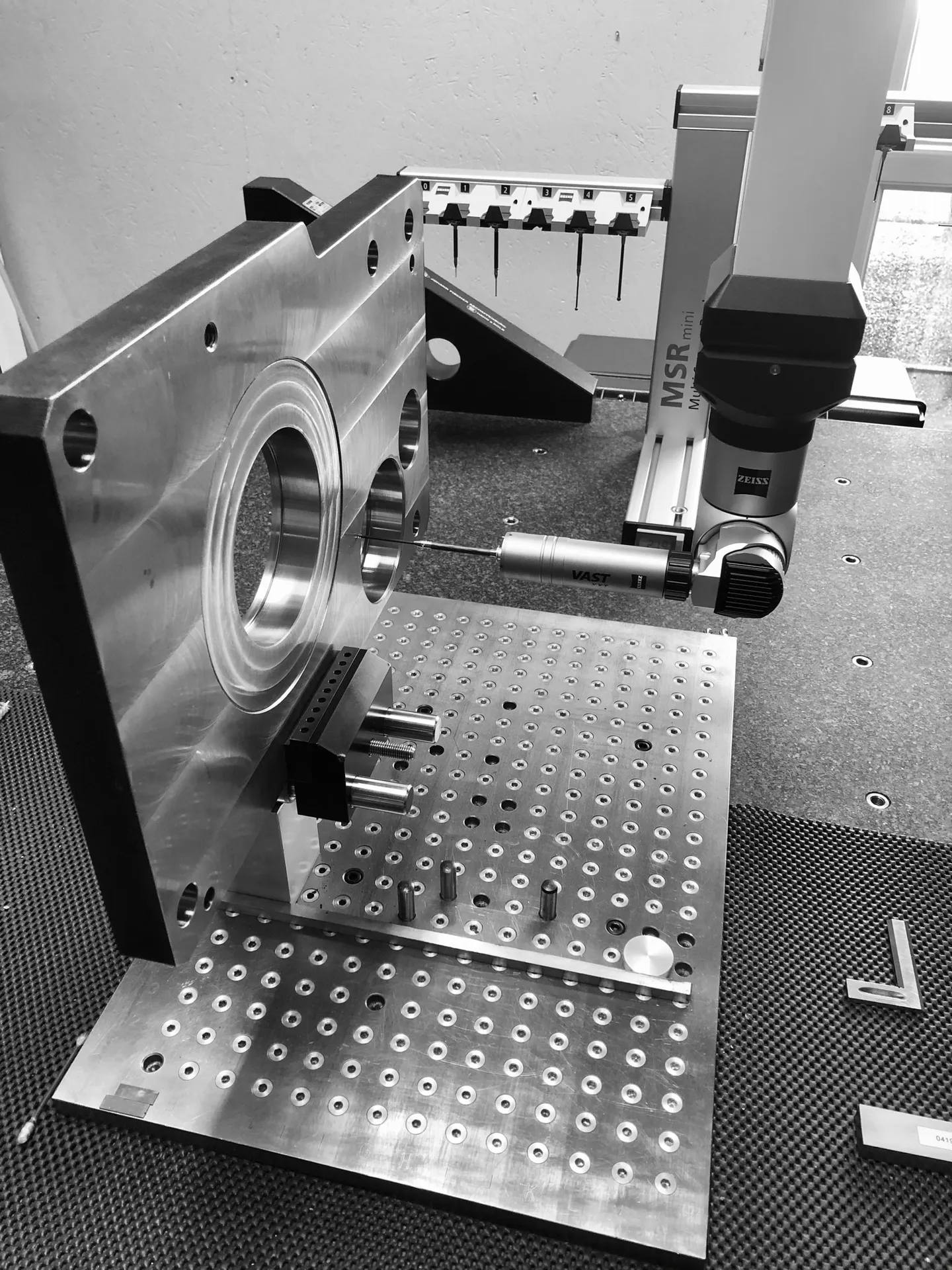

Measuring / testing	1–1,000 mm	1–1,200 mm	1–600 mm	1–1,000 mm	0–200 kg

Machining (Extruded Profiles)

Technologies	Width	Height	Weight
Machining of extruded sections	1–300 mm	1–300 mm	0–500 kg

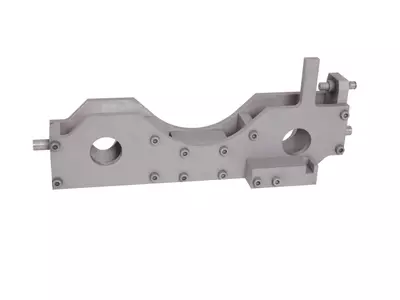

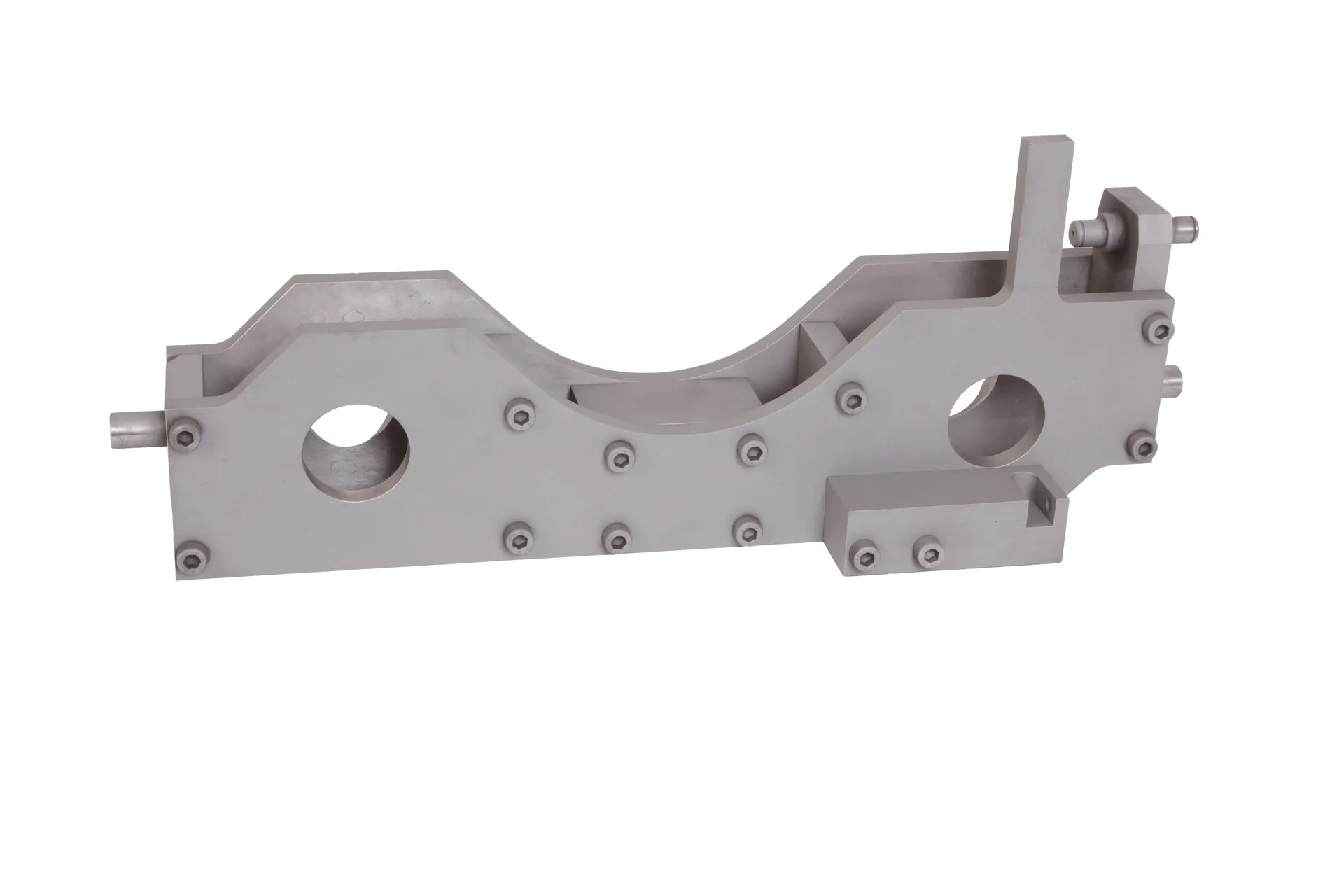

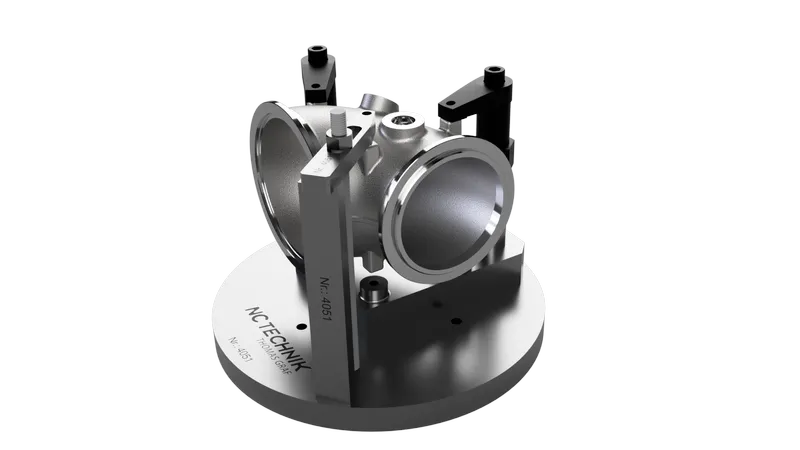

Jigmaking

Technologies	Length	Width	Height	Weight
Drilling / milling jigs	1–1,150 mm	1–700 mm	1–550 mm	0–500 kg
Measuring / testing jigs	1–1,150 mm	1–700 mm	1–550 mm	0–500 kg
Assembly jigs	1–1,150 mm	1–700 mm	1–550 mm	0–500 kg

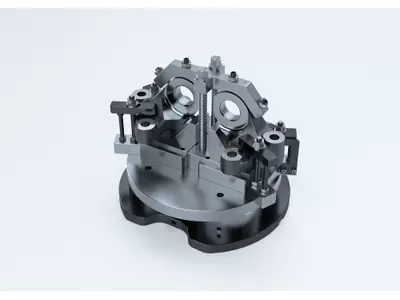

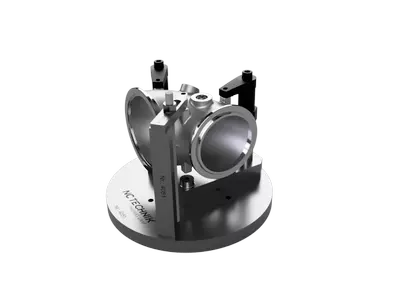

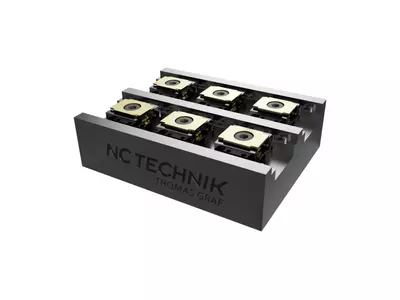

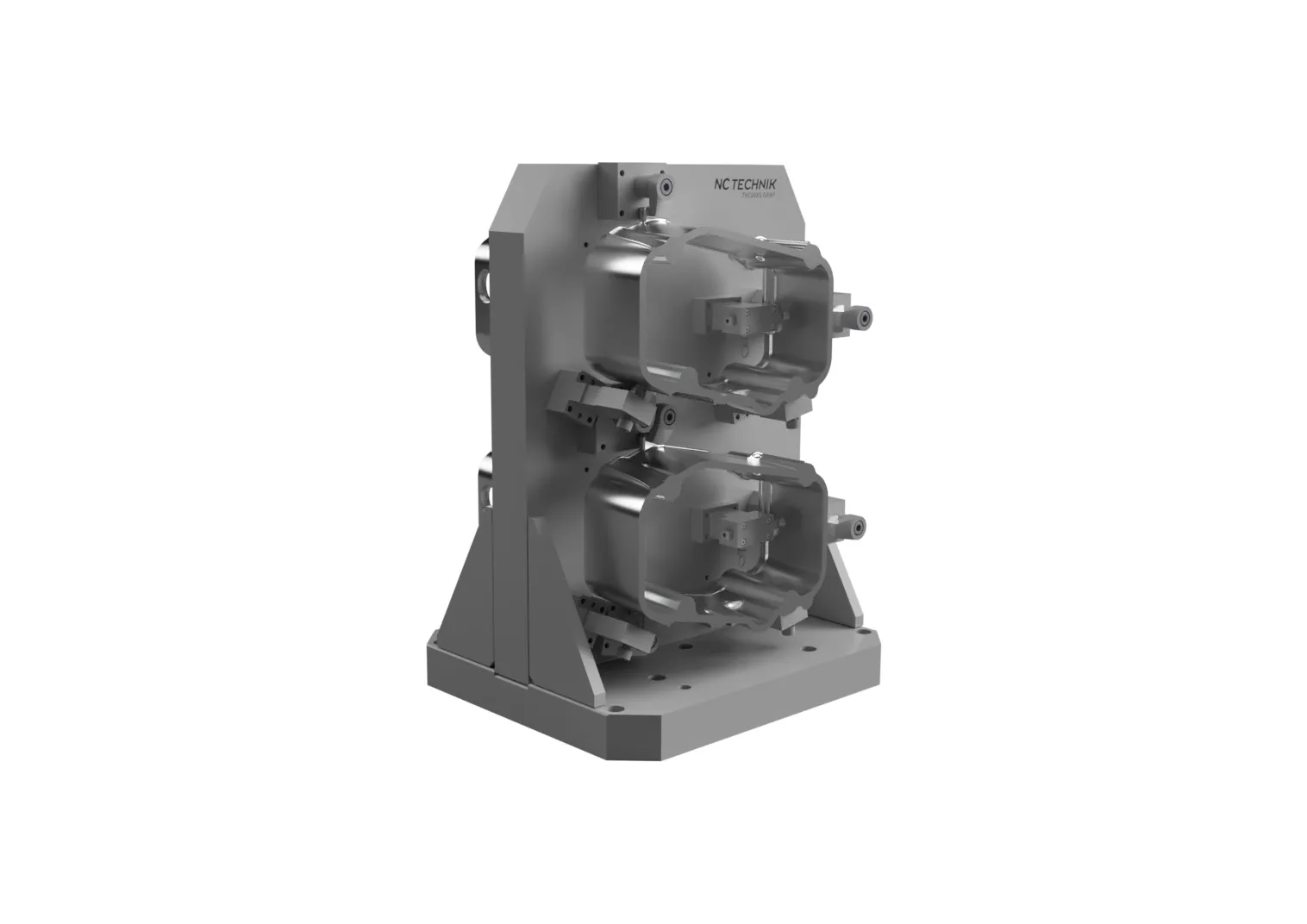

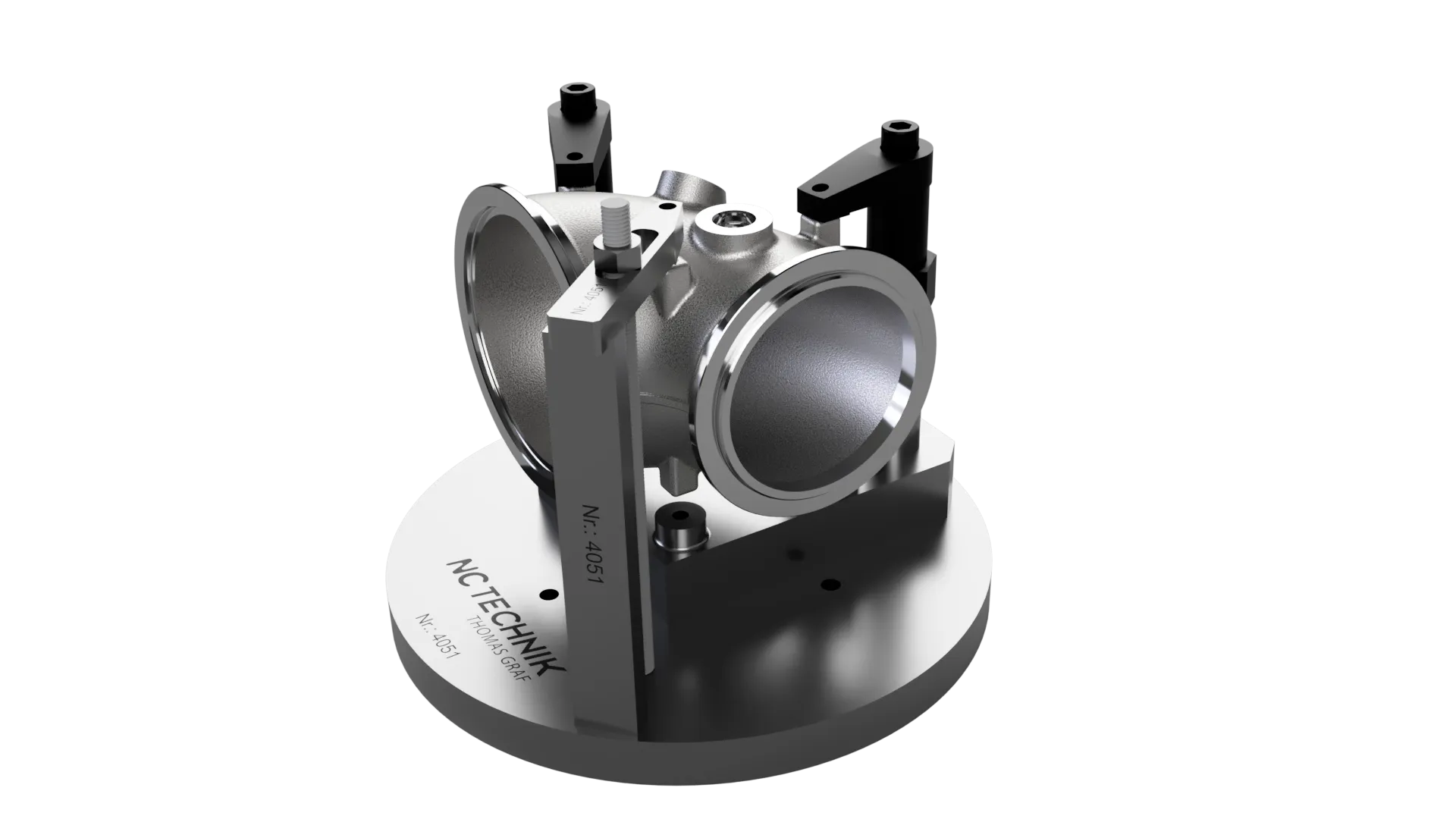

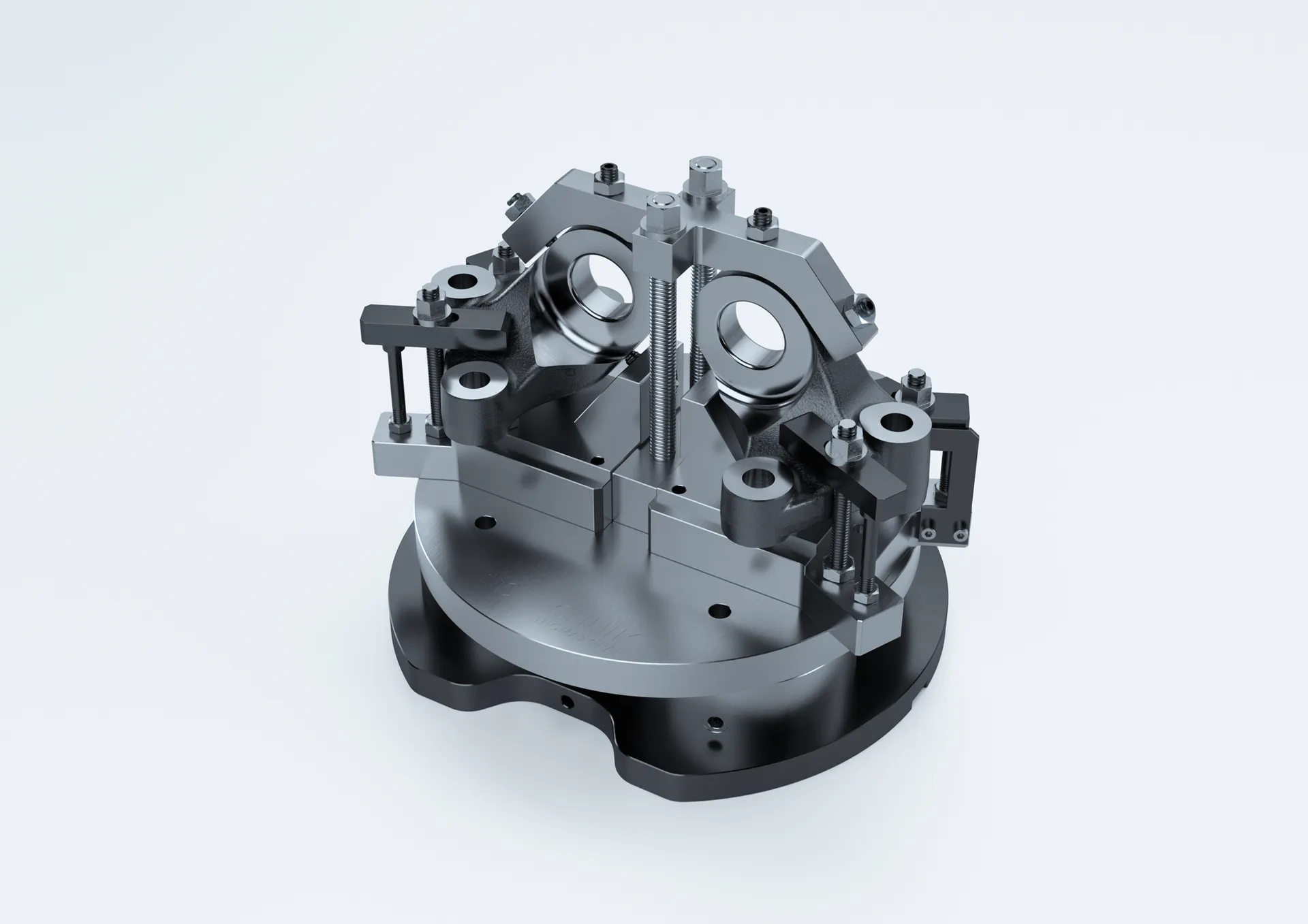

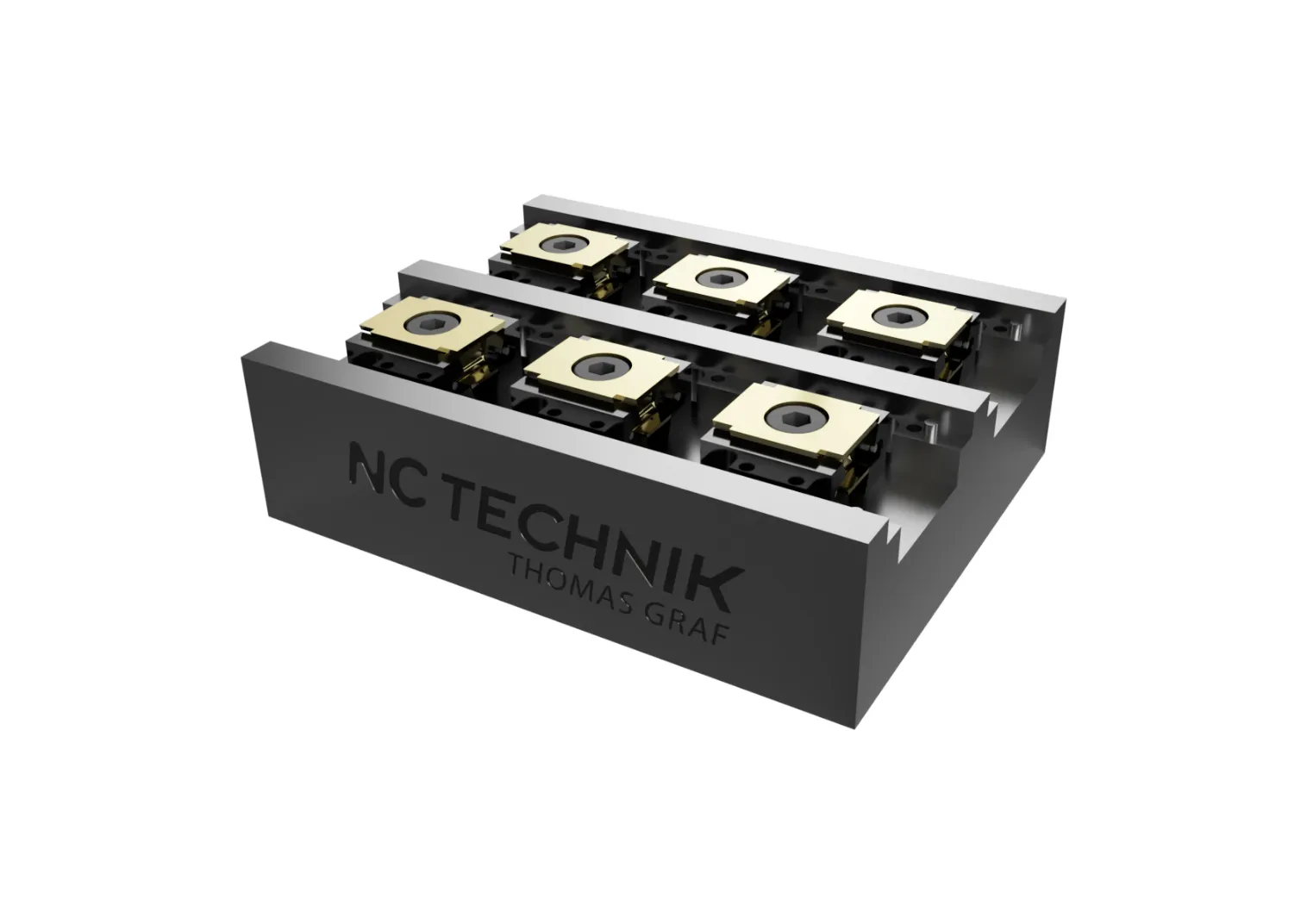

Clamping devices	1–1,150 mm	1–700 mm	1–550 mm	0–500 kg

Additive Manufacturing

Technologies	Lotsize	Length	Width	Height
Fused deposition modelling (FDM)	1–1,000	1–220 mm	1–220 mm	1–300 mm

Heat Treatment

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Annealing	1–10,000	1–700 mm	1–400 mm	1–400 mm	1–400 mm	0–700 kg

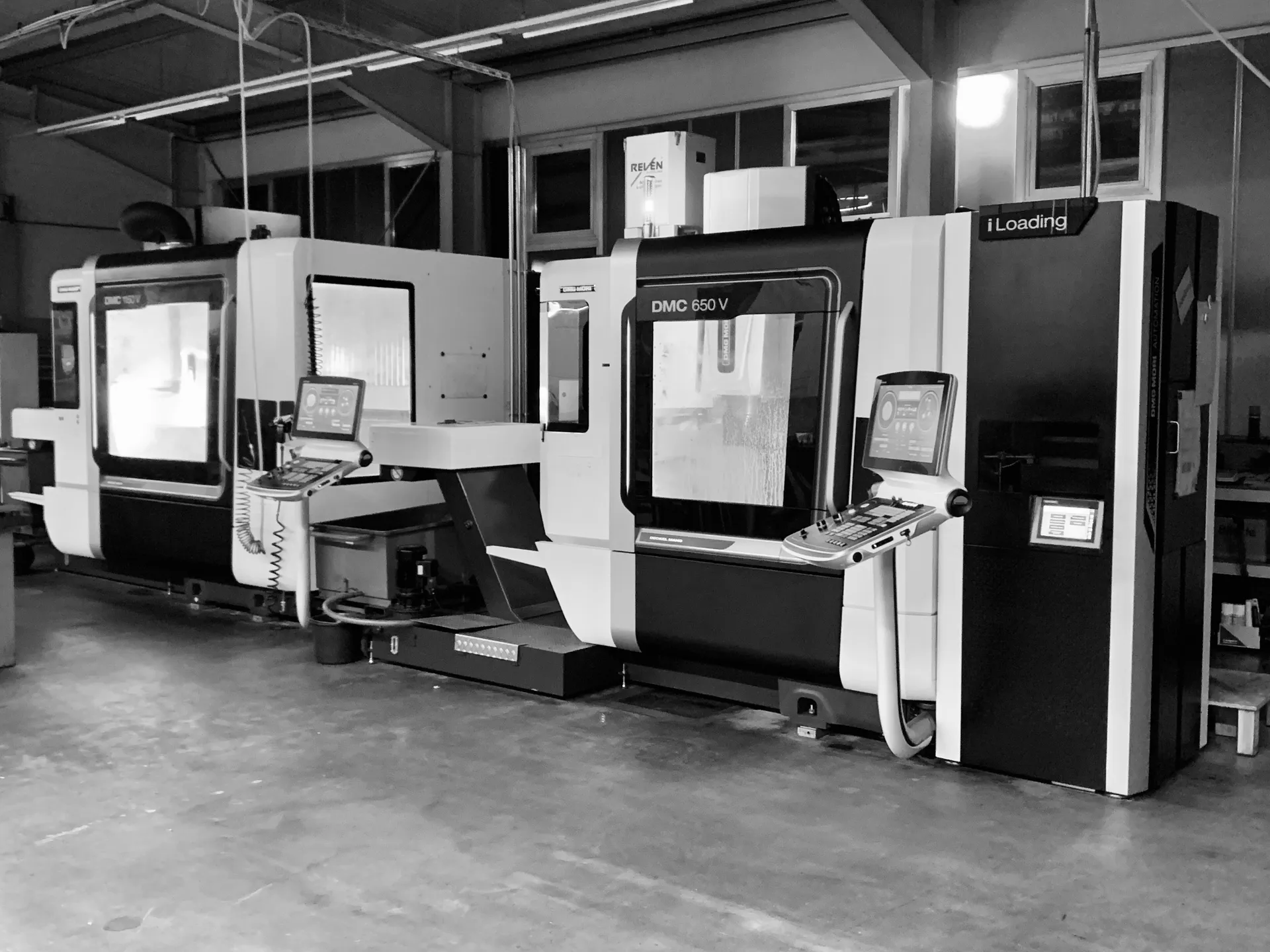

Milling

Technologies	Lotsize	Length	Width	Height

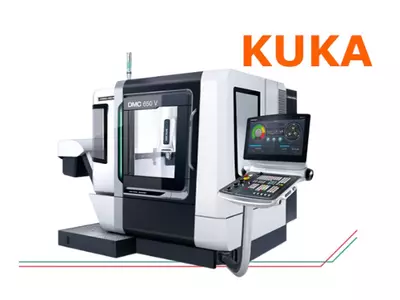

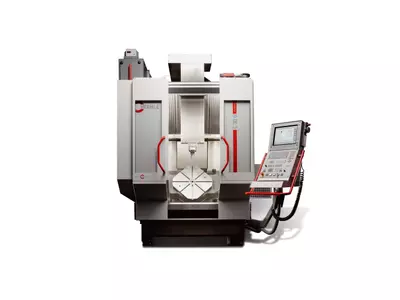

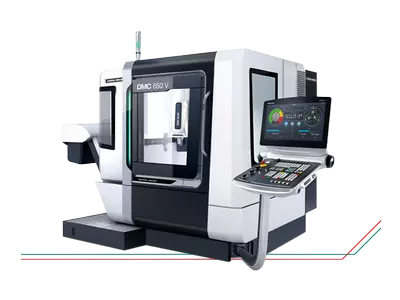

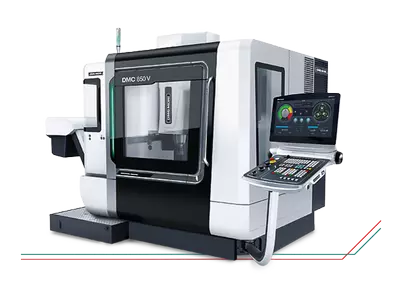

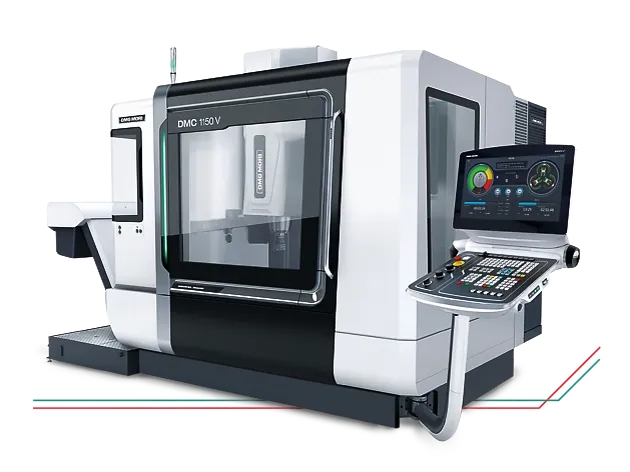

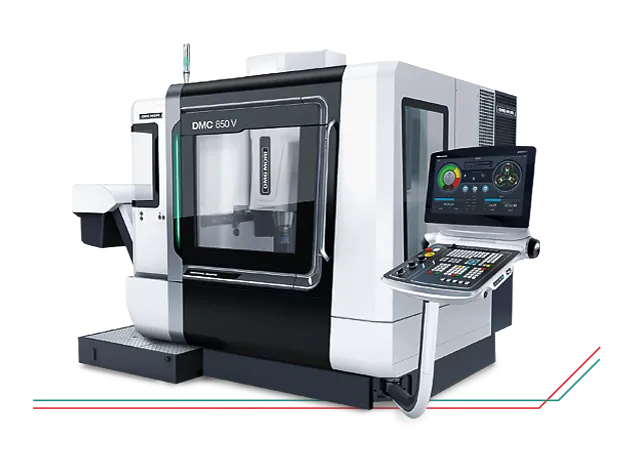

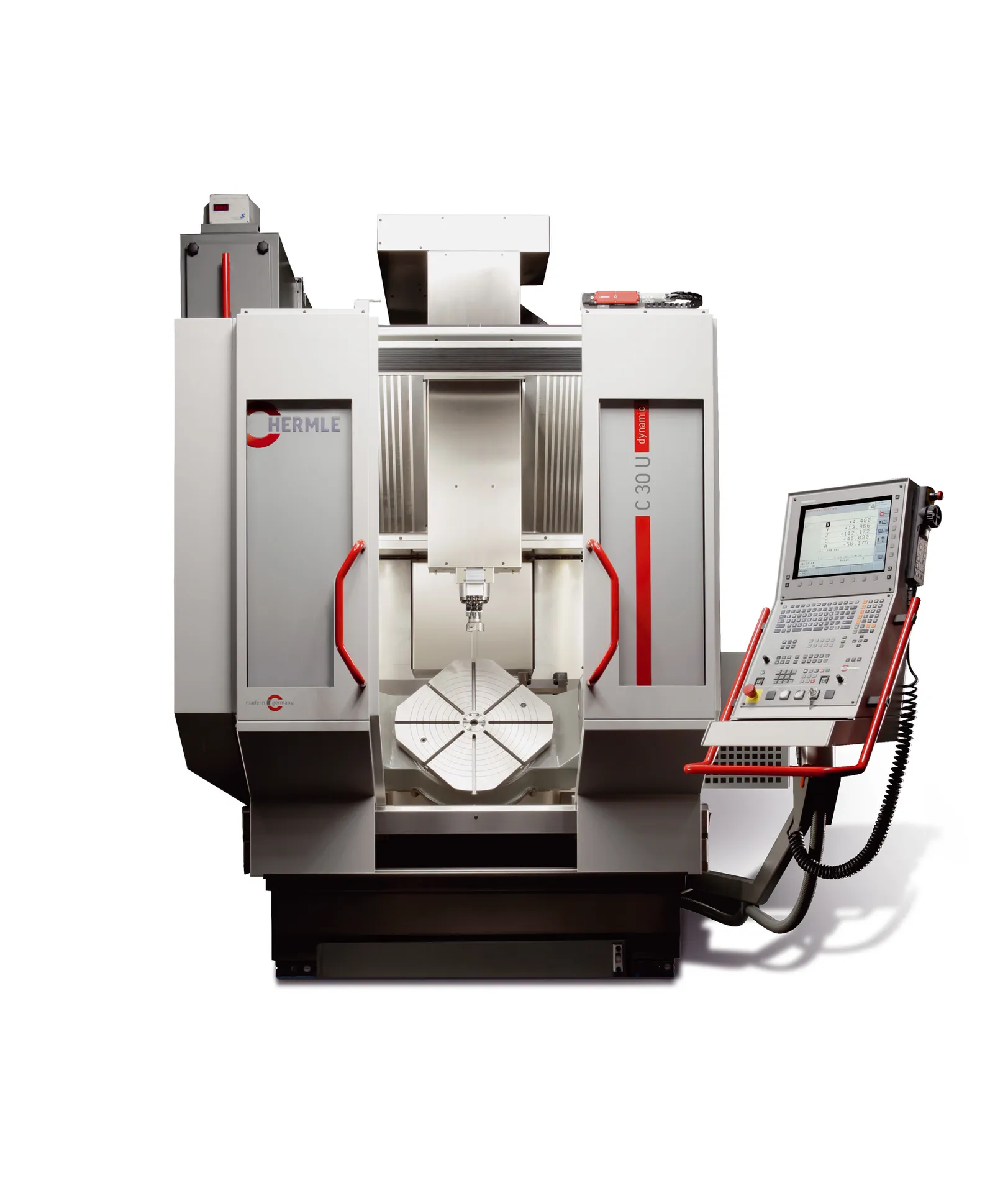

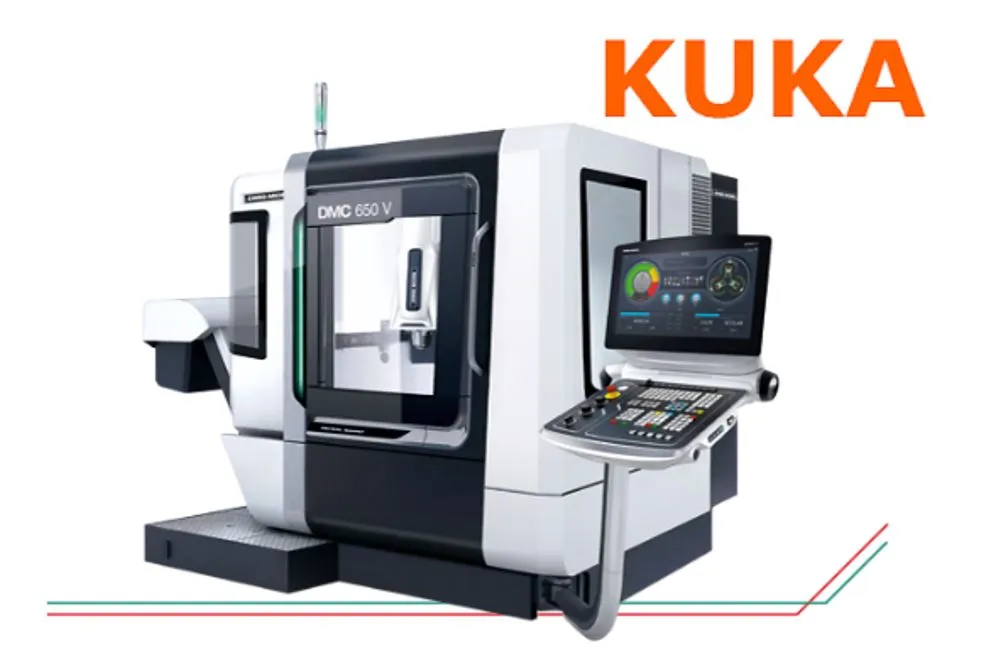

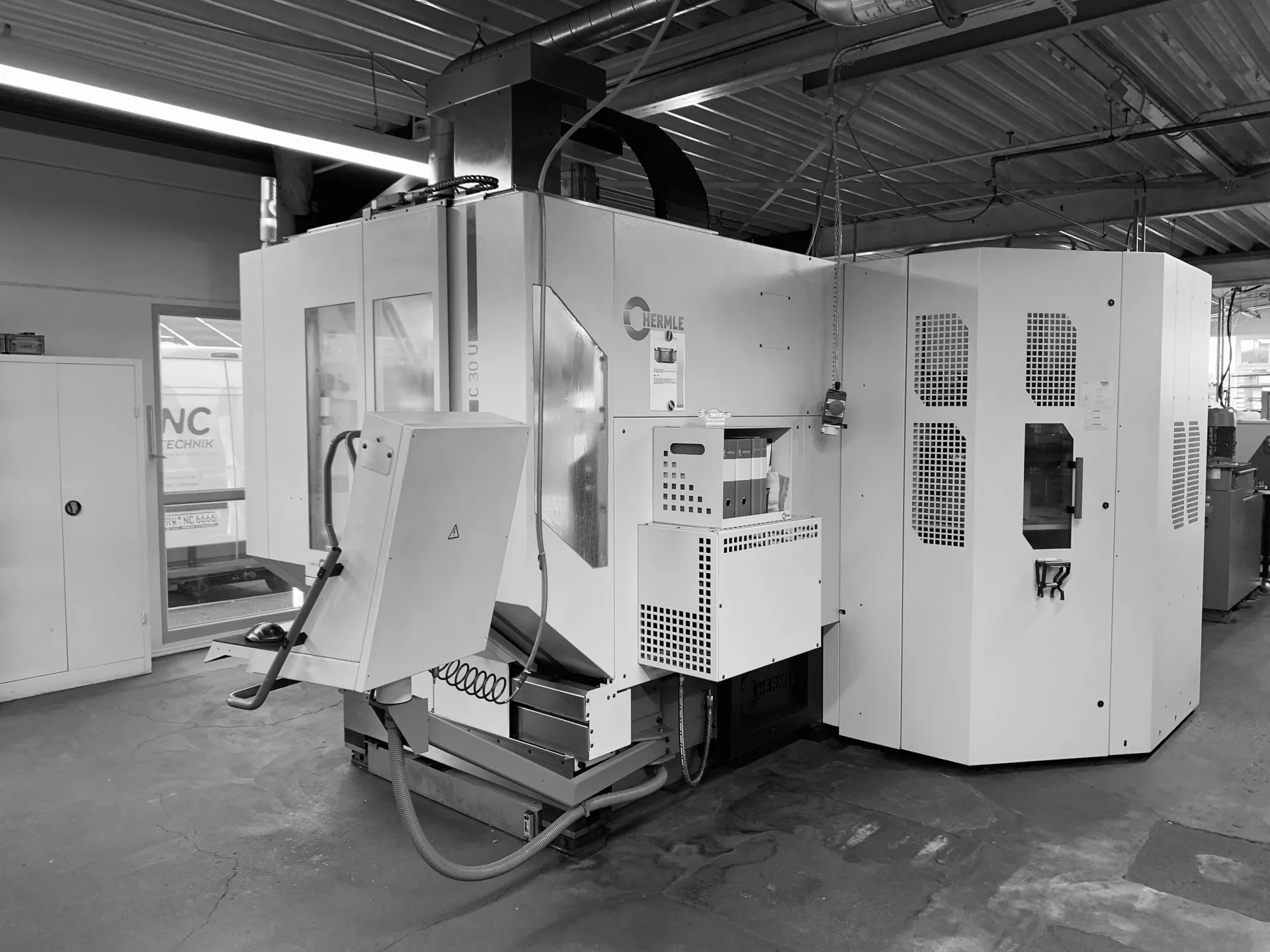

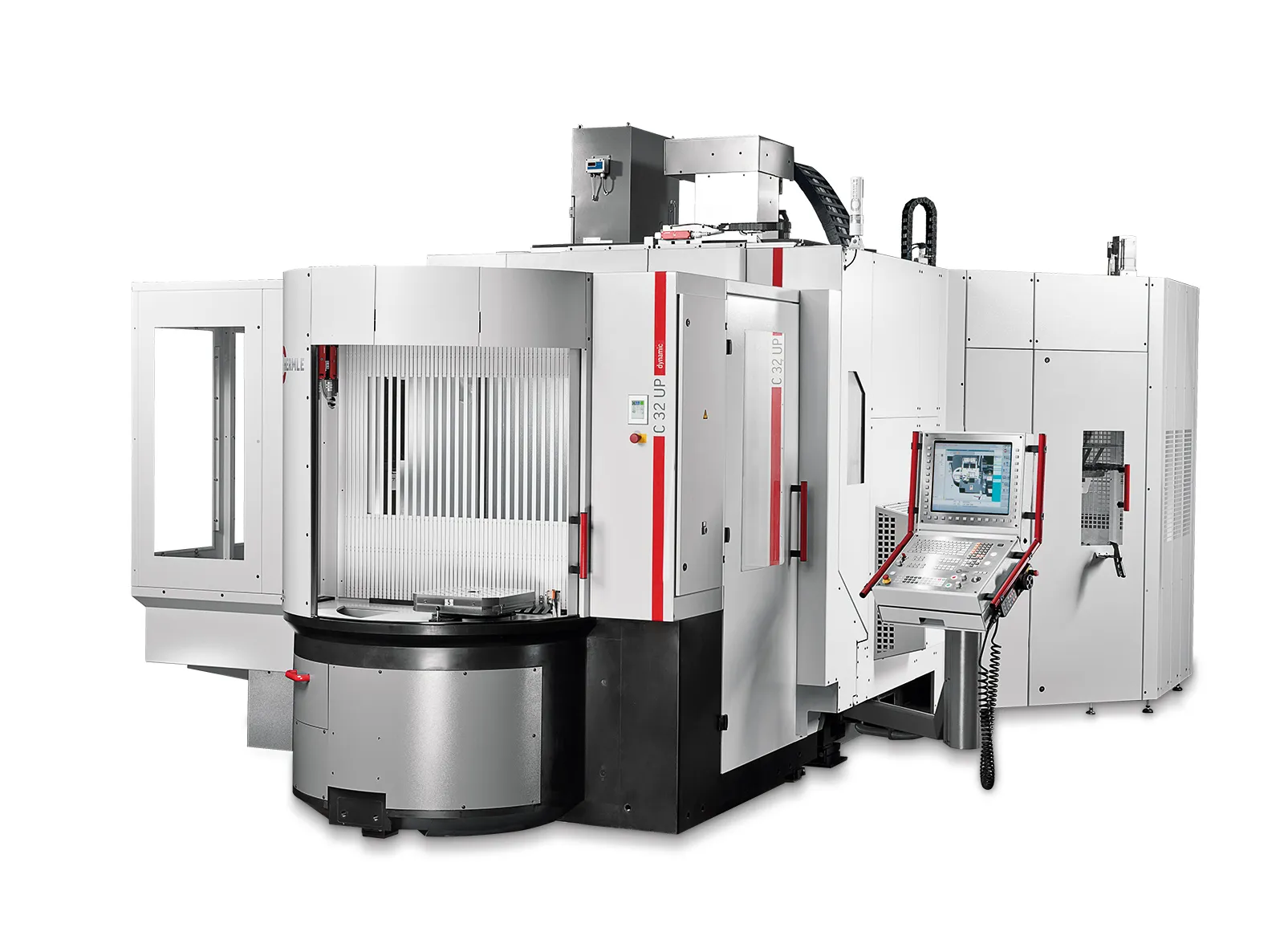

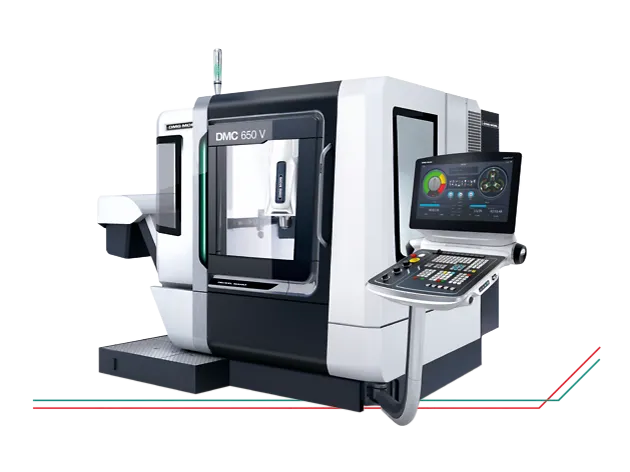

5-axis milling machines	1–10,000	1–650 mm	1–650 mm	1–500 mm
Form milling (3 D)	1–1,000	1–1,150 mm	1–700 mm	1–550 mm

Finishing

Technologies	Lotsize	Length	Width	Height	Weight

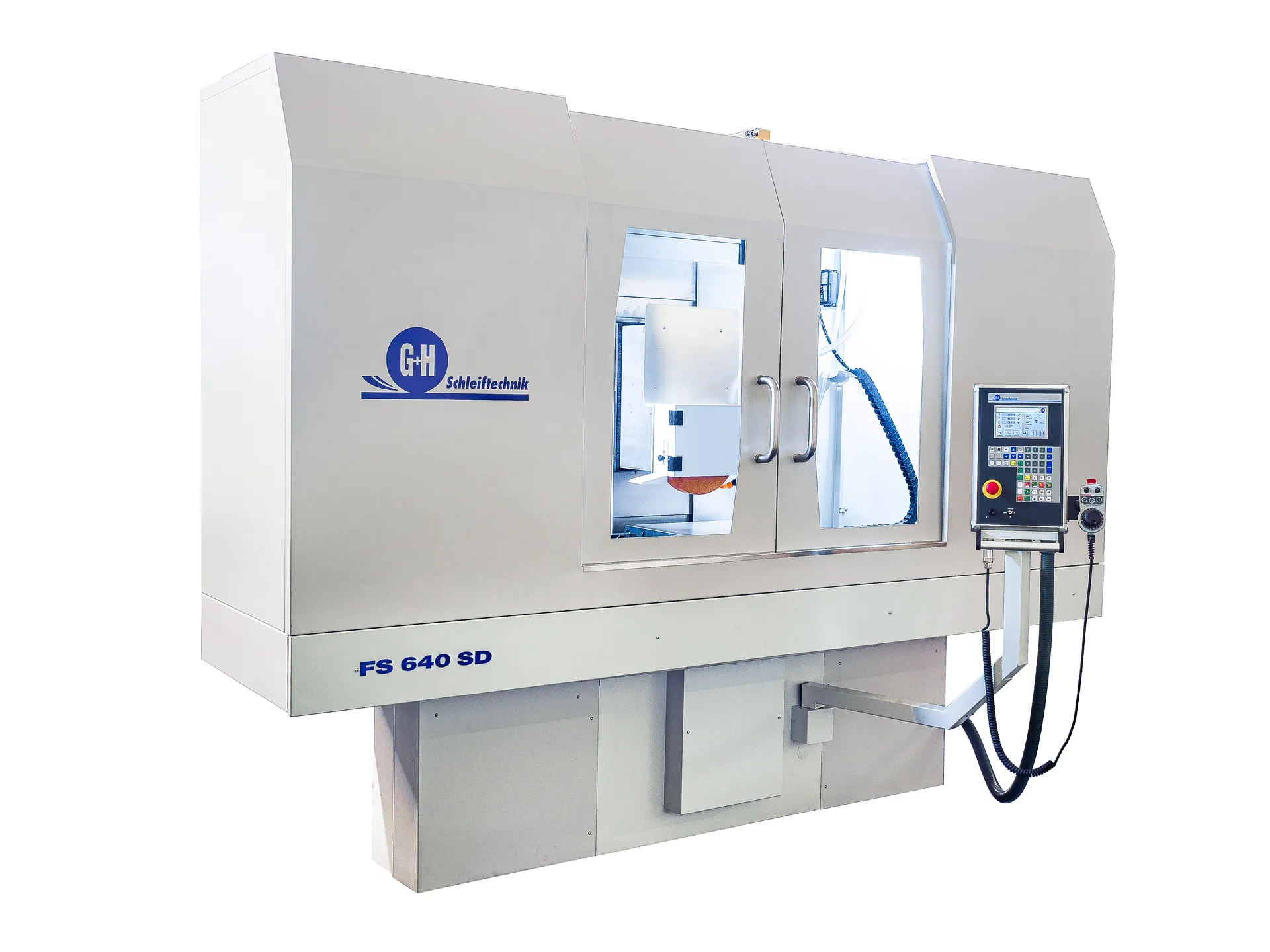

Surface grinding machine	1–10,000	1–600 mm	1–400 mm	1–400 mm	0–600 kg

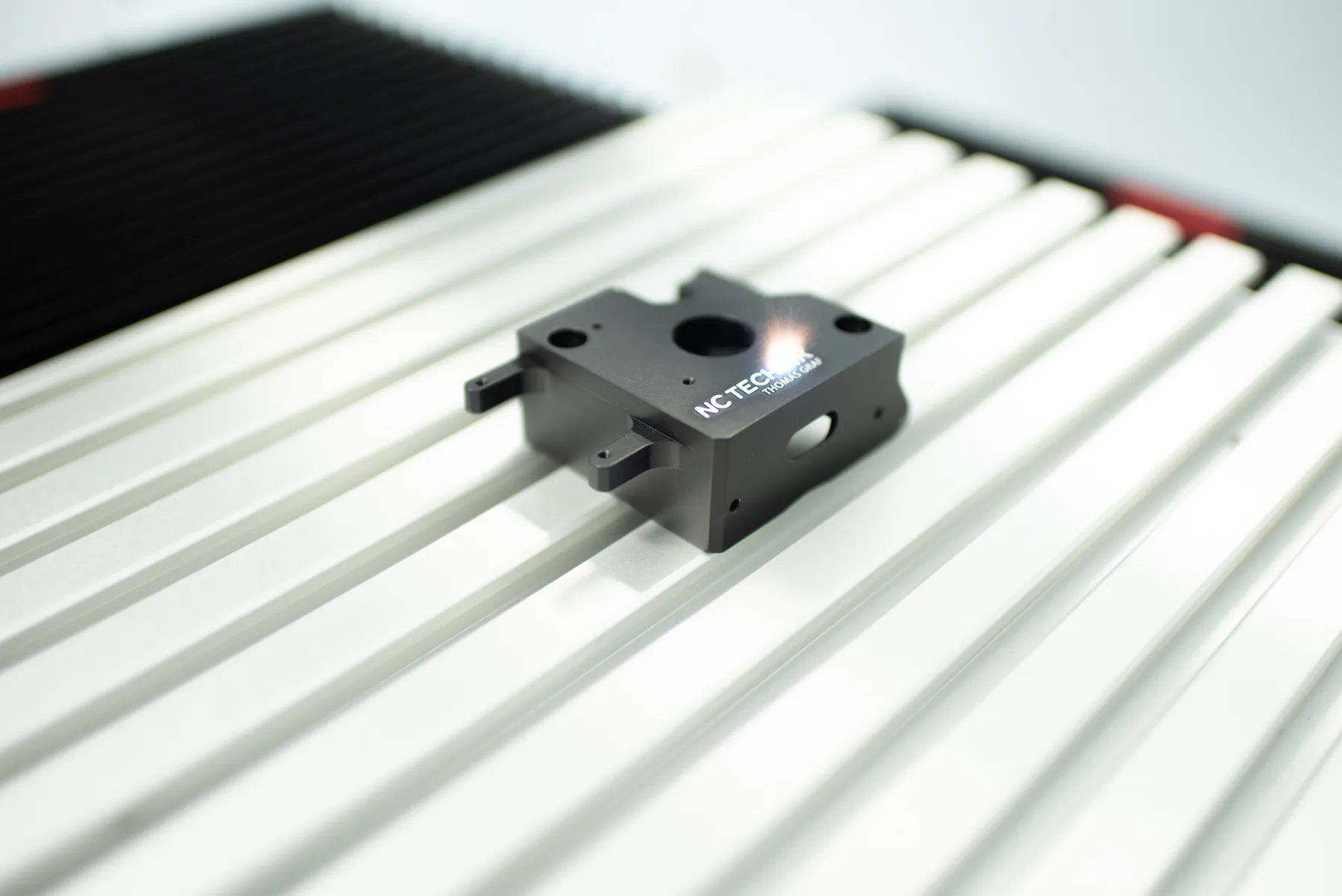

Labelling / marking

Technologies	Lotsize	Length	Width	Height	Diameter

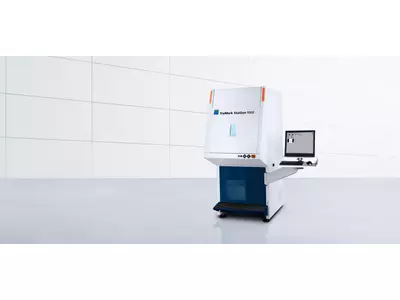

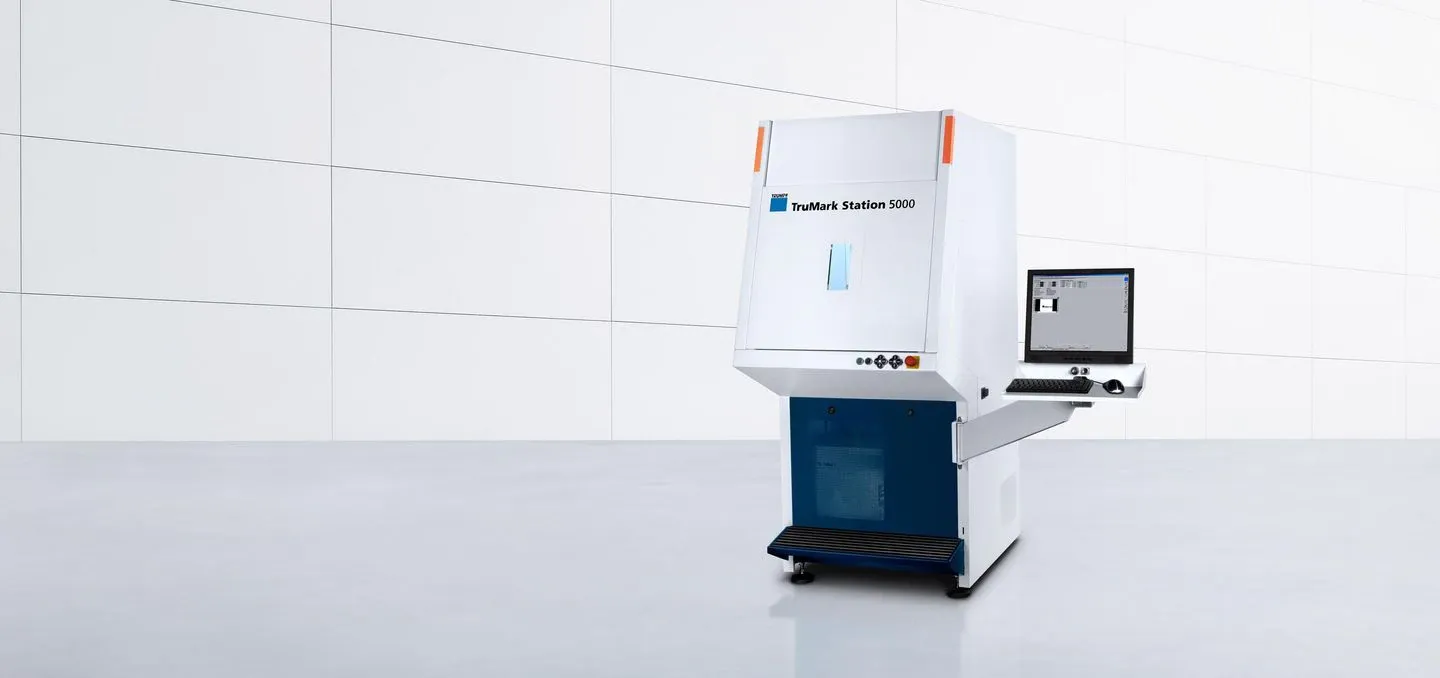

Laser marking / Laser inscription	1–100 k	1–410 mm	1–410 mm	1–500 mm	1–410 mm
Laser depth engraving	1–100 k	1–410 mm	1–410 mm	1–500 mm	1–410 mm

Materials

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)

Cast metals

Cast steelCast iron

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Plastics/synthetic materials

ThermoplasticsThermosetsElastomersGlass fibre-reinforced plastic

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloys

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelCold extruding steel

Industries

Boiler, container and tank construction Lighting industryHousehold appliance industryMilitary engineeringApparatus engineeringFittings engineeringRailway and rail vehicles industryPower generation and transmission industryConstruction and architectural suppliesFurniture industryClean room technologyInformation technology (hardware)Building, agricultural and forestry machinery manufacturingPackaging industryShipbuilding industryAir conditioning, refrigeration and ventilation industryPrecision engineering, mechatronics and opticsSpecial purpose machinery manufacturingAerospace and aviation industryChemical industryOffice machinery and suppliesAutomotive and vehicle constructionAutomation and control engineeringPlant engineering and constructionMining and tunnel engineeringTelecommunication industryMechanical engineeringDrive and gear engineeringElectrical industryHydraulic and pneumatic industryMedical technologyMeasurement and control technique, laboratory equipmentPaper and printing machinery industryMachine tool manufacturing

+26 moreShow less
