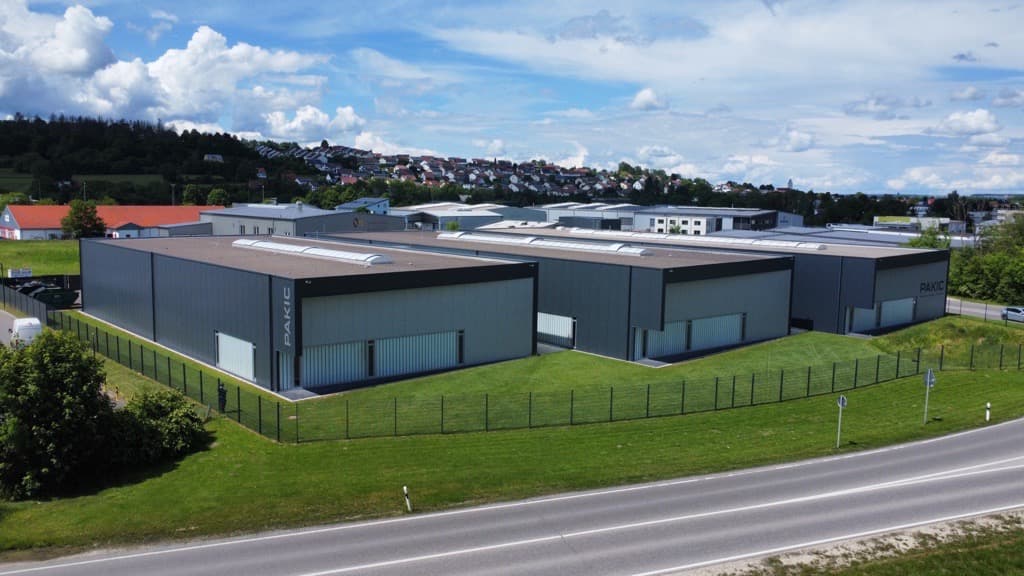

Pakic GmbH

Germany, 89275 Elchingen

Competencies

Technologies

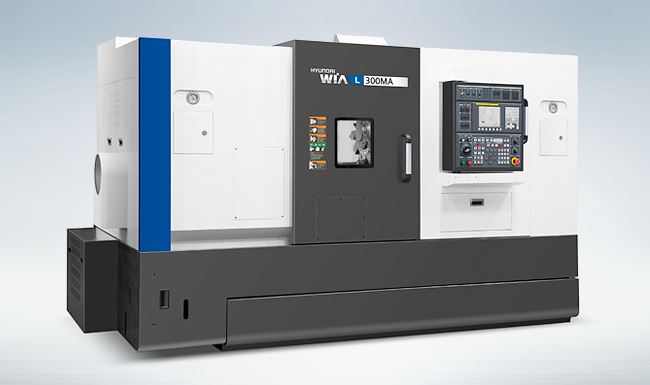

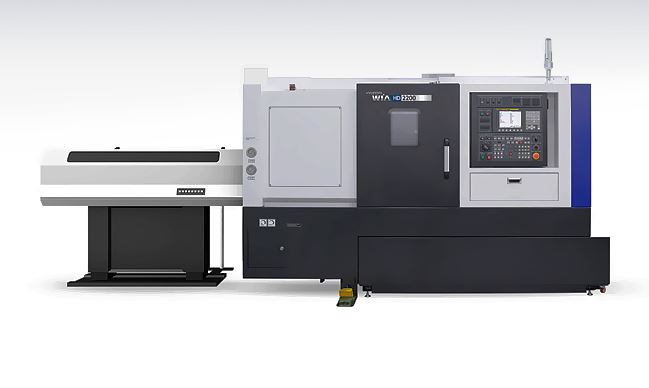

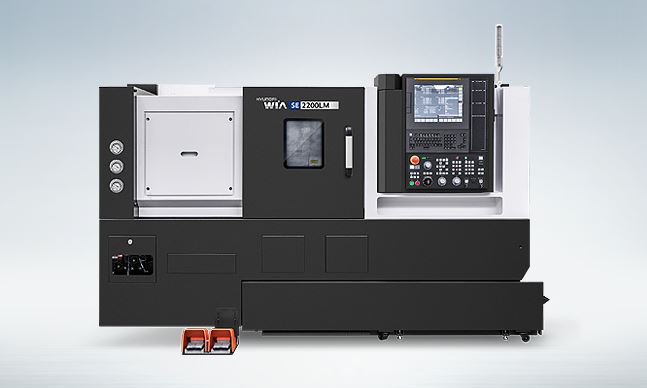

Turning

Technologies	Lotsize	Length	Diameter	Weight

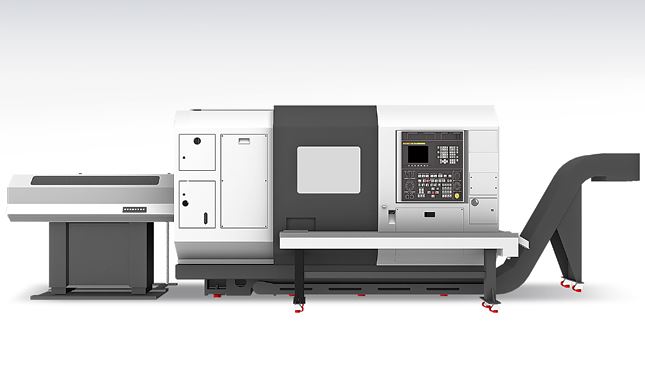

Turning	1–1 M	0.5–1,500 mm	0.5–300 mm	—
Automatic turning (bar)	1–1 M	1–800 mm	1–32 mm	—

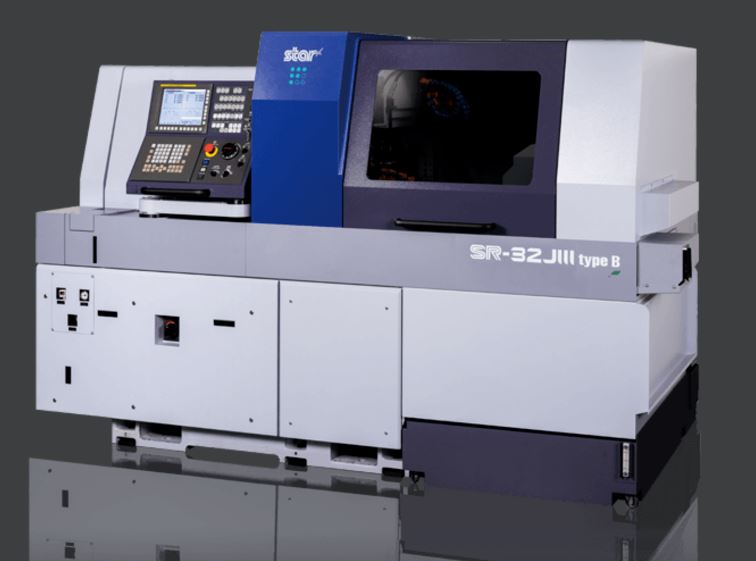

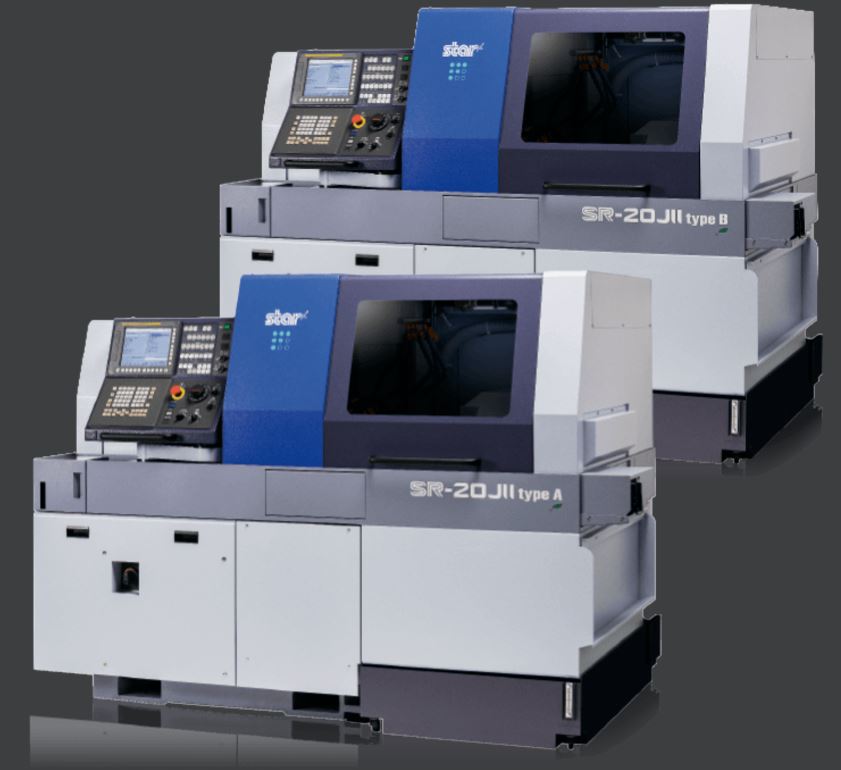

Swiss turning	1–500 k	1–1,500 mm	1–32 mm	—
Full-range turning (including milling)	0–500 k	0–1,000 mm	0–200 mm	—
Hard turning	1–50,000	1–600 mm	10–300 mm	—
Broaching	1–50,000	1–500 mm	10–320 mm	—
Centering / end facing	1–50,000	1–1,500 mm	2–90 mm	—
Shaft machining	1–50,000	1–1,500 mm	1–90 mm	0–30 kg

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Height	Material thickness
Laser cutting 2D	from 1	5–4,000 mm	5–2,000 mm	—	0.5–20 mm
Bending / folding	from 1	1–3,500 mm	—	—	1–15 mm
Laser cutting, tube & section	from 1	1–6,000 mm	1–150 mm	1–150 mm	1–12 mm

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Inert gas shielded arc welding (MIG/MAG)	from 1	1–2,000 mm	1–2,000 mm	1–2,000 mm	—	0–500 kg
Inert gas shielded arc welding (TIG)	from 1	1–2,000 mm	1–2,000 mm	1–2,000 mm	—	0–500 kg
Laser-beam welding	1–500 k	10–1,000 mm	10–1,000 mm	1–1,000 mm	10–1,000 mm	0.1–50 kg

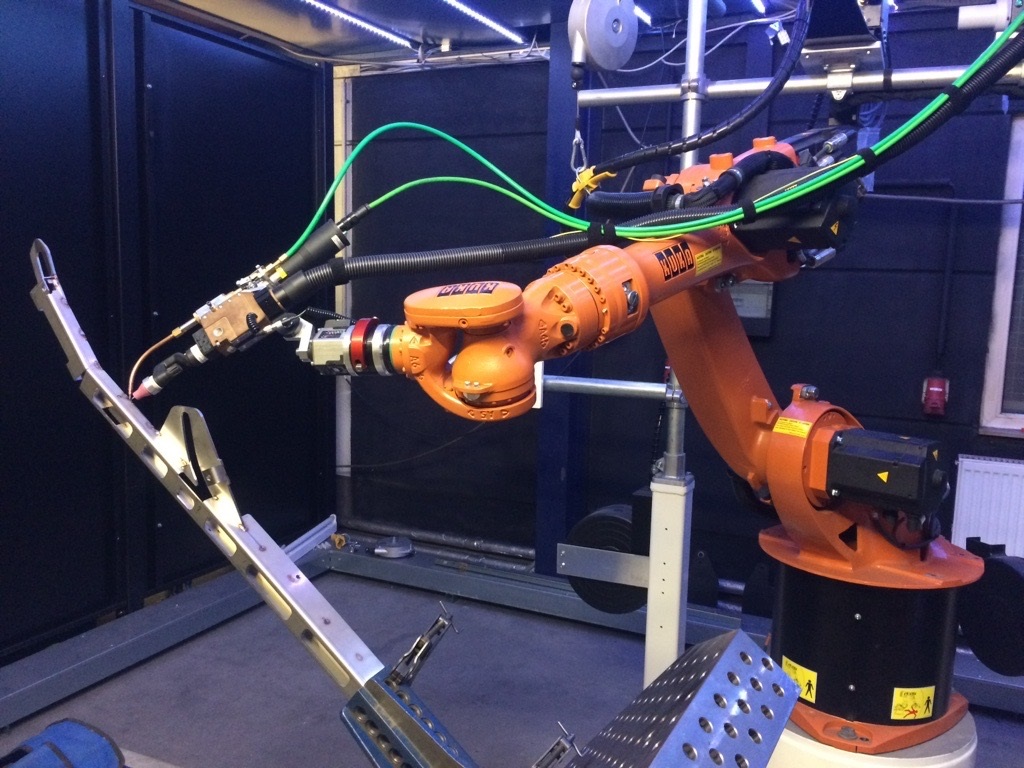

Robot welding	1–500 k	5–1,000 mm	5–800 mm	20–800 mm	—	0.1–100 kg
Stud welding	1–100 k	—	—	—	—	—

Assembly

Technologies	Weight
Mechanical assembly	0–100 kg
Electromechanical assembly	0–15 kg

Measuring & Testing

Technologies	Length	Width	Height	Diameter	Weight
Measuring / testing	1–1,000 mm	1–650 mm	1–650 mm	1–300 mm	0–100 kg

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	0–1,000 mm	0–1,000 mm	0–1,000 mm	0–25 kg

Water jet cutting

Technologies	Lotsize	Length	Width	Material thickness
Water jet cutting 2D	1–1,000	300–1,500 mm	300–1,500 mm	3–15 mm

Surface Treatment

Technologies	Lotsize	Length	Width	Height	Weight
Blacking	1–100 k	1–1,000 mm	1–1,000 mm	1–1,000 mm	0–30 kg
Electroplating	1–10,000	1–2,000 mm	1–2,000 mm	1–1,000 mm	0–25 kg

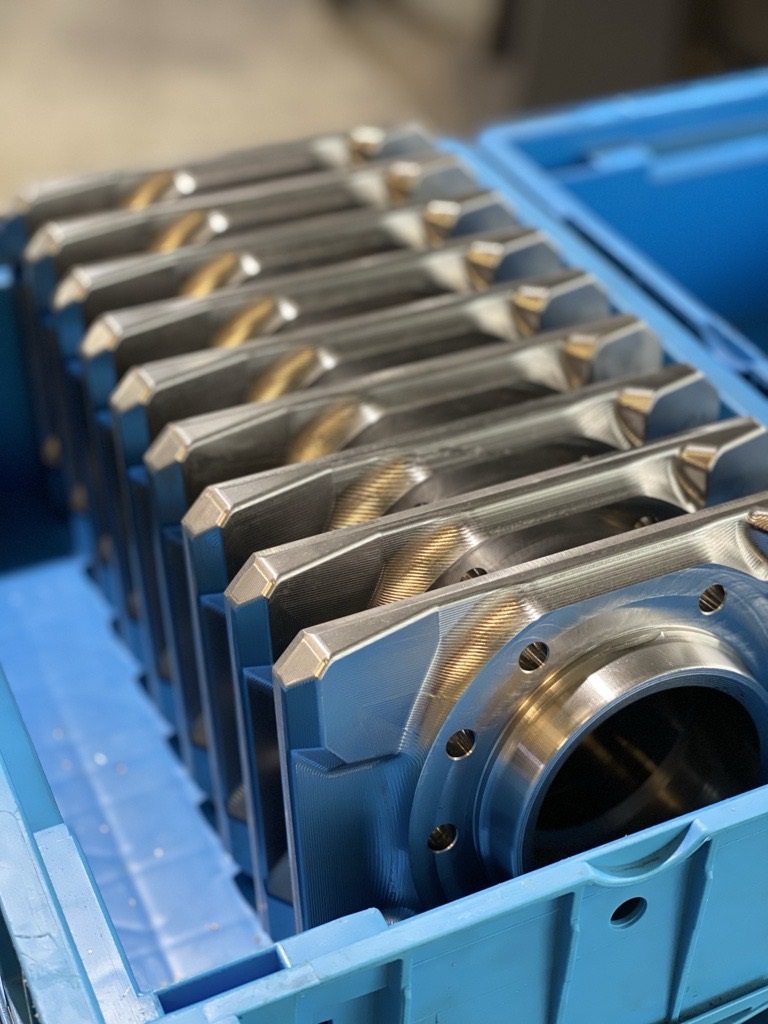

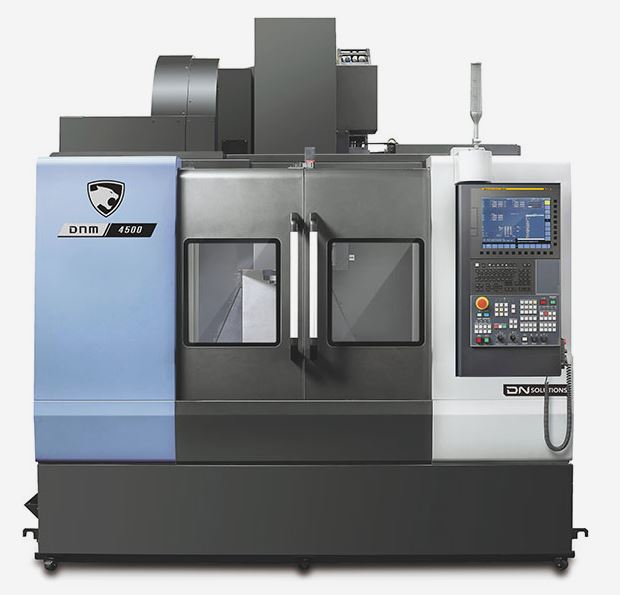

Milling

Technologies	Lotsize	Length	Width	Height	Diameter

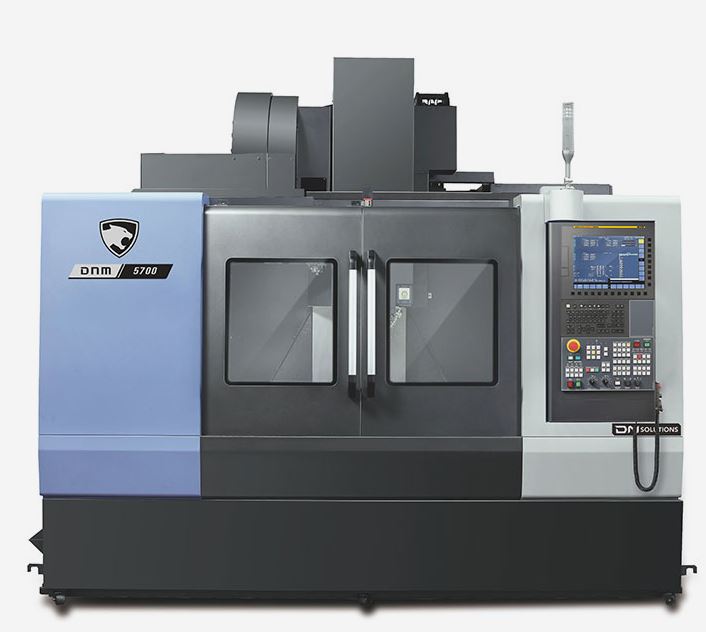

Milling	1–500 k	1–1,000 mm	1–500 mm	1–600 mm	—

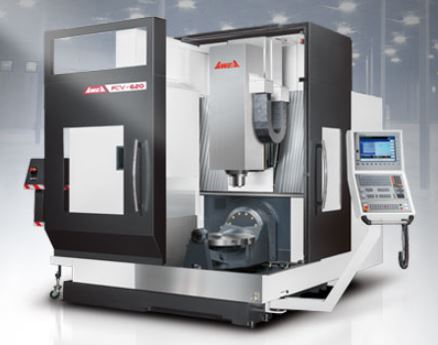

5-axis milling machines	1–500 k	1–650 mm	1–500 mm	1–600 mm	—
Full-range milling (including turning)	1–50,000	1–1,500 mm	1–500 mm	1–500 mm	1–320 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–500 k	3–3,000 mm	3–330 mm	3–330 mm	3–330 mm	—
Drilling / threading / tapping	1–500 k	1–1,000 mm	1–1,000 mm	1–1,000 mm	—	0.1–100 kg

Materials

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Cast metals

Cast steelCast iron

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Drive and gear engineeringApparatus engineeringHydraulic and pneumatic industryPlant engineering and constructionMechanical engineeringMedical technologySpecial purpose machinery manufacturingMachine tool manufacturing
