PDM Formenbau GmbH

Germany, 74821 Mosbach

Overview

About PDM Formenbau GmbH

123

Mosbach, Germany

Member since 2014

Employees10 - 20

Certificates1

Turnover1 - 5 Mil.

Year of foundation2006

Marketing documents

Firmenpraesentation_PDM_Formenbau_GmbH_aktuell.pdfPDF File Firmenpraesentation_PDM_Formenbau_GmbH_aktuell.pdfPDF File

Competencies

Technologies

Injection Moulding, Extruding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

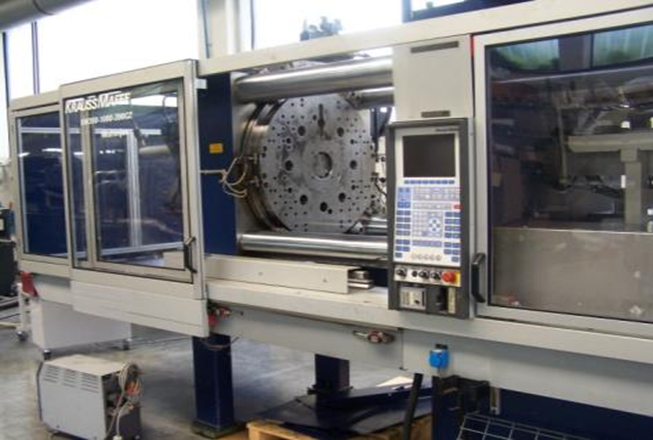

Injection moulding	1–10,000	10–800 mm	10–500 mm	10–500 mm	—	0–2 kg	—
Injection-mould around inserts	1–10,000	10–800 mm	10–500 mm	10–500 mm	—	0–2 kg	—
Foaming	1–10,000	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	—	—

Mould construction

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

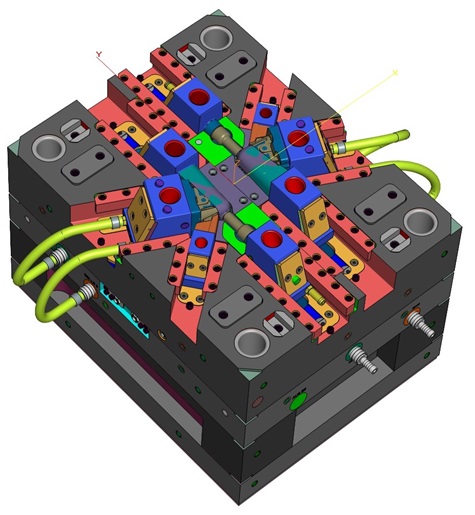

Injection moulds	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—
Pressure die cast molds	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—
Modelmaking	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—
Foam molds	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—
Vacuum deep-drawing moulds	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—

Jigmaking

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Drilling / milling jigs	—	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–20,000 kg	—
Gauges	—	10–2,200 mm	10–1,200 mm	10–1,200 mm	—	0–20,000 kg	—

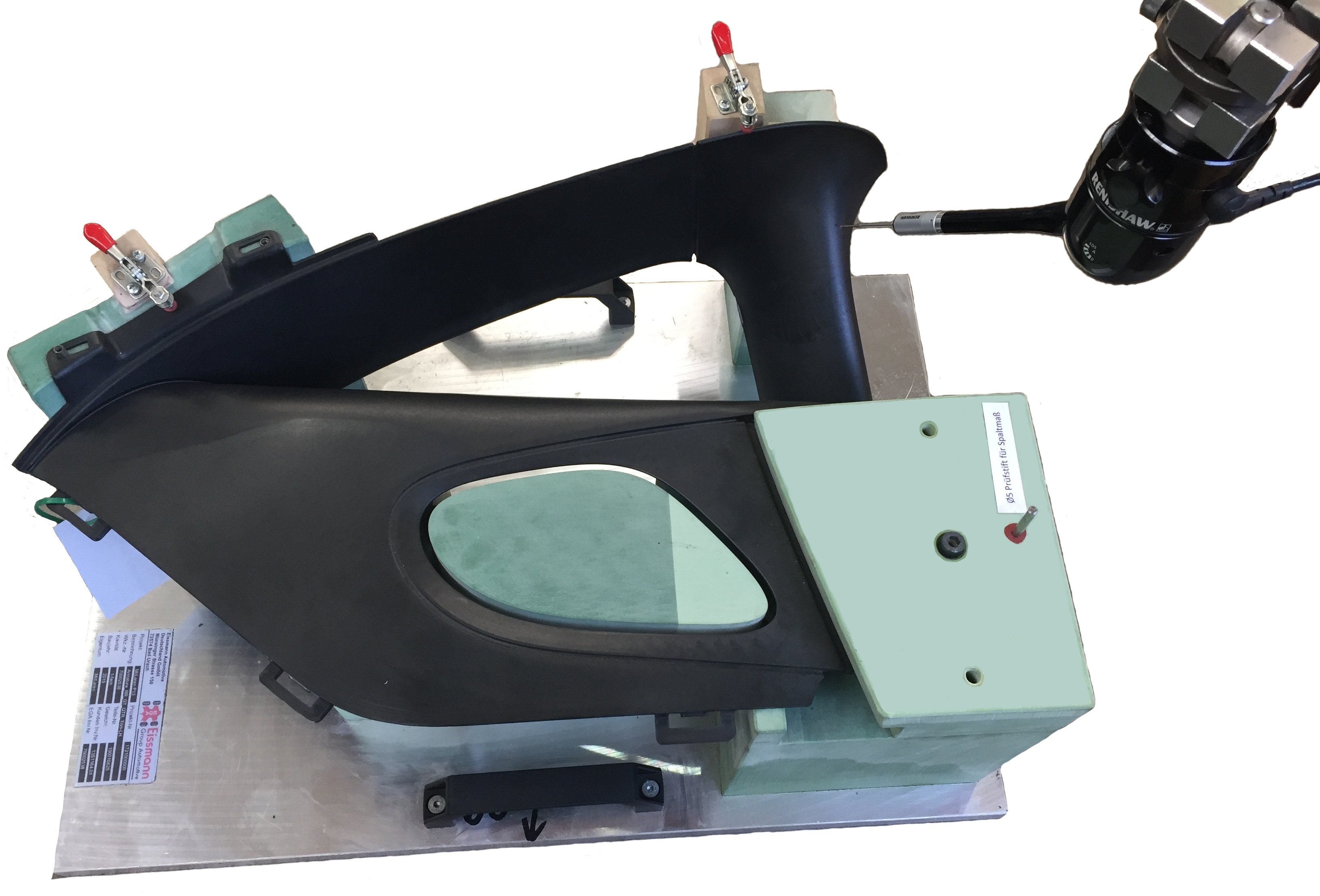

Measuring / testing jigs	—	10–2,200 mm	10–1,200 mm	10–1,200 mm	—	0–20,000 kg	—

Measuring & Testing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Measuring / testing	—	10–4,000 mm	10–1,500 mm	10–1,500 mm	10–1,500 mm	0–5,000 kg	—

Milling

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Milling	1–100	10–1,300 mm	10–1,300 mm	10–1,300 mm	—	0–2,200 kg	—

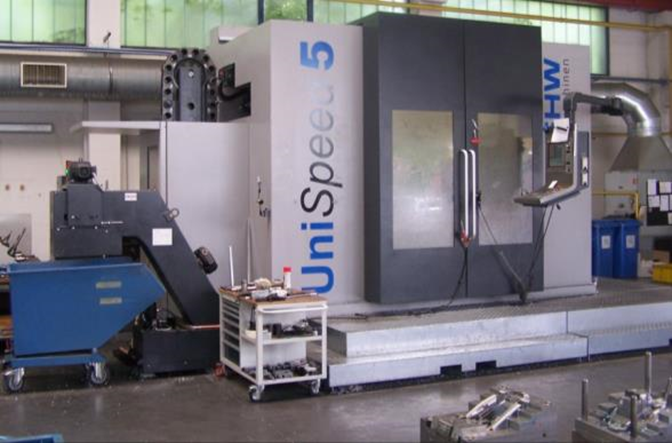

5-axis milling machines	1–100	10–2,200 mm	10–1,300 mm	10–1,300 mm	—	0–6,000 kg	—
Form milling (3 D)	1–100	10–2,200 mm	10–1,300 mm	10–1,300 mm	—	0–6,000 kg	—
HSC milling	1–100	10–2,200 mm	10–1,300 mm	10–1,300 mm	—	0–6,000 kg	—

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness
Drilling / threading / tapping	1–100	10–2,000 mm	10–1,000 mm	10–1,000 mm	—	0–6,000 kg	—

Materials

Light metals

Aluminium and aluminium alloys

Plastics/synthetic materials

ThermoplasticsAcrylic (PMMA)High performance plasticThermosetsElastomersNatural and vulcanised rubberGlass fibre-reinforced plasticCarbon fibre-reinforced plasticParticle reinforced composite materialsWood-Plastic-Composites (WPC)

Steel

Case hardening/tempering steelStainless steel (rust-proof V2A)Tool steel

Industries

Medical technologyAutomotive and vehicle construction

Certificates

ISO 9001:2008

Parts & Machines

Contact

Location

Main locationAlte Neckarelzer Str 15, 74821 Mosbach, Germany

This map is hosted on Google Maps. See
privacy policy.

Further locations74821 Mosbach

Company contact

Contact persons

Girolamo Muratore

Anton Muser

Michael Dittmar
