About Peter Schmid GmbH
Who we are
The Peter Schmid GmbH is a family in the 3rd owner-managed generation. Our world is the cutting. Offering a modern and reliable machinery, clear production and lived-quality standards, we can address your individual needs. In the area of milling, we produce on several machining centers with maximum working range 1270x508x660 mm with up to 4 Axes. In addition, a machining center for 5-axis simultaneous machining max. Diameter 300 mm. For programming we use a powerful CAD / CAM system. We process the materials forged steel, stainless steel, aluminum, non-ferrous metals and plastics Turning with multiple curve lathes we produce 25 mm spindle diameter and a CNC Multi-slide lathe spindle 36mm diameter. Here we use brass (CuZn39) as round, square and hexagonal bars, aluminum, stainless steel and plastics. In the area round the clock processing, we produce small series on Produktionsfräs and rotary transfer machines and large series on plate Indexing Machine max.Cut 25mm machining diameter with several processing stations such as drilling, overspeeding, thread, milling and grooving. We also process the materials brass round, square and hexagonal Batches of 1to 1 million pieces represent no problem for us In conventional processing, we can additionally milling, turning, surface grinding, cylindrical grinding, sawing, honing. We also have special machines to implement and post-
1 / 6
.webp)
2 / 6
.webp)
3 / 6
4 / 6
5 / 6
6 / 6
Schwaigern, Germany
Member since 2004
Employees20 - 50
Certificates1
Turnover5 - 10 Mil.
Year of foundation1951
Marketing documents
Competencies
Technologies
Turning
| Technologies | Lotsize | Length | Diameter |
|---|---|---|---|
Turning | 100–1 M | 0.5–100 mm | 5–36 mm |
Automatic turning (bar) | 100–1 M | 0.5–100 mm | 5–36 mm |
Full-range turning (including milling) | 1–10,000 | 0.5–100 mm | 5–36 mm |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 0–20 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Milling | 1–10,000 | 1–1,270 mm | 1–660 mm | 1–508 mm | — |
Form milling (3 D) | 1–10,000 | 1–1,270 mm | 1–660 mm | 1–508 mm | 0–500 kg |
HSC milling | 1–10,000 | 1–1,270 mm | 1–660 mm | 1–508 mm | 0–500 kg |
Materials
Heavy metals
Copper-zinc alloys (brass)Zinc and zinc alloys
Light metals
Aluminium and aluminium alloysTitanium and titanium alloys
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steel
Cast metals
Cast steelCast iron
Plastics/synthetic materials
ThermoplasticsHigh performance plasticThermosetsGlass fibre-reinforced plastic
Industries
Office machinery and suppliesBuilding, agricultural and forestry machinery manufacturingMedical technologyPlant engineering and constructionPower generation and transmission industryMachine tool manufacturingChemical industryAerospace and aviation industryHousehold appliance industryPrecision engineering, mechatronics and opticsDrive and gear engineeringMeasurement and control technique, laboratory equipmentTelecommunication industryShipbuilding industryConstruction and architectural suppliesPackaging industryAutomation and control engineeringAir conditioning, refrigeration and ventilation industryFurniture industryPaper and printing machinery industryClean room technologyMechanical engineeringHydraulic and pneumatic industryRailway and rail vehicles industryMining and tunnel engineeringLighting industryElectrical industryAutomotive and vehicle constructionFittings engineeringInformation technology (hardware)Boiler, container and tank construction Military engineeringSpecial purpose machinery manufacturingApparatus engineering
Certificates
ISO 9001:2015
Parts & Machines
Parts (6)
1 / 6

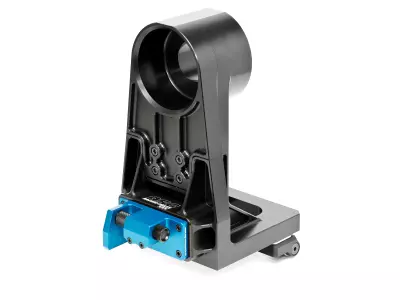

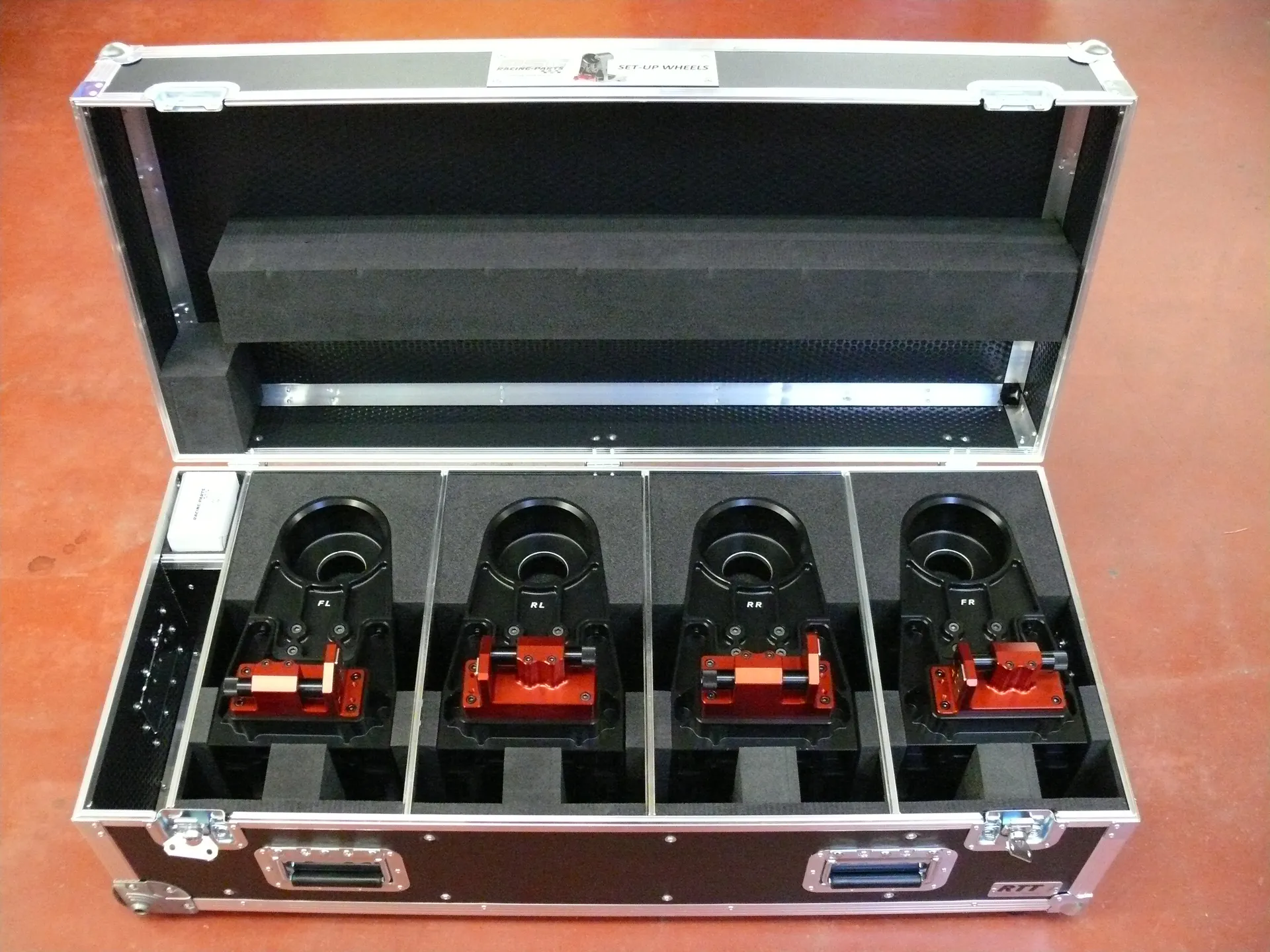

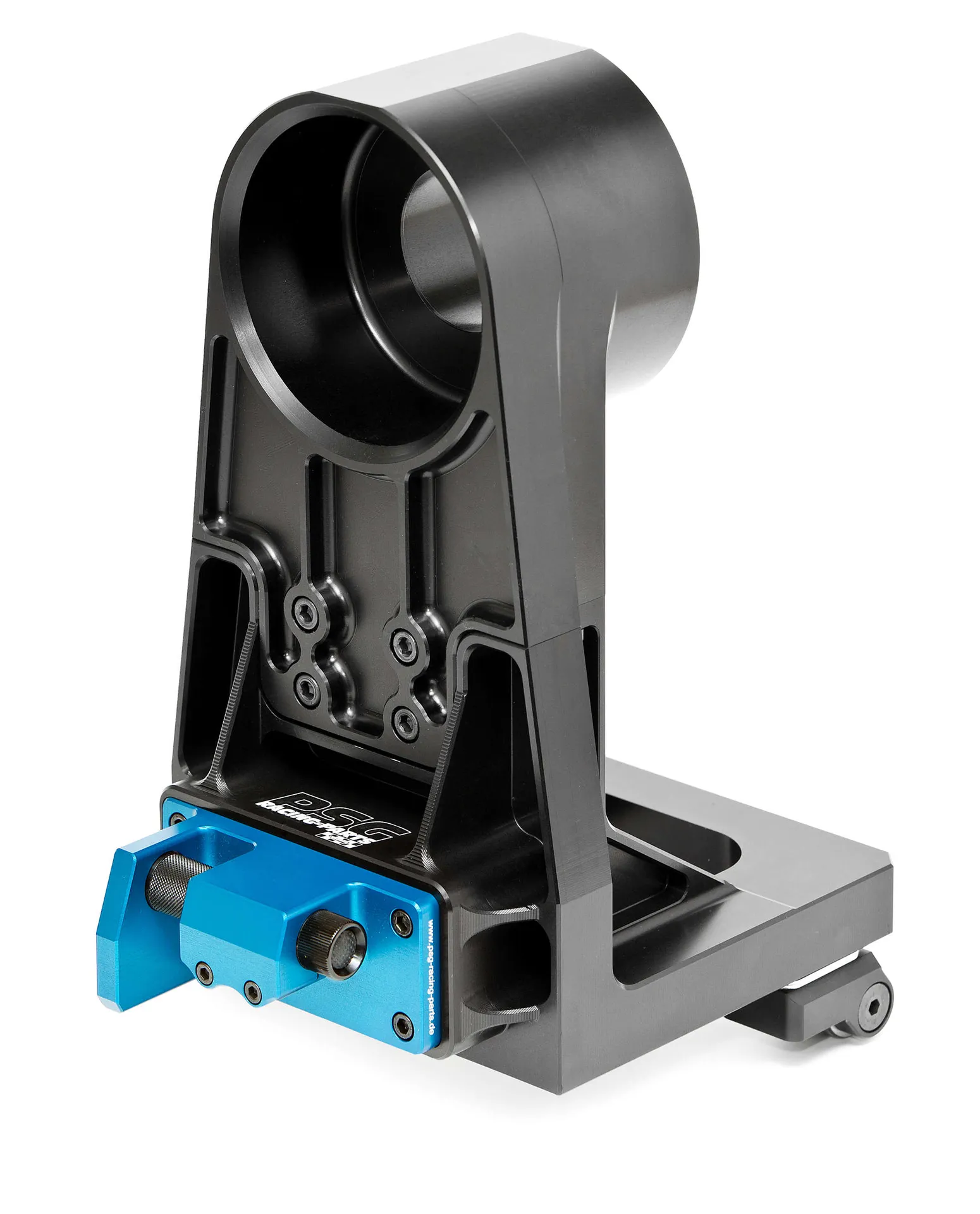

PSG Racing-Parts
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize50
ComplexityMedium
DescriptionMesstechnik für den professionellen Motorsport.
Messräder mit integriertem Spurlaser:
Werkstoff hochfestes Aluminium EN AW 7075, aus dem Vollen gefräst
Oberfläche schwarz eloxiert oder in Wunschfarbe
Radaufstandsfläche stufenlos einstellbar
Feinjustierung des Raddurchmessers mittels Shimsplatten
minutengenaues Ablesen der Spurwerte durch batteriebetriebenen Linienlaser
Auflagefläche für Sturzwaage
2 / 6

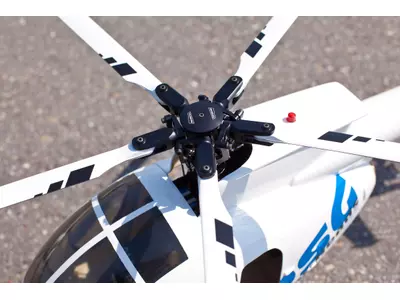

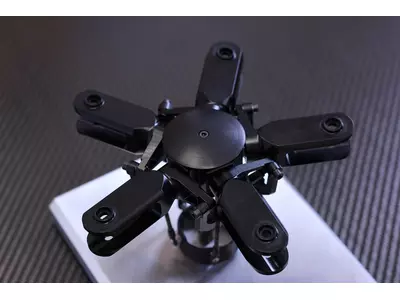

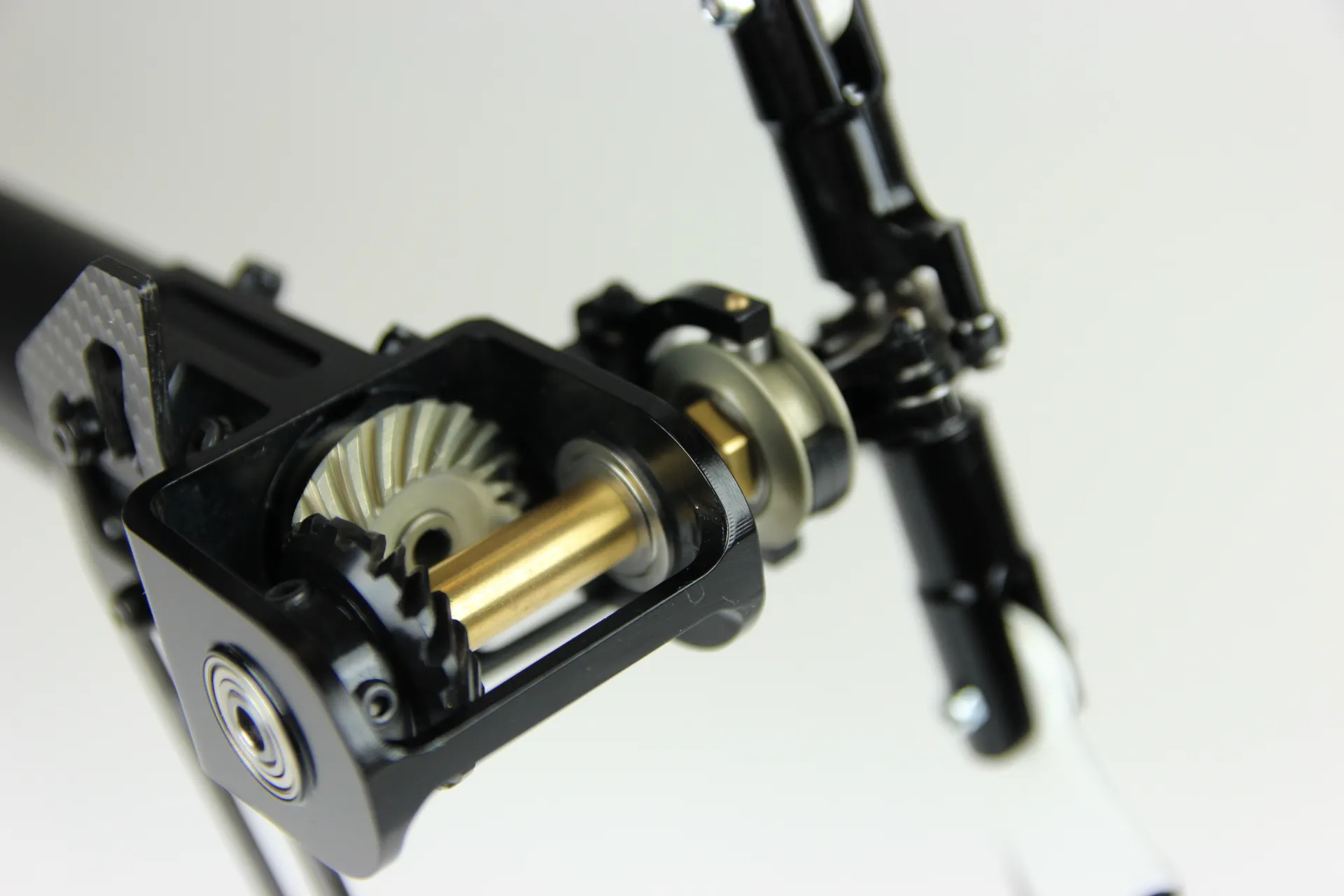

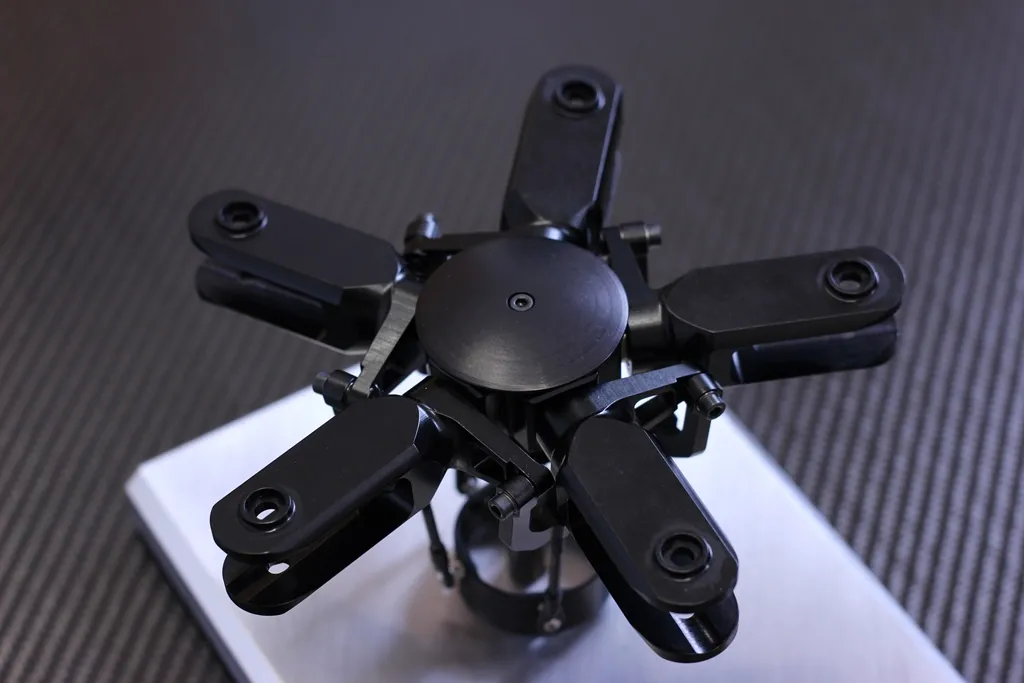

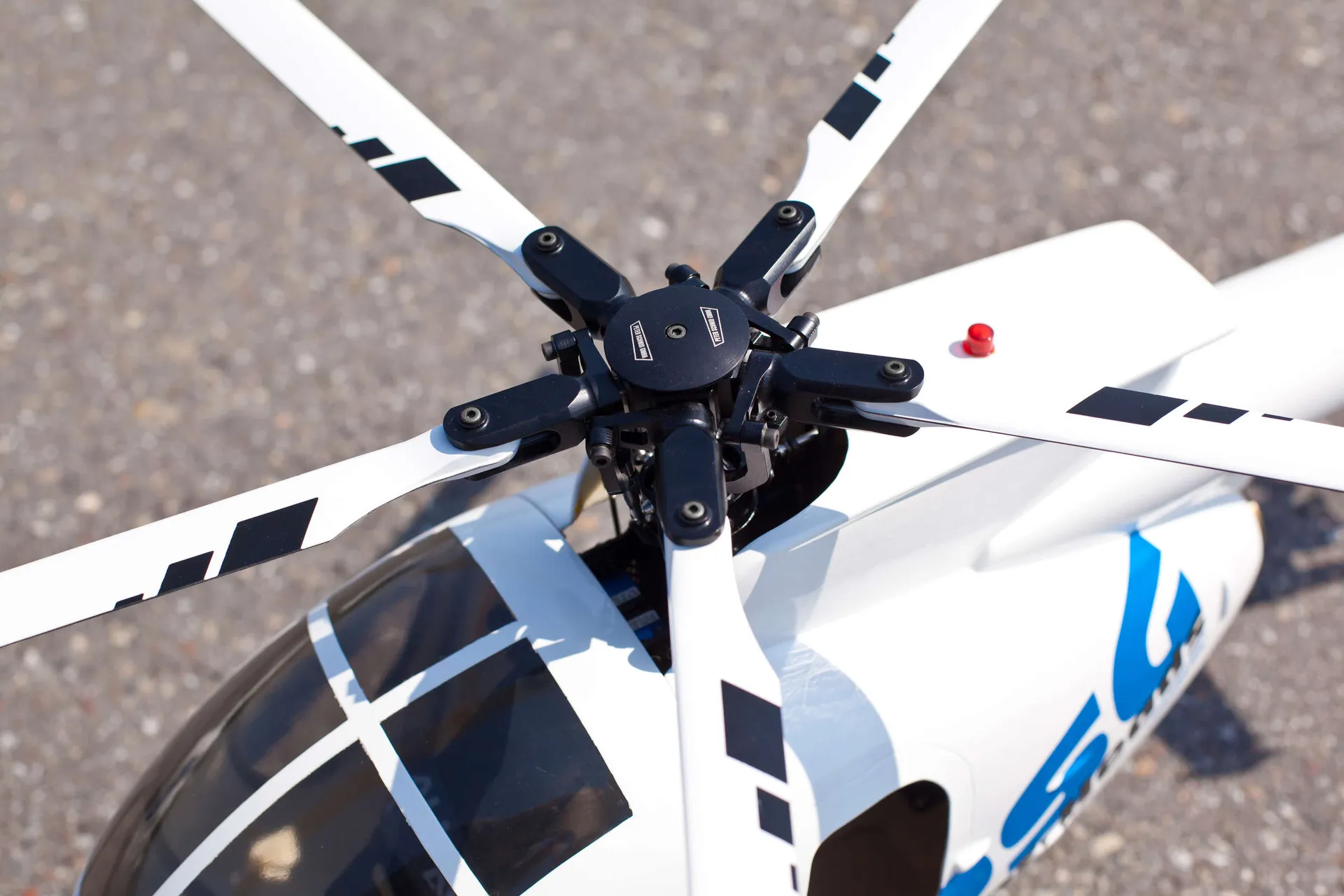

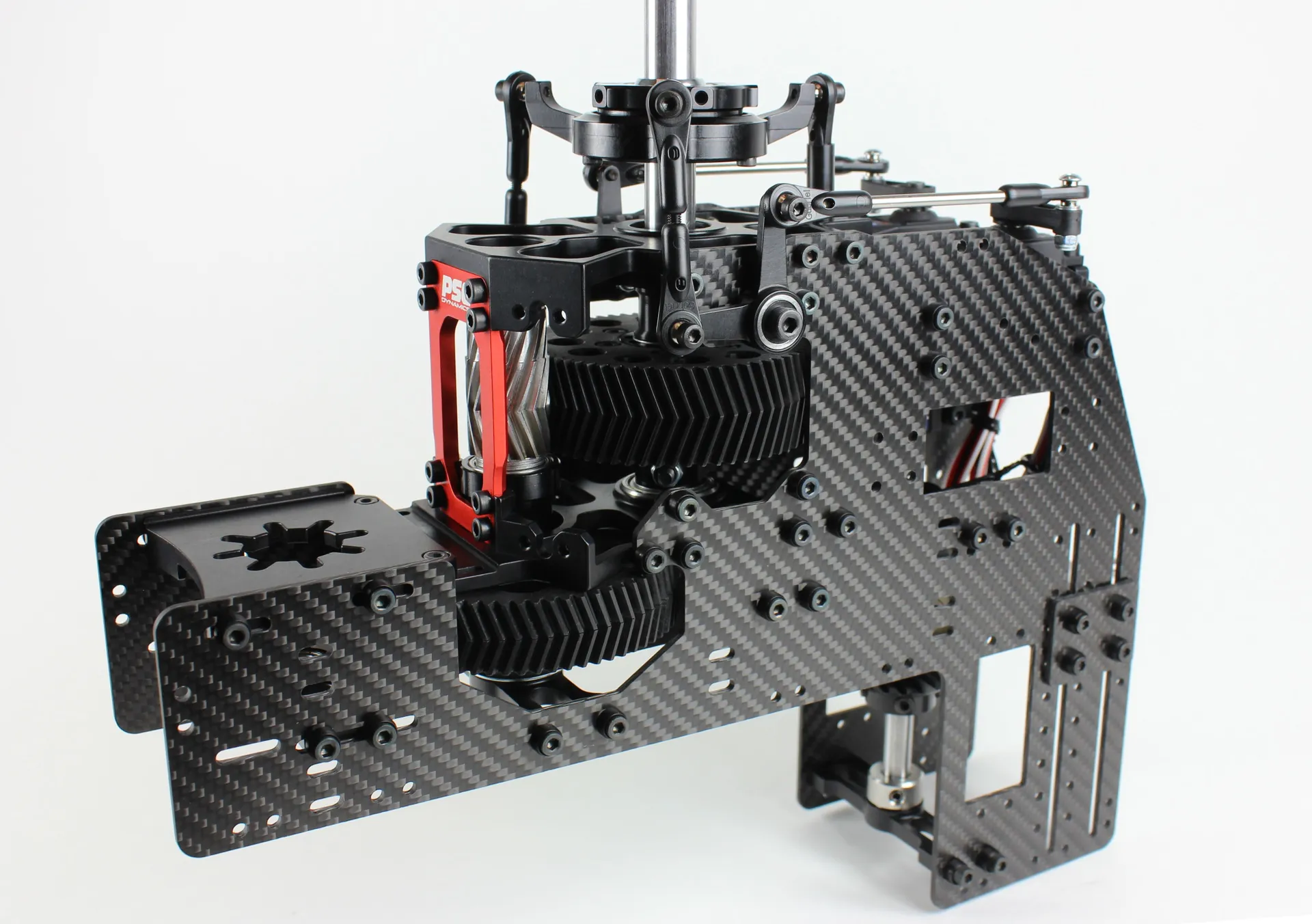

PSG Rotor-Heads
TechnologyMilling
MaterialAluminium and aluminium alloys
Lotsize100
ComplexityMedium
IndustriesDrive and gear engineering
DescriptionNach Konstruktion mittels CAD und Programmerstellung via CAM, erfolgt die Bearbeitung auf einem 5- Achsen Bearbeitungszentrum. Als Werkstoff kommt ausschließlich hochfestes Aluminium EN AW 7075 T6 zum Einsatz. Eine schwarze Eloxalschicht garantiert perfekten Oberflächenschutz.

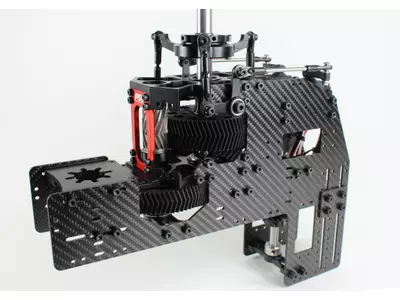

Der PSG 500 FBL war unsere erstes Produkt im Bereich Modellbau. Nach erfolgreicher Einführung folgten die Mehrblattsysteme PSG 500, PSG 600 sowie PSG 700.
3 / 6

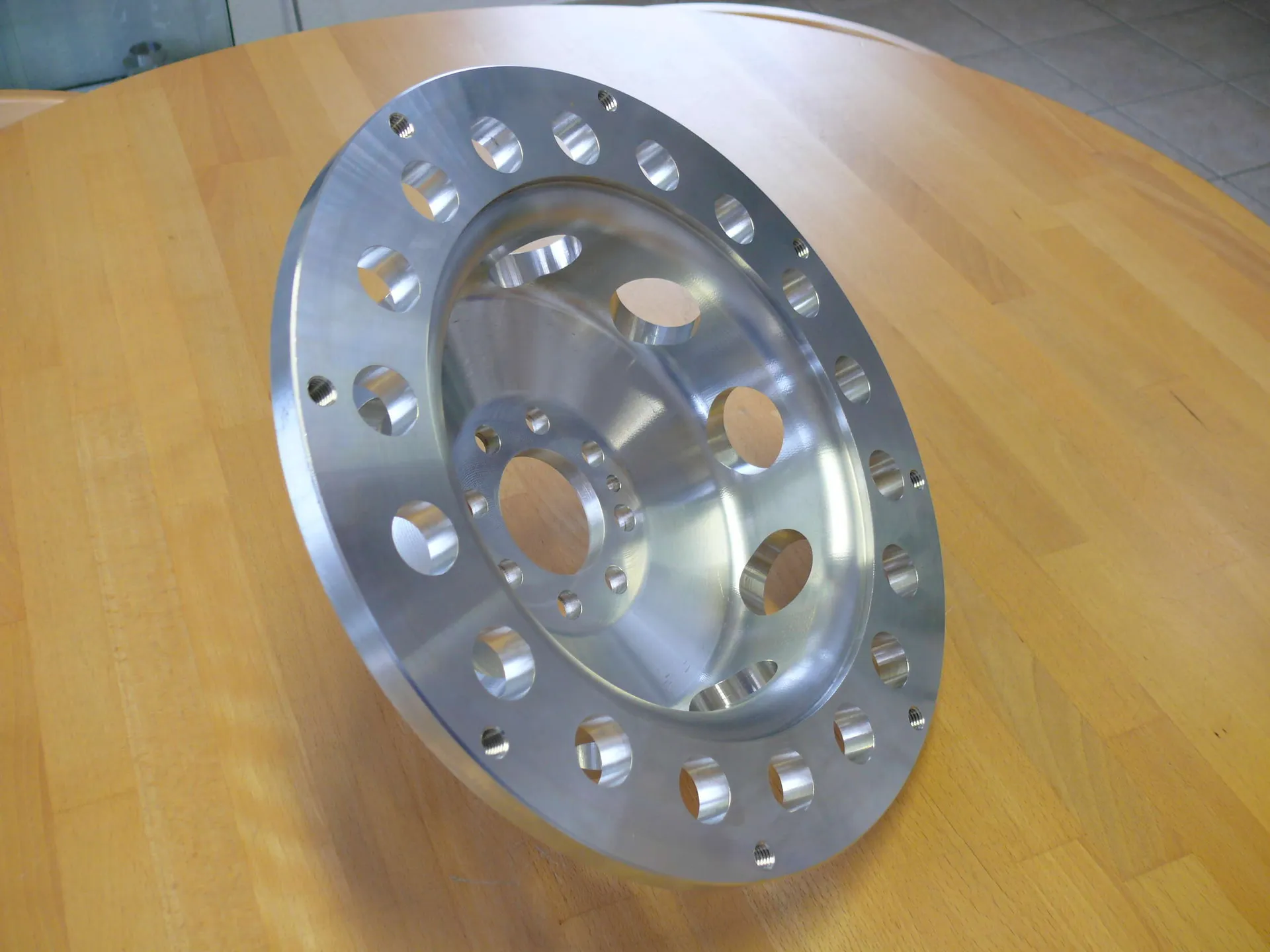

Fräsbearbeitung
TechnologyForm milling (3 D)
MaterialAluminium and aluminium alloys
Lotsize0
ComplexityMedium
IndustriesHydraulic and pneumatic industry
DescriptionWir haben mehrere Bearbeitungszentren mit maximalem Arbeitsbereich 1270x508x660 mm mit bis zu 4. Achsen. Zudem ein Bearbeitungszentrum für 5 Achsen Simultanbearbeitung max. Durchmesser 300 mm.
4 / 6
Messingteile
TechnologyAutomatic turning (bar)
MaterialCopper-zinc alloys (brass)
Lotsize1000000
ComplexityLow
IndustriesElectrical industry
DescriptionDrehen:
mehrere Kurvendrehautomaten 25 mm Spindeldurchmesser
CNC Mehrschlittendrehmaschine 36mm Spindeldurchmesser
Werkstoffe: Messing Rund, Vierkant, Sechskant, Aluminium, Edelstahl, Kunststoff
Rundtaktbearbeitung:
Für Kleinserien: Produktionsfräs- und Rundtaktmaschinen
Für Großserien: Tellerschalttischmaschinen max. 25mm Bearbeitungsdurchmesser
Mehrere Bearbeitungsstationen:
bohren, überdrehen, Gewinde schneiden, fräsen, einstechen
vorr.:Messing Rund, 4-Kant, 6-Kant
5 / 6

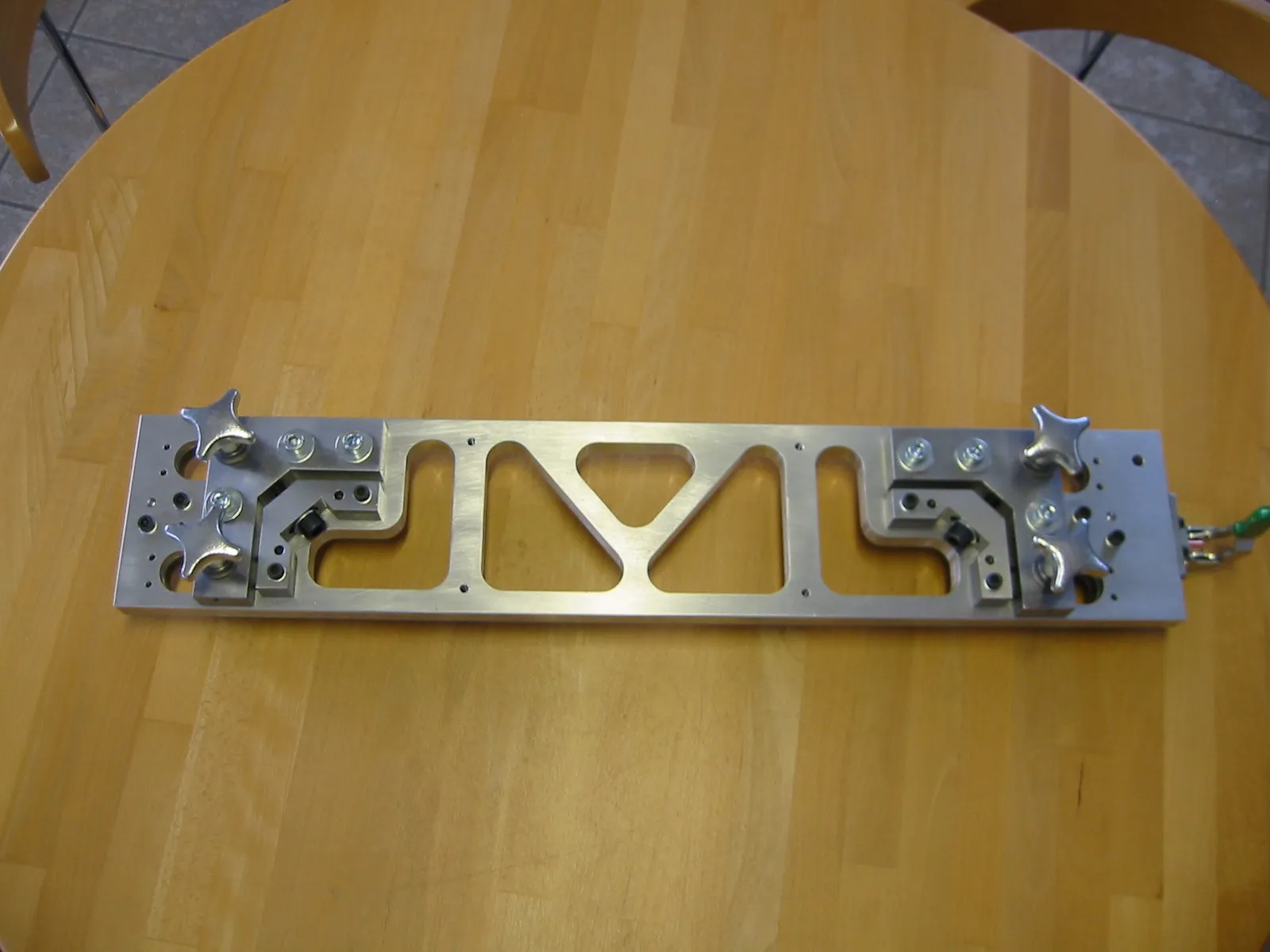

Vorrichtung
TechnologyForm milling (3 D)
MaterialTool steel
Lotsize0
6 / 6

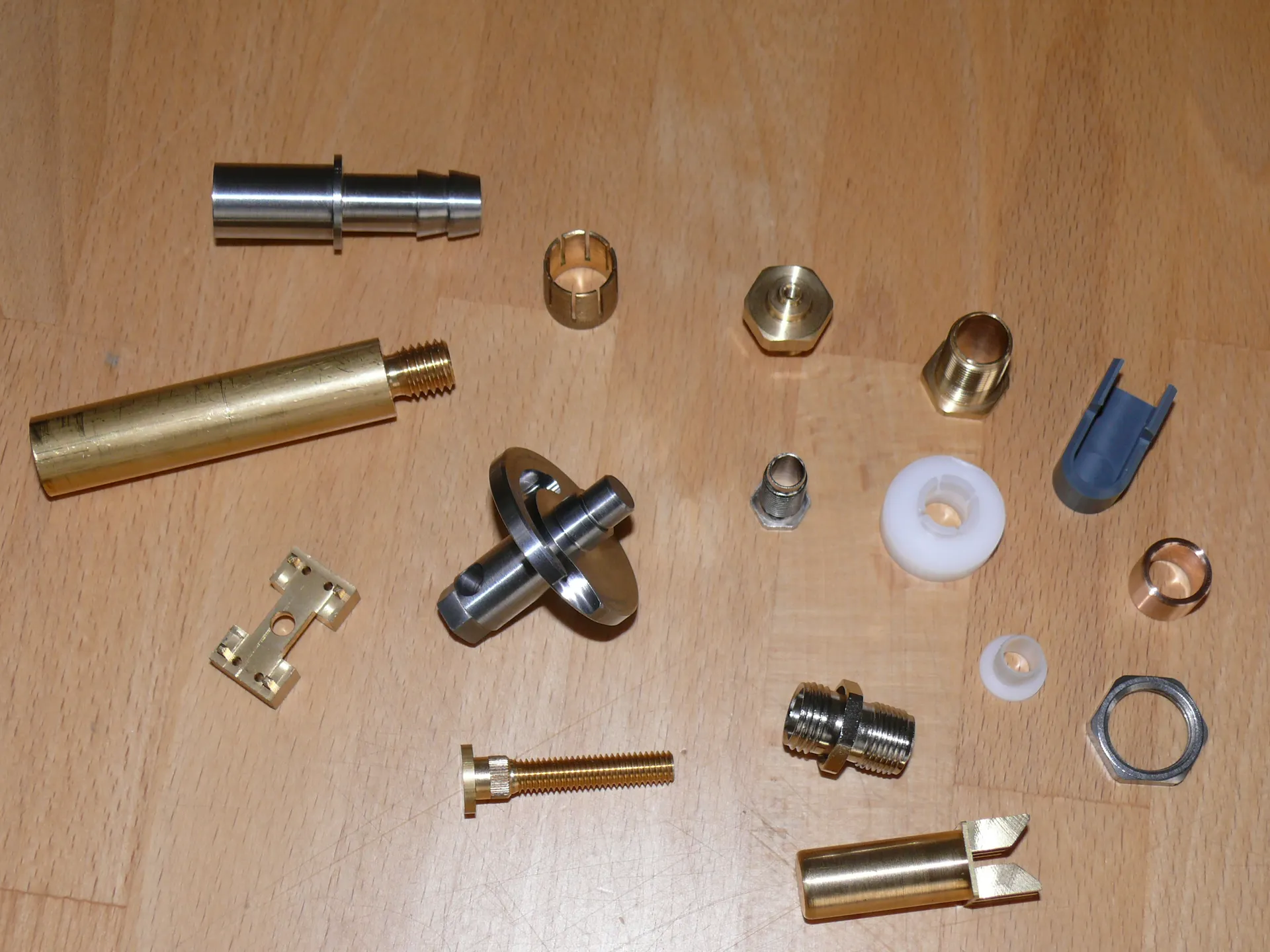

Drehteile aus verschiedenen Materialien
TechnologyFull-range turning (including milling)
MaterialCopper-zinc alloys (brass)
Lotsize0
Machinery (1)
1 / 1
Maschinenliste
Manufacturerverschiedene
Technology
Automatic turning (bar)Mechanical assemblyMillingForm milling (3 D)Full-range turning (including milling)Turning
6 Parts
Milling2
Form milling (3 D)2
Automatic turning (bar)1
Full-range turning (including milling)1
1 Machinery
Automatic turning (bar)1
Mechanical assembly1
Milling1
Form milling (3 D)1
Full-range turning (including milling)1
Turning1
