Overview

About Polytech Lab s.r.l.

Who we are

Polytech-lab is a center that inherits the tradition of three generations of designers and manufacturers. Our vocation is to provide the theoretical and practical tools for the conception, engineering, implementation and testing of projects ranging from precision mechanics, component technology, industrial design, to architecture and visual arts. The experience gained in the field of traditional construction techniques is combined with a continuous process of research and experimentation aimed at innovative digital design and manufacturing technologies, while an ever-expanding network of partners allows for the organic management of the complex of different phases necessary for the materialization of the project. Indeed, the laboratory provides a network of knowledge embedded in the most important manufacturing realities of the market, matured over decades of fruitful and systematic collaboration. An overall vision of the methodological and pragmatic landscape in the field of drawing and design, together with a layered knowledge of traditional and digital fabrication techniques, passing through a genuine creative flair in the formulation of strategies and the realization of the equipment necessary for the industrialization of the project, are the factors that make Polytech-lab the ideal place to develop and realize your ideas.

1 / 1

Roma, Italy

Member since 2025

Premium Member since 2025

Employees20 - 50

Certificates1

Turnover1 - 5 Mil.

Year of foundation2018

Marketing documents

brochure_esterno-unito-compresso.pdfPDF File

Competencies

Technologies

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Height	Weight	Material thickness

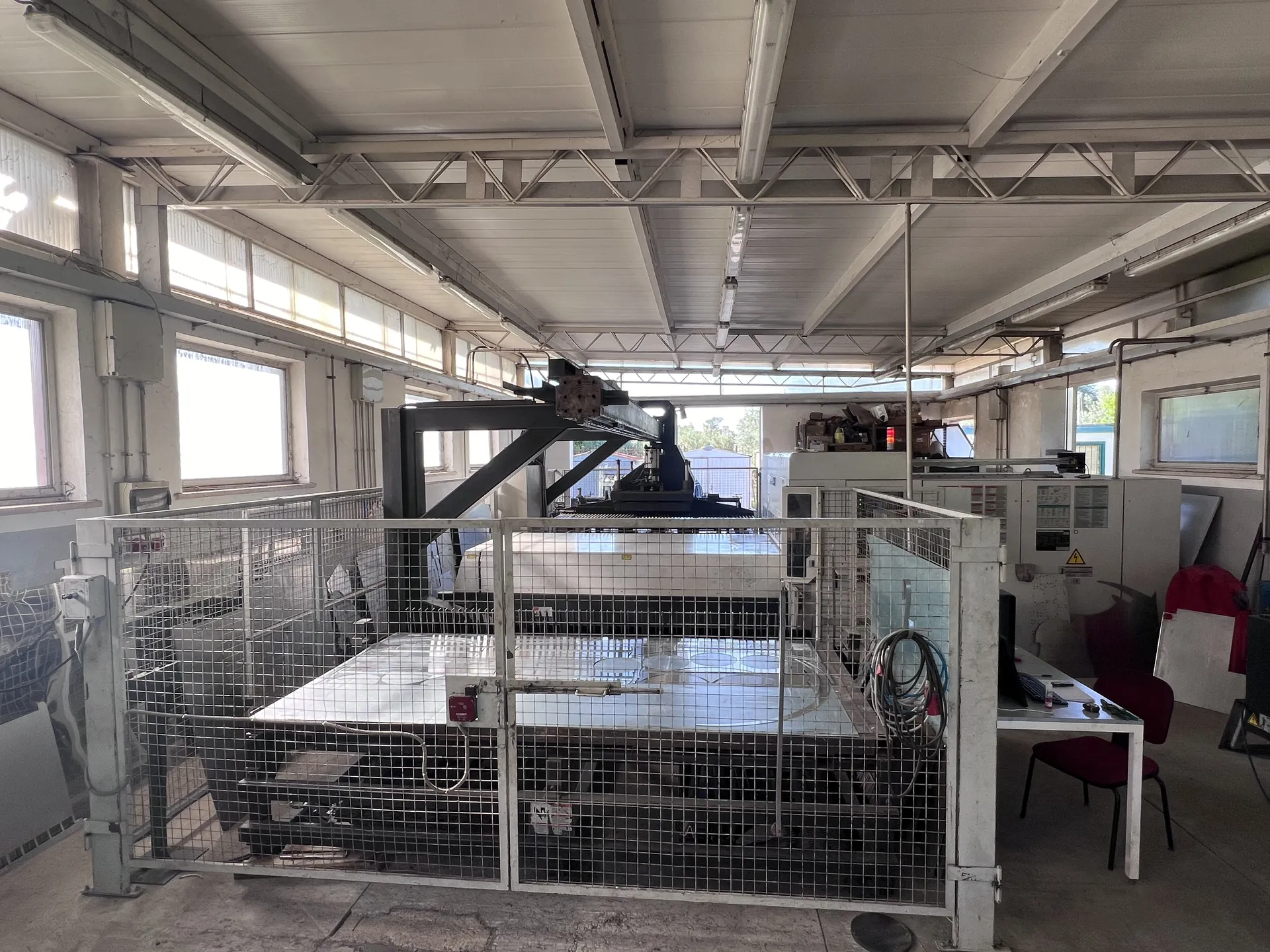

Laser cutting 2D	500–10,000	0–3,000 mm	0–1,500 mm	—	—	0.1–22 mm

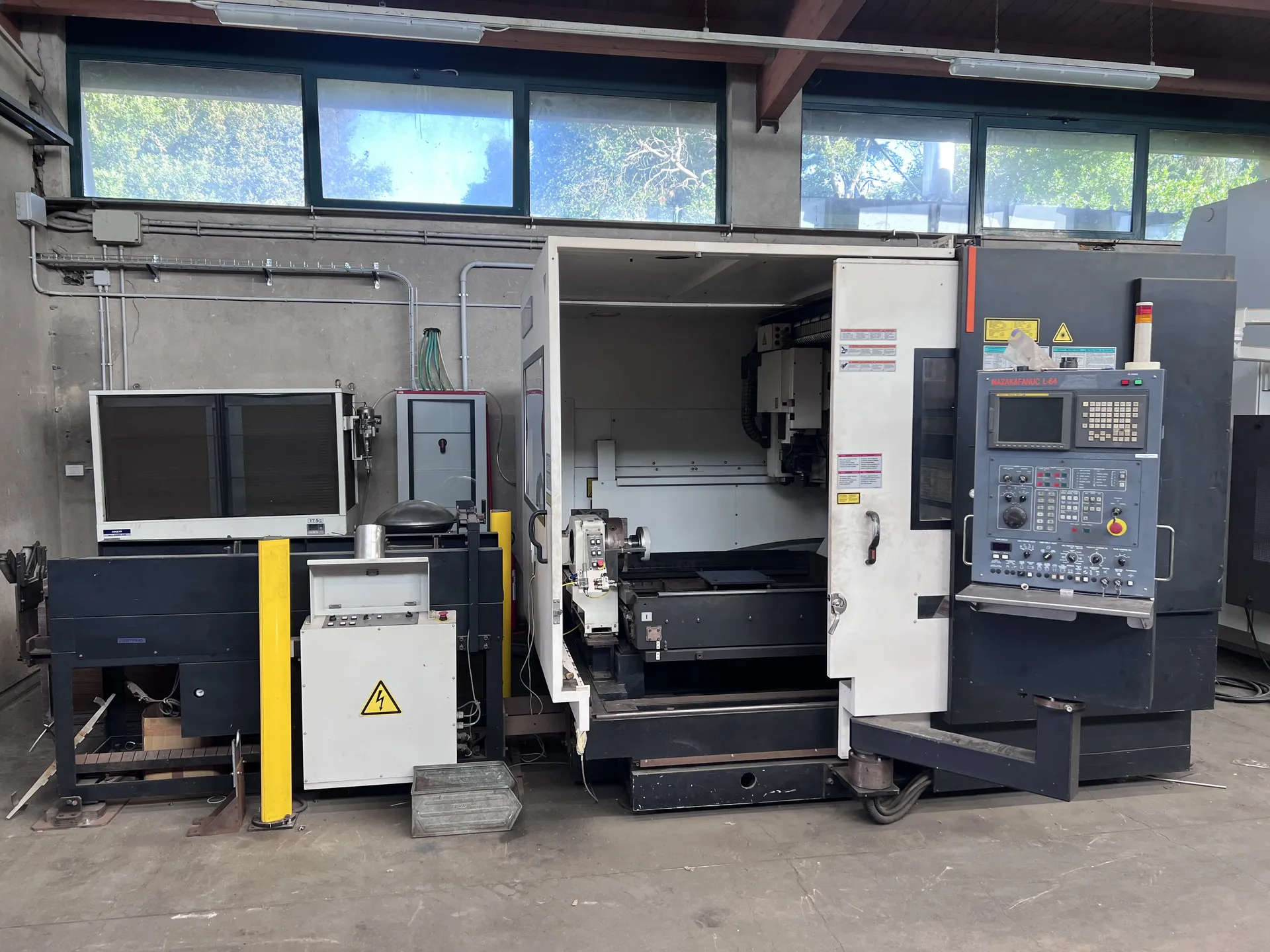

Laser cutting 3D	500–5,000	0–1,250 mm	0–1,250 mm	0–400 mm	0–10 kg	0.1–8 mm

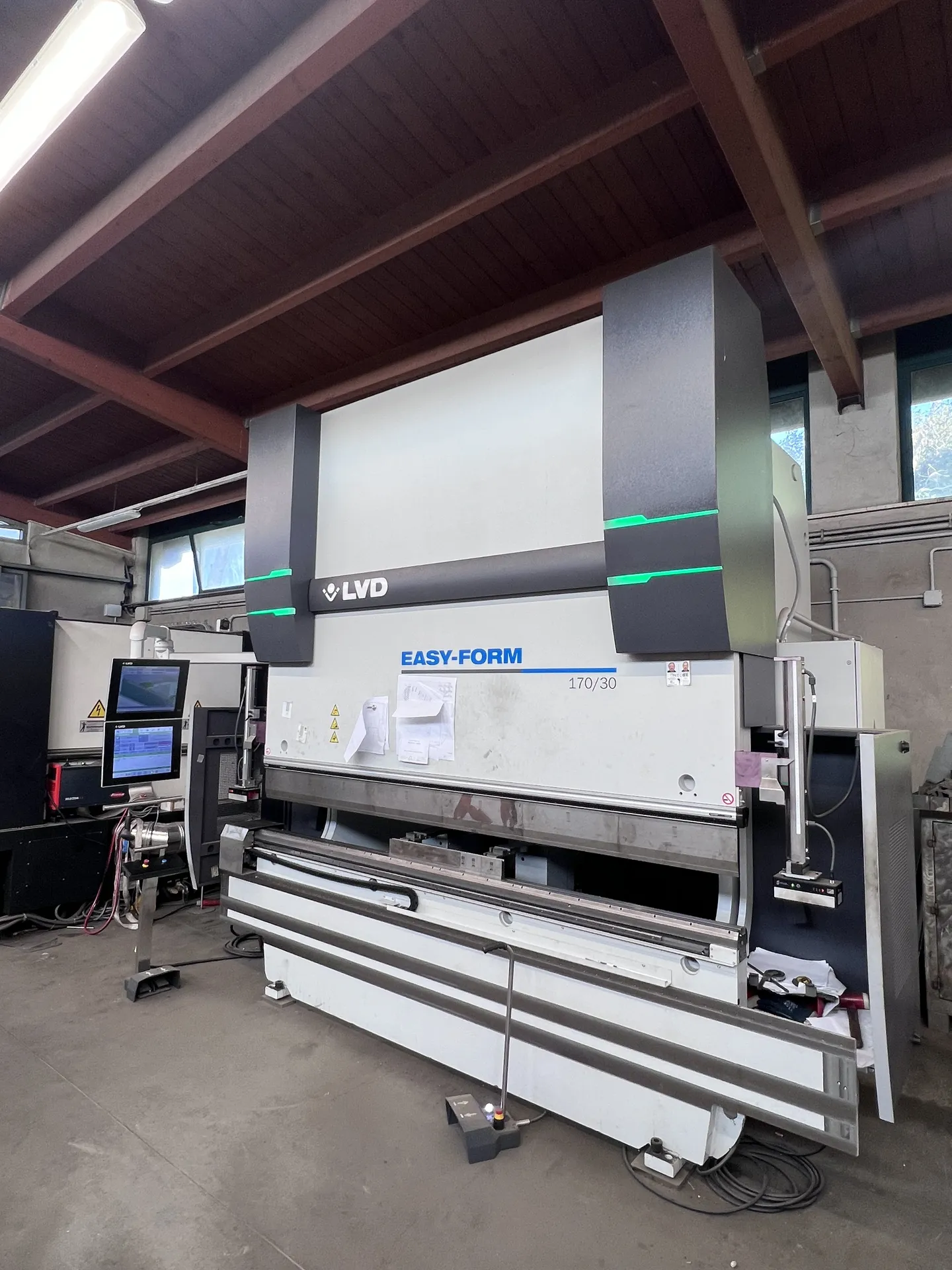

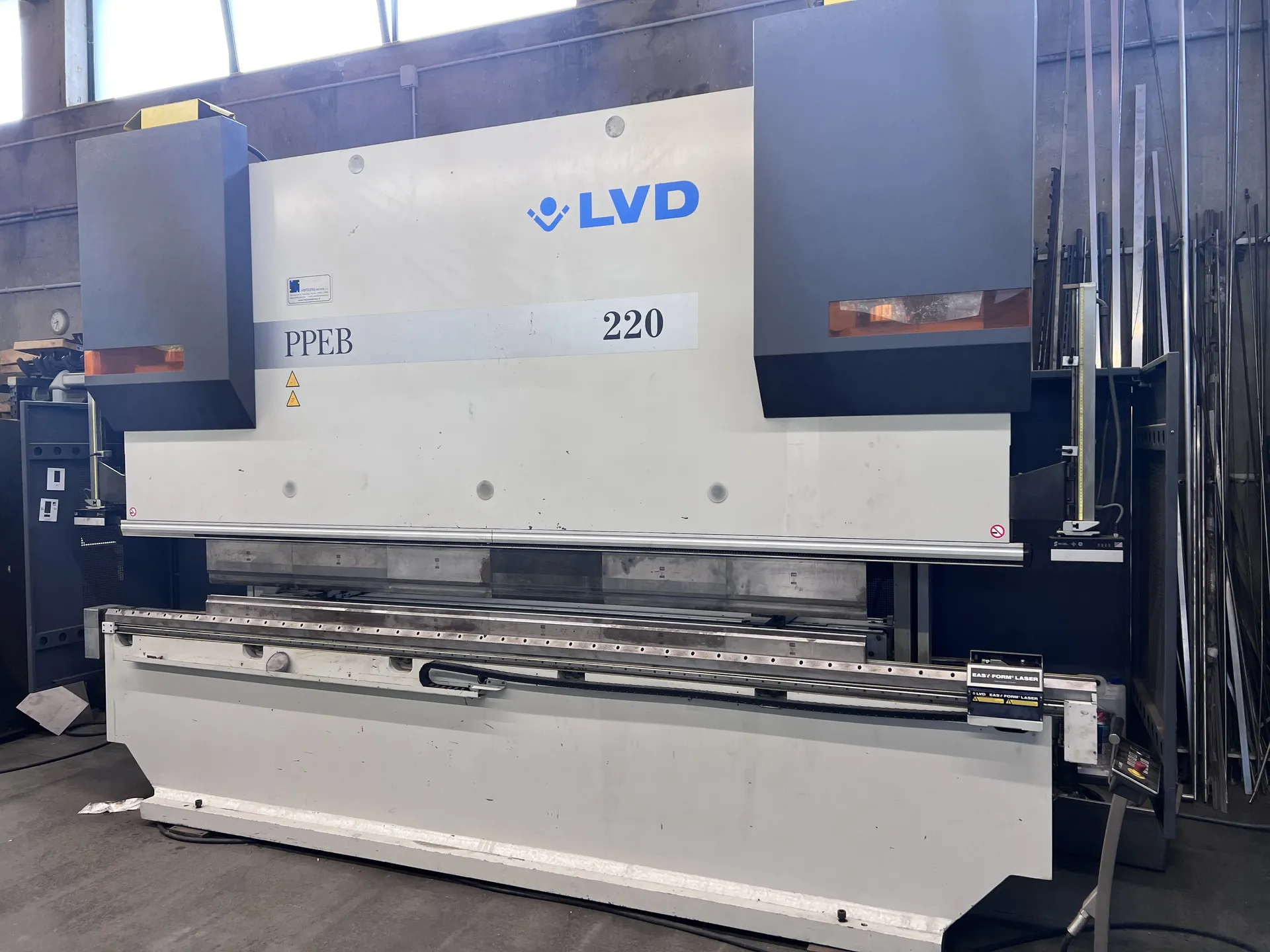

Bending / folding	100–500	150–4,000 mm	—	—	—	0.6–8 mm
Punching / nibbling	300–2,000	0–3,000 mm	0–1,500 mm	—	—	1.5–5 mm
Combined forming laser cutting / punching	—	—	—	—	—	—
Laser cutting, tube & section	300–2,000	200–3,000 mm	20–160 mm	0–400 mm	—	1–6 mm
Oxyacetylene cutting	—	—	—	—	—	—
Plasma fusion cutting	—	—	—	—	—	—
Plate rolling / bending	1,000–5,000	—	30–1,000 mm	—	—	1–5 mm
Plate straightening	—	—	—	—	—	—
Shearing (rectangular blank/strip)	—	—	—	—	—	—

Welding

Technologies	Lotsize	Length	Width	Height	Diameter	Weight	Material thickness

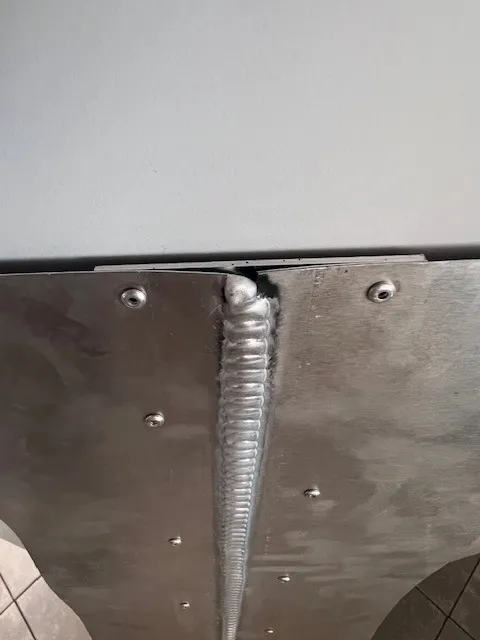

Inert gas shielded arc welding (MIG/MAG)	300–1,000	50–2,000 mm	50–800 mm	0–100 mm	—	0–10 kg	—
Inert gas shielded arc welding (Plasma)	—	—	—	—	—	—	—
Inert gas shielded arc welding (TIG)	200–1,500	5–2,000 mm	5–2,000 mm	5–100 mm	—	0–1 kg	—
Laser-beam welding	1,000–5,000	0–1,500 mm	0–1,500 mm	0.1–3 mm	0.1–3 mm	0–1 kg	—
Robot welding	1,000–5,000	1–1,500 mm	1–1,000 mm	1–850 mm	—	0–30 kg	—
Spot welding	2,000–10,000	—	—	—	—	—	0.1–8 mm
Manual electrode welding	—	—	—	—	—	—	—
Electron-beam welding	—	—	—	—	—	—	—
Submerged-arc welding	—	—	—	—	—	—	—
Flash-butt welding	—	—	—	—	—	—	—
Stud welding	1,000–10,000	—	—	—	—	—	—
Projection welding	—	—	—	—	—	—	—
Soldering	—	—	—	—	—	—	—
Friction welding	—	—	—	—	—	—	—
Friction stir welding	—	—	—	—	—	—	—
Seam welding	—	—	—	—	—	—	—
Vaccum brazing	—	—	—	—	—	—	—

Turning

Technologies	Lotsize	Length	Diameter

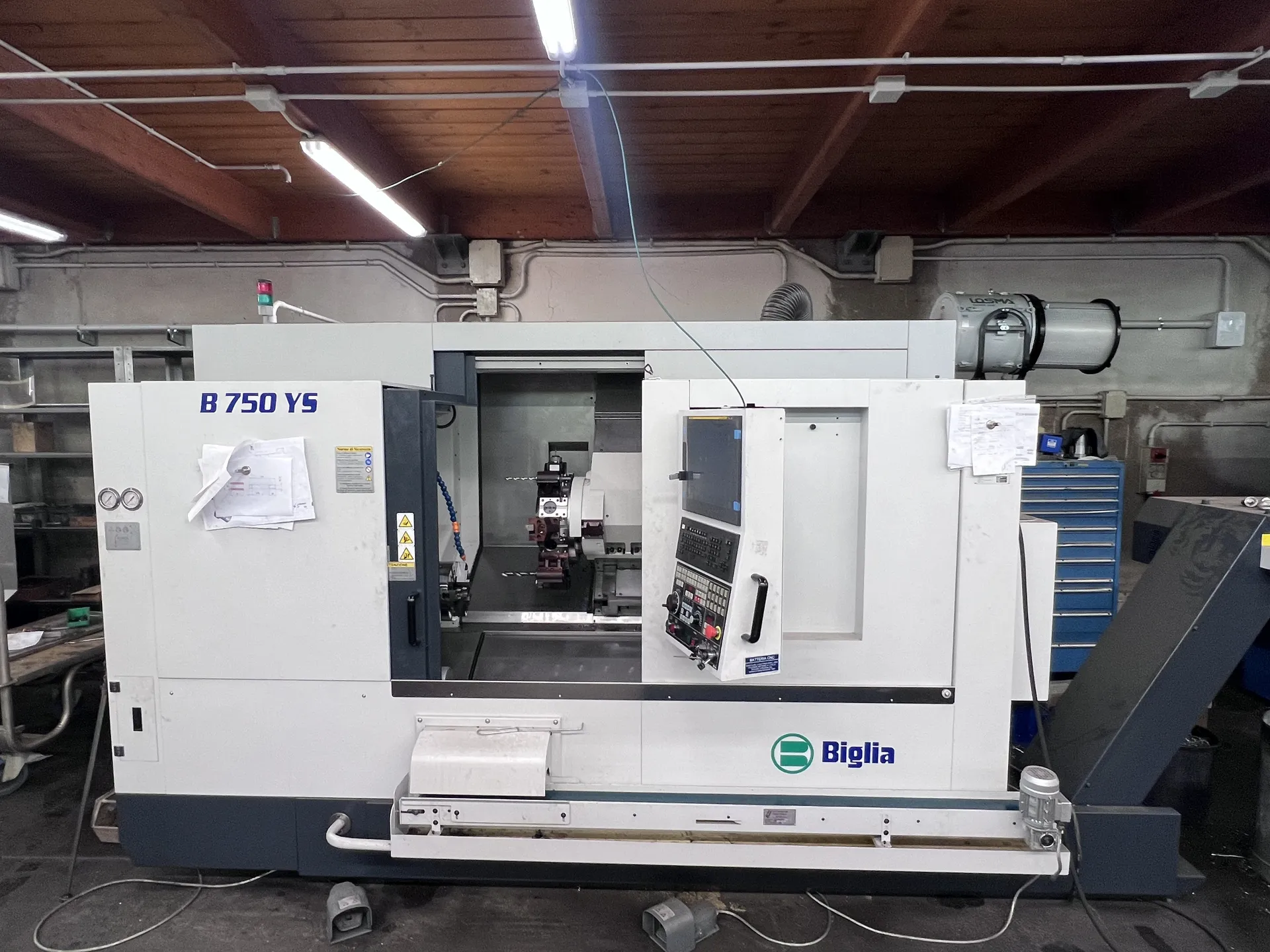

Turning	1–500 k	from 0 mm	from 0 mm

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	from 0 mm	from 0 mm	1,000–2,500 mm	25–500 kg
Machine frames / bases / racks	50–4,000 mm	80–1,000 mm	800–3,000 mm	0–200 kg

Assembly

Technologies	Weight
Mechanical assembly	0–5,000 kg

Pipe & Tube Manufacturing

Technologies	Lotsize	Length	Width	Height	Diameter	Material thickness
Pipe bending	from 10	from 0 mm	—	—	from 0 mm	from 0 mm
Laser cutting, tube & section	from 100	500–2,000 mm	from 50 mm	50–100 mm	—	from 3 mm
Flange bending, profile bending	500–10,000	—	50–2,000 mm	—	—	1–8 mm
Plate rolling / bending	from 1	—	from 0 mm	—	—	from 0 mm

Sheet Metal Forming (Stamping, Deep-drawing)

Technologies	Lotsize	Length	Width	Height	Material thickness
Stamping and bending machine (Bihler)	from 5,000	0–100 mm	from 10 mm	—	from 0 mm

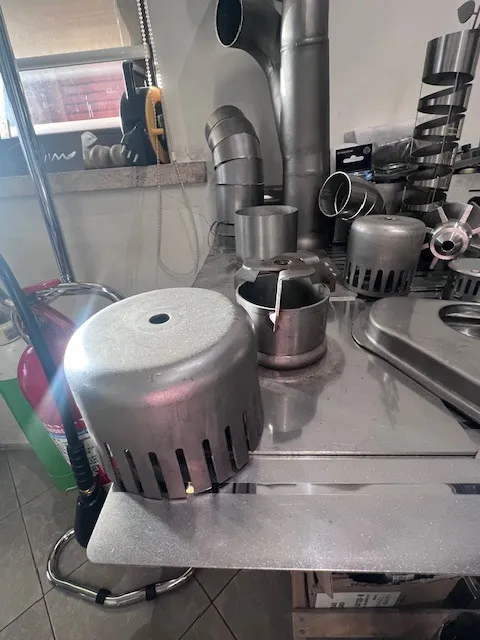

Deep-drawing	10–500 k	from 0 mm	from 0 mm	from 0 mm	from 0 mm
Fineblanking / pressing	10,000–1 M	800–900 mm	500–570 mm	—	—
Plate rolling / bending	500–10,000	—	50–1,000 mm	—	0.8–5 mm

Cutting dies / deep drawing dies

Technologies	Length	Width	Height	Weight
Deep-drawing dies	50–1,000 mm	50–1,000 mm	100–500 mm	0–500 kg

Mechanical Engineering

Technologies	Lotsize	Length	Width	Height	Weight
Apparatus engineering	300–10,000	1–6,000 mm	1–1,500 mm	1–3,000 mm	0–2,000 kg

Milling

Technologies	Lotsize	Length	Width	Height
Milling	100–500 k	0–500 mm	0–250 mm	100–500 mm

Jigmaking

Technologies	Length	Width	Height	Weight
Welding jigs	50–4,000 mm	50–2,000 mm	500–3,000 mm	0–20,000 kg

Materials

Cast metals

Cast steelCast iron

Advanced Materials

Nickel alloy (Inconel, Monel, Hastelloy)Carbide

Heavy metals

Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder

Steel

Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel

Light metals

Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys

Industries

Precision engineering, mechatronics and opticsChemical industryMechanical engineeringSpecial purpose machinery manufacturingAerospace and aviation industry
