Raskopf tec GmbH
Germany, 58089 Hagen
Overview
About Raskopf tec GmbH
Who we are
We, the Raskopf company, have been working in tool and mold construction at our location since 1923. It all began with forging dies for the massive forming industry. We have been manufacturing permanent molds for aluminum casting since the 1990s. Here, the production of molds for car wheels has become a special focus of our company. In recent years, however, the proportion of other cast aluminum molds has grown steadily. Our sales markets are Germany and the EU, e.g. Denmark and Austria.
1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6
Hagen , Germany
Member since 2021
Employees20 - 50
Certificates1
Turnover1 - 5 Mil.
Year of foundation1919
Competencies
Technologies
Jigmaking
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Drilling / milling jigs | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | 25–16,000 kg |
Assembly jigs | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | 25–16,000 kg |
Clamping devices | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | 25–16,000 kg |
Measuring & Testing
| Technologies | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|
Measuring / testing | 50–3,000 mm | 50–3,000 mm | 50–1,600 mm | 50–3,000 mm | 5–16,000 kg |
Turning
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Turning | 0–100 | 50–1,200 mm | — | — | 80–1,300 mm | — |
Deep-hole drilling | 0–10 | 150–1,600 mm | 150–1,600 mm | 150–1,200 mm | 150–1,800 mm | 0–10,000 kg |
Mechanical Engineering
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Mechanical engineering | 1–5 | 250–3,000 mm | 250–1,600 mm | 100–2,000 mm | 50–16,000 kg |
Hydraulic engineering | 1–5 | 250–3,000 mm | 250–1,600 mm | 100–2,000 mm | 50–16,000 kg |
Pneumatic engineering | 1–5 | 250–3,000 mm | 250–1,600 mm | 100–1,200 mm | 50–16,000 kg |
Apparatus engineering | 1–5 | 250–3,000 mm | 250–1,600 mm | 100–1,200 mm | 50–16,000 kg |
Tool building | 1–5 | 250–3,000 mm | 250–1,600 mm | 100–1,200 mm | 50–16,000 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 50–16,000 kg |
Mould construction
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Gravity casting moulds | 250–3,000 mm | 250–1,600 mm | 100–2,000 mm | 50–16,000 kg |
Vacuum deep-drawing moulds | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | 0–10,000 kg |
Forging dies | 250–3,000 mm | 250–1,600 mm | 250–1,200 mm | 50–16,000 kg |
Heat Treatment
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Annealing | 1–5 | 250–2,000 mm | 100–1,100 mm | 100–700 mm | 70–1,100 mm | 50–3,500 kg |
Milling
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Milling | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | — | — |
5-axis milling machines | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | — | — |
Form milling (3 D) | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | — | — |
Full-range milling (including turning) | 1–100 | 150–1,200 mm | 150–1,200 mm | 150–1,600 mm | 70–1,200 mm | — |
HSC milling | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | — | 25–16,000 kg |
Engraver milling | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | 70–1,600 mm | 25–16,000 kg |
Assembly Group Manufacturing
| Technologies | Lotsize | Length | Diameter | Weight |
|---|---|---|---|---|
Shrinking / cold-stretching | 1–10 | 70–700 mm | 70–1,100 mm | 10–3,500 kg |
Drilling / Sawing
| Technologies | Lotsize | Length | Width | Height | Diameter | Weight |
|---|---|---|---|---|---|---|
Sawing | 1–100 | 70–3,000 mm | 10–240 mm | 10–240 mm | 10–240 mm | — |
Drilling / threading / tapping | 1–100 | 150–3,000 mm | 150–1,600 mm | 150–1,200 mm | — | 25–16,000 kg |
Labelling / marking
| Technologies | Lotsize | Length | Width | Height | Diameter |
|---|---|---|---|---|---|
Marking | 1–10 | 250–3,000 mm | 250–1,600 mm | 250–1,200 mm | 70–1,200 mm |
Materials
Heavy metals
Copper-zinc alloys (brass)Copper and copper alloysZinc and zinc alloysSolder
Cast metals
Cast steelCast iron
Steel
Structural steelCase hardening/tempering steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steelTool steelSpring steelCold extruding steel
Light metals
Aluminium and aluminium alloysMagnesium and magnesium alloysTitanium and titanium alloys
Sintered materials
Metal powder for formed parts
Non-metal inorganic materials
Ceramics
Advanced Materials
Nickel alloy (Inconel, Monel, Hastelloy)Carbide
Plastics/synthetic materials
High performance plasticThermosetsParticle reinforced composite materialsWood-Plastic-Composites (WPC)Natural Fibre Composites (NFC)
Industries
Mechanical engineeringSpecial purpose machinery manufacturingBuilding, agricultural and forestry machinery manufacturingAutomotive and vehicle constructionPackaging industryApparatus engineeringMachine tool manufacturingRailway and rail vehicles industry
Certificates
ISO 9001:2015
Parts & Machines
Parts (4)
1 / 4

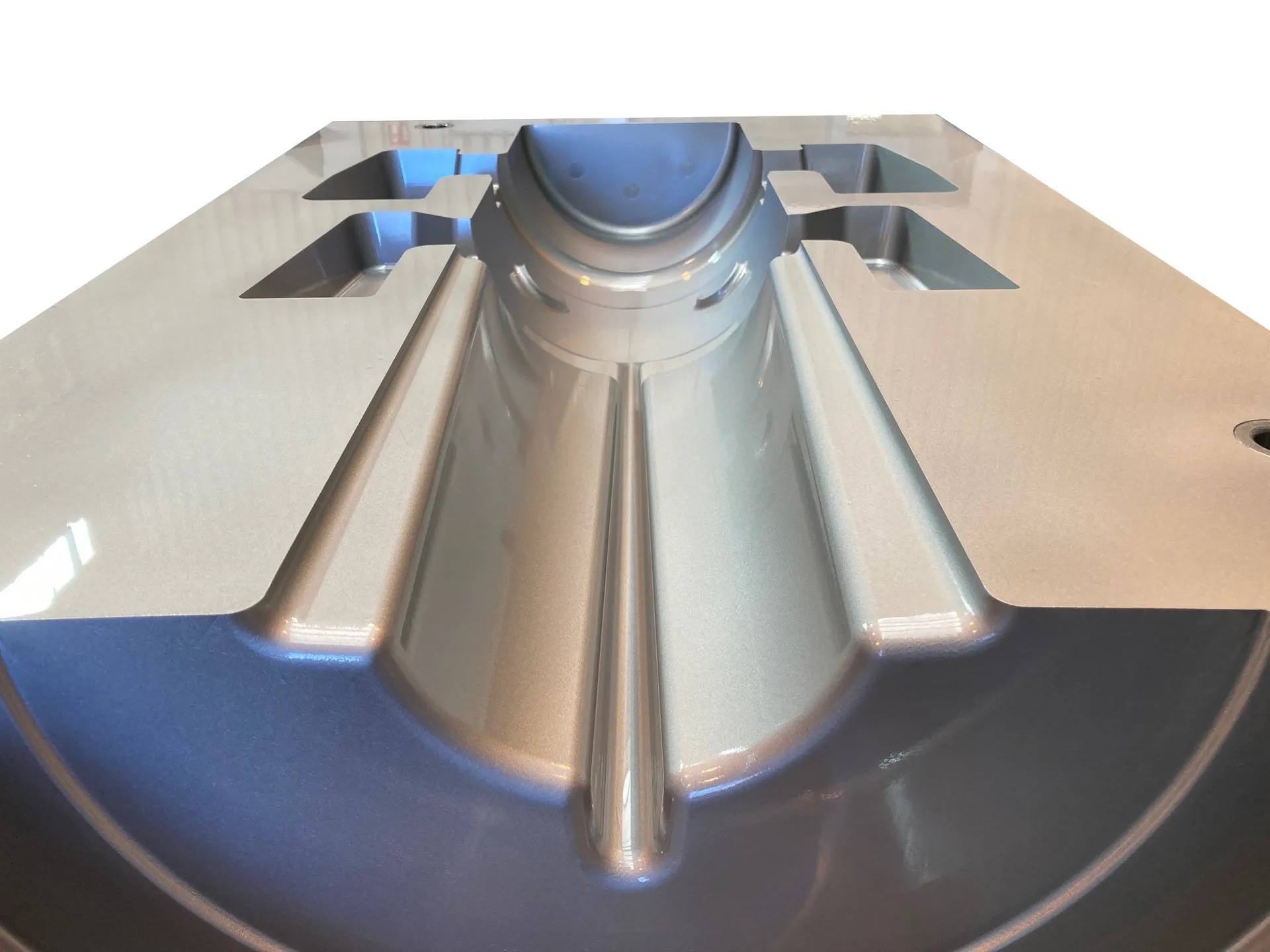

Kokillenformteil
Technology5-axis milling machines
MaterialTool steel
Lotsize2
ComplexityLow
IndustriesMachine tool manufacturing
2 / 4

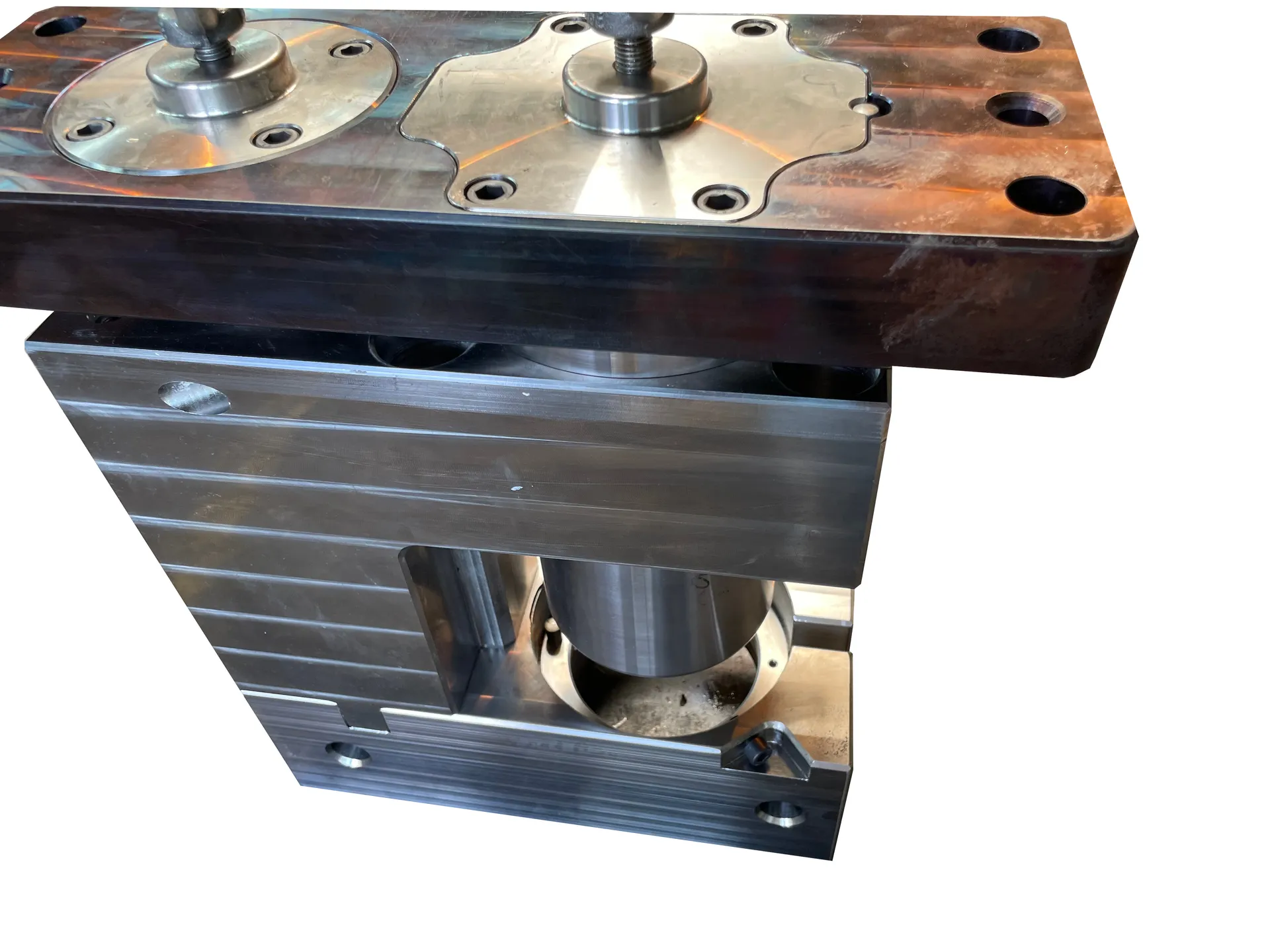

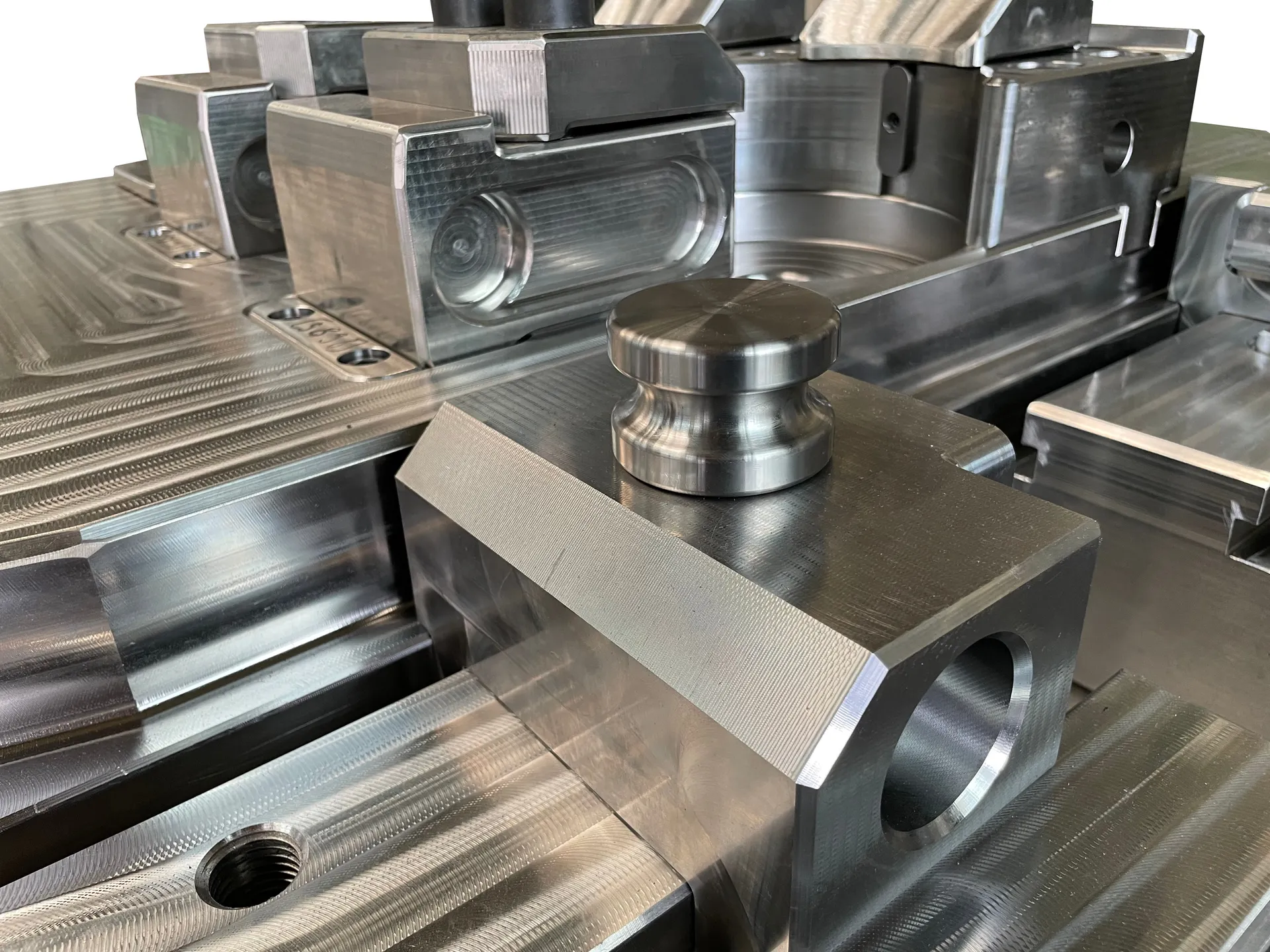

Werkzeughalter
TechnologyMilling
MaterialTool steel
Lotsize2
ComplexityMedium
IndustriesMechanical engineering
DescriptionGrundplatte mit mehreren Passbohrungen und T-Nuten, welche in einer Lagetoleranz +/-0,02 eingearbeitet wurden.
3 / 4

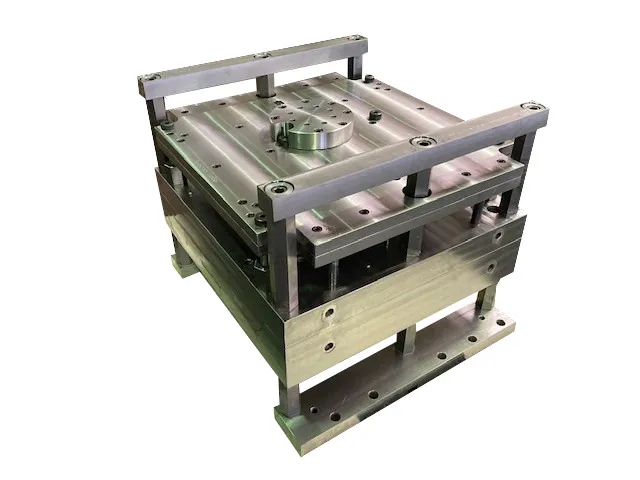

ND-Kokille
TechnologyForm milling (3 D)
MaterialCase hardening/tempering steel
Lotsize1
IndustriesMachine tool manufacturing
DescriptionGussteildaten und Gießmaschinendaten werden zur Verfügung gestellt und wir konstruieren und bauen die passende Kokille.
Price per piece€17,000.00
4 / 4
Werkzeughalter
TechnologyMilling
MaterialTool steel
Lotsize1
ComplexityMedium
IndustriesMechanical engineering
DescriptionFormgebundene Passung; Bauteile wurden zueinander eingeschrumpft
Machinery (3)
1 / 3

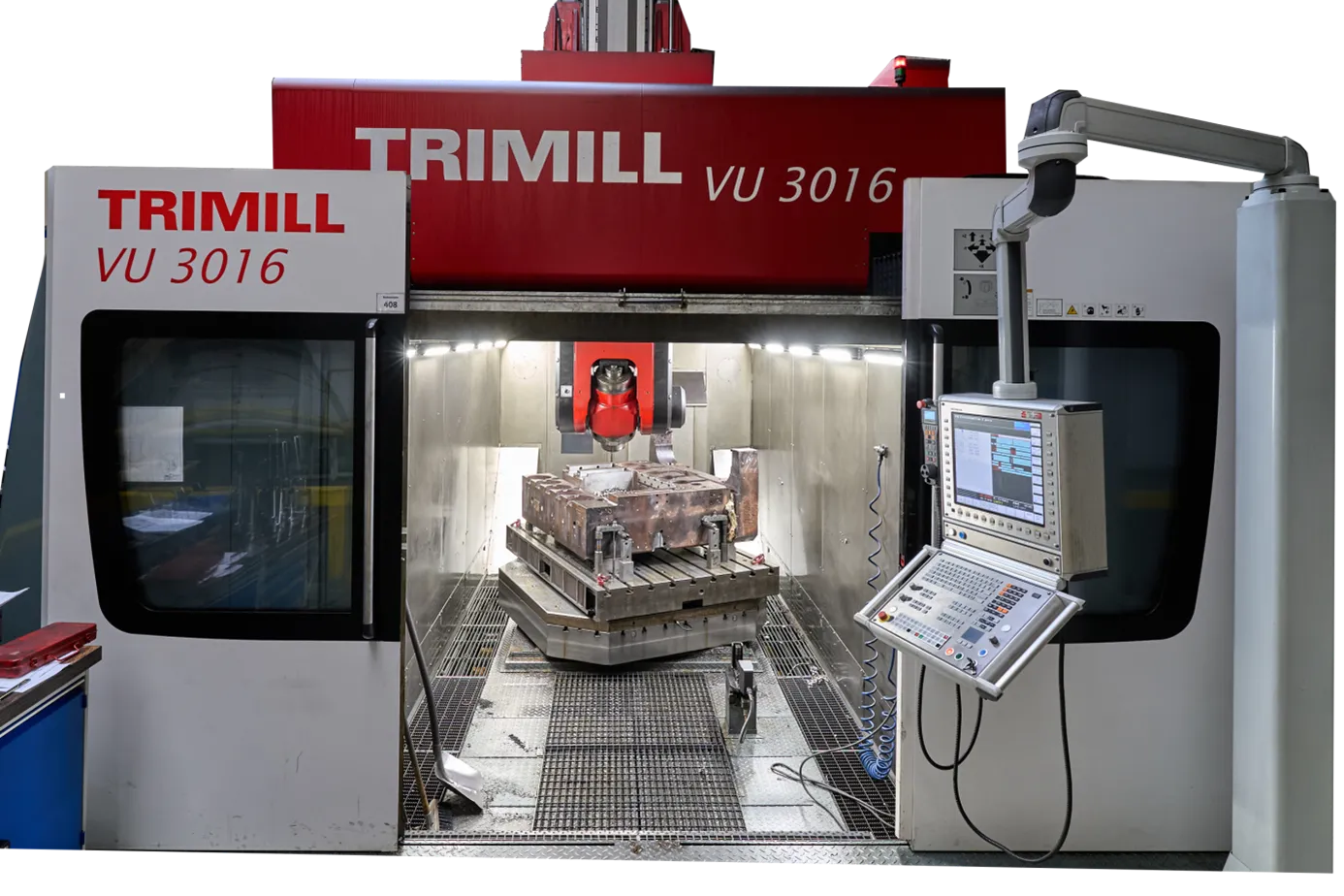

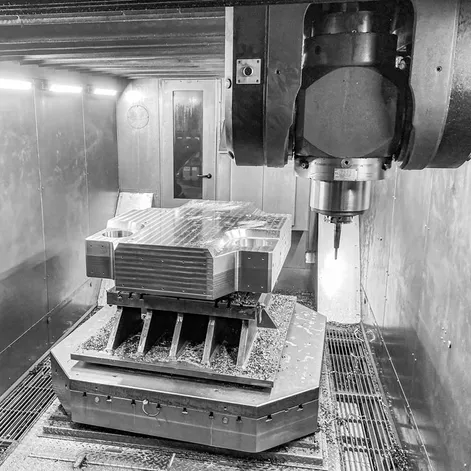

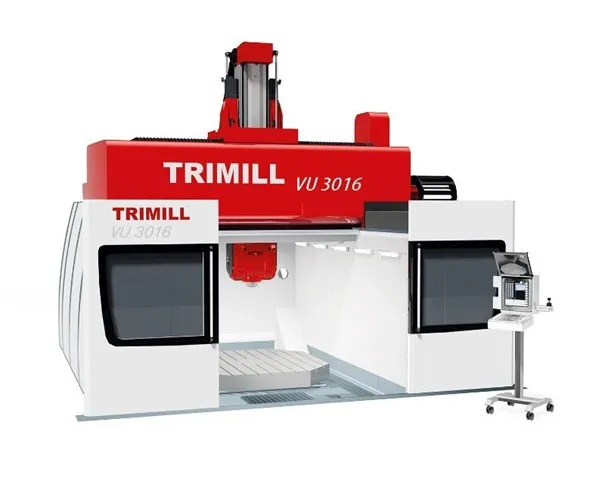

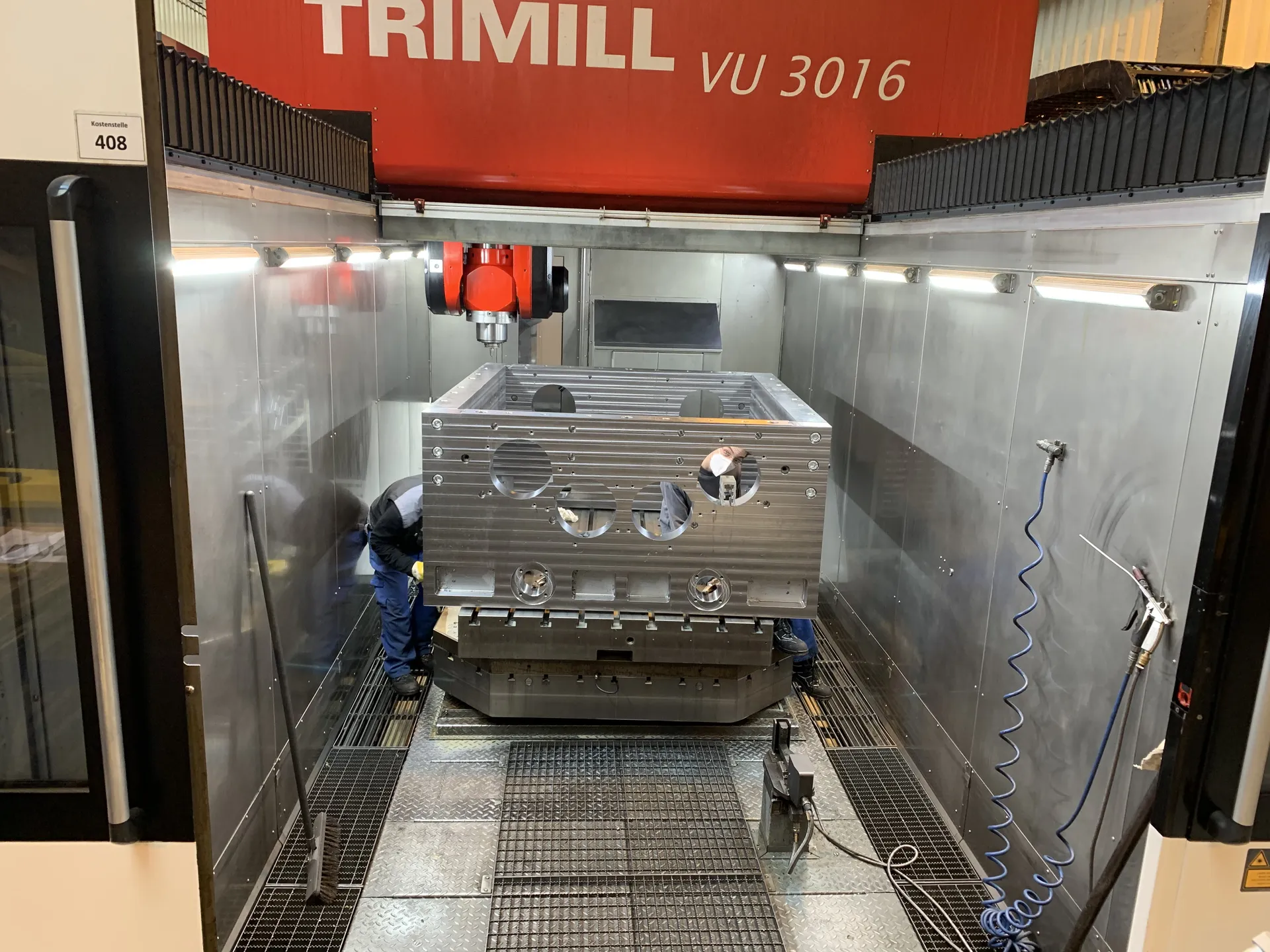

VU3016
ManufacturerTrimill
ControlITNC530 Heidenhain
Year of Construction2017
Technology
MillingEngraver millingHSC milling5-axis milling machinesForm milling (3 D)
2 / 3

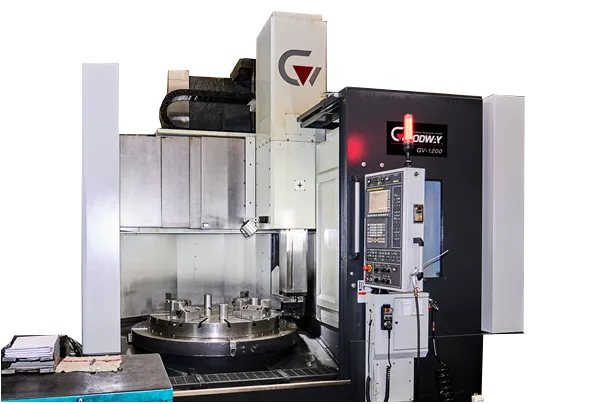

GV-1200
ManufacturerGoodway
ControlFanuc 0i-TF
Year of Construction2019
Technology
Turning
3 / 3
RP800
ManufacturerRöders
ControlRöders-Steuerung
Year of Construction2001
Technology
Form milling (3 D)
4 Parts
5-axis milling machines1
Milling2
Form milling (3 D)1
3 Machinery
Milling1
Engraver milling1
HSC milling1
5-axis milling machines1
Form milling (3 D)2
Turning1
