Richter Metallbau GmbH & Co. KG

Germany, 49170 Hagen a.T.W.

Overview

About Richter Metallbau GmbH & Co. KG

Who we are

Richter metal construction for industrial customers As a partner for industrial customers, Richter Metallbau offers a competent full service at an economical price. Another thing that speaks for a cooperation with us: our in-depth design and production experience. The first class quality of all our work. And of course: that we are available for you at any time and that we accompany you as partners throughout the entire course of the project. You can find an overview of our services for industrial customers below. Of course, we would be happy to advise you personally or send you an individual offer. Contact us!

Hagen a.T.W., Germany

Member since 2021

Employees20 - 50

Certificates1

Turnover1 - 5 Mil.

Year of foundation1994

Competencies

Technologies

Turning

Technologies	Lotsize	Length	Diameter
Turning	1–10	0–1,000 mm	0–200 mm

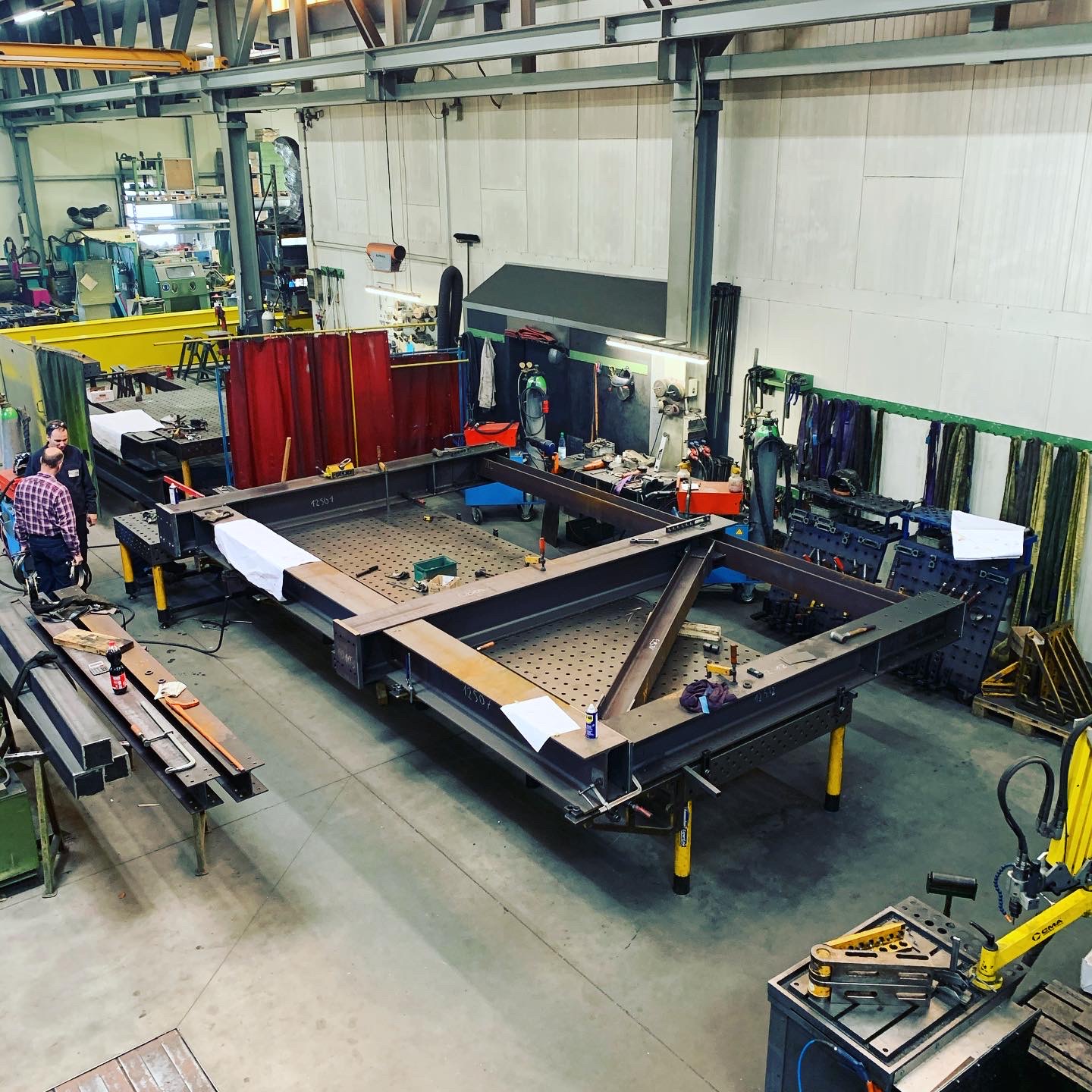

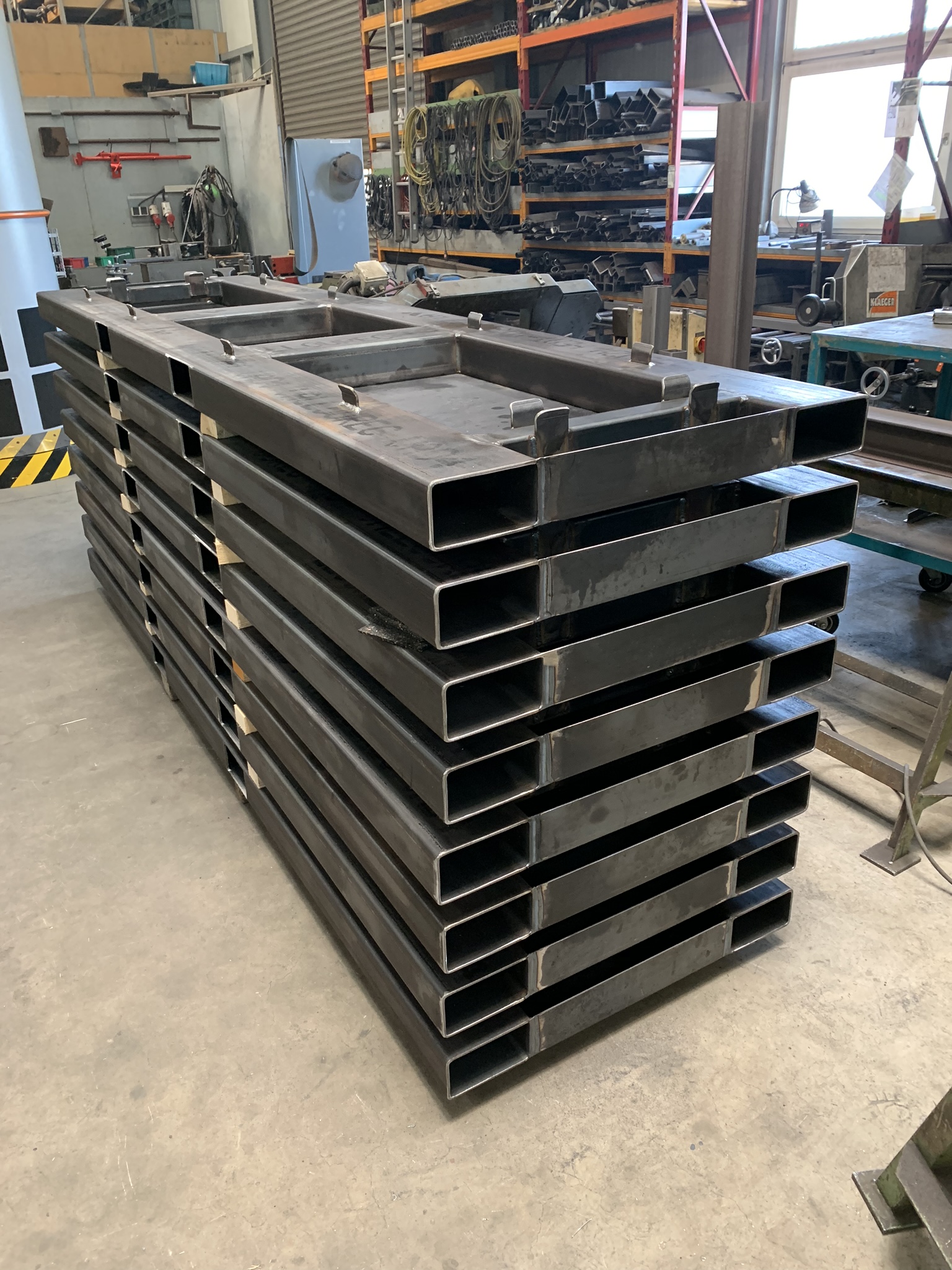

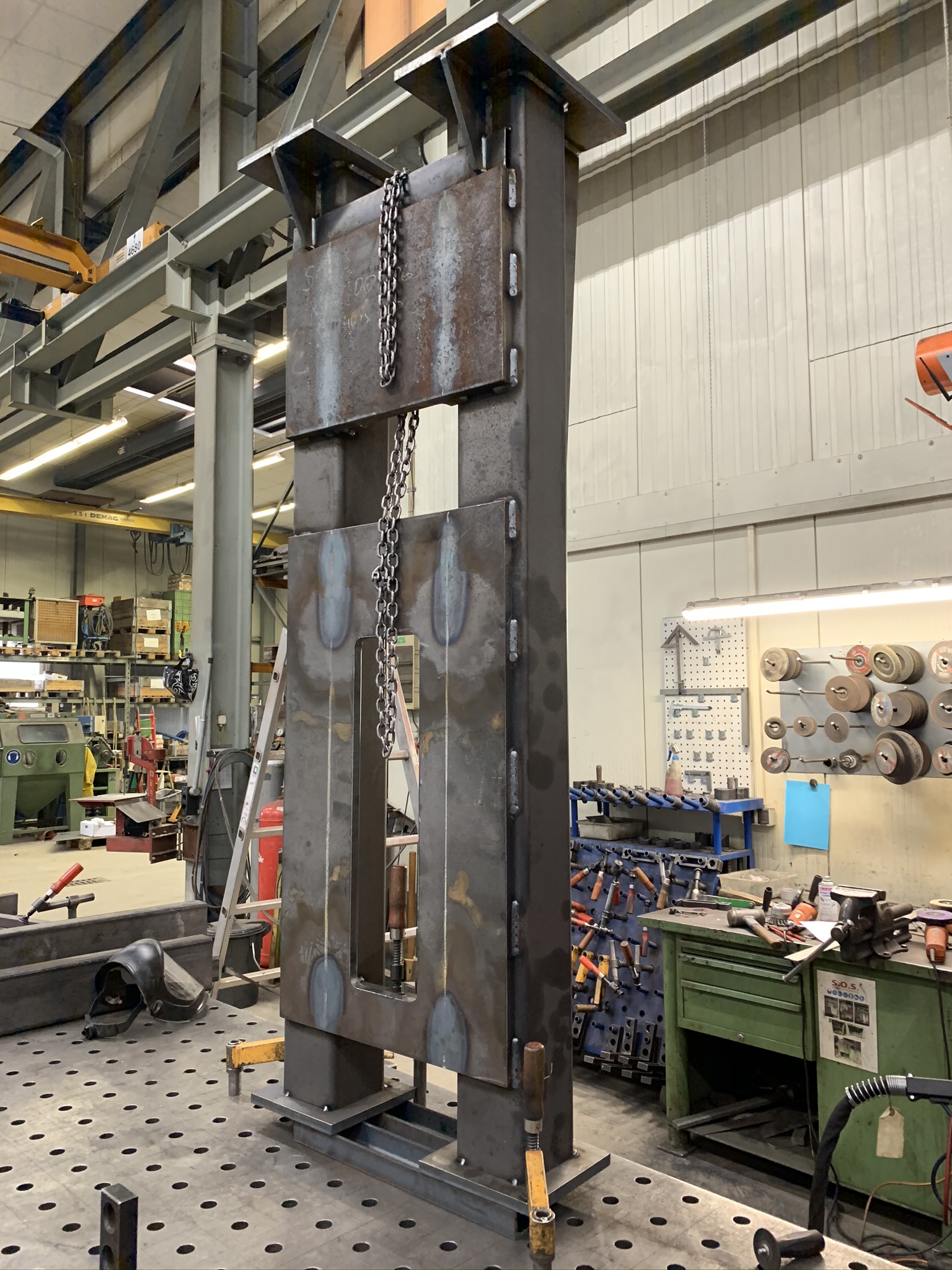

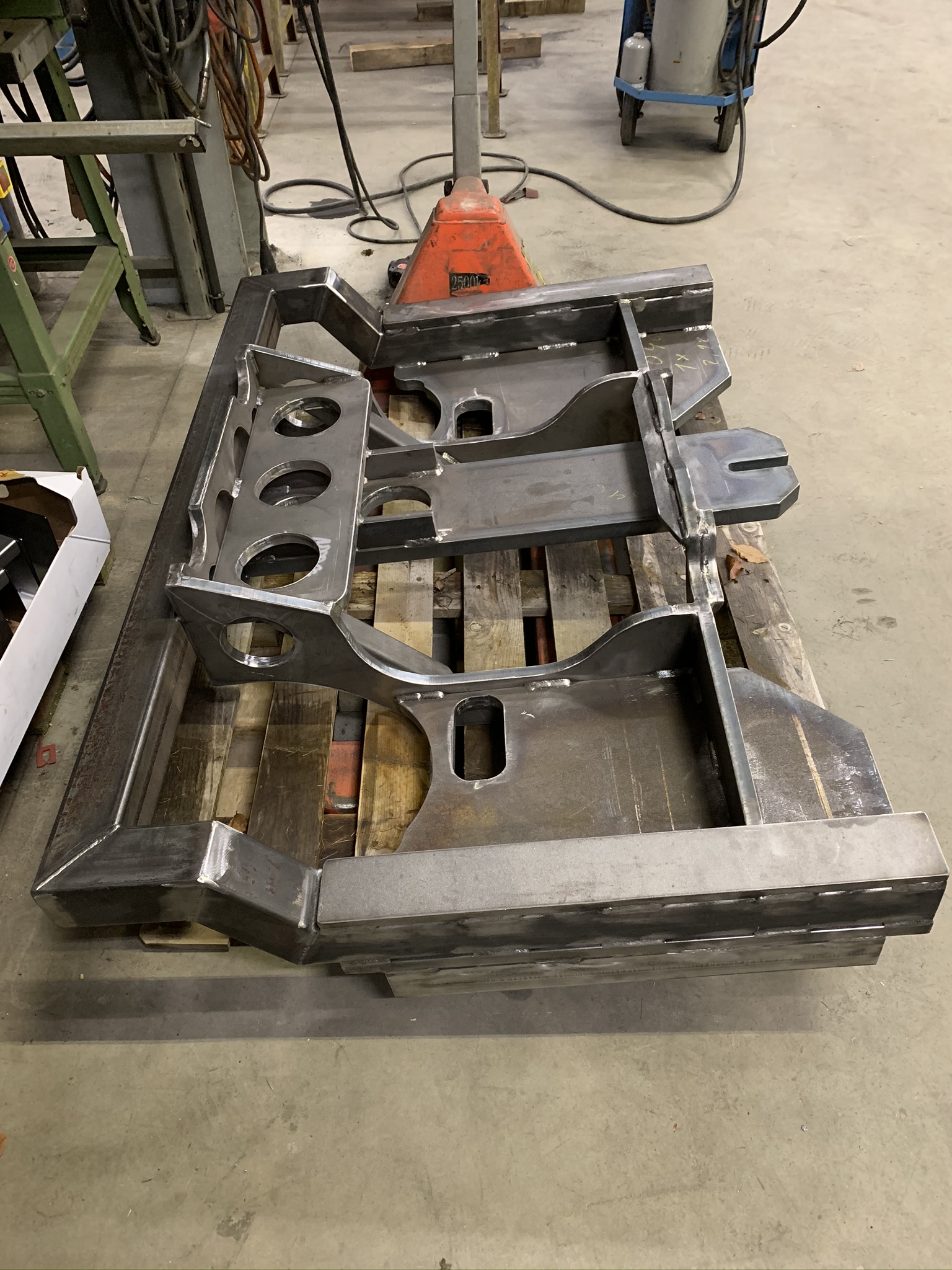

Welded constructions / Structural Steelwork

Technologies	Length	Width	Height	Weight
Welded constructions (weldments)	10–18,000 mm	10–4,000 mm	10–4,000 mm	0–10,000 kg
Machine frames / bases / racks	10–18,000 mm	10–18,000 mm	10–3,500 mm	0–10,000 kg
Beam prefabrication	5–7,500 mm	5–600 mm	5–400 mm	0–5,000 kg

Welding

Technologies	Lotsize	Length	Width	Height	Weight
Inert gas shielded arc welding (MIG/MAG)	1–10,000	10–18,000 mm	10–4,000 mm	10–4,000 mm	0–10,000 kg
Inert gas shielded arc welding (TIG)	1–10,000	10–18,000 mm	10–4,000 mm	10–4,000 mm	0–10,000 kg

Sheet Metal Processing

Technologies	Lotsize	Length	Width	Weight	Material thickness
Bending / folding	1–100	10–3,000 mm	—	—	1–6 mm
Plasma fusion cutting	1–1,000	100–3,000 mm	100–1,500 mm	1–720 kg	3–20 mm
Plate rolling / bending	0–100	—	0–1,000 mm	—	0–5 mm
Shearing (rectangular blank/strip)	1–1,000	—	—	—	1–6 mm

Milling

Technologies	Lotsize	Length	Width	Height
Milling	10–100	500–3,000 mm	250–1,000 mm	100–500 mm

Drilling / Sawing

Technologies	Lotsize	Length	Width	Height	Diameter	Weight
Sawing	1–1,000	10–6,000 mm	10–300 mm	10–300 mm	10–300 mm	—
Drilling / threading / tapping	1–1,000	10–6,000 mm	10–400 mm	10–350 mm	—	0–10,000 kg

Materials

Steel

Structural steelStainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)Free-cutting/mild steel

Light metals

Aluminium and aluminium alloys

Industries

Building, agricultural and forestry machinery manufacturingPackaging industryMining and tunnel engineeringApparatus engineeringAutomotive and vehicle constructionMechanical engineeringSpecial purpose machinery manufacturingFurniture industryMachine tool manufacturingPlant engineering and constructionPaper and printing machinery industry

+3 moreShow less

Certificates

DIN EN 1090
