About RIEMER + TIMMANN Rohrleitungsbau GmbH
Who we are
RIEMER + TIMMANN ROHRLEITUNGSBAU GMBH has existed since 1984 with currently 20 employees. The company is headquartered in 22145 Braak near Hamburg. We offer you: Delivery, assembly on construction sites and prefabrication in our factory in Braak In addition to assembly, we provide the complete delivery of pipe materials, holders, welding consumables and welding gases throughout Germany and abroad. We produce as many components as possible in our workshop according to your specifications. • TIG orbital welding technology We guarantee you the highest quality for all tasks in stainless steel piping and plant engineering. The use of computer-aided TIG orbital welding technology in thin-walled areas is our specialty. • Endoscopy and documentation In accordance with the FDA's GMP guidelines, we are able to document virtually any weld seam photographically using our own video endoscope and store it digitally on data carriers. Our pipeline installations focus on: • Stainless steel piping for: - pharmaceutical, biotechnology and chemical companies - breweries and dairies - Food and food companies • Prefabrication and unit piping - Ultra-high temperature systems (including test and pilot plants) - CIP systems - short-term heating systems (including sterile and aseptic), - separator systems (including sterile and aseptic systems), - Complete valve nodes, coupling panels, pipe fences - Prefabrication of plant parts and assemblies for outdoor installations • Piping of complete large refrigeration systems for: - Cold storage warehouses and distribution centers - breweries and dairies - slaughterhouses and sausage factories - ice cream factories • General industrial pipeline construction - energy pipes (e.g. steam, condensate, water, etc.) Tools and approvals • Tools required for our construction sites • TIG welding machines • TIG orbital pipe welding machines (closed GTAW system) for the highest demands from 9.5 to 114 mm for the pharmaceutical sector (affected by the product). • TIG orbital pipe welding machines (open system) for Cr-Ni welds DN 15 to DN 150 • Tungsten electrode sharpeners • Residual oxygen meters • Two own video endoscopes (endoscope length 9.6 m) with digital image memory • Fischer Ferritscop ferrite content meter including printer, fully mobile • Weld seam documentation using a photo printout or digitally • Welding engineer for welding supervision and advice • Process tests in accordance with TRB 200 /AD fact sheet HP2/1
...
...
1 / 13
2 / 13
3 / 13
4 / 13
5 / 13
6 / 13
7 / 13
8 / 13
9 / 13
10 / 13
11 / 13
12 / 13
13 / 13
Braak, Germany
Member since 2023
Employees20 - 50
Certificates1
Turnover1 - 5 Mil.
Year of foundation1984
Competencies
Technologies
Welded constructions / Structural Steelwork
| Technologies | Length | Width | Height | Weight |
|---|---|---|---|---|
Welded constructions (weldments) | 10–50,000 mm | 10–50,000 mm | 10–50,000 mm | 0–8,000 kg |
Assembly
| Technologies | Weight |
|---|---|
Mechanical assembly | 1–8,000 kg |
Welding
| Technologies | Lotsize | Length | Width | Height | Weight |
|---|---|---|---|---|---|
Inert gas shielded arc welding (TIG) | from 0 | from 0 mm | from 0 mm | from 0 mm | from 0 kg |
Materials
Steel
Stainless steel (rust-proof V2A)Stainless steel (rust-proof V4A)
Industries
Air conditioning, refrigeration and ventilation industryChemical industryApparatus engineeringAerospace and aviation industryMechanical engineeringFittings engineeringSpecial purpose machinery manufacturingPlant engineering and constructionBoiler, container and tank construction
Certificates
DIN EN ISO 3834
Parts & Machines
Parts (11)
1 / 11
Schweißbaugruppe T-Abzweig
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Width700 mm
Weight10 mm
Length500 mm
Height300 mm
Lotsize2
IndustriesPlant engineering and construction
2 / 11
Schweißbaugruppe Bogen - Flansch
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Width500 mm
Length500 mm
Height300 mm
Weight10 mm
Lotsize0
IndustriesPlant engineering and construction
3 / 11
Armaturenanschlüsse
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V4A)
Dimensions
Height200 mm
Weight3 mm
Length300 mm
Width100 mm
Lotsize100
ComplexityLow
IndustriesFittings engineering
4 / 11
Schweißbaugruppe
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V4A)
Dimensions
Width150 mm
Height300 mm
Length150 mm
Weight2 mm
Lotsize150
ComplexityLow
IndustriesFittings engineering
5 / 11
Prozessmodul
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Width1500 mm
Height2500 mm
Length1500 mm
Weight1000 mm
Lotsize0
ComplexityMedium
IndustriesPlant engineering and construction
6 / 11
Prozessmodul
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Height4000 mm
Weight10000 mm
Length2500 mm
Width4000 mm
Lotsize1
ComplexityMedium
IndustriesPlant engineering and construction
7 / 11
Schweißbaugruppe
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Width150 mm
Weight3 mm
Length700 mm
Height150 mm
Lotsize1
ComplexityLow
IndustriesApparatus engineering
8 / 11

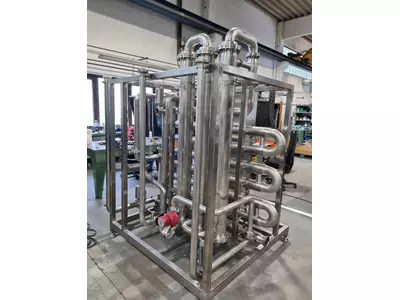

Kurzzeiterhitzungsanlage
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Weight4500 mm
Length4000 mm
Height2500 mm
Width1500 mm
Lotsize1
ComplexityMedium
IndustriesPlant engineering and construction
Price per piece€1.00
9 / 11
Ventilknoten
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Weight100 mm
Length1000 mm
Height700 mm
Width700 mm
Lotsize1
IndustriesPlant engineering and construction
10 / 11
Schweißbaugruppe
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Height250 mm
Width250 mm
Length1000 mm
Weight5 mm
Lotsize1
ComplexityLow
IndustriesApparatus engineering
11 / 11
Koppelpaneel mit Verteiler
TechnologyInert gas shielded arc welding (TIG)
MaterialStainless steel (rust-proof V2A)
Dimensions
Width500 mm
Weight1500 mm
Length3000 mm
Height1500 mm
Lotsize1
ComplexityMedium
IndustriesApparatus engineering
Machinery (3)
1 / 3

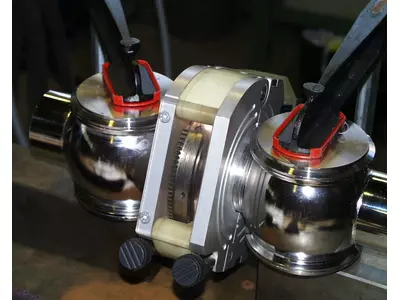

Orbitalschweißzange WIG
ManufacturerOrbitec
ControlPolysoude
Year of Construction2010
2 / 3
Videoendoskopie
ManufacturerOlympus
ControlOlympus
Year of Construction2010
3 / 3
Orbitalschweißzange offen
ManufacturerESS
ControlESS
Year of Construction2000
